Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General

Discontinued model Data version 1990-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

110 part groups · 9 illustrations

Illustrations

MBH463C 1984-11 → —

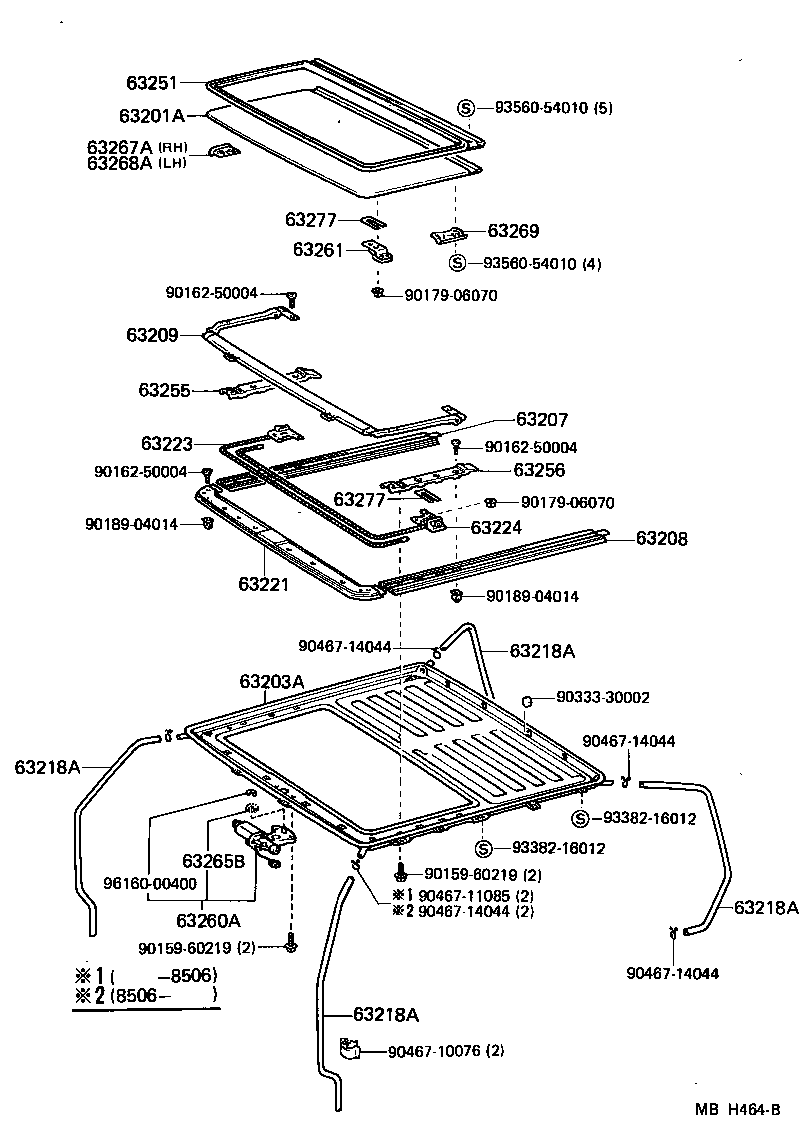

MBH464B 1984-11 → —

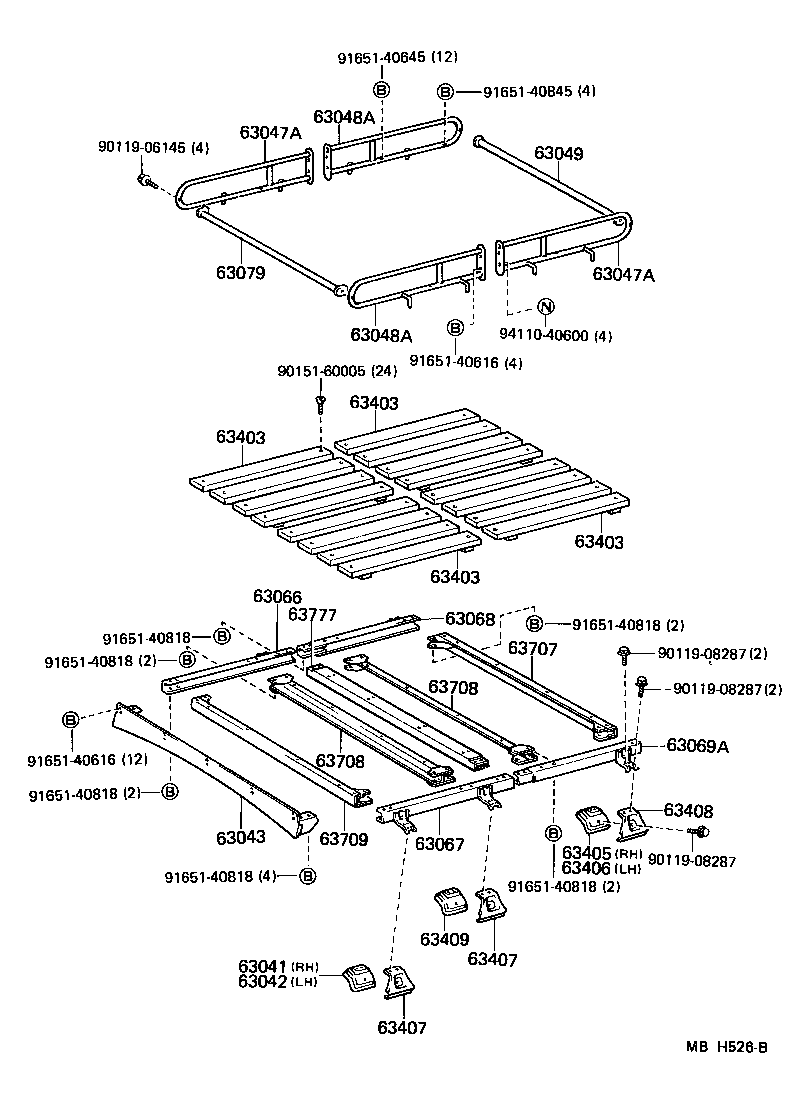

MBH526B 1984-11 → 1986-08

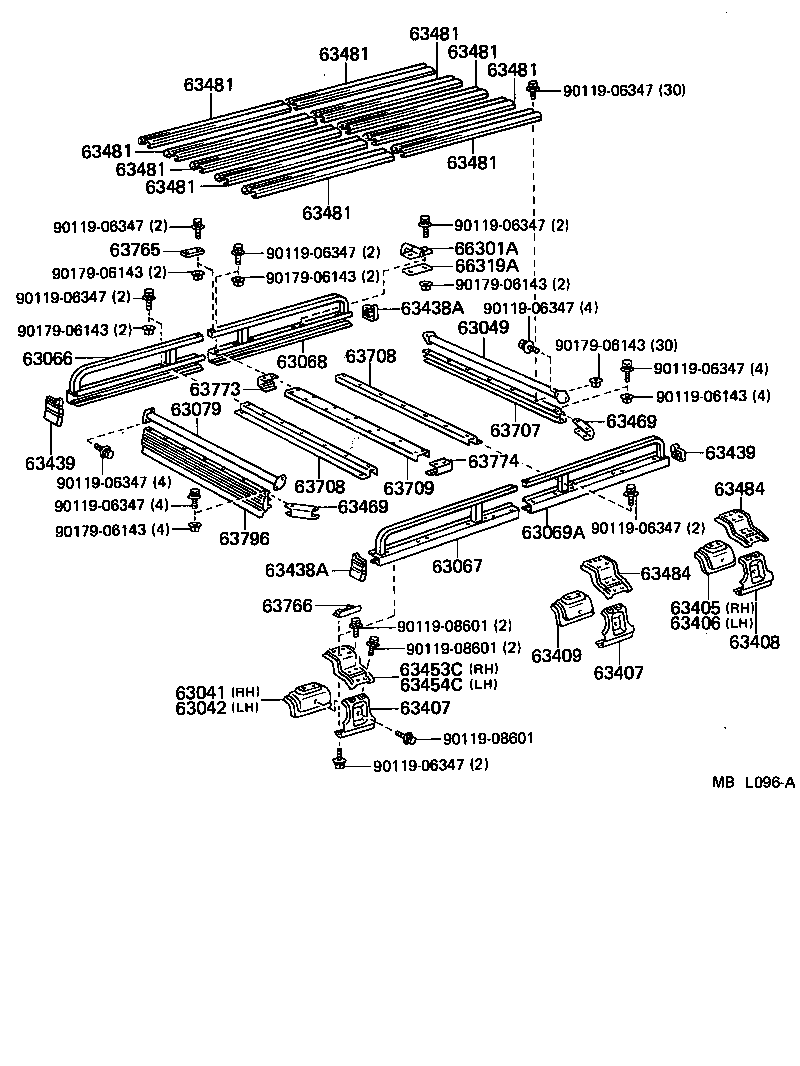

MBL096A 1986-08 → —

MBH542B 1984-11 → —

MBK220 1985-10 → —

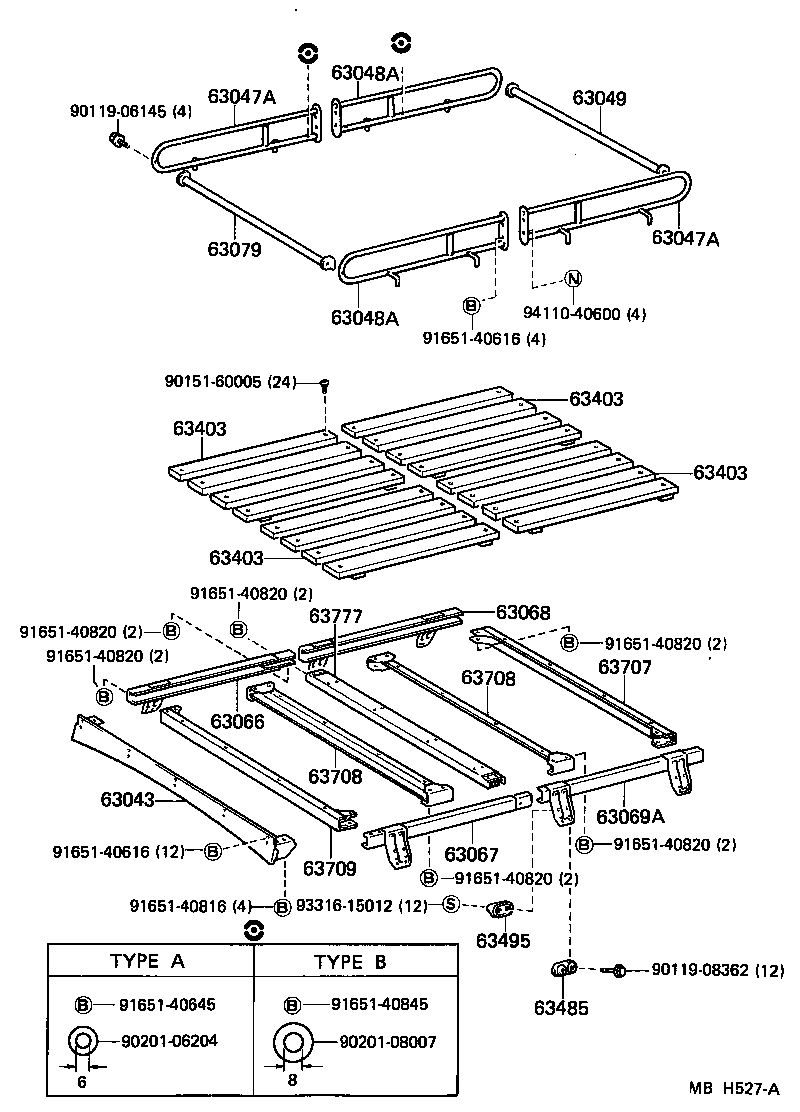

MBH527A 1984-11 → 1986-08

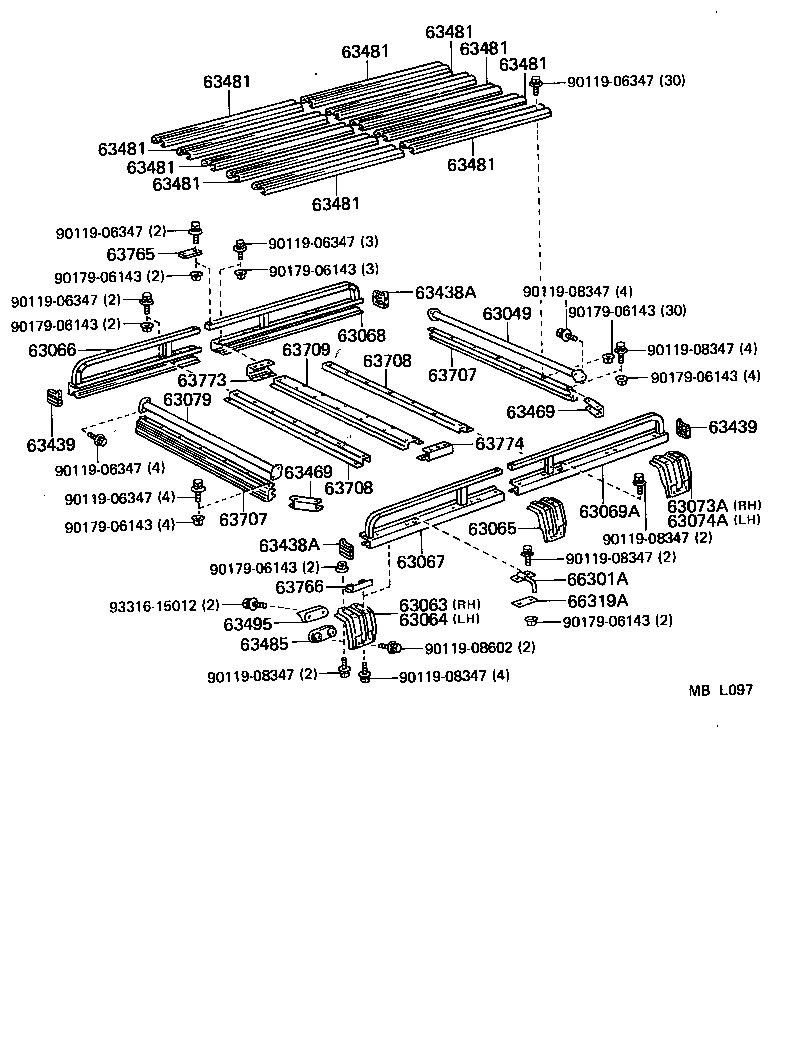

MBL097 1986-08 → —

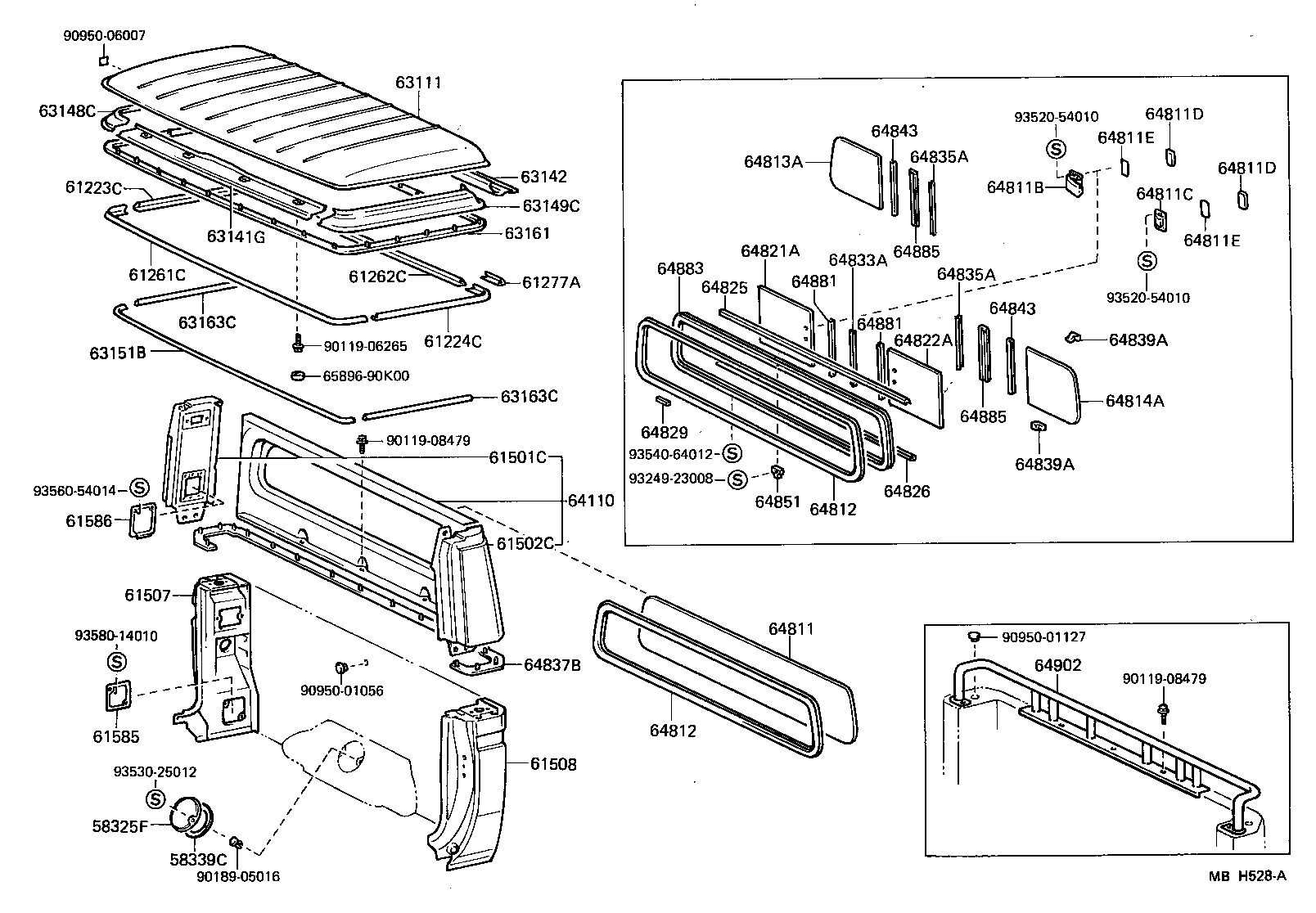

MBH528A 1984-11 → —

Part groups

PNC	Description
61223C	Channel, Roof Drip Side, RH
61224C	Channel, Roof Drip Side, LH
61261C	Channel, Roof Drip, Front
61262C	Channel, Roof Drip, Rear
61277A	Joint, Roof Drip Channel
61501C	Pillar Sub-assy, Cab Rear, Upper RH
61502C	Pillar Sub-assy, Cab Rear, Upper LH
61507	Pillar Sub-assy, Cab Rear, Lower RH
61508	Pillar Sub-assy, Cab Rear, Lower LH
61585	Lid, Quarter Hole, NO.1
61586	Lid, Quarter Hole, NO.2
63041	Leg Sub-assy, Roof Rack, Front RH
63042	Leg Sub-assy, Roof Rack, Front LH
63043	Panel Sub-assy, Roof Rack Wind Deflector
63047A	Frame Sub-assy, Roof Rack Rail, Upper NO.1
63048A	Frame Sub-assy, Roof Rack Rail, Upper NO.2
63049	Frame Sub-assy, Roof Rack, Upper End
63063	Stay Sub-assy, Roof Rack, Front RH
63064	Stay Sub-assy, Roof Rack, Front LH
63065	Stay Sub-assy, Roof Rack, Center
63066	Frame Sub-assy, Roof Rack, Lower Front RH
63067	Frame Sub-assy, Roof Rack, Lower Front LH
63068	Frame Sub-assy, Roof Rack, Lower Rear RH
63069A	Frame Sub-assy, Roof Rack, Lower Rear LH
63073A	Stay Sub-assy, Roof Rack, Rear RH
63074A	Stay Sub-assy, Roof Rack, Rear LH
63079	Frame Sub-assy, Roof Rack, Upper Front
63102A	Panel Sub-assy, Windshield Header
63105A	Frame Sub-assy, Back Door Opening
63111	Panel, Roof
63141G	Reinforcement, Roof Panel, NO.1
63142	Reinforcement, Roof Panel, NO.2
63143A	Reinforcement, Roof Panel
63143B	Reinforcement, Roof Panel, NO.3
63148C	Reinforcement, Roof Panel Side, RH
63149C	Reinforcement, Roof Panel Side, LH
63150	Reinforcement Assy, Roof Panel
63151B	Seal, Roof Panel Reinforcement
63161	Weatherstrip, Roof
63163C	Seal, Roof Panel Reinforcement, Side
63189A	Bracket, Roof Rack, Center
63201A	Panel Sub-assy, Sliding Roof OR Removable Roof
63203A	Housing Sub-assy, Sliding Roof OR Removable Roof
63207	Rail Sub-assy, Sliding Roof Guide, RH
63208	Rail Sub-assy, Sliding Roof Guide, LH
63209	Panel Sub-assy, Roof Wind Deflector
63218A	Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63221	Casing, Sliding Roof Cable Guide
63223	Cable, Sliding Roof Drive, RH
63224	Cable, Sliding Roof Drive, LH
63251	Weatherstrip, Sliding Roof Panel OR Removable Roof
63255	Cover, Sliding Roof Guide Rail, RH
63256	Cover, Sliding Roof Guide Rail, LH
63260A	Gear Sub-assy, Sliding Roof Drive
63261	Shoe, Sliding Roof, Front
63265B	Gear, Sliding Roof Drive
63267A	Protector, Sliding Roof Weatherstrip, RH
63268A	Protector, Sliding Roof Weatherstrip, LH
63269	Retainer, Sliding Roof Weatherstrip
63277	Shim, Sliding Roof Rail
63403	Deck Sub-assy, Roof Rack
63405	Leg Sub-assy, Roof Rack, Rear RH
63406	Leg Sub-assy, Roof Rack, Rear LH
63407	Support Sub-assy, Roof Rack Leg, Front
63408	Support Sub-assy, Roof Rack Leg, Rear
63409	Leg Sub-assy, Roof Rack, Center
63438A	Cover, Roof Rack End, NO.1
63439	Cover, Roof Rack End, NO.2
63453C	Stay, Roof Rack, Front RH
63454C	Stay, Roof Rack, Front LH
63469	Gusset, Roof Rack Lower Frame
63481	Board, Roof Rack Deck, NO.1
63484	Stay, Roof Rack
63485	Cushion, Roof Rack Leg, Center
63495	Spacer, Roof Rack Support
63707	Frame Sub-assy, Roof Rack, Lower NO.1
63708	Frame Sub-assy, Roof Rack, Lower NO.2
63709	Frame Sub-assy, Roof Rack, Lower NO.3
63765	Retainer, Roof Rack, Upper
63766	Retainer, Roof Rack, Lower
63773	Gusset, Roof Rack Center Frame, RH
63774	Gusset, Roof Rack Center Frame, LH
63777	Frame, Roof Rack, Lower Center
63796	Frame, Roof Rack, Lower NO.4
64110	Panel Assy, Front Body Back
64811	Glass, Back Window
64811B	Lock Assy, Back Window
64811C	Catch, Back Window Lock
64811D	Retainer, Back Window
64811E	Packing, Back Window Lock
64812	Weatherstrip, Back Window Glass, NO.1
64813A	Glass, Back Window Corner, RH
64814A	Glass, Back Window Corner, LH
64821A	Glass, Back Window Slide, RH
64822A	Glass, Back Window Slide, LH
64825	Run, Back Window Channel, Upper
64826	Run, Back Window Channel, Lower
64829	Film, Back Window Frame
64833A	Weatherstrip, Back Window Center Channel
64835A	Weatherstrip, Back Window Glass, Center
64837B	Weatherstrip, Back Panel, Center
64839A	Packing, Back Window
64843	Weatherstrip, Back Window Channel
64851	Stop, Back Window Slide Glass
64881	Channel, Back Window Glass
64883	Frame, Back Window
64885	Frame, Back Window Vertical
64902	Railing Sub-assy, Cab, Rear
66301A	Hook Sub-assy, Rope
66319A	Plate, Rope Hook

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
