Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

137 part groups · 19 illustrations

Illustrations

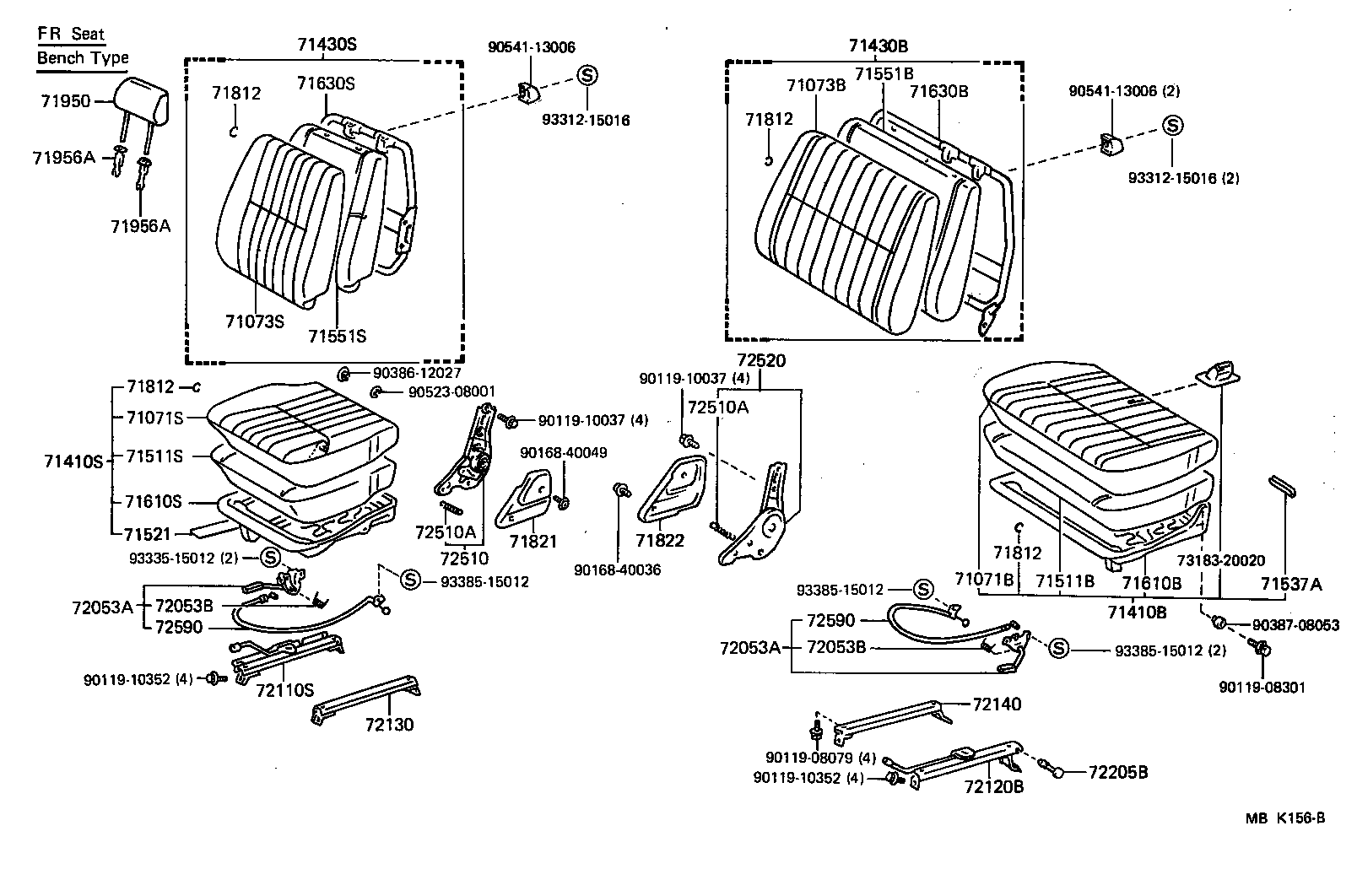

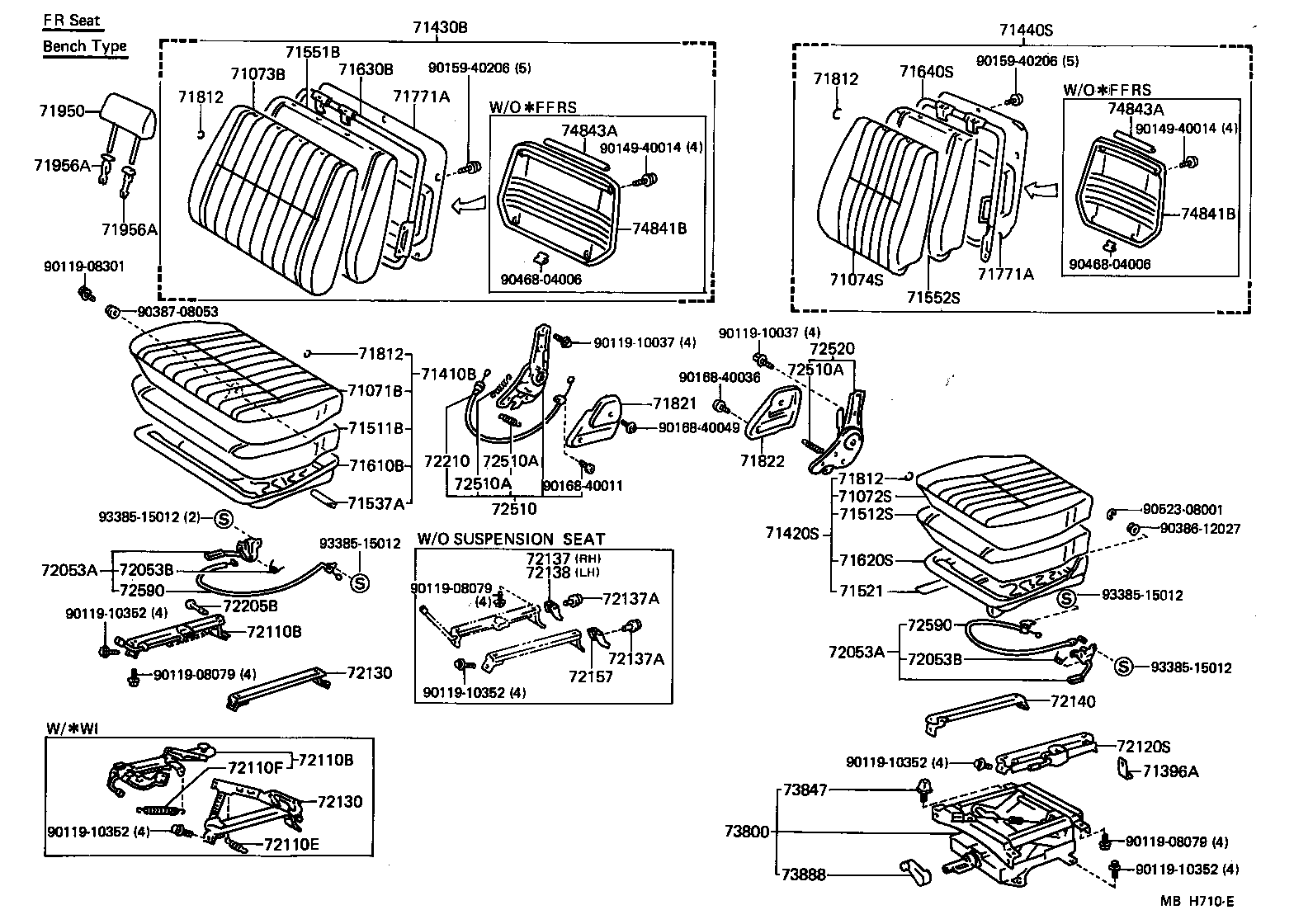

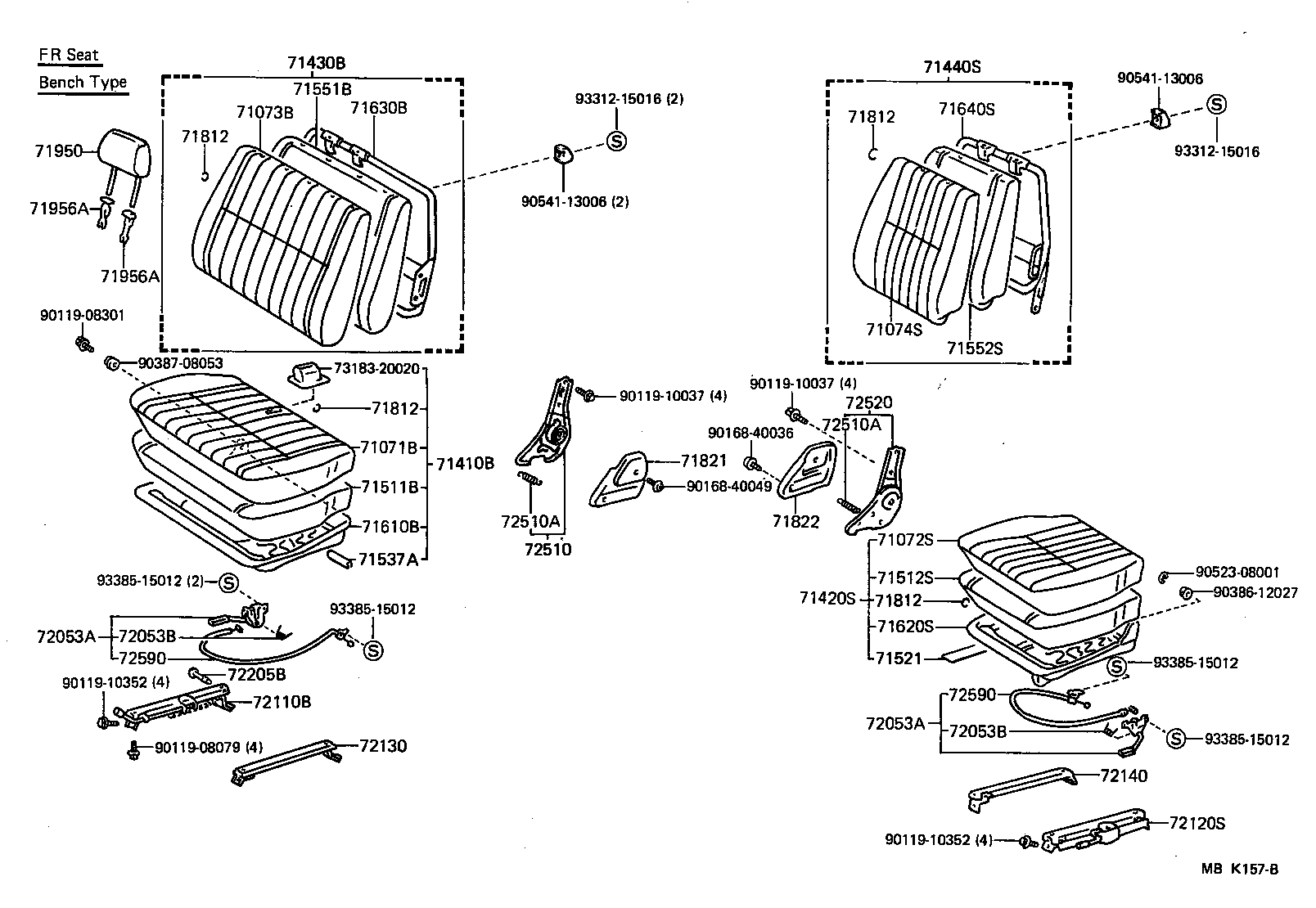

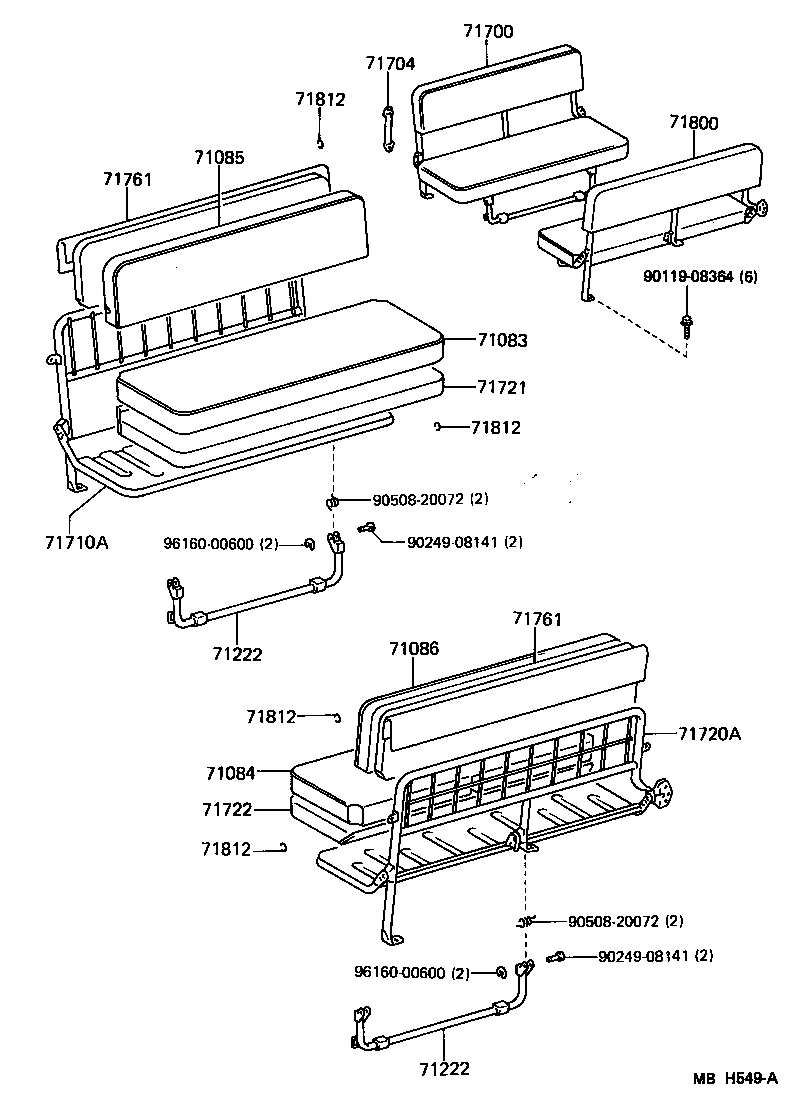

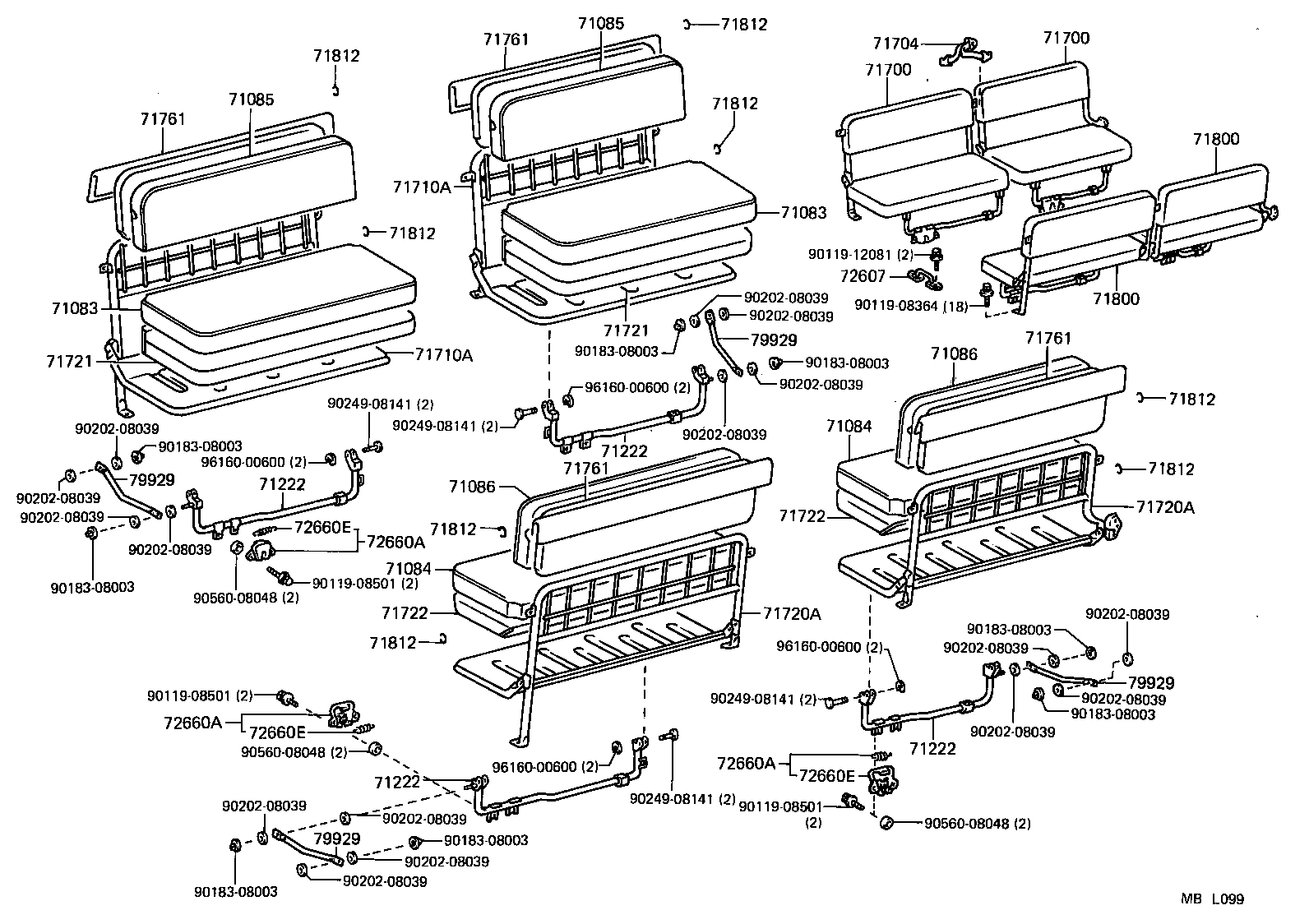

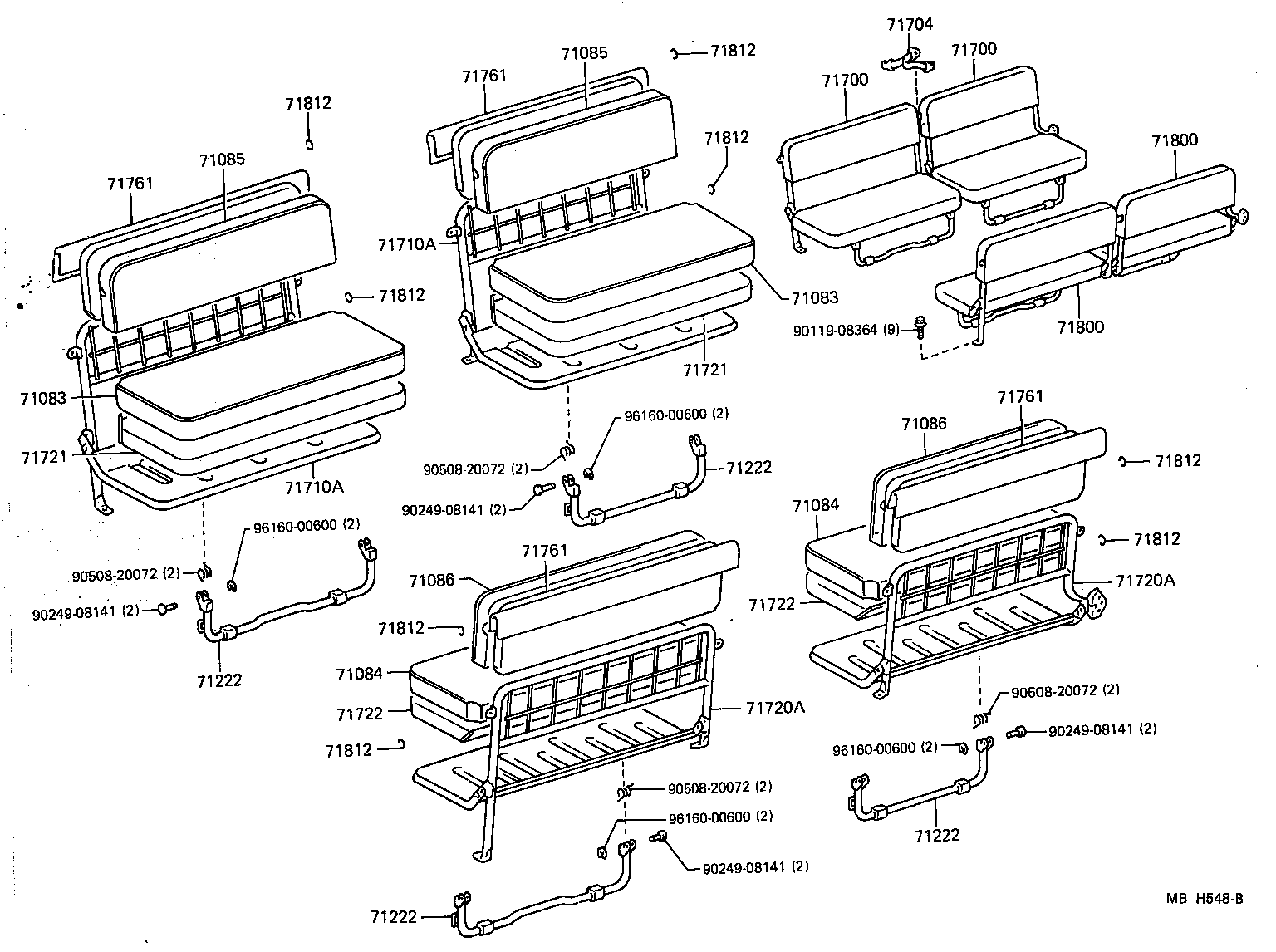

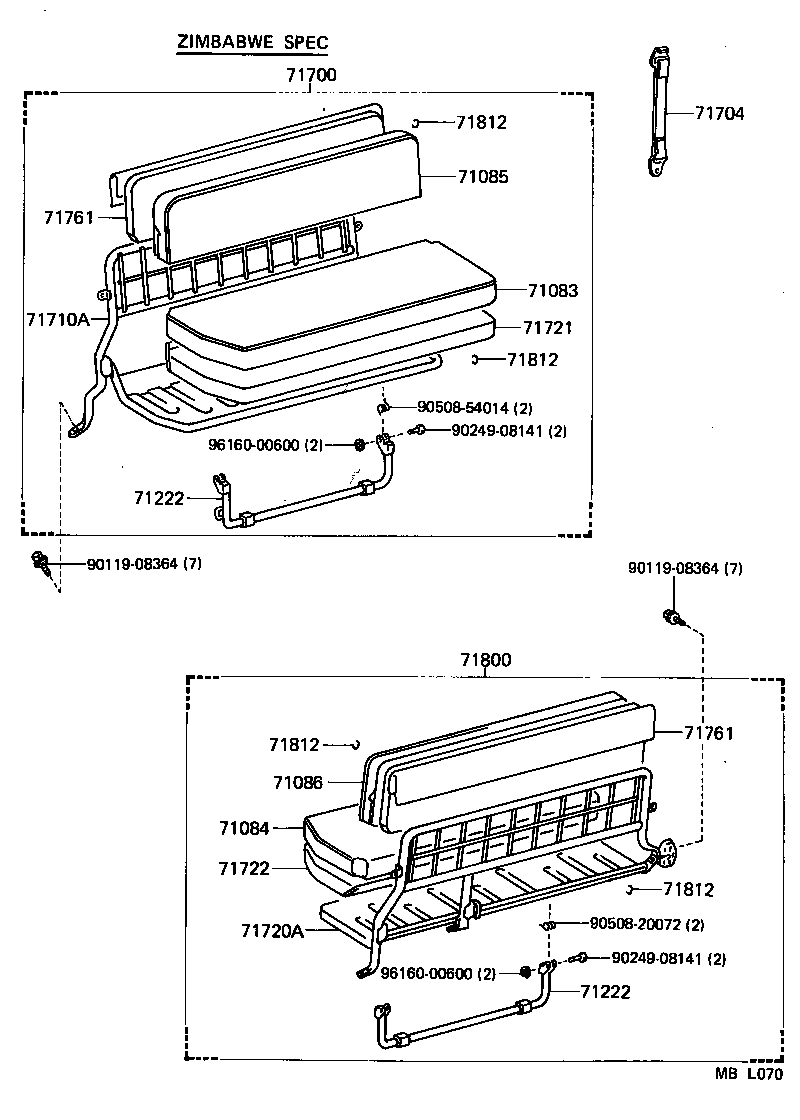

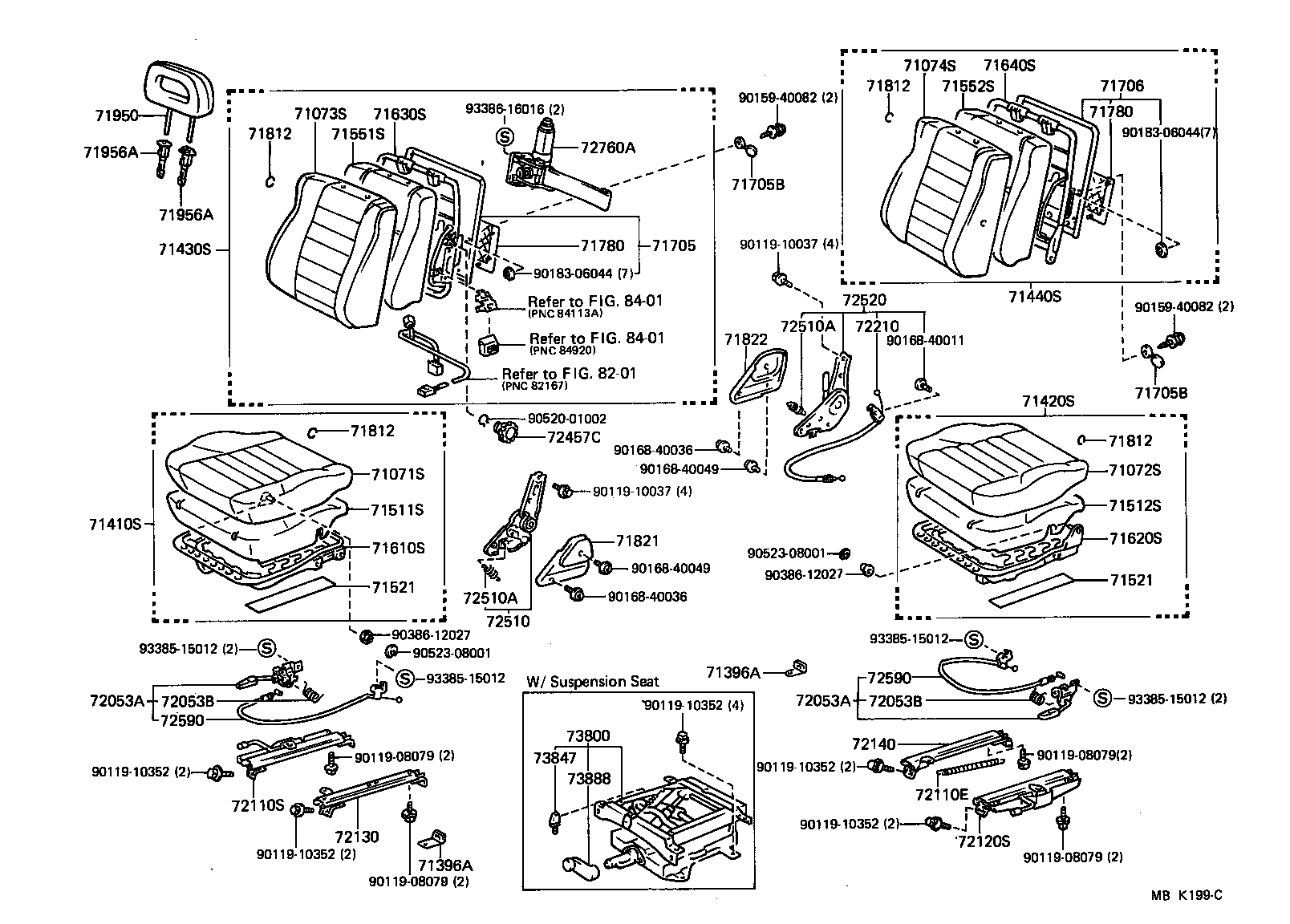

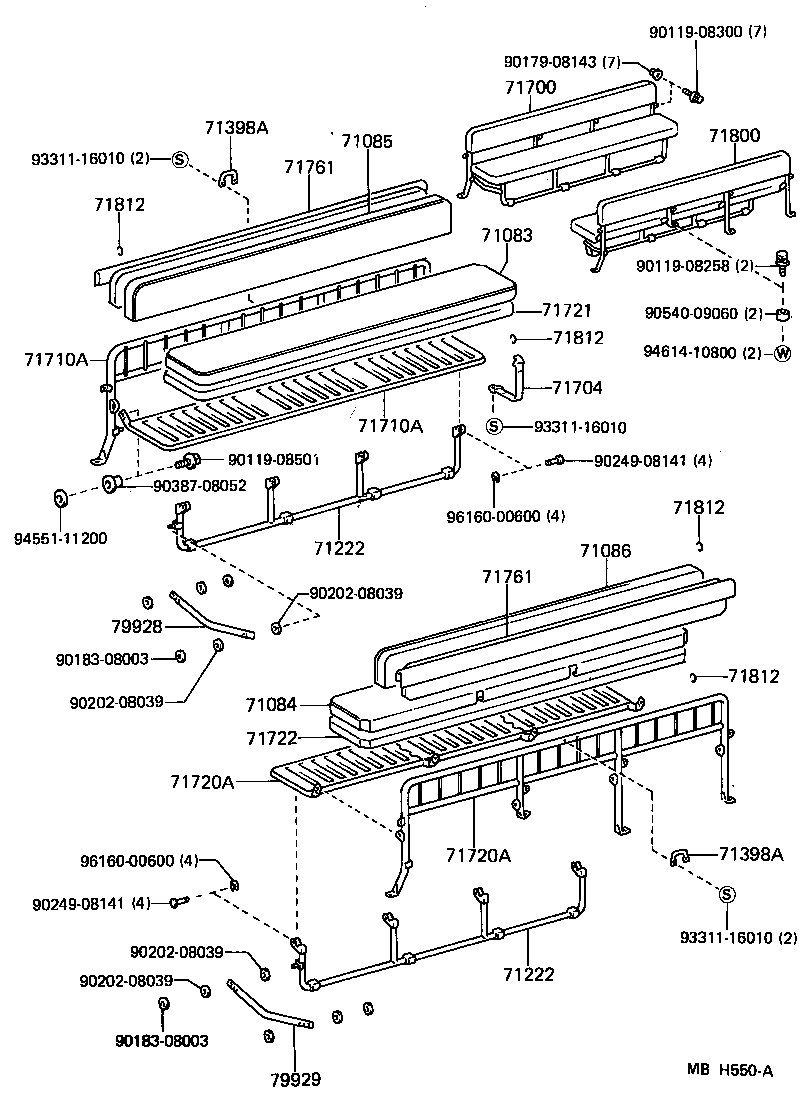

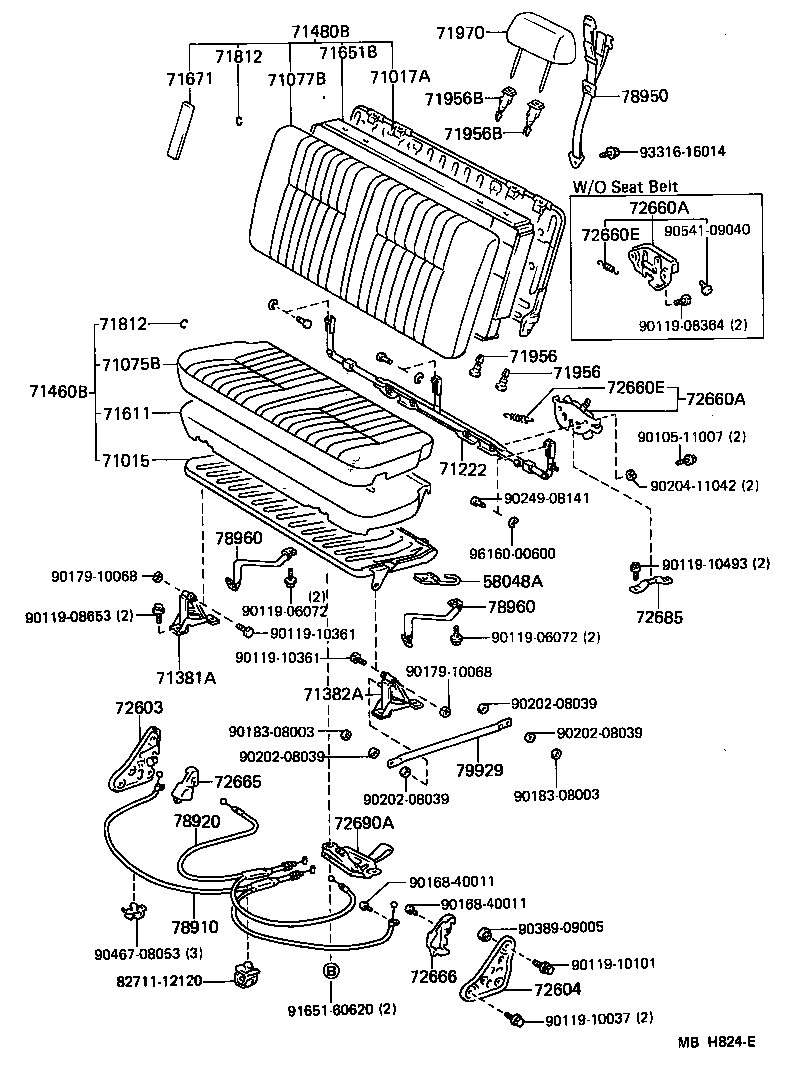

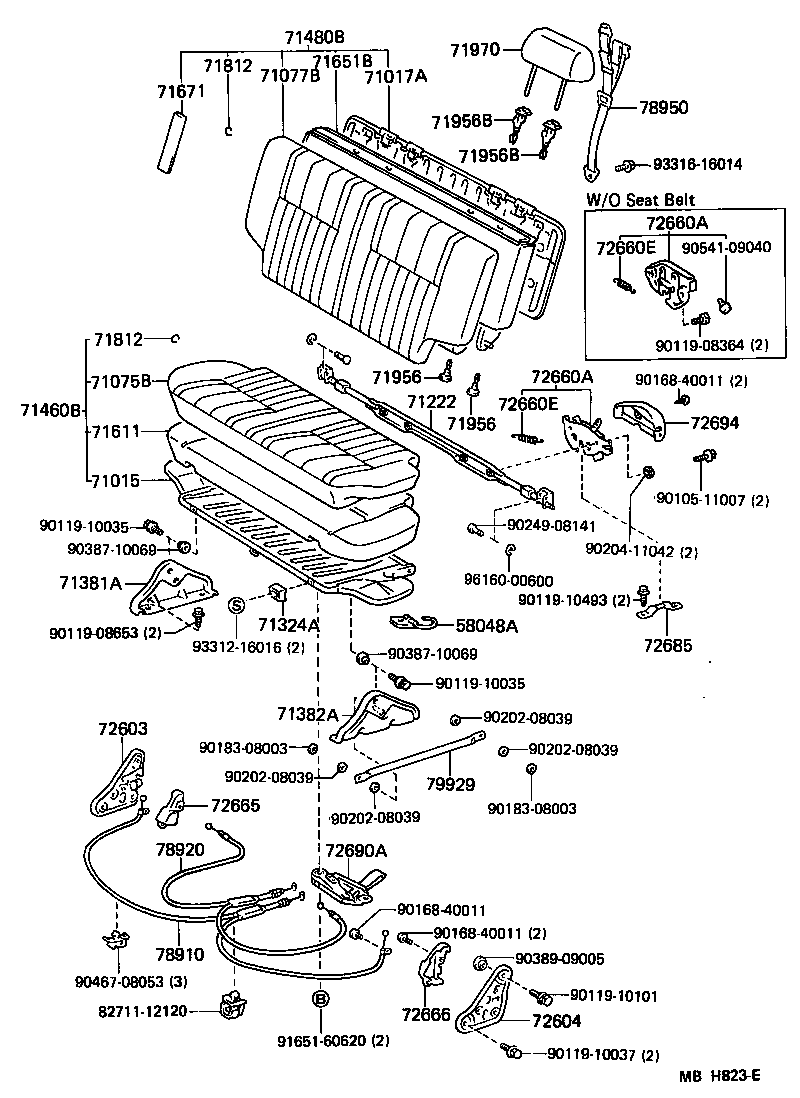

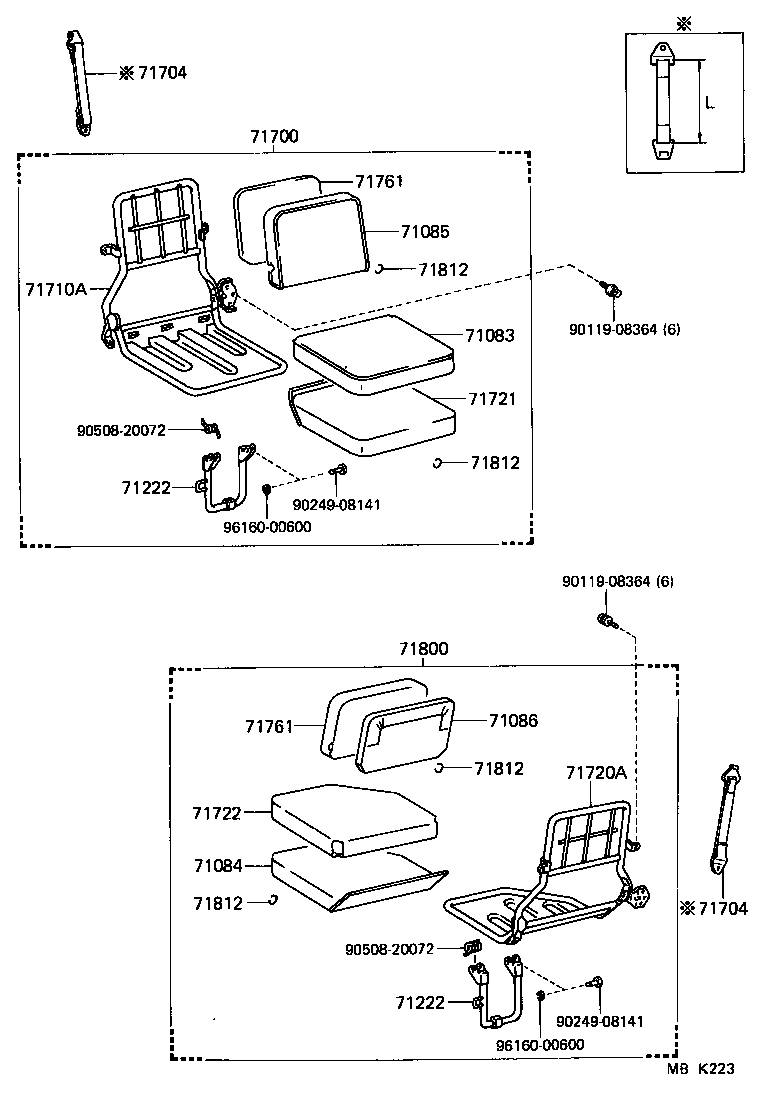

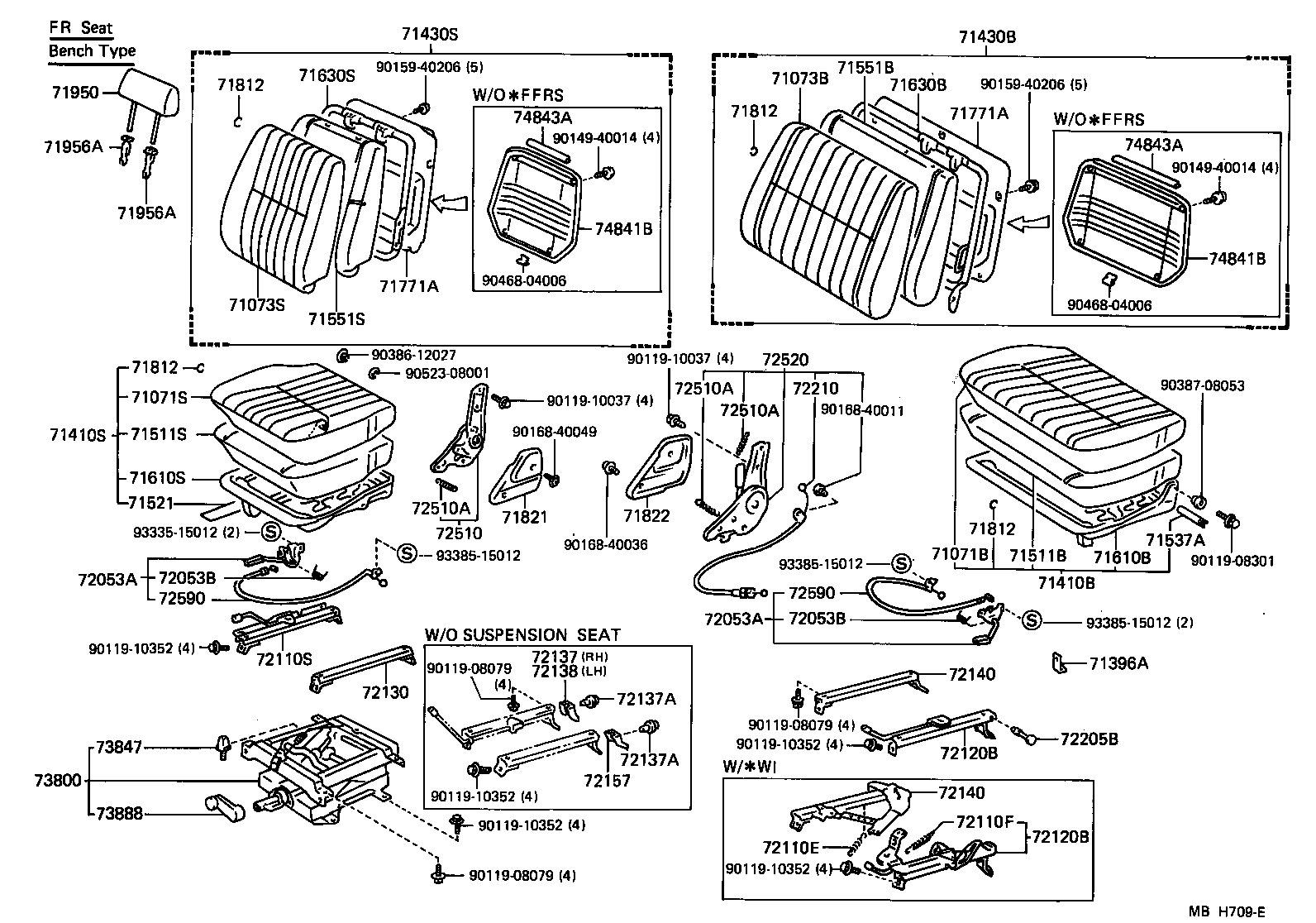

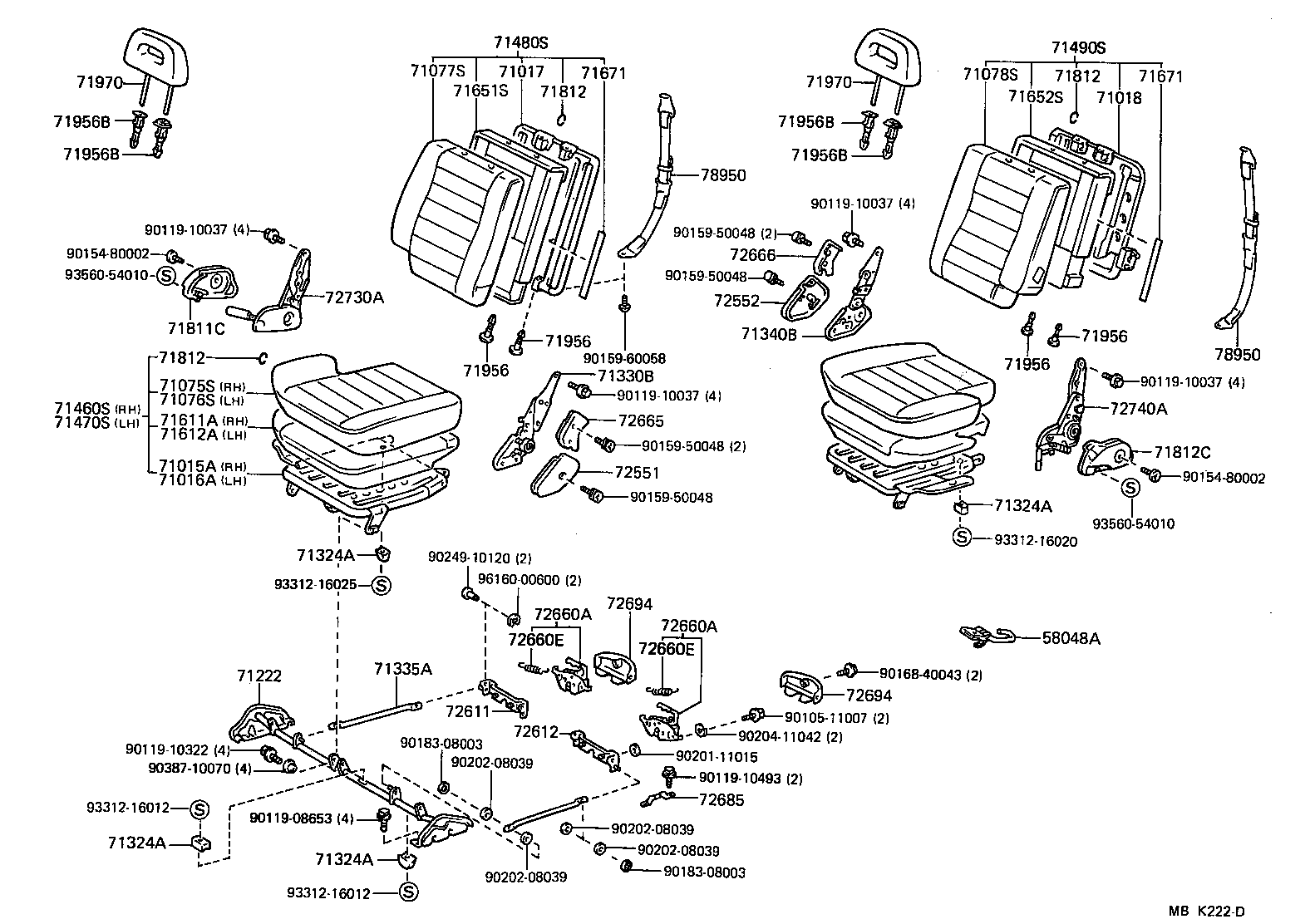

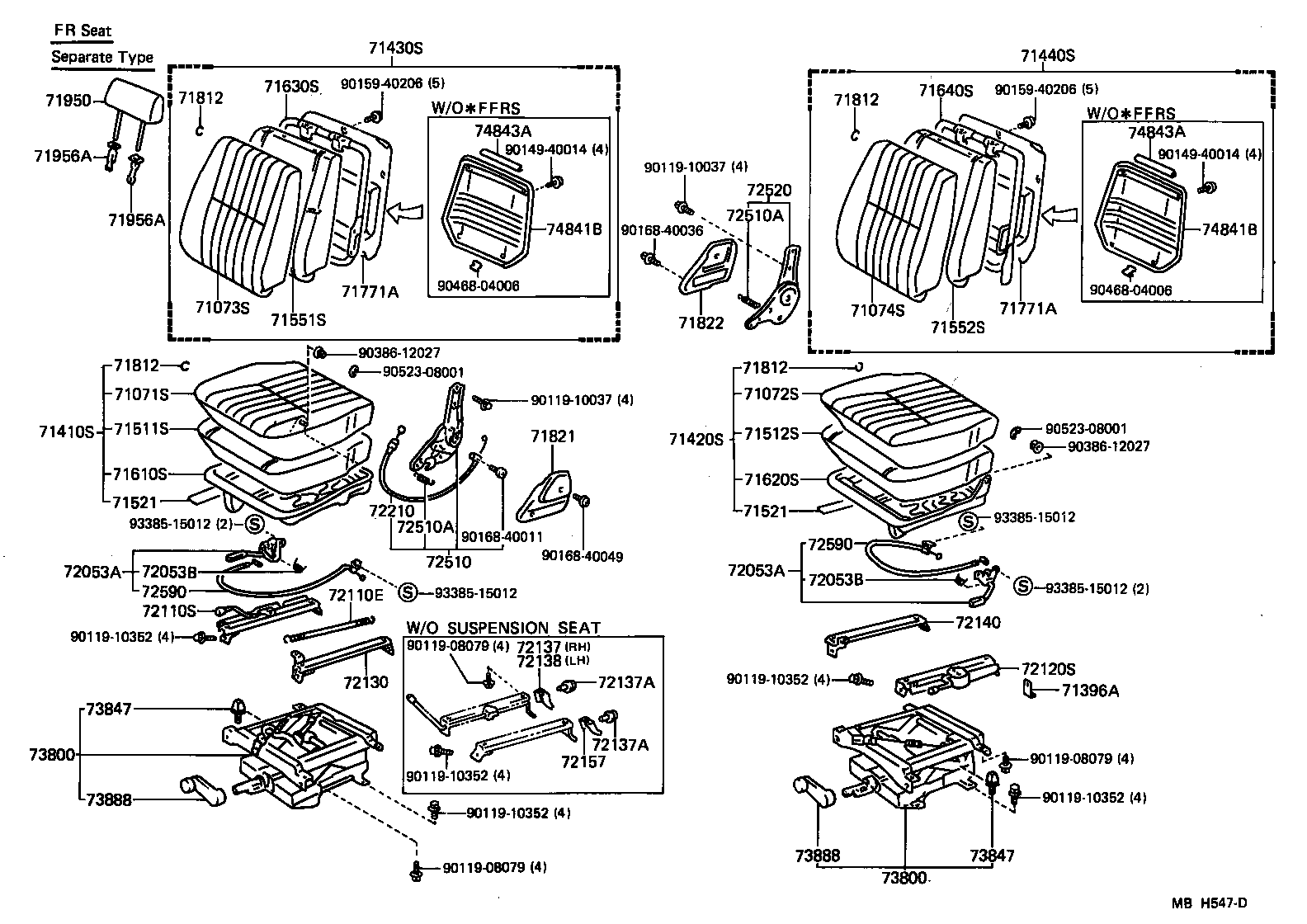

Figure MBH546E MBH546E 1984-11 → — Figure MBH709E MBH709E 1984-11 → — Figure MBK156B MBK156B 1984-11 → — Figure MBH547D MBH547D 1984-11 → — Figure MBH710E MBH710E 1984-11 → — Figure MBK157B MBK157B 1984-11 → — Figure MBK199C MBK199C 1985-10 → 1986-08 Figure MBK199C MBK199C 1986-08 → — Figure MBH548B MBH548B 1984-11 → 1986-08 Figure MBH548B MBH548B 1986-08 → — Figure MBL099 MBL099 1986-08 → — Figure MBH549A MBH549A 1984-11 → — Figure MBH550A MBH550A 1984-11 → — Figure MBH823E MBH823E 1984-11 → — Figure MBH824E MBH824E 1984-11 → — Figure MBK222D MBK222D 1985-10 → 1986-08 Figure MBK223 MBK223 1985-10 → 1986-08 Figure MBK223 MBK223 1987-08 → — Figure MBL070 MBL070 1986-01 → —

Part groups

PNCDescription
58048A Hook Sub-assy, Rope, NO.1
71015 Frame Sub-assy, Rear Seat Cushion
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71017 Frame Sub-assy, Rear Seatback, RH
71017A Frame Sub-assy, Rear Seatback
71018 Frame Sub-assy, Rear Seatback, LH
71071B Cover, Front Seat Cushion(FOR BENCH TYPE)
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073B Cover, Front Seatback(FOR BENCH TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71083 Cover Sub-assy, Rear Side Seat Cushion, RH
71084 Cover Sub-assy, Rear Side Seat Cushion, LH
71085 Cover Sub-assy, Rear Side Seatback, RH
71086 Cover Sub-assy, Rear Side Seatback, LH
71222 Leg, Rear Seat
71324A Cushion, Rear Seat
71330B Hinge Assy, Rear NO.2 Seat, RH
71335A Stay, Rear Seat Cushion Link
71340B Hinge Assy, Rear NO.2 Seat, LH
71381A Bracket, Rear Seat Cushion Set, RH
71382A Bracket, Rear Seat Cushion Set, LH
71396A Plate, Rear Seat Band Hook
71398A Holder, Rear Seatback
71410B Cushion Assy, Front Seat(FOR BENCH TYPE)
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430B Back Assy, Front Seat(FOR BENCH TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460S Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71470S Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71511B Pad, Front Seat Cushion(FOR BENCH TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71521 Pad, Front Seat Cushion Silencer, A
71537A Protector, Front Seat Cushion
71551B Pad, Front Seatback(FOR BENCH TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610B Spring Assy, Front Seat Cushion(FOR BENCH TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611 Pad, Rear Seat Cushion
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630B Spring Assy, Front Seatback(FOR BENCH TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71671 Pad, Rear Seatback Silencer, A
71700 Seat Assy, Rear Side, RH
71704 Band Sub-assy, Rear Side Seat
71705 Board Sub-assy, Front Seatback, RH
71705B Cap(FOR FRONT SEATBACK BOARD)
71706 Board Sub-assy, Front Seatback, LH
71710A Frame Assy, Rear Side Seat, RH
71720A Frame Assy, Rear Side Seat, LH
71721 Pad, Rear Side Seat Cushion, RH
71722 Pad, Rear Side Seat Cushion, LH
71761 Pad, Rear Side Seatback
71771A Board, Front Seatback
71780 Pocket Assy, Seatback Board
71800 Seat Assy, Rear Side, LH
71811C Cover, Reclining Adjuster, RH
71812 Clip (FOR FRONT SEAT CUSHION COVER)
71812C Cover, Reclining Adjuster, LH
71821 Shield, Front Seat Side, RH
71822 Shield, Front Seat Side, LH
71950 Headrest Assy, Front Seat
71956 Support, Headrest
71956A Support, Front Seat Headrest
71956B Support, Rear Seat Headrest
71970 Headrest Assy, Rear Seat
72053A Lever Sub-assy, Reclining Remote Control
72053B Spring(FOR RECLINING REMOTE CONTROL LEVER)
72110B Track Assy, Seat, Outer RH (FOR BENCH SEAT)
72110E Spring, Tension, NO.1 (FOR SEAT TRACK)
72110F Spring, Tension, NO.2 (FOR SEAT TRACK)
72110S Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120B Track Assy, Seat, Outer LH (FOR BENCH SEAT)
72120S Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72130 Track Assy, RH Seat, Inner
72137 Cover, Seat Track, Outer RH
72137A Clip (FOR SEAT TRACK COVER)
72138 Cover, Seat Track, Outer LH
72140 Track Assy, LH Seat, Inner
72157 Cover, Seat Track Bracket, Inner
72205B Pin Sub-assy, Seat Track Open Lever
72210 Cable Assy, Seat Track Control
72457C Knob, Side Support Adjuster
72510 Adjuster Assy, Reclining Seatback, RH
72510A Spring, Tension, NO.1(FOR RECLINING SEAT ADJUSTER)
72520 Adjuster Assy, Reclining Seatback, LH
72551 Cover, Reclining Hinge, NO.1
72552 Cover, Reclining Hinge, NO.2
72590 Cable Assy, Seatback Control
72603 Lock Sub-assy, Rear Seatback, RH
72604 Lock Sub-assy, Rear Seatback, LH
72607 Striker Sub-assy, Rear Seat Cushion Lock
72611 Bracket, Rear Seat Lock, RH
72612 Bracket, Rear Seat Lock, LH
72660A Support Assy, Rear Seat Cushion
72660E Spring(FOR REAR SEAT CUSHION SUPPORT)
72665 Cover, Rear Seatback Lock, RH
72666 Cover, Rear Seatback Lock, LH
72685 Striker, Rear NO.1 Seat Lock
72690A Strap Assy, Rear Seat Lock Release
72694 Cover, Rear Seat Cushion Lock
72730A Adjuster Assy, Rear Seat Reclining, RH
72740A Adjuster Assy, Rear Seat Reclining, LH
72760A Adjuster Assy, Lumbar Support
73800 Suspension Assy, Seat, RH
73847 Cushion, Seat Suspension Stopper
73888 Handle, Seat Suspension Control
74841B Panel, Front Seatback
74843A Ornament, Front Seatback Panel
78910 Cable Assy, Fold Seat Lock Control, NO.1
78920 Cable Assy, Fold Seat Lock Control, NO.2
78950 Band Assy, Fold Seat Stopper, NO.1
78960 Band Assy, Fold Seat Stopper, NO.2
79928 Plate, Fold Seat Leg
79929 Frame, Fold Seat Leg Stopper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
