Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

29 part groups · 3 illustrations

Illustrations

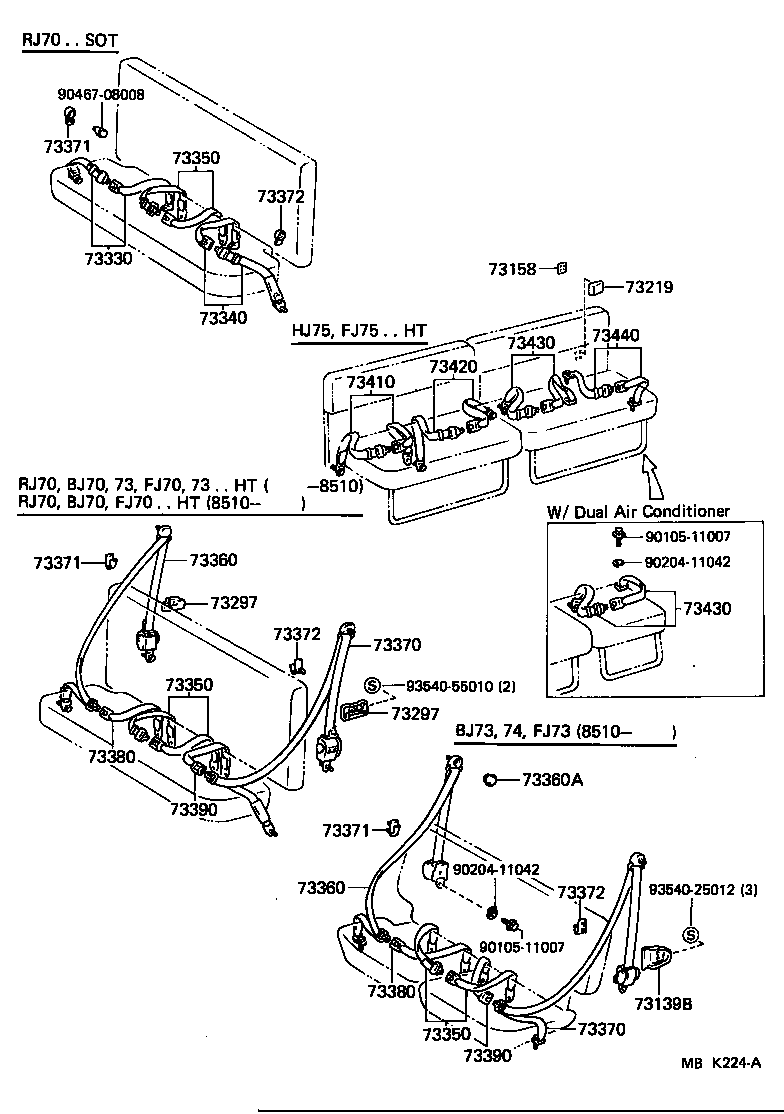

Figure MBH553A MBH553A 1984-11 → — Figure MBH554A MBH554A 1984-11 → — Figure MBK224A MBK224A 1984-11 → —

Part groups

PNCDescription
73130 Belt Assy, Front Seat Lap Type, RH
73139B Cover, Seat Belt Anchor
73140 Belt Assy, Front Seat Lap Type, LH
73150 Belt Assy, Front Seat Lap Type, Center
73158 Bracket, Seat Belt Guide Set
73173 Cover, Front Seat Belt Hole, RH
73174 Cover, Front Seat Belt Hole, LH
73178 Hanger, Front Seat Lap Belt, RH
73179 Hanger, Front Seat Lap Belt, LH
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73297 Cover, Quarter Trim OR Center Pillar Belt Hole
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73360A Cap, Rear Seat Belt Anchor
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73371 Hanger, Rear Seat Shoulder Belt, RH
73372 Hanger, Rear Seat Shoulder Belt, LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73410 Belt Sub-assy, Side Seat, NO.1
73420 Belt Sub-assy, Side Seat, NO.2
73430 Belt Sub-assy, Side Seat, NO.3
73440 Belt Sub-assy, Side Seat, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
