Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

13 part groups · 2 illustrations

Illustrations

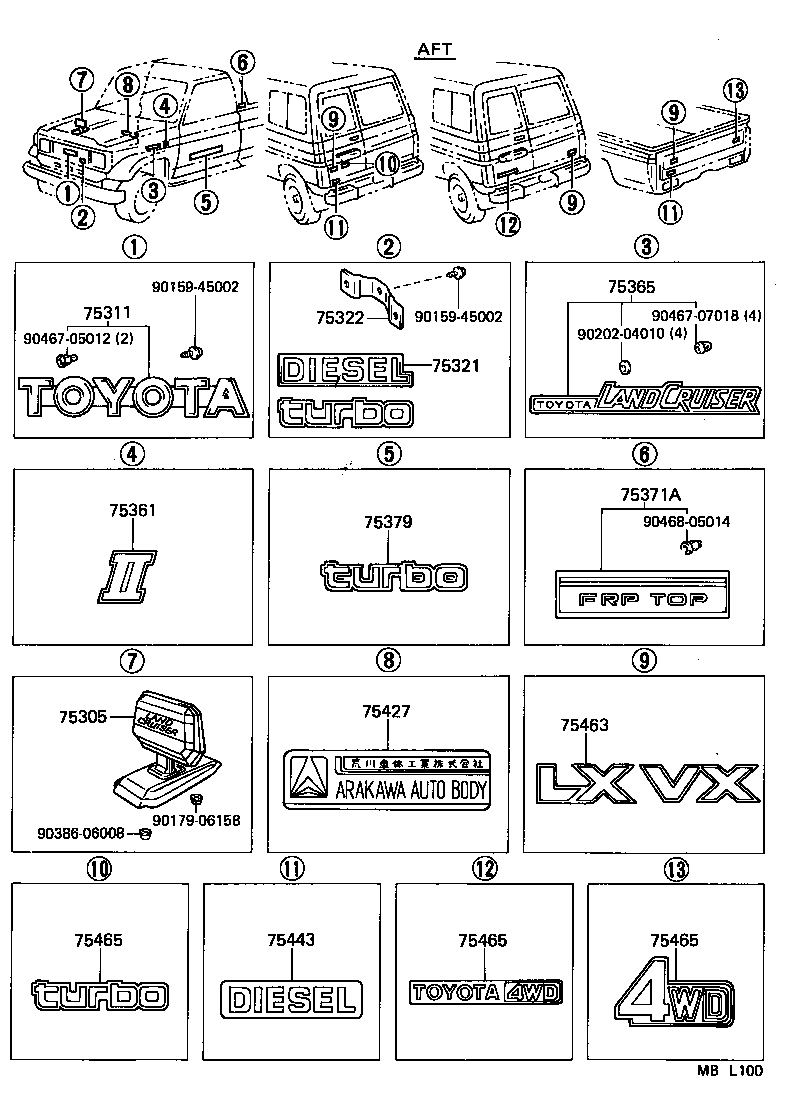

Figure MBH557C MBH557C 1984-11 → 1986-08 Figure MBL100 MBL100 1986-08 → —

Part groups

PNCDescription
75305 Emblem, Hood
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75321 Plate, Radiator Grille OR Front Panel Name
75322 Retainer, Radiator Grille Name Plate
75361 Plate, Front Fender Name, NO.1 (MODEL MARK)
75365 Emblem, Front Fender
75371A Emblem, Quarter Panel
75379 Mark, Side Panel
75427 Plate, Front Door Name
75441 Plate, Rear Name, NO.1
75443 Plate, Back Door Name, NO.3
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
