Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

92 part groups · 24 illustrations

Illustrations

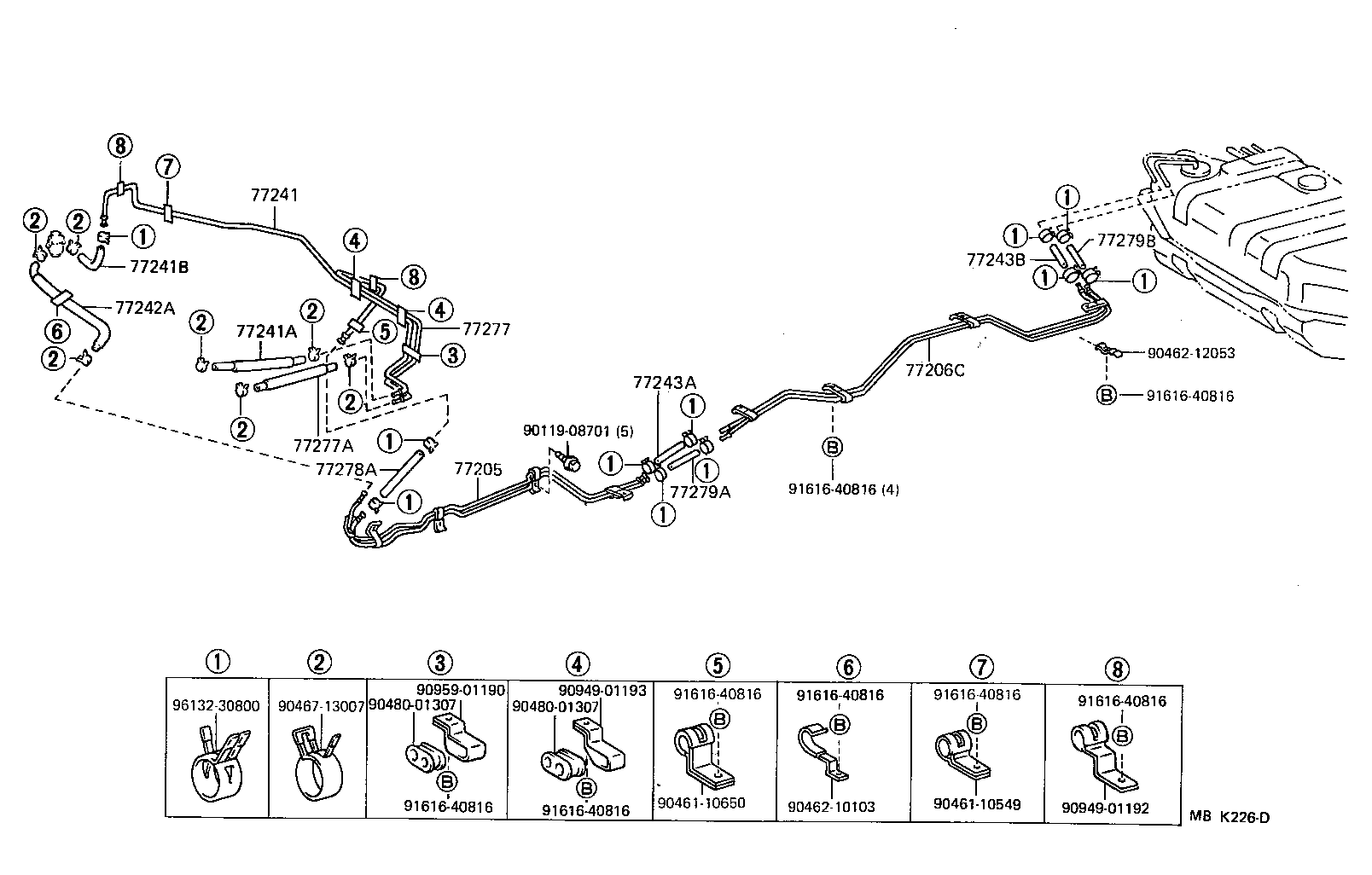

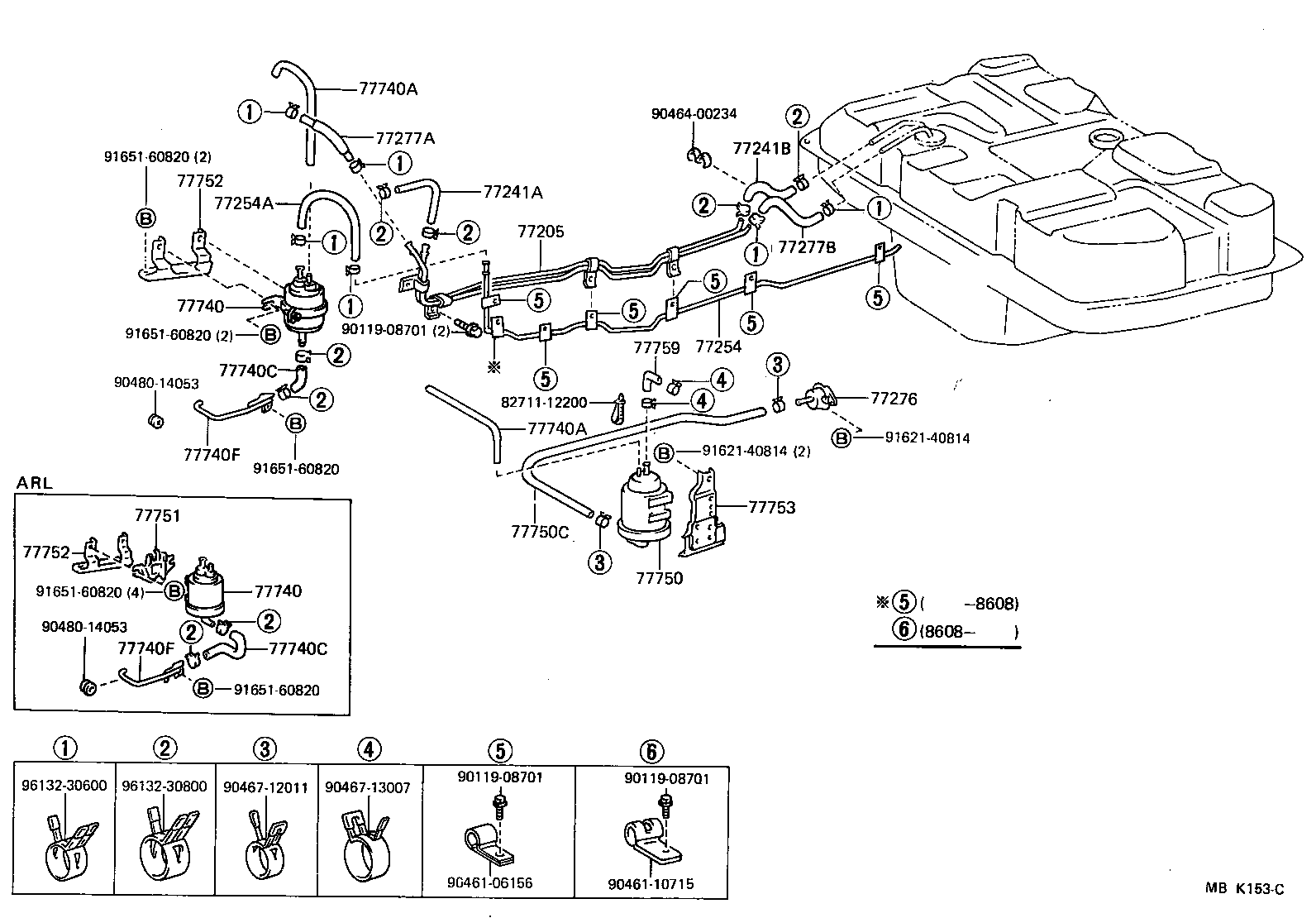

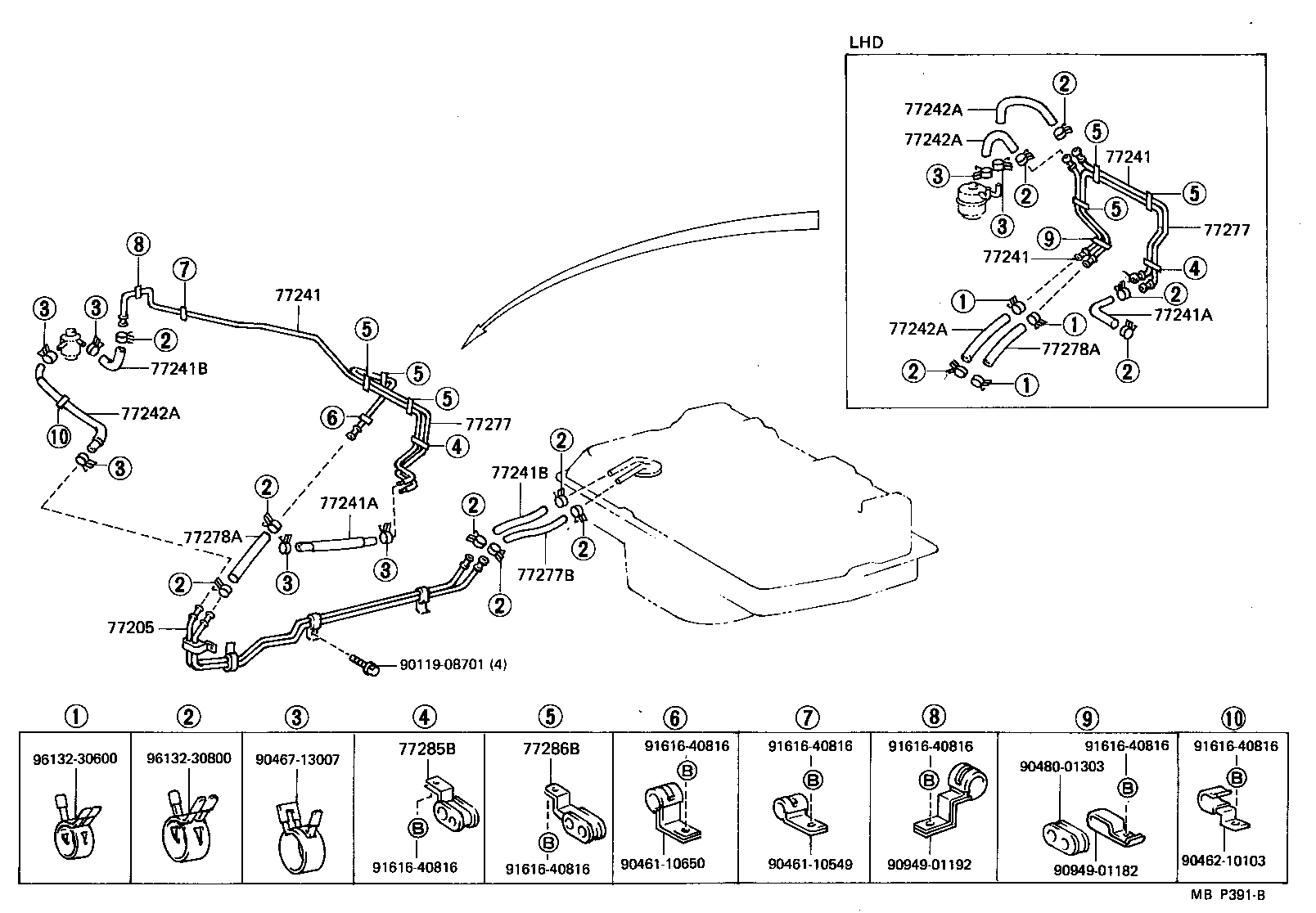

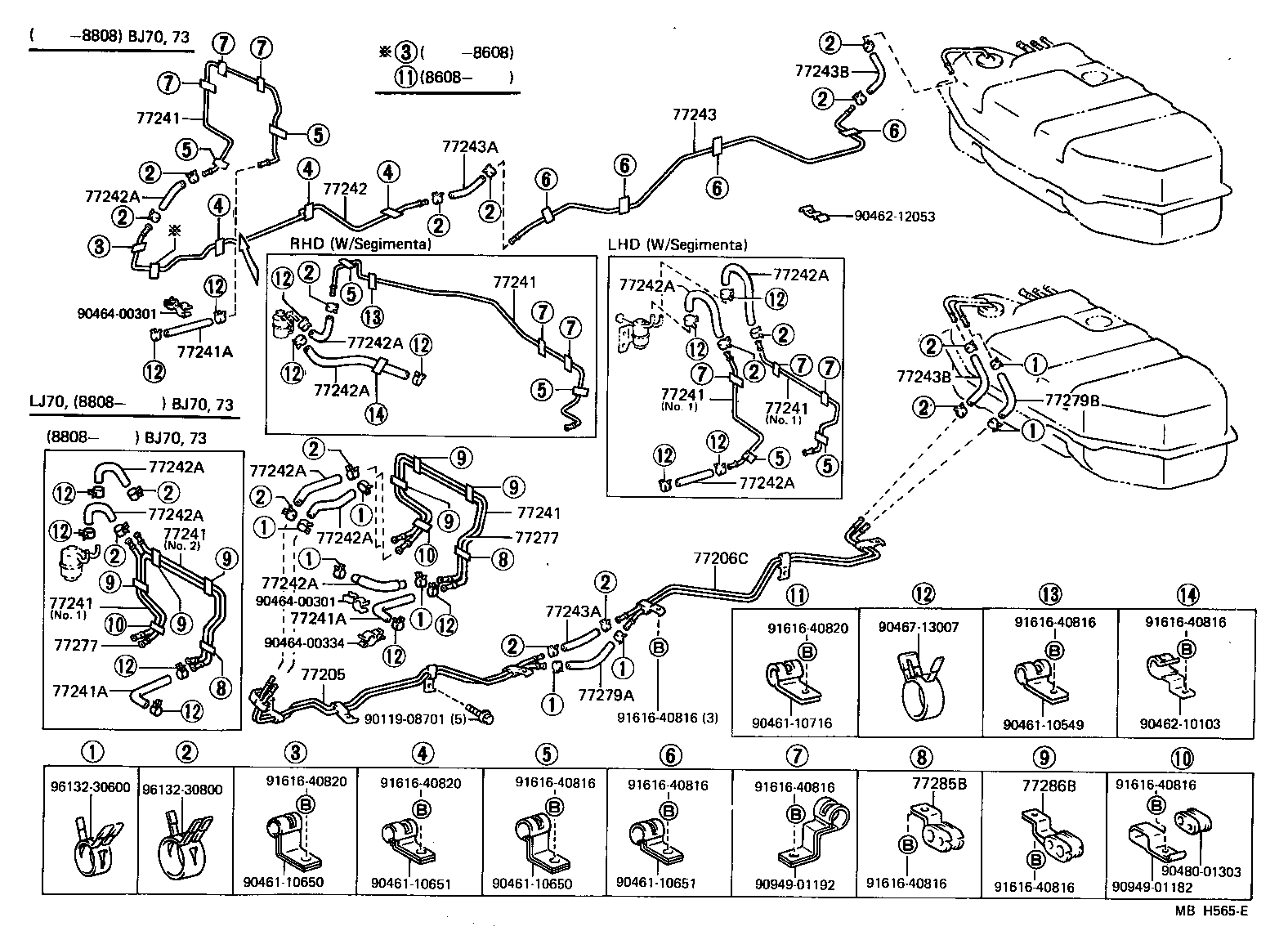

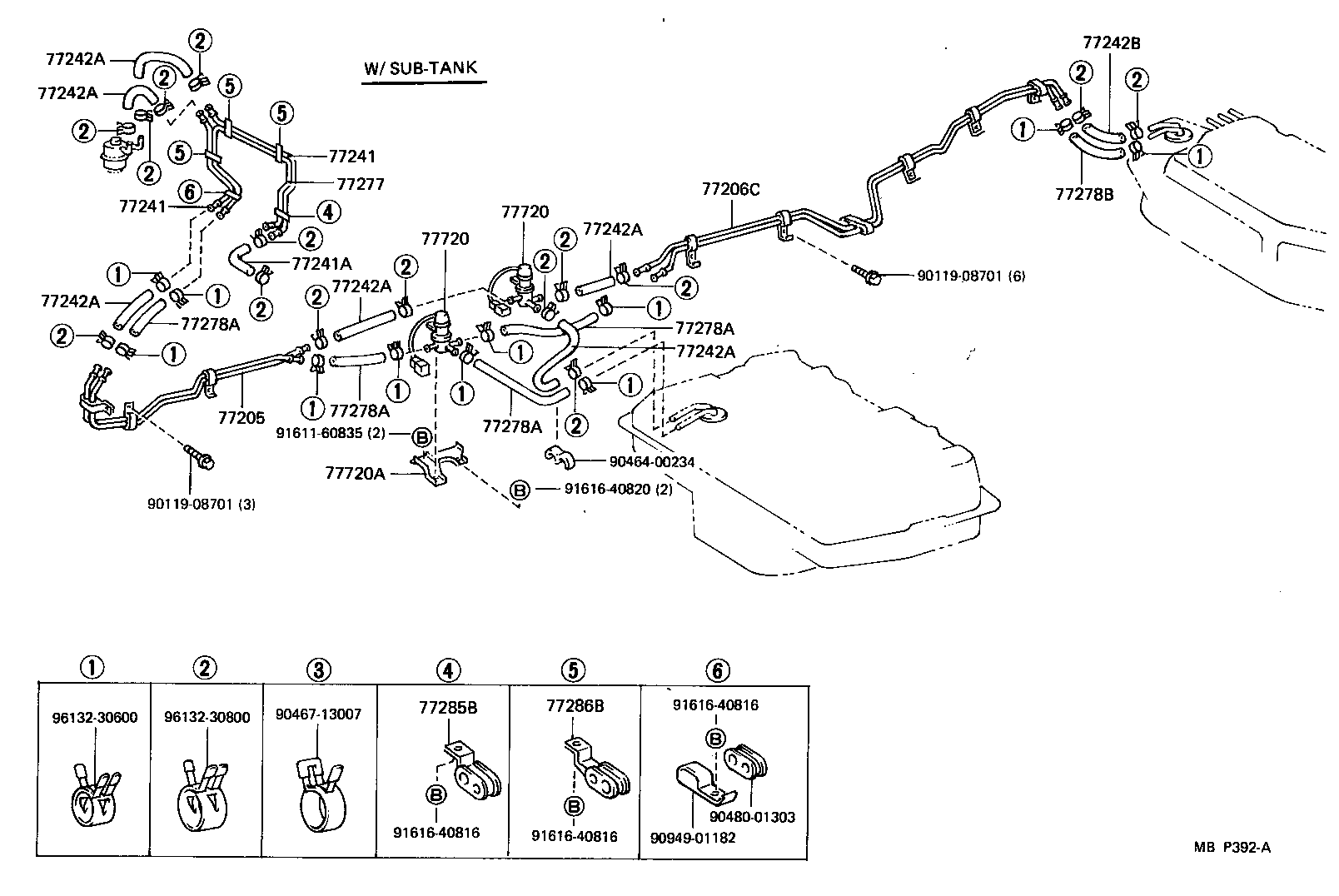

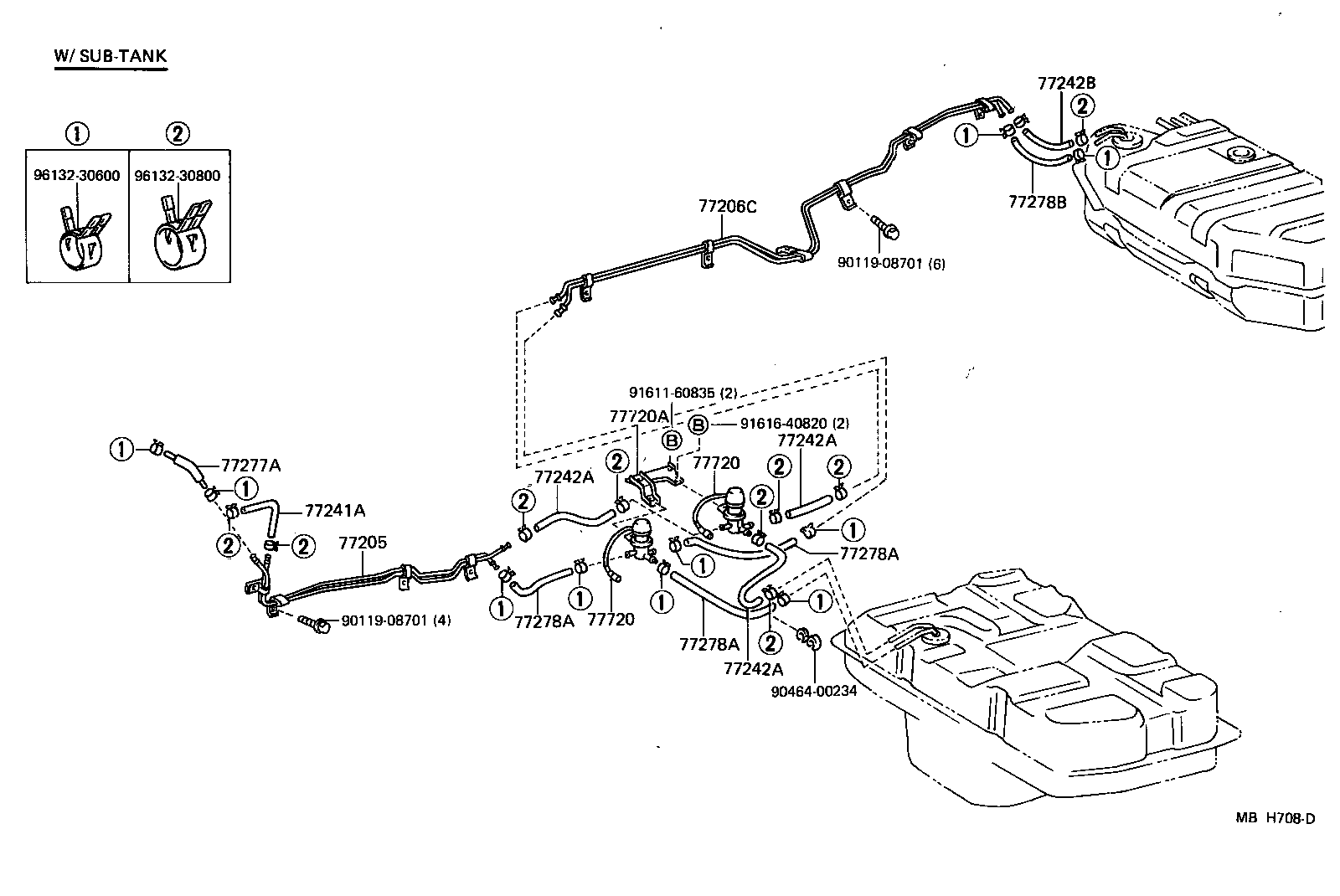

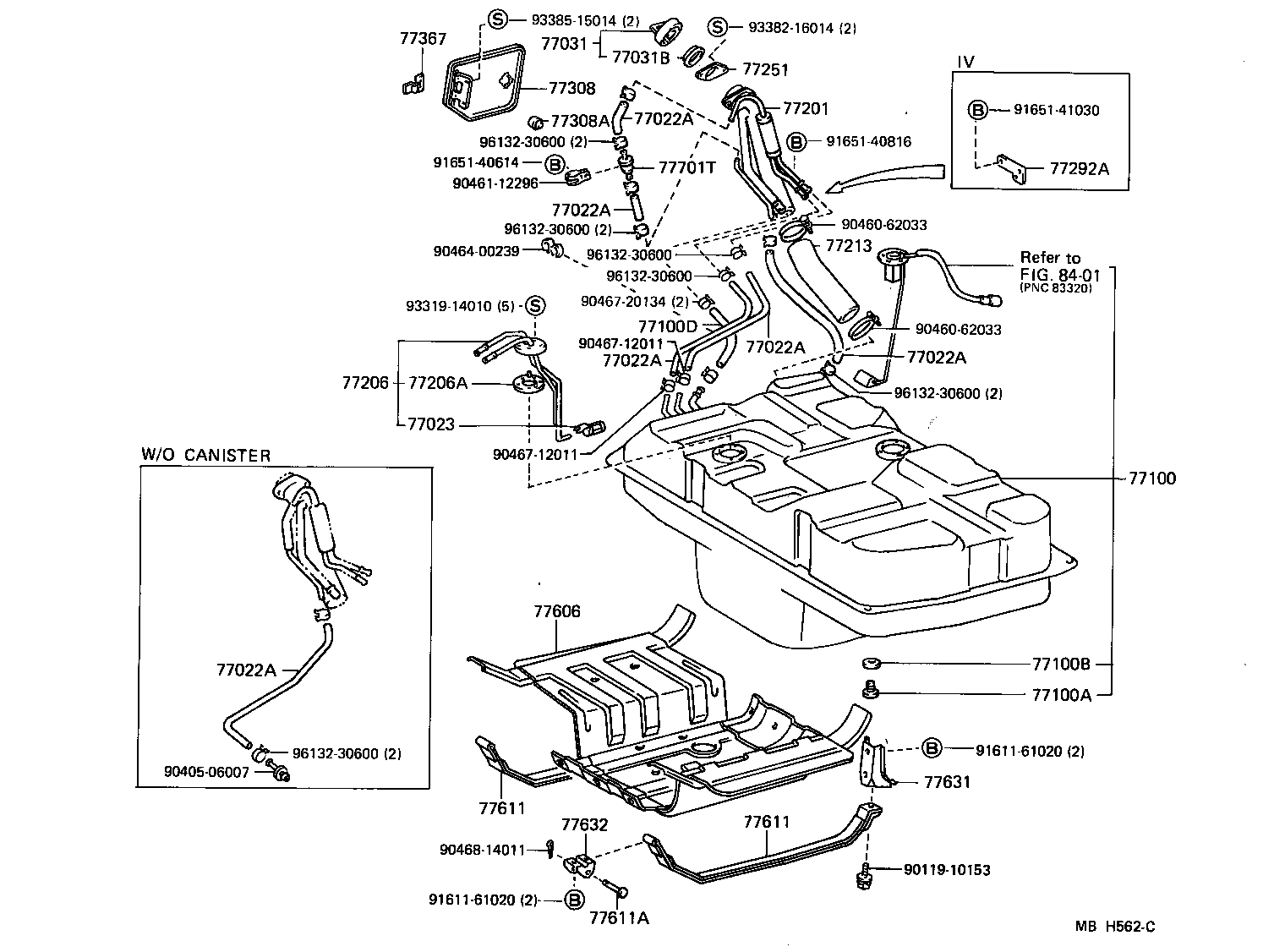

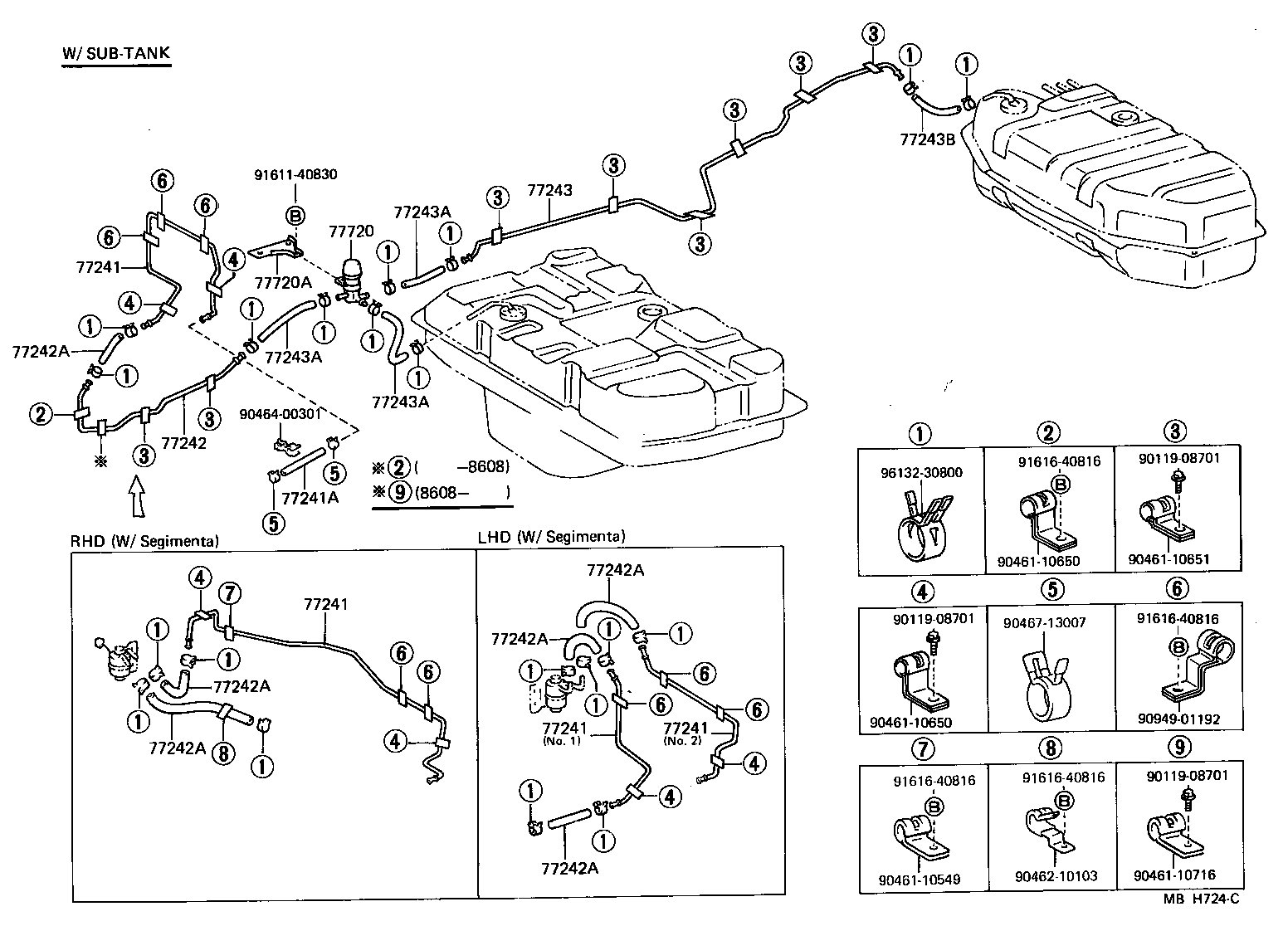

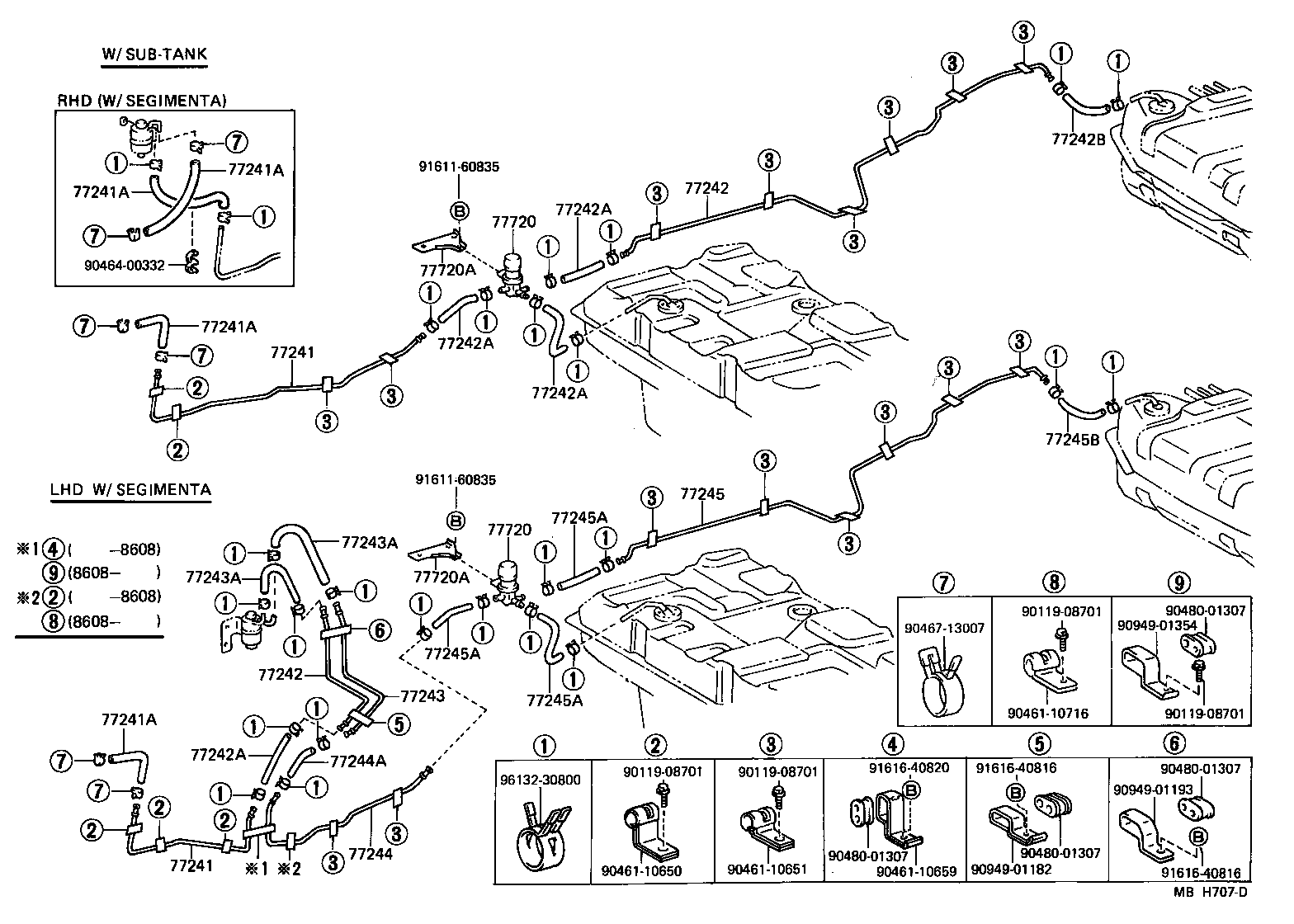

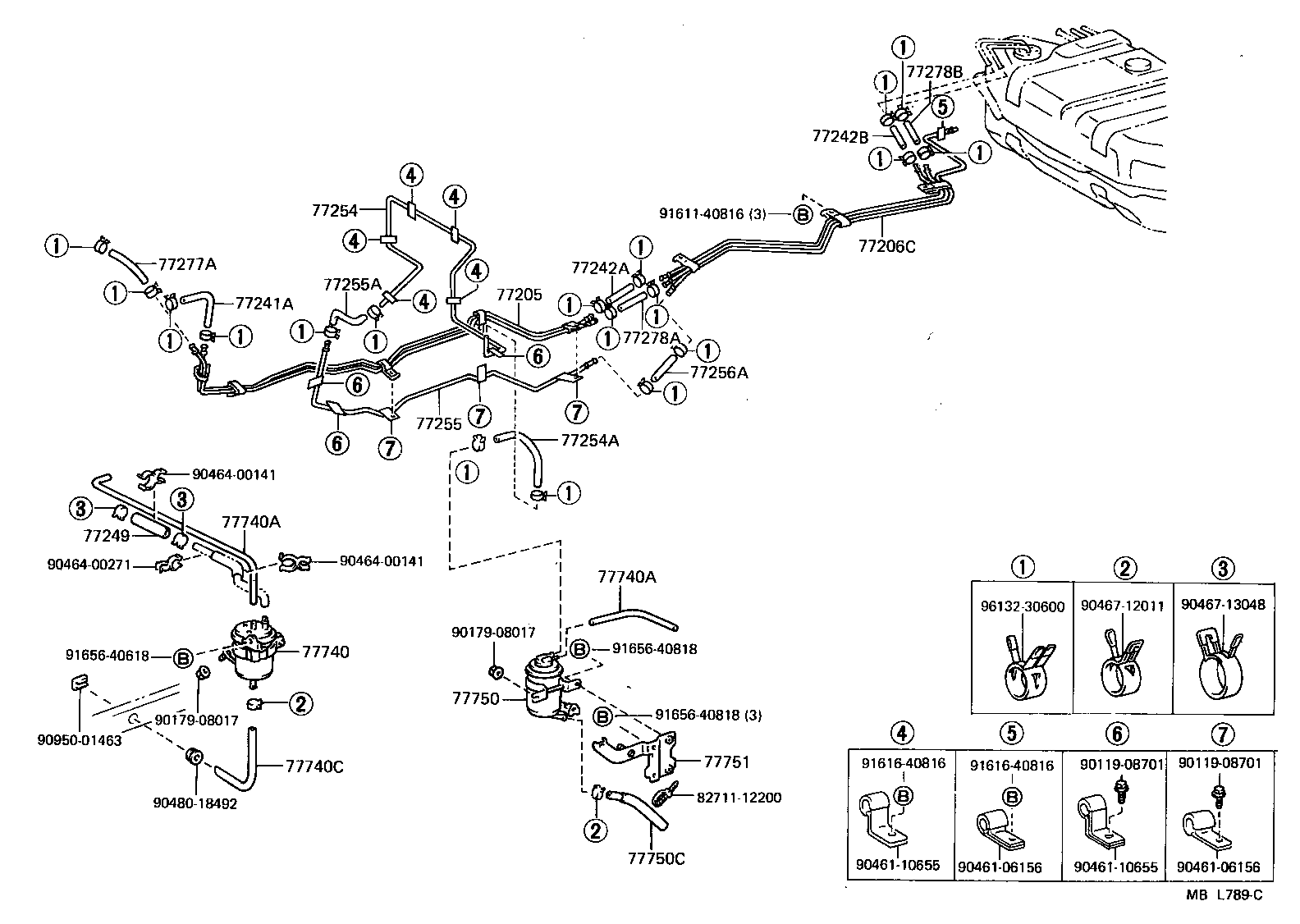

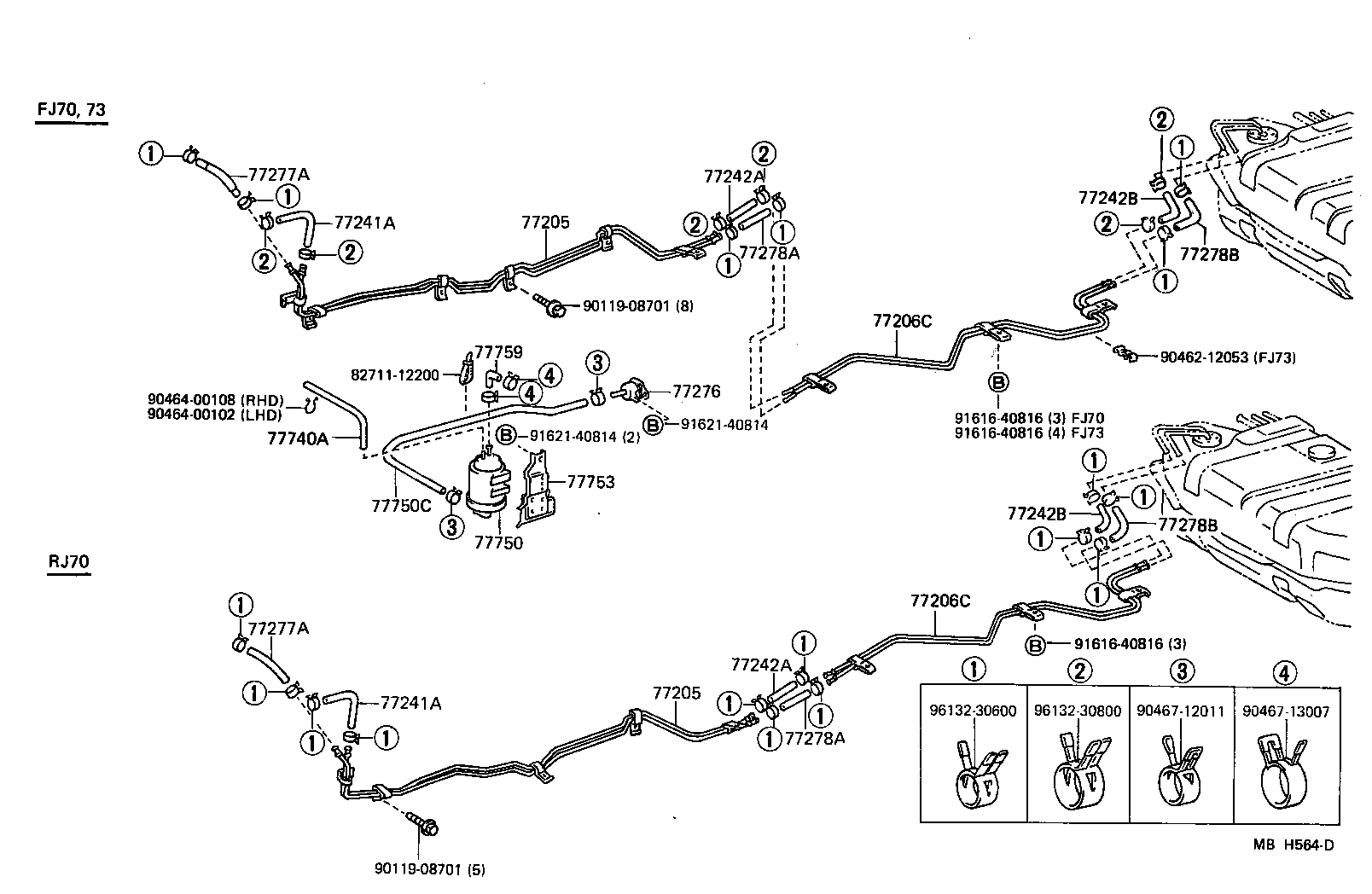

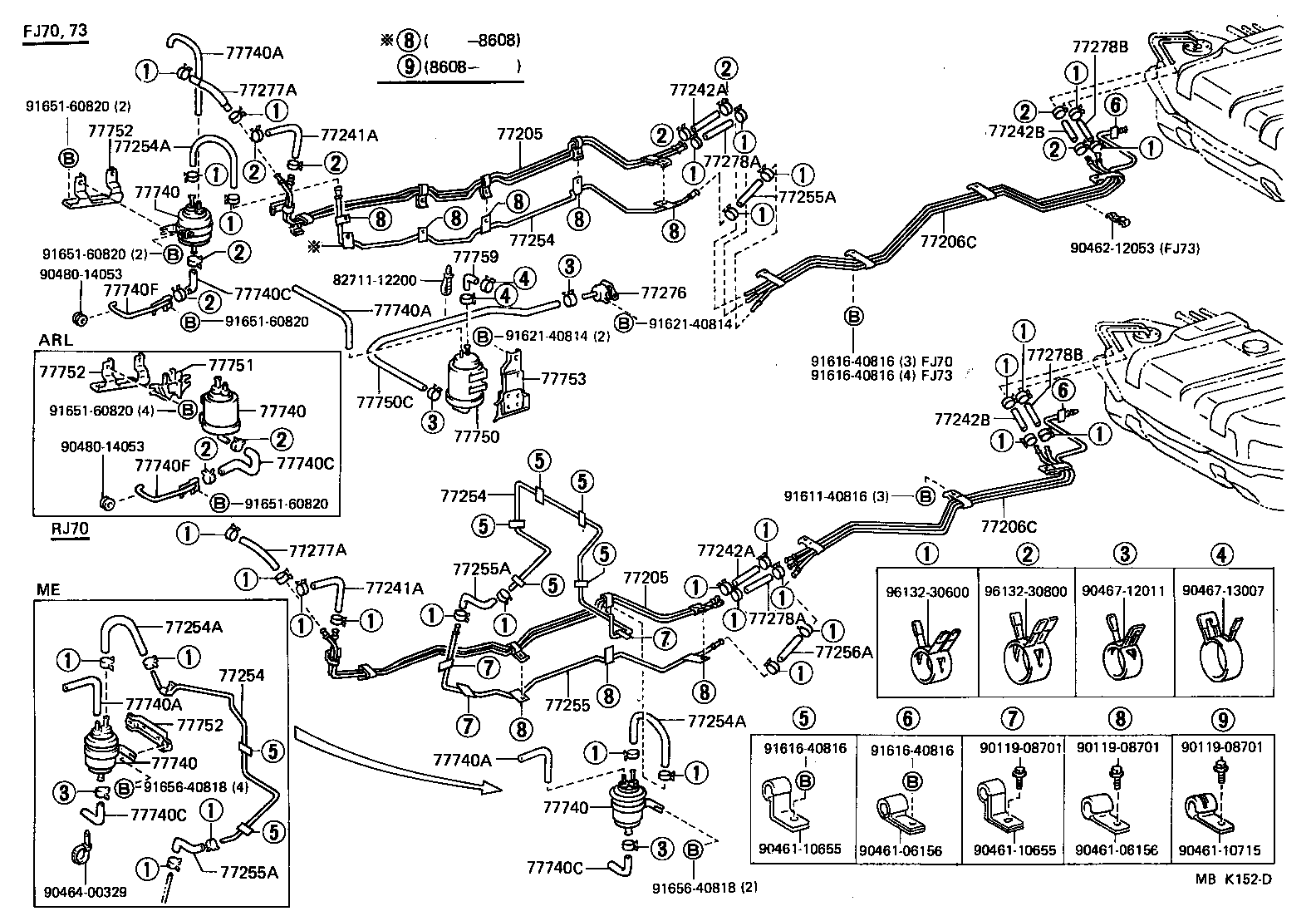

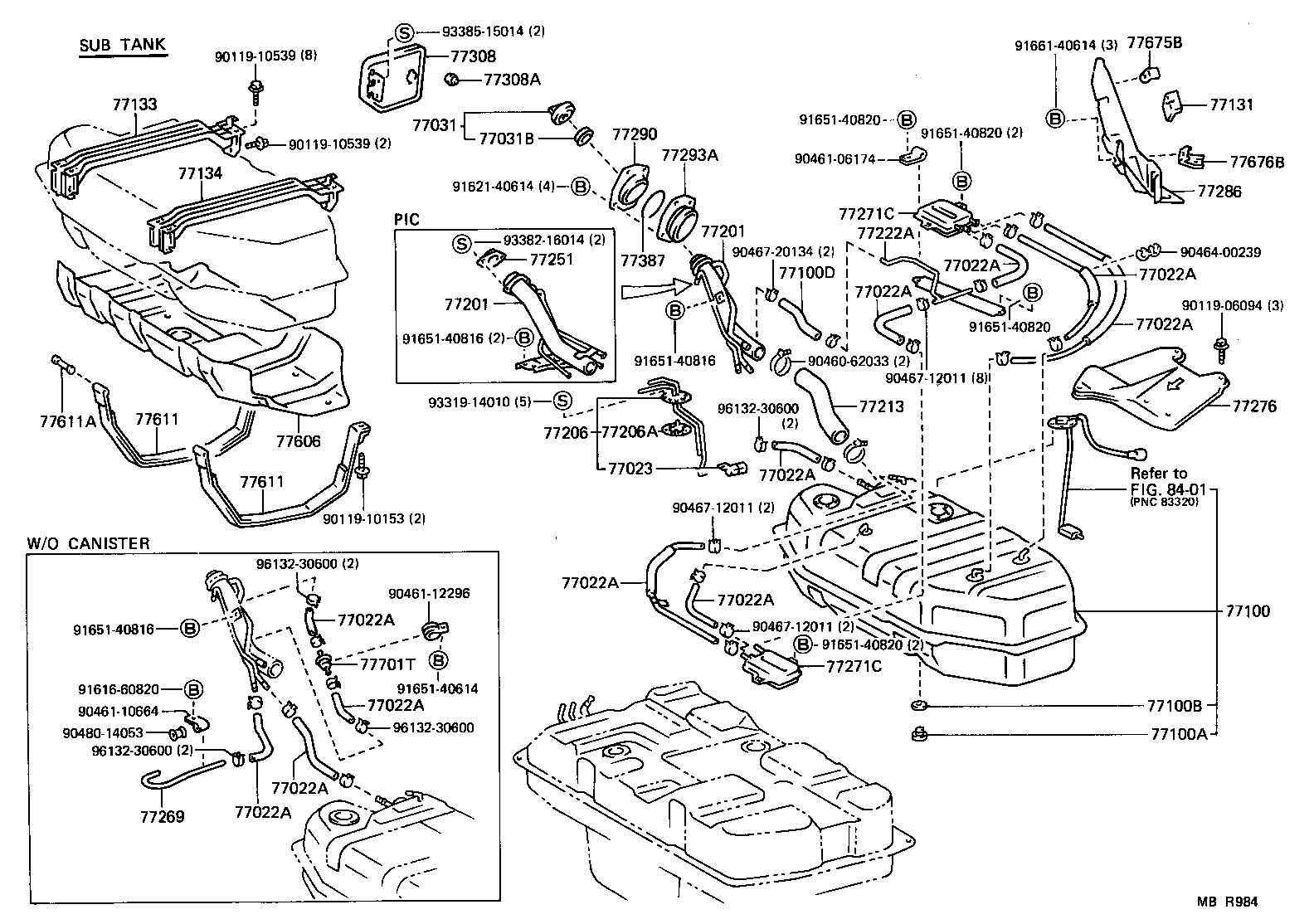

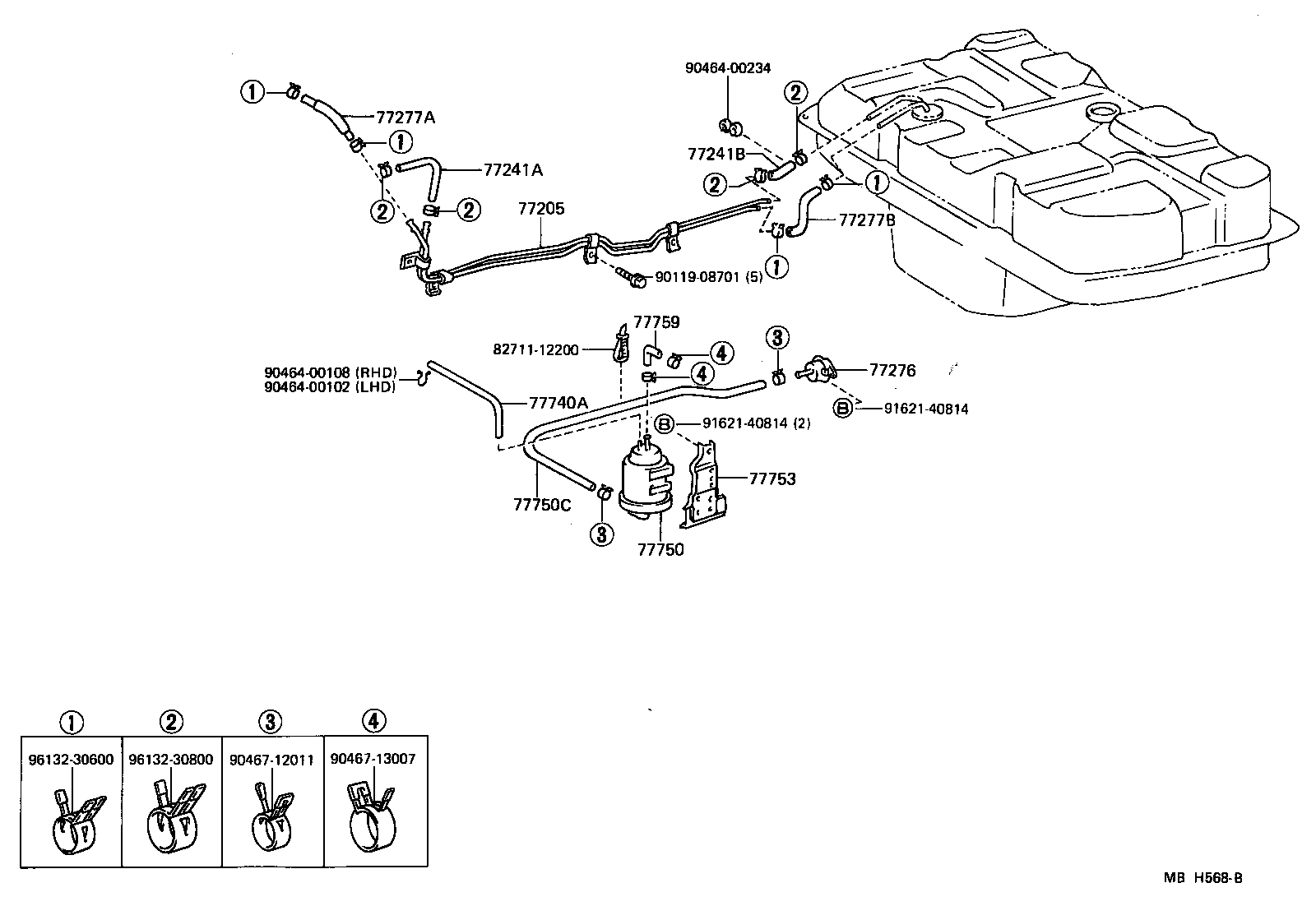

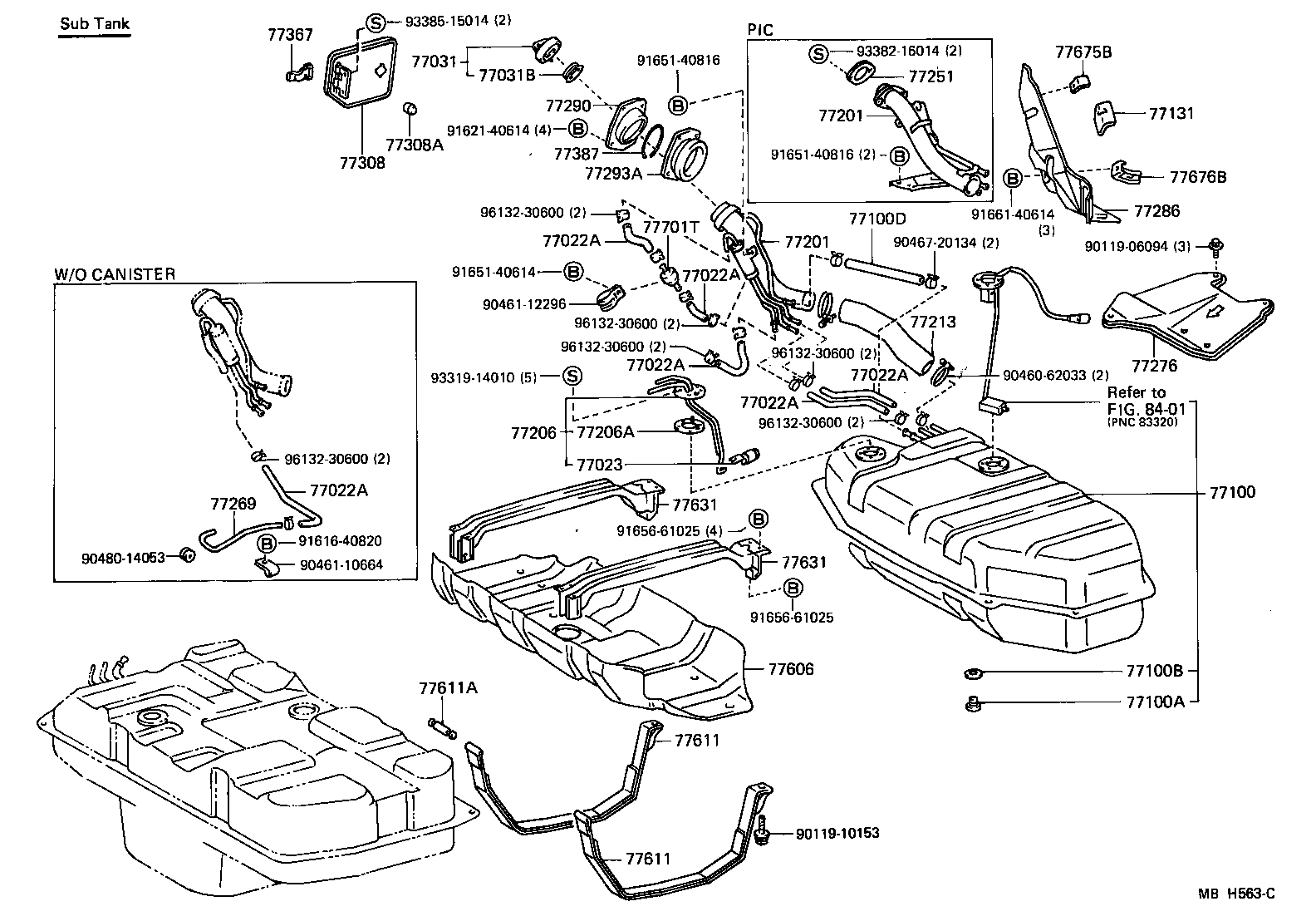

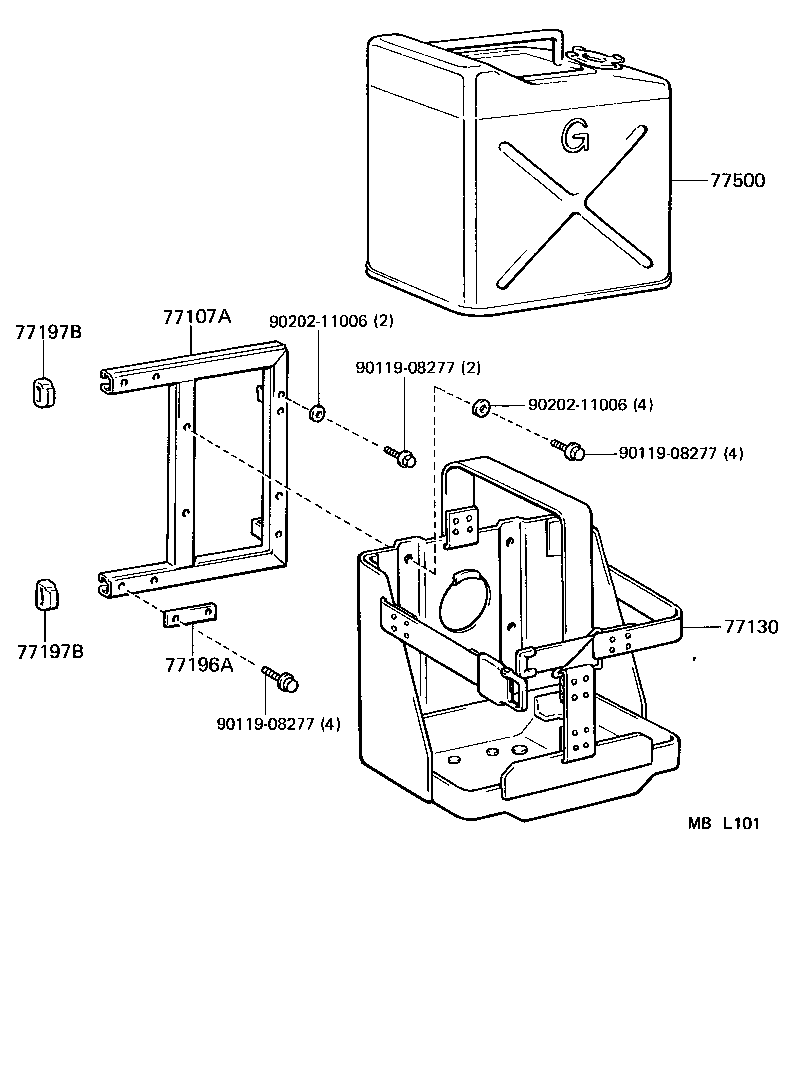

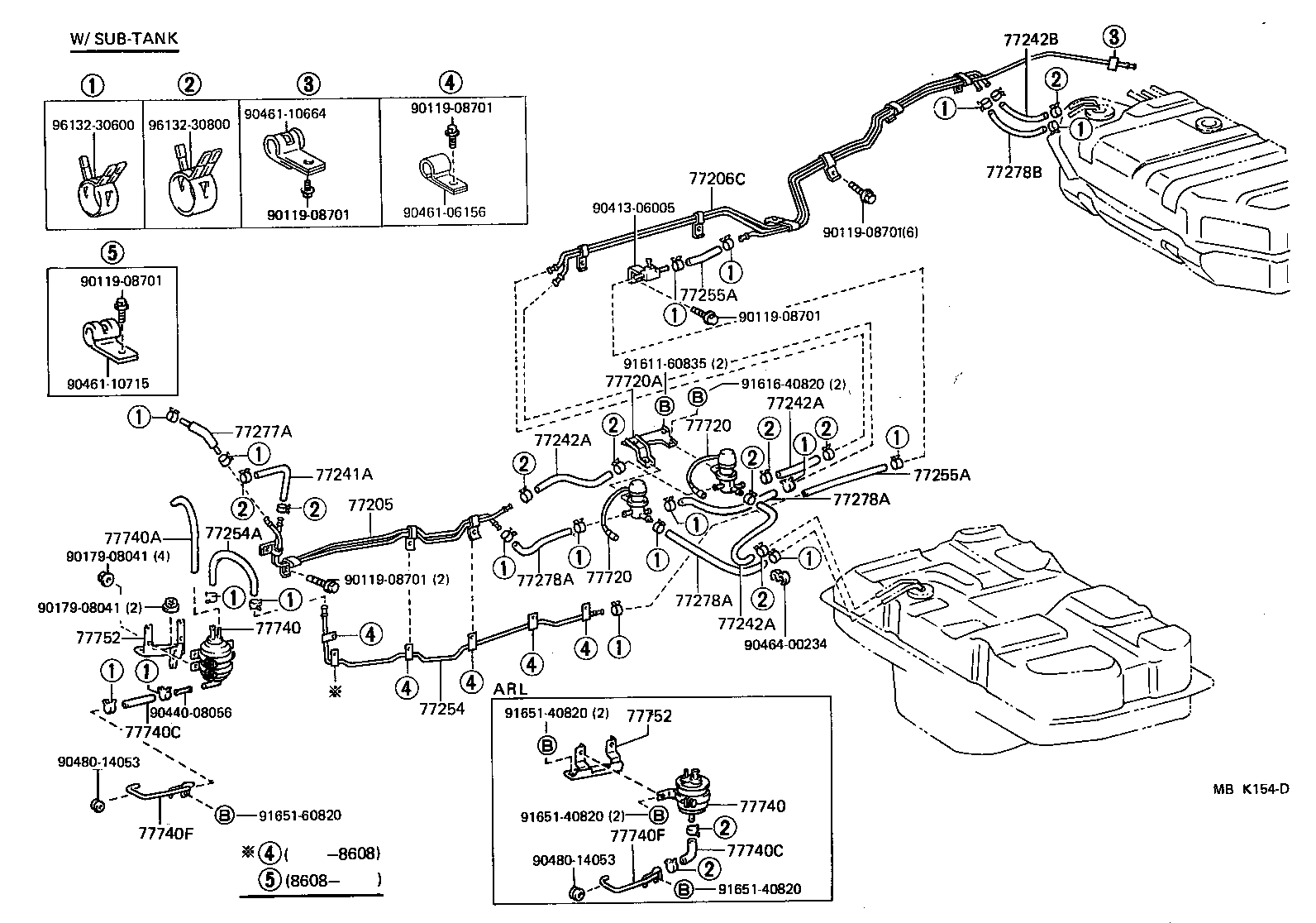

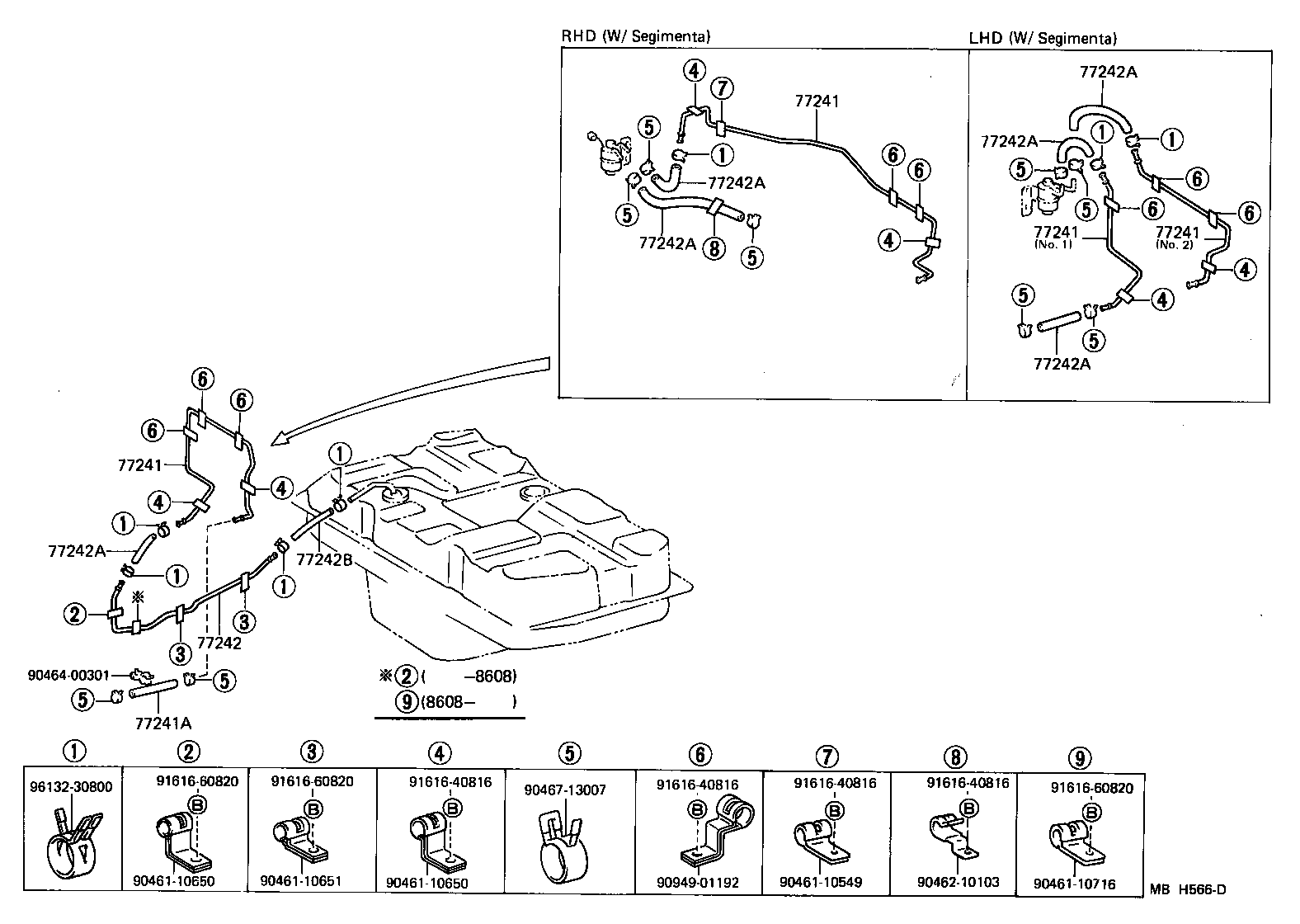

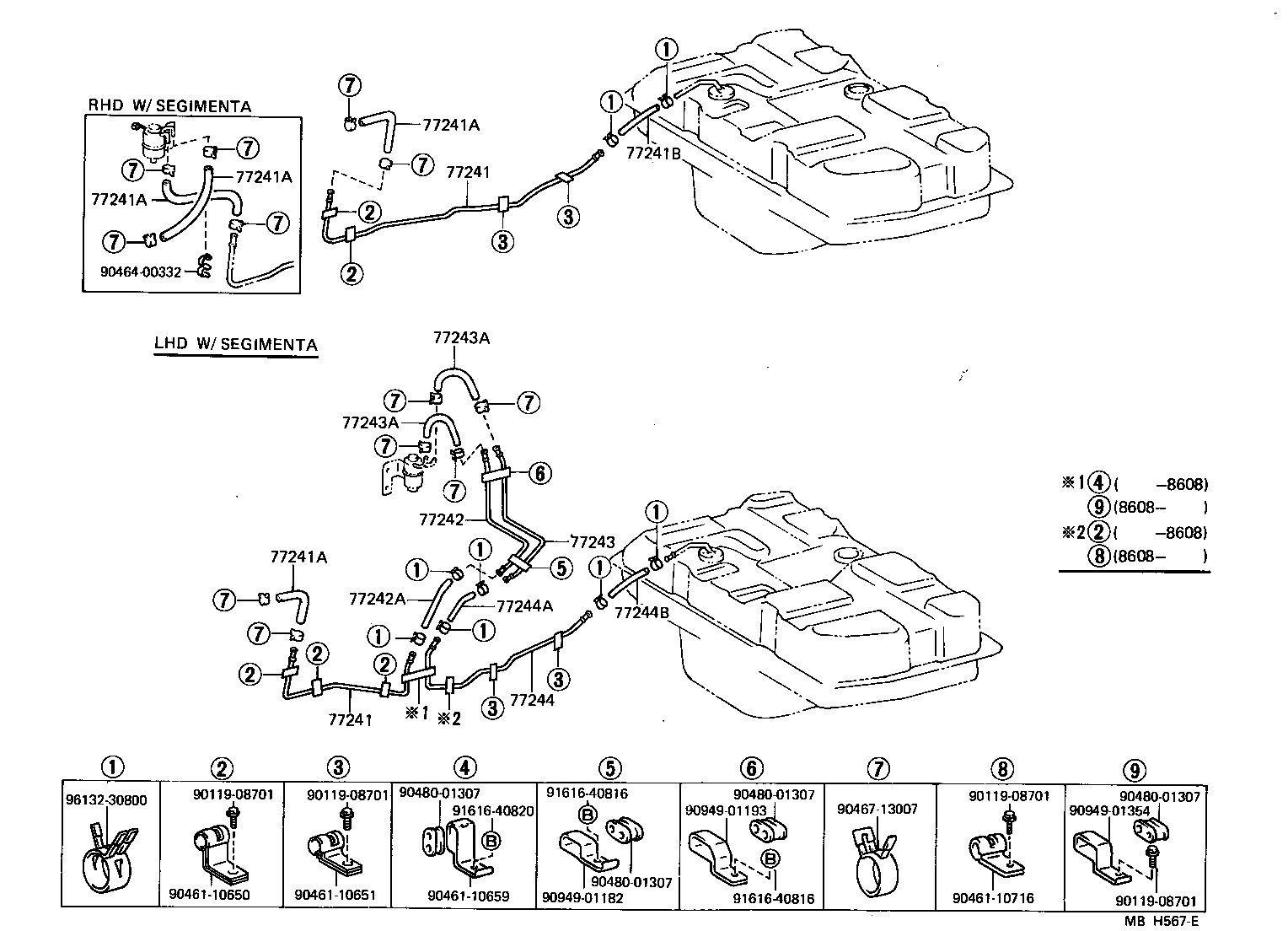

Figure MBH561D MBH561D 1984-11 → — Figure MBH564D MBH564D 1984-11 → 1985-10 Figure MBH564D MBH564D 1985-10 → — Figure MBK152D MBK152D 1984-11 → 1987-08 Figure MBK152D MBK152D 1987-08 → — Figure MBL789C MBL789C 1987-08 → — Figure MBH565E MBH565E 1984-11 → — Figure MBK226D MBK226D 1985-10 → — Figure MBH562C MBH562C 1984-11 → — Figure MBH563C MBH563C 1984-11 → 1988-08 Figure MBR984 MBR984 1988-08 → — Figure MBH566D MBH566D 1984-11 → 1988-08 Figure MBH567E MBH567E 1984-11 → — Figure MBH568B MBH568B 1984-11 → — Figure MBH568B MBH568B 1985-10 → — Figure MBK153C MBK153C 1984-11 → — Figure MBH724C MBH724C 1984-11 → — Figure MBH707D MBH707D 1984-11 → — Figure MBH708D MBH708D 1984-11 → 1985-10 Figure MBH708D MBH708D 1985-10 → — Figure MBK154D MBK154D 1984-11 → — Figure MBP391B MBP391B 1988-08 → — Figure MBP392A MBP392A 1988-08 → — Figure MBL101 MBL101 1984-11 → —

Part groups

PNCDescription
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77035 Cable Sub-assy, Fuel Lid Lock Control
77035A Clamp (FOR FUEL LID LOCK CONTROL CABLE)
77037 Lock Sub-assy, Fuel Filler Opening Lid
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100D Hose, Fuel, NO.1(FOR FUEL TANK)
77107A Carrier Sub-assy, Auxiliary Fuel Tank
77130 Bracket Assy, Auxiliary Fuel Tank
77131 Bracket, Fuel Tank Filler Pipe Support
77133 Support, Fuel Sub-tank, RH
77134 Support, Fuel Sub-tank, LH
77196A Pad, Auxiliary Fuel Tank Carrier
77197B Cover, Auxiliary Fuel Tank Carrier
77201 Pipe Sub-assy, Fuel Tank Inlet
77205 Tube Sub-assy, Fuel Main
77206 Tube Sub-assy, Fuel Tank Suction
77206A Gasket (FOR FUEL TANK SUCTION TUBE)
77206C Tube Sub-assy, Fuel Main, NO.2
77213 Hose, Fuel Tank Sub Inlet
77222A Tube, Fuel Vapor Liquid Separator, NO.1
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77242 Tube, Fuel Main, NO.2
77242A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
77242B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
77243 Tube, Fuel Main, NO.3
77243A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
77243B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.3)
77244 Tube, Fuel Main, NO.4
77244A Hose, Fuel, N0.1 (FOR MAIN TUBE, N0.4)
77244B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.4)
77245 Tube, Fuel Main, NO.5
77245A Hose, Fuel, N0.1 (FOR MAIN TUBE, N0.5)
77245B Hose, Fuel, N0.2 (FOR MAIN TUBE, N0.5)
77249 Hose, Fuel Emission
77251 Shield, Fuel Tank, Inlet, NO.1
77254 Tube, Fuel Emission, NO.1
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77255 Tube, Fuel Emission, NO.2
77255A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.2)
77256A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.3)
77269 Tube, Fuel Connecting
77271C Separator, Fuel Vapor Liquid
77276 Protector, Fuel Hose
77277 Tube, Fuel Return, NO.1
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77278A Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
77278B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2)
77279A Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.3)
77279B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.3)
77285B Clamp, Fuel Tube W/Grommet, NO.1
77286 Protector, Fuel Tank Inlet Pipe
77286B Clamp, Fuel Tube W/Grommet, NO.2
77290 Shield Assy, Fuel Tank Filler Pipe
77292A Stay, Fuel Tank Fillar Upper Pipe
77293A Shield, Fuel Tank Filler Pipe, NO.3
77308 Cover Sub-assy, Fuel Inlet Box
77308A Cushion(FOR FUEL INLET BOX COVER)
77322 Knob, Fuel Tank Cap
77338A Bracket, Fuel Tank Cap Lock Control Rod
77366 Spring, Fuel Filler Opening Lid Hinge
77367 Stopper, Fuel Filler Opening Lid
77378A Cover, Fuel Filler Opening Lid Lock
77387 Ring, Fuel Inlet Box
77500 Tank Assy, Auxiliary Fuel
77606 Protector Sub-assy, Fuel Tank, NO.1
77611 Band, Fuel Tank
77611A Pin (FOR FUEL TANK BAND)
77631 Bracket, Fuel Tank, NO.1
77632 Bracket, Fuel Tank, NO.2
77675B Bracket, Fuel Tank Filler Pipe Protector, NO.1
77676B Bracket, Fuel Tank Filler Pipe Protector, NO.2
77701T Valve, Check (FOR MAIN FUEL TANK)
77720 Valve Sub-assy, Safety
77720A Bracket, Safety Valve
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740C Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
77740F Tube, Fuel, NO.1(FOR CHARCOAL CANISTER)
77750 Canister Assy, Charcoal
77750C Hose, Fuel, NO.3 (FOR CHARCOAL CANISTER)
77751 Bracket, Charcoal Canister Base
77752 Bracket, Charcoal Canister Support
77753 Bracket, Charcoal Canister, NO.3
77759 Hose, Charcoal Canister
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
