Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

33 part groups · 8 illustrations

Illustrations

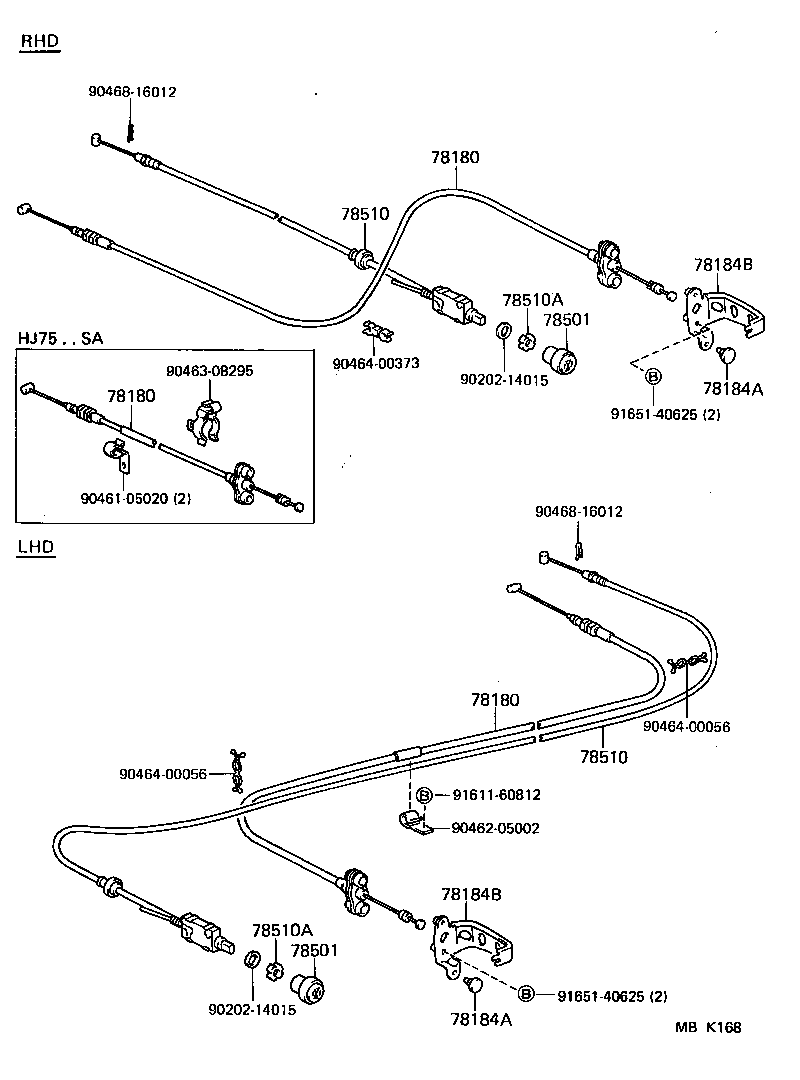

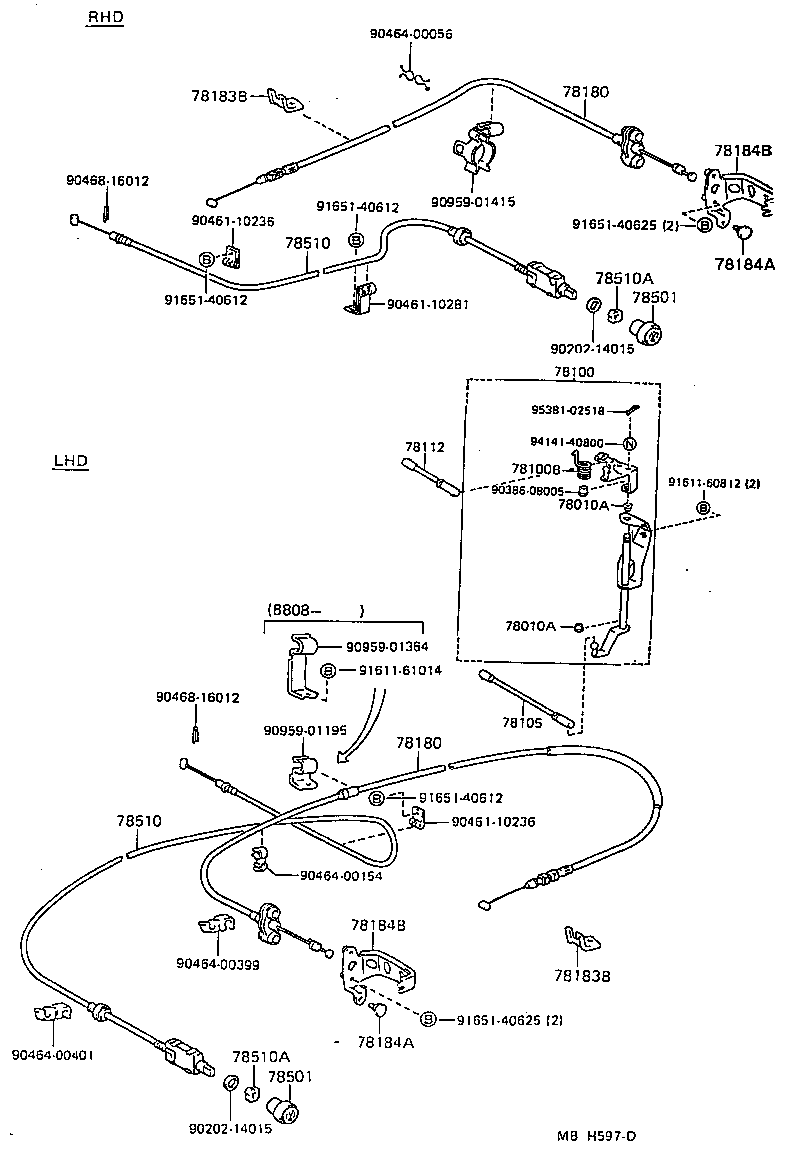

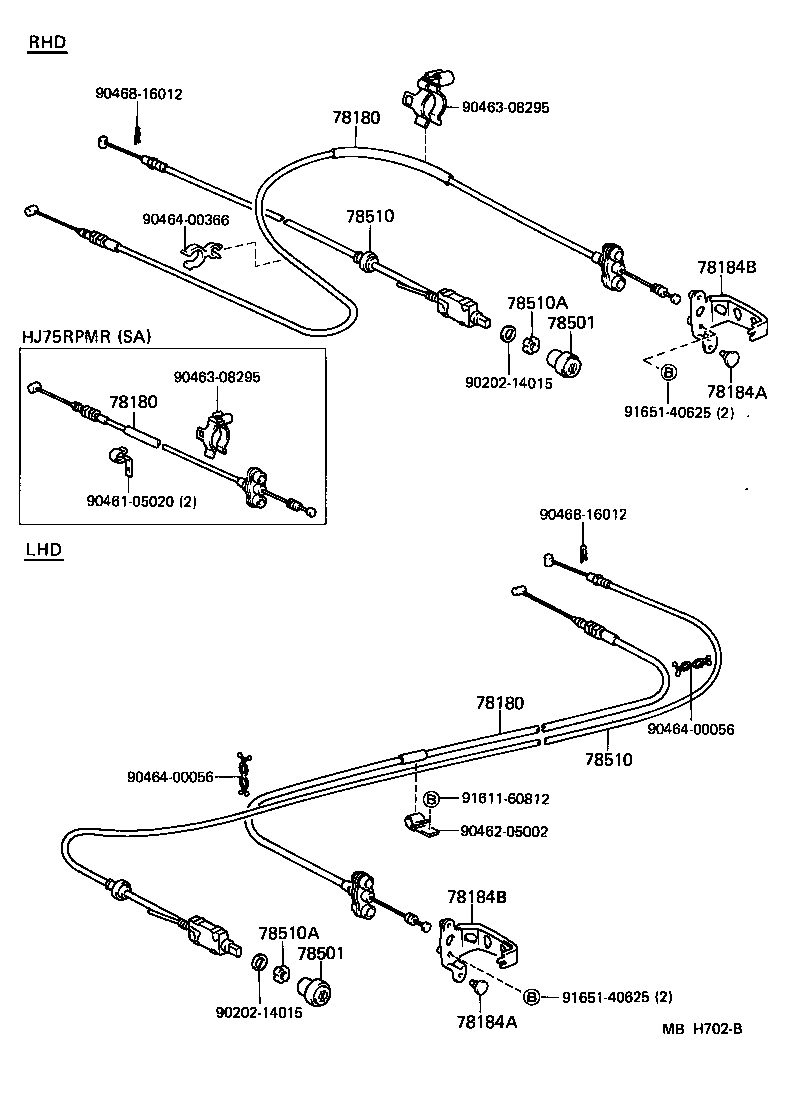

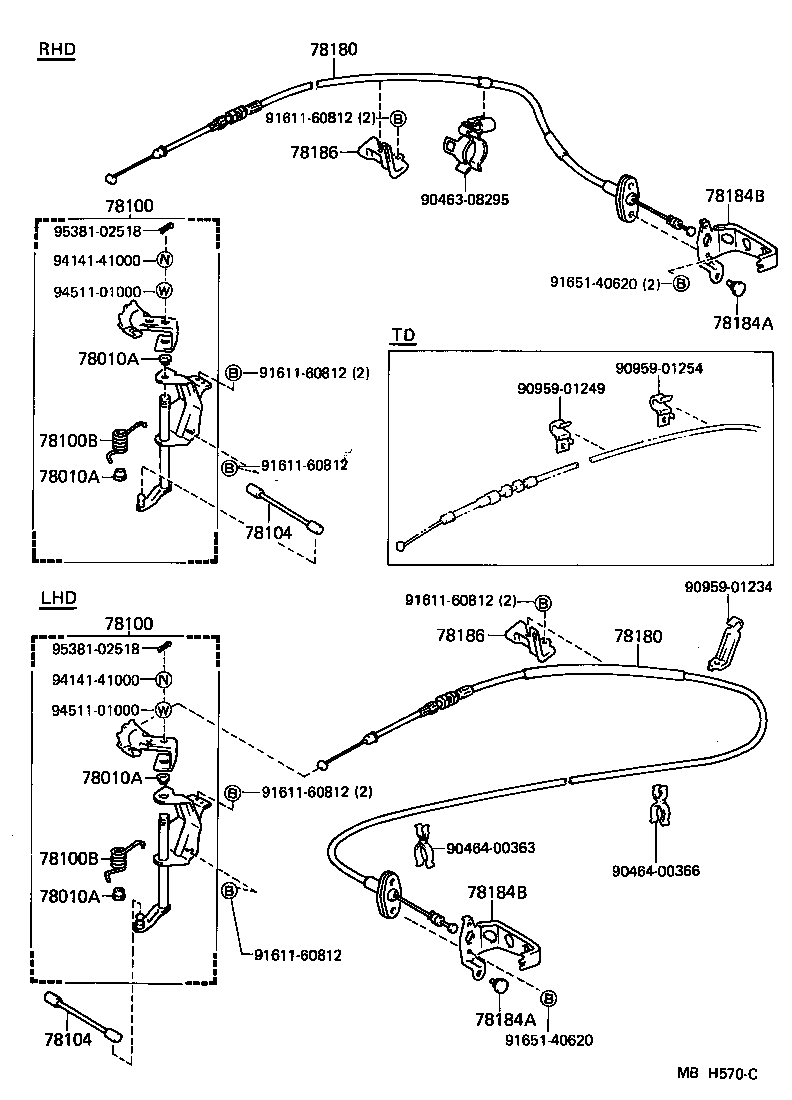

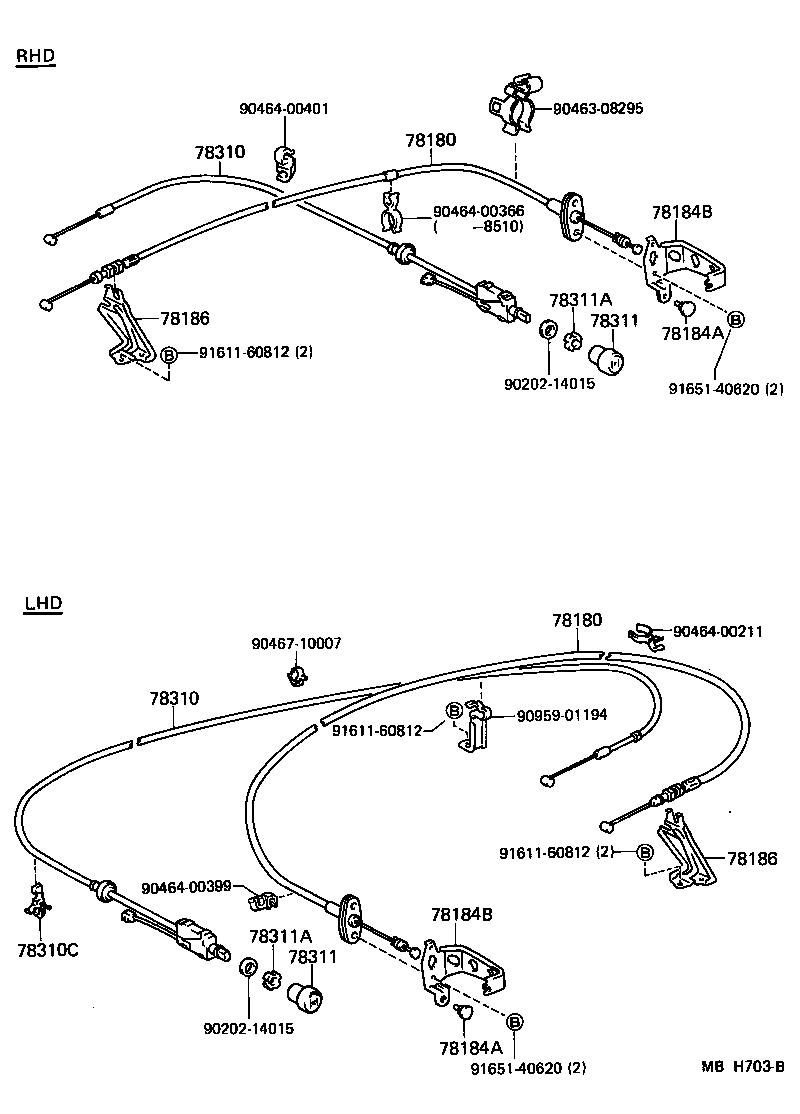

Figure MBH569A MBH569A 1984-11 → — Figure MBH570C MBH570C 1984-11 → — Figure MBH597D MBH597D 1984-11 → — Figure MBK167 MBK167 1985-10 → — Figure MBH702B MBH702B 1984-11 → 1985-10 Figure MBK168 MBK168 1985-10 → — Figure MBH703B MBH703B 1984-11 → — Figure MBH571 MBH571 1984-11 → —

Part groups

PNCDescription
78010A Bush (FOR ACCELERATOR LINK)
78100 Link Assy, Accelerator
78100B Spring (FOR ACCELERATOR LINK)
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78105 Rod Sub-assy, Accelerator Connecting, NO.3
78110 Rod Assy, Accelerator Pedal
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78110C Bush (FOR ACCELERATOR PEDAL ROD)
78112 Rod Sub-assy, Accelerator Connecting, NO.4
78118 Pad, Accelerator Pedal
78118B Stopper, Accelerator Pedal
78130 Bellcrank Assy, Accelerator
78130A Spring (FOR ACCELERATOR ROD RETURN)
78130B Bush, Accelerator Bellcrank
78166 Bracket, Accel Control NO.2 Bellcrank
78180 Wire Assy, Accelerator
78183B Clamp, Accelerator Control Cable
78184A Cushion (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
78184B Bracket, Accelerator Control Cable
78186 Support, Accelerator Control Cable, NO.1
78189 Bolt, Accelerator Pedal Stopper
78310 Cable Assy, Choke
78310C Clip (FOR CHOKE CABLE)
78311 Knob, Choke Control Cable
78311A Nut, Choke Shaft Set
78410 Cable Assy, Throttle Control
78410C Knob, Throttle Cable
78410D Nut, Throttle
78449 Guide, Throttle Cable
78501 Button Sub-assy, Stop
78510 Cable Assy, Stop
78510A Nut, Stop Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
