Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

6 part groups · 4 illustrations

Illustrations

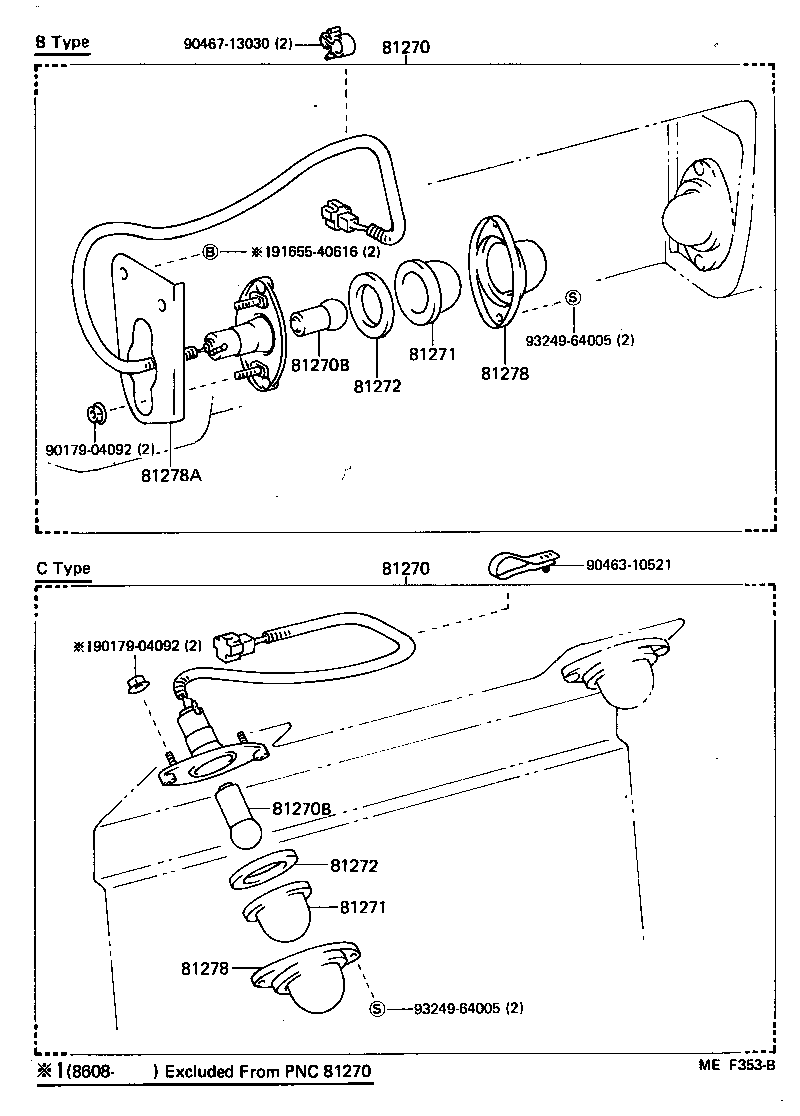

Figure MEF695C MEF695C 1984-11 → — Figure MEF353B MEF353B 1984-11 → 1985-10 Figure MEF353B MEF353B 1984-11 → — Figure MEF353B MEF353B 1986-08 → —

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81278 Cover, License Plate Lamp
81278A Bracket, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
