Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

21 part groups · 3 illustrations

Illustrations

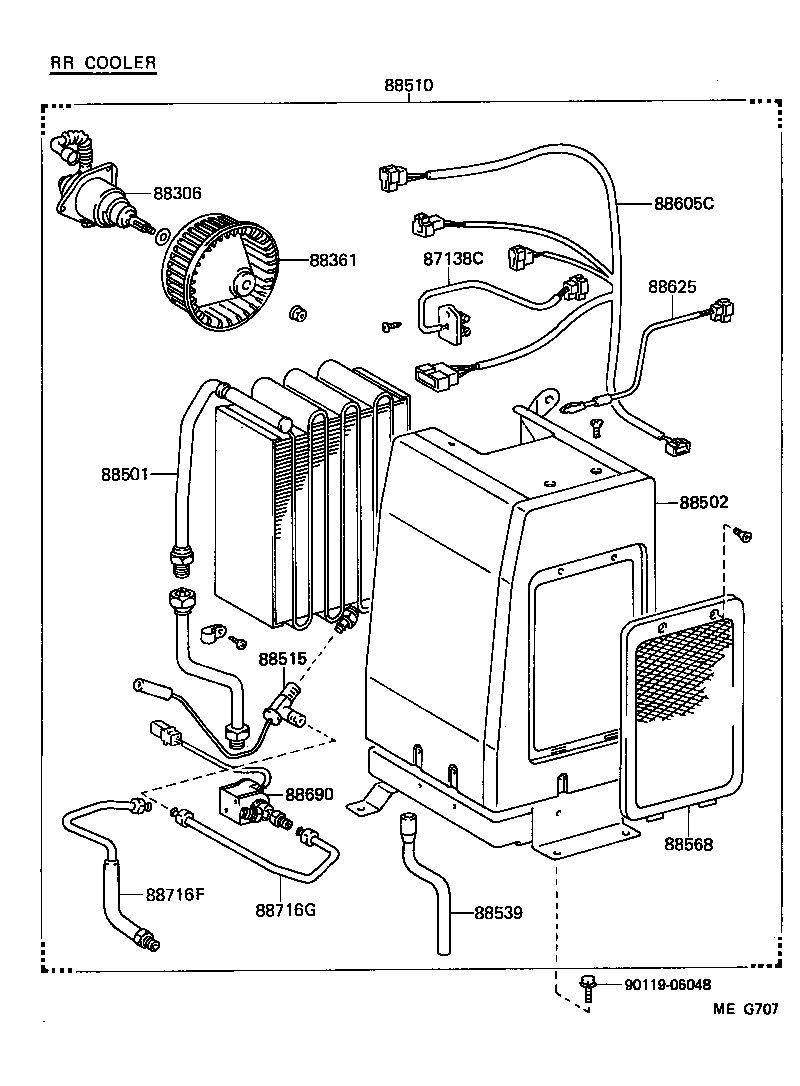

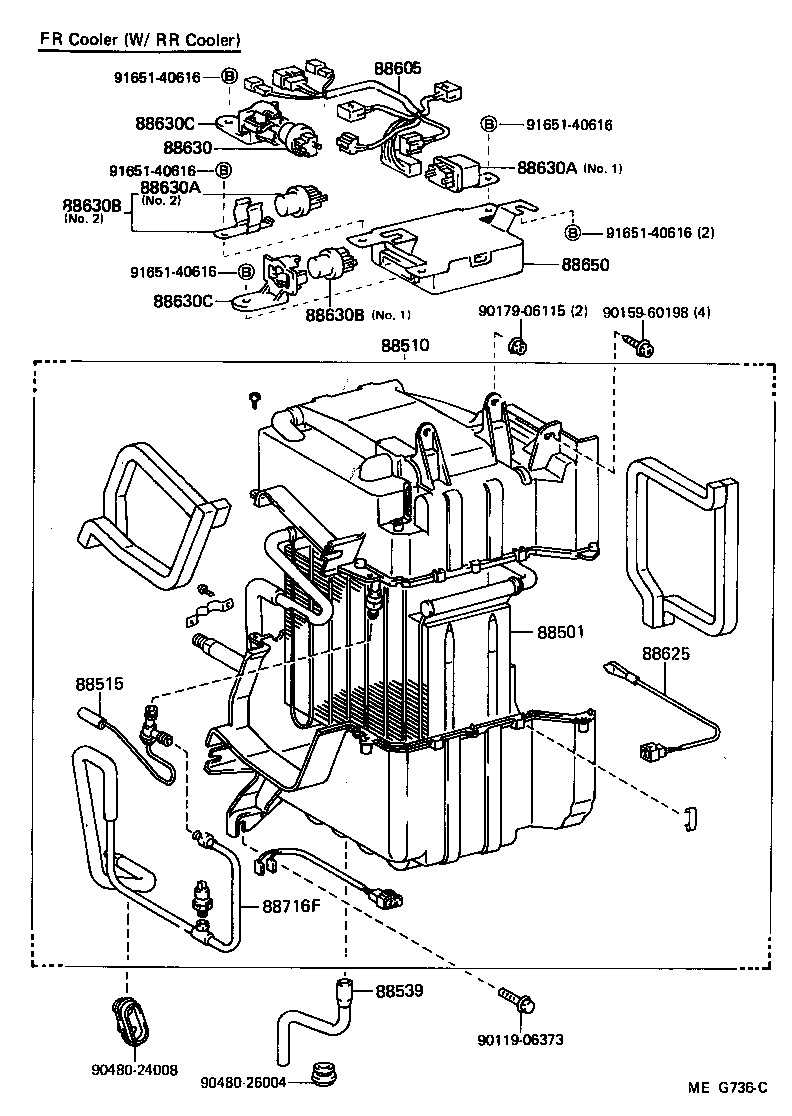

Figure MEF380E MEF380E 1984-11 → — Figure MEG736C MEG736C 1985-10 → — Figure MEG707 MEG707 1985-10 → —

Part groups

PNCDescription
87138C Resistor, Blower
88306 Motor Sub-assy, Cooler Blower, NO.1
88361 Fan, Cooler Blower, NO.1
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88568 Filter, Cooler Unit Cover
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605C Harness Sub-assy, Cooler Wiring, NO.2
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88630B Relay Assy, Cooler
88630C Bracket, Cooler Relay
88650 Amplifier Assy, Cooler Stabilizer
88688A Bracket, Cooler Stabilizer Amplifier
88690 Valve Assy, Cooler Magnet
88716F Pipe, Cooler Refrigerant Liquid, F
88716G Pipe, Cooler Refrigerant Liquid, G
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
