Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

20 part groups · 4 illustrations

Illustrations

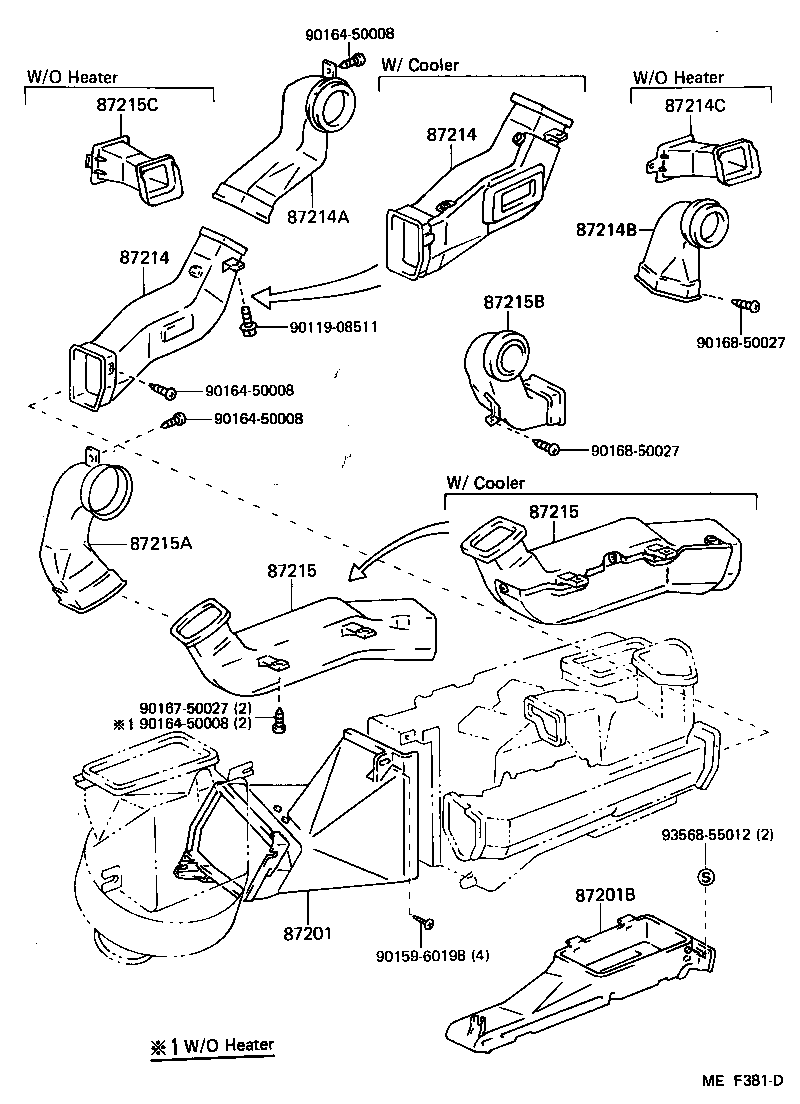

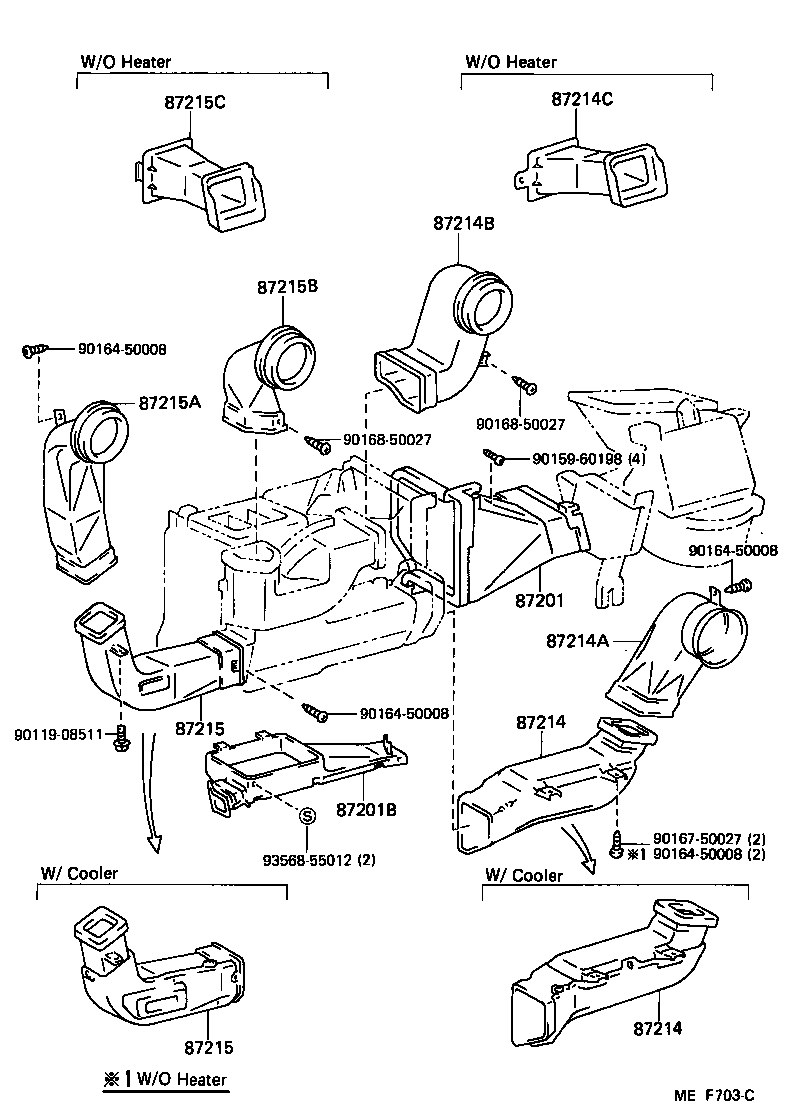

Figure MEF330A MEF330A 1984-11 → — Figure MEF381D MEF381D 1984-11 → — Figure MEF703C MEF703C 1984-11 → — Figure MEG744A MEG744A 1985-10 → —

Part groups

PNCDescription
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87214 Duct, Air, Side NO.1 RH
87214A Duct, Air, Side NO.2 RH
87214B Duct, Air, Side NO.3 RH
87214C Duct, Air, Side NO.4 RH
87215 Duct, Air, Side NO.1 LH
87215A Duct, Air, Side NO.2 LH
87215B Duct, Air, Side NO.3 LH
87215C Duct, Air, Side NO.4 LH
88566B Duct, Cooler Air, NO.2
88566C Duct, Cooler Air, NO.3
88570E Grille Assy, Air Outlet
88571B Grille, Air Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
