Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

34 part groups · 11 illustrations

Illustrations

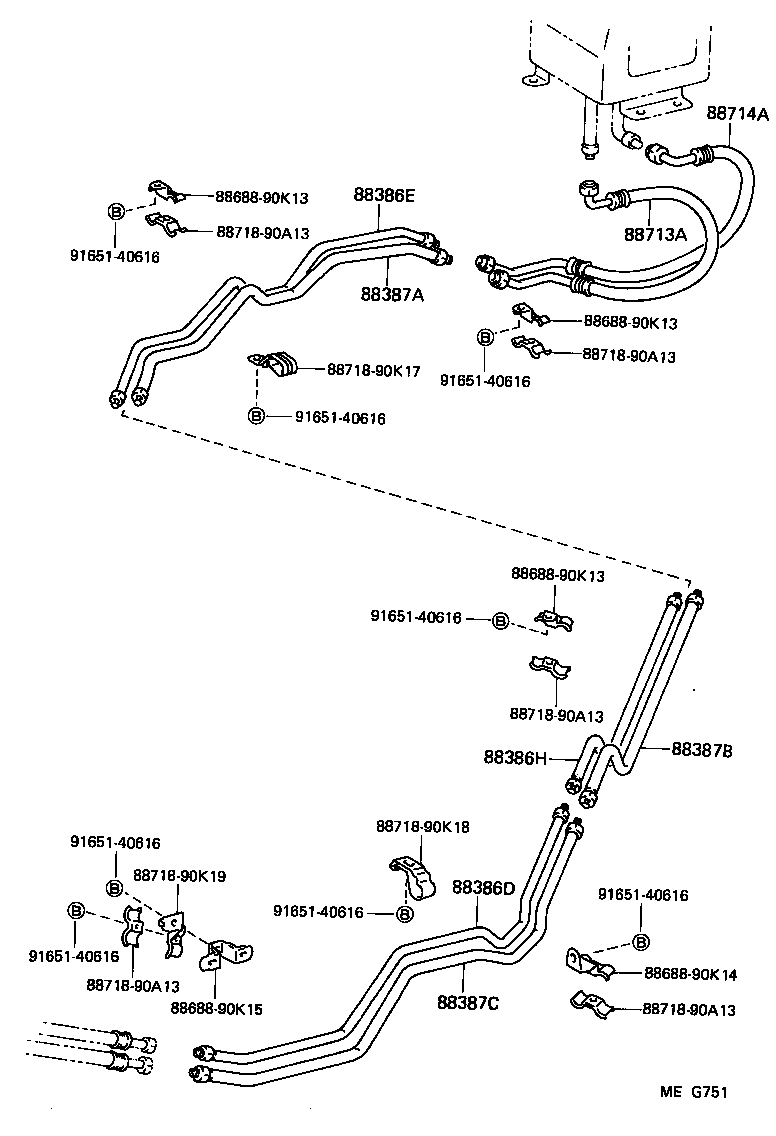

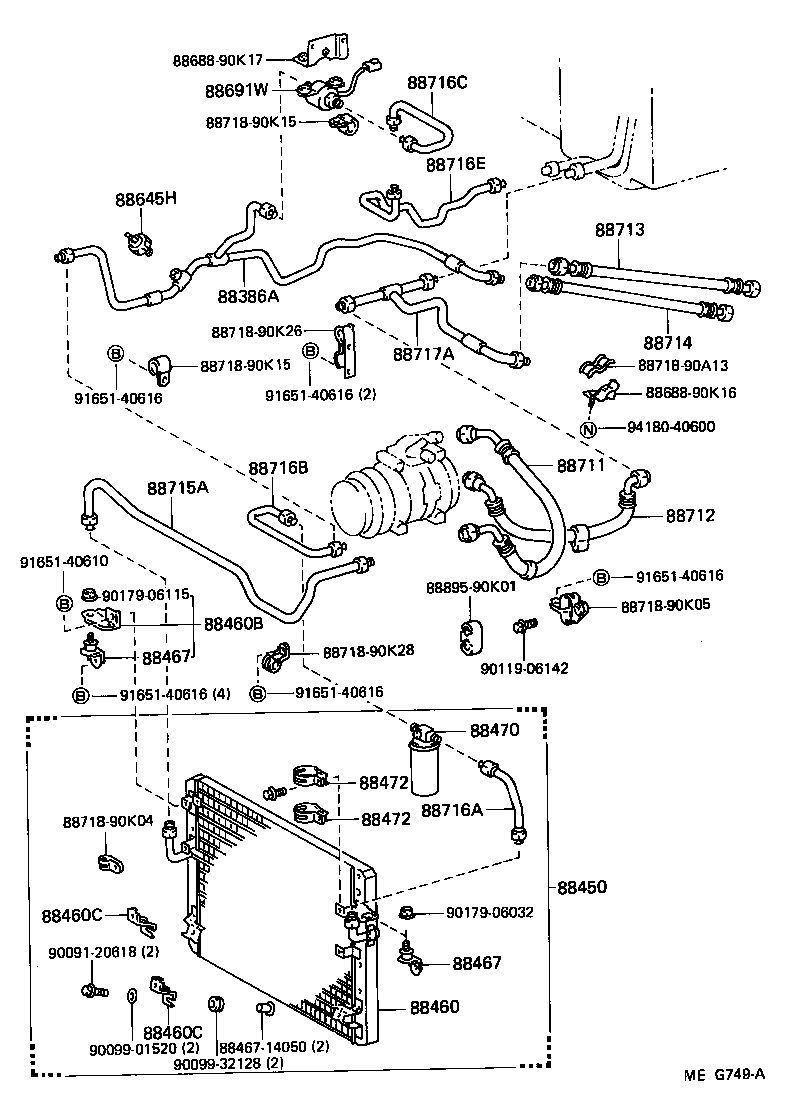

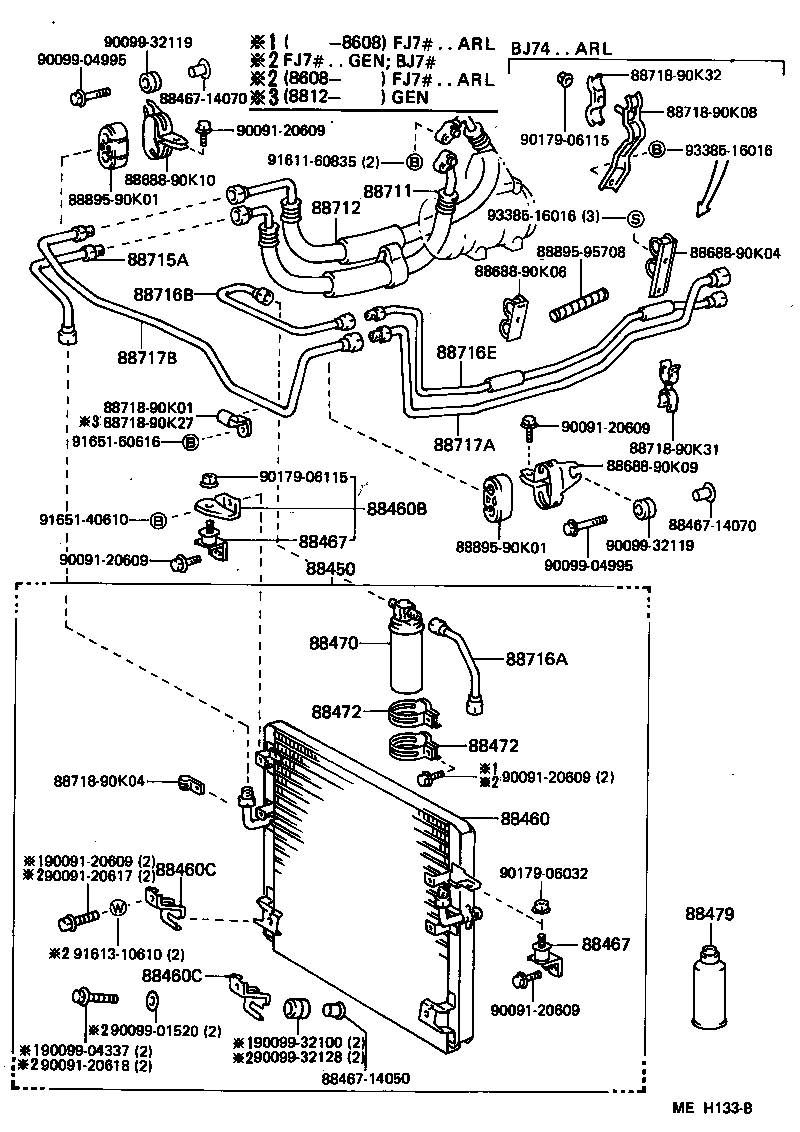

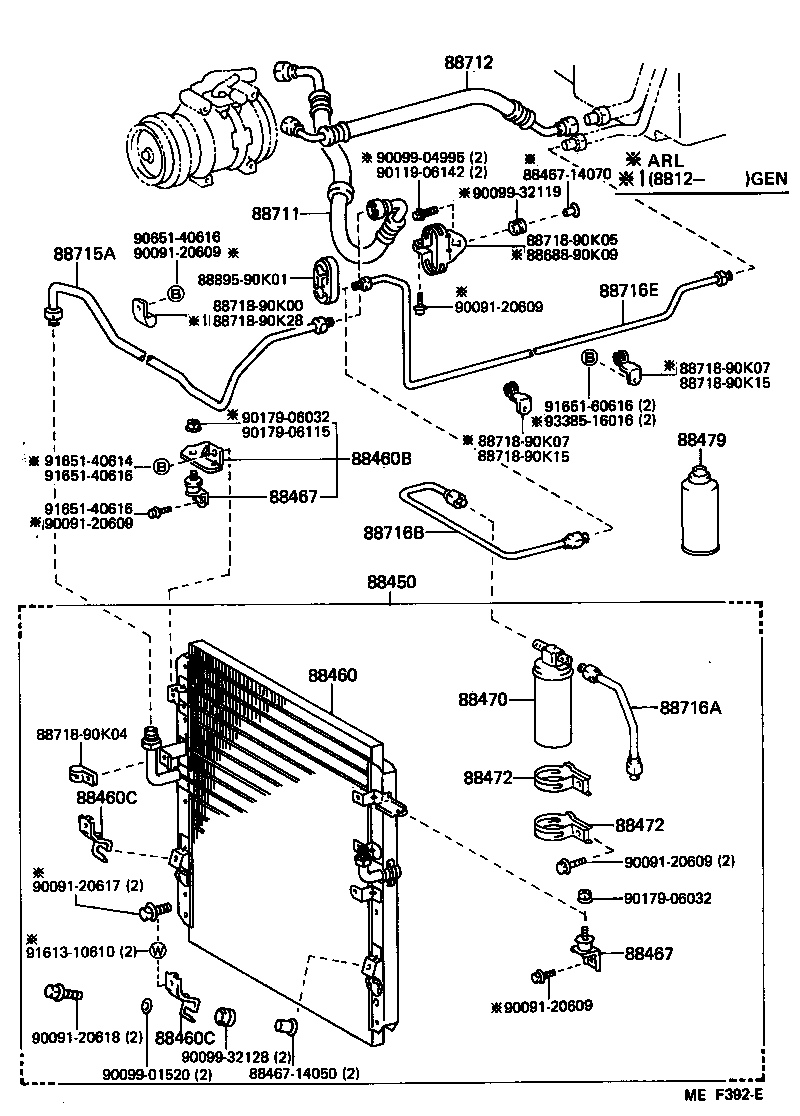

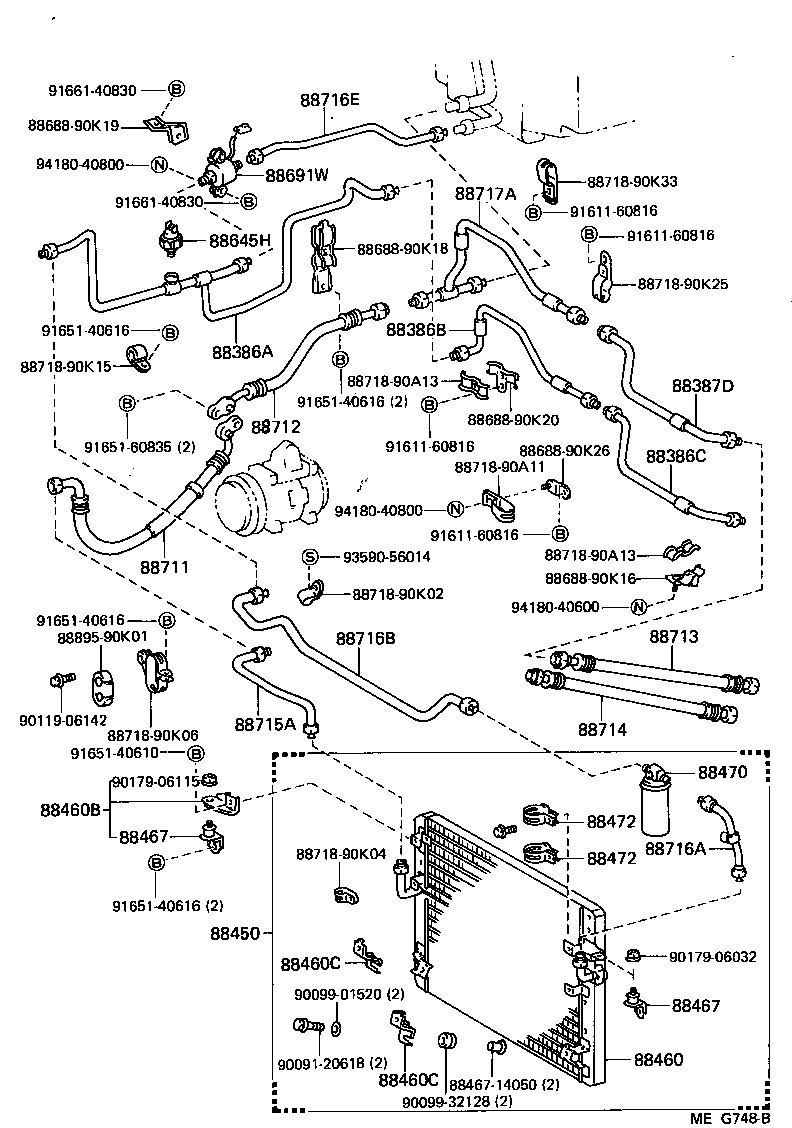

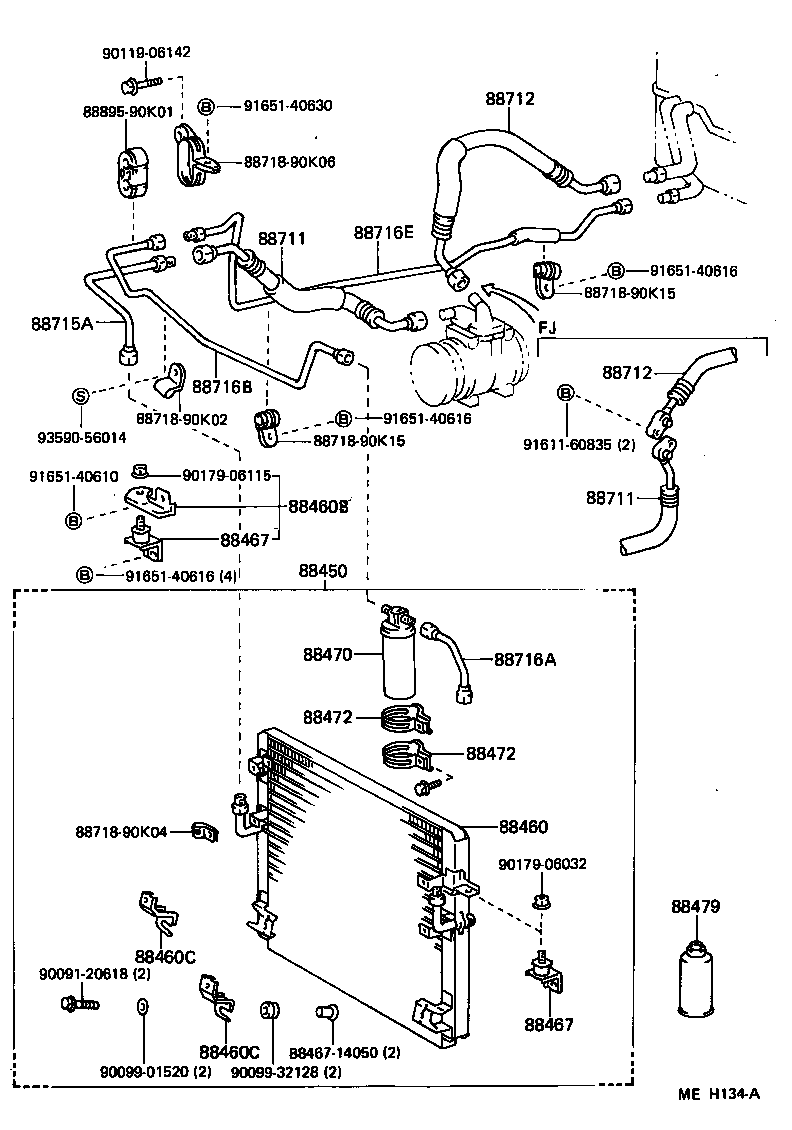

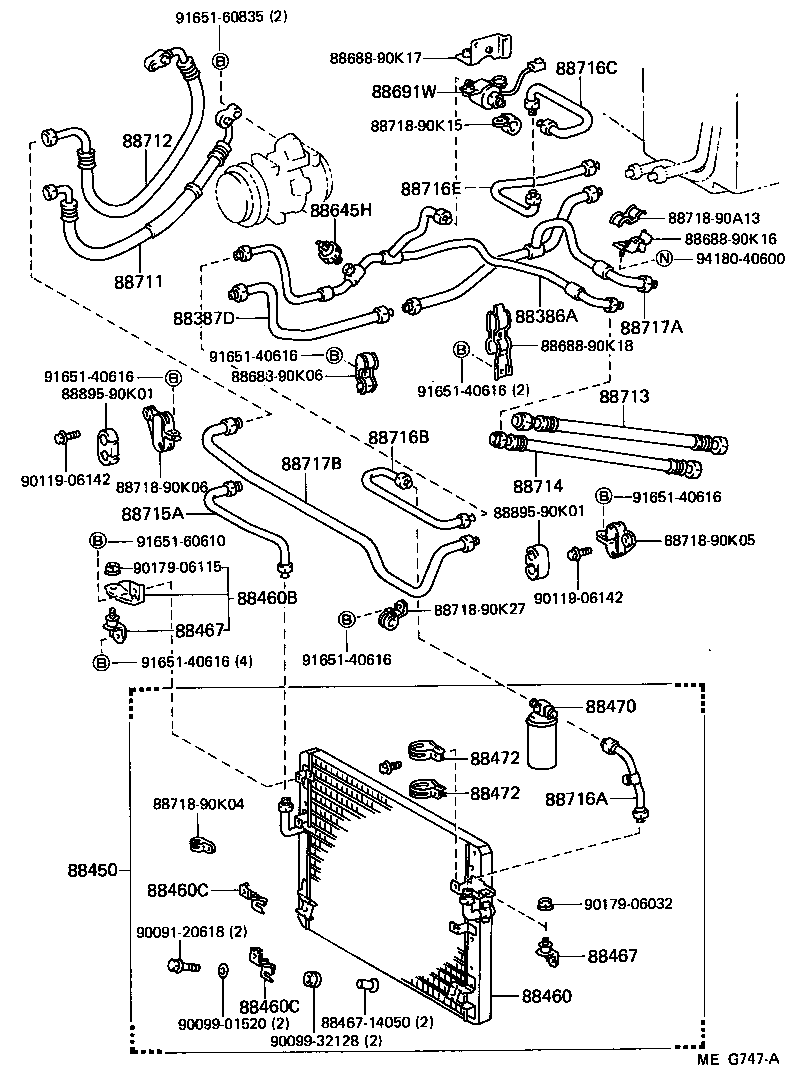

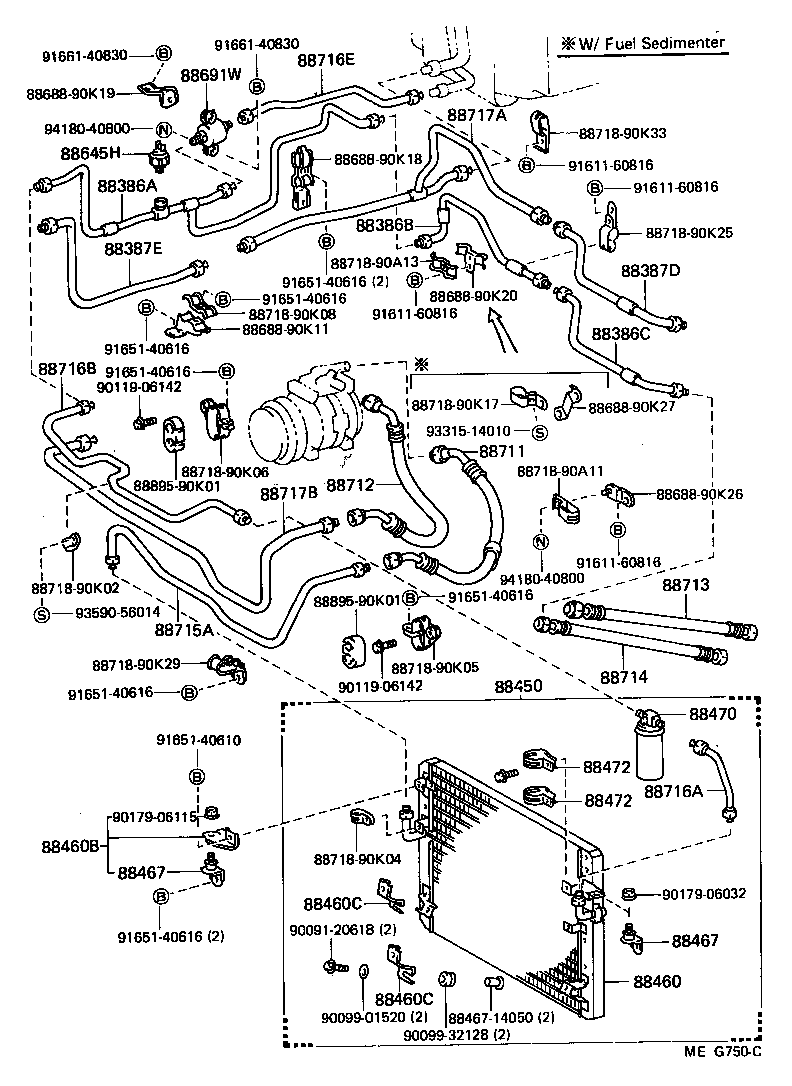

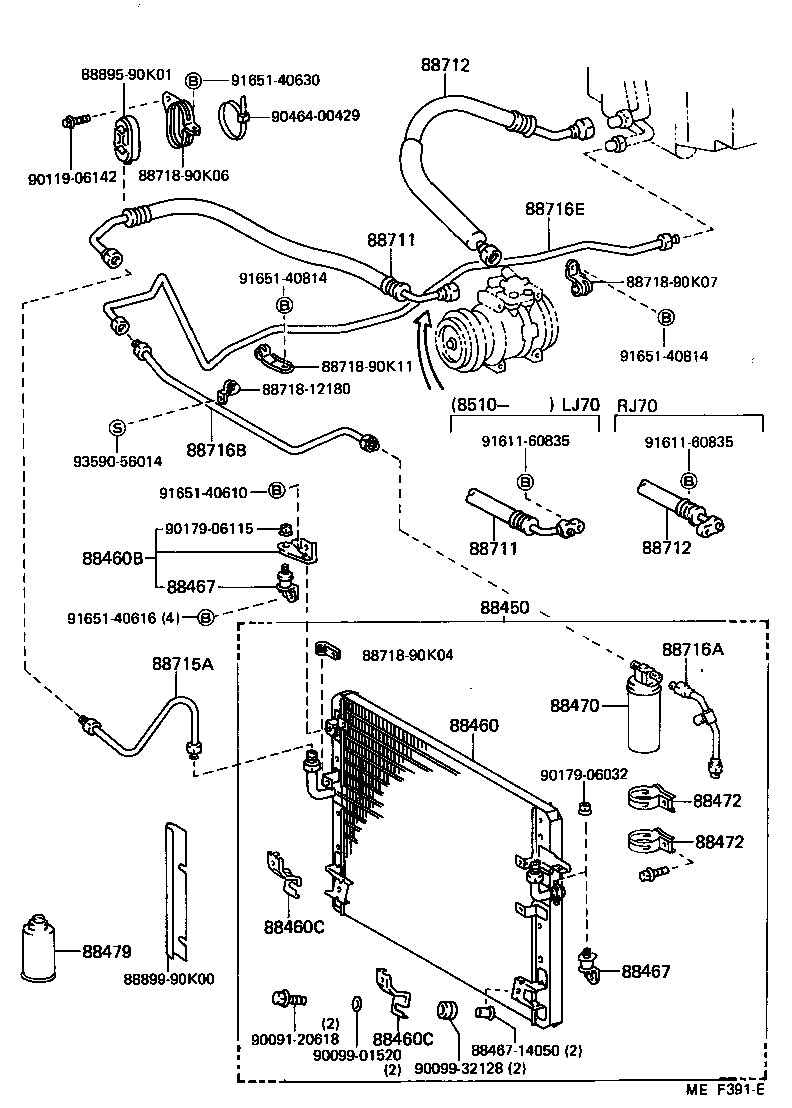

Figure MEF390D MEF390D 1984-11 → — Figure MEH133B MEH133B 1984-11 → — Figure MEF391E MEF391E 1984-11 → — Figure MEH134A MEH134A 1984-11 → — Figure MEF392E MEF392E 1984-11 → — Figure MEF393D MEF393D 1984-11 → — Figure MEG747A MEG747A 1985-10 → — Figure MEG748B MEG748B 1985-10 → — Figure MEG749A MEG749A 1985-10 → — Figure MEG750C MEG750C 1985-10 → — Figure MEG751 MEG751 1985-10 → —

Part groups

PNCDescription
88386A Pipe, Rear Cooler Refrigerant Liquid, A (FROM CONDENSER)
88386B Pipe, Rear Cooler Refrigerant Liquid, B
88386C Pipe, Rear Cooler Refrigerant Liquid, C
88386D Pipe, Rear Cooler Refrigerant Liquid, D
88386E Pipe, Rear Cooler Refrigerant Liquid, E (TO COOLER UNIT)
88386H Pipe, Rear Cooler Refrigerant Liquid, H
88387A Pipe, RR Cooler Refrigerant Suction, A (FROM COOLER UNIT)
88387B Pipe, Rear Cooler Refrigerant Suction, B
88387C Pipe, Rear Cooler Refrigerant Suction, C
88387D Pipe, Rear Cooler Refrigerant Suction, D
88387E Pipe, Rear Cooler Refrigerant Suction, E (TO COMPRESSOR)
88450 Condenser Assy, W/Receiver
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88467 Cushion, Cooler Condenser, NO.1
88470 Receiver & Dryer Assy, Cooler
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88645H Switch, Pressure NO.1
88691W Valve, Magnet
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88713 Hose, Cooler Refrigerant Suction, NO.2
88713A Hose, Cooler Refrigerant Suction, NO.3
88714 Hose, Cooler Refrigerant Liquid, NO.1
88714A Hose, Cooler Refrigerant Liquid, NO.2
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
