Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · General

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

35 part groups · 17 illustrations

Illustrations

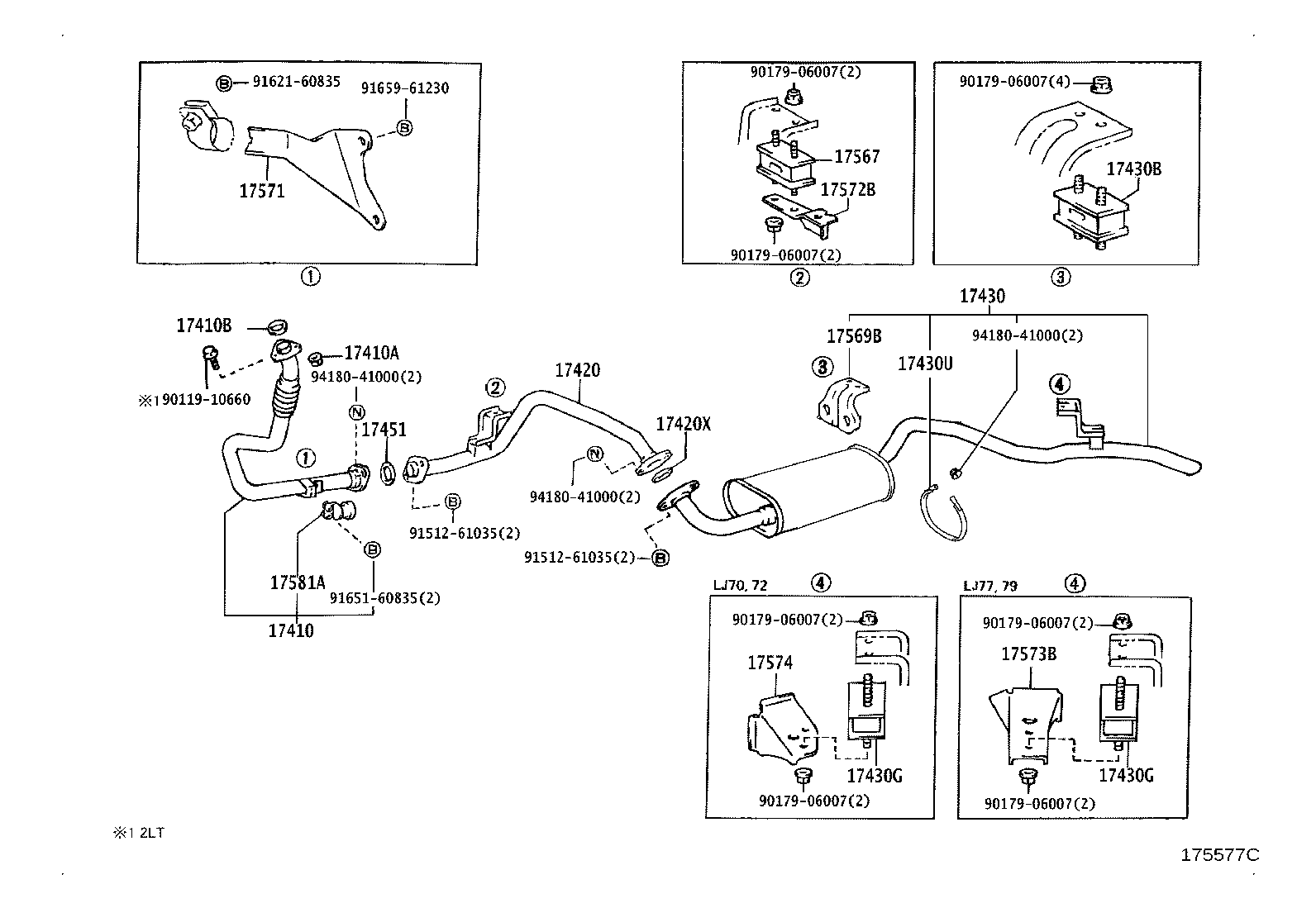

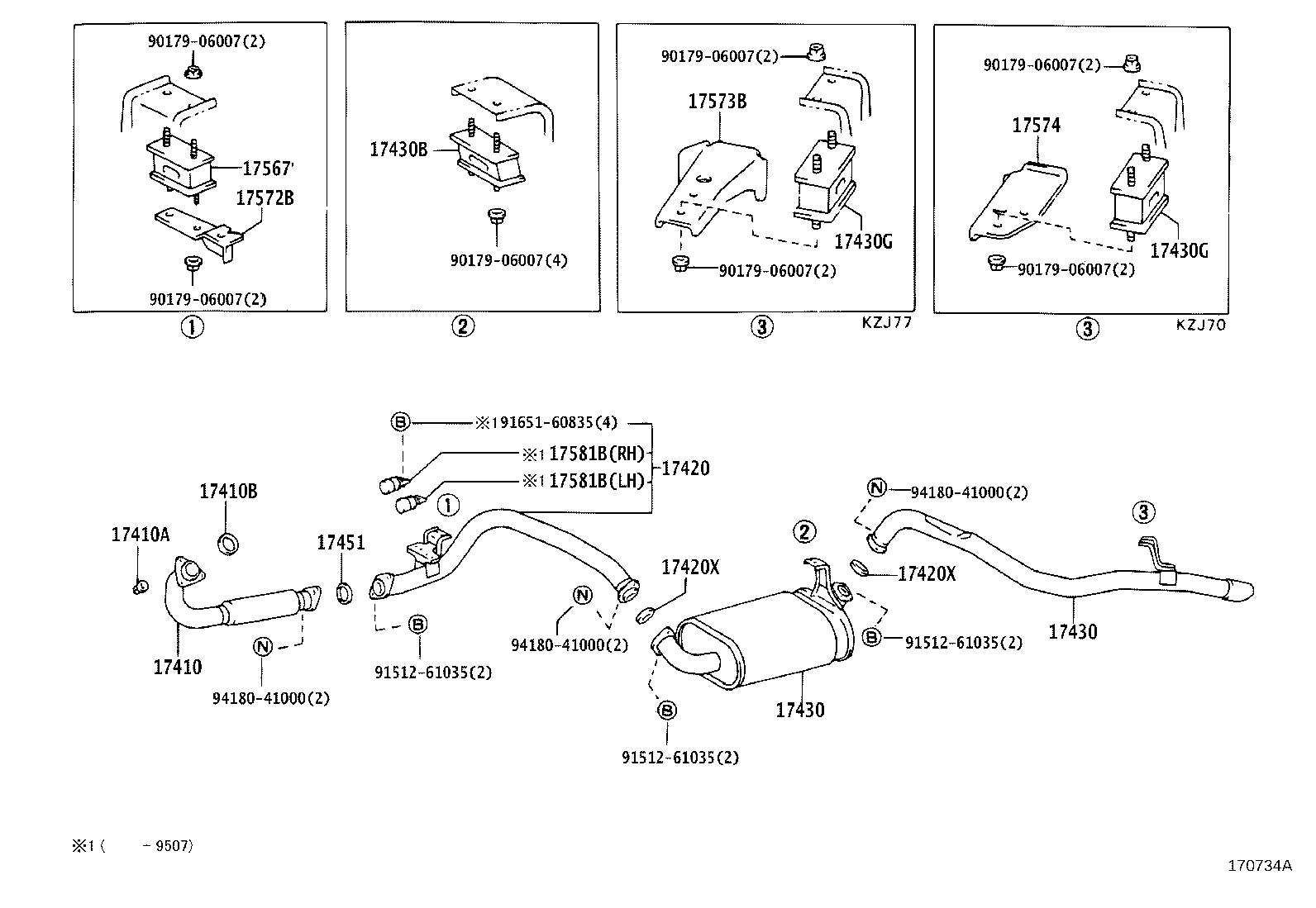

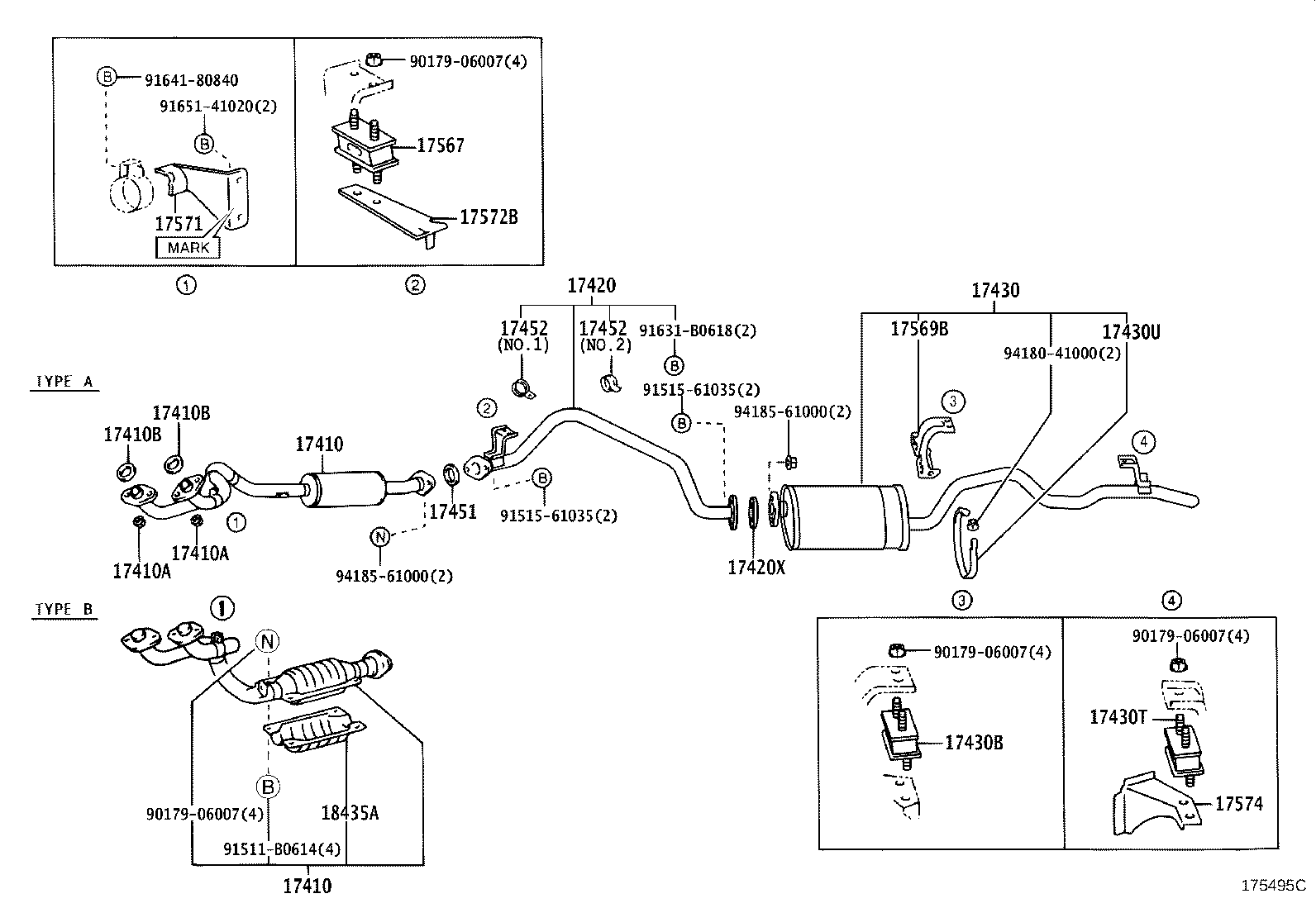

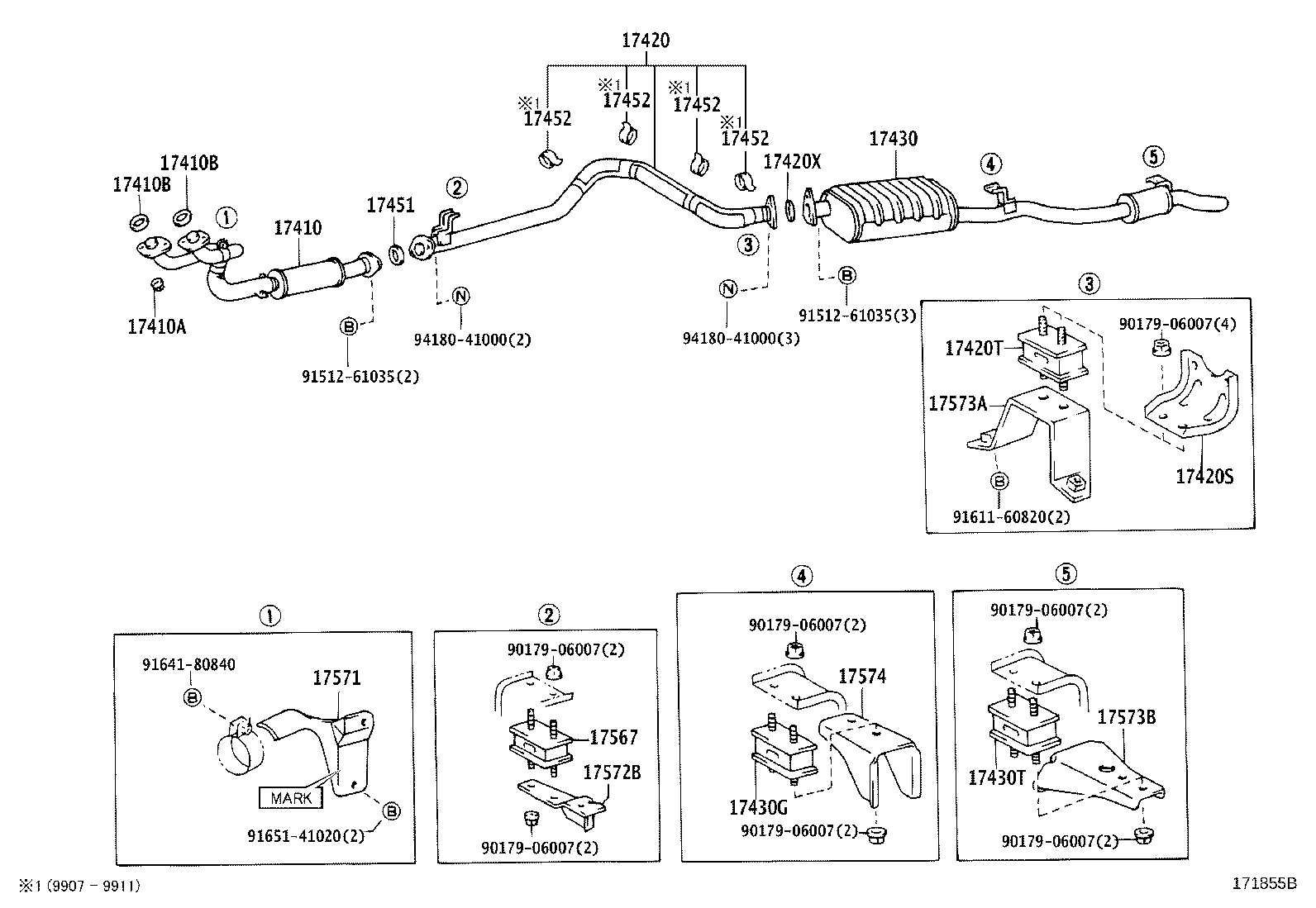

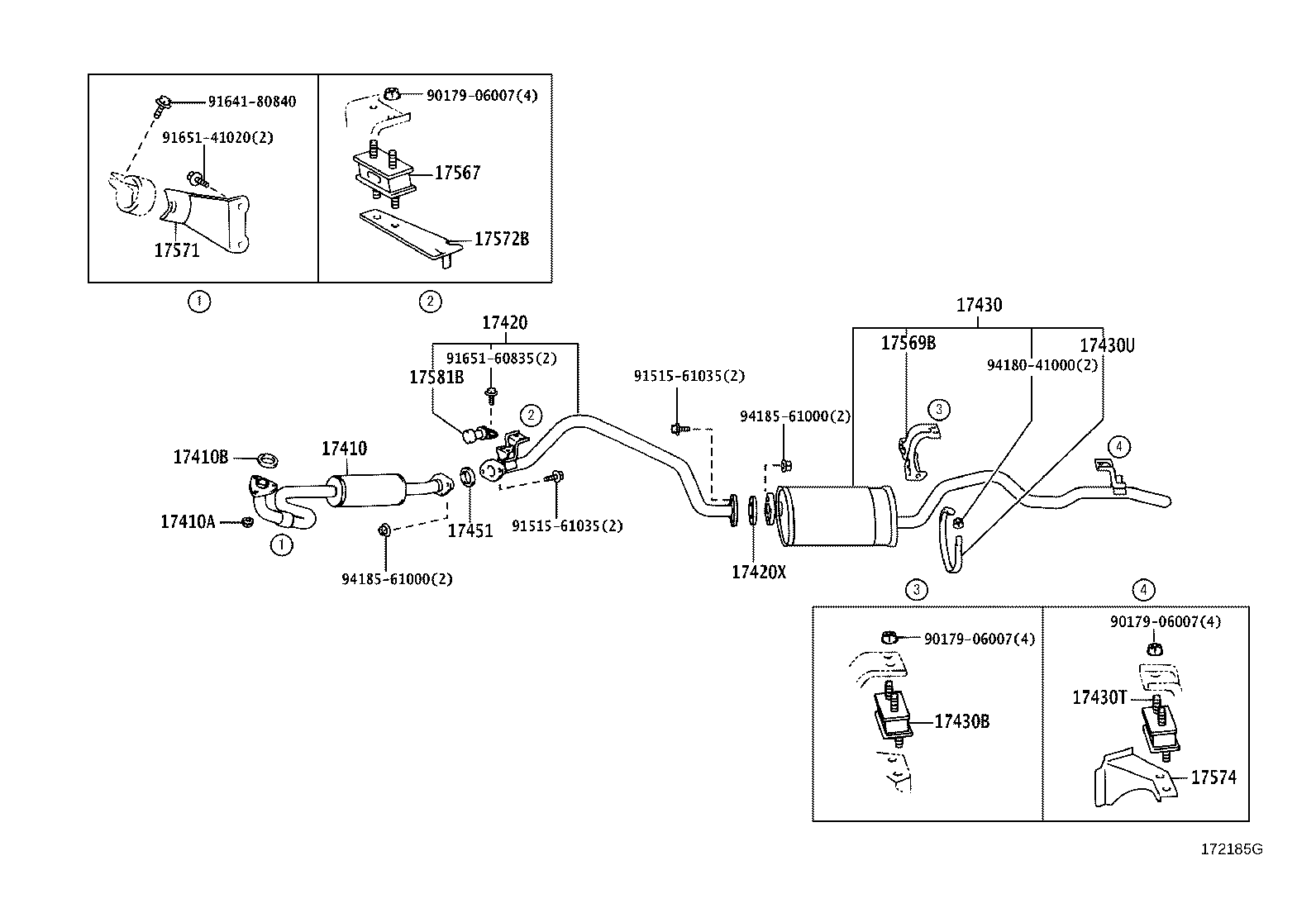

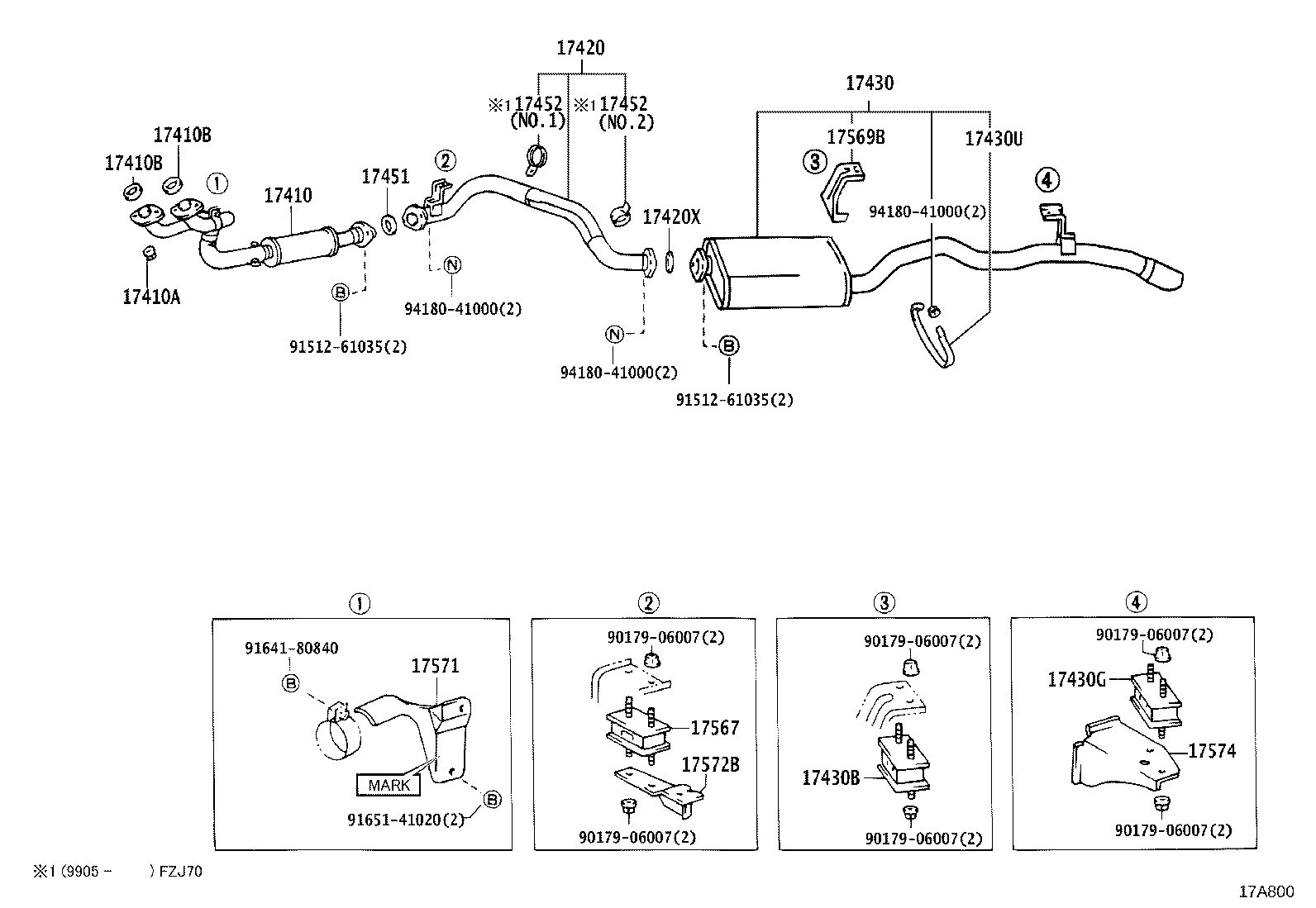

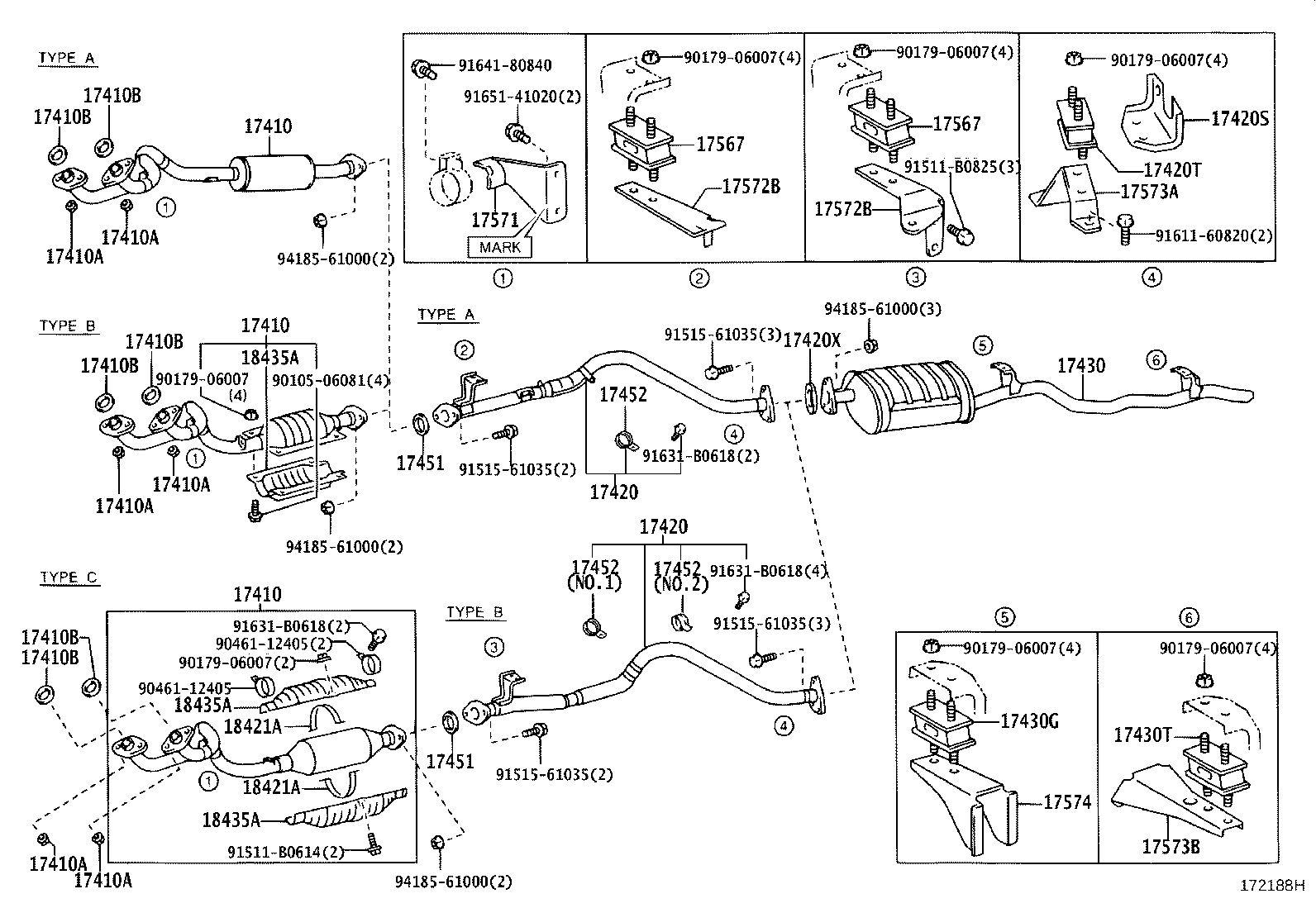

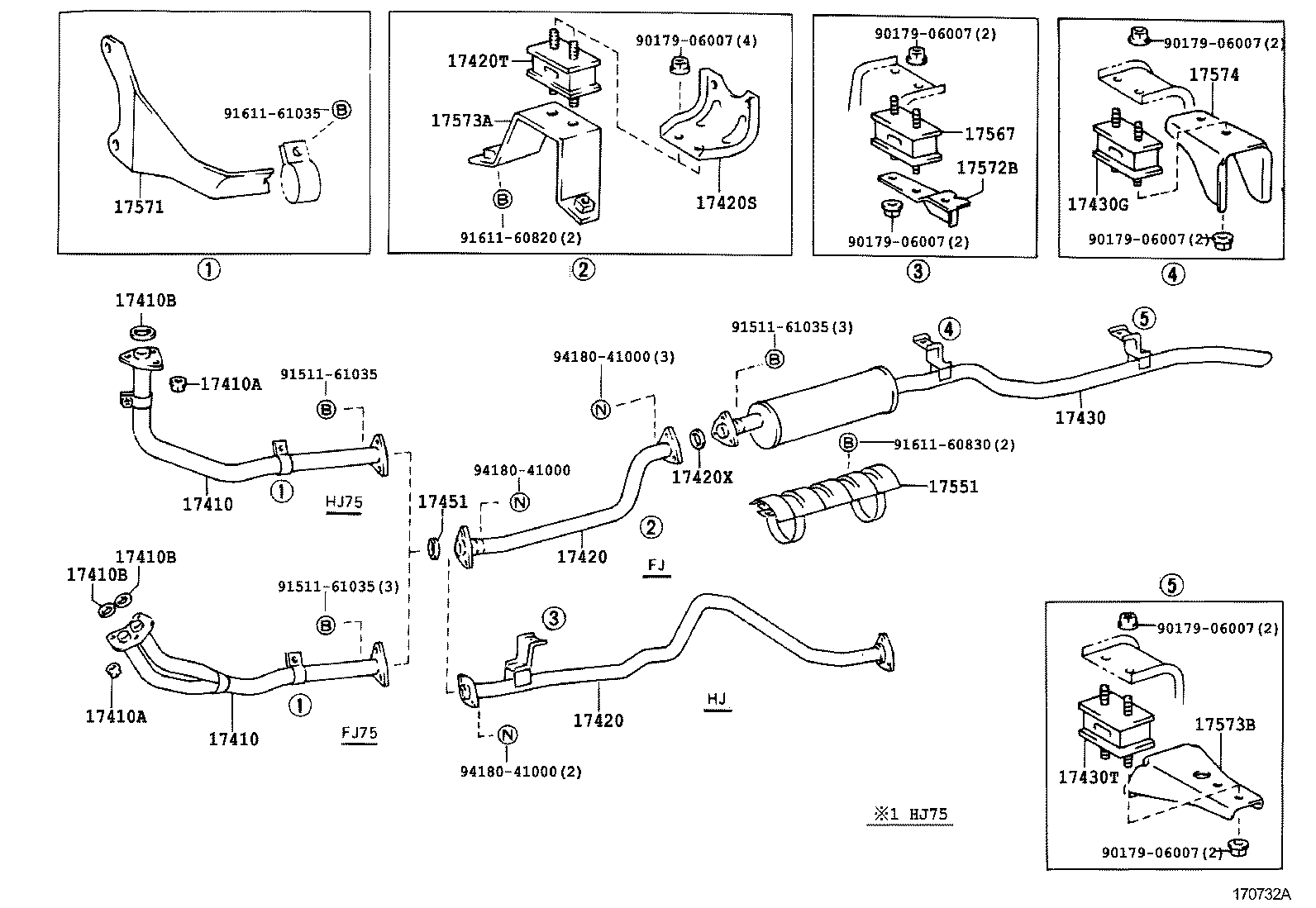

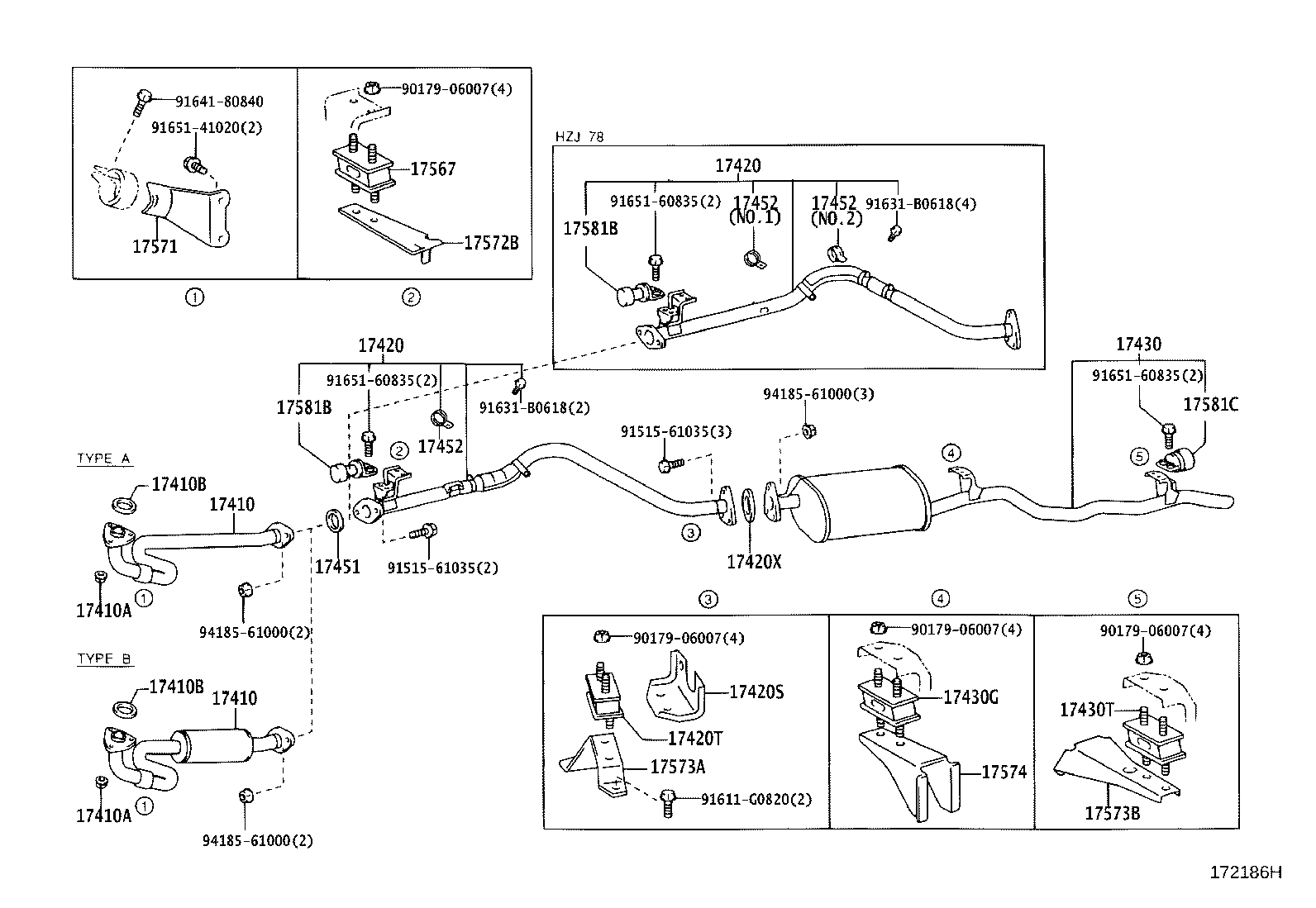

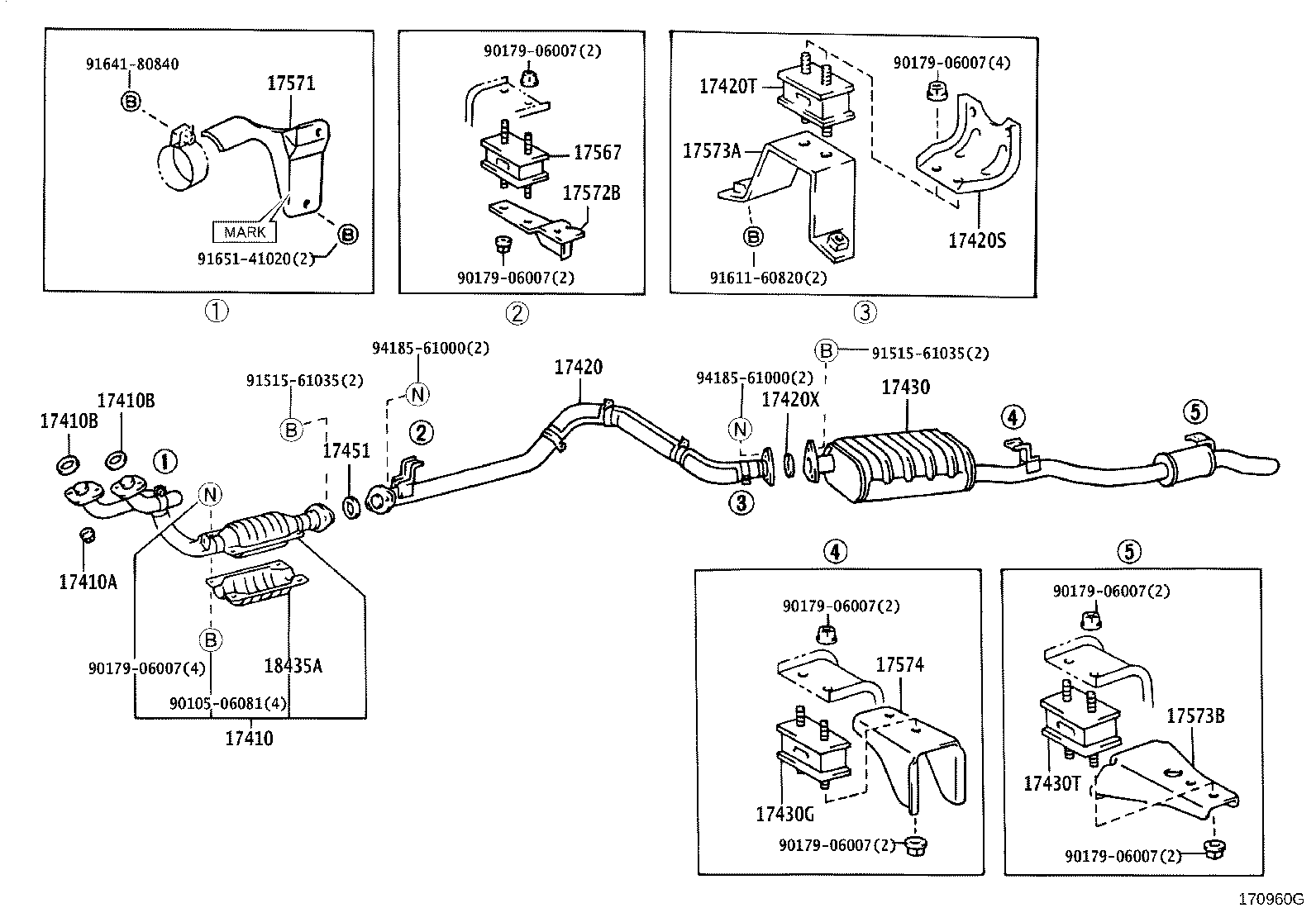

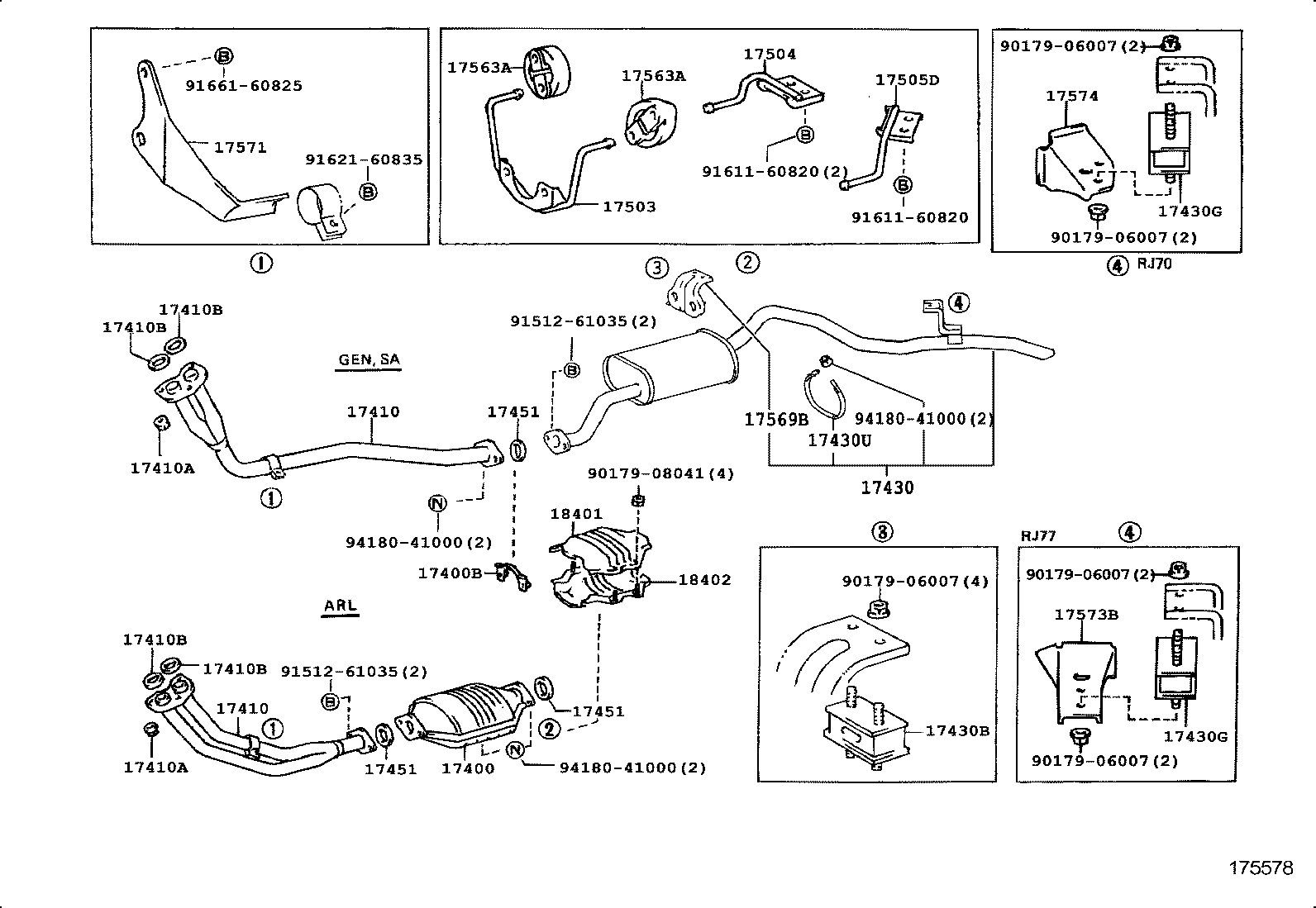

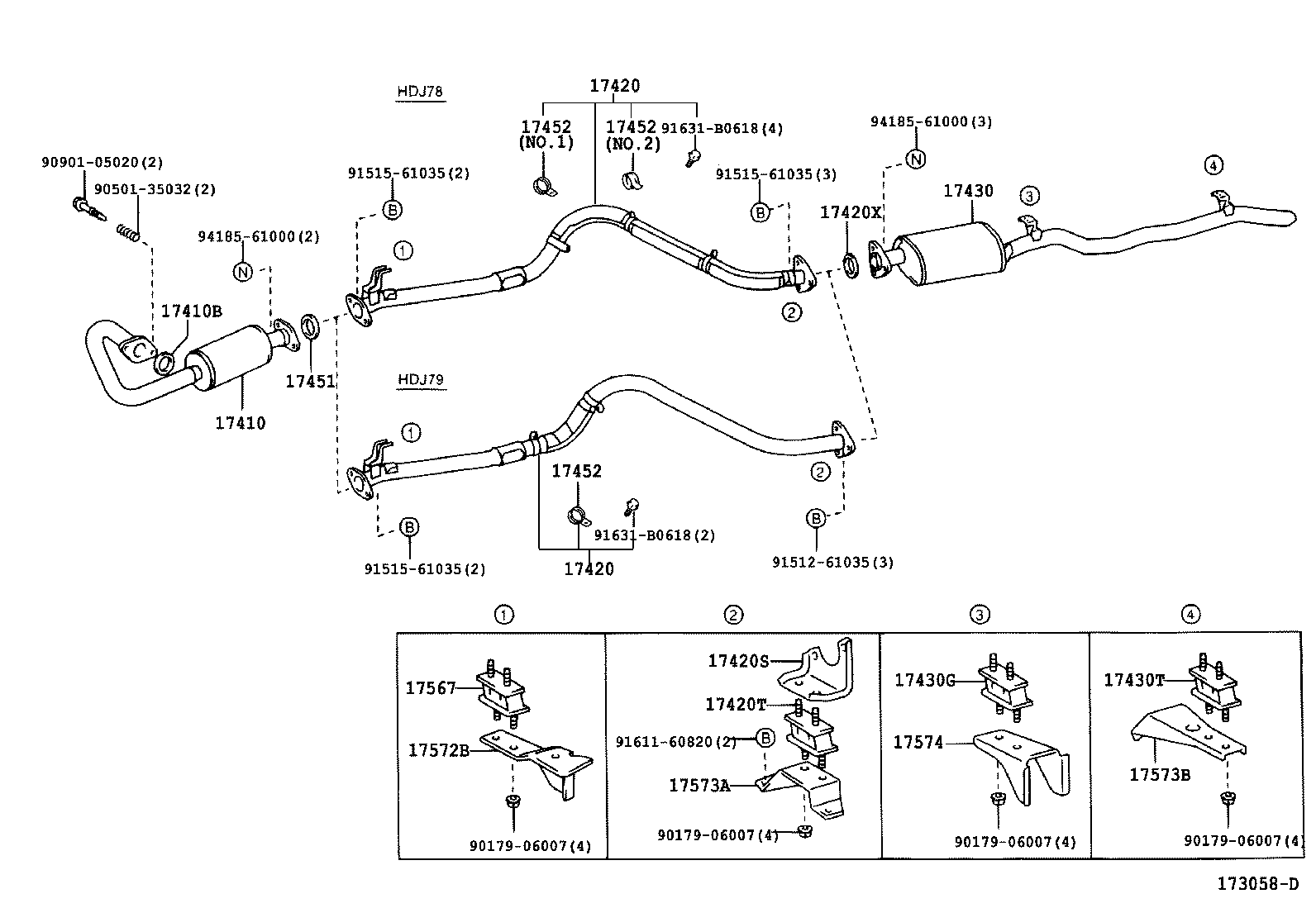

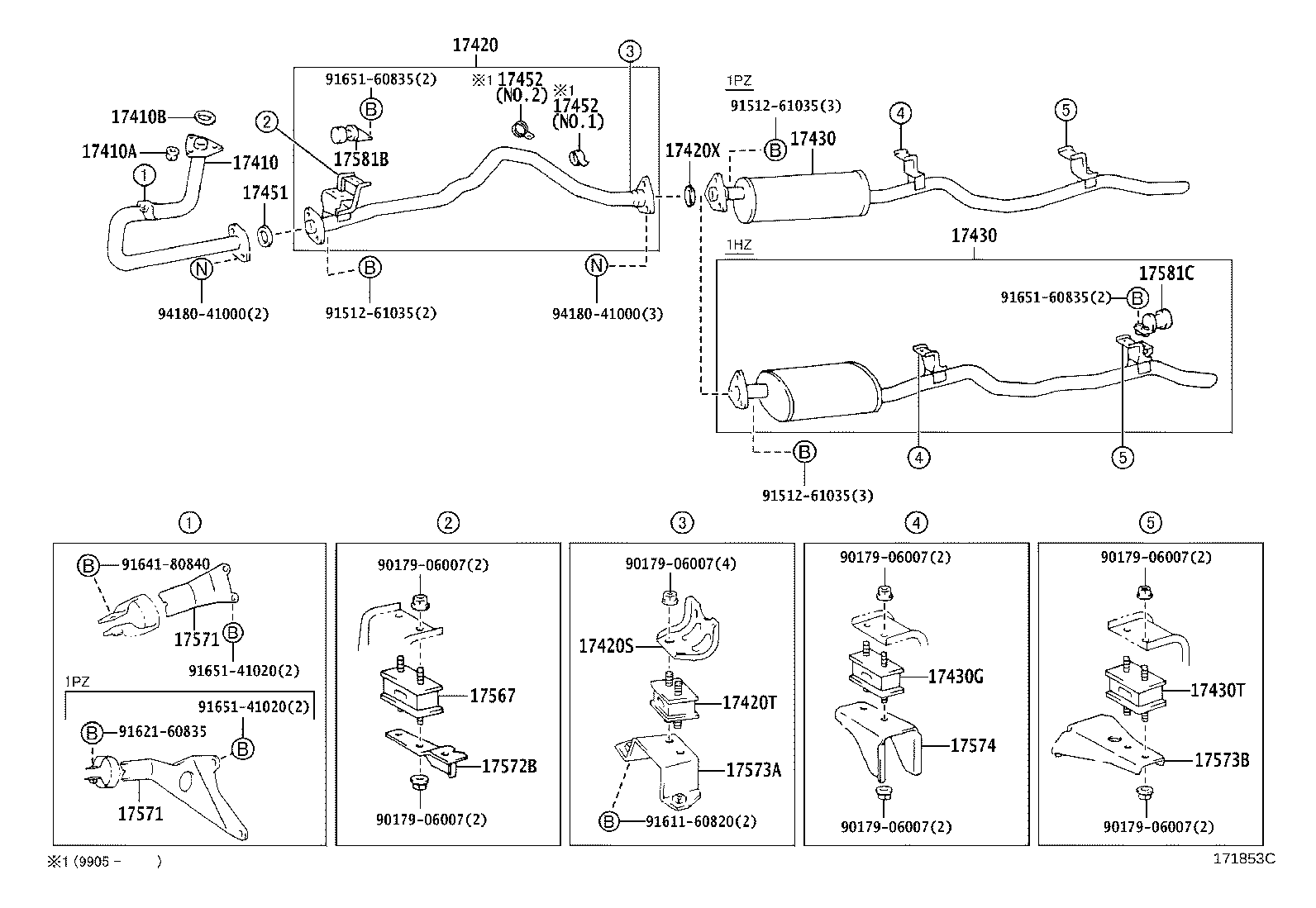

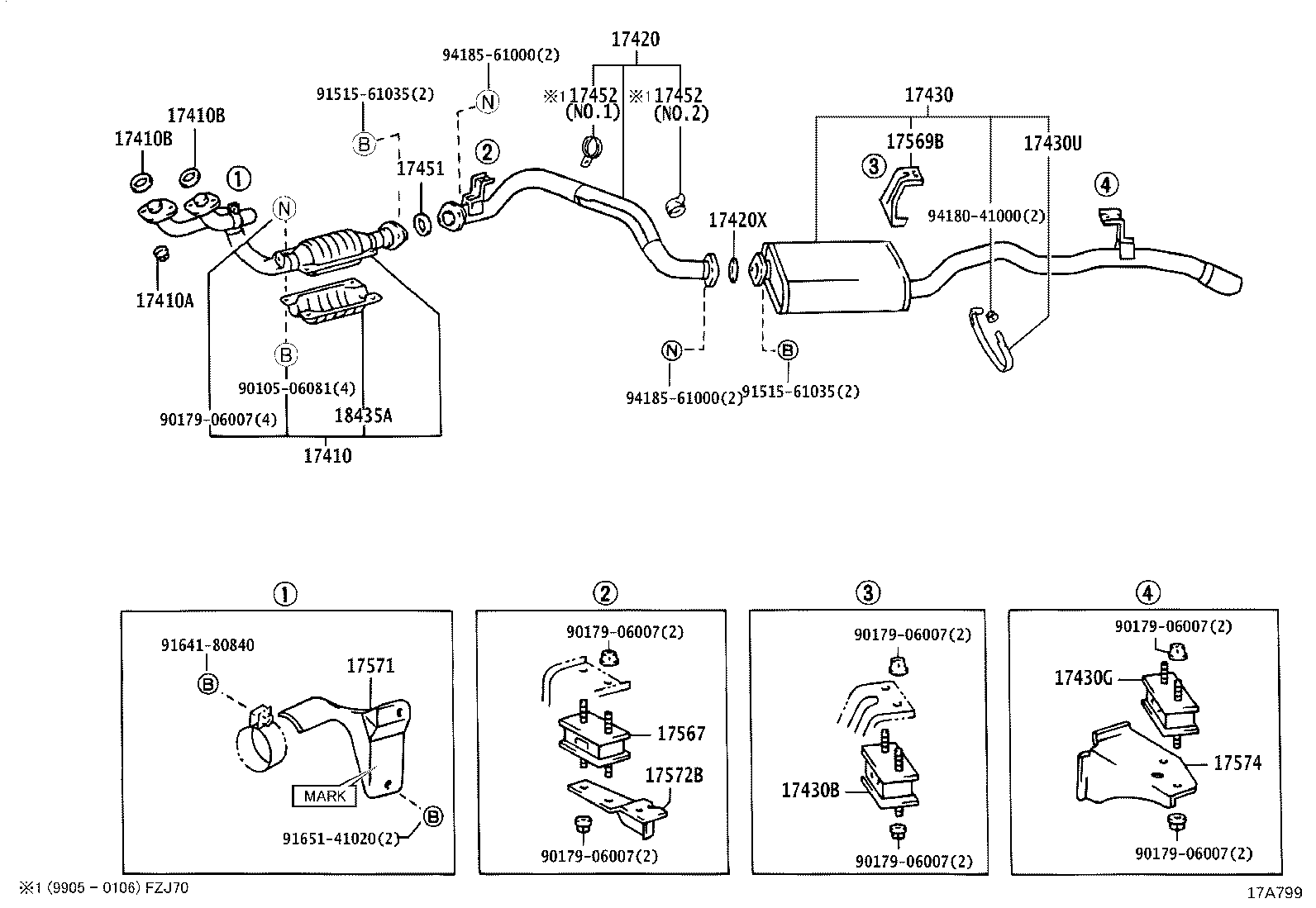

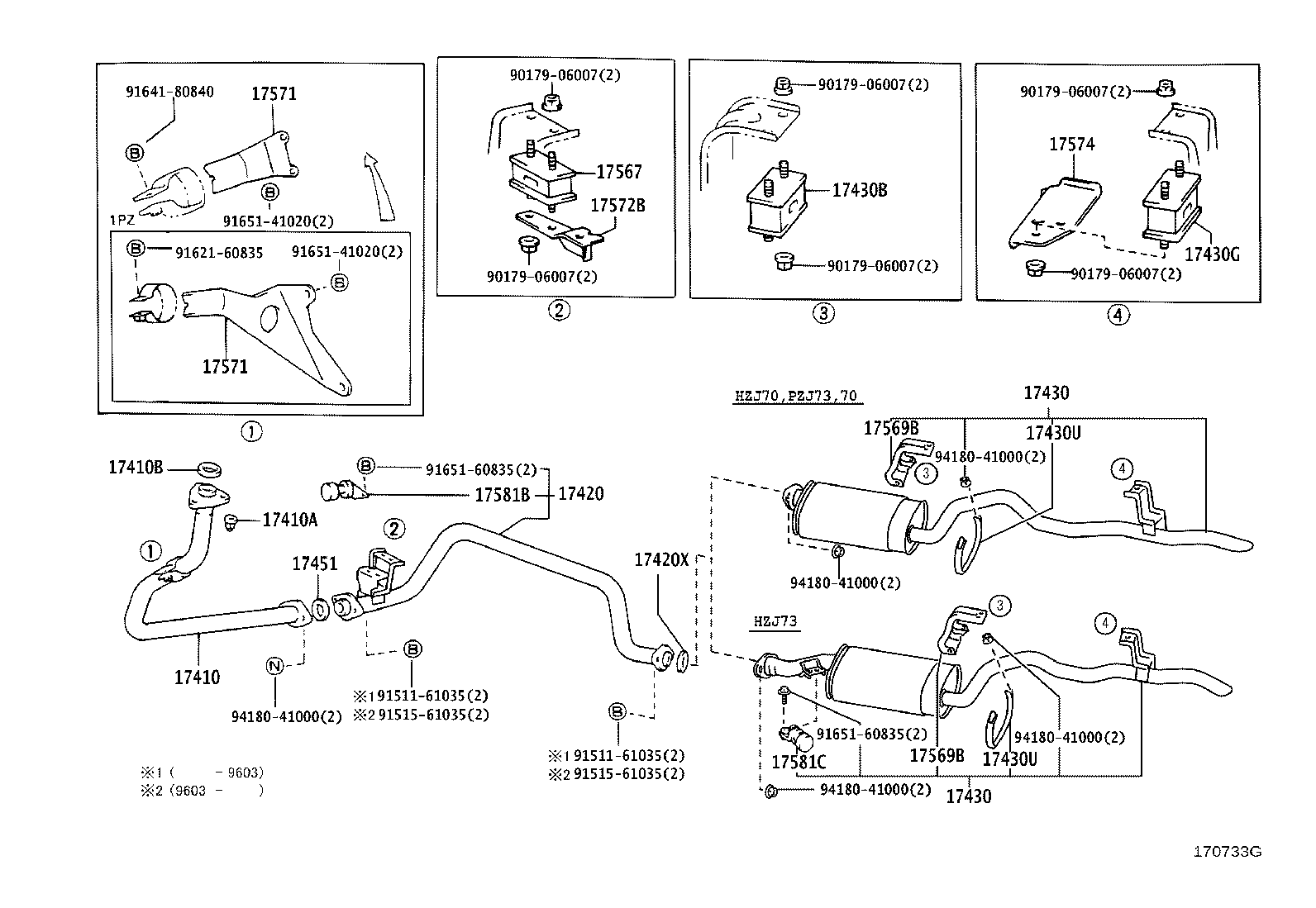

Figure 170731B 170731B 1990-01 → 1992-08 Figure 170732A 170732A 1990-01 → 1992-08 Figure 170733G 170733G 1990-01 → — Figure 171853C 171853C 1990-01 → — Figure 172185G 172185G 1999-08 → — Figure 172186H 172186H 1999-08 → — Figure 170734A 170734A 1993-05 → 1996-04 Figure 175577C 175577C 1990-01 → 1996-04 Figure 175578A 175578A 1990-01 → 1996-04 Figure 17A800 17A800 1992-01 → — Figure 17A800 17A800 1992-08 → — Figure 171855B 171855B 1992-01 → — Figure 17A799 17A799 1997-09 → — Figure 170960G 170960G 1997-09 → — Figure 175495C 175495C 1999-08 → — Figure 172188H 172188H 1999-08 → — Figure 173058D 173058D 2001-08 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400B Retainer, Exhaust Pipe
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420S Bracket, Exhaust Pipe Center, Rear
17420T Cushion, Exhaust Pipe Center, Rear
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430B Cushion, Exhaust Tailpipe(FOR FRONT)
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430U Clamp NO.1, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17452 Clamp, Exhaust Pipe
17503 Bracket Sub-assy, Catalytic Converter, Rear
17504 Bracket Sub-assy, Catalytic Converter
17505D Bracket Sub-assy, Converter Support, LH
17551 Insulator, Exhaust Pipe Heat, NO.1
17563A Support, Exhaust Pipe, NO.3
17567 Cushion, Exhaust Pipe Support
17569B Stay, Exhaust Pipe Support, NO.2
17571 Bracket, Exhaust Pipe Support, NO.1
17572B Bracket, Exhaust Pipe Support, NO.2
17573A Bracket, Exhaust Pipe Support, NO.3
17573B Bracket, Exhaust Pipe Support, NO.5
17574 Bracket, Exhaust Pipe Support, NO.4
17581A Damper, Exhaust Pipe
17581B Damper, Exhaust Pipe, NO.2
17581C Damper, Exhaust Pipe, NO.3
18401 Insulator Sub-assy, Catalytic Converter, Upper
18402 Insulator Sub-assy, Catalytic Converter, Lwr
18421A Stay, Converter Protector, LH
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
