Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · General

Discontinued model Data version 2014-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

280 part groups · 35 illustrations

Illustrations

710841I 1990-01 → 1999-08

710841I 1999-08 → 2007-01

710841I 2007-01 → 2008-08

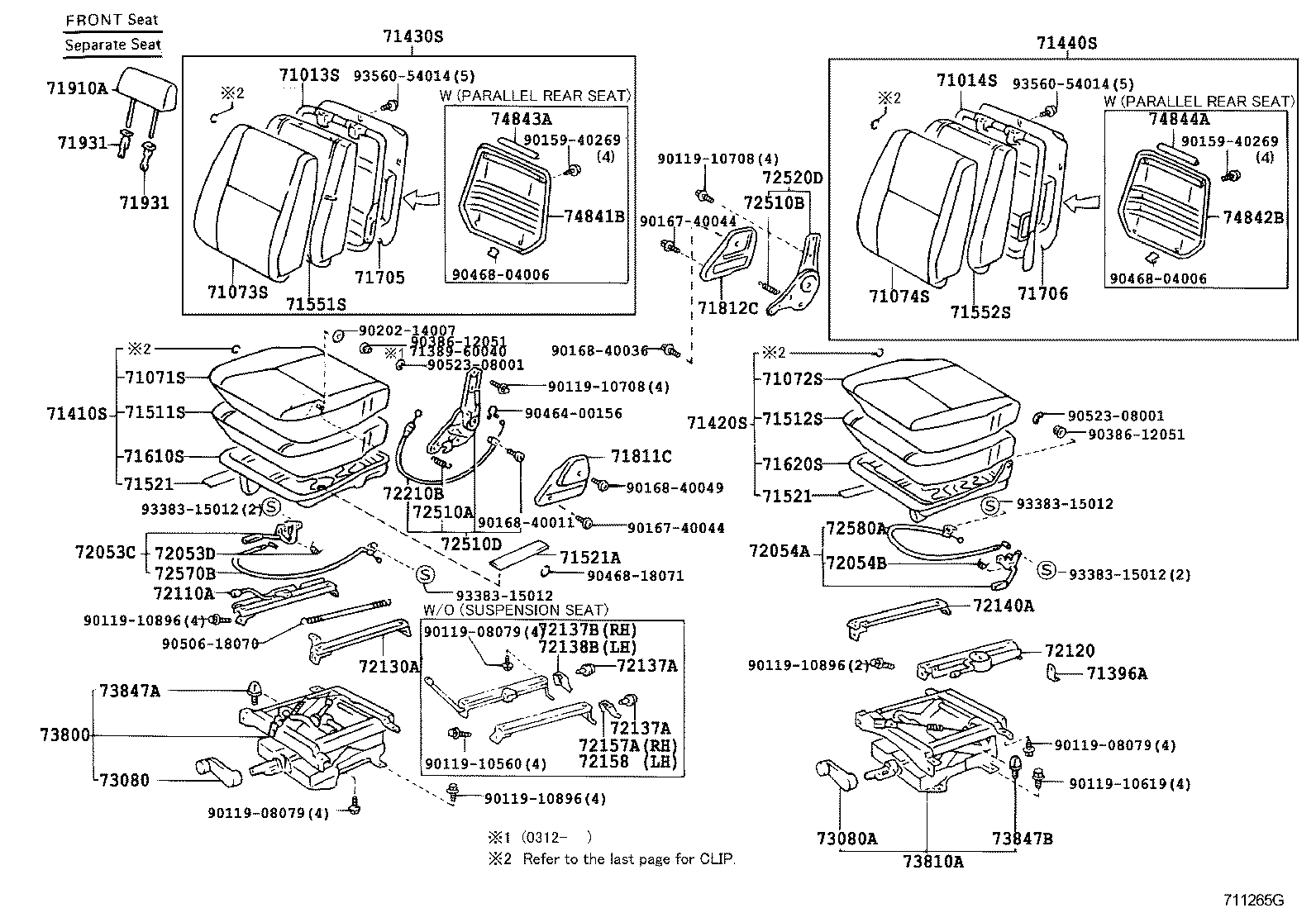

711265G 1990-01 → 2007-01

711265G 2007-01 → 2008-08

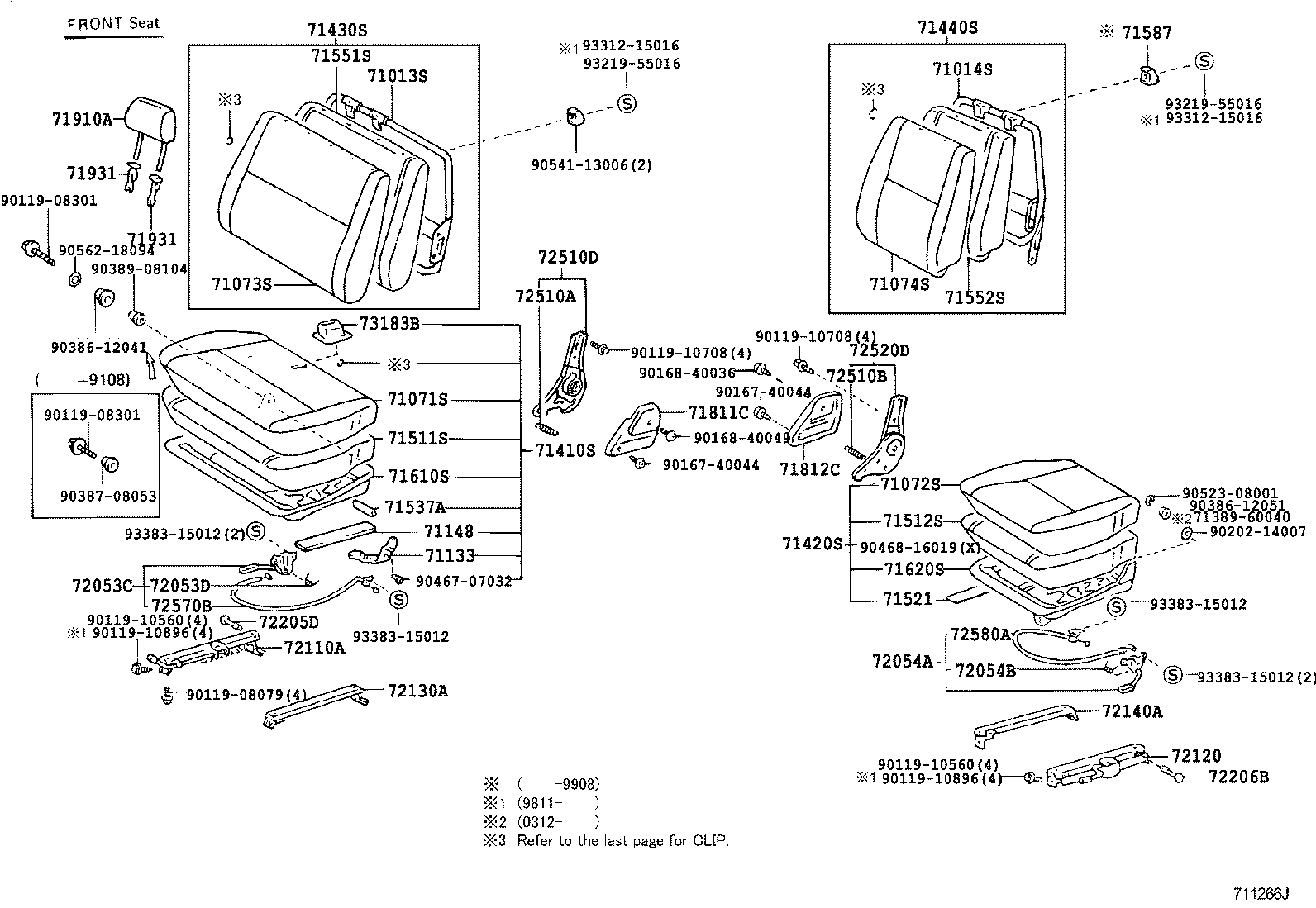

711266J 1990-01 → 2007-01

711266J 2007-01 → 2008-08

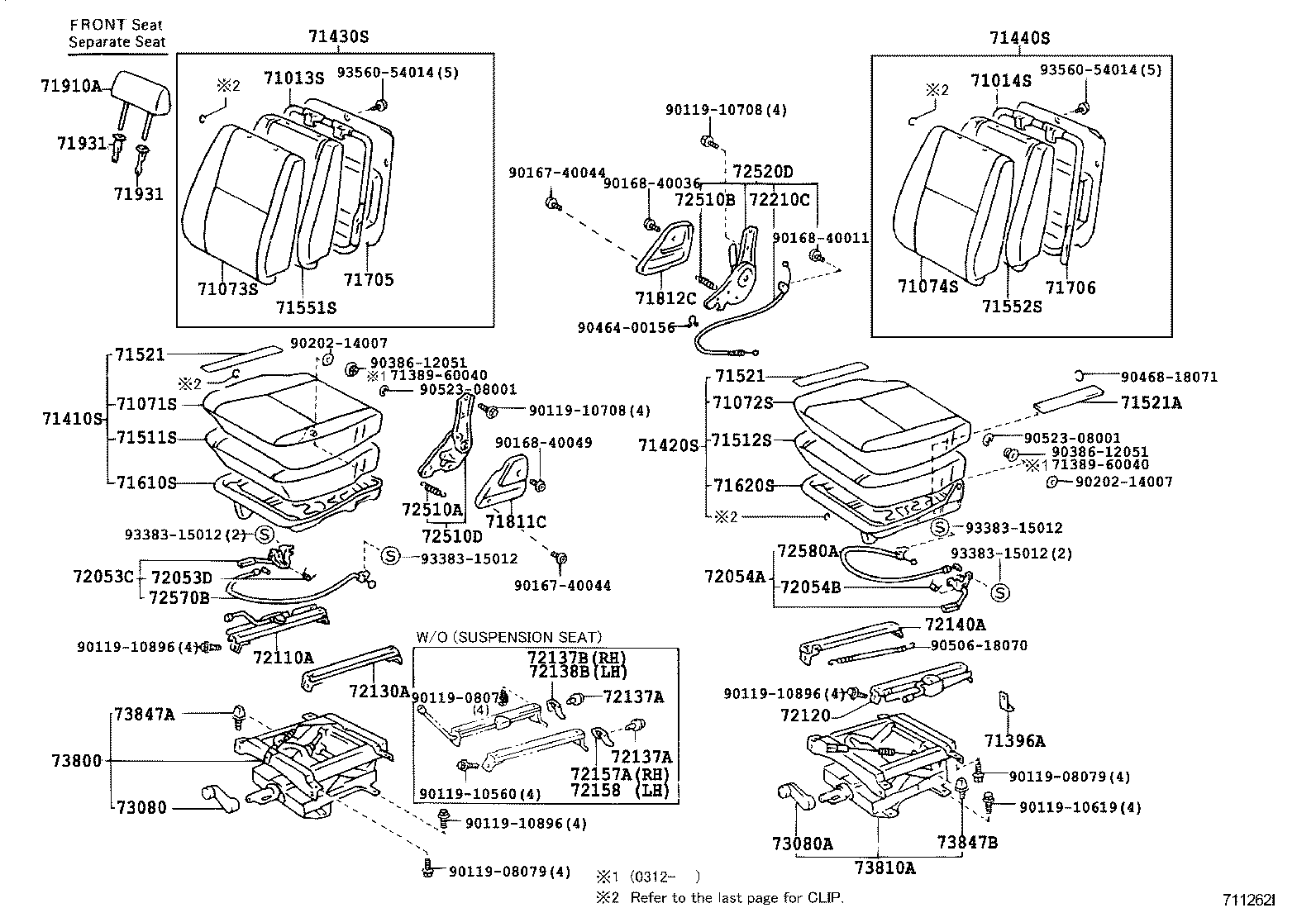

711262I 1990-01 → 2007-01

711262I 2001-11 → 2007-01

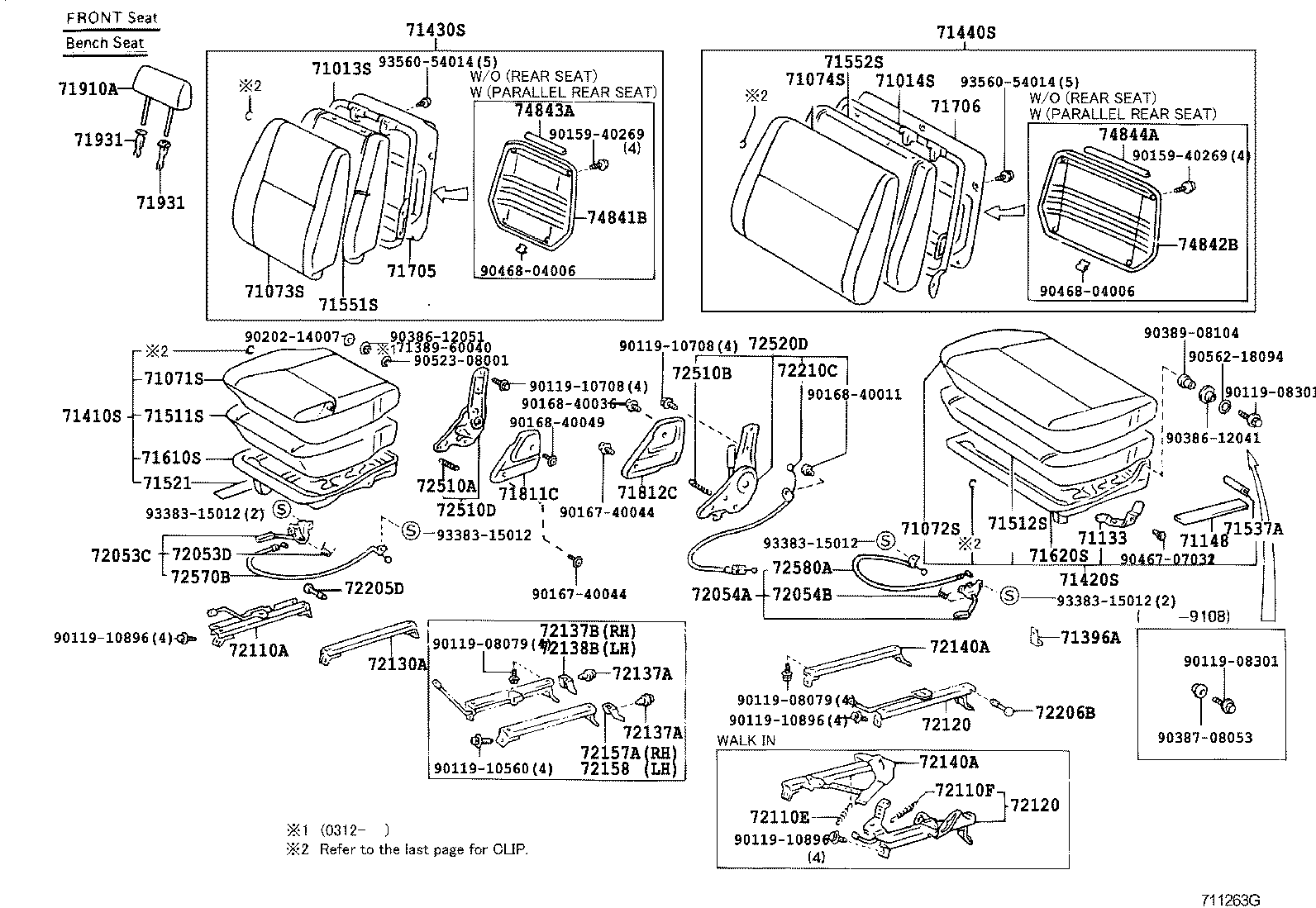

711263G 1990-01 → 1999-08

711263G 1999-08 → 2007-01

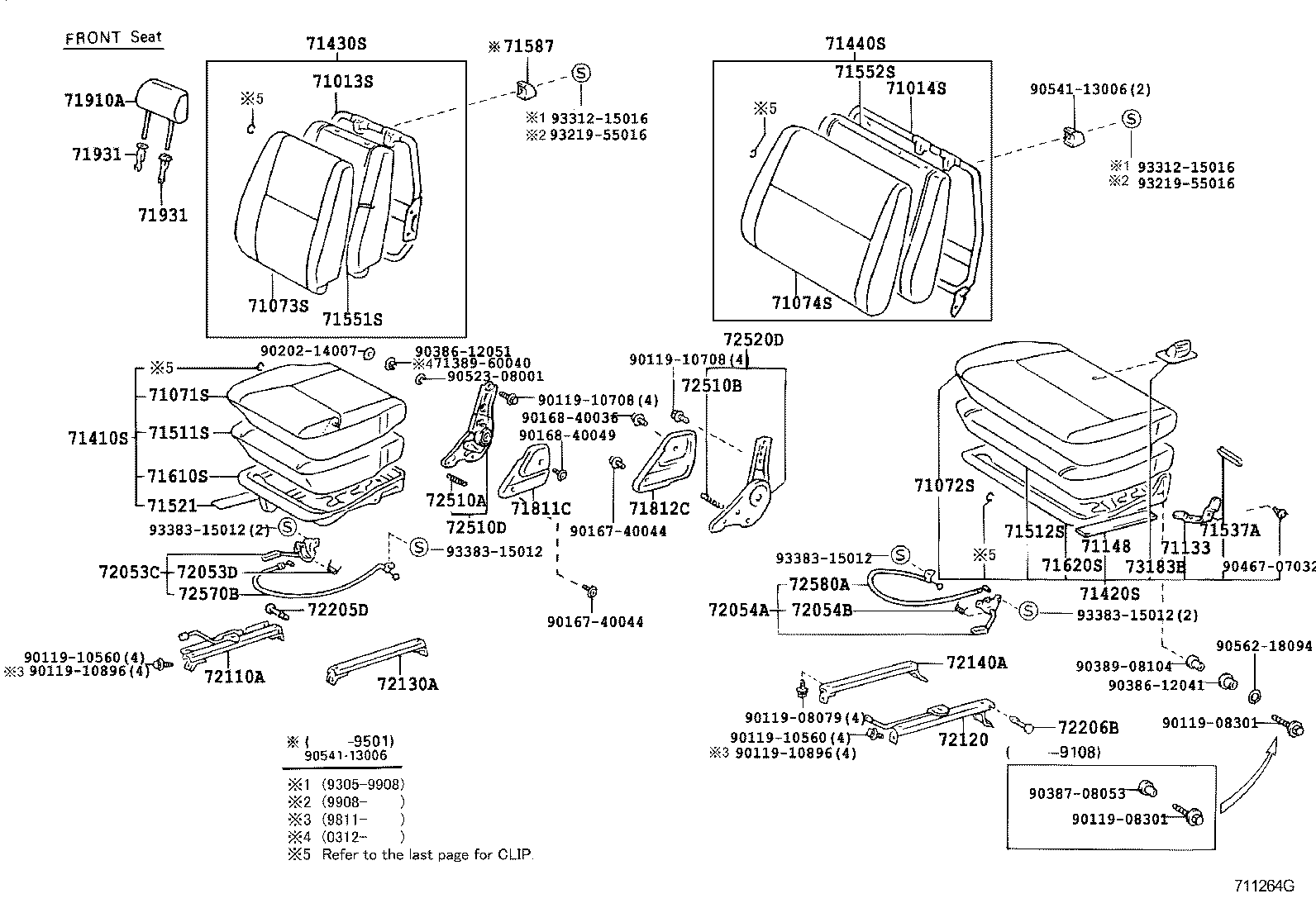

711264G 1990-01 → 2007-01

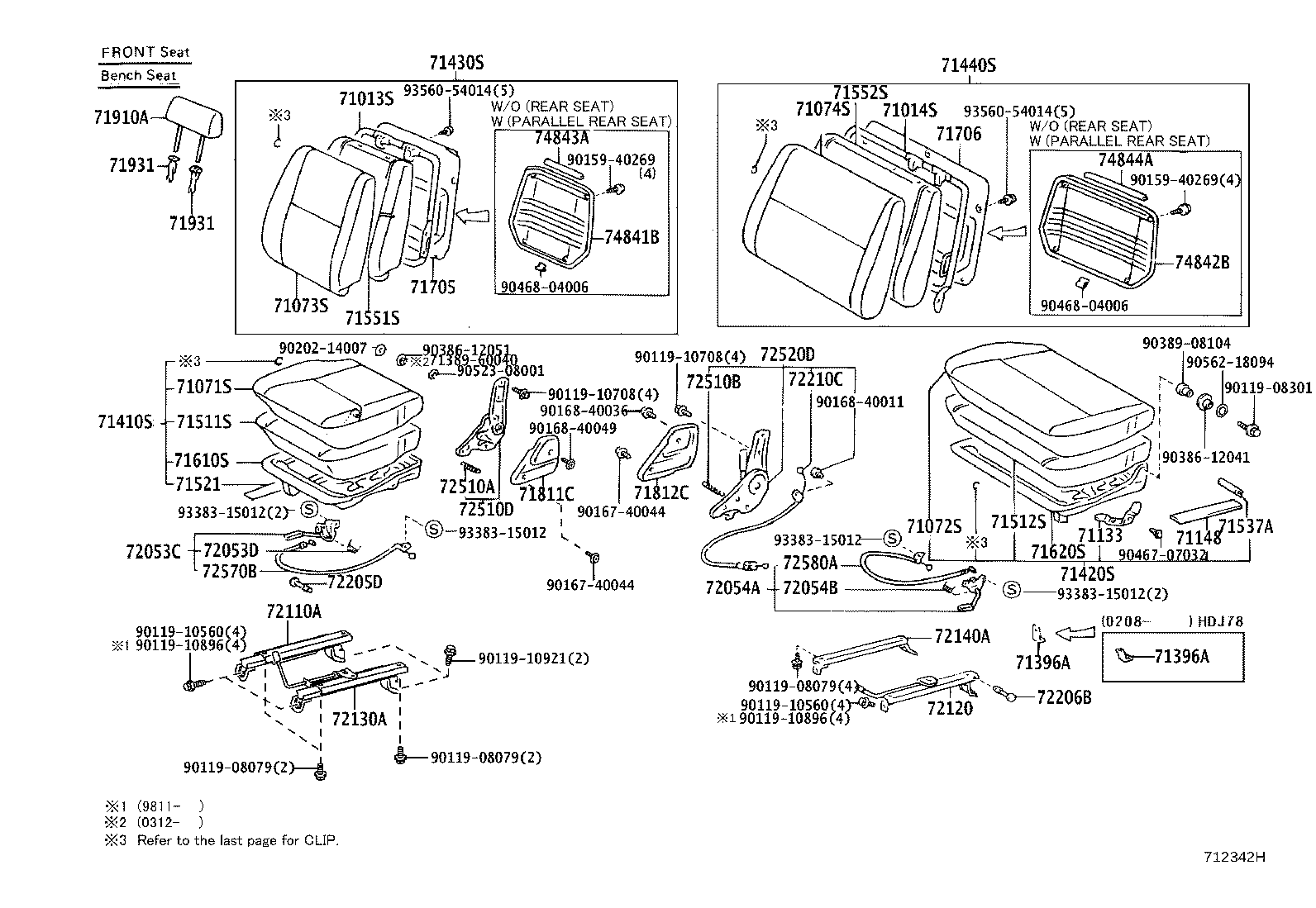

712342H 1999-08 → 2007-01

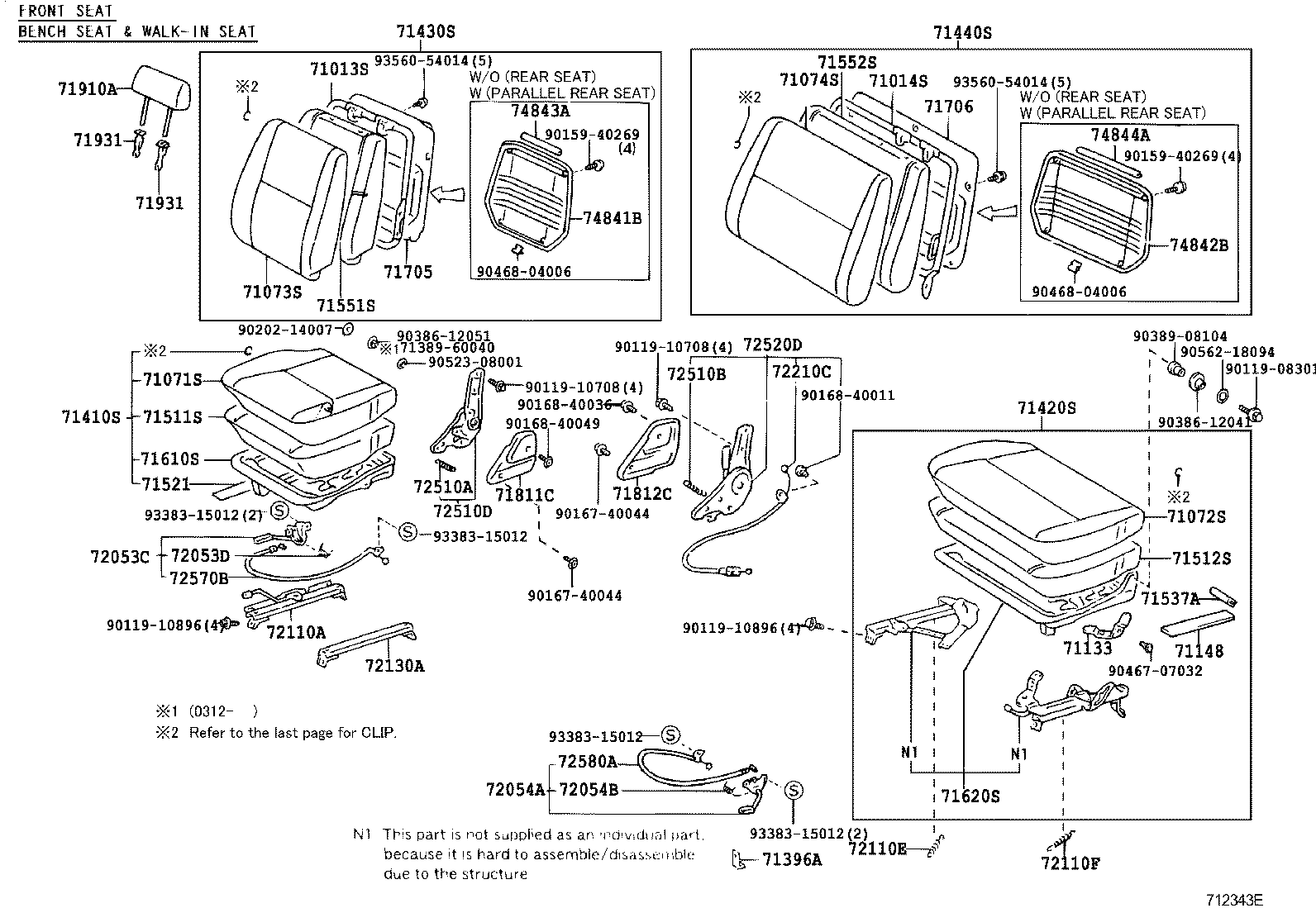

712343E 1999-08 → 2007-01

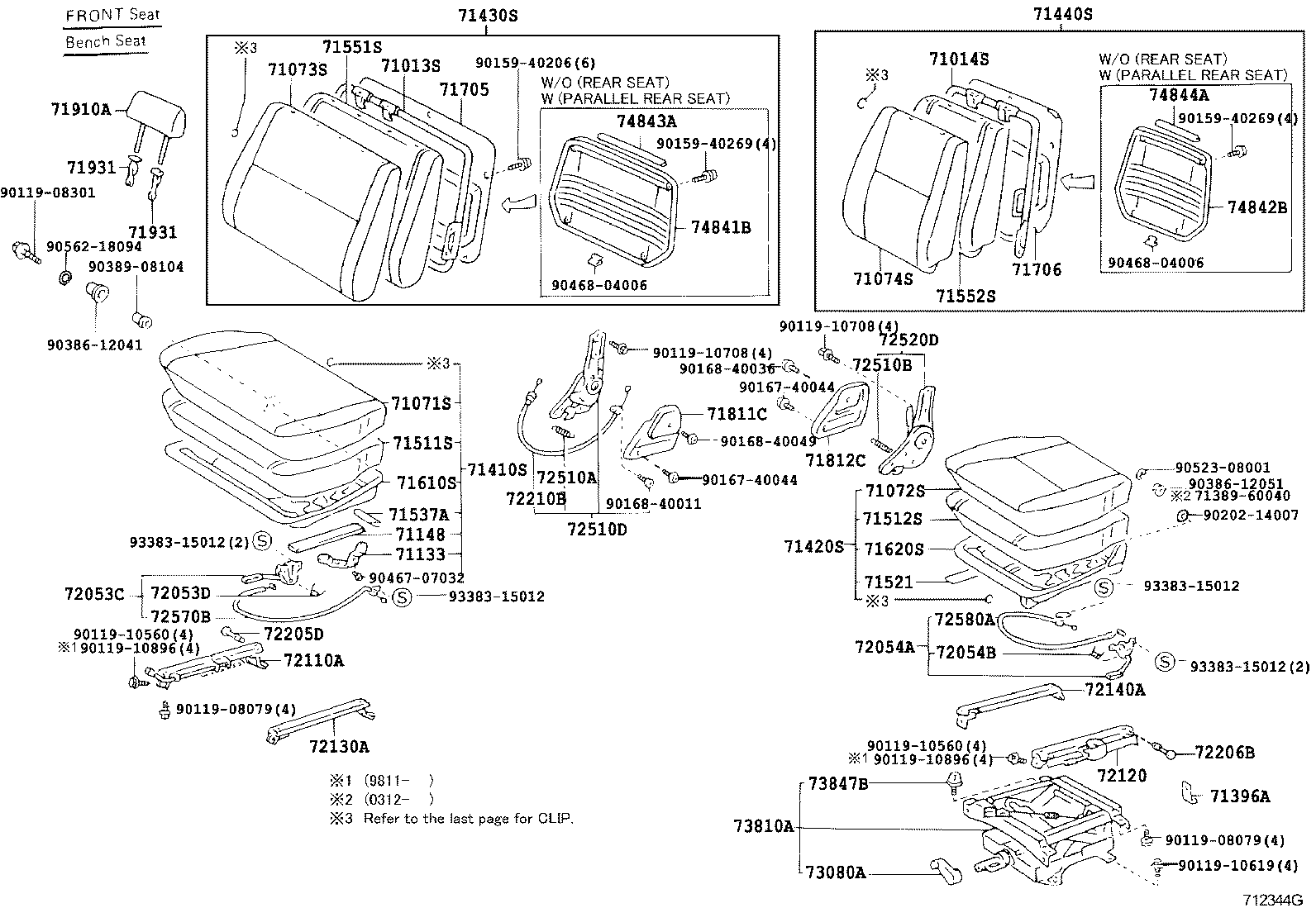

712344G 1999-08 → 2007-01

712344G 2007-01 → 2008-08

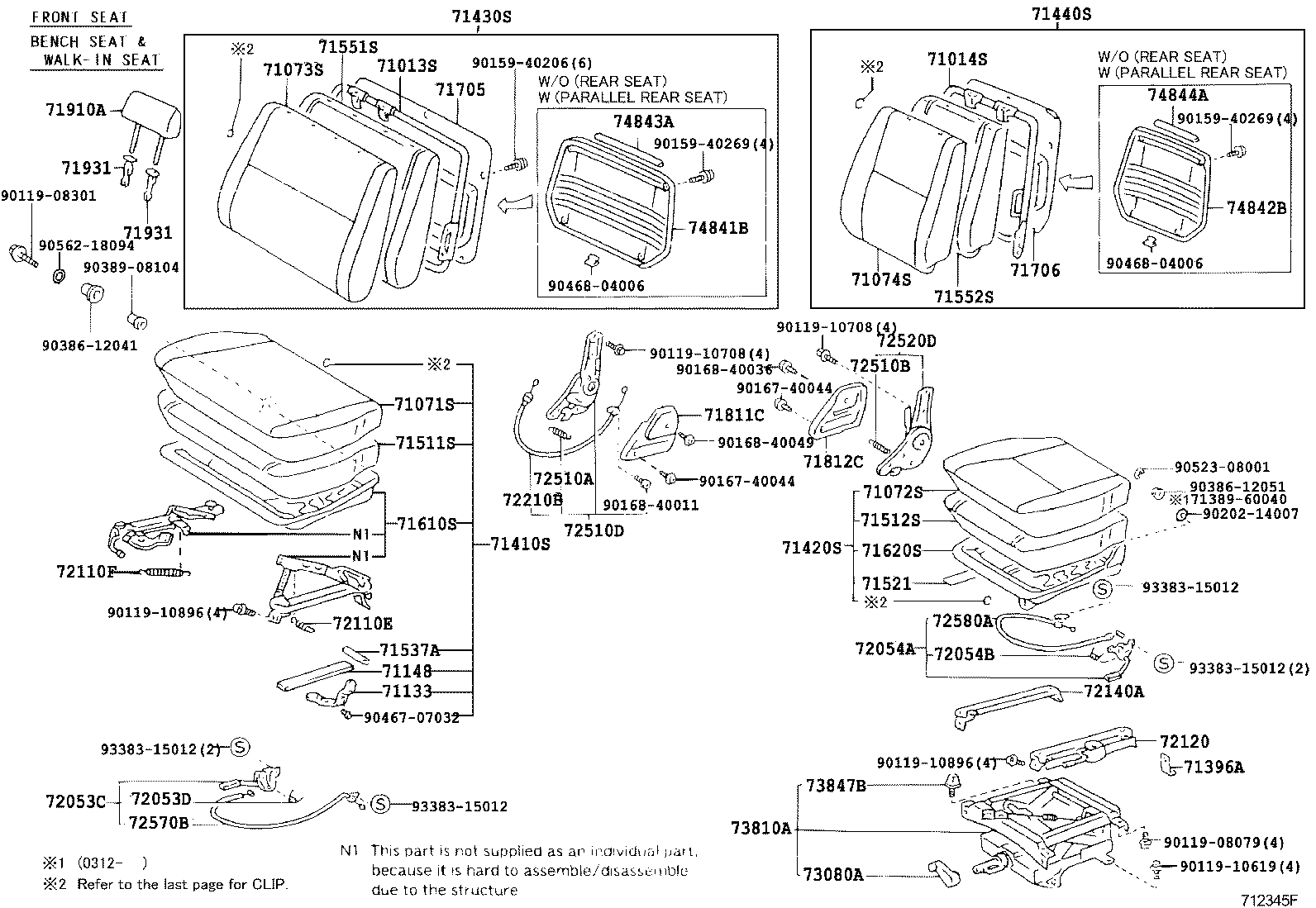

712345F 1999-08 → 2007-01

712345F 2007-01 → 2008-08

711267F 1990-01 → 2007-01

711267F 2007-01 → 2008-08

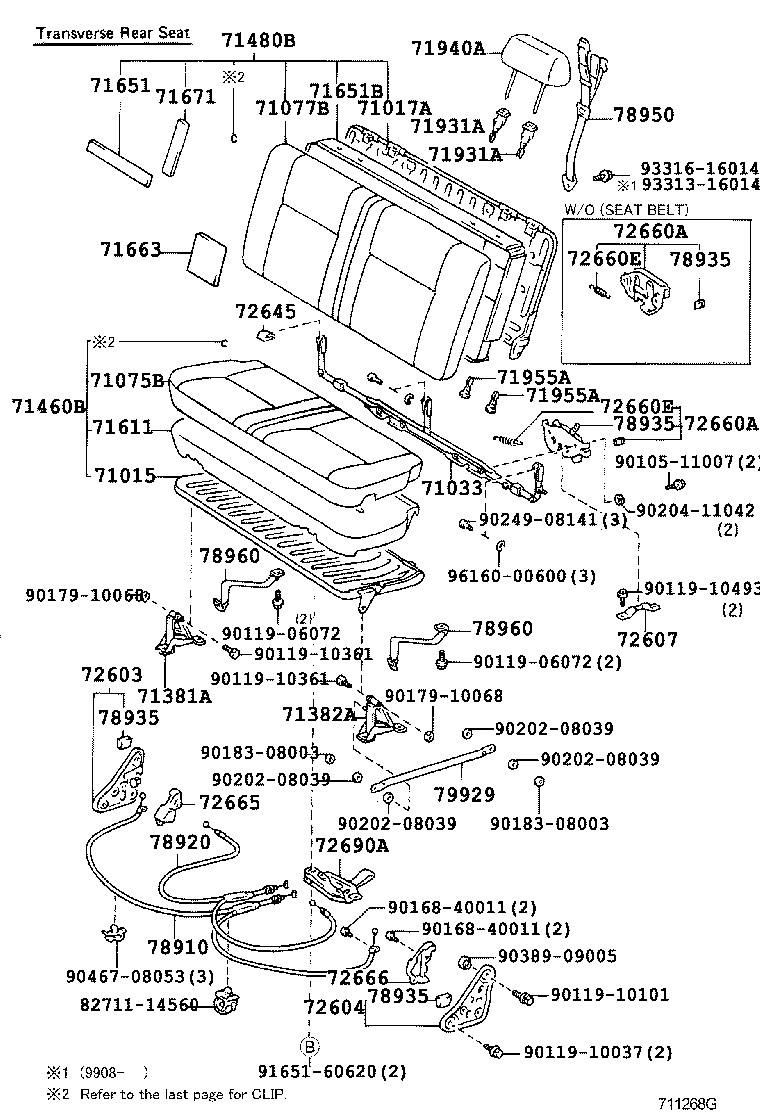

711268G 1990-01 → 2007-01

711268G 2007-01 → 2008-08

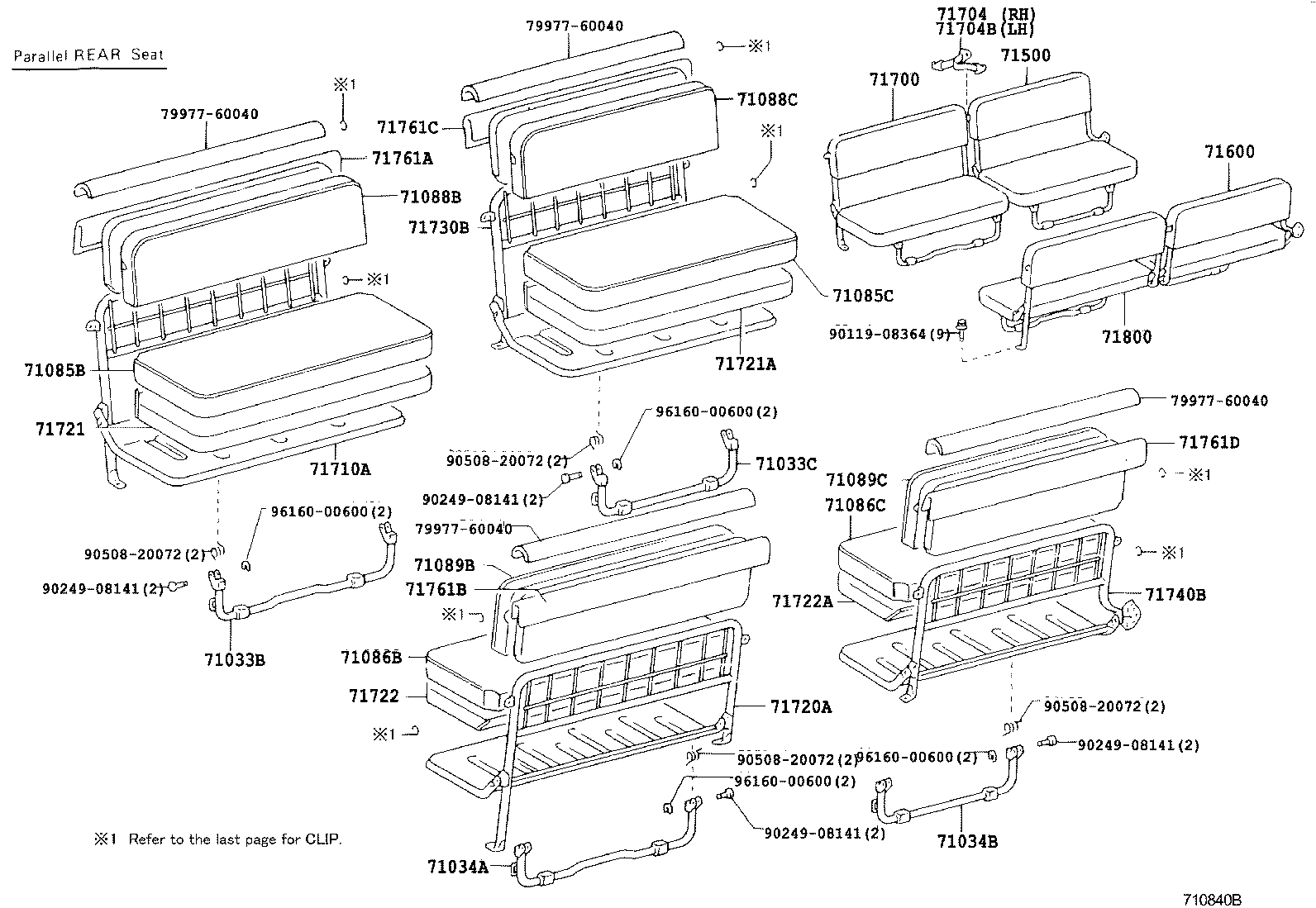

710840B 1990-01 → 2007-01

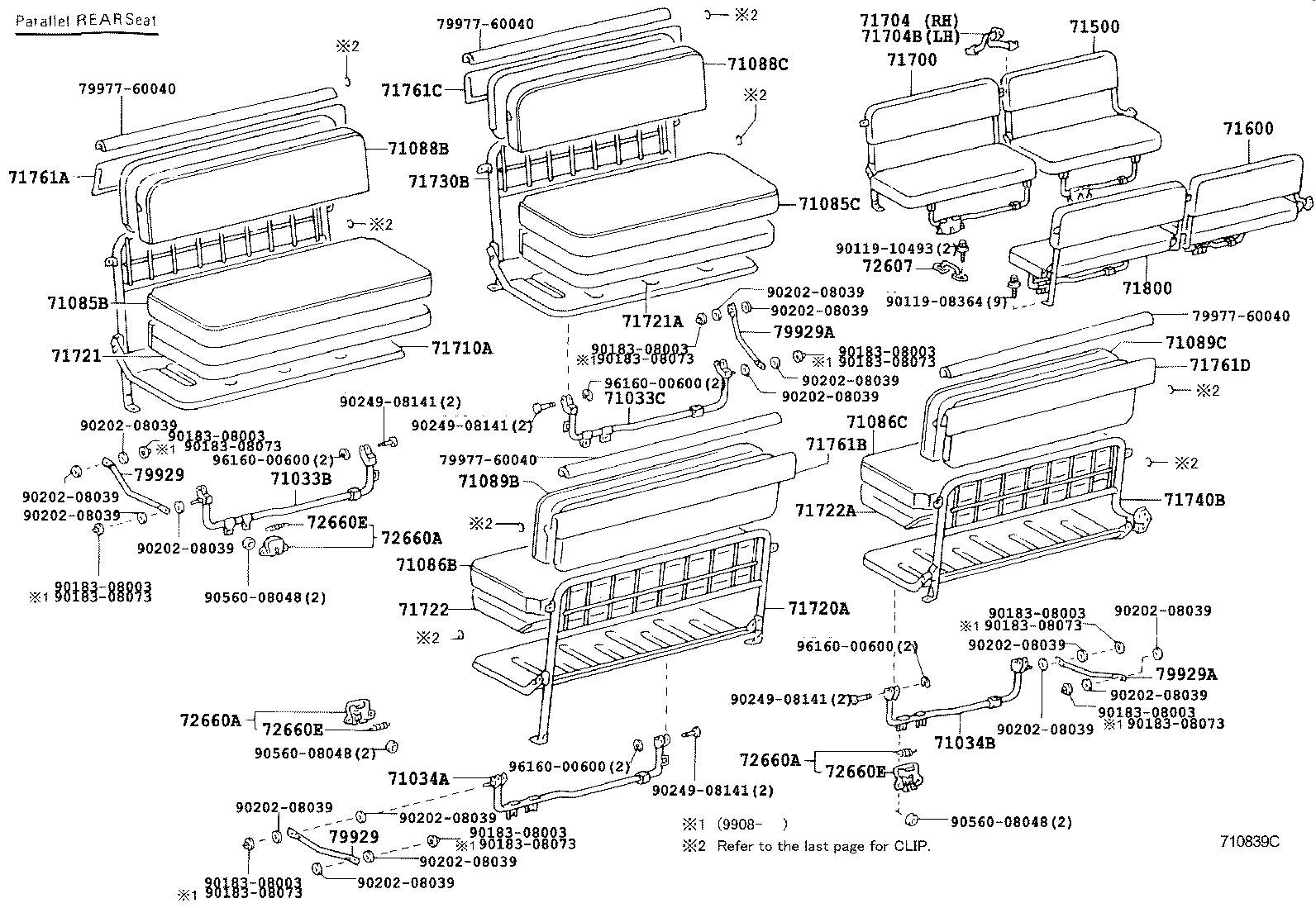

710839C 1990-01 → 2007-01

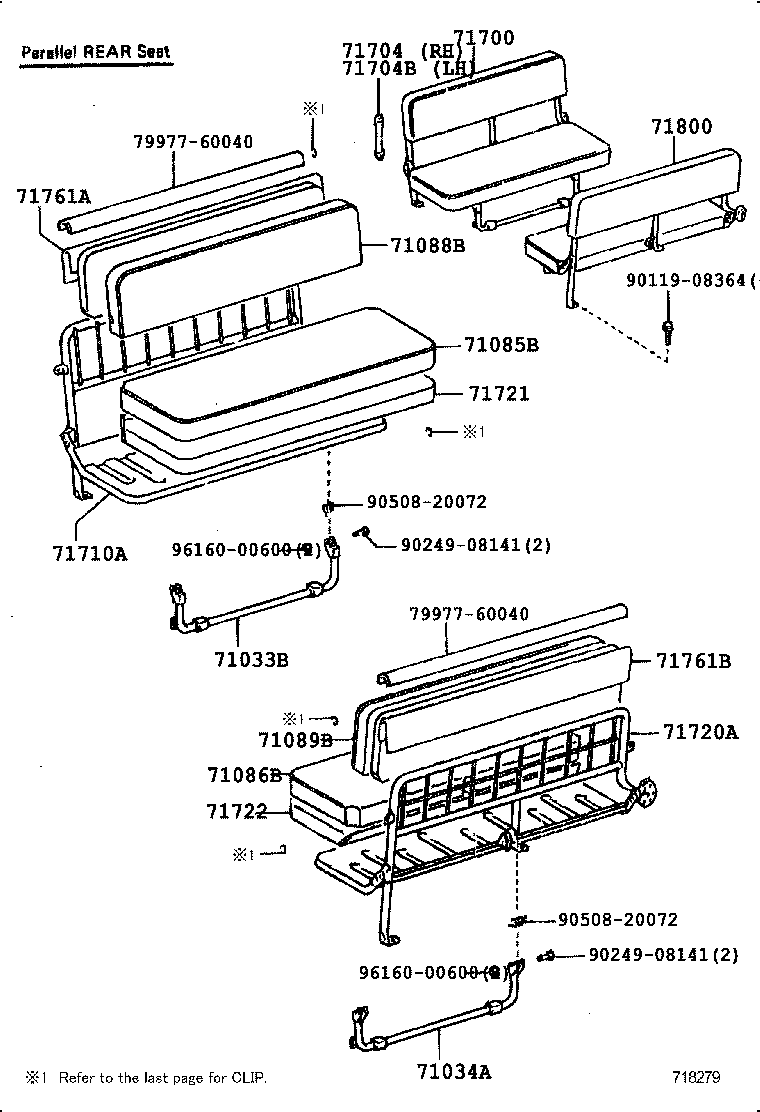

718279 1990-01 → 2007-01

718279 2007-01 → 2008-08

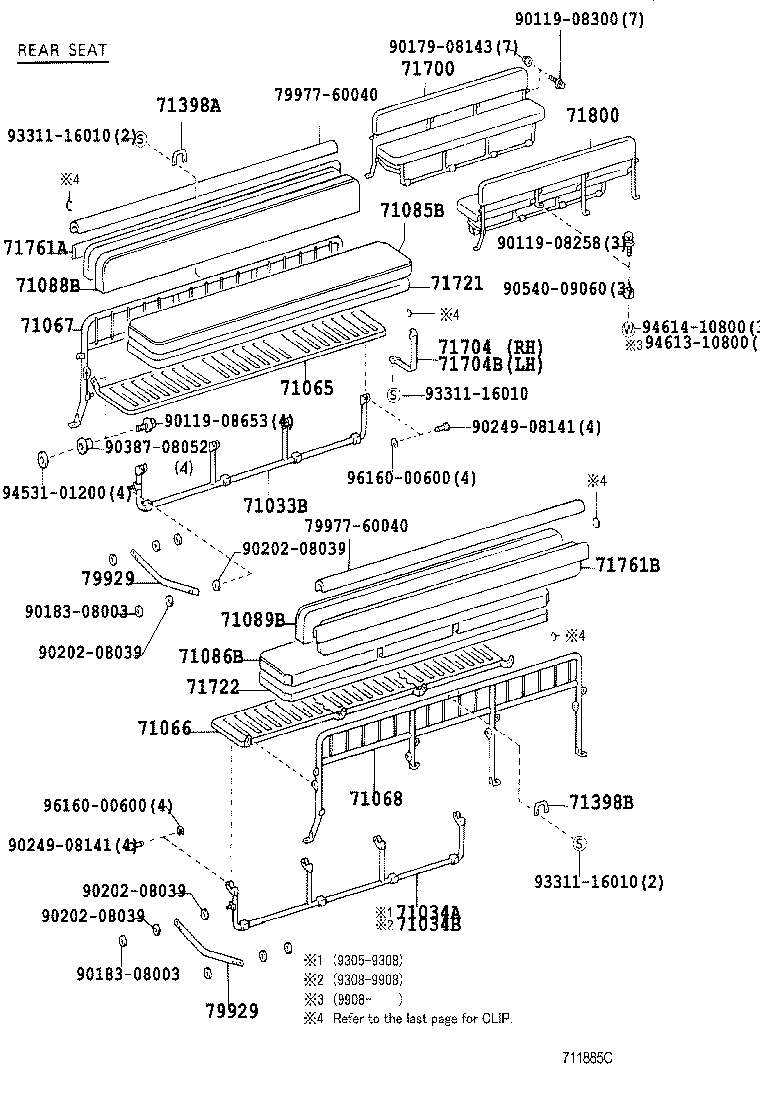

711885C 1990-01 → 2007-01

711885C 2007-01 → 2008-08

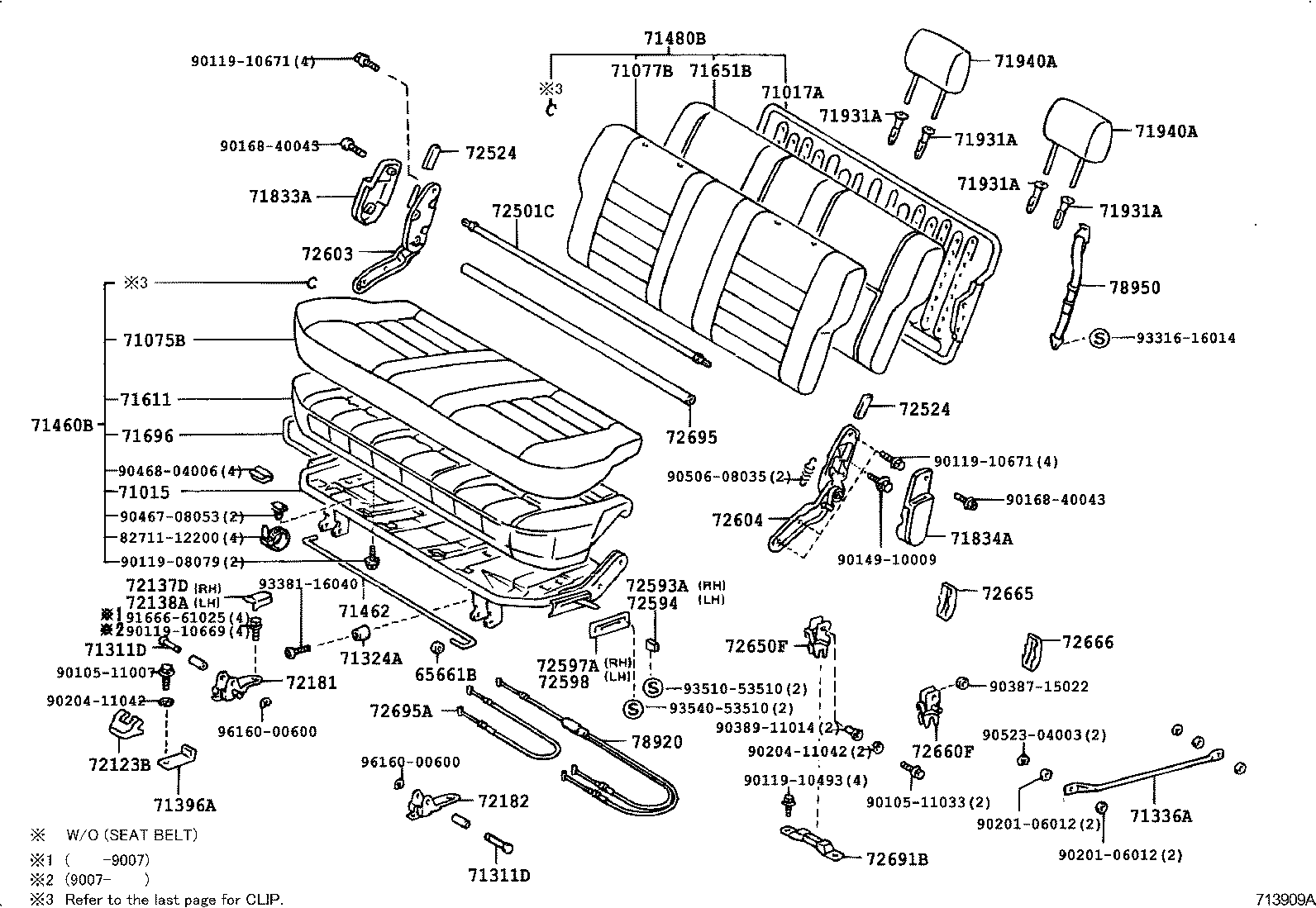

713909A 1990-04 → 2007-01

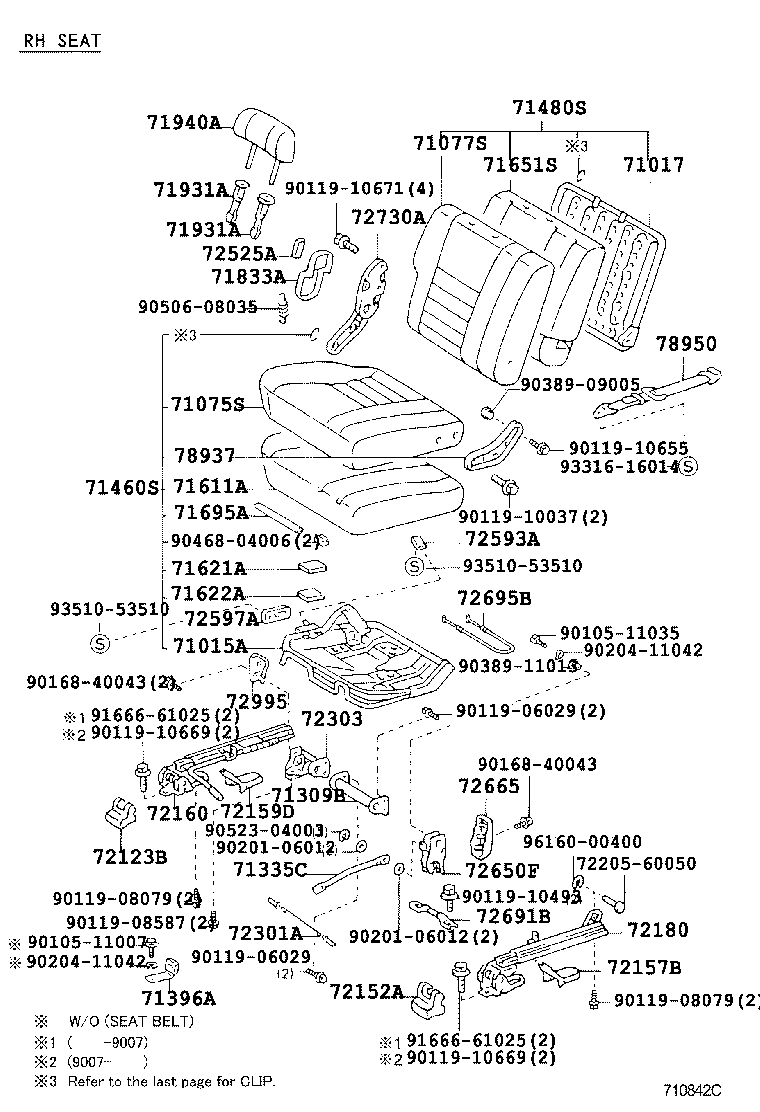

710842C 1990-04 → 2007-01

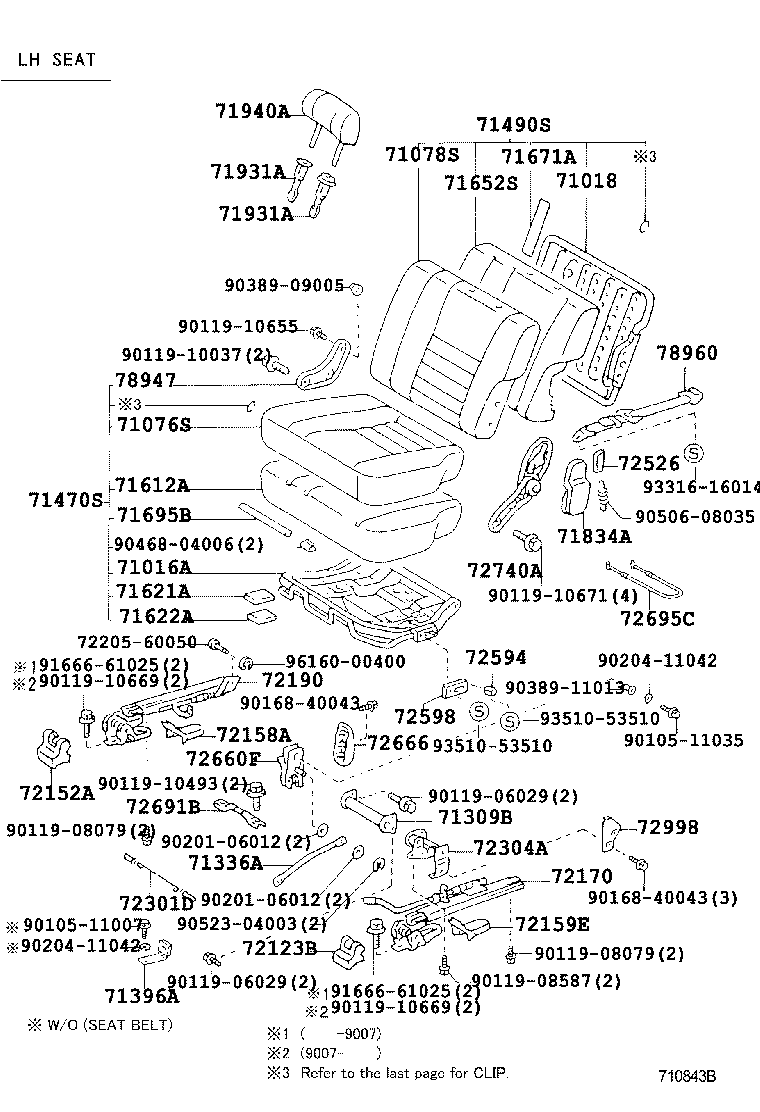

710843B 1990-04 → 2007-01

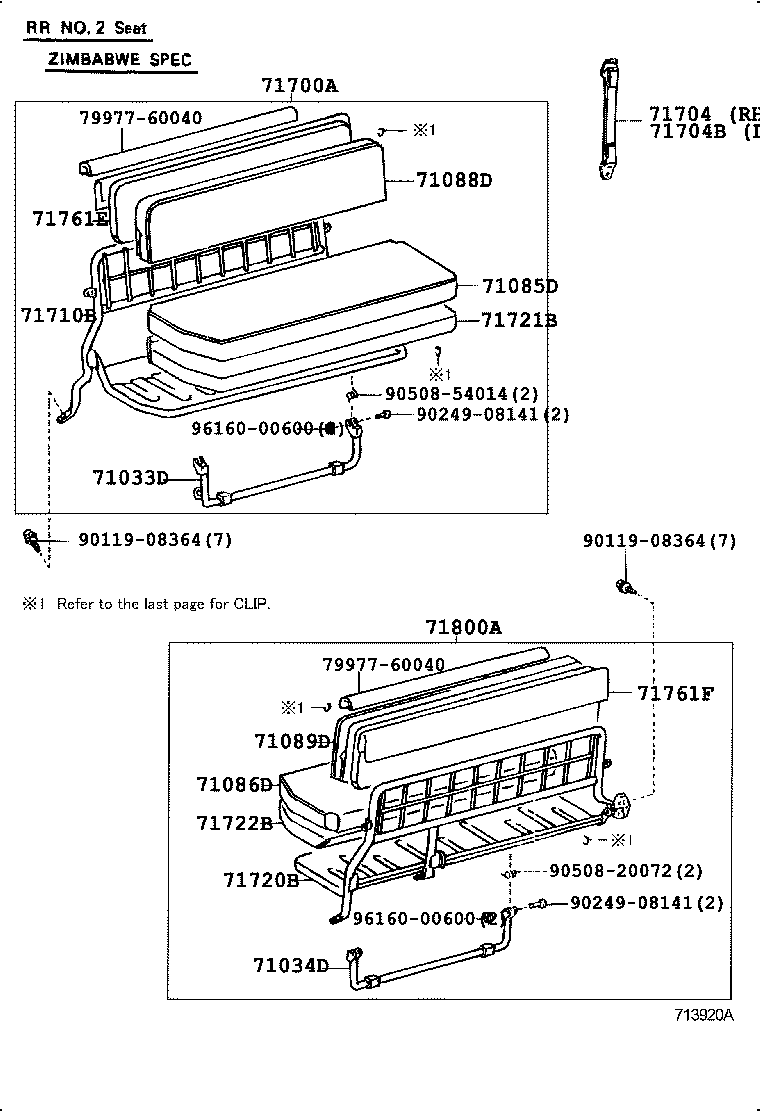

713920A 1990-01 → 2007-01

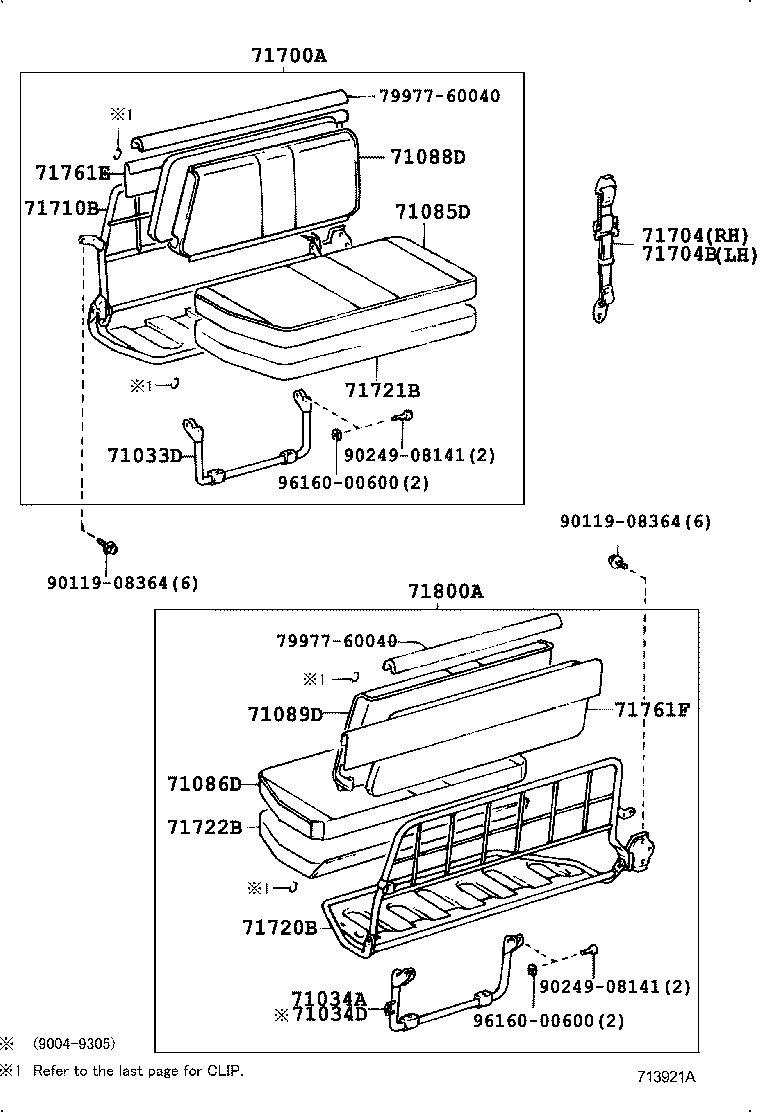

713921A 1990-04 → 2007-01

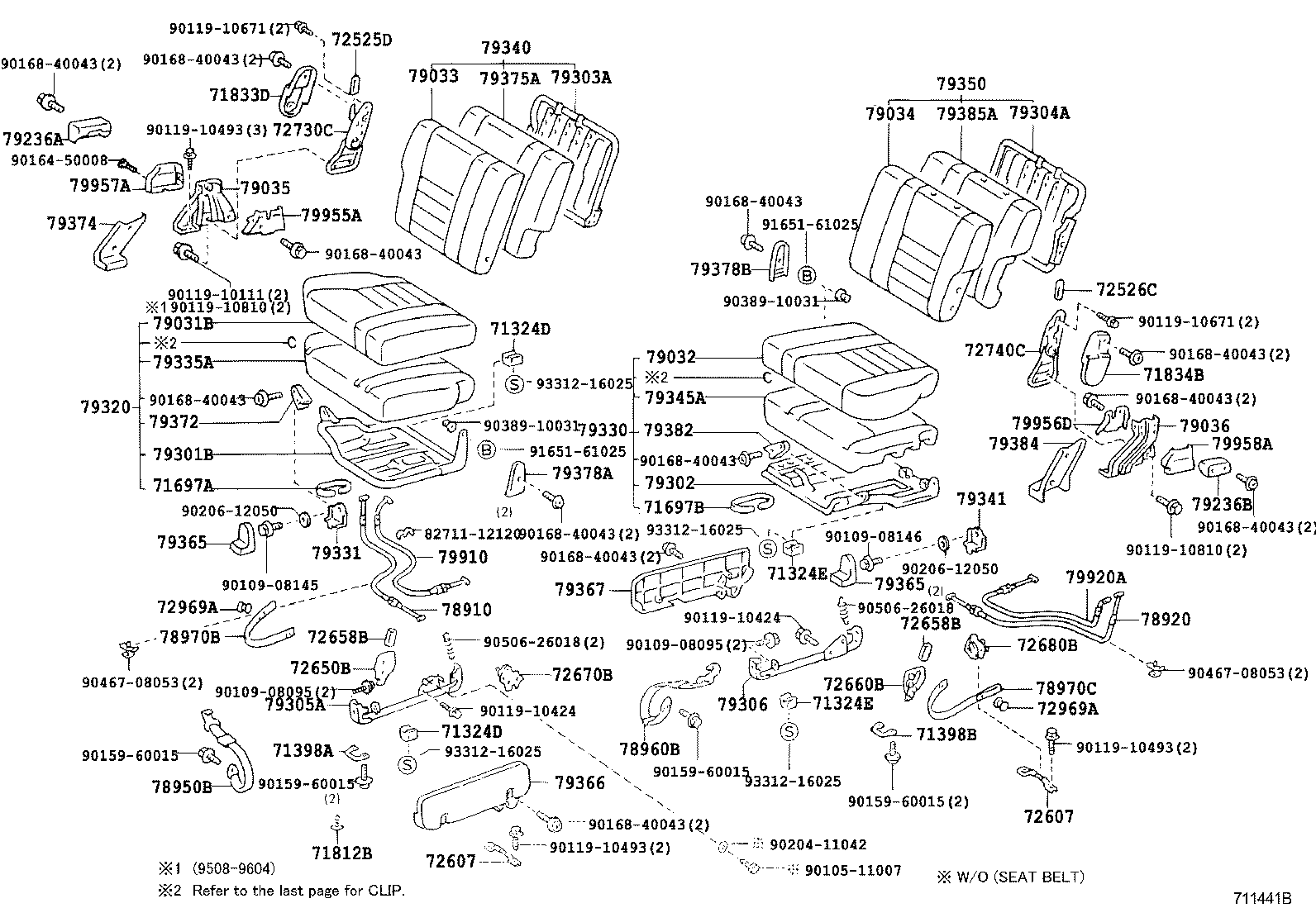

711441B 1990-04 → 2007-01

718506 1990-01 → —

Part groups

PNC	Description
58048A	Hook Sub-assy, Rope, NO.1
65661B	Guide, Rollar
71013S	Frame Sub-assy, Front Seatback, RH
71014S	Frame Sub-assy, Front Seatback, LH
71015	Frame Sub-assy, Rear Seat Cushion
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71017	Frame Sub-assy, Rear Seatback, RH
71017A	Frame Sub-assy, Rear Seatback
71018	Frame Sub-assy, Rear Seatback, LH
71033	Leg Sub-assy, Rear Seat Cushion
71033B	Leg Sub-assy, Rear Side Seat Cushion, NO.1 RH
71033C	Leg Sub-assy, Rear Side Seat Cushion, NO.2 RH
71033D	Leg Sub-assy, Rear Seat Cushion, NO.1 RH
71034A	Leg Sub-assy, Rear Side Seat Cushion, NO.1 LH
71034B	Leg Sub-assy, Rear Side Seat Cushion, NO.2 LH
71034D	Leg Sub-assy, Rear NO.2 Side Seat Cushion, LH
71065	Frame Sub-assy, Rear Side Seat Cushion, RH
71066	Frame Sub-assy, Rear Side Seat Cushion, LH
71067	Frame Sub-assy, Rear Side Seatback, RH
71068	Frame Sub-assy, Rear Side Seatback, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71085B	Cover Sub-assy, Rear Side Seat Cushion, RH
71085C	Cover Sub-assy, Rear Side Seat Cushion, NO.2 RH
71085D	Cover Sub-assy, Rear NO.2 Side Seat Cushion, RH
71086B	Cover Sub-assy, Rear Side Seat Cushion, LH
71086C	Cover Sub-assy, Rear Side Seat Cushion, LH
71086D	Cover Sub-assy, Rear NO.2 Side Seat Cushion, LH
71088B	Cover Sub-assy, Rear Side Seatback, RH
71088C	Cover Sub-assy, Rear Side Seatback, NO.2 RH
71088D	Cover Sub-assy, Rear NO.2 Side Seatback, RH
71089B	Cover Sub-assy, Rear Side Seatback, LH
71089C	Cover Sub-assy, Rear Side Seatback, NO.2 LH
71089D	Cover Sub-assy, Rear NO.2 Side Seatback, LH
71133	Plate, Front Seat Cushion, NO.3
71148	Silencer, Front Seat Cushion
71309B	Leg Sub-assy, Rear Seat, Rear RH
71311D	Hinge, Rear Seat, Lower RH
71324A	Cushion, Rear Seat
71324D	Cushion, Rear Seat, RH
71324E	Cushion, Rear Seat, LH
71335C	Stay, Rear Seat Cushion Link, RH
71336A	Stay, Rear Seat Cushion Link, LH
71381A	Bracket, Rear Seat Cushion Set, RH
71382A	Bracket, Rear Seat Cushion Set, LH
71396A	Plate, Rear Seat Band Hook
71398A	Holder, Rear Seatback
71398B	Holder, Rear Seatback, LH
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71460B	Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460S	Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71462	Spring, Rear Seat Cushion, NO.2
71470S	Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480B	Back Assy, Rear Seat (FOR BENCH TYPE)
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71500	Seat Assy, Rear Side, NO.2 RH
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71521	Pad, Front Seat Cushion Silencer, A
71521A	Pad,Front Seat Cushion Silencer
71537A	Protector, Front Seat Cushion
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587	Protector, Front Seatback Edge
71600	Seat Assy, Rear Side, NO.2 LH
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611	Pad, Rear Seat Cushion
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71621A	Pad, Rear Seat Cushion Silencer, A
71622A	Pad, Rear Seat Cushion Silencer, B
71651	Pad, Rear NO.1 Seatback
71651B	Pad, Rear Seatback(FOR BENCH TYPE)
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71663	Pad, Rear Seatback, Lower
71671	Pad, Rear Seatback Silencer, A
71671A	Pad, Rear Seatback Silencer, A
71695A	Protector, Rear Seat, NO.1 RH
71695B	Protector, Rear Seat, NO.1 LH
71696	Protector, Rear Seat, NO.2
71697A	Protector, Rear Seat, NO.3 RH
71697B	Protector, Rear Seat, NO.3 LH
71700	Seat Assy, Rear Side, RH
71700A	Seat Assy, Rear Side, RH
71704	Band Sub-assy, Rear Side Seat
71704B	Band Sub-assy, Rear Side Seat, NO.2
71705	Board Sub-assy, Front Seatback, RH
71706	Board Sub-assy, Front Seatback, LH
71710A	Frame Assy, Rear Side Seat, RH
71710B	Frame Assy, Rear Side Seat, RH
71720A	Frame Assy, Rear Side Seat, LH
71720B	Frame Assy, Rear Side Seat, LH
71721	Pad, Rear Side Seat Cushion, RH
71721A	Pad, Rear Side Seat Cushion, NO.2 RH
71721B	Pad, Rear NO.2 Side Seat Cushion, RH
71722	Pad, Rear Side Seat Cushion, LH
71722A	Pad, Rear Side Seat Cushion, NO.2 LH
71722B	Pad, Rear NO.2 Side Seat Cushion, LH
71730B	Frame Assy, Rear Side Seat, NO.2 RH
71740B	Frame Assy, Rear Side Seat, NO.2 LH
71761A	Pad, Rear Side Seatback, RH
71761B	Pad, Rear Side Seatback, LH
71761C	Pad, Rear Side Seatback, NO.2 RH
71761D	Pad, Rear Side Seatback, NO.2 LH
71761E	Pad, Rear NO.2 Side Seatback, RH
71761F	Pad, Rear NO.2 Side Seatback, LH
71800	Seat Assy, Rear Side, LH
71800A	Seat Assy, Rear Side, NO.1 LH
71811C	Cover, Reclining Adjuster, RH
71812B	Clip(FOR REAR SEAT CUSHION COVER)
71812C	Cover, Reclining Adjuster, LH
71833A	Cover, Rear Seat Reclining, NO.1 RH
71833D	Cover Rear Seat Reclining, RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71834B	Cover, Rear Seat Reclining, NO.2 LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
71955A	Support, Rear Seat Headrest
72053C	Lever Sub-assy, Reclining Remote Control, RH
72053D	Spring(FOR RECLINING REMOTE CONTROL LEVER RH)
72054A	Lever Sub-assy, Reclining Remote Control, LH
72054B	Spring(FOR RECLINING REMOTE CONTROL LEVER LH)
72110A	Track Assy, Front Seat, Outer RH
72110E	Spring, Tension, NO.1 (FOR SEAT TRACK)
72110F	Spring, Tension, NO.2 (FOR SEAT TRACK)
72120	Track Assy, Front Seat, Outer LH
72123B	Cover, Seat Track Bracket, Outer Front
72130A	Track Assy, Front Seat, Inner RH
72137A	Clip (FOR SEAT TRACK COVER)
72137B	Cover, Seat Track, RH
72137D	Cover, Rear Seat Track, RH
72138A	Cover, Rear Seat Track, LH
72138B	Cover, Seat Track, LH
72140A	Track Assy, Front Seat,Inner LH
72152A	Cover, Rear Seat Track Bracket, Inner
72157A	Cover, Seat Track Bracket, Inner RH
72157B	Cover, Rear Seat Track Bracket, Inner RH
72158	Cover, Seat Track Bracket, Inner LH
72158A	Cover, Rear Seat Track Bracket, Inner LH
72159D	Cover, Rear Seat Track Bracket, Outer RH
72159E	Cover, Rear Seat Track Bracket, Outer LH
72160	Track Assy, Rear Seat, Outer RH
72170	Track Assy, Rear Seat, Outer LH
72180	Track Assy, Rear Seat, Inner RH
72181	Bracket, Rear Outer Seat Track, Lower Front RH
72182	Bracket, Rear Outer Seat Track, Lower Front LH
72190	Track Assy, Rear Seat Inner, LH
72205D	Pin Sub-assy, Seat Track Open Lever, RH
72206B	Pin Sub-assy, Seat Track Open Lever, LH
72210B	Cable Assy, Seat Track Control, RH
72210C	Cable Assy, Seat Track Control, LH
72301A	Wire Sub-assy, Seat Track Equalizing, RH
72301D	Wire Sub-assy, Seat Track Equalizing, LH
72303	Stay Sub-assy, Side Support, Outer RH
72304A	Stay Sub-assy, Side Support, Outer LH
72501C	Pipe Sub-assy, Reclining Connecting
72510A	Spring, Tension, NO.1(FOR RECLINING SEAT ADJUSTER)
72510B	Spring, Tension, NO.2(FOR RECLINING SEAT ADJUSTER)
72510D	Adjuster Assy, Reclining Seat, Outer RH
72520D	Adjuster Assy, Reclining Seat, Outer LH
72524	Handle, Reclining Adjuster Release
72525A	Handle, Reclining Adjuster Release, RH
72525D	Handle, Reclining Adjuster Release, NO.2 RH
72526	Handle, Reclining Adjuster Release, LH
72526C	Handle, Reclining Adjuster Release, NO.2 LH
72570B	Cable Assy, Reclining Adjusting, RH
72580A	Cable Assy, Reclining Adjusting, LH
72593A	Knob, Remote Control Lever, RH
72594	Knob, Remote Control Lever, LH
72597A	Bezel, Reclining Remote Control Lever, RH
72598	Bezel, Reclining Remote Control Lever, LH
72603	Lock Sub-assy, Rear Seatback, RH
72604	Lock Sub-assy, Rear Seatback, LH
72607	Striker Sub-assy, Rear Seat Cushion Lock
72645	Cushion, Rear Seatback Lock
72650B	Lock Assy, Rear NO.3 Seat, RH
72650F	Lock Assy, Rear Seat, RH
72658B	Knob, Rear Seat Lock Handle
72660A	Support Assy, Rear Seat Cushion
72660B	Lock Assy, Rear NO.3 Seat, LH
72660E	Spring(FOR REAR SEAT CUSHION SUPPORT)
72660F	Lock Assy, Rear Seat, LH
72665	Cover, Rear Seatback Lock, RH
72666	Cover, Rear Seatback Lock, LH
72670B	Lock Assy, Rear Seat Cushion, RH
72680B	Lock Assy, Rear Seat Cushion, LH
72690A	Strap Assy, Rear Seat Lock Release
72691B	Striker, Rear Seat Cushion Lock
72694	Cover, Rear Seat Cushion Lock
72695	Silencer, Rear Seatback Lock Control Rod
72695A	Cable, Rear Seat Lock Control
72695B	Cable, Rear Seat Lock Control, RH
72695C	Cable, Rear Seat Lock Control, LH
72730A	Adjuster Assy, Rear Seat Reclining, RH
72730C	Adjuster Assy, NO.2 Seat Reclining, RH
72740A	Adjuster Assy, Rear Seat Reclining, LH
72740C	Adjuster Assy, NO.2 Seat Reclining, LH
72969A	Pin, Seat Turn Lock Guide
72995	Cover, Rear Seat Cushion, RH
72998	Cover, Rear Seat Cushion, LH
73080	Handle, Seat Suspension Control, RH
73080A	Handle, Seat Suspension Control, LH
73183B	Guide, Front Seat Lap Belt, Inner
73800	Suspension Assy, Seat, RH
73810A	Suspension Assy, Seat, LH
73847A	Cushion, Seat Suspension Stopper, RH
73847B	Cushion, Seat Suspension Stopper, LH
74841B	Panel, Front Seatback
74842B	Panel, Front Seatback, A
74843A	Ornament, Front Seatback Panel
74844A	Ornament, Front Seatback Panel, A
78910	Cable Assy, Fold Seat Lock Control, NO.1
78920	Cable Assy, Fold Seat Lock Control, NO.2
78935	Cushion, Fold Seatback Lock
78937	Bracket, Fold Seatback Hinge, RH
78947	Bracket, Fold Seatback Hinge, LH
78950	Band Assy, Fold Seat Stopper, NO.1
78950B	Band Assy, Fold Seat Stopper, NO.3
78960	Band Assy, Fold Seat Stopper, NO.2
78960B	Band Assy, Fold Seat Stopper, NO.4
78970B	Band Assy, Seat Lock, LH
78970C	Band Assy, Seat Lock, LH
79031B	Cover Sub-assy, NO.3 Seat Cushion, RH
79032	Cover Sub-assy, NO.3 Seat Cushion, LH
79033	Cover Sub-assy, NO.3 Seatback, RH
79034	Cover Sub-assy, NO.3 Seatback, LH
79035	Leg Sub Assy, NO.3 Seat Outer Rear, RH
79036	Leg Sub Assy, NO.3 Seat Outer Rear, LH
79236A	Cover, NO.2 Seat Leg
79236B	Cover, NO.2 Seat Leg, LH
79301B	Frame Sub-assy, NO.3 Seat Cushion, RH
79302	Frame Sub-assy, NO.3 Seat Cushion, LH
79303A	Frame Sub-assy, NO.3 Seatback, RH
79304A	Frame Sub-assy, NO.3 Seatback, LH
79305A	Leg Sub-assy, NO.3 Seat, RH
79306	Leg Sub Assy, NO.3 Seat, LH
79320	Cushion Assy, NO.3 Seat, RH
79330	Cushion Assy, NO.3 Seat, LH
79331	Leg, NO.3 Seat, Outer RH
79335A	Pad, NO.3 Seat Cushion, RH
79340	Back Assy, NO.3 Seat, RH
79341	Leg, NO.3 Seat, Outer LH
79345A	Pad, NO.3 Seat Cushion, LH
79350	Back Assy, NO.3 Seat, LH
79365	Cover, NO.3 Seat Leg Bracket
79366	Cover, NO.3 Seat Leg, NO.1
79367	Cover, NO.3 Seat Leg, NO.2
79372	Cover, NO.3 Seat Front Bracket, RH
79374	Cover, NO.3 Seat Leg, Rear RH
79375A	Pad, NO.3 Seatback, RH
79378A	Cover, NO.3 Seat Cushion Hinge, RH
79378B	Cover, NO.3 Seat Cushion Hinge, LH
79382	Cover, NO.3 Seat Front Bracket, LH
79384	Cover, NO.3 Seat Leg, Rear LH
79385A	Pad, NO.3 Seatback, LH
79910	Cable Assy, Rear Seat Turn, NO.1
79920A	Cable Assy, Rear Seat Turn, NO.2
79929	Frame, Fold Seat Leg Stopper
79929A	Frame, Fold Seat Leg Stopper, NO.2
79955A	Cover, Rear Seat Front Bracket, RH
79956D	Cover, Rear Seat Front Bracket, LH
79957A	Cover, Rear Seat Rear Bracket, RH
79958A	Cover, Rear Seat Rear Bracket, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
