Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · General

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

140 part groups · 21 illustrations

Illustrations

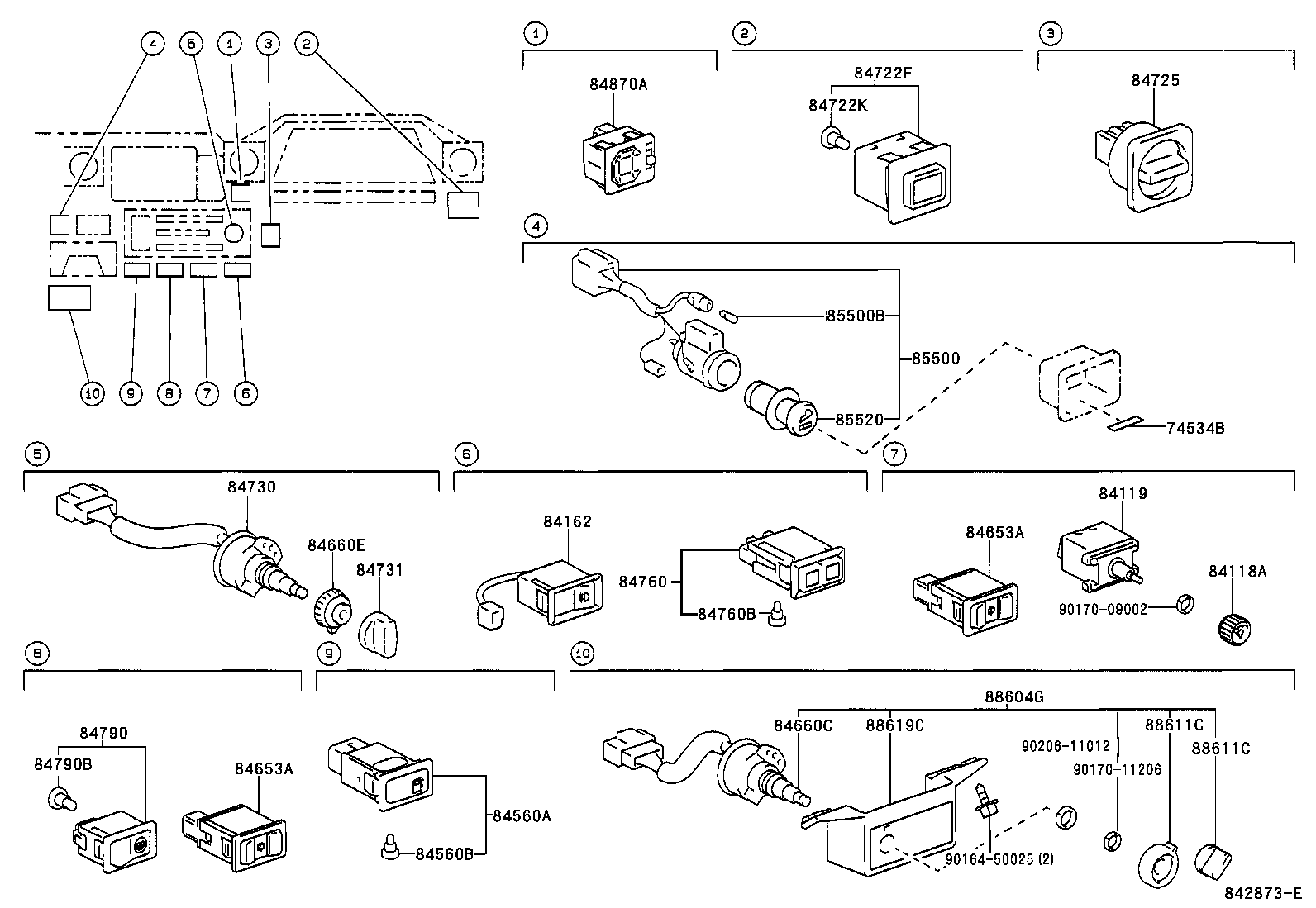

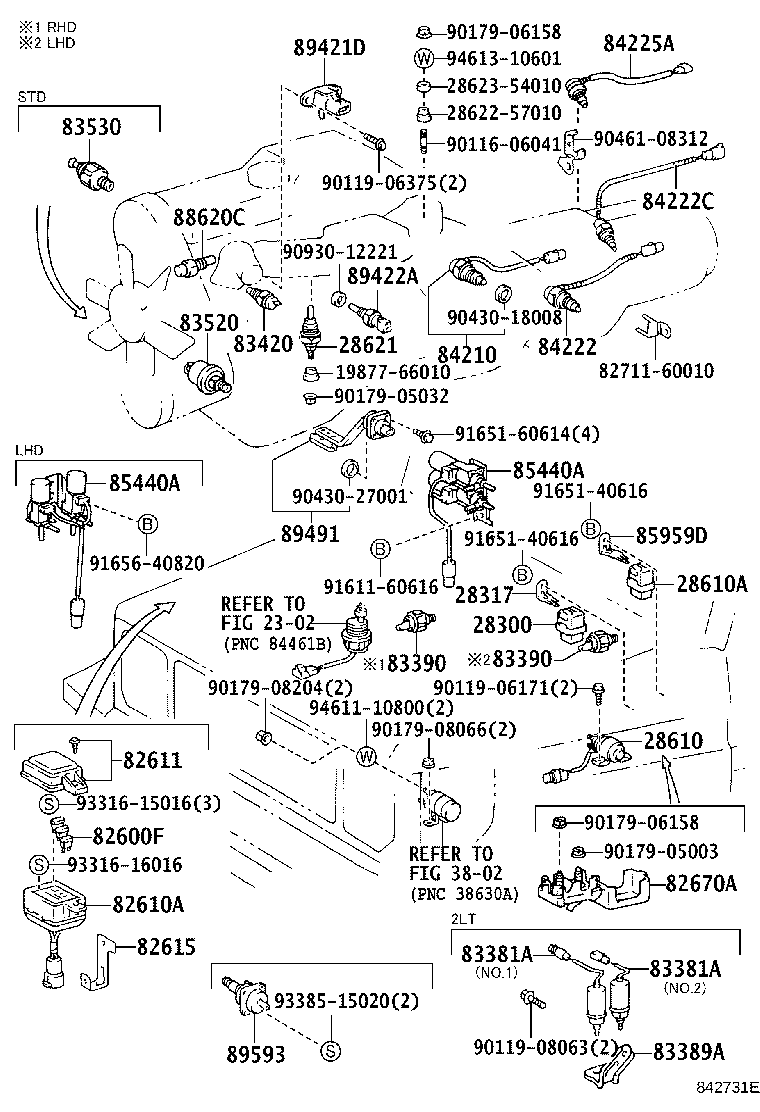

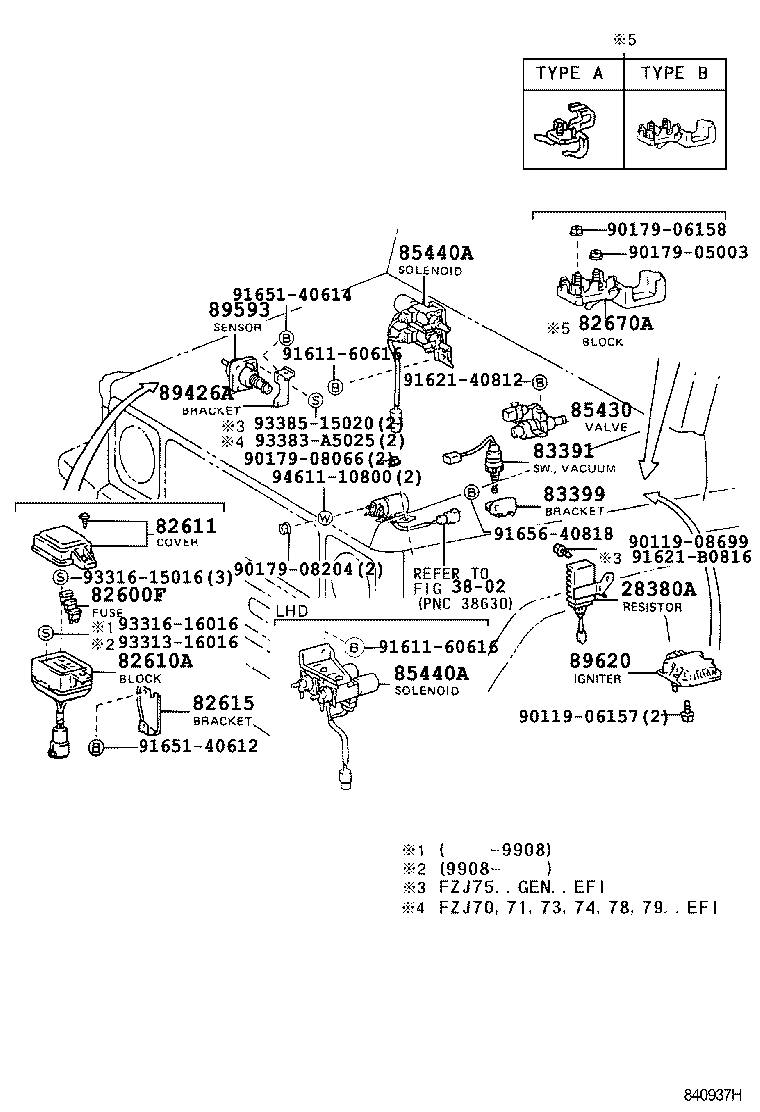

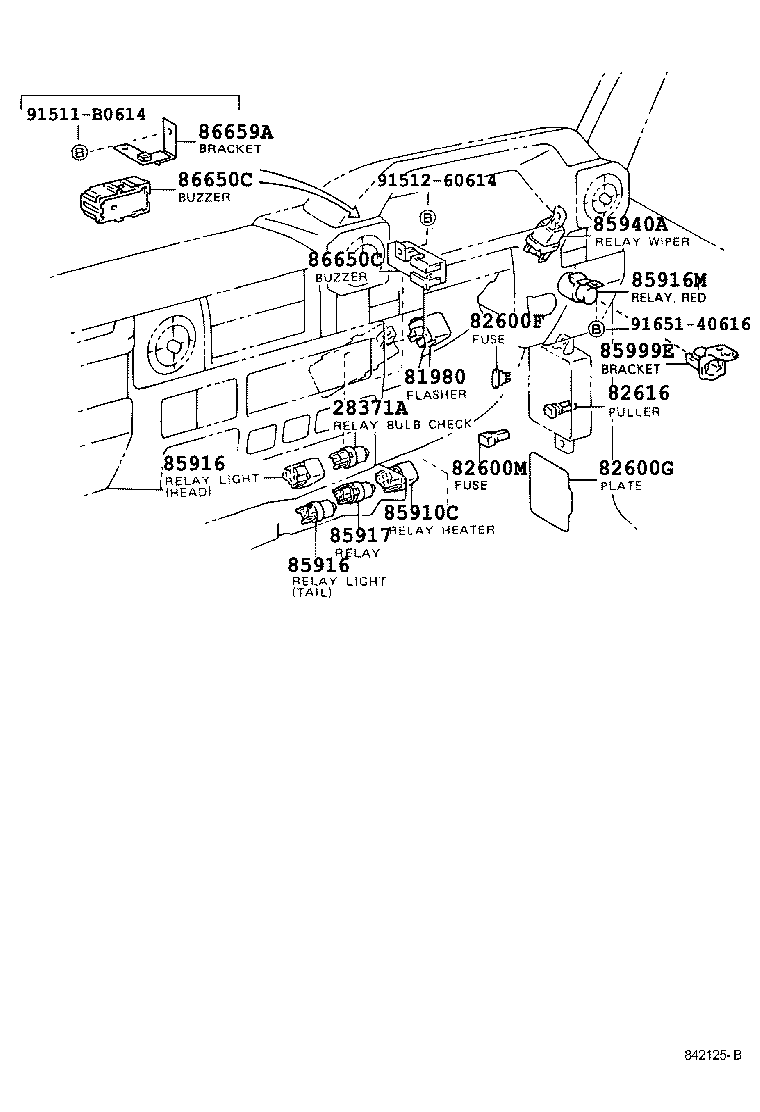

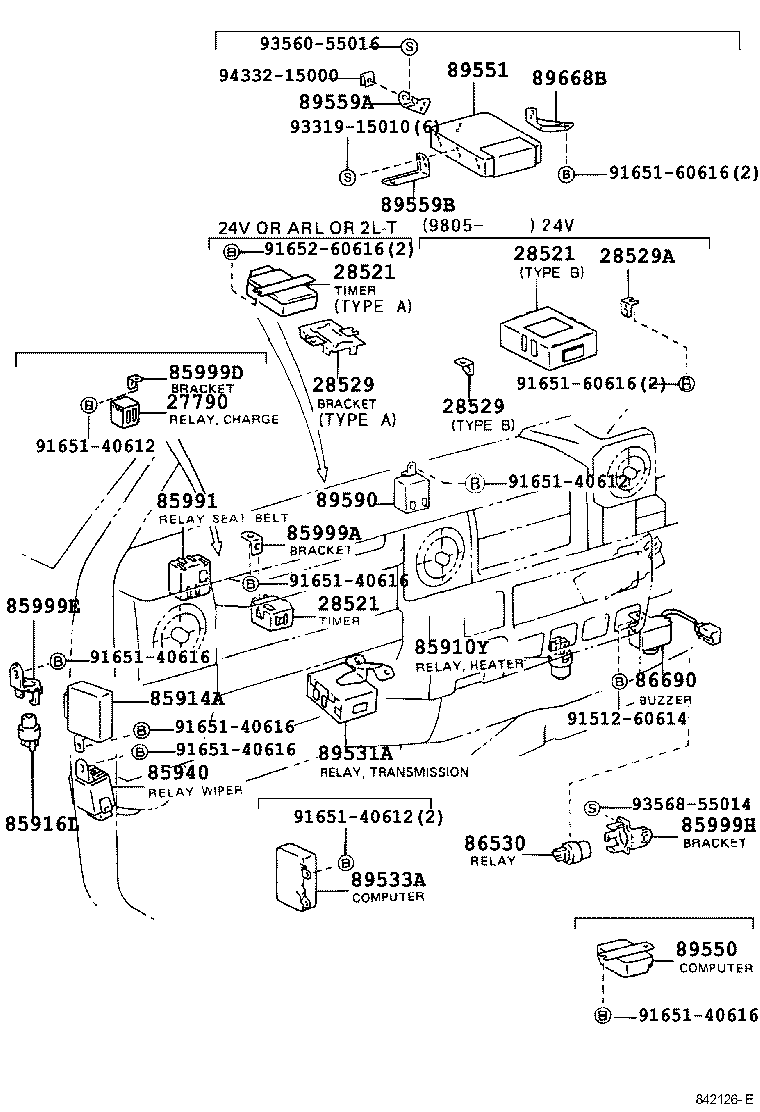

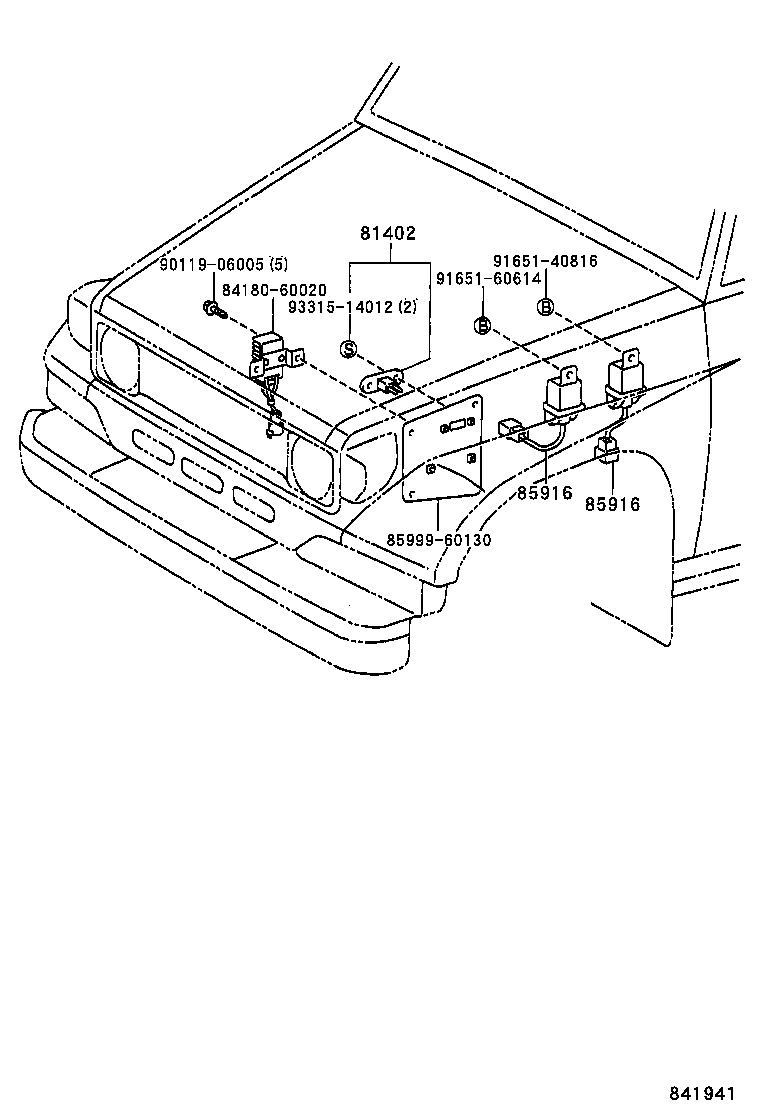

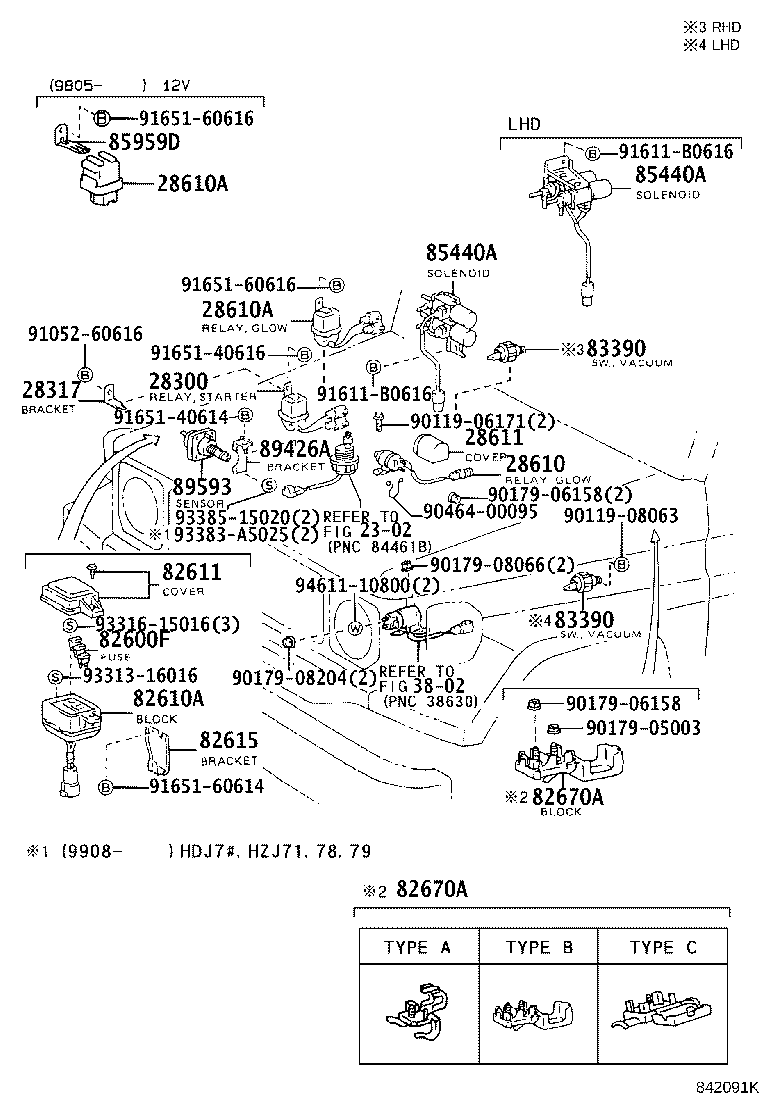

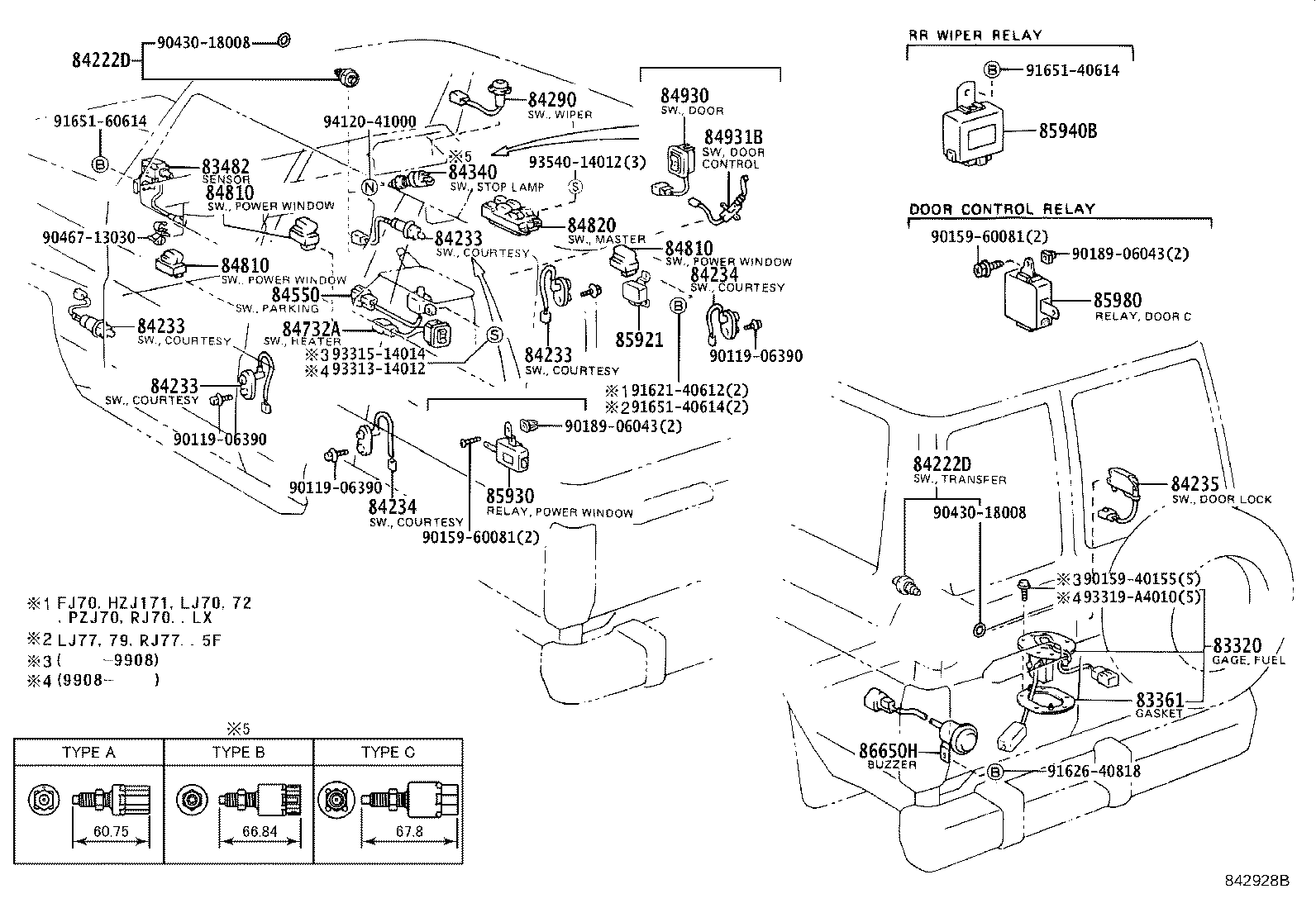

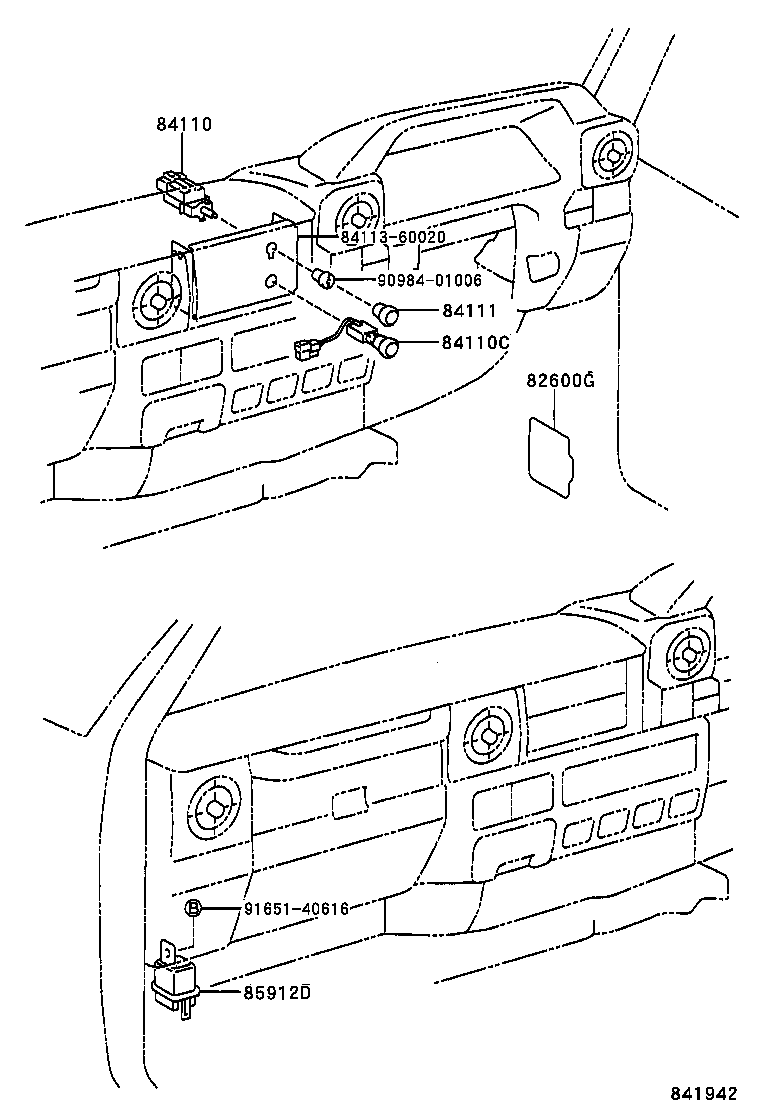

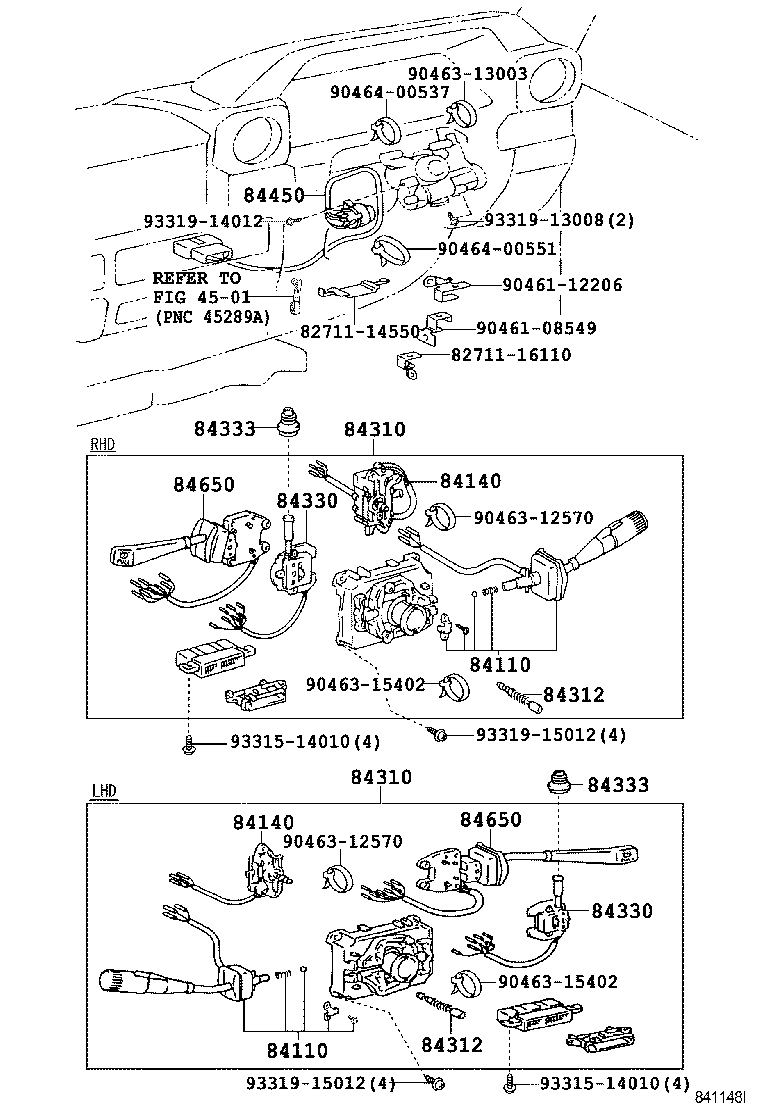

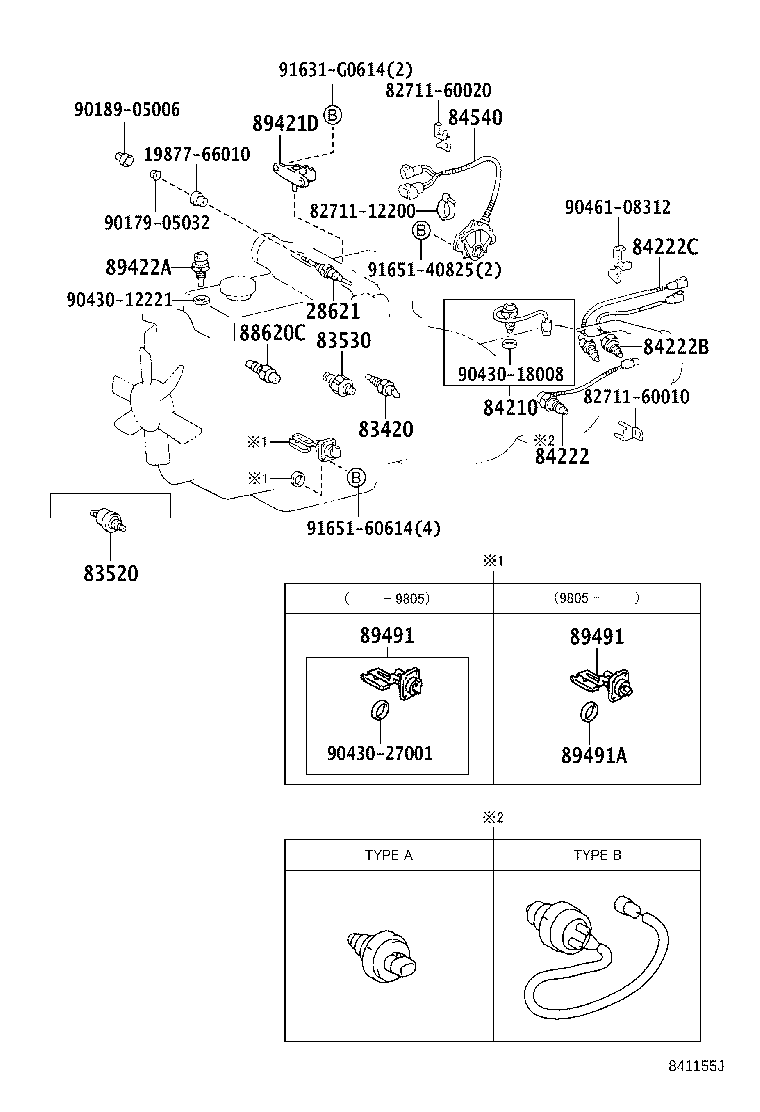

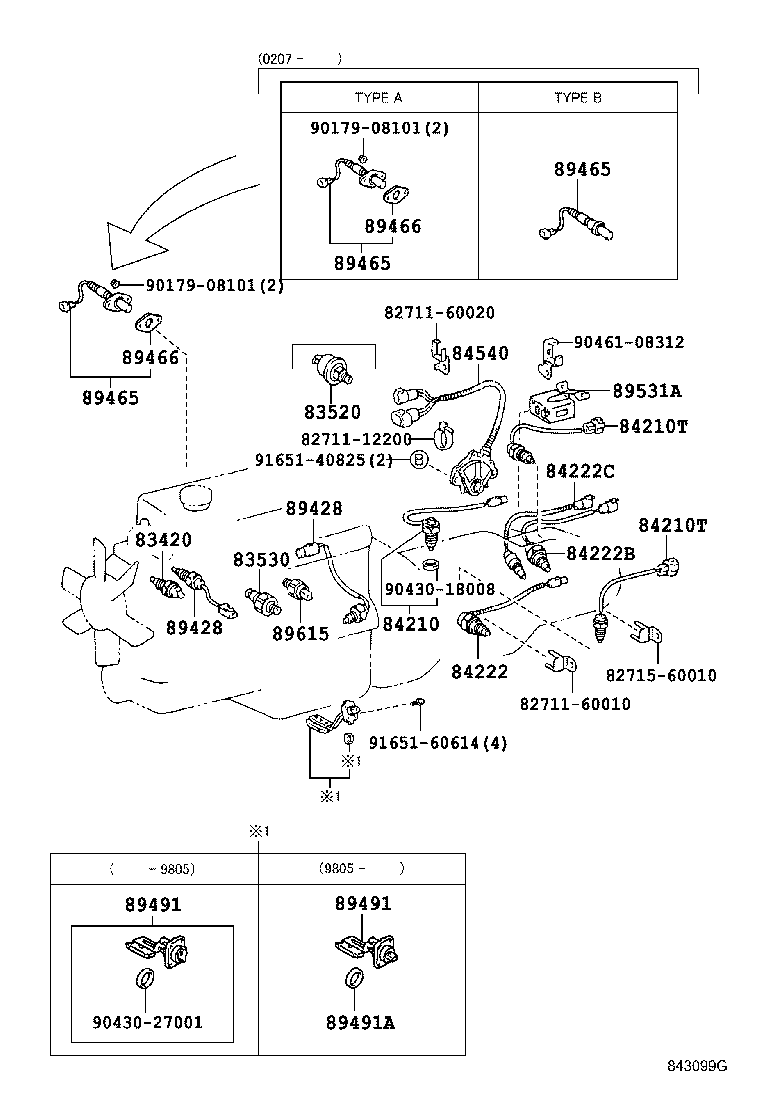

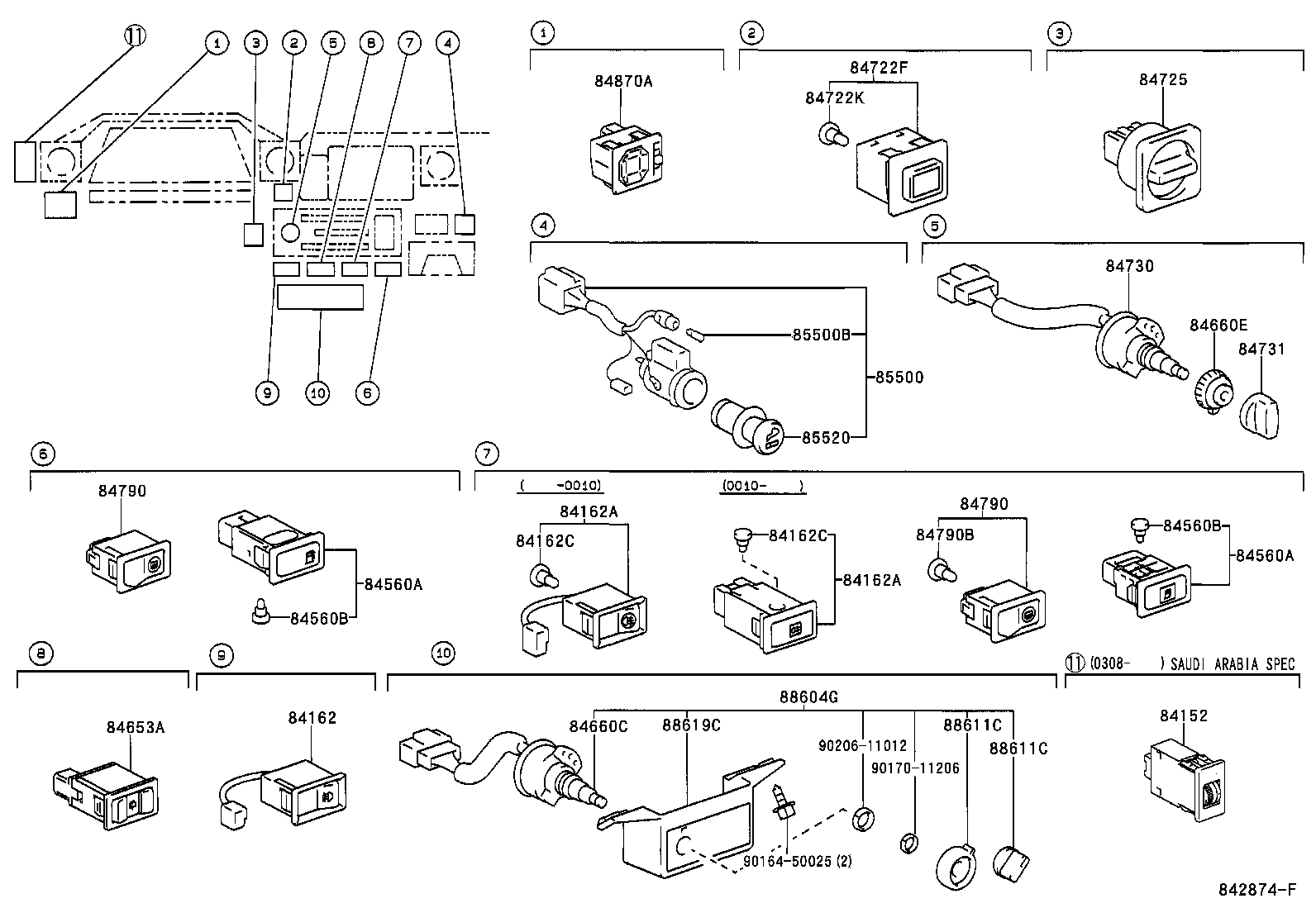

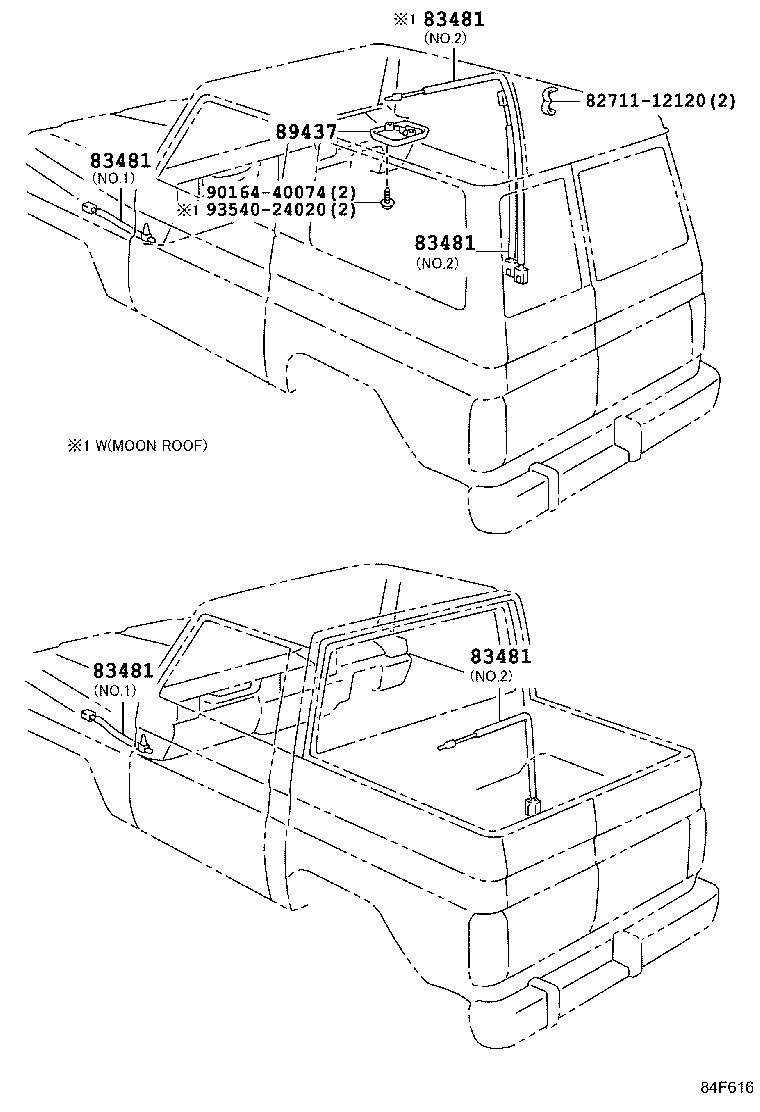

Figure 842251C 842251C 1990-01 → 1996-04 Figure 842731E 842731E 1990-01 → 1996-04 Figure 842731E 842731E 1993-05 → 1996-04 Figure 843099G 843099G 1990-01 → 2009-07 Figure 841155J 841155J 1990-01 → — Figure 844418 844418 2001-08 → 2007-01 Figure 840937H 840937H 1990-01 → 2008-08 Figure 842091K 842091K 1990-01 → 2007-01 Figure 841941 841941 1997-06 → 1997-11 Figure 841941 841941 1998-09 → 1998-11 Figure 841941 841941 2006-09 → 2006-11 Figure 842874F 842874F 1990-01 → 2008-08 Figure 842873E 842873E 1990-01 → 2008-08 Figure 842125B 842125B 1990-01 → 2008-08 Figure 842126E 842126E 1990-01 → 2008-08 Figure 841942 841942 1997-06 → 1997-11 Figure 841942 841942 1998-09 → 1998-11 Figure 841942 841942 2006-09 → 2006-11 Figure 841148I 841148I 1990-01 → 2008-08 Figure 842928B 842928B 1990-01 → 2008-08 Figure 84F616 84F616 1990-01 → 1999-08

Part groups

PNCDescription
27790 Relay Assy, Charge Lamp
28300 Relay Assy, Starter
28317 Bracket, Starter Relay
28371A Relay, Bulb Check
28380A Resister, Fuel Pump
28521 Timer, Preheating
28529 Bracket, Preheating Timer, NO.1
28529A Bracket, Preheating Timer, NO.2
28610 Relay Assy, Intake Heater OR Glow Plug
28610A Relay Assy, Glow Plug(SUB)
28611 Cover, Glow Plug Relay
28621 Resistor, Glow Plug
74534B Plate, Voltage Caution
81402 Socket Sub-assy, Inspection Lamp, NO.1
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82600G Plate, Caution(FOR FUSE)
82600M Fuse, Medium Current
82610A Block Assy, Fuse
82611 Cover, Fuse Block
82615 Bracket, Fuse
82616 Puller, Fuse
82670A Block Assy, Junction, NO.1
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83381A Switch, Pressure
83389A Bracket, Pressure Switch
83390 Switch Assy, Vacuum Warning
83391 Switch, Vacuum
83399 Bracket, Vacuum Switch
83420 Gage Assy, Water Temperature Sender
83481 Sensor, Inner Ambient Temperature
83482 Sensor, Outer Ambient Temperature
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84110 Switch Assy, Light Control, NO.1
84110C Switch Assy, Light Control, NO.2
84111 Knob, Light Control Switch
84118A Knob, Rheostat Light(FOR ROOM LAMP)
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84162 Switch, Front Fog Lamp
84162A Switch, Rear Fog Lamp
84162C Bulb (FOR REAR FOG LAMP SWITCH)
84210 Switch Assy, Back-up Lamp
84210T Sensor Assy, Shift Point
84222 Switch, Transfer Indicator, NO.1
84222B Switch, Transfer Indicator, NO.2
84222C Switch, Transfer Indicator, NO.3
84222D Switch, Transfer Indicator, NO.4
84225A Switch, Shift Position
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84290 Switch Assy, Limit
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84330 Switch Assy, Hazard Warning Signal
84333 Cover, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84560A Switch Assy, Fuel Control
84560B Bulb, Fuel Control Switch
84650 Switch Assy, Windshield Wiper
84653A Switch, Rear Wiper
84660C Switch, Cooler
84660E Knob, Cooler Switch
84722F Switch, Transmission Control
84722K Bulb, Transmission Control Switch
84725 Switch, Center Differential Lock
84730 Switch Assy, Heater Blower
84731 Knob, Heater Blower Switch
84732A Switch, Rear Heater Blower
84760 Switch Assy, Antenna
84760B Bulb, Antenna Switch
84790 Switch Assy, Rear Window Defogger
84790B Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
84931B Switch, Door Control
85430 Valve, Outer Vent Control
85440A Solenoid Assy, Four Wheel Drive Control
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910Y Relay, Rear Heater
85912D Relay
85914A Relay, Motor Antenna Control
85916 Relay, Light Control
85916L Relay, Rear Fog Lamp
85916M Relay, Red Indicator
85917 Relay, Front Drive
85921 Relay, Sliding Roof Control
85930 Relay Assy, Power Window
85931 Relay, Emission Control
85940 Relay Assy, Windshield Wiper
85940A Relay, Windshield Wiper Switch
85940B Relay Assy, Rear Wiper
85959D Holder, Relay
85980 Relay Assy, Door Control
85991 Relay, Seat Belt Warning
85999A Bracket, Relay, NO.2
85999D Bracket, Relay, NO.4
85999E Bracket, Relay, NO.5
85999H Bracket, Relay
86530 Relay Assy, Horn
86650C Buzzer Assy, Sedimenter Warning
86650H Buzzer Assy, Back
86659A Bracket, Buzzer
86690 Buzzer Assy, Speed Indicator
88604G Panel Sub-assy, Cooler Control
88611C Knob, Cooler Control Switch
88619C Panel, Control
88620C Thermo Switch Assy
89421D Sensor, Turbo Pressure
89422A Sensor, Water Temperature
89426A Bracket, Vacuum Sensor
89428 Switch, Temperature Detect, NO.2
89437 Cover, Sensor
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89531A Relay, Transmission Control
89533A Computer, 4 Wheel Drive Control, NO.2
89550 Computer Assy, Emission Control
89551 Computer, Emission Control
89559A Bracket, Emission Control Computer
89559B Bracket, Emission Control Computer
89590 Computer Assy, Condition Indicator
89593 Sensor, Air Cleaner Warning
89615 Sensor, Knock Control
89620 Igniter Assy
89668B Bracket, Engine Control Computer, NO.2
