Toyota Land Cruiser 90

1996-04 → 2008-12 · chassis KZJ9#,LJ9#,RZJ9#,VZJ9# · catalogue 781340 · General

Discontinued model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

9 part groups · 5 illustrations

Illustrations

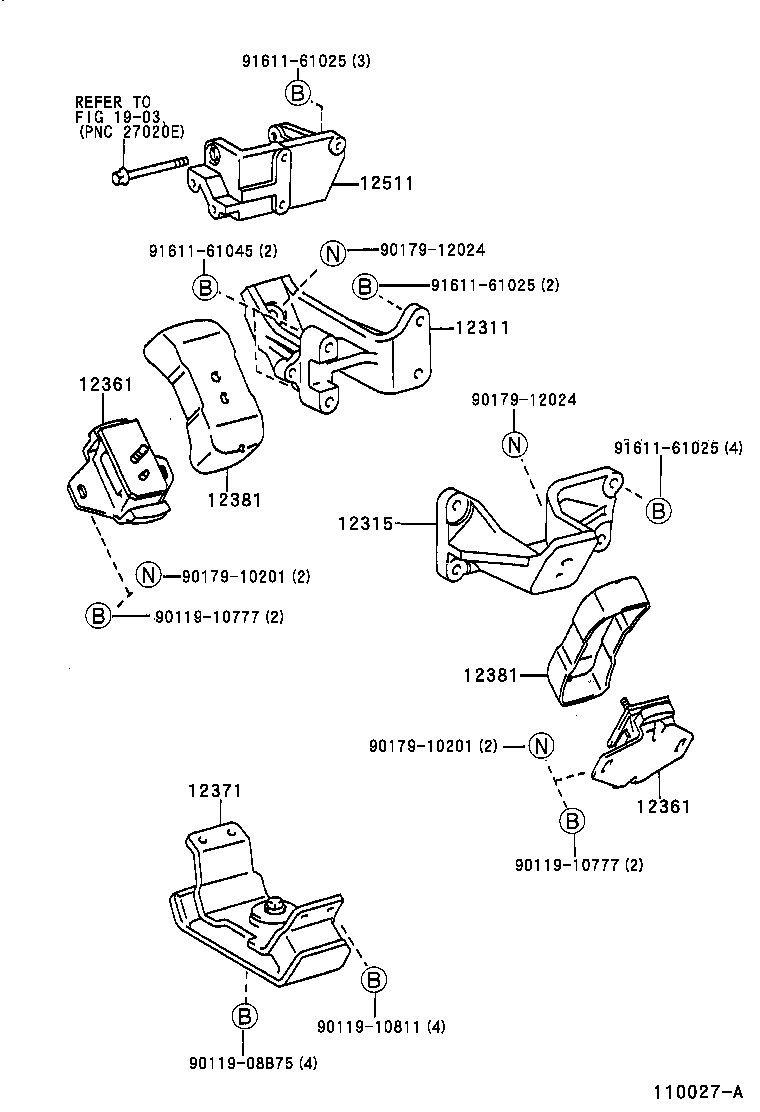

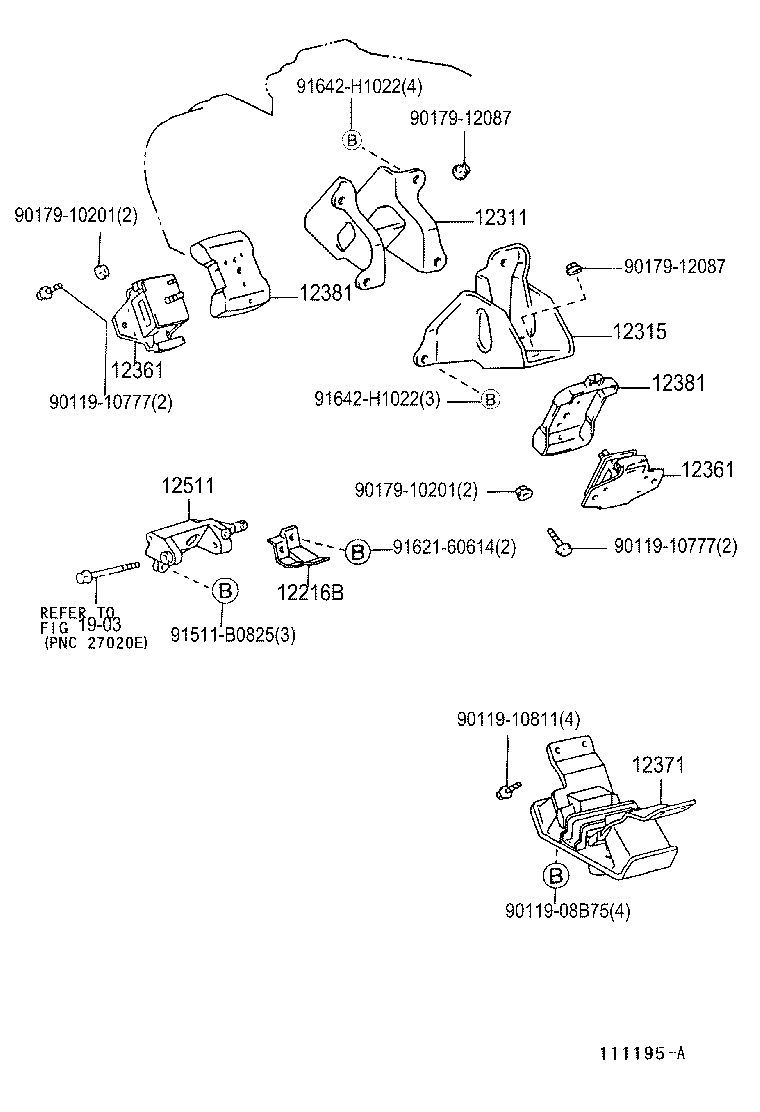

Figure 112500 112500 1996-04 → — Figure 110027A 110027A 1996-04 → — Figure 110010A 110010A 1996-04 → — Figure 110034A 110034A 1996-04 → 1999-06 Figure 111195A 111195A 1999-06 → —

Part groups

PNCDescription
12216B Plate, Oil Baffle
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
