Toyota Land Cruiser 90
1996-04 → 2008-12 · chassis KZJ9#,LJ9#,RZJ9#,VZJ9# · catalogue 781340 · General
Discontinued model
Data version 2009-04

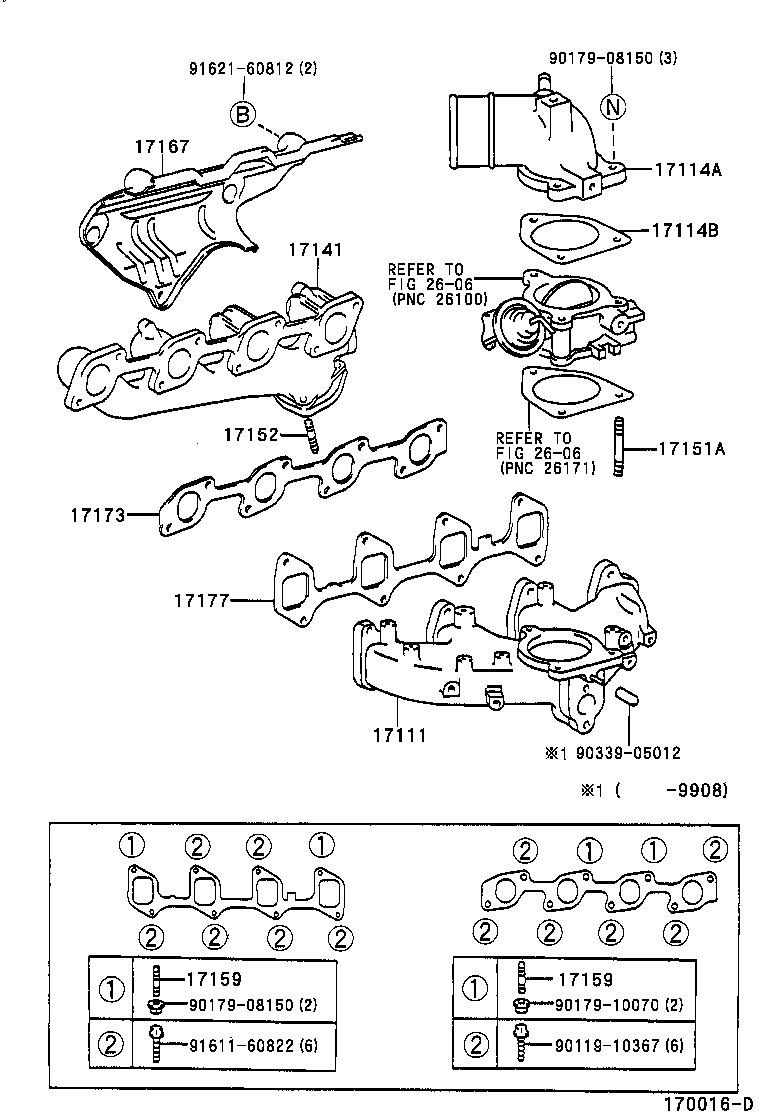

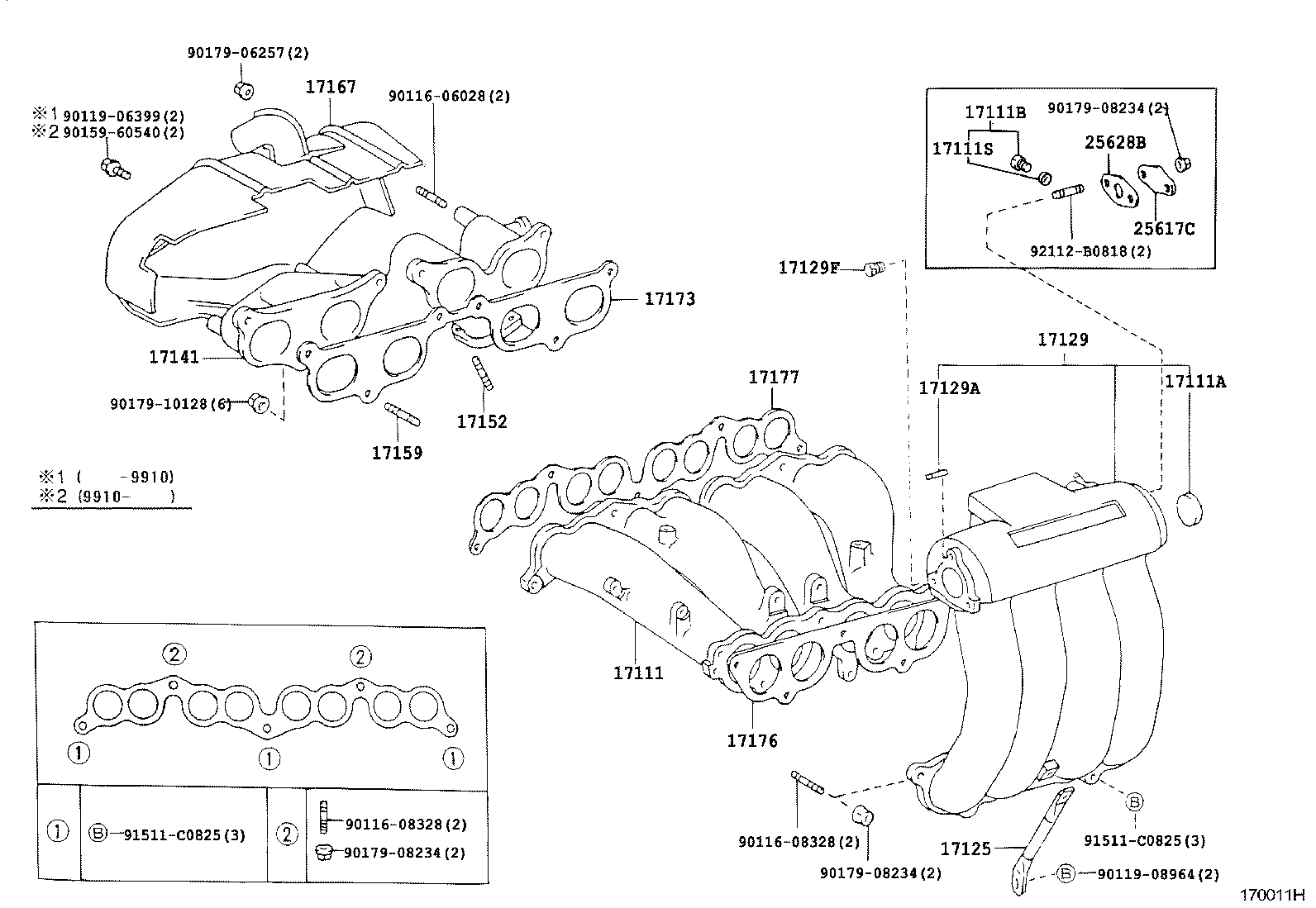

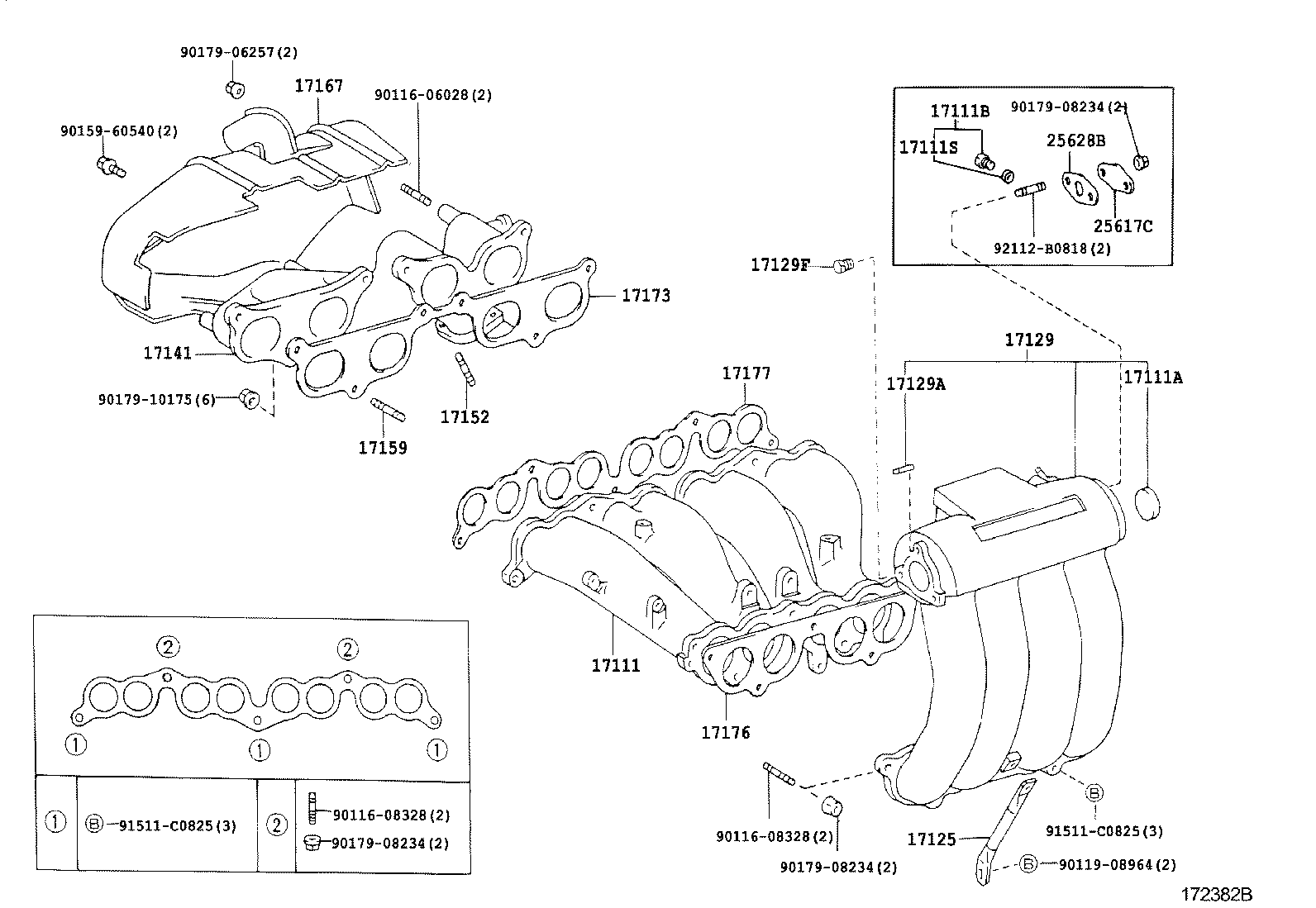

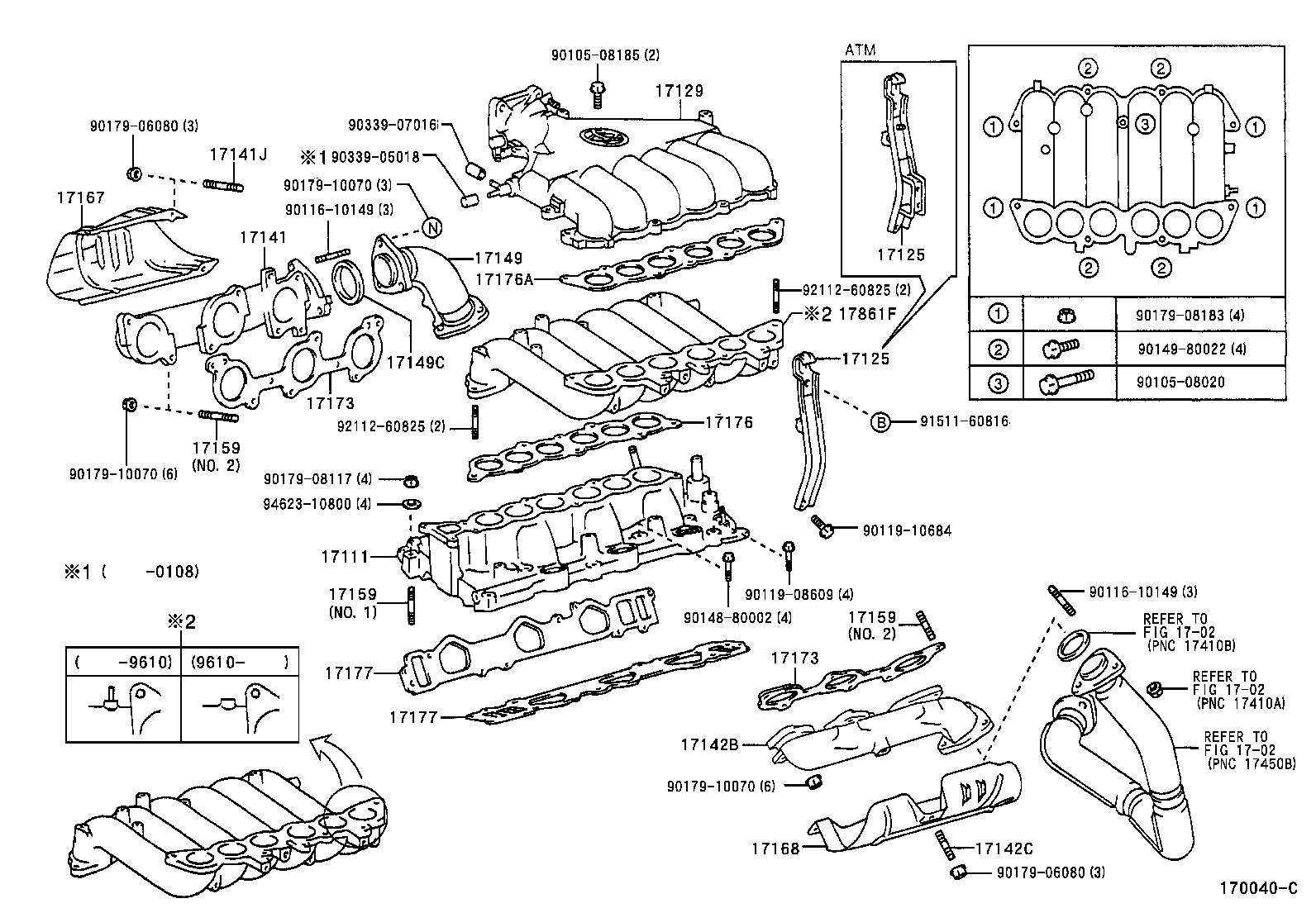

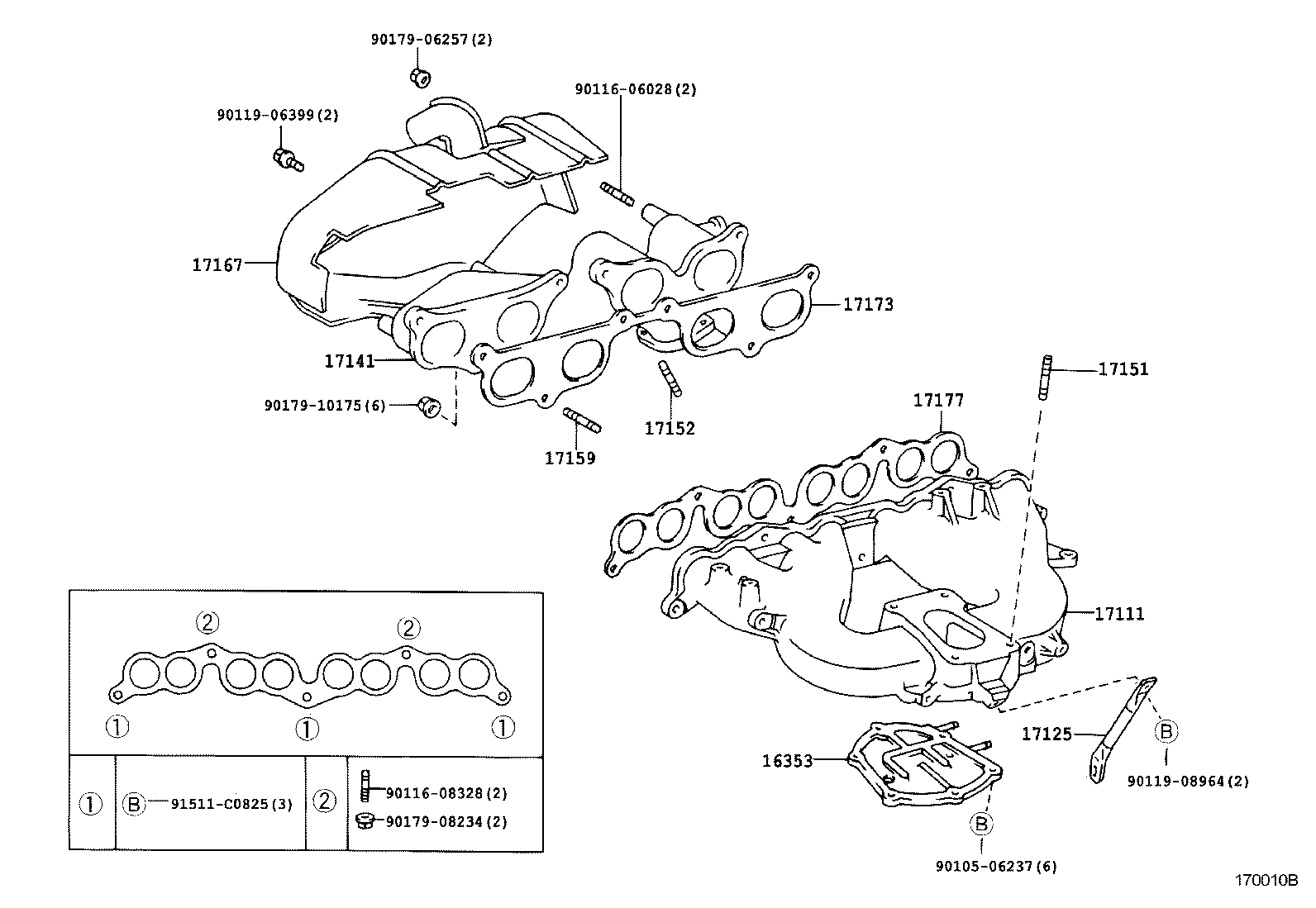

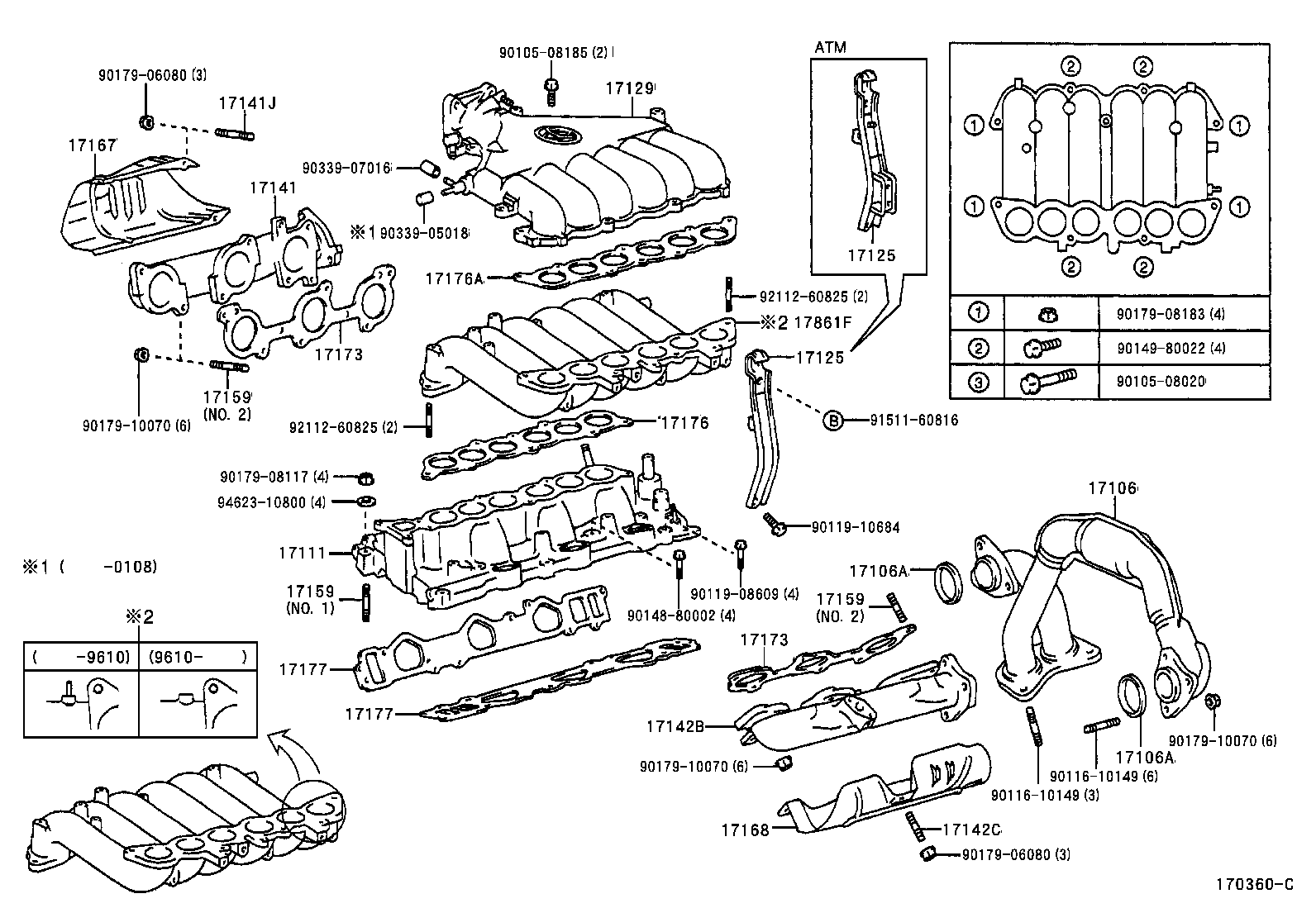

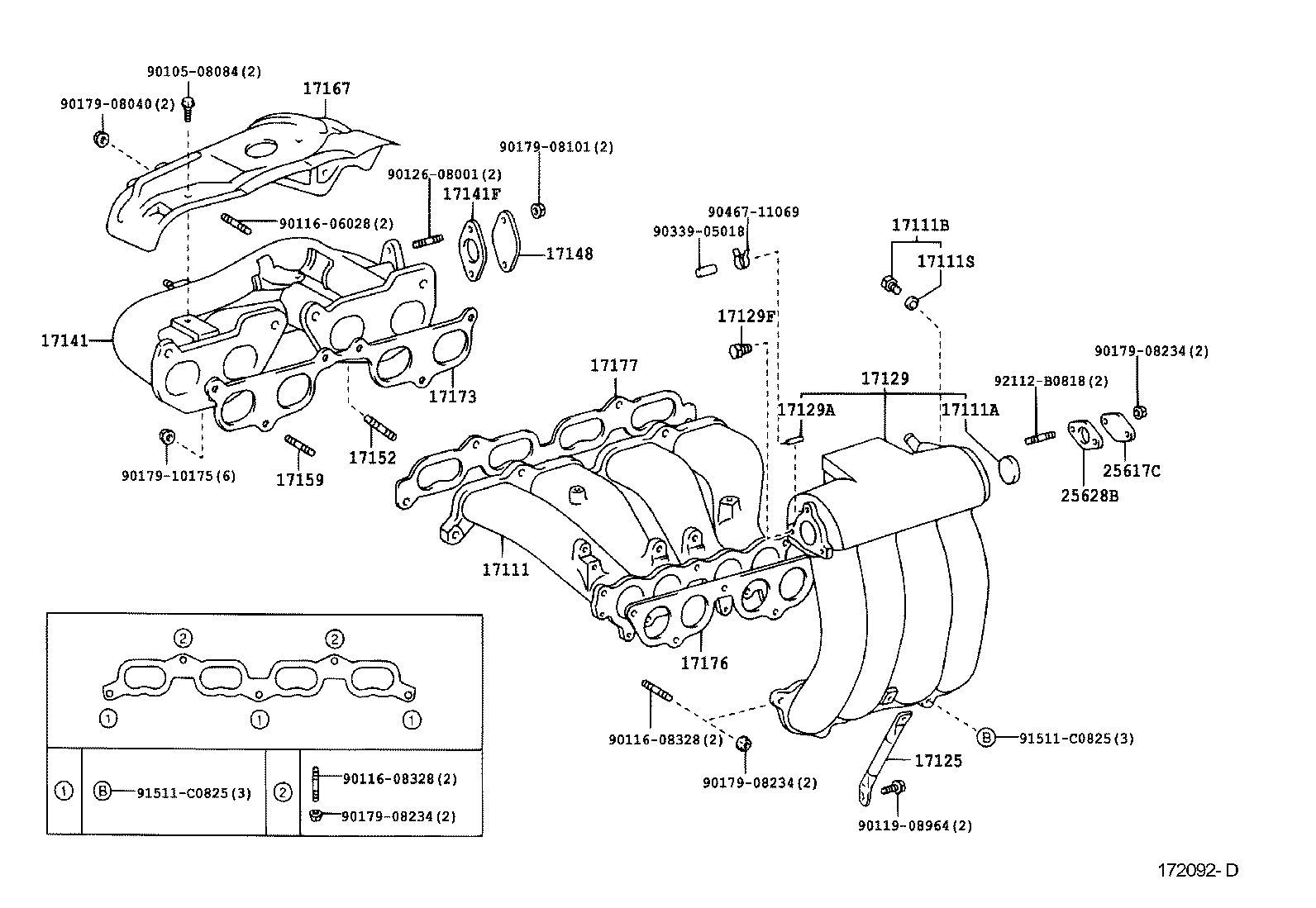

Manifold
61 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 04175 | Gasket Kit, Turbocharger |
| 15407 | Pipe Sub-assy, Turbo Oil Inlet |
| 15407A | Bolt, Union(FOR TURBO OIL INLET PIPE) |
| 15407B | Gasket(FOR TURBO OIL INLET PIPE) |
| 15471 | Gasket, Turbo Oil Inlet |
| 15472 | Gasket, Turbo Oil Outlet, NO.1 |
| 16347C | Gasket(FOR TURBO WATER PIPE) |
| 16353 | Flange, Water By-pass |
| 17021A | Bolt, Stud(FOR BEARING HOUSING) |
| 17021B | Bolt, Stud |
| 17025A | Bolt, Stud(FOR TURBINE HOUSING) |
| 17106 | Pipe Sub-assy, Exhaust Crossover |
| 17106A | Gasket, Exhaust Pipe |
| 17111 | Manifold, Intake |
| 17111A | Plug, NO.1 |
| 17111B | Plug, NO.2 |
| 17111S | Gasket(FOR MANIFOLD PLUG) |
| 17113 | Pipe, Intake |
| 17114A | Flange, Intake |
| 17114B | Gasket, Intake Flange |
| 17125 | Stay, Surge Tank, NO.1 |
| 17129 | Tank, Intake Air Surge |
| 17129A | Union, NO.1 |
| 17129F | Plug, Intake Manifold Suction Hole |
| 17141 | Manifold, Exhaust |
| 17141F | Gasket(FOR EXHAUST MANIFOLD PLATE) |
| 17141J | Bolt, Stud(FOR EXHAUST MANIFOLD, RH) |
| 17142B | Manifold, Exhaust, LH |
| 17142C | Bolt, Stud(FOR EXHAUST MANIFOLD, LH) |
| 17148 | Plate, Exhaust Manifold(FOR EGR INLET) |
| 17149 | Extension, Exhaust Manifold |
| 17149C | Gasket(FOR MANIFOLD EXTENSION) |
| 17151 | Bolt, Stud(FOR MANIFOLD TO CARBURETOR) |
| 17151A | Bolt, Stud(FOR MANIFOLD TO VENTURI) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17176 | Gasket, Air Surge Tank TO Intake Manifold |
| 17176A | Gasket, Air Surge Tank TO Intake Manifold, NO.2 |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17201 | Turbocharger Sub-assy |
| 17230A | Repair Actuaor Assy, W/Bracket |
| 17230B | Washer, Plate(FOR REPAIR ACTUATOR SET) |
| 17230C | Bolt, W/Washer(FOR REPAIR ACTUATOR SET) |
| 17271 | Insulator, Turbo, NO.1 |
| 17274 | Elbow, Compressor Inlet |
| 17276 | Gasket, Compressor Inlet |
| 17278 | Gasket, Turbo TO Exhaust Manifold |
| 17279 | Gasket, Turbine Outlet Elbow |
| 17291 | Elbow, Turbine Outlet |
| 17293 | Stay, Turbocharger |
| 17294 | Hose, Actuator |
| 17294A | Clip(FOR ACTUATOR HOSE) |
| 17296 | Plate, Bearing Housing, Side |
| 17342H | Hose, Air, NO.2(FOR TURBOCHARGER) |
| 17342J | Clip, Hose(FOR INTAKE PIPE) |
| 17861F | Connector, Intake Air |
| 25617C | Plate, Egr Hole Cover |
| 25628B | Gasket, Egr Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
