Toyota Land Cruiser 90

1996-04 → 2008-12 · chassis KZJ9#,LJ9#,RZJ9#,VZJ9# · catalogue 781340 · General

Discontinued model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

28 part groups · 7 illustrations

Illustrations

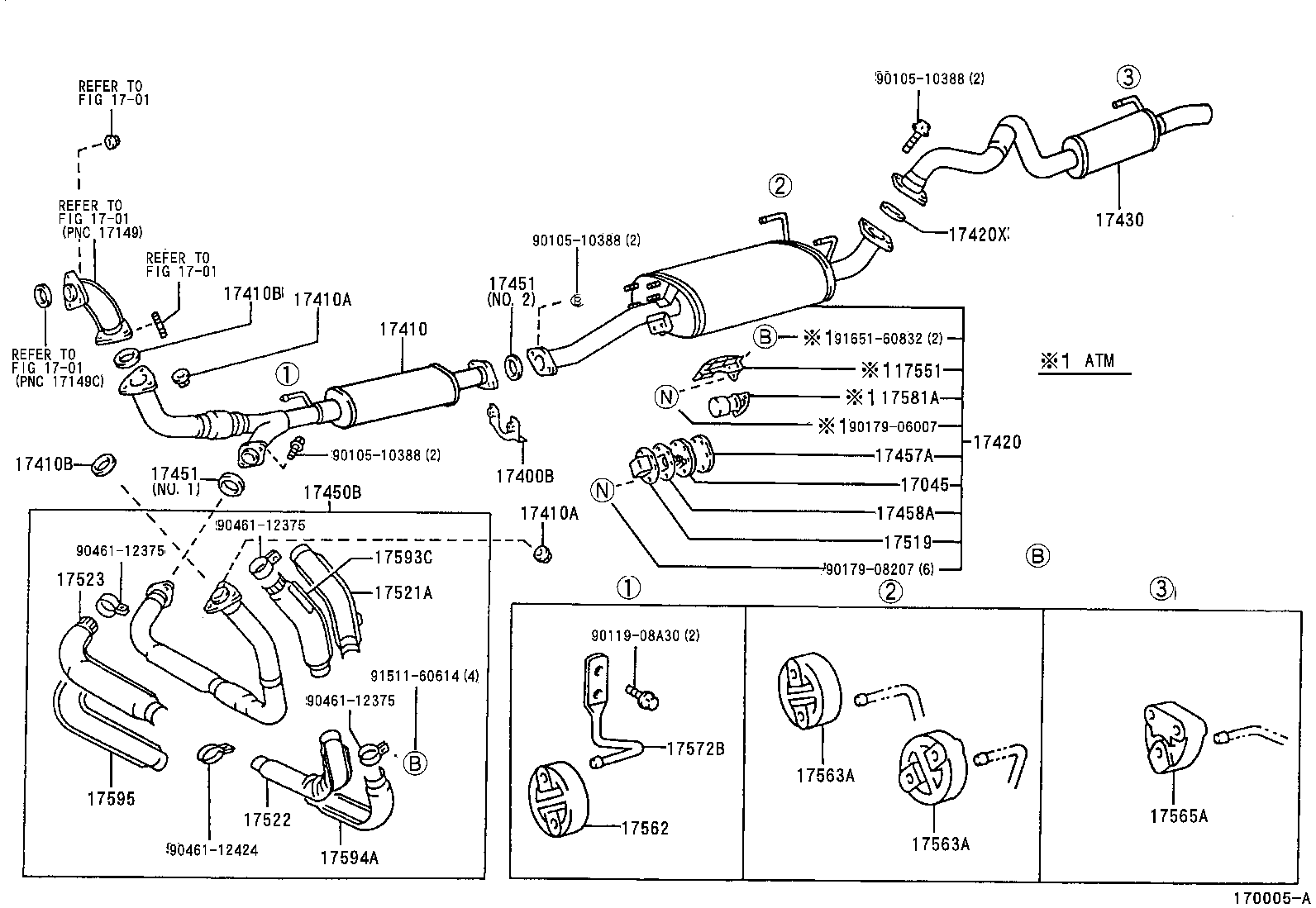

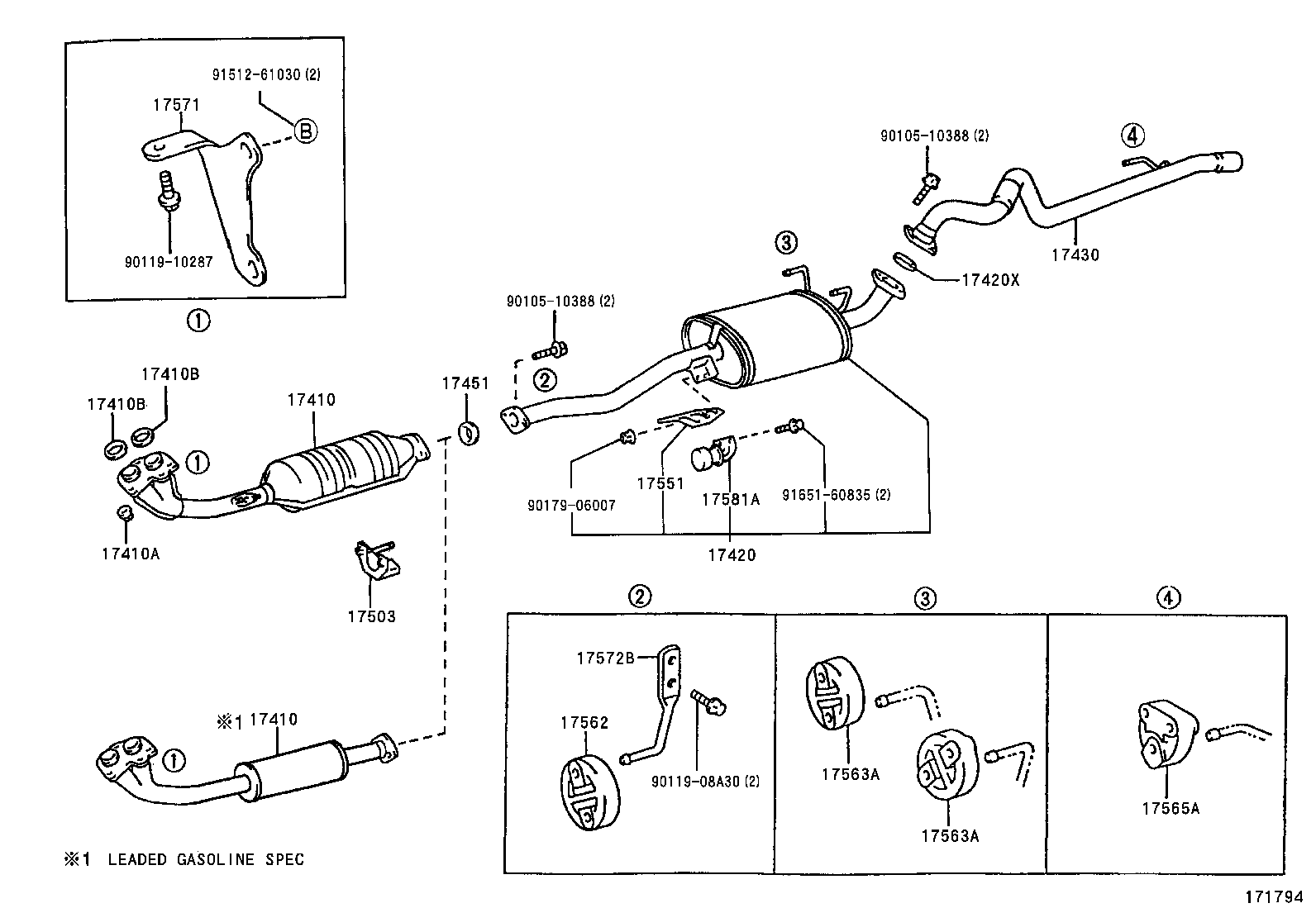

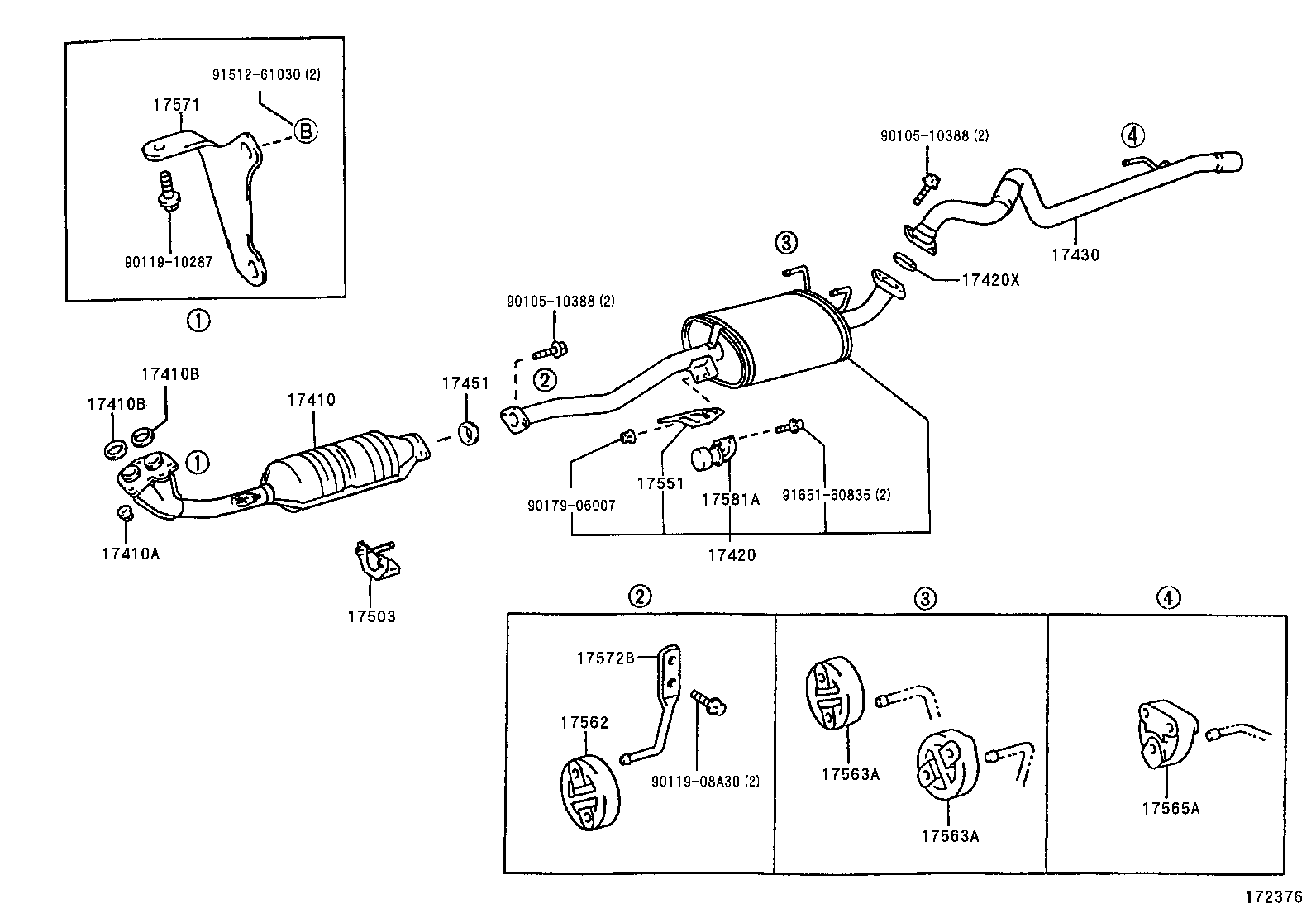

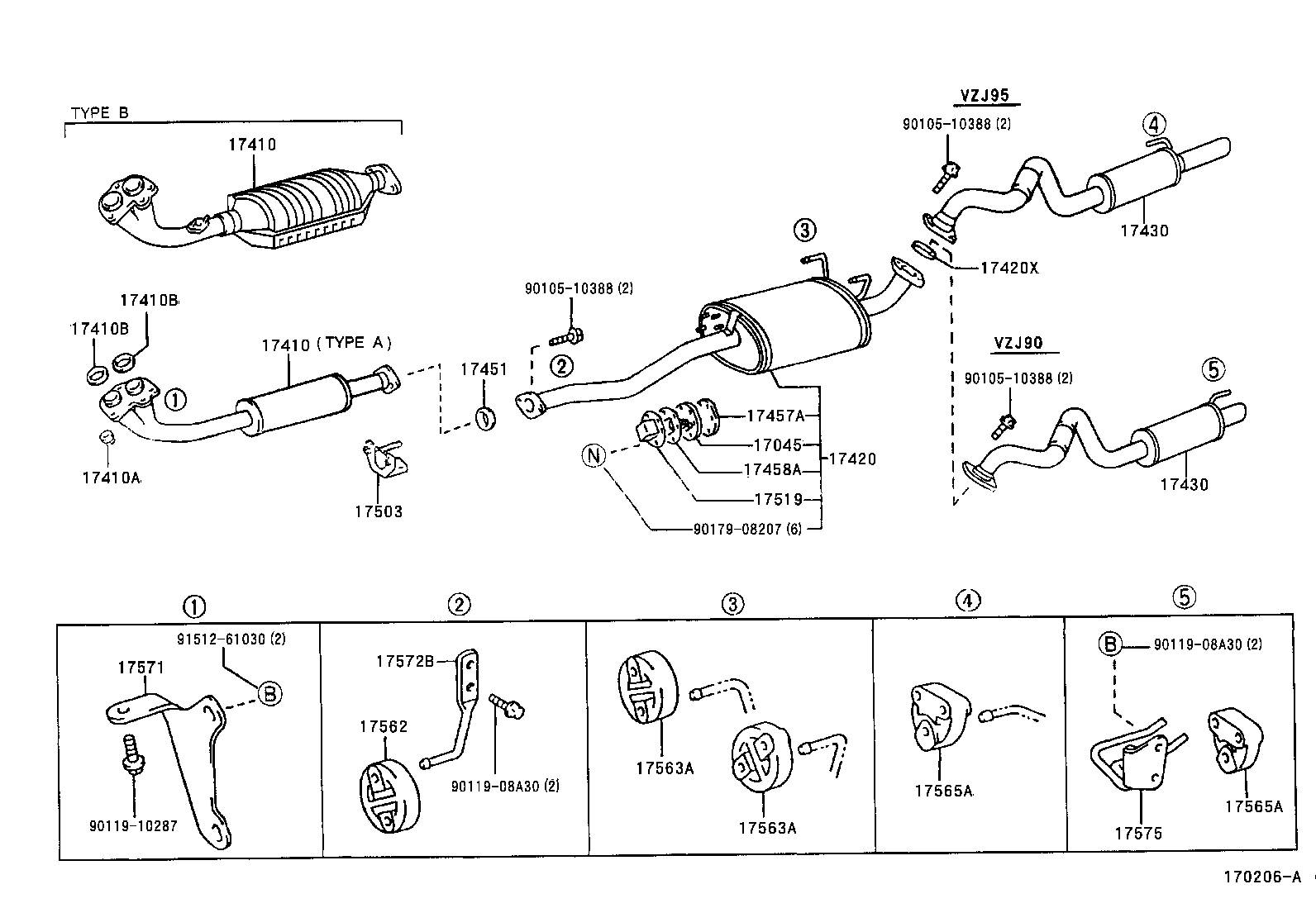

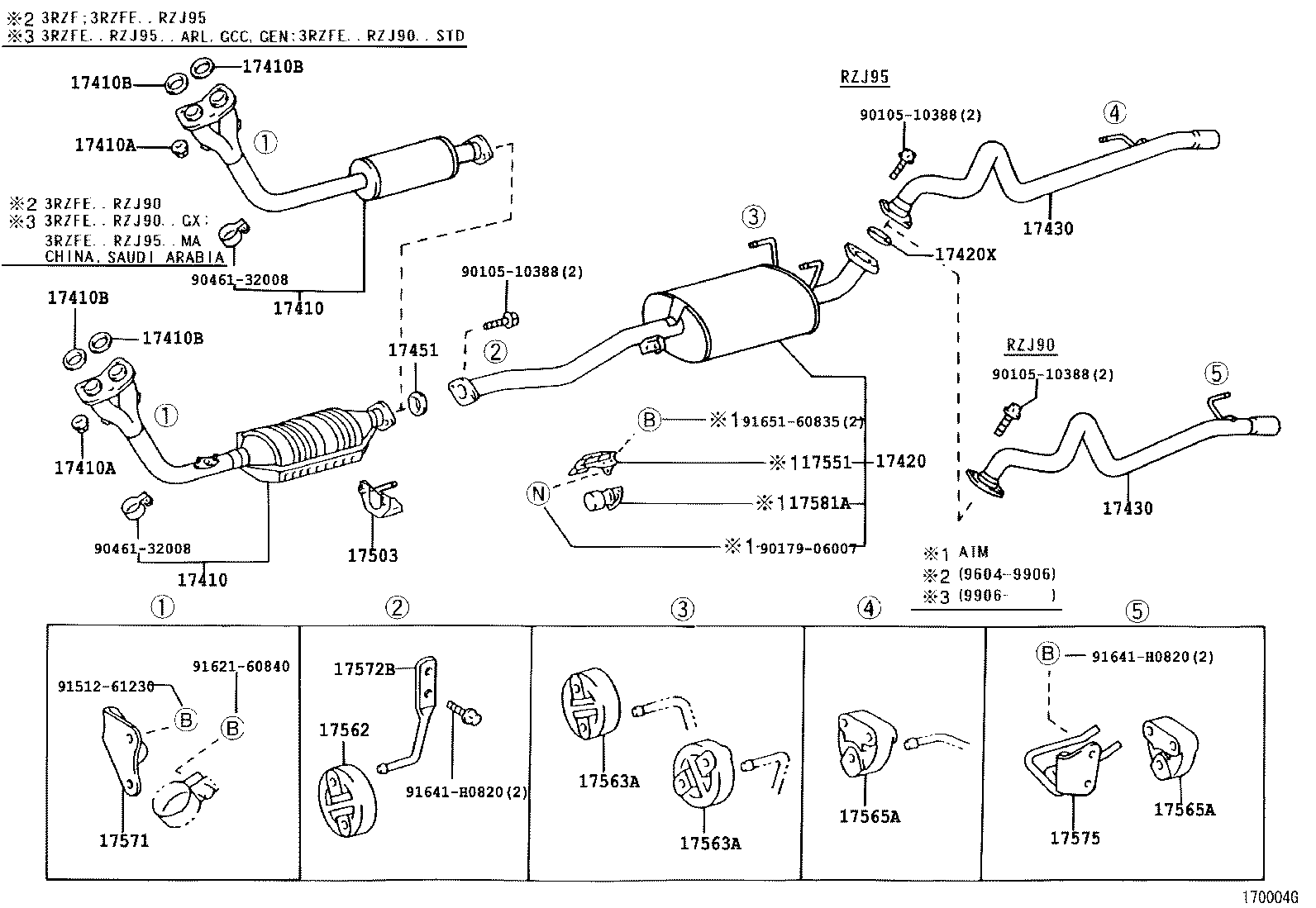

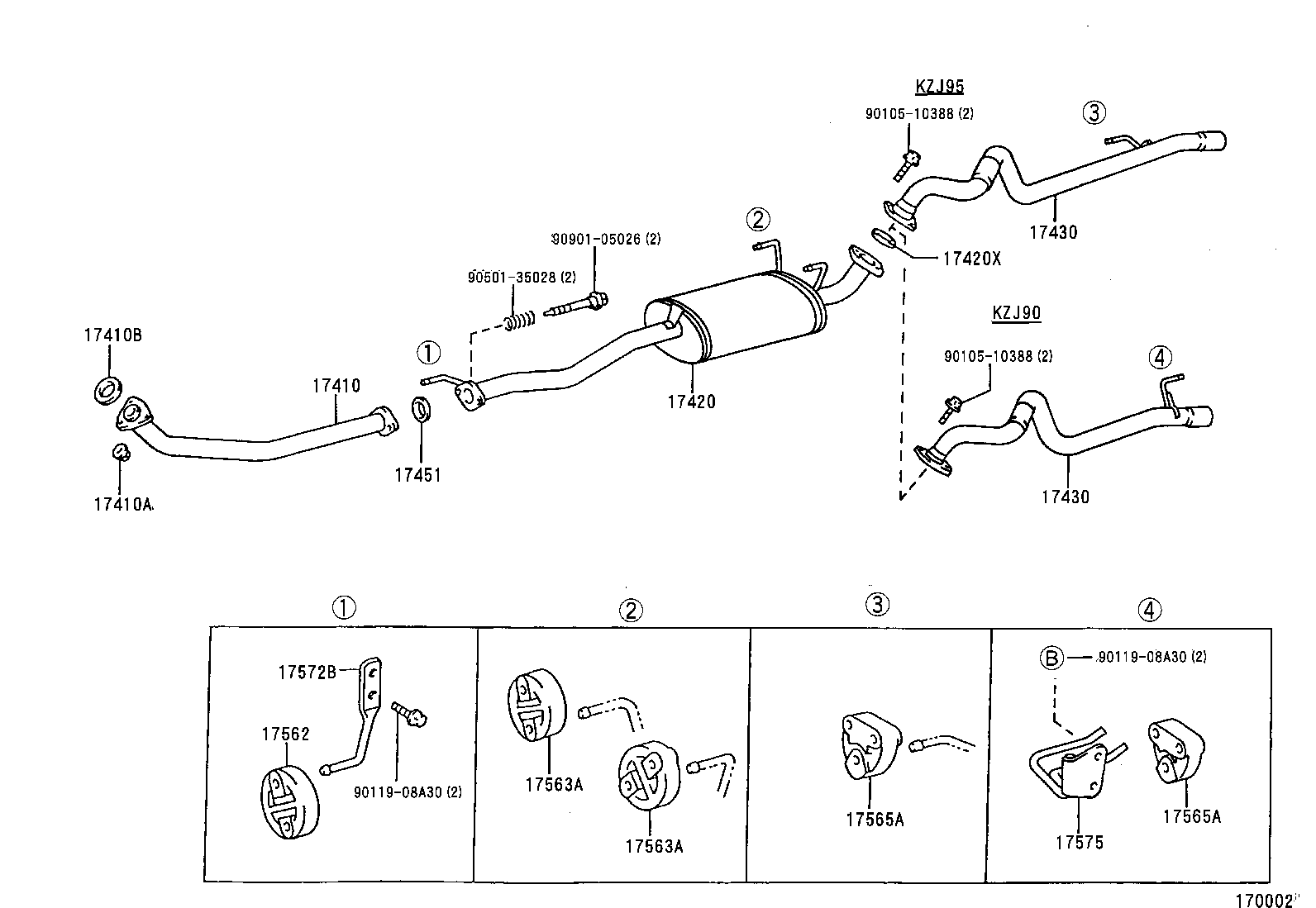

Figure 170003A 170003A 1996-04 → — Figure 170002 170002 1996-04 → — Figure 170004G 170004G 1996-04 → — Figure 170005A 170005A 1996-04 → — Figure 170206A 170206A 1996-08 → — Figure 172376 172376 2000-01 → — Figure 171794 171794 1998-08 → —

Part groups

PNCDescription
17045 Valve Sub-assy, Exhaust Pipe Gas Control
17400B Retainer, Exhaust Pipe
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17450B Pipe Assy, Exhaust, Front NO.2
17451 Gasket, Exhaust Pipe
17457A Gasket, Exhaust Gas Variable Valve
17458A Gasket, Exhaust Gas Variable Valve, NO.2
17503 Bracket Sub-assy, Catalytic Converter, Rear
17519 Cover, Exhaust Pipe Gas Control Valve
17521A Protector, Exhaust Pipe, Upper NO.1
17522 Protector, Exhaust Pipe, Upper NO.2
17523 Protector, Exhaust Pipe, Upper NO.3
17551 Insulator, Exhaust Pipe Heat, NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17572B Bracket, Exhaust Pipe Support, NO.2
17575 Bracket, Exhaust Pipe Support, NO.5
17581A Damper, Exhaust Pipe
17593C Protector, Exhaust Pipe, Lower NO.1
17594A Protector, Exhaust Pipe, Lower NO.2
17595 Protector, Exhaust Pipe, Lower NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
