Toyota Land Cruiser 90

1996-04 → 2008-12 · chassis KZJ9#,LJ9#,RZJ9#,VZJ9# · catalogue 781340 · General

Discontinued model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

54 part groups · 17 illustrations

Illustrations

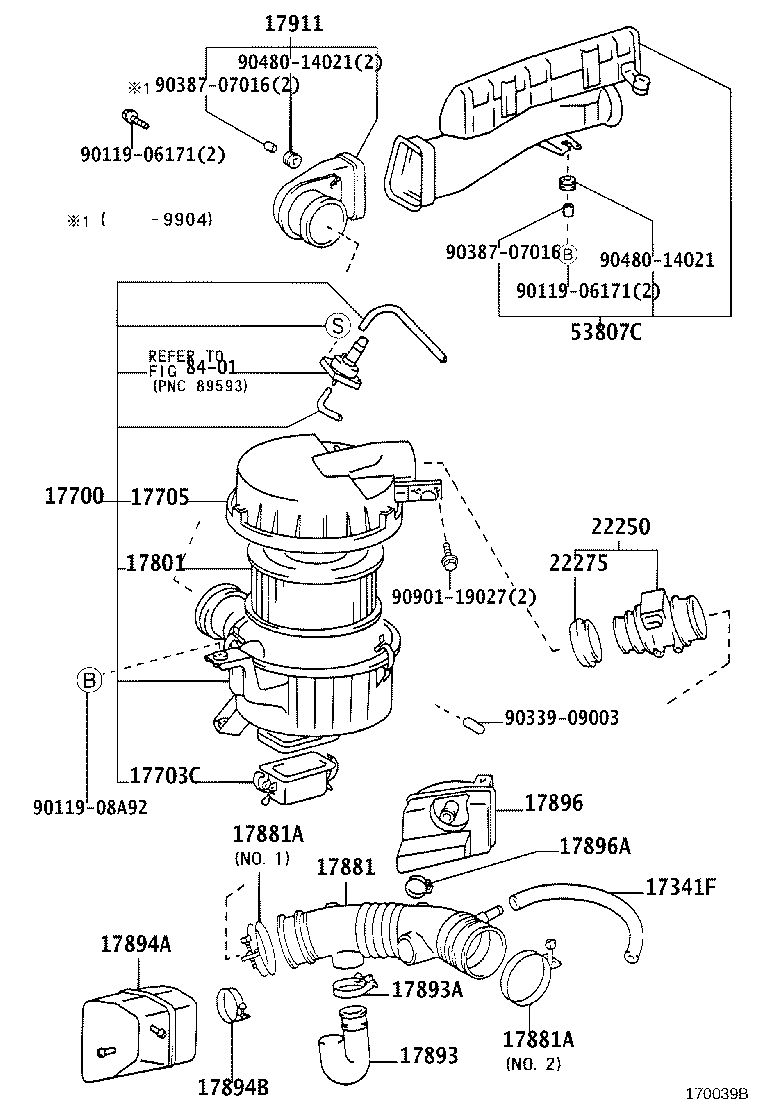

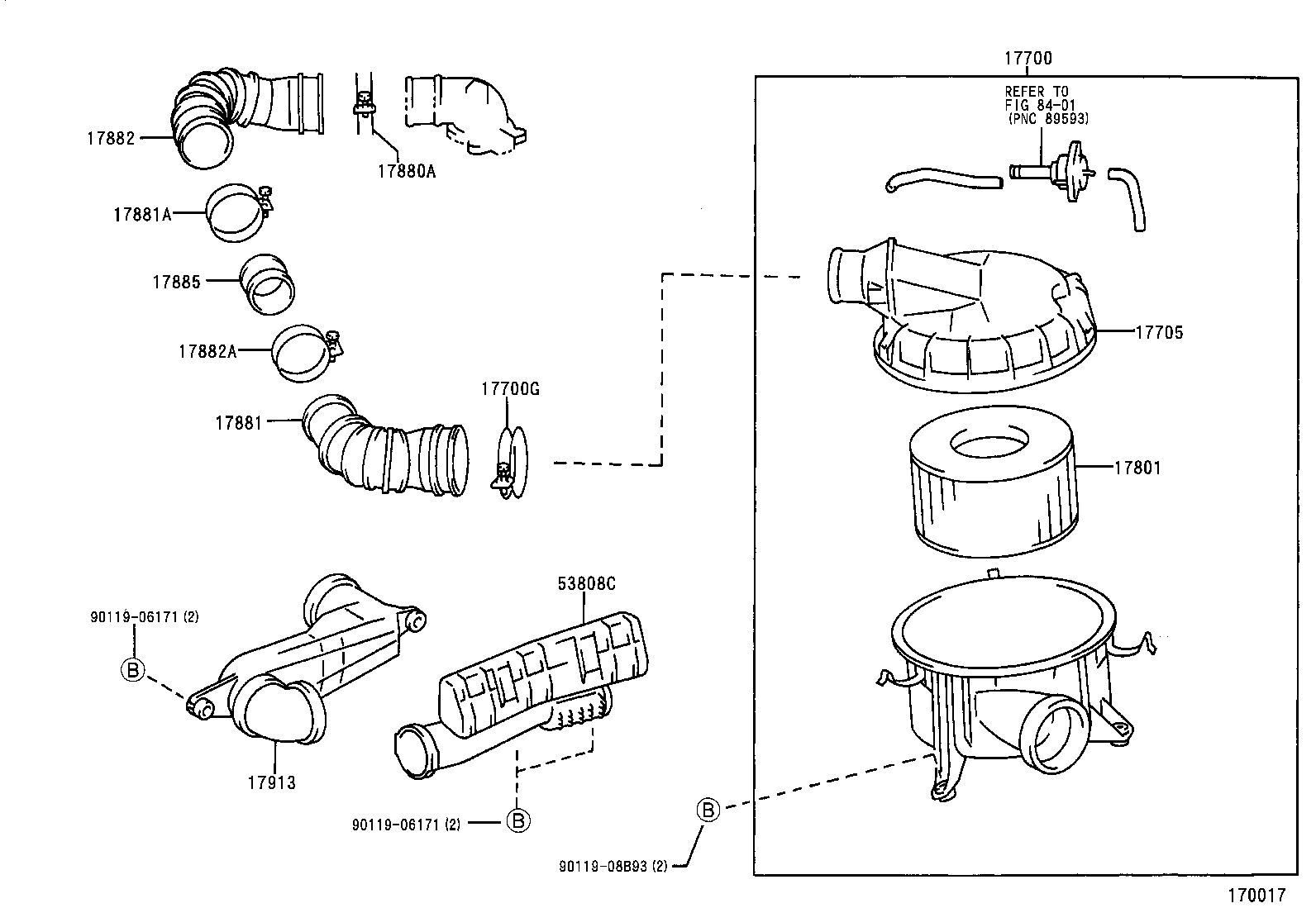

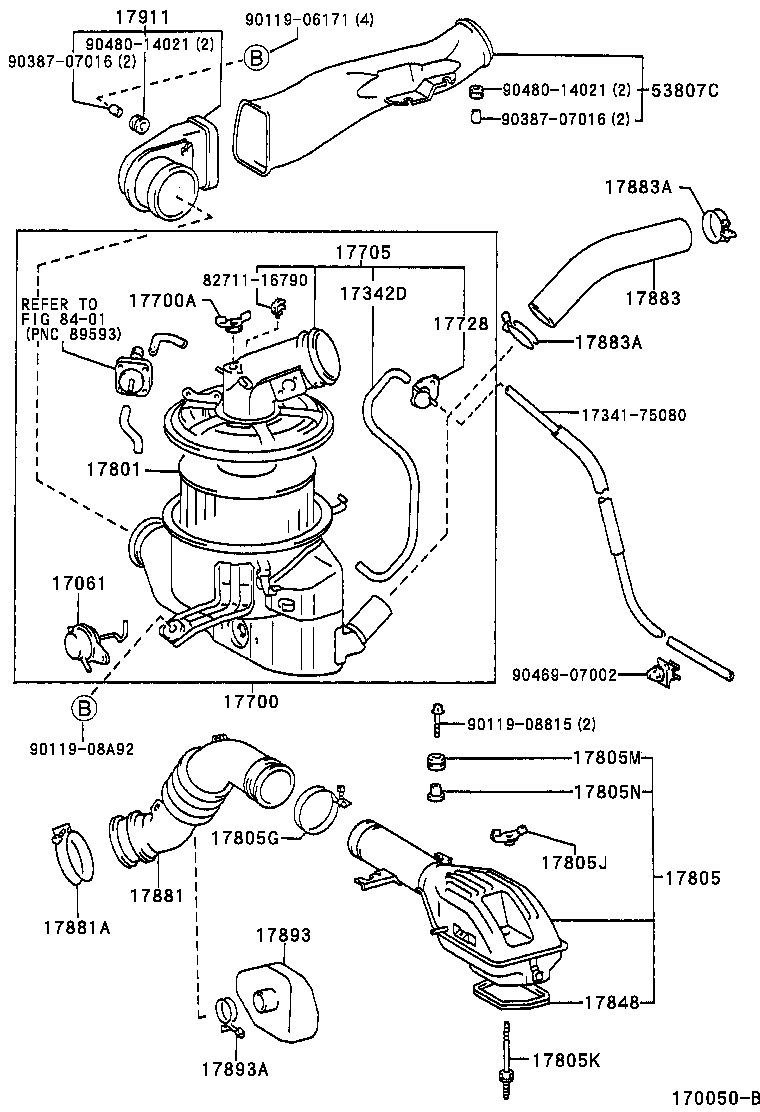

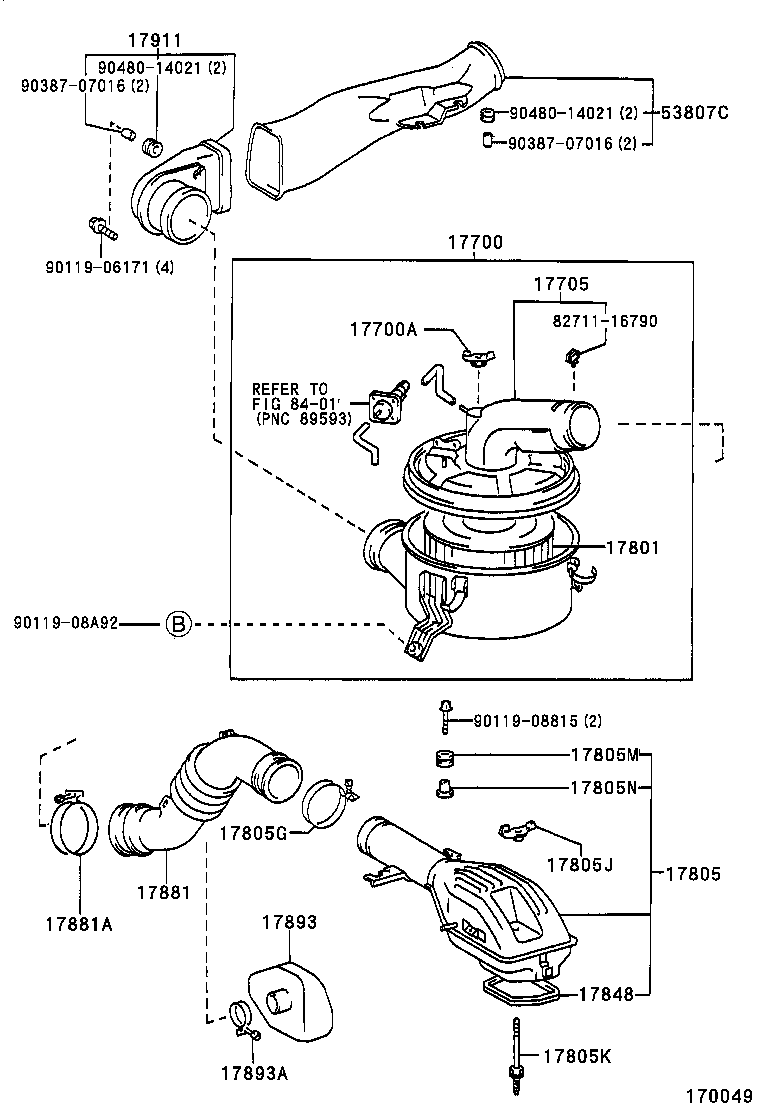

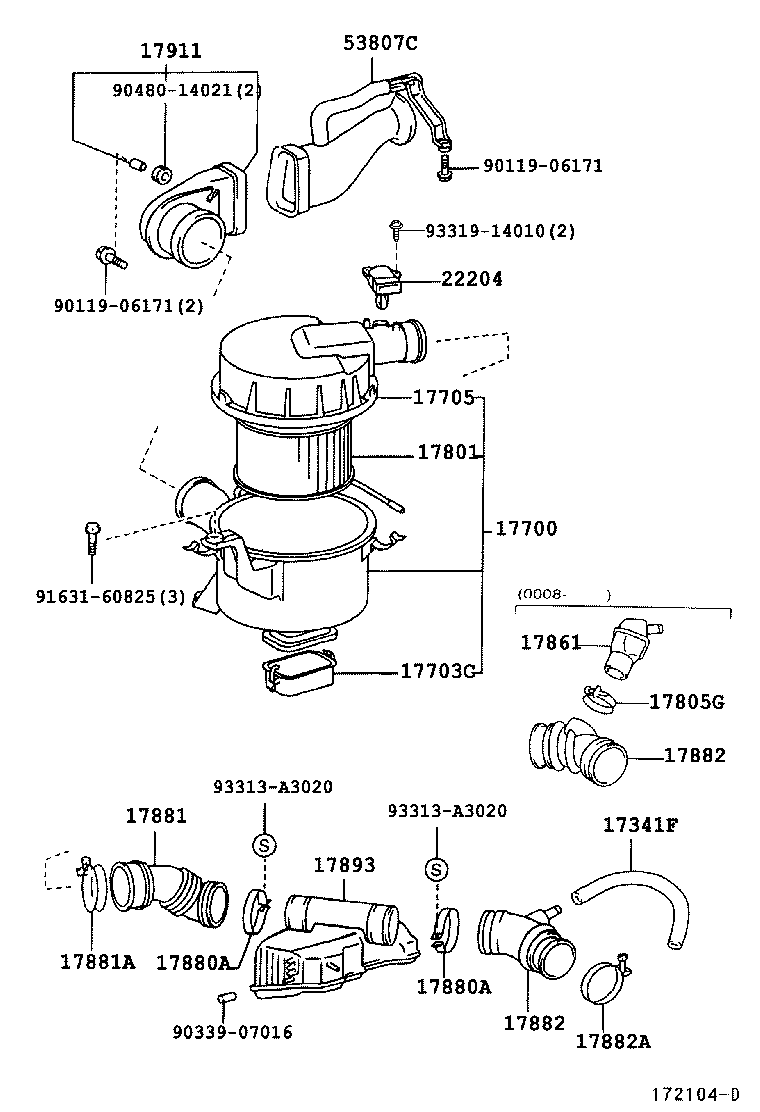

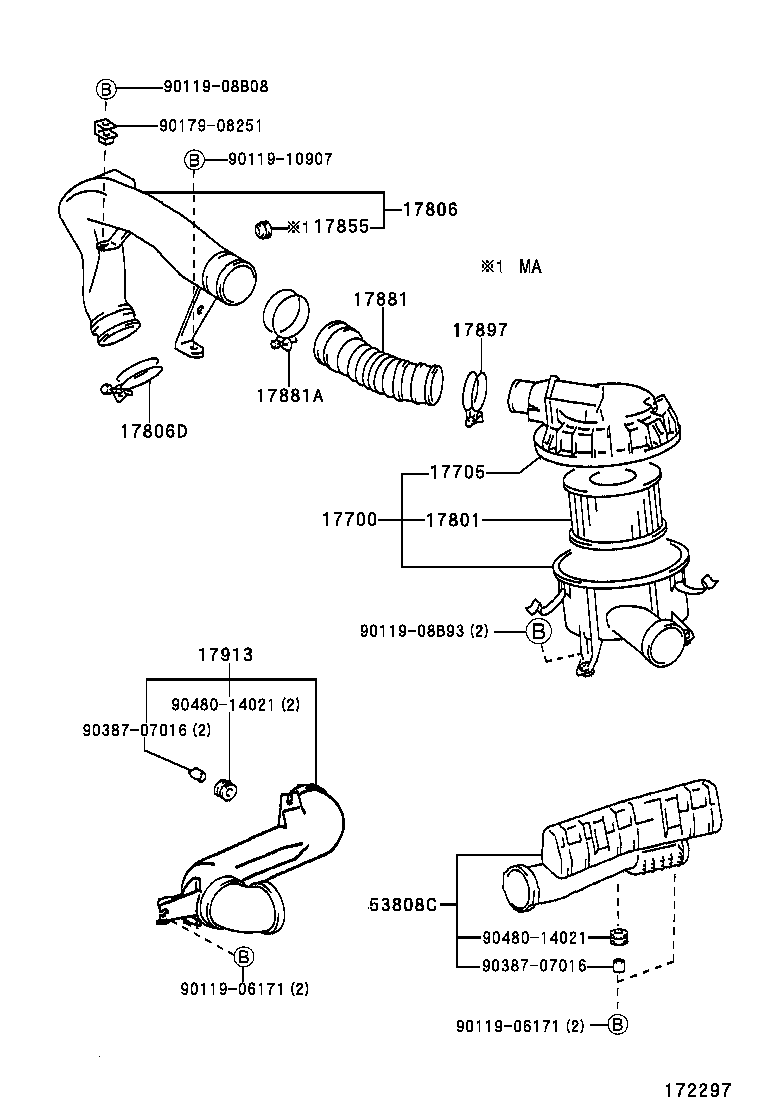

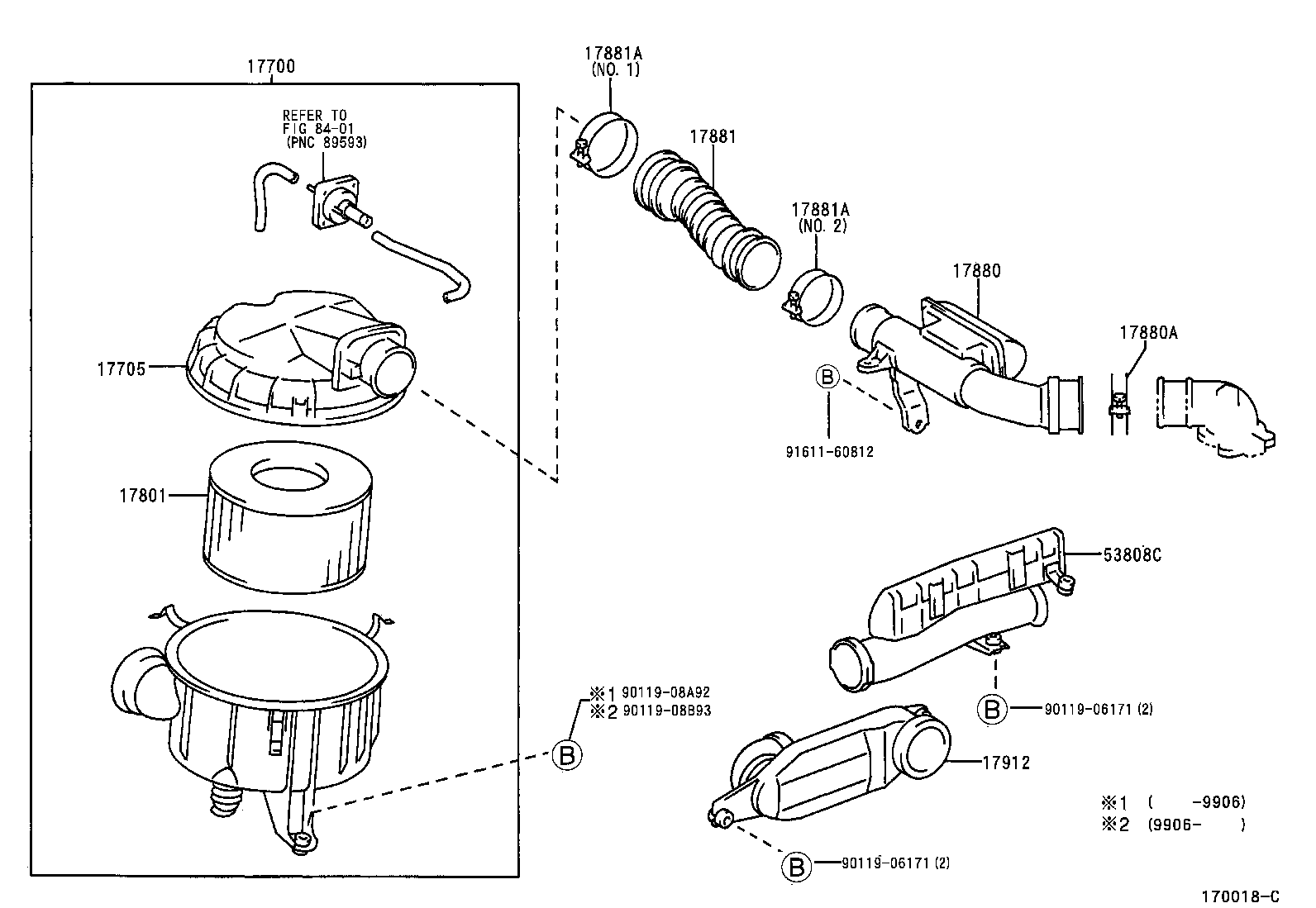

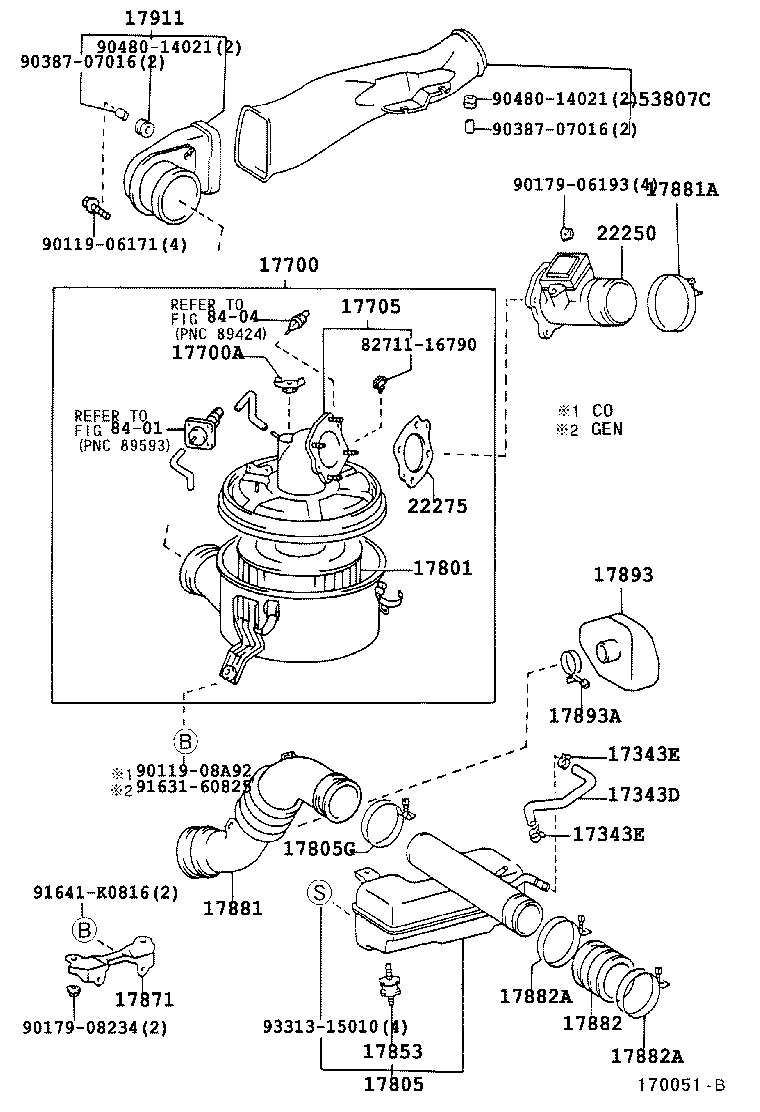

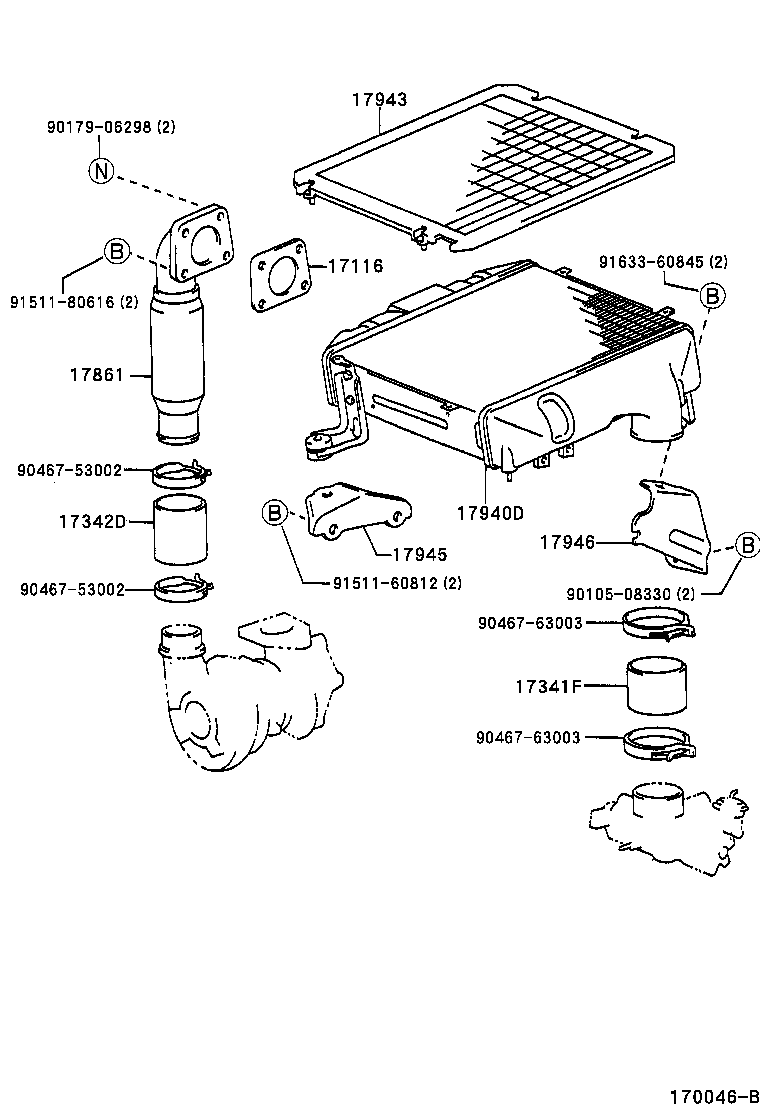

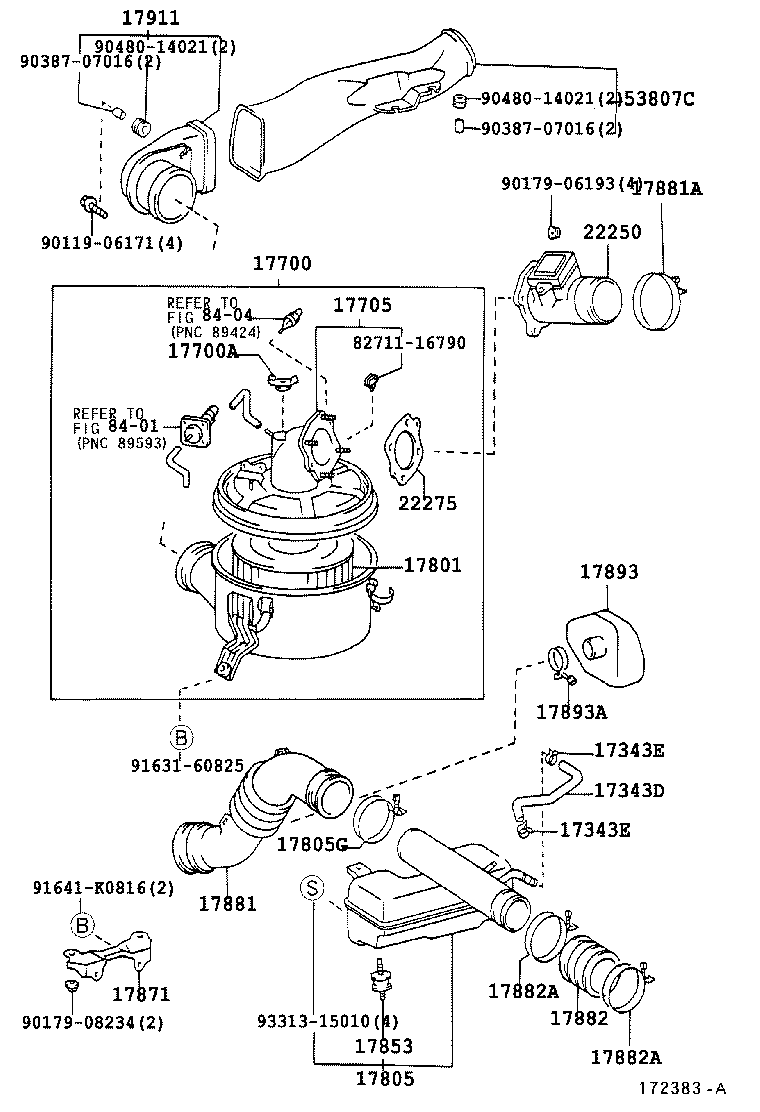

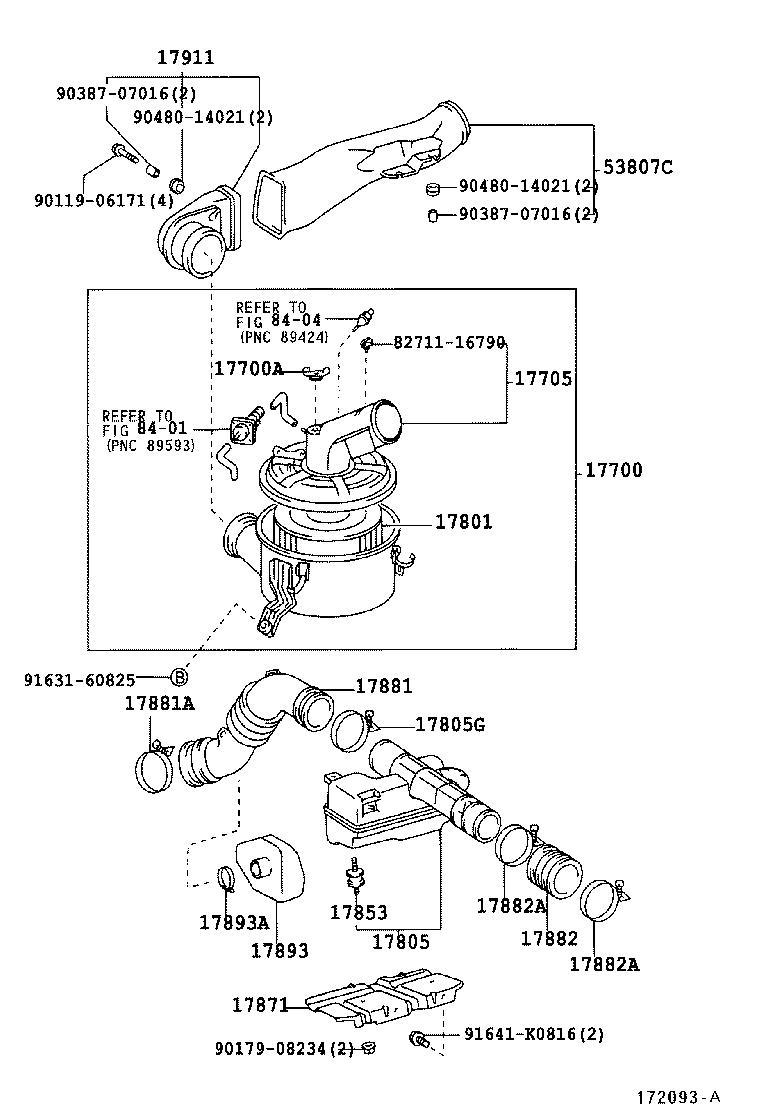

Figure 170047D 170047D 1996-04 → 2000-08 Figure 170047D 170047D 2000-08 → — Figure 172297 172297 1999-09 → — Figure 170046B 170046B 1999-09 → — Figure 170017A 170017A 1996-04 → — Figure 170018C 170018C 1996-04 → — Figure 170049 170049 1996-04 → 1999-06 Figure 170050B 170050B 1996-04 → 1999-06 Figure 170051B 170051B 1996-04 → 1999-06 Figure 170051B 170051B 1999-06 → — Figure 170051B 170051B 1999-10 → — Figure 172093A 172093A 1999-06 → — Figure 172383A 172383A 2000-01 → — Figure 170039B 170039B 1996-04 → 1999-06 Figure 170039B 170039B 1999-06 → 1999-10 Figure 172104D 172104D 1999-06 → 1999-10 Figure 172104D 172104D 1999-10 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17116 Gasket, Intake Flange
17341F Hose, Air, NO.1
17342D Hose, Air, NO.2
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700G Clamp, Hose(FOR AIR CLEANER)
17703C Cap Sub-assy, Dust
17705 Cap Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805G Clamp, Hose(FOR AIR CONNECTOR)
17805J Nut, Wing(FOR AIR CONNECTOR)
17805K Bolt, Stud(FOR AIR CONNECTOR)
17805M Cushion(FOR AIR CONNECTOR)
17805N Bush(FOR AIR CONNECTOR)
17806 Pipe Sub-assy, Air Cleaner, NO.2
17806D Clamp(FOR AIR CLEANER PIPE)
17848 Gasket, Air Cleaner TO Carburetor
17853 Insulator, Air Cleaner Bracket
17855 Gasket, Air Inlet Duct, NO.1
17861 Connector, Intake Air
17871 Stay, Air Connector
17880 Hose Assy, Air Cleaner
17880A Clamp, Hose
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17885 Pipe, Air Cleaner
17893 Resonator, Intake Air
17893A Clamp, Hose
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
17896 Resonator, Intake Air, NO.3
17896A Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.3)
17897 Clamp, Hose(FOR AIR CLEANER)
17911 Duct, Cool Air Intake, NO.1
17912 Duct, Cool Air Intake, NO.2
17913 Duct, Cool Air Intake, NO.3
17940D Intercooler Assy
17943 Protector, Intercooler
17945 Bracket, Intercooler Support
17946 Bracket, Intercooler Support, NO.2
22204 Meter Sub-assy, Intake Air Flow
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
53807C Duct Sub-assy, Front Fender Air, RH
53808C Duct Sub-assy, Front Fender Air, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
