Toyota Land Cruiser 90

1996-04 → 2008-12 · chassis KZJ9#,LJ9#,RZJ9#,VZJ9# · catalogue 781340 · General

Discontinued model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

21 part groups · 9 illustrations

Illustrations

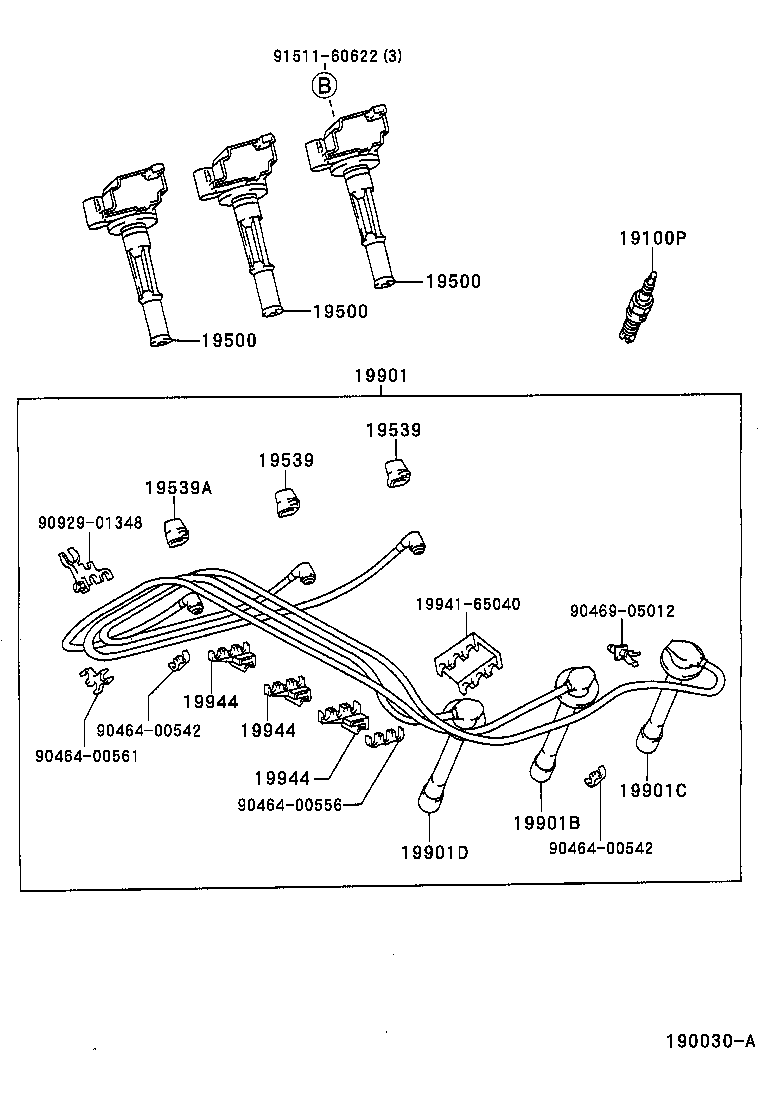

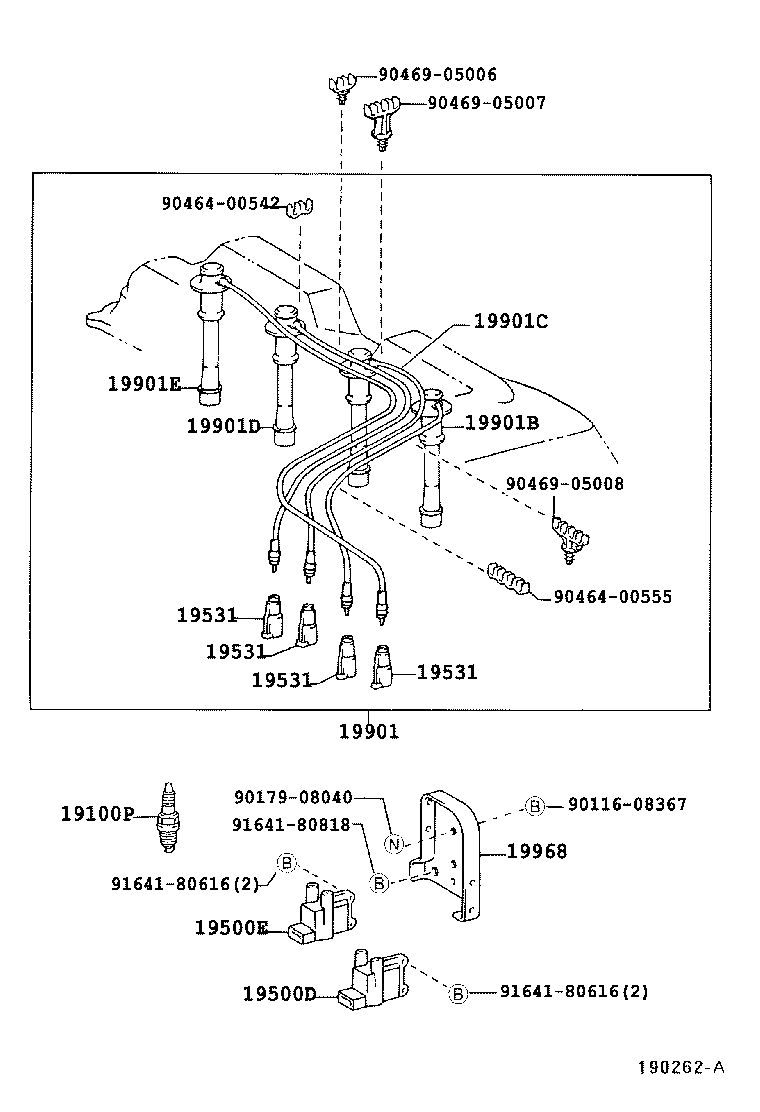

Figure 190001 190001 1996-04 → — Figure 190022B 190022B 1996-04 → — Figure 190023A 190023A 1996-04 → 1999-06 Figure 190024 190024 1996-04 → 1999-06 Figure 190024 190024 1999-06 → — Figure 190024 190024 1999-10 → — Figure 190262F 190262F 1999-06 → — Figure 191141 191141 2000-01 → — Figure 190030A 190030A 1996-04 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19500D Coil, Ignition, NO.1
19500E Coil, Ignition, NO.2
19531 Holder, Resistive Cord, NO.1
19531A Holder, Resistive Code, NO.3
19532 Holder, Resistive Code, NO.2
19539 Holder, Resistive Code, NO.4
19539A Holder, Resistive Code, NO.5
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19856 Nut, Connecting(FOR GLOW PLUG)
19856A Grommet, Screw(FOR, GLOW PLUG CONNECTOR)
19871 Connector, Glow Plug NO.1
19901 Cord Set, Coil & Spark, W/Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19944 Plate, Resistive Cord Clamp Support, NO.2
19968 Bracket, Ignition Coil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
