Toyota Land Cruiser 90

1996-04 → 2008-12 · chassis KZJ9#,LJ9#,RZJ9#,VZJ9# · catalogue 781340 · General

Discontinued model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

8 part groups · 4 illustrations

Illustrations

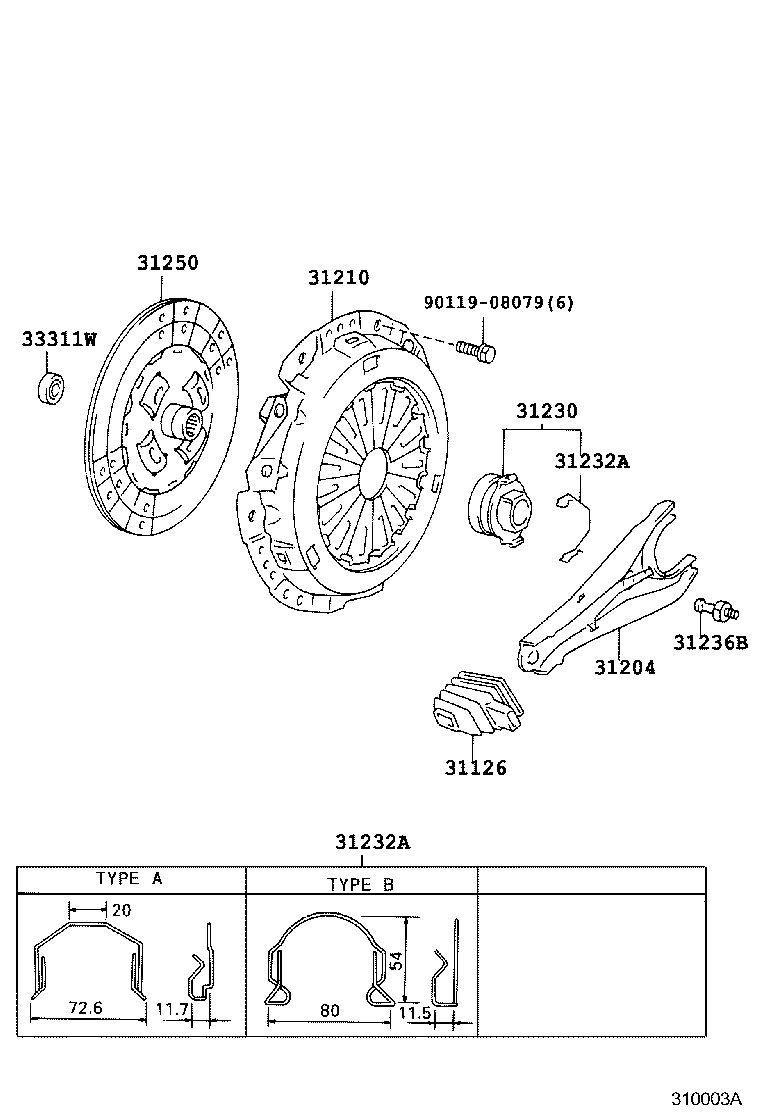

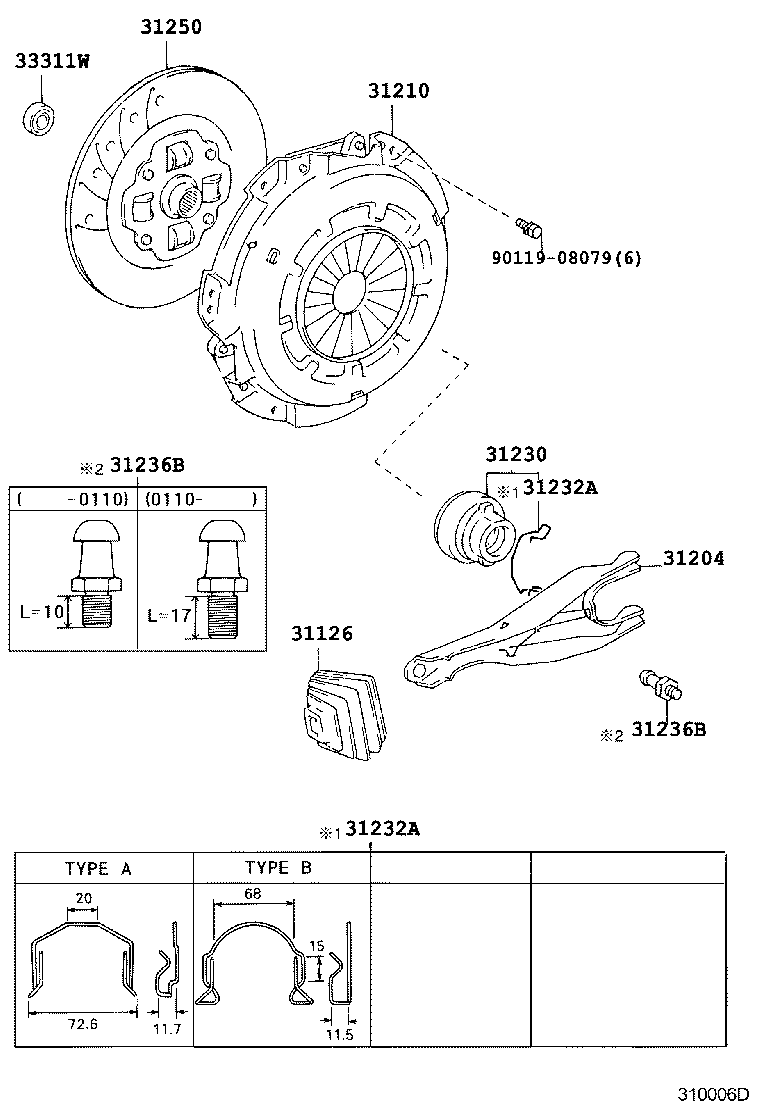

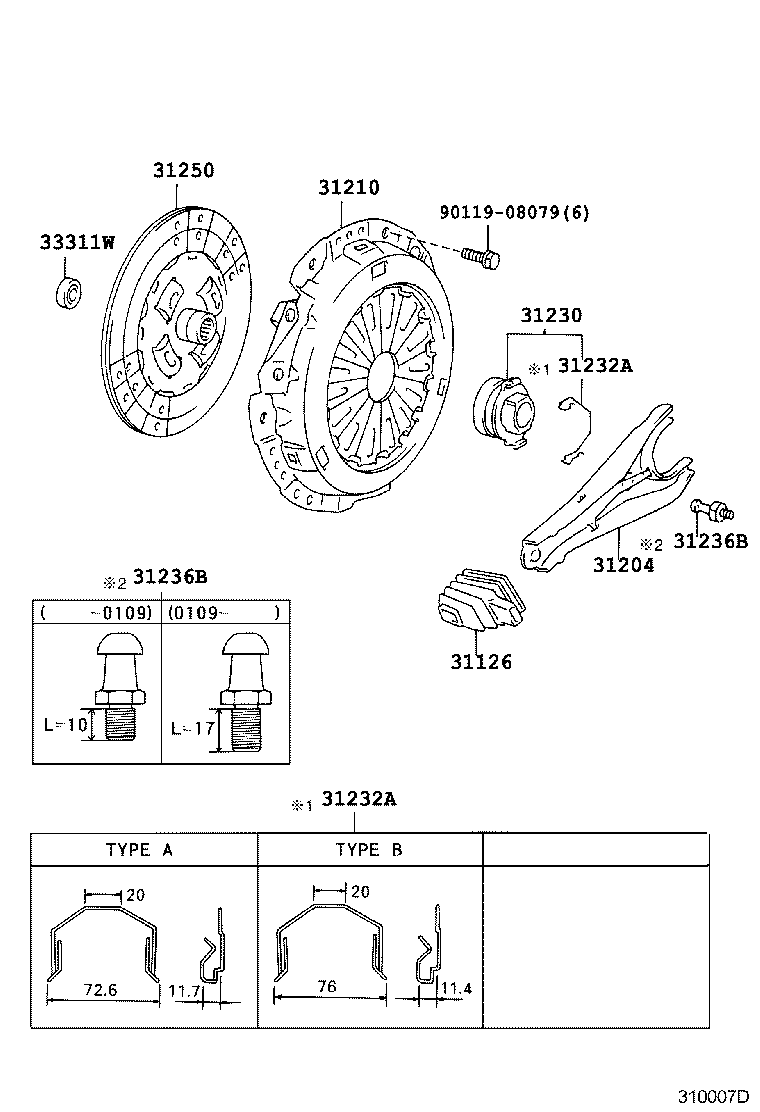

Figure 310005A 310005A 1996-04 → — Figure 310007D 310007D 1996-04 → — Figure 310006D 310006D 1996-04 → 2002-09 Figure 310003A 310003A 1996-04 → —

Part groups

PNCDescription
31126 Boot, Clutch Release Fork
31204 Fork Sub-assy, Clutch Release
31210 Cover Assy, Clutch
31230 Bearing Assy, Clutch Release
31232A Clip, Release Bearing Hub
31236B Support, Release Fork
31250 Disc Assy, Clutch
33311W Bearing (FOR INPUT SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
