Toyota Land Cruiser 90

1996-04 → 2008-12 · chassis KZJ9#,LJ9#,RZJ9#,VZJ9# · catalogue 781340 · General

Discontinued model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

18 part groups · 3 illustrations

Illustrations

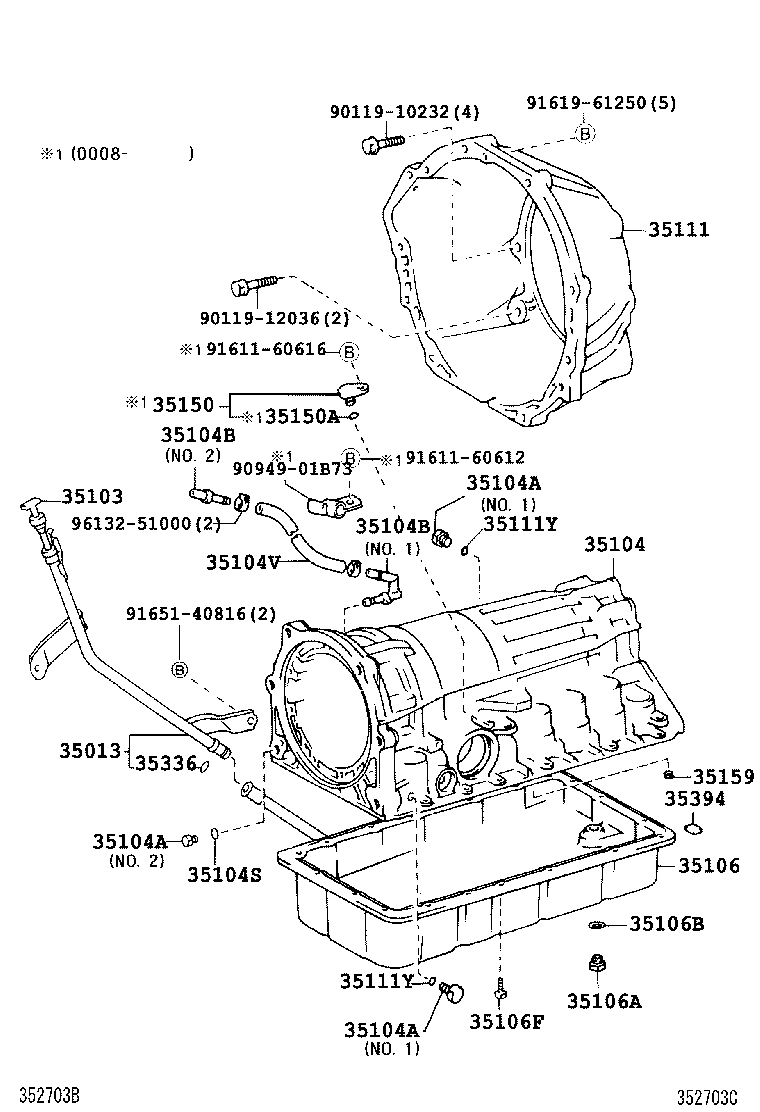

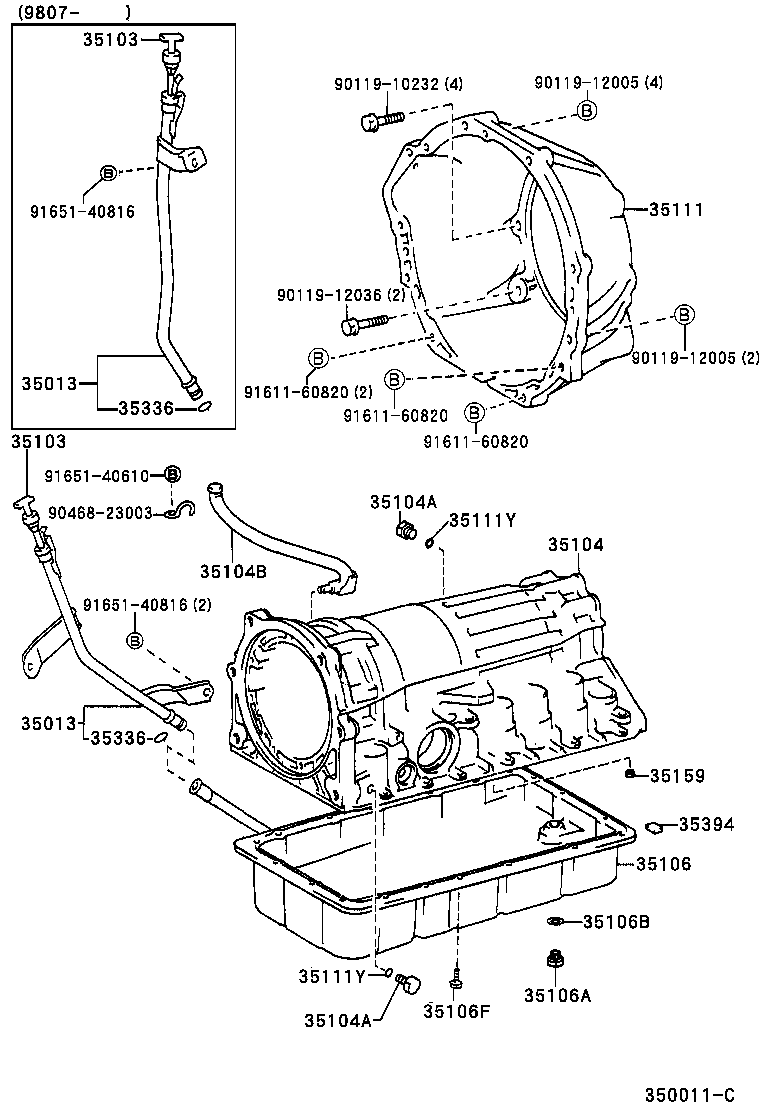

Figure 350012C 350012C 1996-04 → — Figure 350011C 350011C 1996-04 → — Figure 352703C 352703C 1999-09 → —

Part groups

PNCDescription
35013 Tube Sub-assy, Transmission Oil Filler
35103 Gage Sub-assy, Transmission Oil Level
35104 Case Sub-assy, Automatic Transmission
35104A Plug, Automatic Transmission Case
35104B Plug, Breather, NO.1 (ATM)
35104S Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
35104V Hose (FOR BREATHER PLUG)
35106 Pan Sub-assy, Automatic Transmission Oil
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35106F Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
35111 Housing, Automatic Transmission
35111Y Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35150 Plug Assy, Transmission Case
35150A Ring, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)
35159 Gasket, Brake Drum
35336 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
