Toyota Land Cruiser 90
1996-04 → 2008-12 · chassis KZJ9#,LJ9#,RZJ9#,VZJ9# · catalogue 781340 · General
Discontinued model
Data version 2009-04

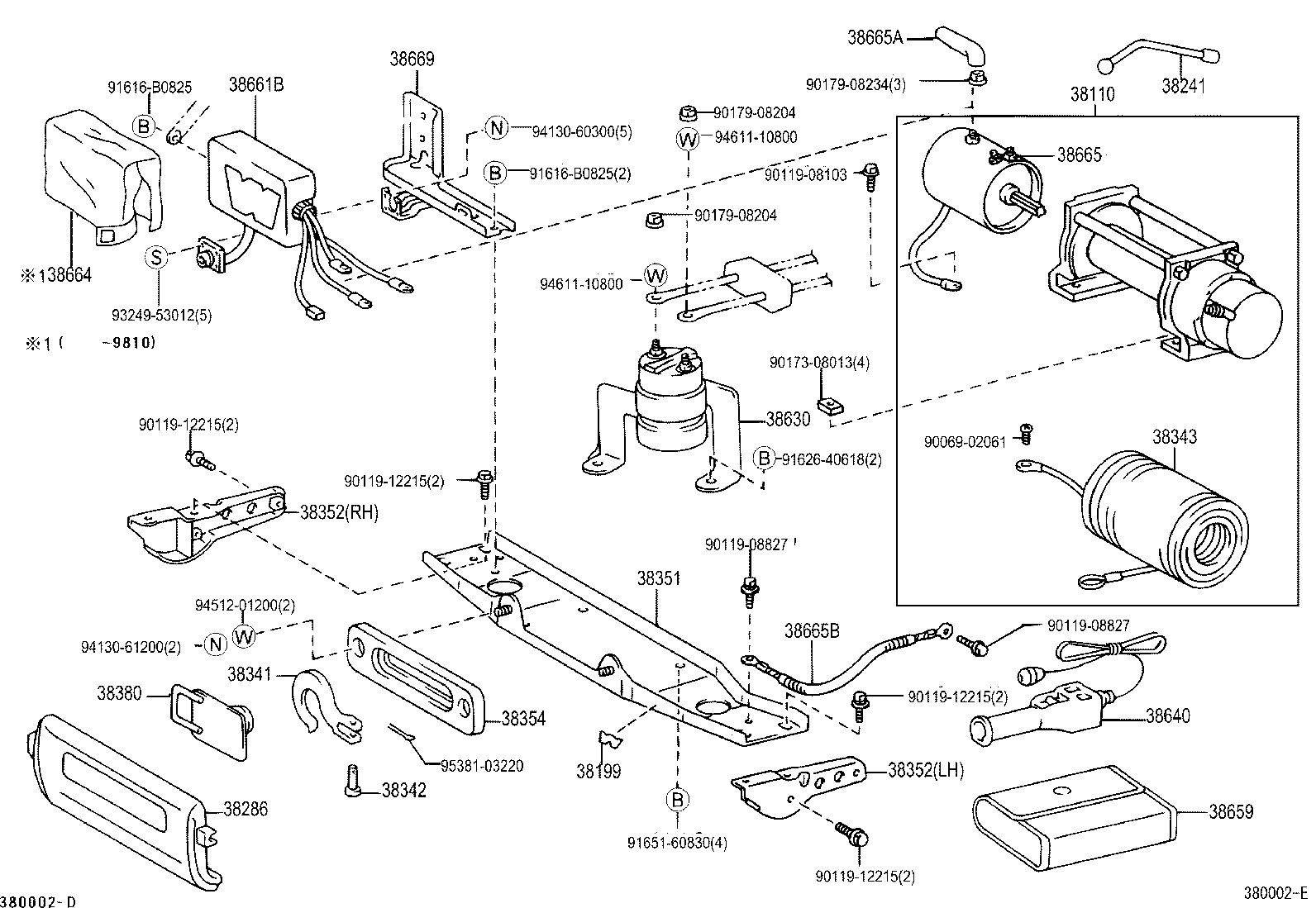

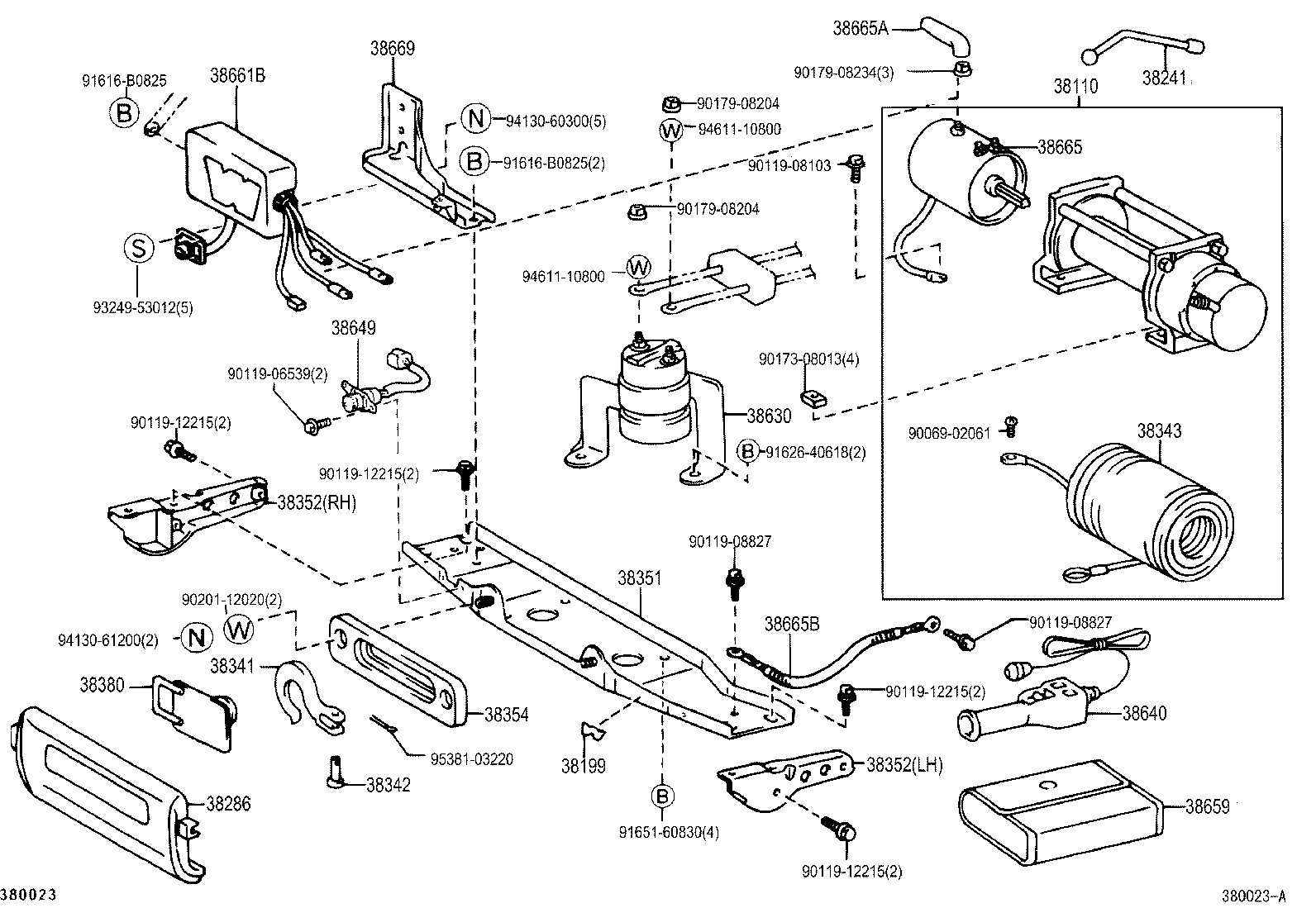

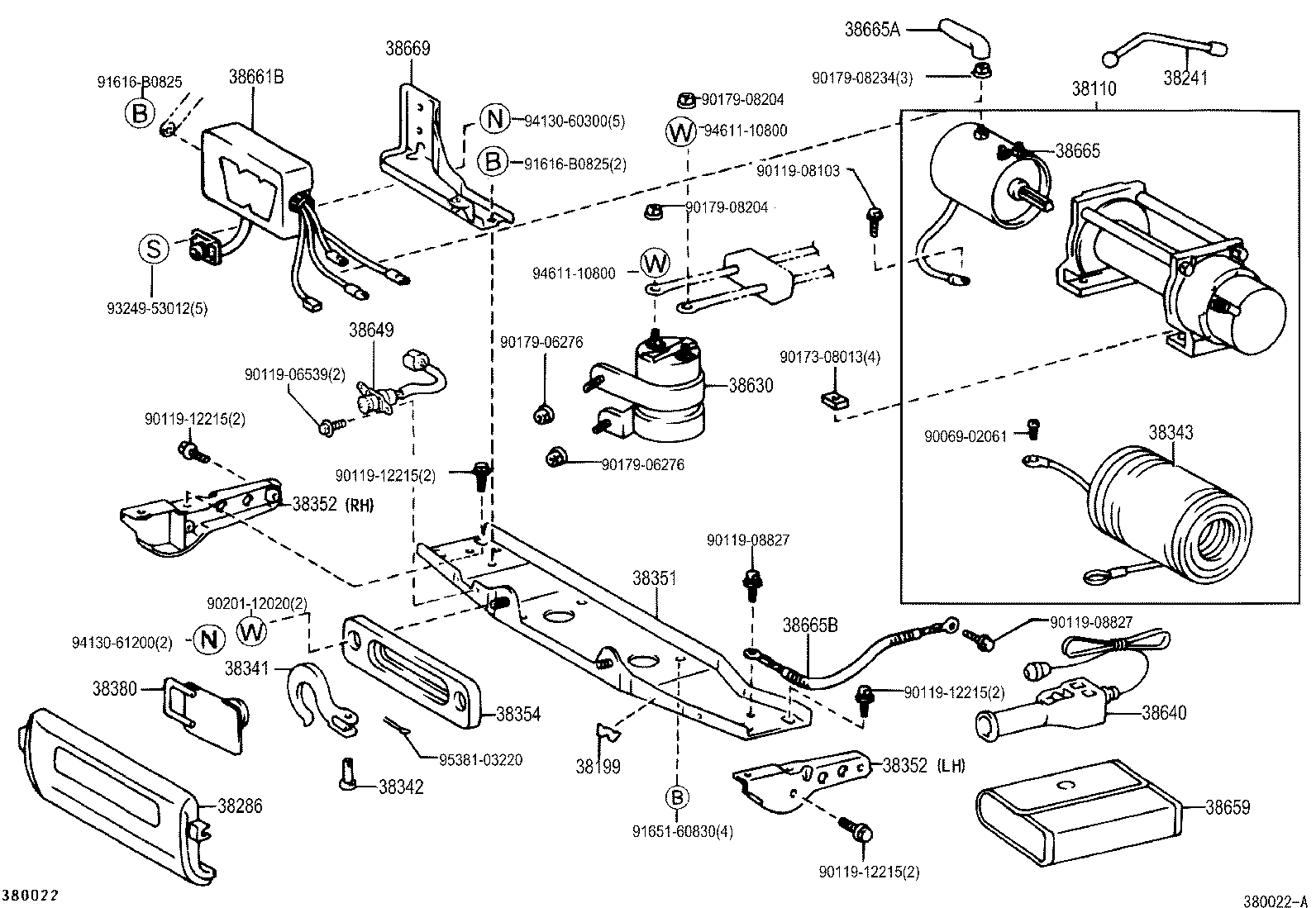

Winch
21 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 38110 | Winch Assy |
| 38199 | Label, Winch Name |
| 38241 | Lever, Winch Clutch Elbow |
| 38286 | Cover, Winch |
| 38341 | Hook, Winch Wire |
| 38342 | Pin, Winch Wire Hook |
| 38343 | Winch Wire |
| 38351 | Base, Winch |
| 38352 | Support, Winch Base |
| 38354 | Guide,Winch Wire Plate |
| 38380 | Holder Assy, Winch Hook |
| 38630 | Switch Assy, Magnet, NO.1 |
| 38640 | Switch Assy, Winch Control |
| 38649 | Wire, Winch Control |
| 38659 | Cover, Winch Control Switch |
| 38661B | Controller, Winch Motor |
| 38664 | Cover, Winch Motor Controller |
| 38665 | Motor,Winch |
| 38665A | Cap, Terminal |
| 38665B | Wire, Earth (FOR WINCH MOTOR) |
| 38669 | Bracket, Winch Controller |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
