Toyota Land Cruiser 90

1996-04 → 2008-12 · chassis KZJ9#,LJ9#,RZJ9#,VZJ9# · catalogue 781340 · General

Discontinued model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

14 part groups · 11 illustrations

Illustrations

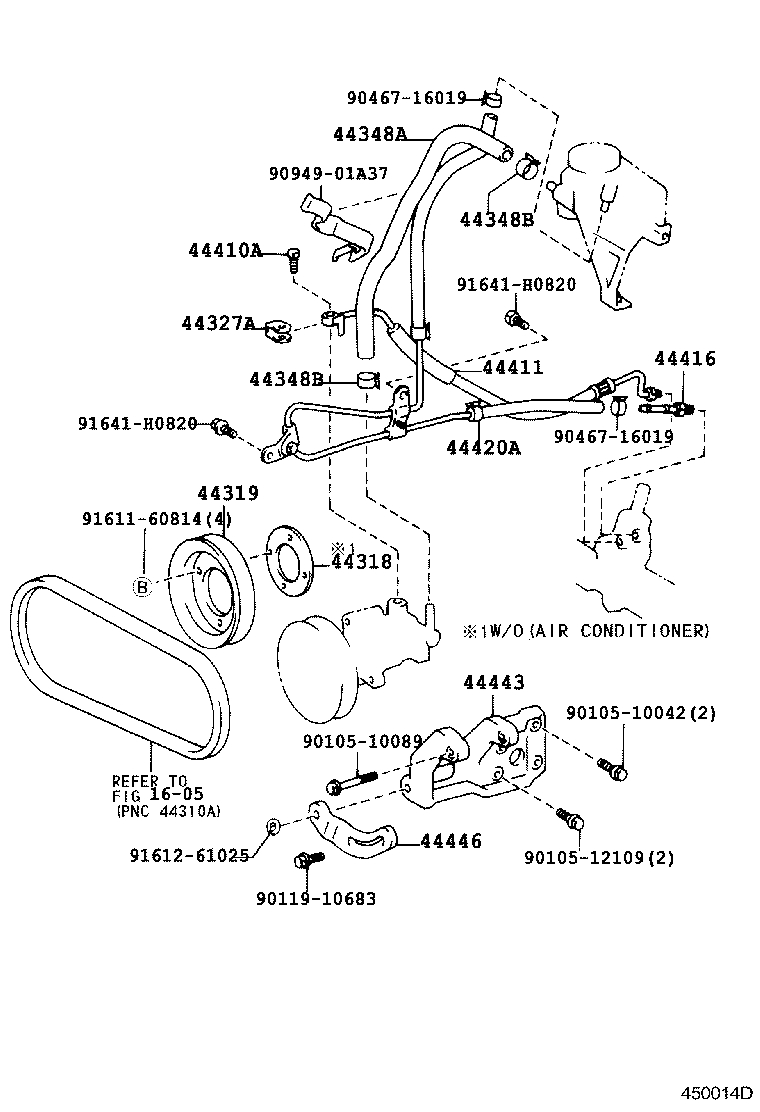

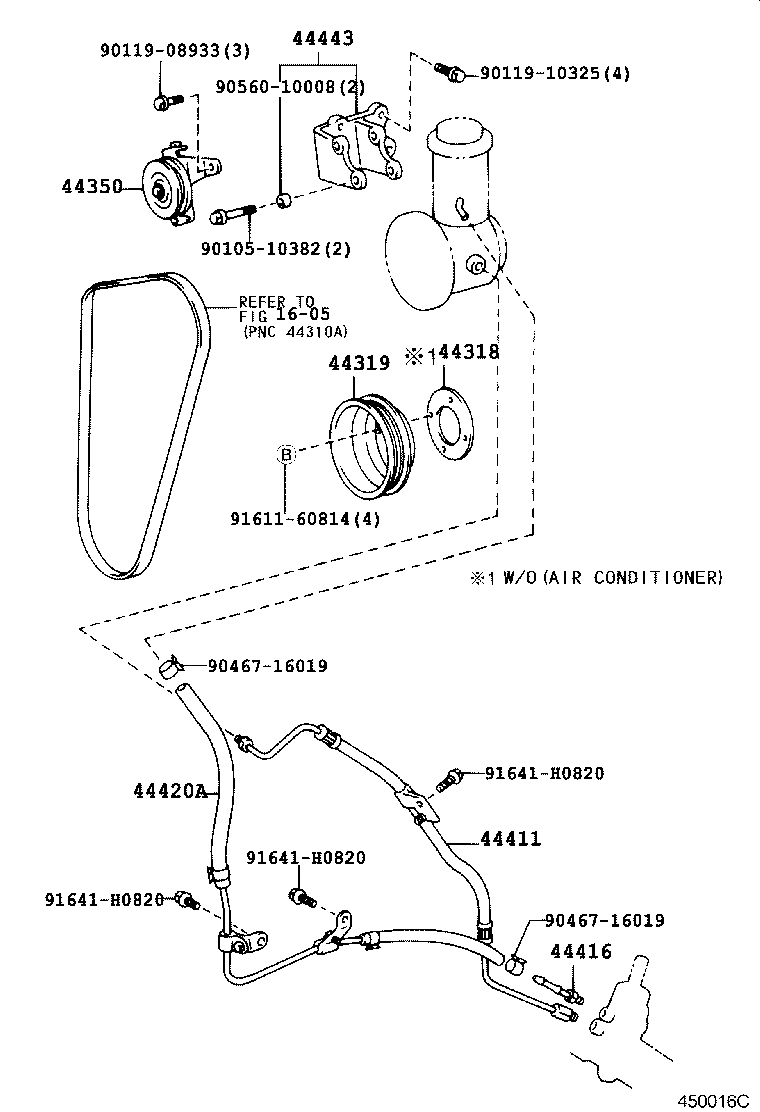

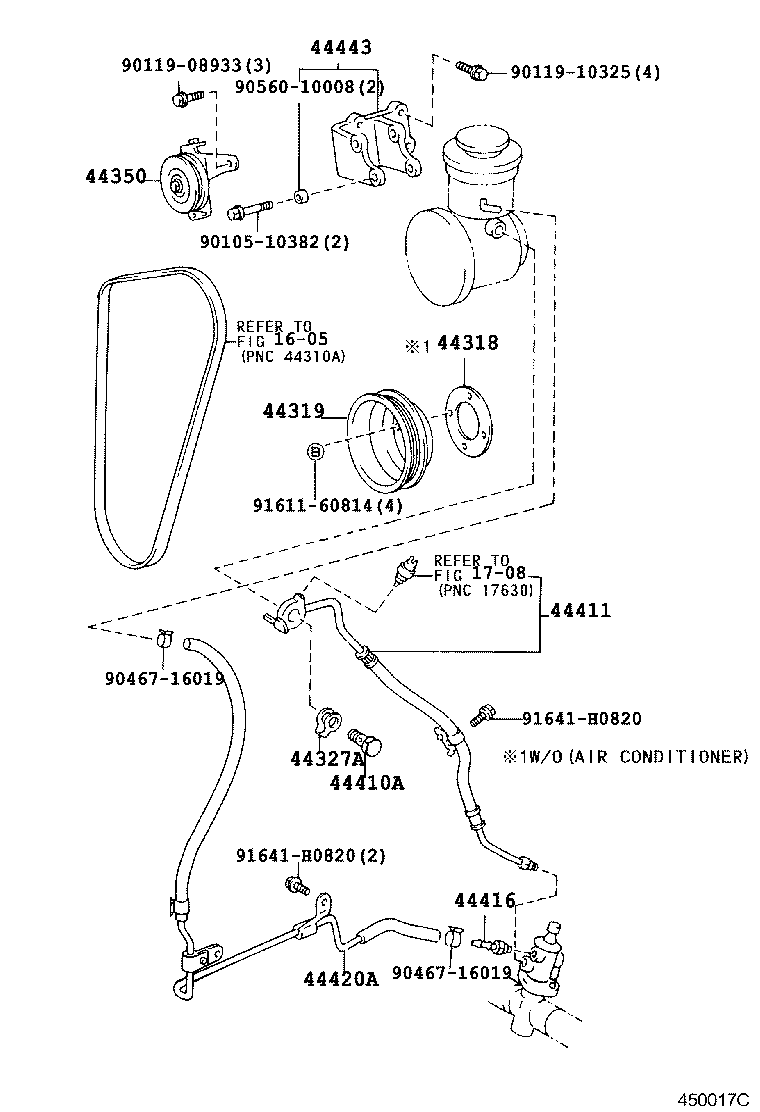

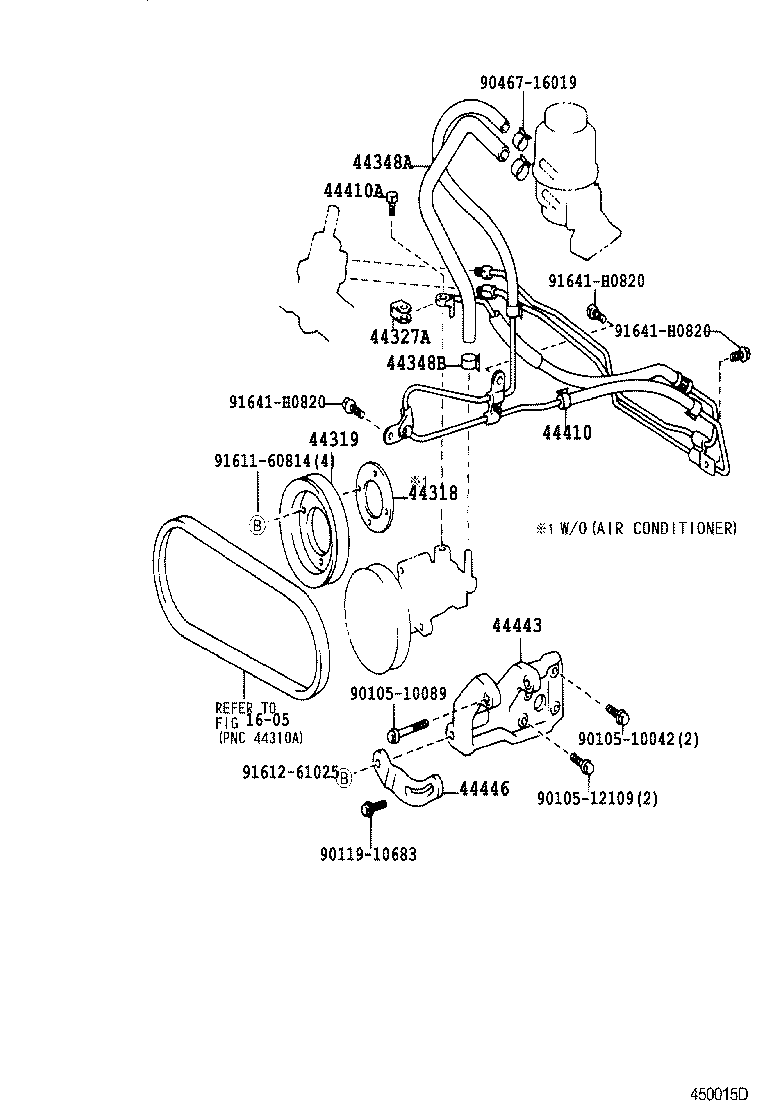

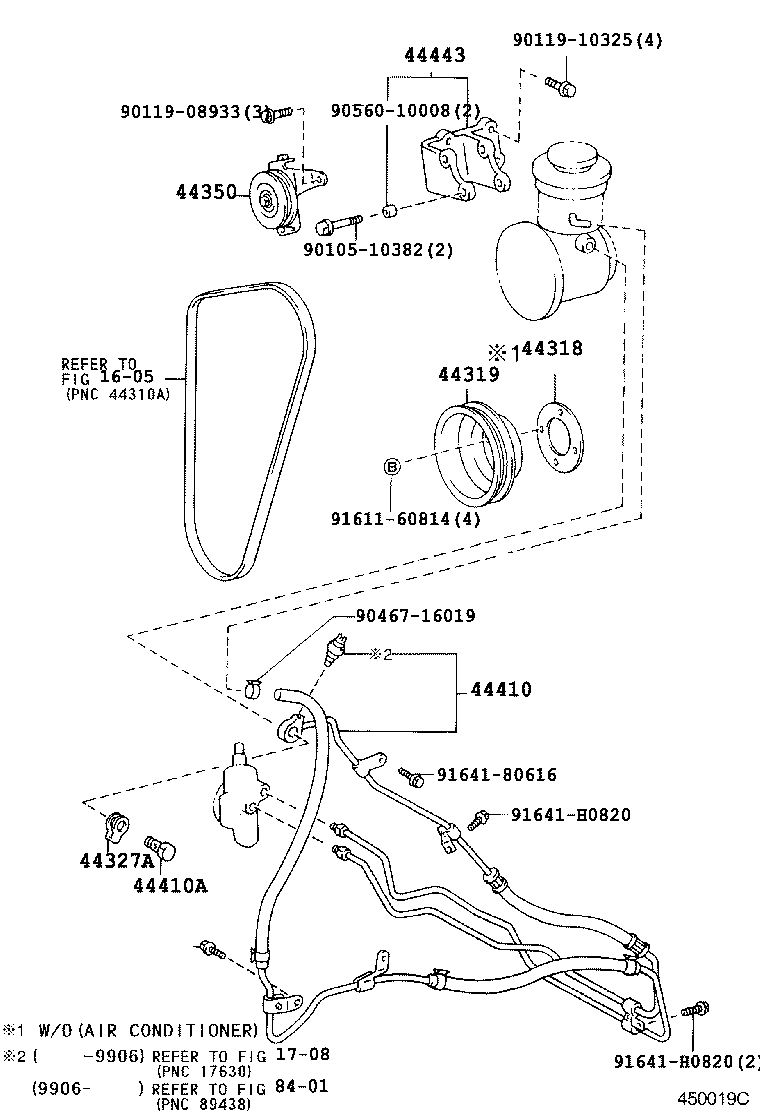

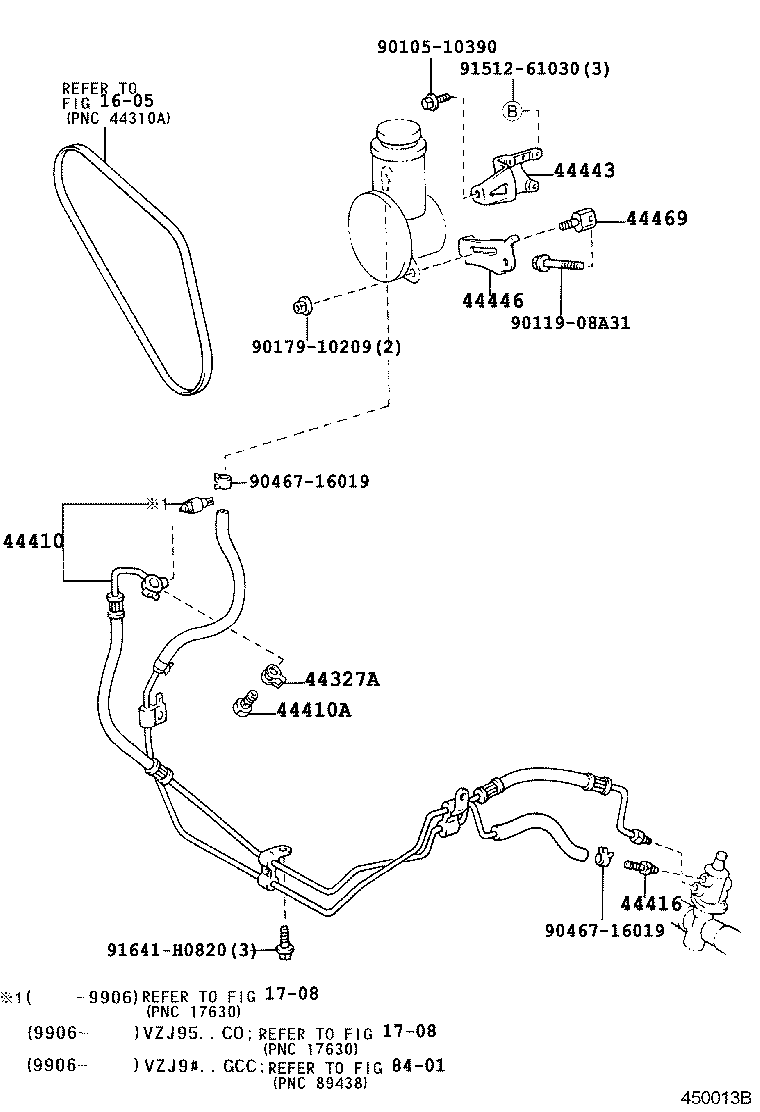

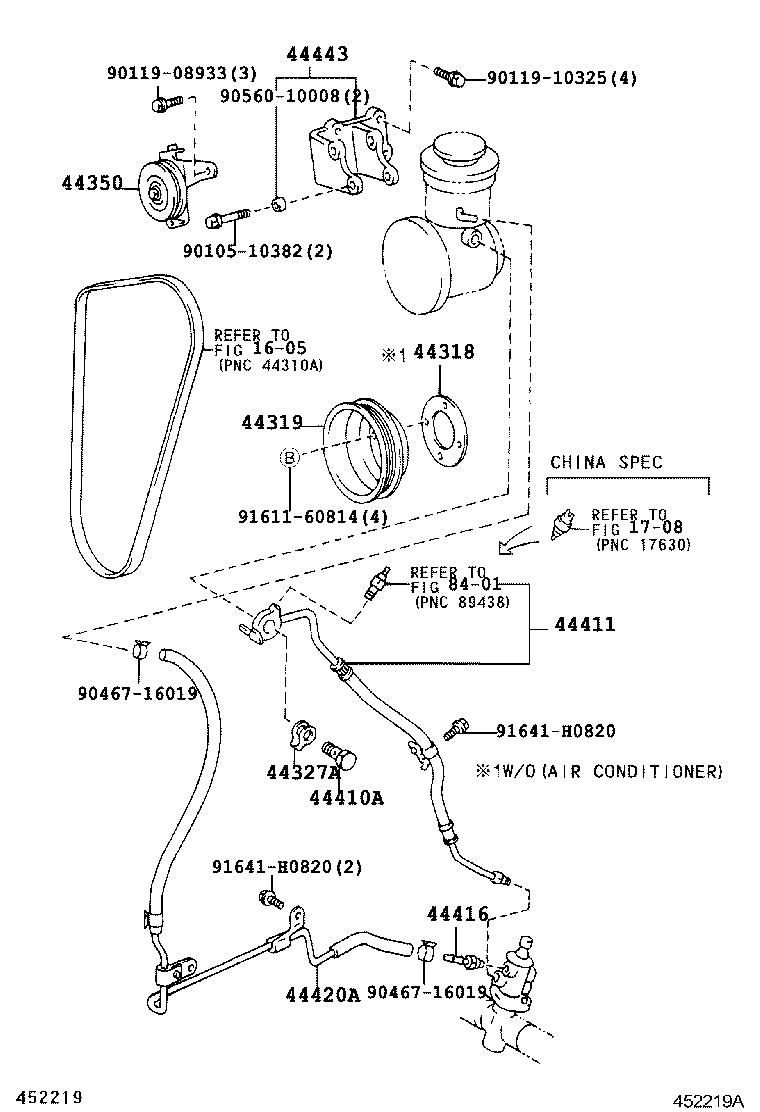

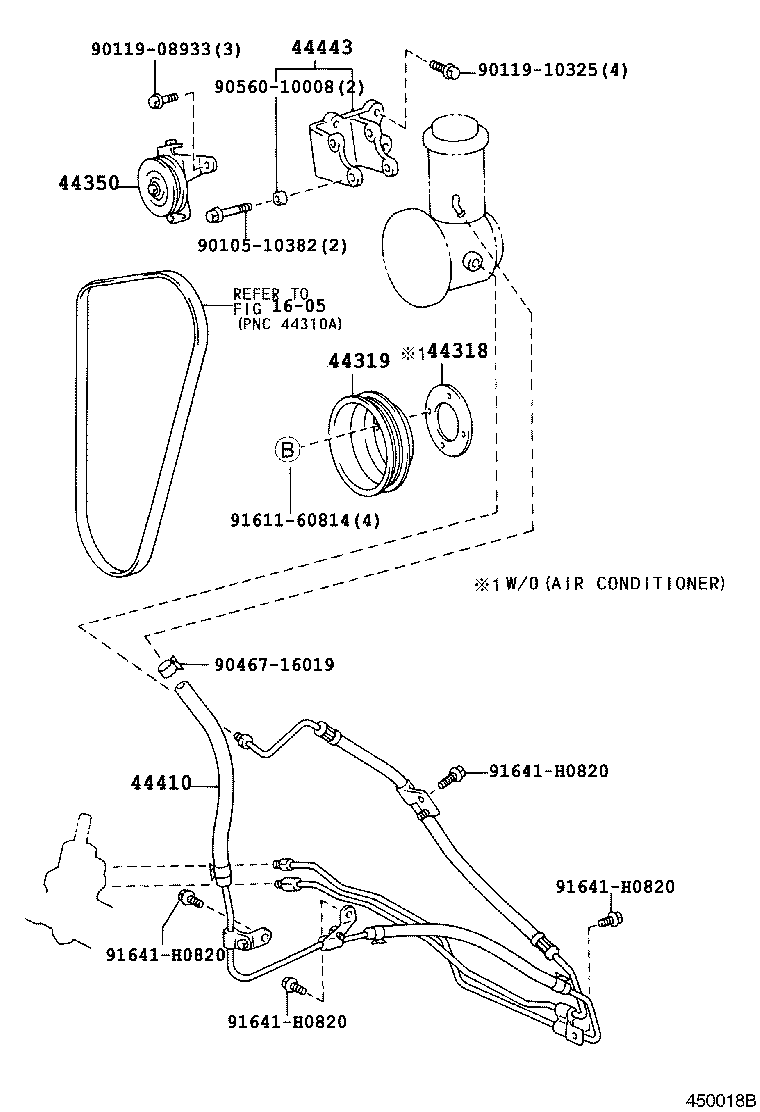

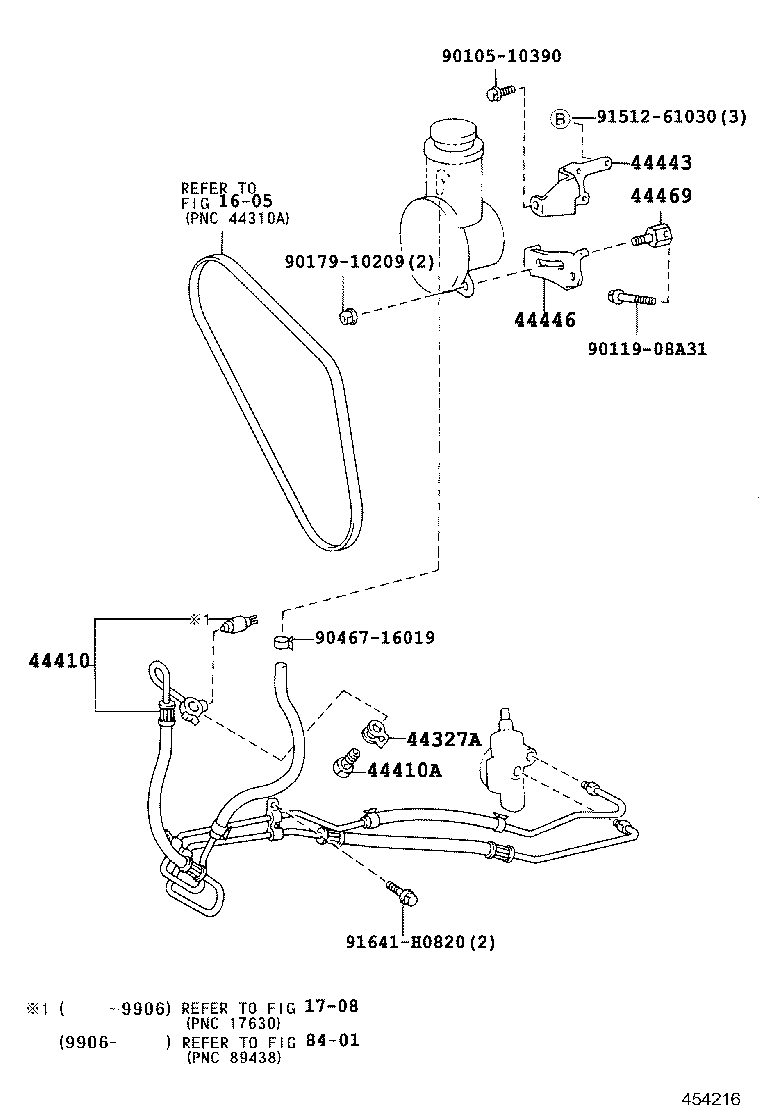

Figure 450012A 450012A 1996-04 → — Figure 454218 454218 1999-06 → — Figure 450015D 450015D 1996-04 → — Figure 450014D 450014D 1996-04 → — Figure 450018B 450018B 1996-04 → 1999-06 Figure 450019C 450019C 1996-04 → — Figure 450016C 450016C 1996-04 → 1999-06 Figure 450017C 450017C 1996-04 → — Figure 454216 454216 1996-04 → — Figure 450013B 450013B 1996-08 → — Figure 452219A 452219A 1999-06 → —

Part groups

PNCDescription
44318 Spacer, Vane Pump Drive Pulley
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44350 Pulley Assy, Power Steering Idle
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44420A Tube Assy, Return
44443 Bracket, Pump
44446 Strut, Adjusting
44469 Slider, Power Steering Belt Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
