Toyota Land Cruiser 90

1996-04 → 2008-12 · chassis KZJ9#,LJ9#,RZJ9#,VZJ9# · catalogue 781340 · General

Discontinued model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

9 part groups · 8 illustrations

Illustrations

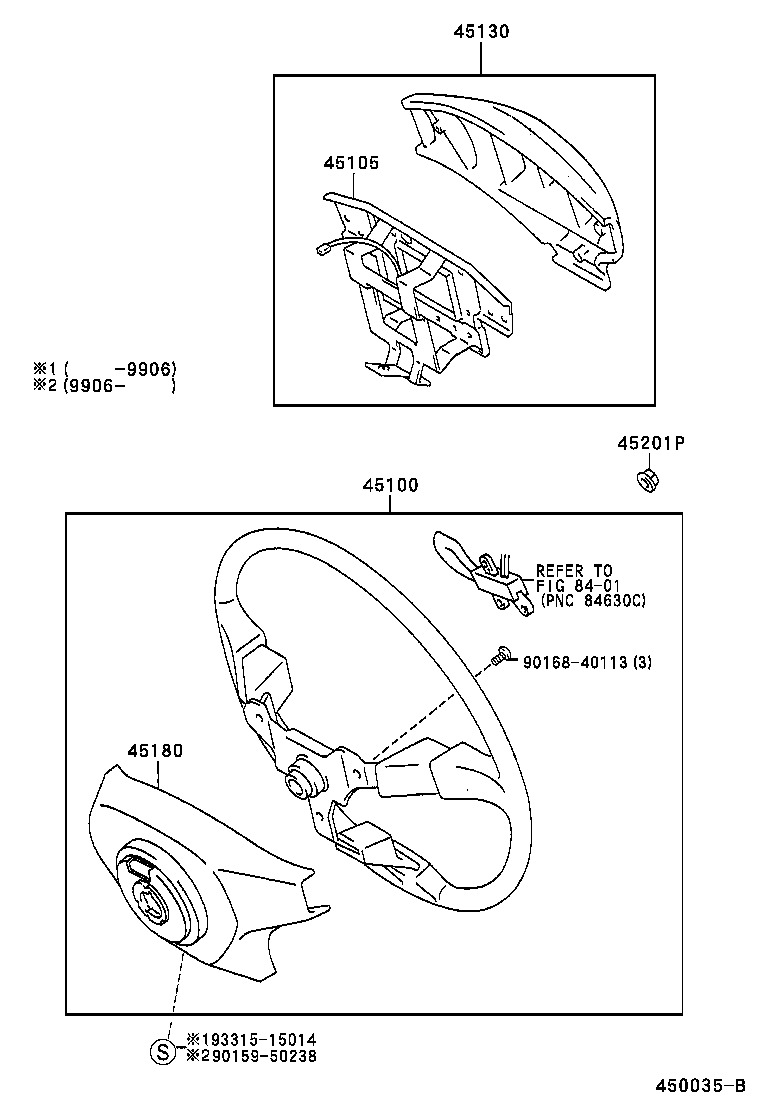

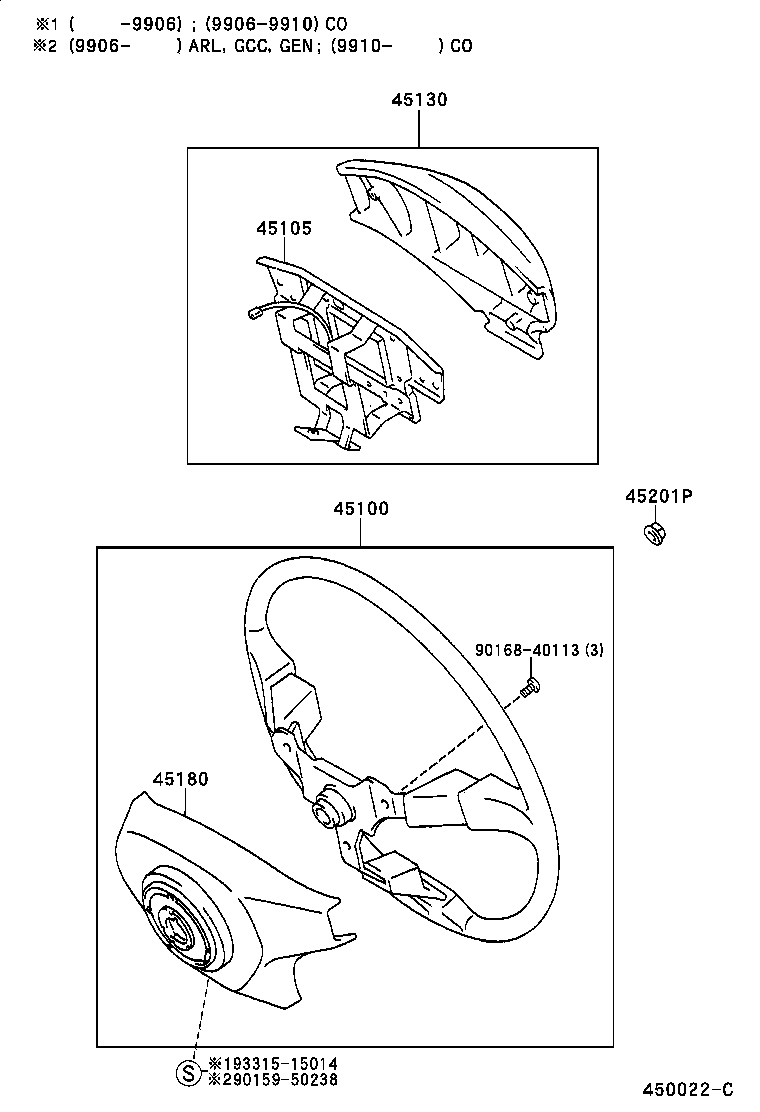

Figure 450021 450021 1996-04 → — Figure 450022C 450022C 1996-04 → 2001-08 Figure 450022C 450022C 2001-08 → — Figure 450035B 450035B 1996-04 → — Figure 450035B 450035B 1999-06 → — Figure 450020D 450020D 1996-04 → — Figure 450020D 450020D 2001-08 → — Figure 450034D 450034D 1996-04 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45130 Button Assy, Horn
45155 Spacer, Horn Button Contact Plate
45180 Cover Sub-assy, Steering Wheel
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
