Toyota Land Cruiser 90
1996-04 → 2008-12 · chassis KZJ9#,LJ9#,RZJ9#,VZJ9# · catalogue 781340 · General
Discontinued model
Data version 2009-04

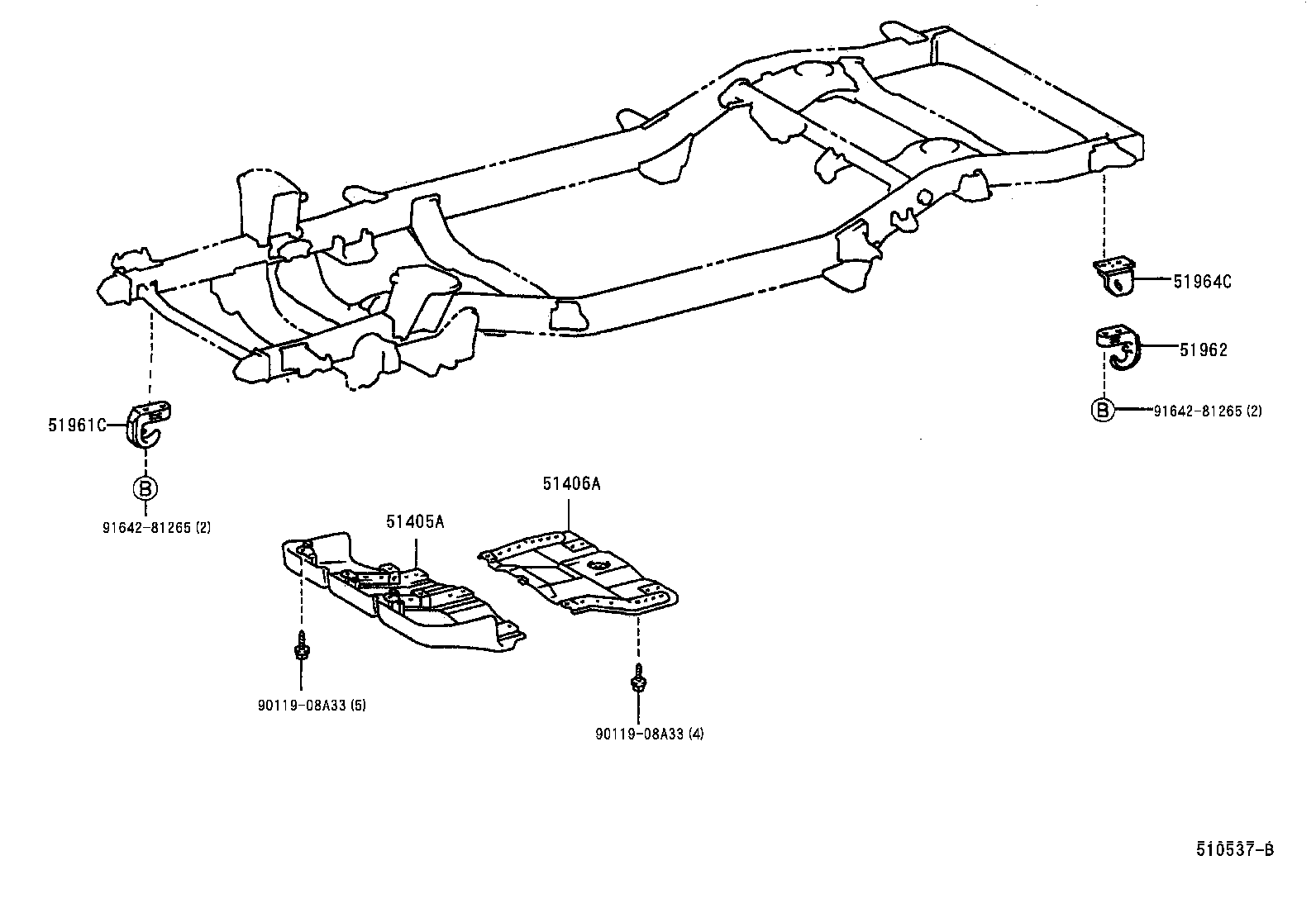

Suspension Crossmember & Under Cover
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51405A | Cover Sub-assy, Engine Under, NO.1 |
| 51406A | Cover Sub-assy, Engine Under, NO.2 |
| 51495 | Cover, Transmission Under |
| 51909B | Tube Sub-assy, Pintle Hook Support |
| 51961 | Hook, NO.1 |
| 51961C | Hook, Front |
| 51962 | Hook, NO.2 |
| 51963B | Hook, Transport, Front RH |
| 51964B | Hook, Transport, Front LH |
| 51964C | Hook, Transport, Rear LH |
| 51980 | Hook Assy, Pintle |
| 51985 | Hook, Eyelet Pintle |
| 51986B | Retainer, Pintle Hook |
| 51995A | Bracket, Pintle Hook Support, RH |
| 51996A | Bracket, Pintle Hook Support, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
