Toyota Land Cruiser 90

1996-04 → 2008-12 · chassis KZJ9#,LJ9#,RZJ9#,VZJ9# · catalogue 781340 · General

Discontinued model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cab Mounting & Body Mounting

15 part groups · 3 illustrations

Illustrations

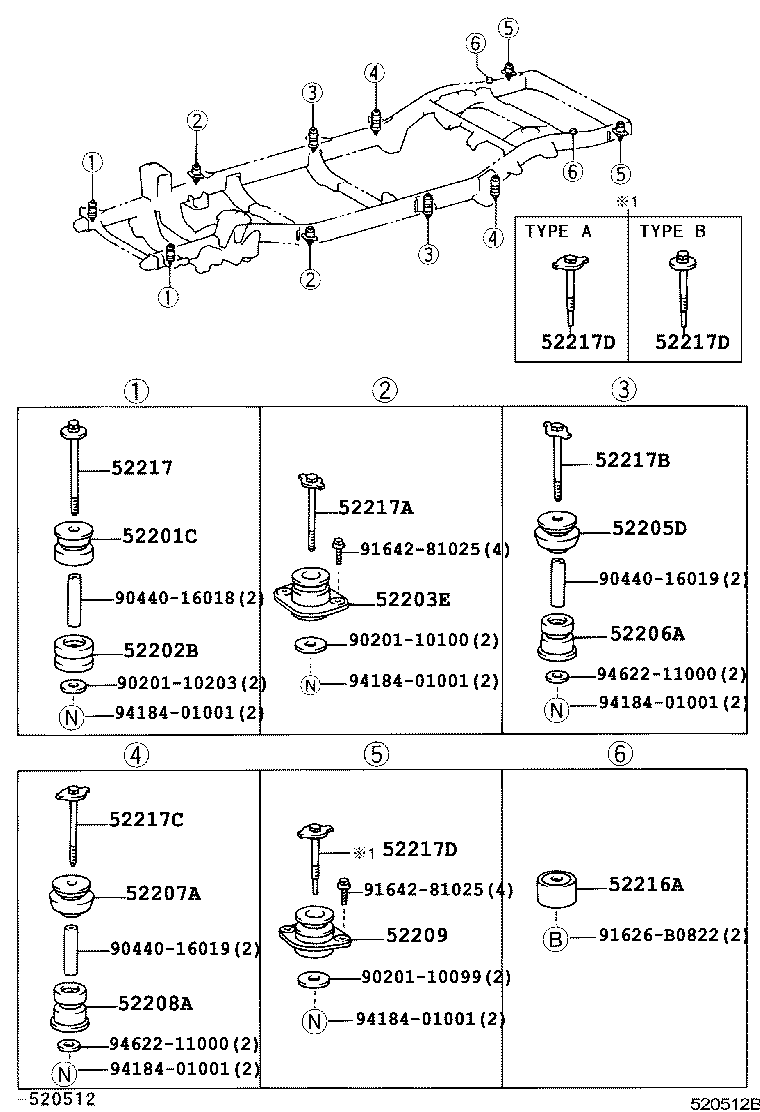

Figure 520003 520003 1996-04 → 1999-06 Figure 520003 520003 1999-06 → — Figure 520512B 520512B 1999-06 → —

Part groups

PNCDescription
52201C Cushiion Sub-assy, Cab Mounting, NO.1 Upper
52202B Cushiion Sub-assy, Cab Mounting, NO.1 Lower
52203E Cushion Sub-assy, Cab Mounting, NO.2
52204B Cushion Sub-assy, Cab Mounting, NO.2 Lower
52205D Cushion Sub-assy, Cab Mounting, NO.3 Upper
52206A Cushion Sub-assy, Cab Mounting, NO.3 Lower
52207A Cushion Sub-assy, Cab Mounting, NO.4 Upper
52208A Cushion Sub-assy, Cab Mounting, NO.4 Lower
52209 Cushion Sub-assy, Rear End Body Mounting, Upper
52216A Stopper, Cab Mounting Cushion
52217 Bolt, Body Mounting
52217A Bolt, Body Mounting
52217B Bolt, Body Mounting
52217C Bolt, Body Mounting
52217D Bolt, Body Mounting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
