Toyota Land Cruiser 90
1996-04 → 2008-12 · chassis KZJ9#,LJ9#,RZJ9#,VZJ9# · catalogue 781340 · General
Discontinued model
Data version 2009-04

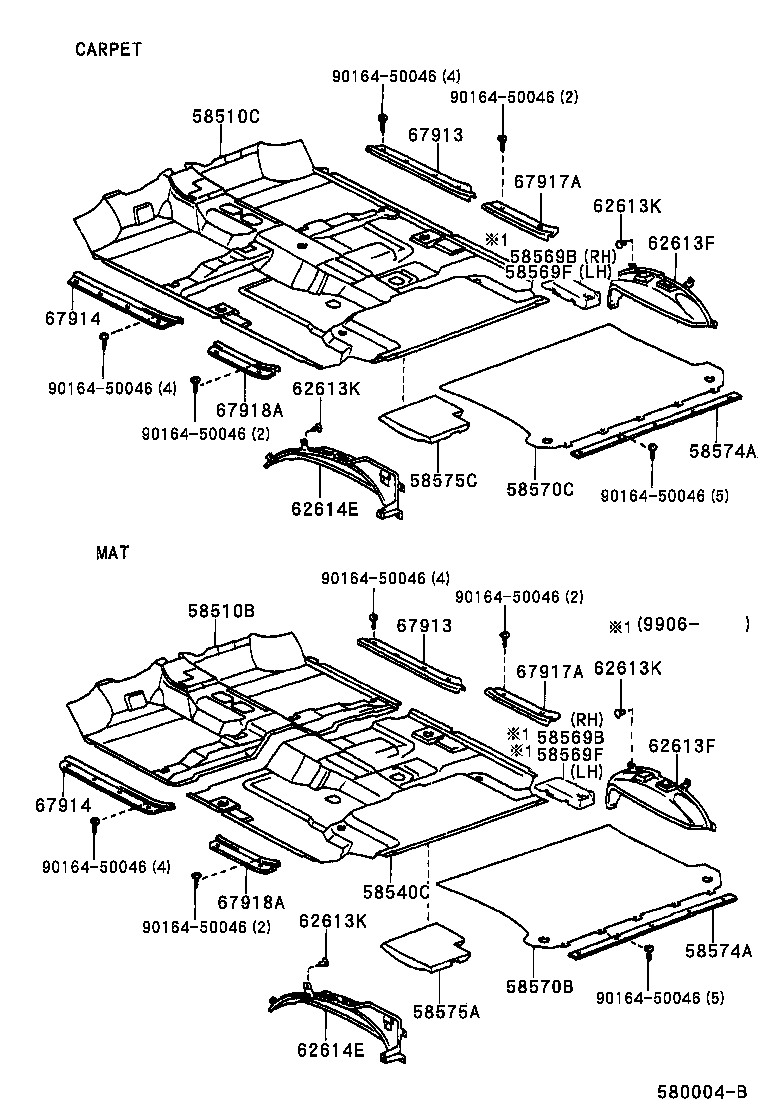

Floor Mat & Silencer Pad
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58510B | Mat, Front Floor, Front |
| 58510C | Carpet Assy, Front Floor, Front |
| 58540C | Mat Assy, Floor, Rear |
| 58569B | Packing, Rear Floor Plate, NO.2 |
| 58569F | Pad, Front Floor Side, LH |
| 58570B | Mat Assy, Rear Floor |
| 58570C | Carpet Assy, Rear Floor |
| 58574A | Plate, Rear Floor Mat Support, Rear |
| 58575A | Pad, Front Floor, Rear A |
| 58575C | Pad, Front Floor, Front |
| 62613F | Cover, Quarter Wheel House, RH |
| 62613K | Clip (FOR QUARTER WHEEL HOUSE COVER) |
| 62614E | Cover, Quarter Wheel House, LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
