Toyota Land Cruiser 90

1996-04 → 2008-12 · chassis KZJ9#,LJ9#,RZJ9#,VZJ9# · catalogue 781340 · General

Discontinued model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Window

15 part groups · 2 illustrations

Illustrations

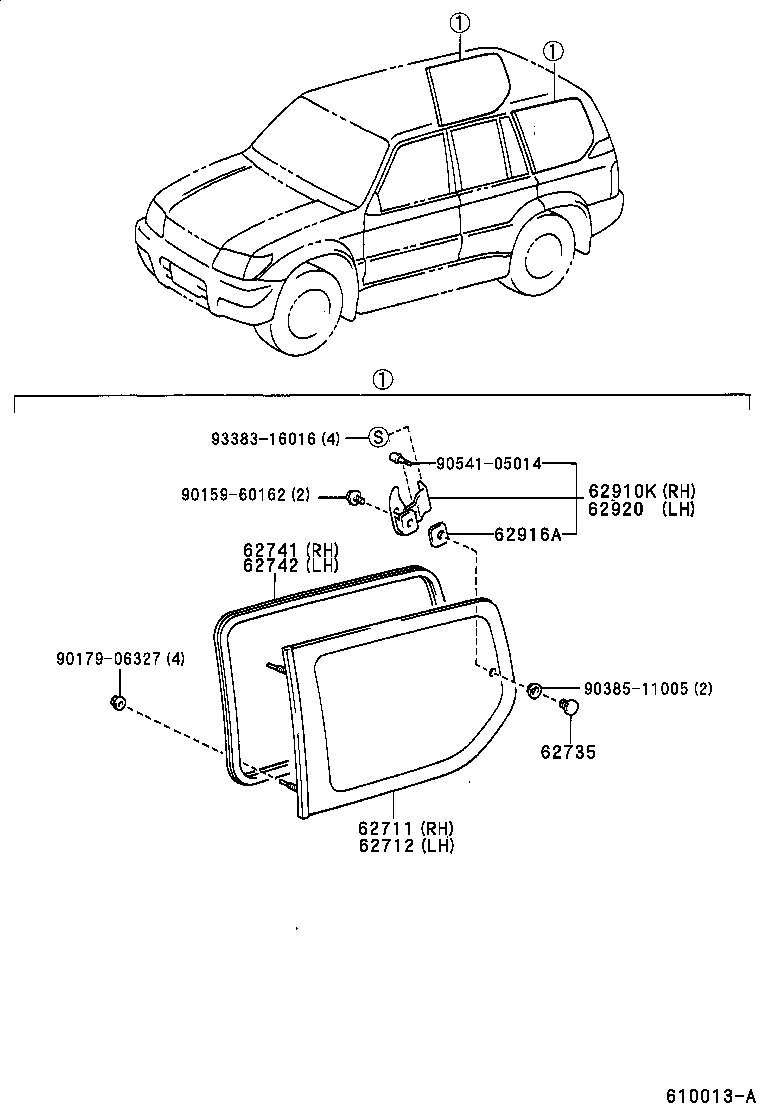

Figure 610012A 610012A 1996-04 → — Figure 610013A 610013A 1996-04 → —

Part groups

PNCDescription
62711 Glass, Quarter Window, RH
62712 Glass, Quarter Window, LH
62731C Hinge, Quarter Window, RH
62731E Hinge, Quarter Window, LH
62732D Hinge, Quarter Window, NO.2, RH
62732E Hinge, Quarter Window, LH
62735 Retainer, Quarter Window Hinge
62741 Weatherstrip, Quarter Window, RH
62742 Weatherstrip, Quarter Window, LH
62777Z Plate, Quarter Window Retainer
62785A Spacer, Quarter Window Glass
62786D Spacer, Quarter Window Glass, NO.2
62910K Lock Assy, Quarter Window, RH
62916A Pad, Side Window Lock
62920 Lock Assy, Quarter Window, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
