Toyota Land Cruiser 90

1996-04 → 2008-12 · chassis KZJ9#,LJ9#,RZJ9#,VZJ9# · catalogue 781340 · General

Discontinued model Data version 2009-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

329 part groups · 21 illustrations

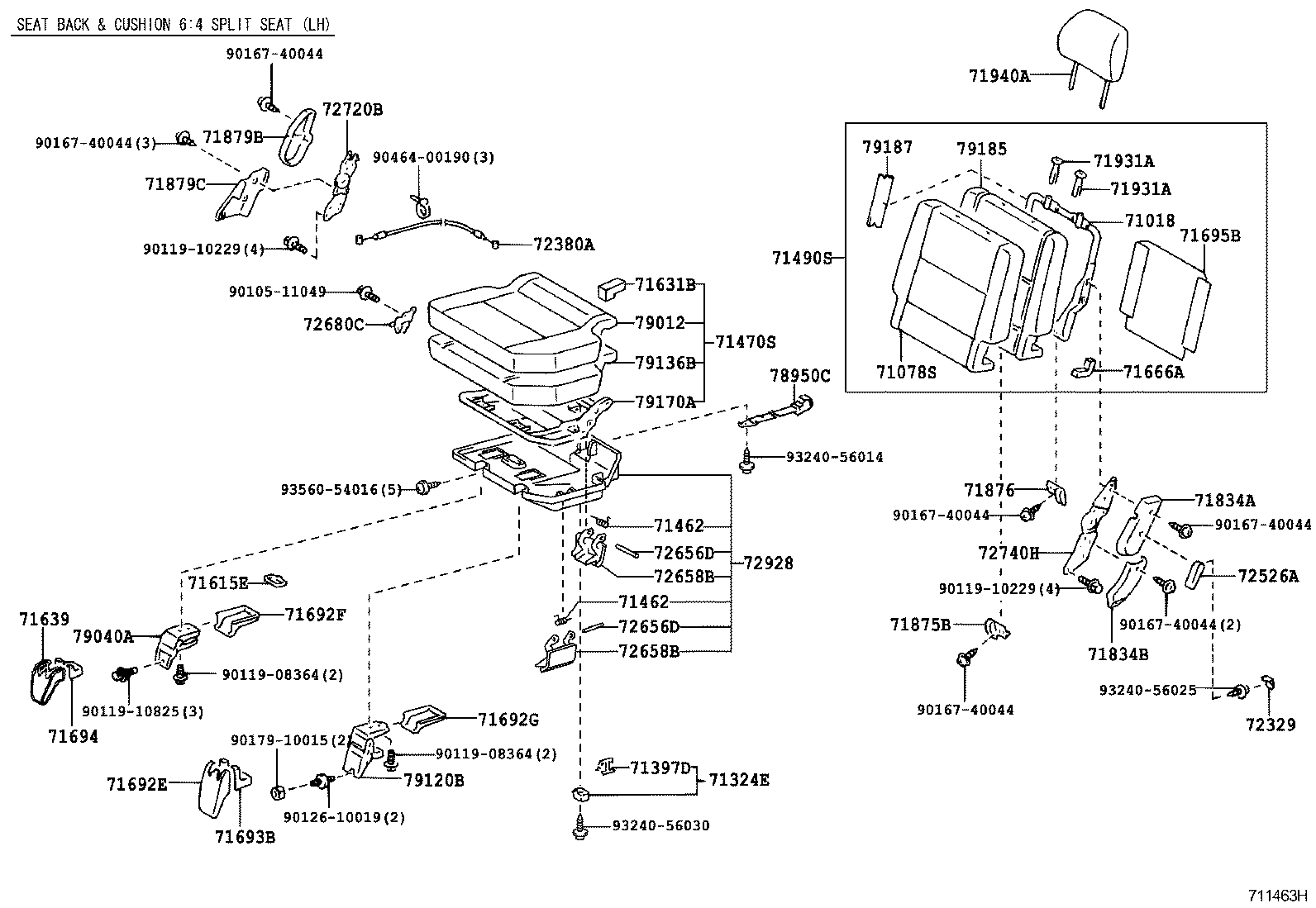

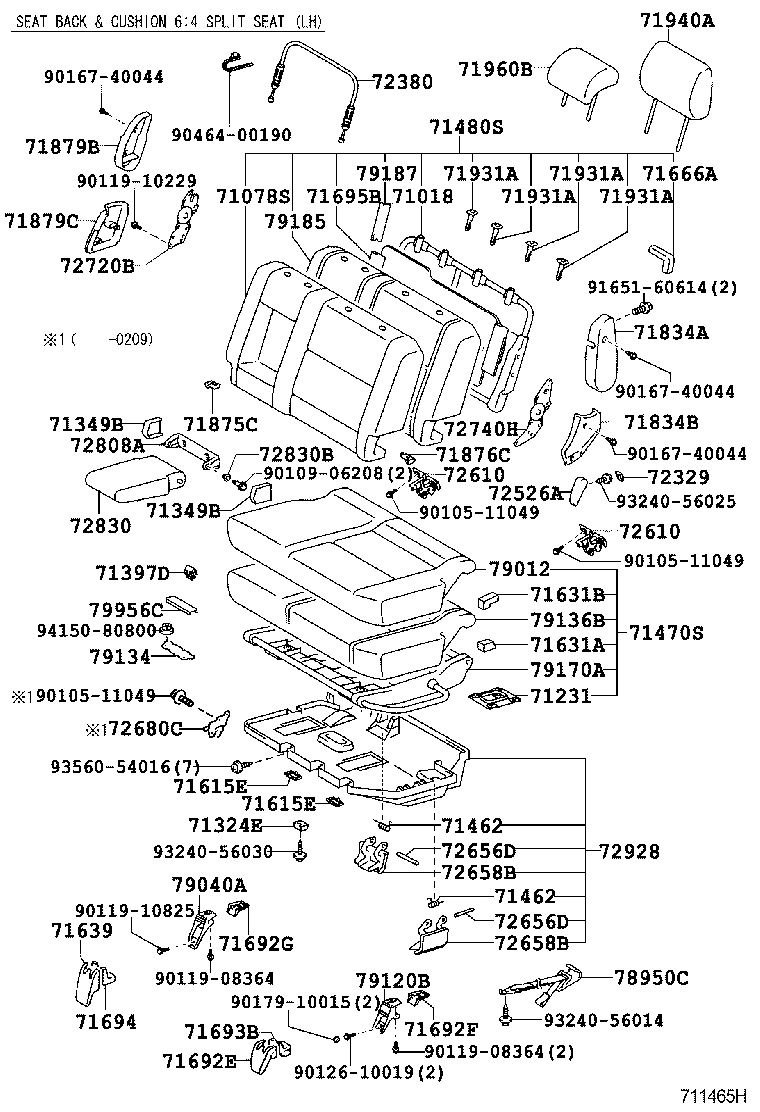

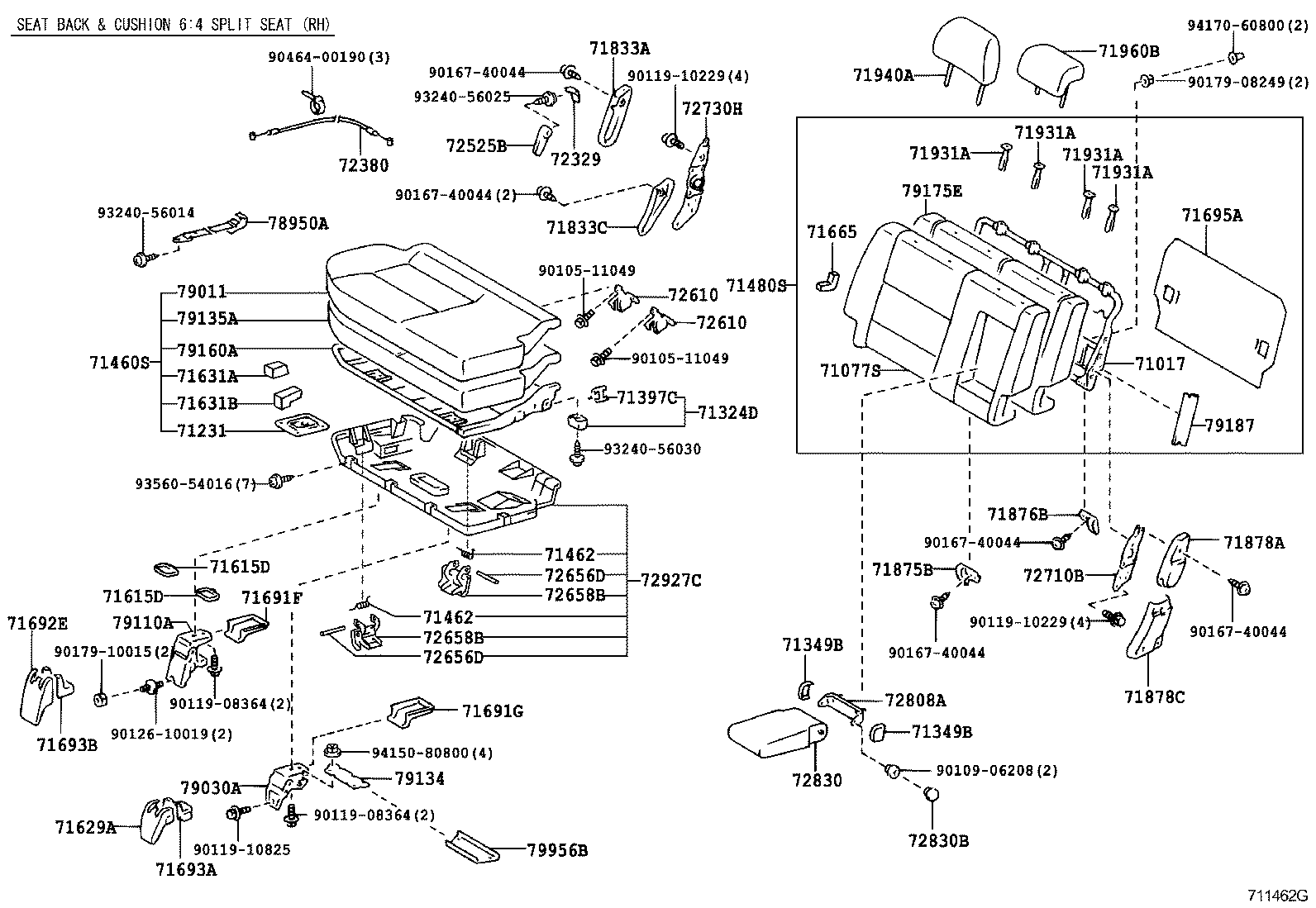

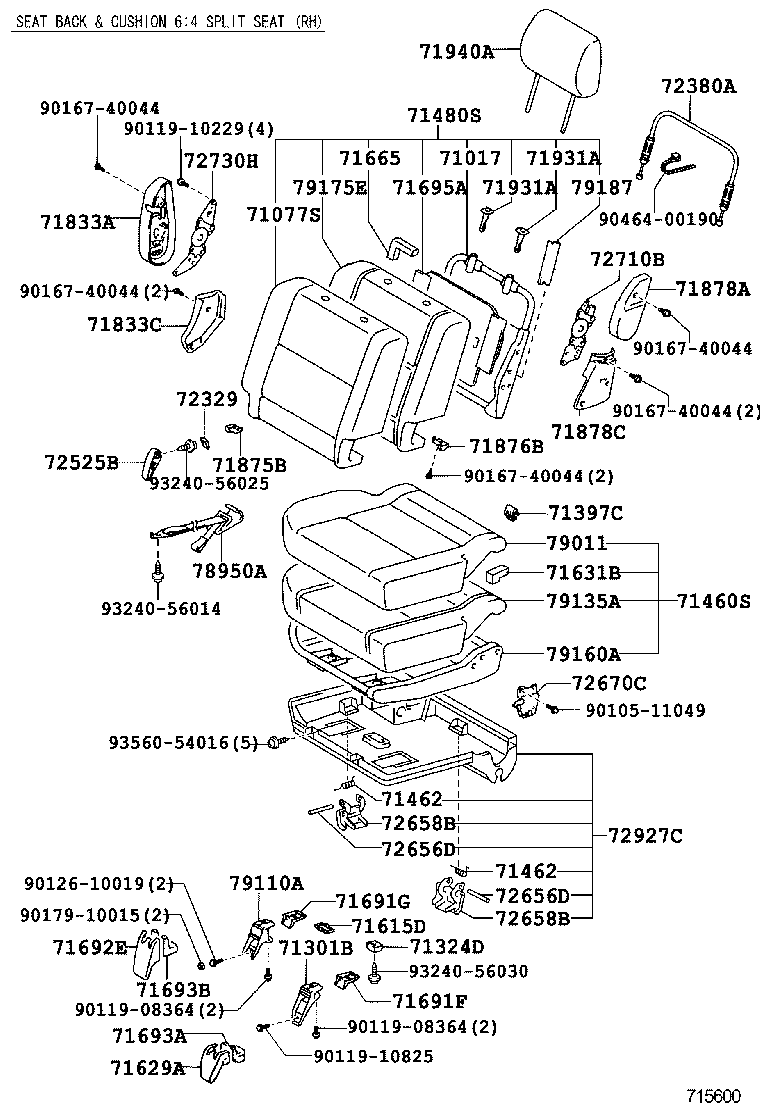

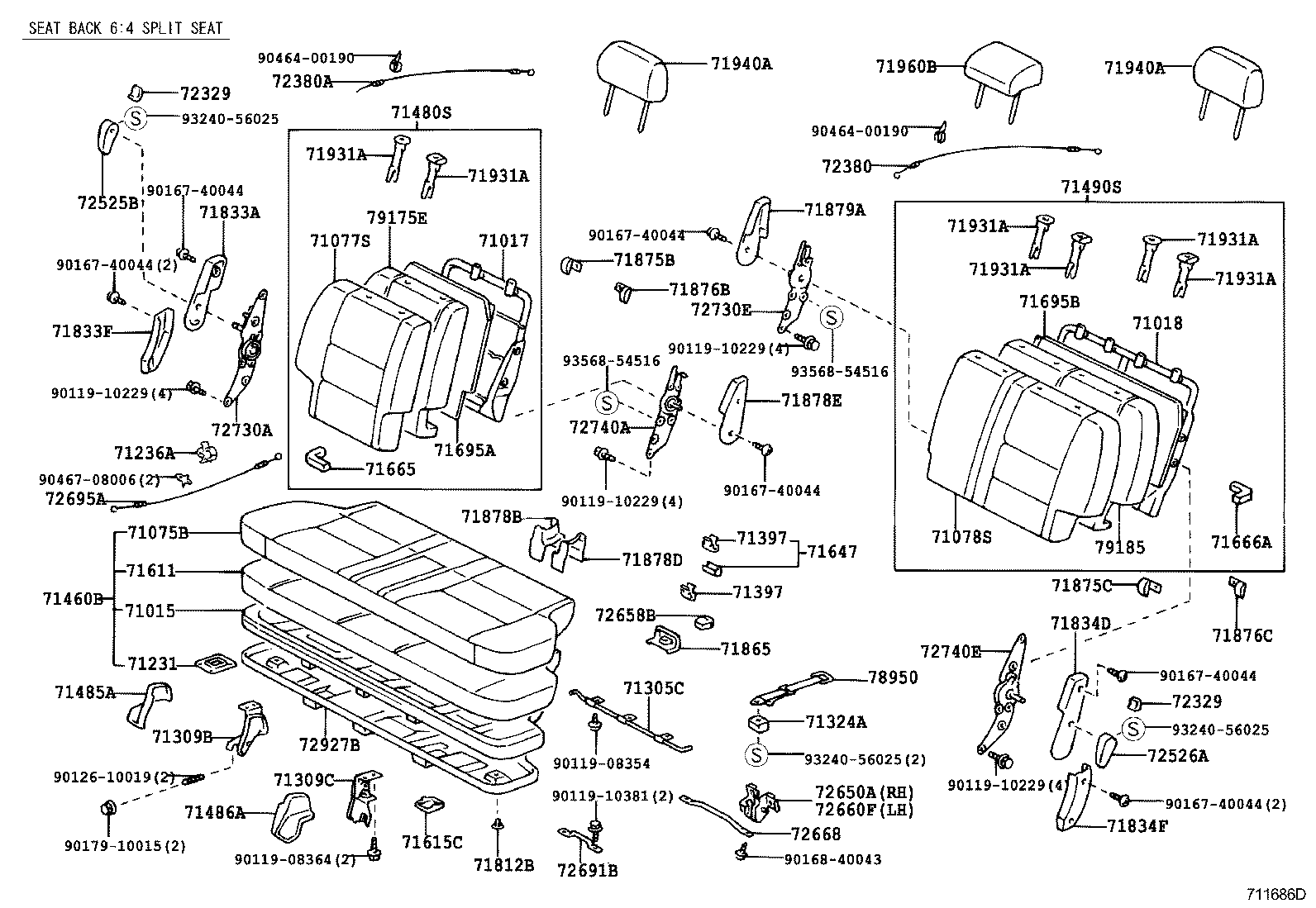

Illustrations

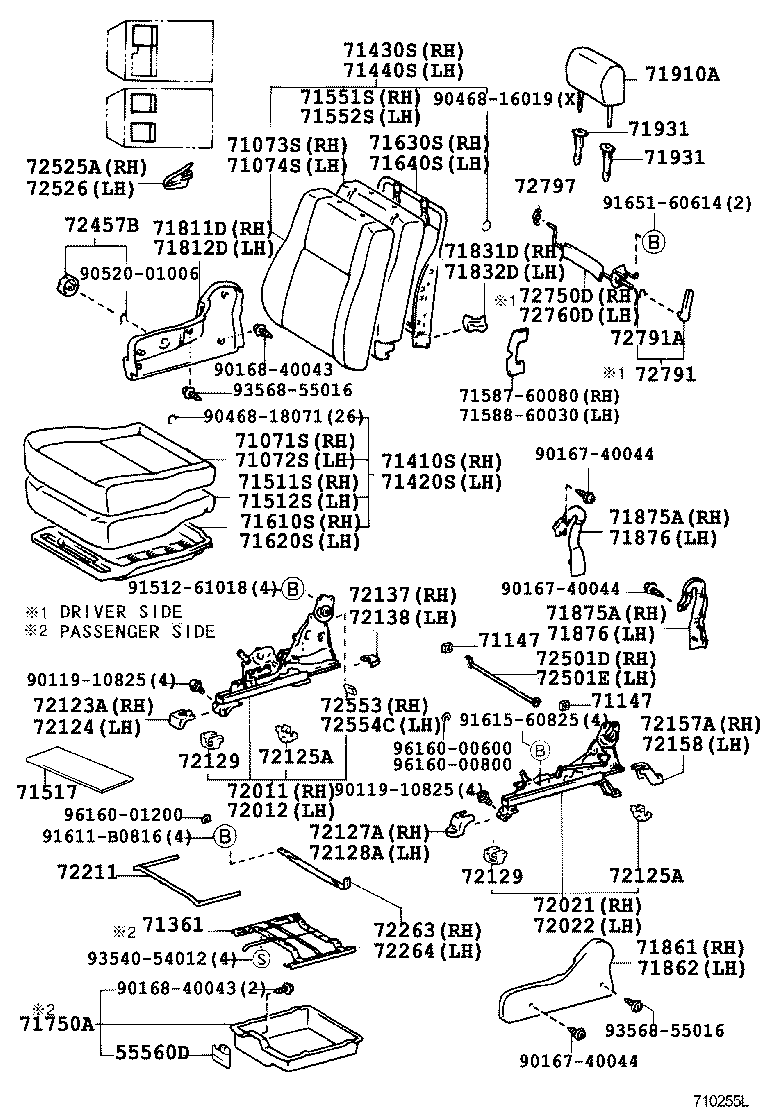

710254G 1996-04 → —

710255L 1996-04 → —

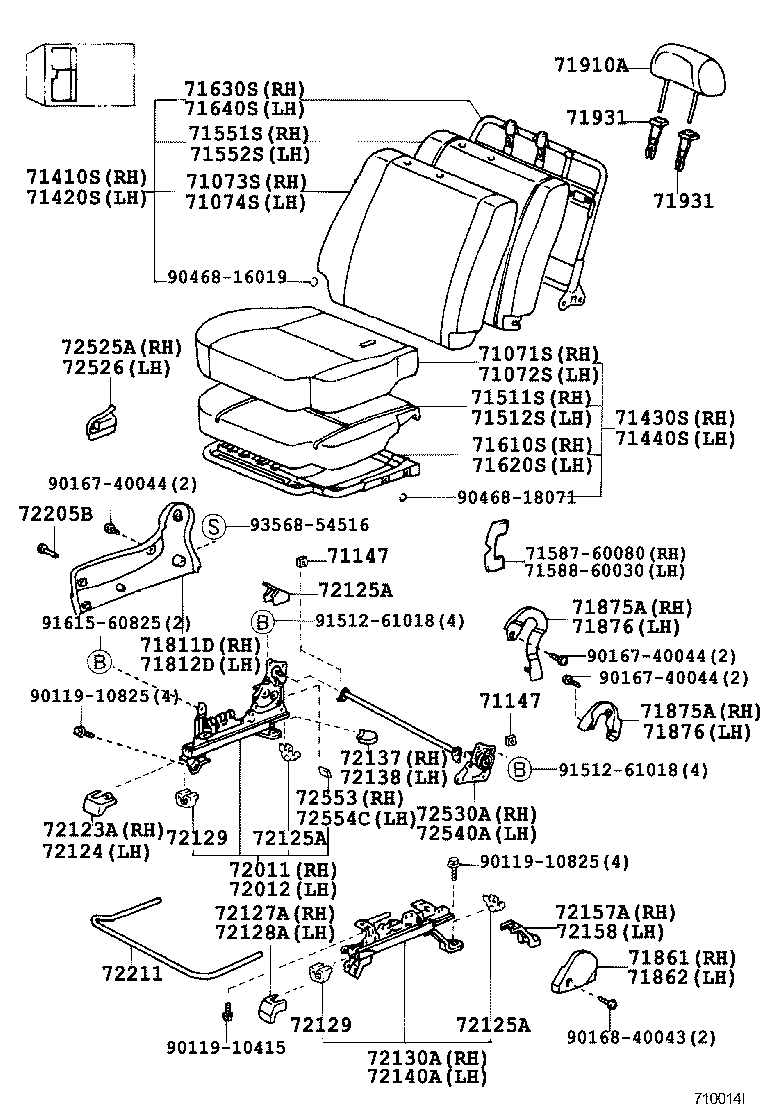

710014I 1996-04 → —

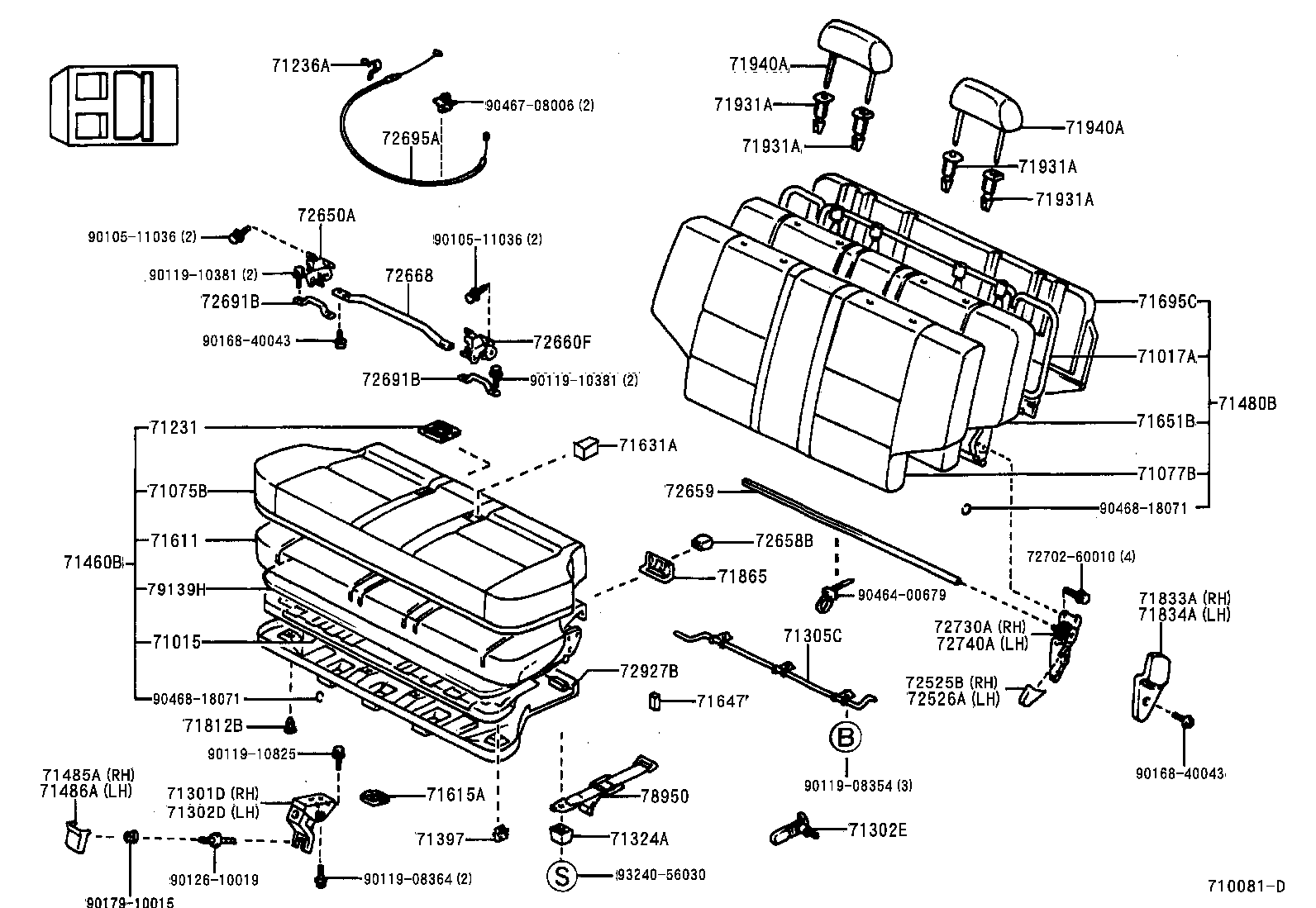

710081D 1996-04 → 1999-06

710081D 1999-06 → —

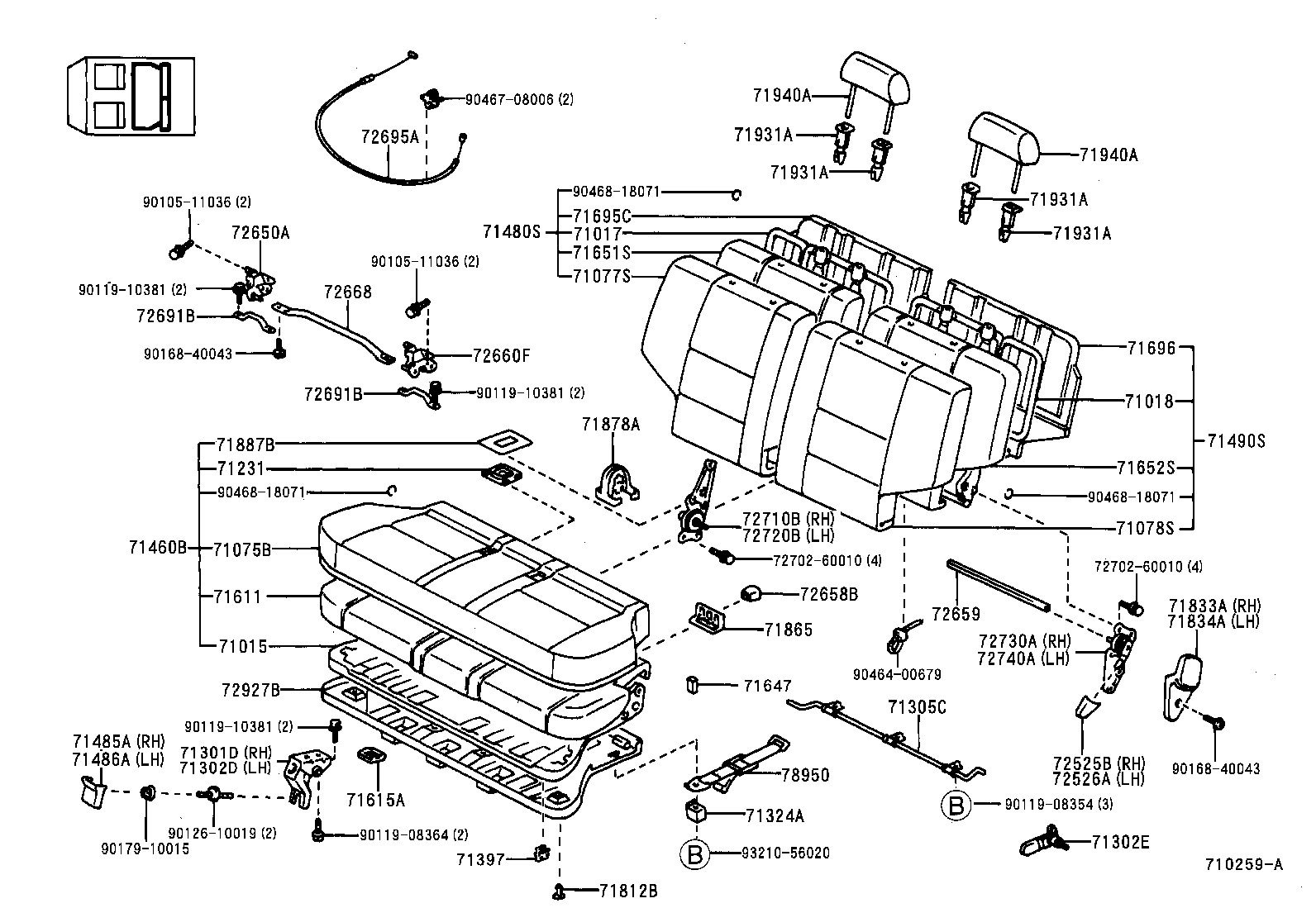

710259A 1996-08 → 1999-06

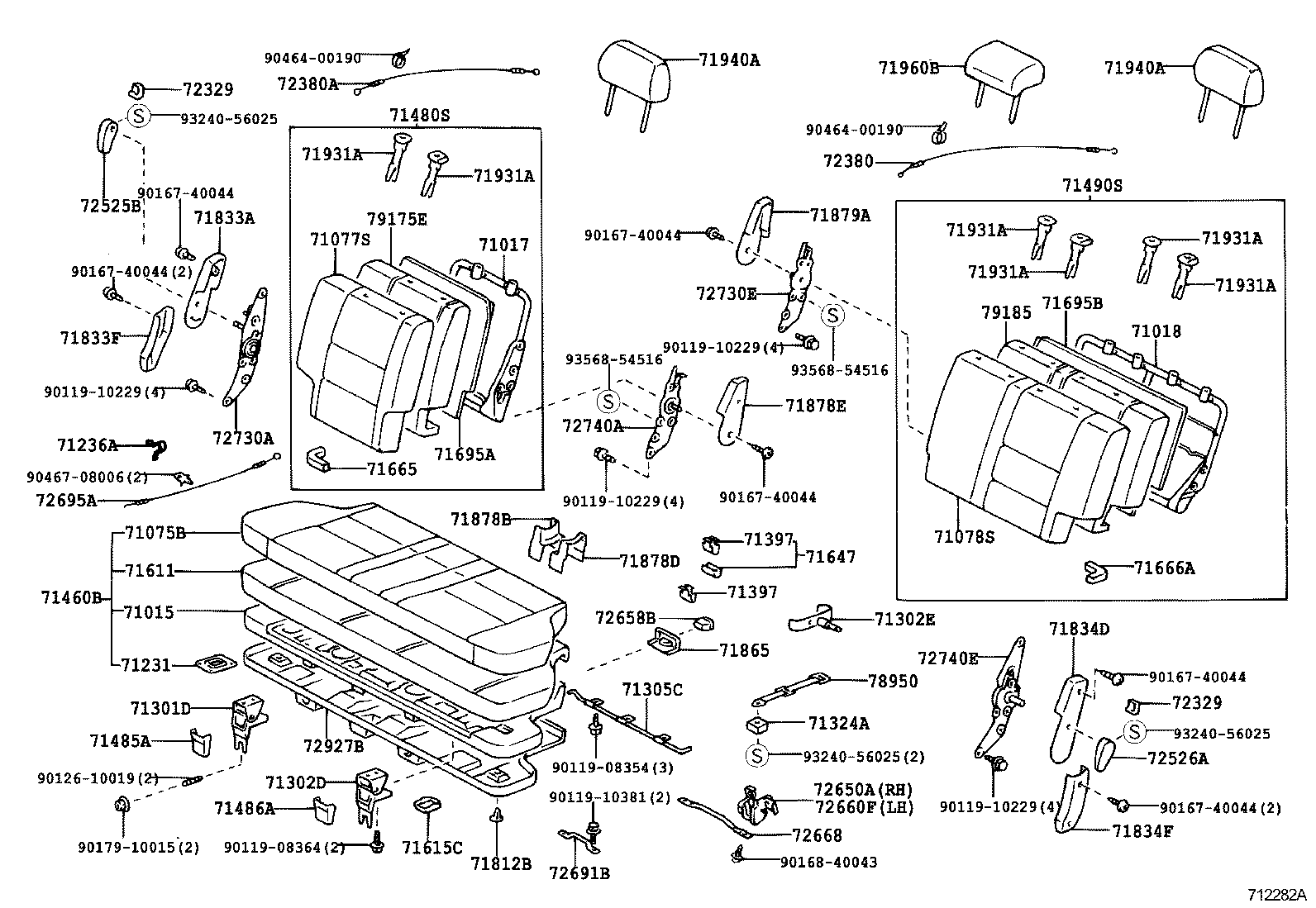

712282A 1999-06 → —

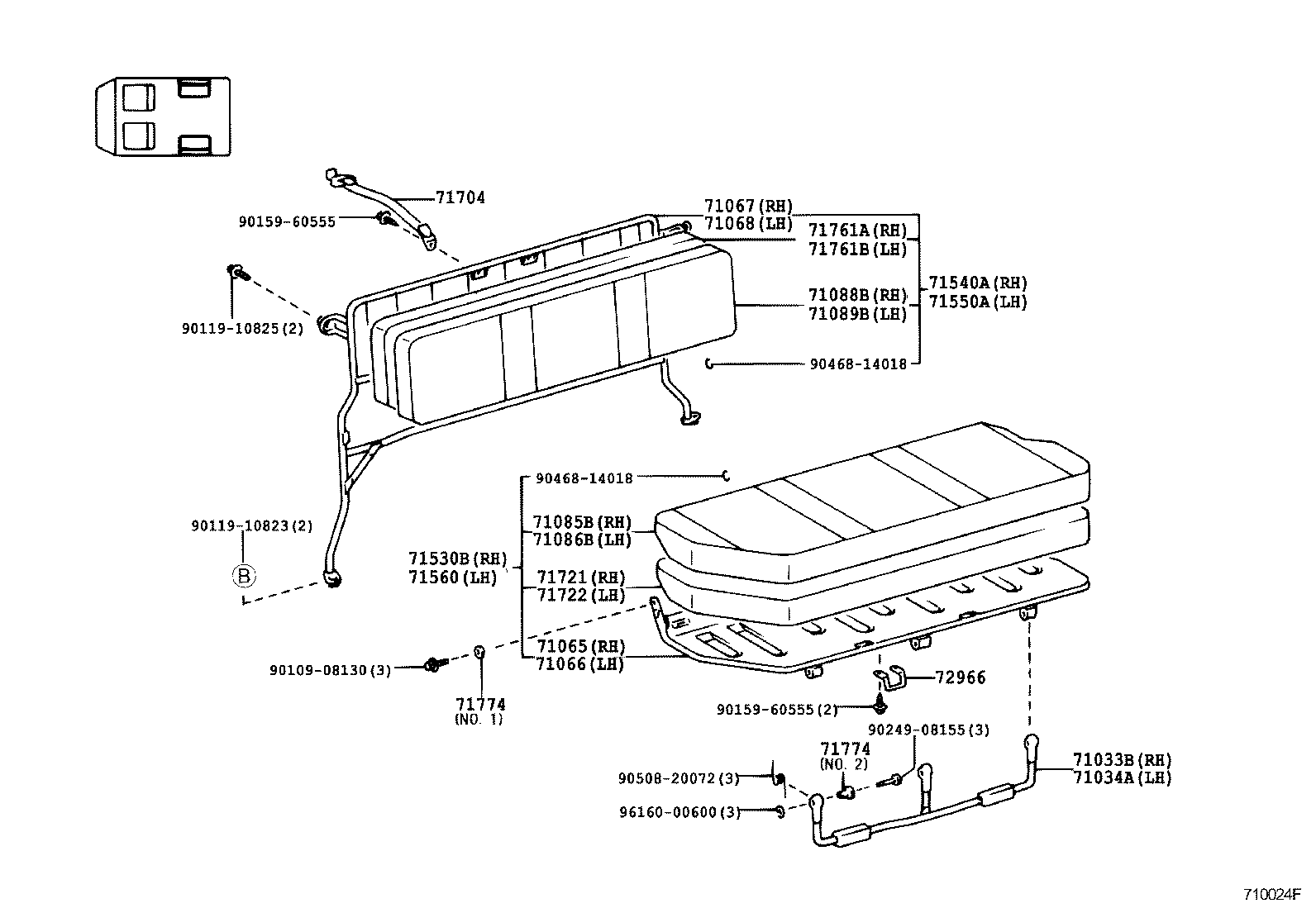

710024F 1996-04 → —

710017I 1996-04 → 1999-06

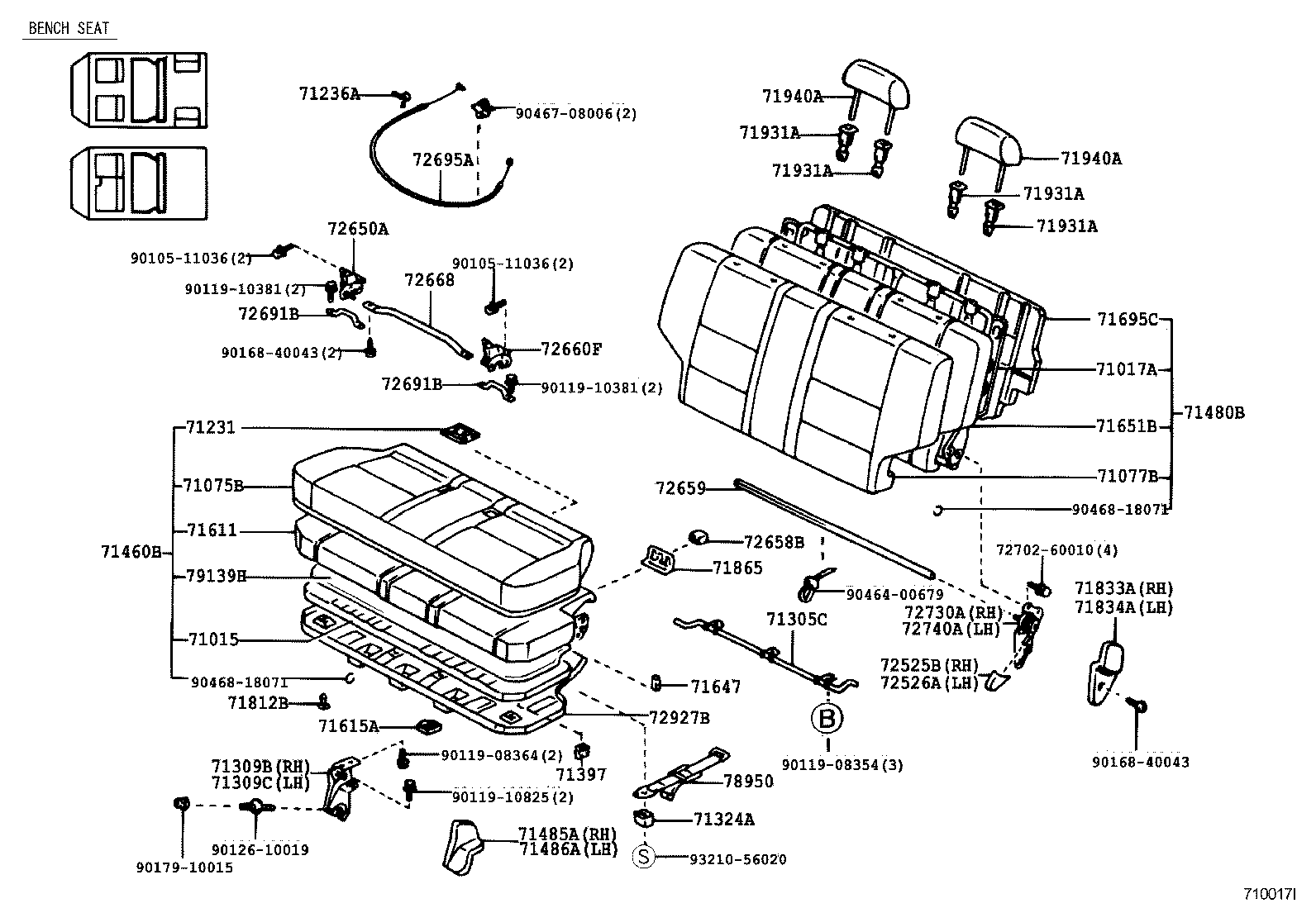

710017I 1999-06 → —

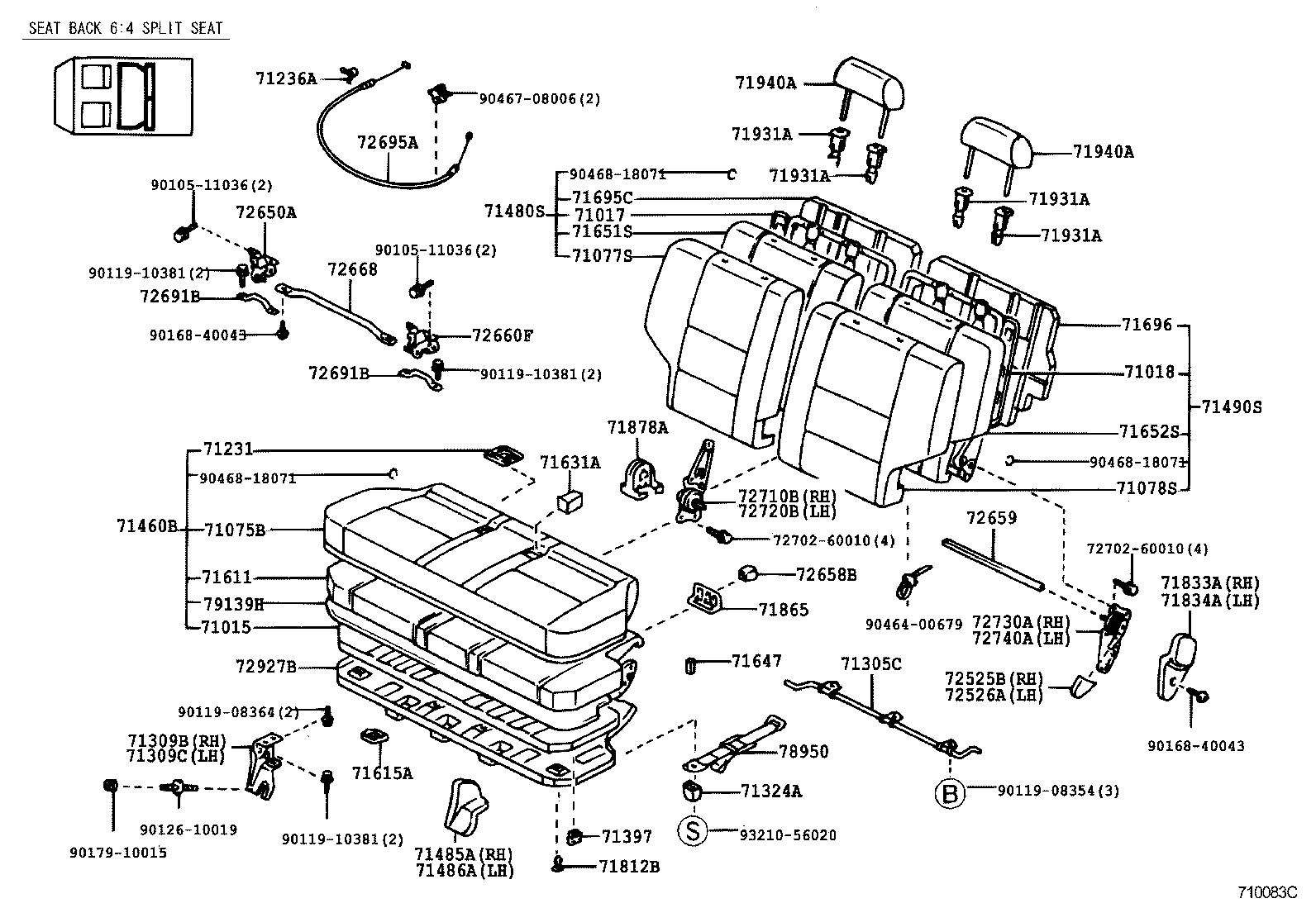

710083C 1996-04 → 1999-06

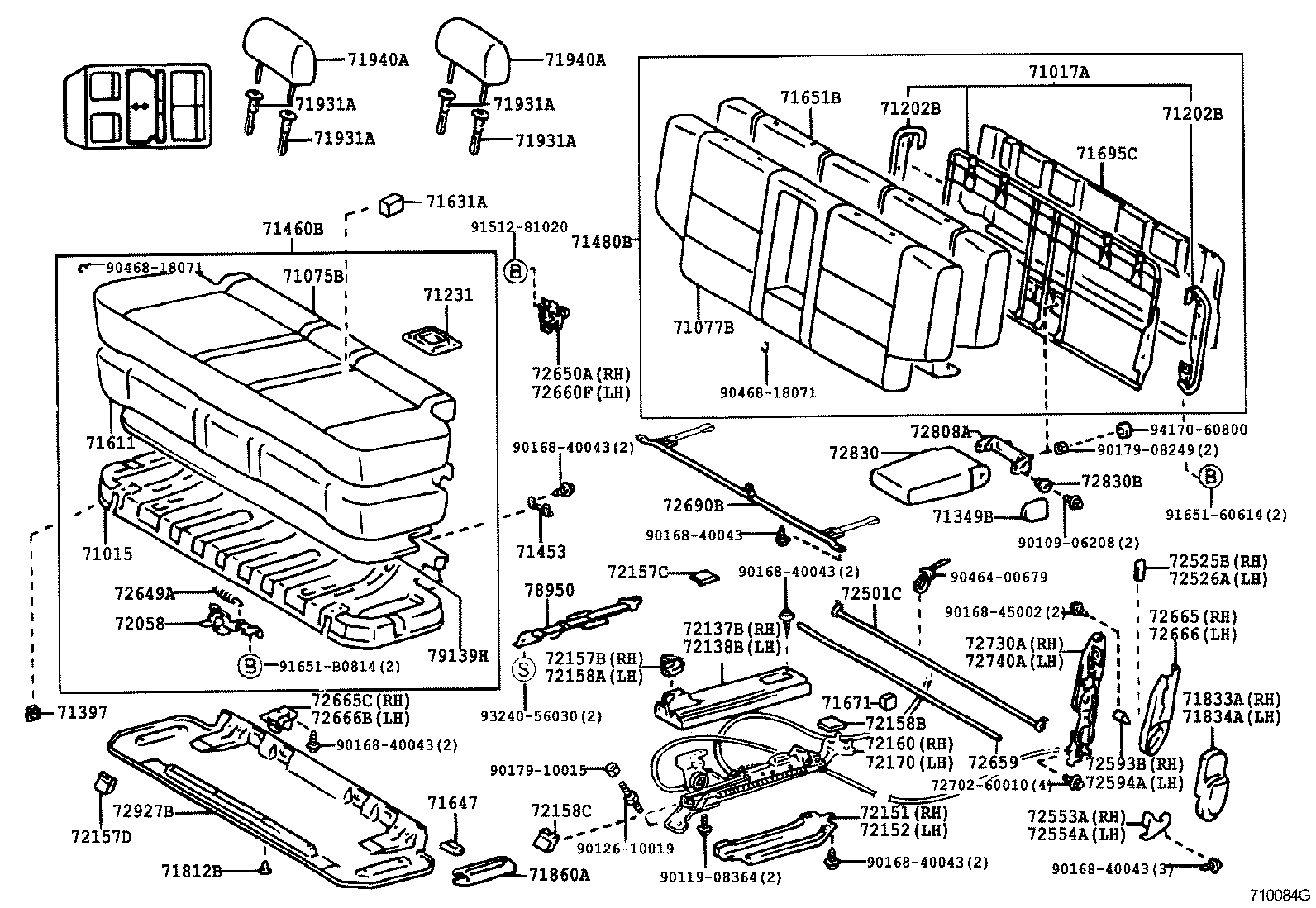

710084G 1996-04 → 1999-06

710084G 1999-06 → —

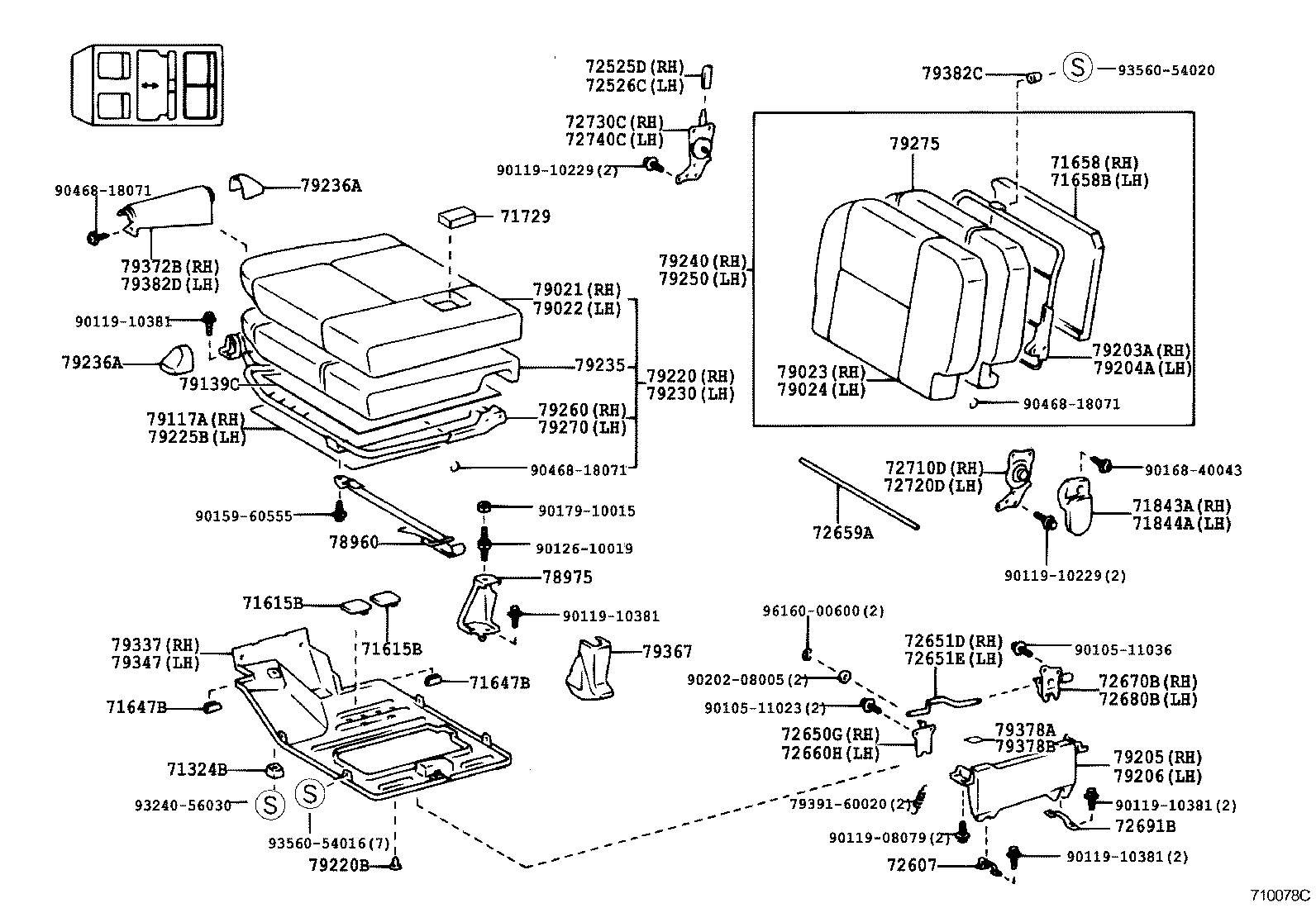

710078C 1996-04 → 1998-01

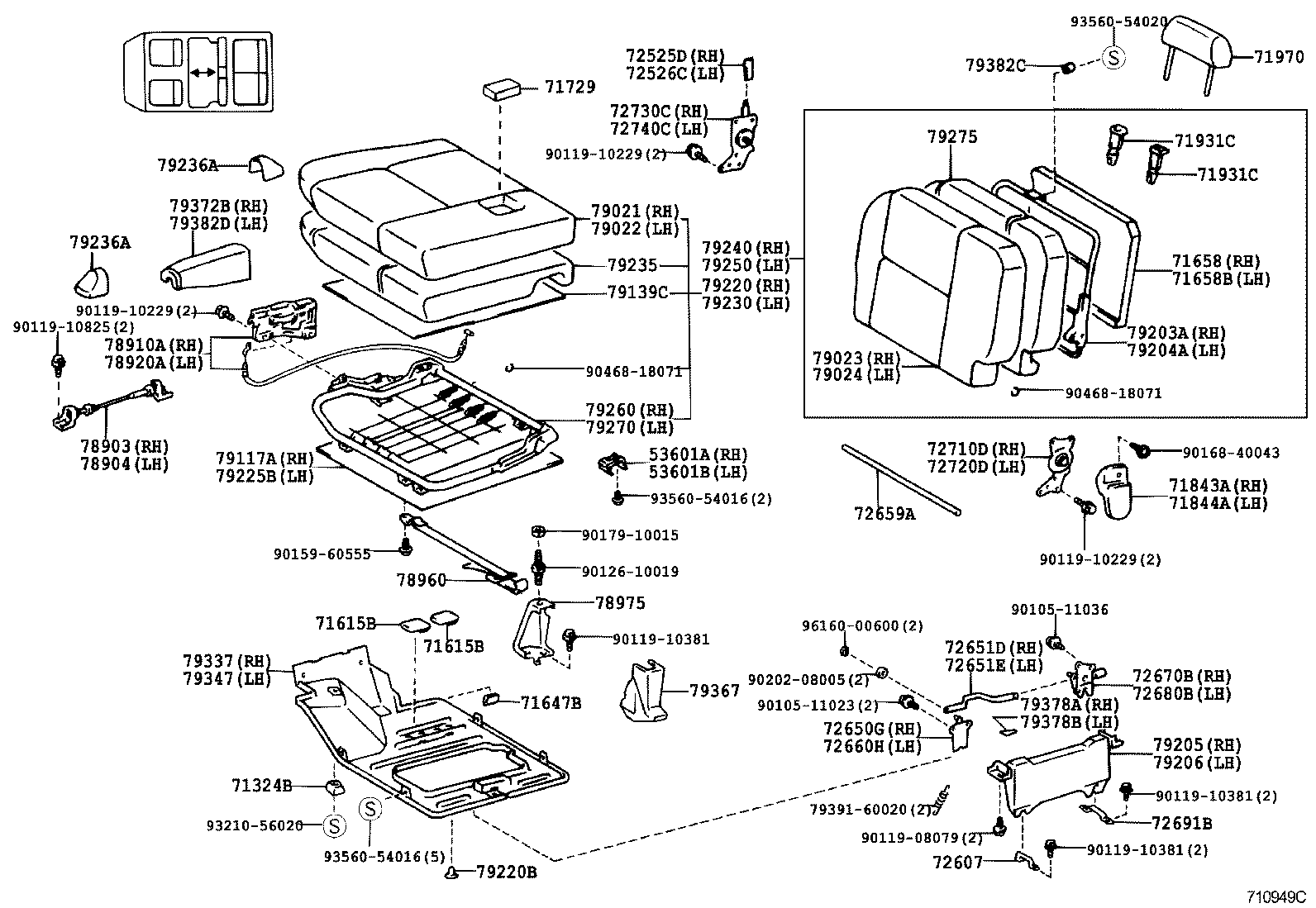

710949C 1998-01 → —

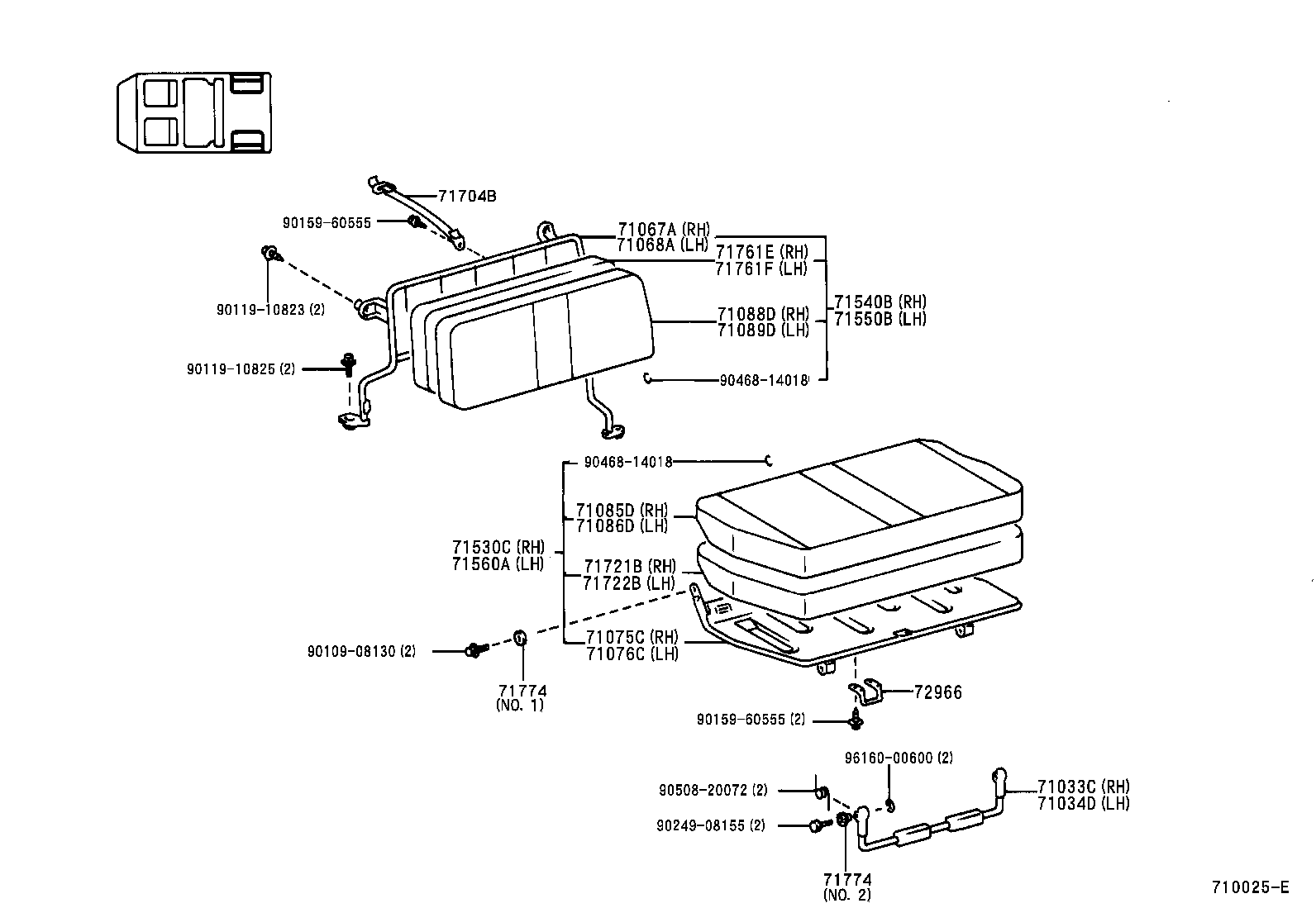

710025E 1996-04 → —

Part groups

PNC	Description
53601A	Lever Sub-assy, Seat Cushion Lock
53601B	Lever Sub-assy, Seat Cushion Lock, NO.2
55560D	Lock Assy, Seat Under Tray
71015	Frame Sub-assy, Rear Seat Cushion
71017	Frame Sub-assy, Rear Seatback, RH
71017A	Frame Sub-assy, Rear Seatback
71018	Frame Sub-assy, Rear Seatback, LH
71033B	Leg Sub-assy, Rear Side Seat Cushion, NO.1 RH
71033C	Leg Sub-assy, Rear Side Seat Cushion, NO.2 RH
71034A	Leg Sub-assy, Rear Side Seat Cushion, NO.1 LH
71034D	Leg Sub-assy, Rear NO.2 Side Seat Cushion, LH
71065	Frame Sub-assy, Rear Side Seat Cushion, RH
71066	Frame Sub-assy, Rear Side Seat Cushion, LH
71067	Frame Sub-assy, Rear Side Seatback, RH
71067A	Frame Sub-assy, Rear NO.2 Side Seatback, RH
71068	Frame Sub-assy, Rear Side Seatback, LH
71068A	Frame Sub-assy, Rear NO.2 Side Seatback, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075C	Frame Sub-assy, Rear NO.2 Side Seat Cushion, RH
71076C	Frame Sub-assy, Rear NO.2 Side Seat Cushion, LH
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71085B	Cover Sub-assy, Rear Side Seat Cushion, RH
71085D	Cover Sub-assy, Rear NO.2 Side Seat Cushion, RH
71086B	Cover Sub-assy, Rear Side Seat Cushion, LH
71086D	Cover Sub-assy, Rear NO.2 Side Seat Cushion, LH
71088B	Cover Sub-assy, Rear Side Seatback, RH
71088D	Cover Sub-assy, Rear NO.2 Side Seatback, RH
71089B	Cover Sub-assy, Rear Side Seatback, LH
71089D	Cover Sub-assy, Rear NO.2 Side Seatback, LH
71147	Silencer, Seat Spring
71202B	Panel, Rear Seatback
71231	Plate, Rear Seat Spring Set, NO.1
71236A	Clamp, Rear Seat Cushion Spring
71301B	Hinge Sub-assy, Rear NO.1 Seat, RH
71301D	Hinge Sub-assy, Rear Seat, RH
71302D	Hinge Sub-assy, Rear Seat, LH
71302E	Stopper Sub-assy, Rear Seat Leg
71305C	Stay Sub-assy, Rear Seat
71309B	Leg Sub-assy, Rear Seat, Rear RH
71309C	Leg Sub-assy, Rear Seat, Rear LH
71324A	Cushion, Rear Seat
71324B	Cushion, Rear Seat
71324D	Cushion, Rear Seat, RH
71324E	Cushion, Rear Seat, LH
71349B	Cover, Rear Seatback Stay, RH
71361	Bracket, Front Seat Set, NO.1
71397	Stopper, Rear Seat
71397C	Stopper, Rear Seat
71397D	Stopper, Rear Seat
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71453	Wire, Rear Seat Cushion Spring
71460B	Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460S	Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71462	Spring, Rear Seat Cushion, NO.2
71470S	Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480B	Back Assy, Rear Seat (FOR BENCH TYPE)
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71485A	Cover, Rear Seat Hinge, NO.2 RH
71486A	Cover, Rear Seat Hinge, NO.2 LH
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71517	Cloth, Front Seat Cushion Under
71530B	Cushion Assy, Rear Side Seat
71530C	Cushion Assy, Rear NO.2 Side Seat, RH
71540A	Back Assy, Rear Side Seat, RH
71540B	Back Assy, Rear NO.2 Side Seat, RH
71550A	Back Assy, Rear Side Seat, LH
71550B	Back Assy, Rear NO.2 Side Seat, LH
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71560	Cushion Assy, Rear Side Seat, LH
71560A	Cushion Assy, Rear NO.2 Side Seat, LH
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611	Pad, Rear Seat Cushion
71615A	Cover, NO.2 Seat Lock Striker
71615B	Cover, NO.3 Seat Lock Striker
71615C	Cover, Rear Seat Lock Striker
71615D	Cover, Rear Seat Lock Striker
71615E	Cover, Rear Seat Lock Striker
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71629A	Cover, Rear Seat Cushion Hinge, RH
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71631A	Pad, Rear Seat Cushion Corner
71631B	Pad, Rear Seat Cushion Corner
71639	Cover, Rear Seat Cushion Hinge, LH
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71647	Protector, Rear Seat Cushion Edge
71647B	Protector, Rear Seat Cushion Edge
71651B	Pad, Rear Seatback(FOR BENCH TYPE)
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71658	Pad, Rear NO.2 Seatback Safety, Front RH
71658B	Pad, Rear NO.2 Seatback Safety, Front LH
71665	Pad, Rear Seatback Side, RH
71666A	Pad, Rear Seatback Side, LH
71671	Pad, Rear Seatback Silencer, A
71691F	Cover, Rear NO.1 Seat Cushion Hinge, Inner RH
71691G	Cover, Rear NO.1 Seat Cushion Hinge, Outer RH
71692E	Cover, Rear Seat Cushion Hinge, NO.2
71692F	Cover, Rear NO.1 Seat Cushion Hinge, Inner LH
71692G	Cover, Rear NO.1 Seat Cushion Hinge, Outer LH
71693A	Cover, Rear Seat Cushion Hinge, NO.3
71693B	Cap, Rear Seat Cushion Hinge
71694	Cover, Rear Seat Cushion Hinge, Lower LH
71695A	Protector, Rear Seat, NO.1 RH
71695B	Protector, Rear Seat, NO.1 LH
71695C	Protector, Rear Seat, NO.1
71696	Protector, Rear Seat, NO.2
71704	Band Sub-assy, Rear Side Seat
71704B	Band Sub-assy, Rear Side Seat, NO.2
71721	Pad, Rear Side Seat Cushion, RH
71721B	Pad, Rear NO.2 Side Seat Cushion, RH
71722	Pad, Rear Side Seat Cushion, LH
71722B	Pad, Rear NO.2 Side Seat Cushion, LH
71729	Pad, Rear Side Seat Cushion
71750A	Tray Assy, Front Seat Under
71761A	Pad, Rear Side Seatback, RH
71761B	Pad, Rear Side Seatback, LH
71761E	Pad, Rear NO.2 Side Seatback, RH
71761F	Pad, Rear NO.2 Side Seatback, LH
71774	Plate, Rear Side Seat Hinge
71811D	Shield, Front Seat Cushion, RH
71812B	Clip(FOR REAR SEAT CUSHION COVER)
71812D	Shield, Front Seat Cushion, LH
71831D	Cover, Front Seat Hinge, RH
71832D	Cover, Front Seat Hinge, LH
71833A	Cover, Rear Seat Reclining, NO.1 RH
71833C	Cover, Rear Seat Reclining, NO.2 RH
71833F	Cover, Rear NO.2 Seat Reclining, Outer RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71834B	Cover, Rear Seat Reclining, NO.2 LH
71834D	Cover, Rear Seat Reclining, LH
71834F	Cover, Rear NO.2 Seat Reclining, Outer LH
71843A	Cover, Rear Seat Reclining, NO.2 RH
71844A	Cover, Rear Seat Reclining, NO.2 LH
71860A	Carpet Assy, Rear Seat Cushion Board
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71865	Bezel, Rear Seat Cover, NO.1
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71875C	Cover, Reclining Adjuster Inside, RH
71876	Cover, Reclining Adjuster Inside, LH
71876B	Cover, Reclining Adjuster Inside, LH
71876C	Cover, Reclining Adjuster Inside, LH
71878A	Cover, Rear Seat Reclining, Inner RH
71878B	Cover, Rear Seat Reclining, Inner RH
71878C	Cover, Rear Seat Reclining, Inner RH
71878D	Cover, Rear Seat Reclining, Inner RH
71878E	Cover, Rear Seat Reclining, Inner RH
71879A	Cover, Rear Seat Reclining, Inner LH
71879B	Cover, Rear Seat Reclining, Inner LH
71879C	Cover, Rear Seat Reclining, Inner LH
71887B	Mat, Rear Seat Cushion
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71931A	Support, Rear Seat Headrest
71931C	Support Assy, Rear NO.2 Seat Headrest
71940A	Headrest Assy, Rear Seat
71960B	Headrest Assy, Rear Seat, Center
71970	Headrest Assy, Rear Seat
72011	Adjuster Sub-assy, Front Seat, Outer RH
72012	Adjuster Sub-assy, Front Seat, Outer LH
72021	Adjuster Sub-assy, Front Seat, Inner RH
72022	Adjuster Sub-assy, Front Seat, Inner LH
72058	Lever Sub-assy, Rear Seat Lock Control
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72125A	Cover, Seat Track, Upper Rear
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72129	Protector, Seat Track Lower Rail, NO.1
72130A	Track Assy, Front Seat, Inner RH
72137	Cover, Seat Track, Outer RH
72137B	Cover, Seat Track, RH
72138	Cover, Seat Track, Outer LH
72138B	Cover, Seat Track, LH
72140A	Track Assy, Front Seat,Inner LH
72151	Rail, Seat Track, Lower RH
72152	Rail, Seat Track, Lower LH
72157A	Cover, Seat Track Bracket, Inner RH
72157B	Cover, Rear Seat Track Bracket, Inner RH
72157C	Cover, Seat Track Bracket, Inner RH
72157D	Cover, Seat Track Bracker, Inner RH
72158	Cover, Seat Track Bracket, Inner LH
72158A	Cover, Rear Seat Track Bracket, Inner LH
72158B	Cover, Seat Track Bracket, Inner LH
72158C	Cover, Seat Track Bracket, Inner LH
72160	Track Assy, Rear Seat, Outer RH
72170	Track Assy, Rear Seat, Outer LH
72205B	Pin Sub-assy, Seat Track Open Lever
72211	Handle, Seat Track Adjusting
72263	Reinforcement, Inner Seat Track, RH
72264	Reinforcement, Inner Seat Track, LH
72329	Cover, Seat Adjuster Bolt
72380	Cable Assy, Seat Adjuster Control, NO.2
72380A	Cable Assy, Seat Adjuster Control, NO.2
72457B	Knob, Vertical Seat Adjuster, RH
72501C	Pipe Sub-assy, Reclining Connecting
72501D	Pipe Sub-assy, Reclining Connecting, RH
72501E	Pipe Sub-assy, Reclining Connecting, LH
72525A	Handle, Reclining Adjuster Release, RH
72525B	Handle, Reclining Adjuster Release, RH
72525D	Handle, Reclining Adjuster Release, NO.2 RH
72526	Handle, Reclining Adjuster Release, LH
72526A	Handle, Reclining Adjuster Release, LH
72526C	Handle, Reclining Adjuster Release, NO.2 LH
72530A	Adjuster Assy, Reclining Seat, Inner RH
72540A	Adjuster Assy, Reclining Seat, Inner LH
72553	Cover, Reclining Pedal
72553A	Protector, Reclining Cover, RH
72554A	Protector, Reclining Cover, LH
72554C	Cover, Reclining Pedal, LH
72593B	Knob, Reclining Remote Control Lever, RH
72594A	Knob, Reclining Remote Control Lever, LH
72607	Striker Sub-assy, Rear Seat Cushion Lock
72610	Lock Assy, Rear Seat Cushion
72649A	Tension Spring, Rear Seat Lock Control
72650A	Lock Assy, Rear Seat, RH
72650G	Lock Assy, Rear NO.2 Seat, RH
72651D	Rod, Rear Seatback Lock, RH
72651E	Rod, Rear Seatback Lock, LH
72656D	Pin, Rear Seat Cushion Support
72658B	Knob, Rear Seat Lock Handle
72659	Rod, Rear Seatback Lock Connecting
72659A	Rod, Rear NO.2 Seatback Lock Connecting
72660F	Lock Assy, Rear Seat, LH
72660H	Lock Assy, Rear NO.2 Seat, LH
72665	Cover, Rear Seatback Lock, RH
72665C	Cover, Rear Seat Lock, RH
72666	Cover, Rear Seatback Lock, LH
72666B	Cover, Rear Seat Lock, LH
72668	Bar, Rear Seat Cushion Lock Striker
72670B	Lock Assy, Rear Seat Cushion, RH
72670C	Lock Assy, Rear Seat Cushion, NO.2 RH
72680B	Lock Assy, Rear Seat Cushion, LH
72680C	Lock Assy, Rear Seat Cushion, NO.2 LH
72690B	Lever Assy, Seat Cushion Lock Release, RH
72691B	Striker, Rear Seat Cushion Lock
72695A	Cable, Rear Seat Lock Control
72710B	Adjuster Assy, Rear Seatback, Inner RH
72710D	Adjuster Assy, NO.2 Rear Seatback, Inner RH
72720B	Adjuster Assy, Rear Seatback, Inner LH
72720D	Adjuster Assy, NO.2 Rear Seatback, Inner LH
72730A	Adjuster Assy, Rear Seat Reclining, RH
72730C	Adjuster Assy, NO.2 Seat Reclining, RH
72730E	Adjuster Assy, Rear Seatback, Outer RH
72730H	Adjuster Assy, Rear Seat Reclining, RH
72740A	Adjuster Assy, Rear Seat Reclining, LH
72740C	Adjuster Assy, NO.2 Seat Reclining, LH
72740E	Adjuster Assy, Rear Seatback, Outer LH
72740H	Adjuster Assy, Rear Seat Reclining, LH
72750D	Adjuster Assy, Lumbar Support, RH
72760D	Adjuster Assy, Lumbar Support, LH
72791	Lever, Lumbar Support
72791A	Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER)
72797	Spacer, Lumbar Support
72808A	Bracket Sub-assy, Seat Center Armrest
72830	Armrest Assy, Rear Seat, Center
72830B	Bush(FOR REAR SEAT CENTER ARMREST)
72927B	Cover, Rear Seat Cushion Under
72927C	Cover, Rear Seat Cushion Under RH
72928	Cover, Rear Seat Cushion Under, LH
72966	Bracket, Rear Seat Turn Lock
78903	Striker Sub-assy, Fold Seat Leg Lock
78904	Striker Sub-assy, Fold Seat Lock, NO.2
78910A	Lock Assy, Fold Seat, RH
78920A	Lock Assy, Fold Seat, LH
78950	Band Assy, Fold Seat Stopper, NO.1
78950A	Band Assy, NO.2 Fold Seat Stopper, NO.1
78950C	Band Assy, Fold Seat Stopper
78960	Band Assy, Fold Seat Stopper, NO.2
78975	Bracket, Fold Seat Striker
79011	Cover Sub-assy, NO.1 Seat Cushion, RH
79012	Cover Sub-assy, NO.1 Seat Cushion, LH
79021	Cover Sub-assy, NO.2 Seat Cushion, RH
79022	Cover Sub-assy, NO.2 Seat Cushion, LH
79023	Cover Sub-assy, NO.2 Seatback, RH
79024	Cover Sub-assy, NO.2 Seatback, LH
79030A	Leg Assy, Rear NO.1 Seat, Inner RH
79040A	Leg Assy, Rear NO.1 Seat, Inner LH
79110A	Leg Assy, NO.1 Seat, RH
79117A	Carpet, Rear NO.2 Seat Cushion, RH
79120B	Leg Assy, NO.1 Seat, LH
79134	Leg, NO.1 Seat Connector, NO.1
79135A	Pad, NO.1 Seat Cushion, RH
79136B	Pad, NO.1 Seat Cushion, LH
79139C	Cloth, NO.3 Seat Cushion
79139H	Cloth, NO.3 Seat Cushion
79160A	Spring Assy, NO.1 Seat Cushion, RH
79170A	Spring Assy, NO.1 Seat Cusuion, LH
79175E	Pad, NO.1 Seatback, RH
79185	Pad, NO.1 Seatback, LH
79187	Cover, NO.1 Seat Inner Bracket
79203A	Frame Sub-assy, NO.2 Seatback, RH
79204A	Frame Sub-assy, NO.2 Seatback, LH
79205	Leg Sub-assy, NO.2 Seat
79206	Bracket Sub-assy, NO.2 LH Seat, LH
79220	Cushion Assy, NO.2 Seat, RH
79220B	Clip, NO.2 Seat Cushion
79225B	Carpet, Rear NO.2 Seat Cushion, LH
79230	Cushion Assy, NO.2 Seat, LH
79235	Pad, NO.2 Seat Cushion
79236A	Cover, NO.2 Seat Leg
79240	Back Assy, NO.2 Seat, RH
79250	Back Assy, NO.2 Seat, LH
79260	Spring Assy, NO.2 Seat Cushion
79270	Box Assy, NO.2 Seat, LH
79275	Pad, NO.2 Seatback
79337	Carpet, NO.2 Seat Cushion Under, RH
79347	Carpet, NO.2 Seat Cushion Under, LH
79367	Cover, NO.3 Seat Leg, NO.2
79372B	Cover, NO.2 Seat Front Bracket, RH
79378A	Cover, NO.3 Seat Cushion Hinge, RH
79378B	Cover, NO.3 Seat Cushion Hinge, LH
79382C	Cushion, NO.2 Seat
79382D	Cover, NO.2 Seat Front Bracket, LH
79956B	Cover, Rear Seat Leg Side, RH
79956C	Cover, Rear Seat Leg Side, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
