Toyota Land Cruiser 90
1996-04 → 2008-12 · chassis KZJ9#,LJ9#,RZJ9#,VZJ9# · catalogue 781340 · General
Discontinued model
Data version 2009-04
Armrest & Visor

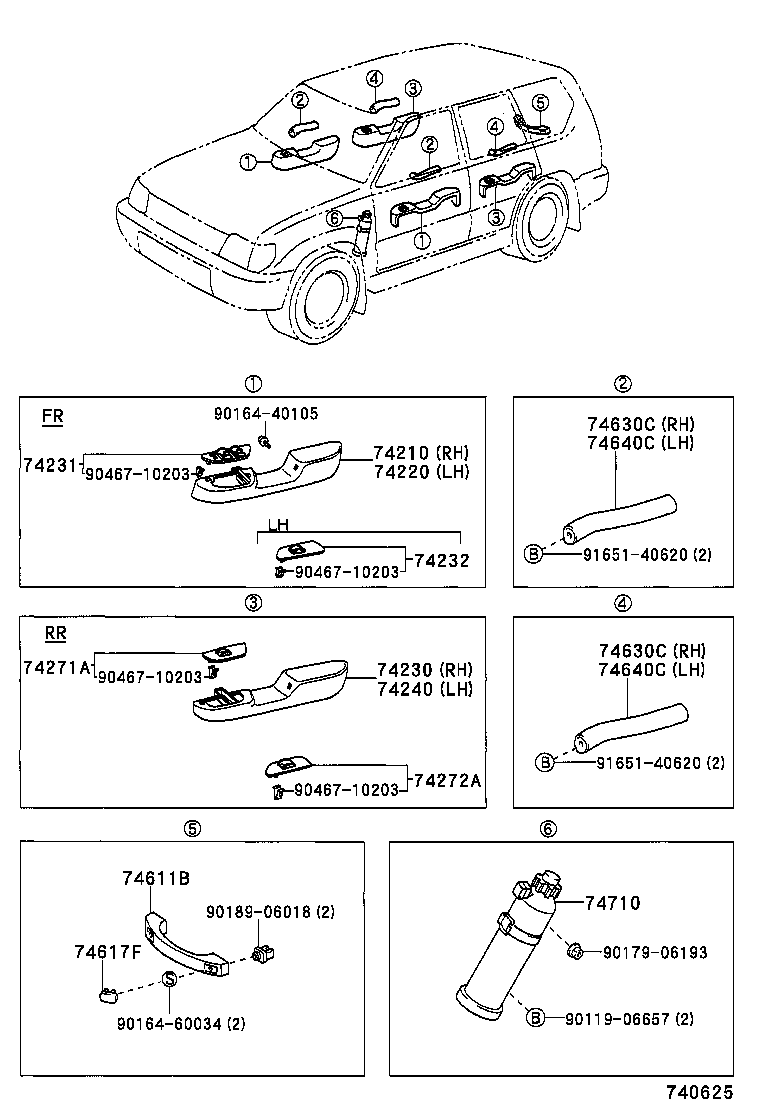

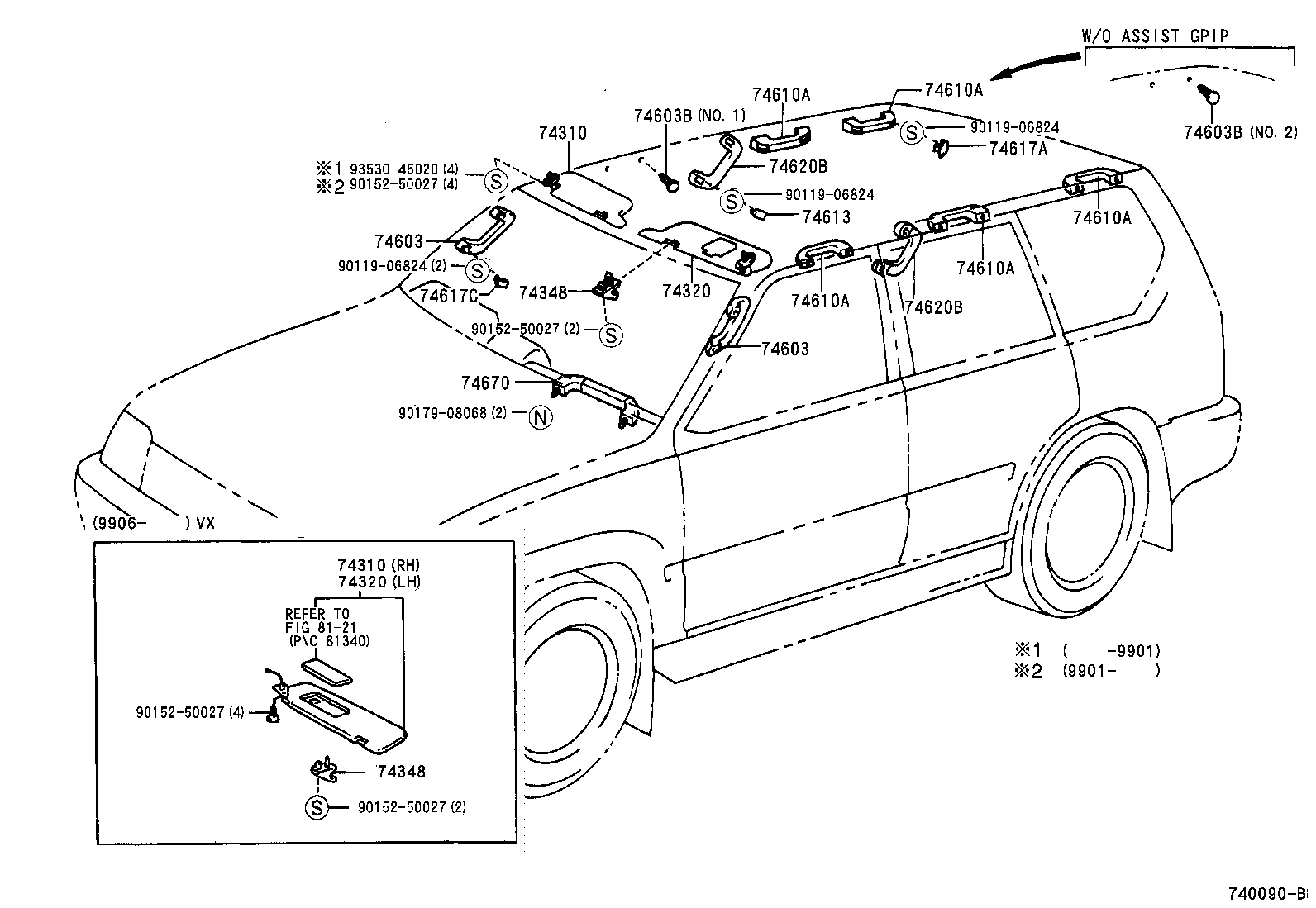

24 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 74210 | Armrest Assy, Front, RH |
| 74220 | Armrest Assy, Front, LH |
| 74230 | Armrest Assy, Rear, RH |
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74240 | Armrest Assy, Rear, LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74603 | Grip Sub-assy, Assist, Front |
| 74603B | Clip (FOR ASSIST GRIP) |
| 74610A | Grip Sub-assy, Assist |
| 74611B | Grip, Assist |
| 74613 | Plug, Assist Grip |
| 74617A | Plug, Assist Grip |
| 74617C | Plug, Assist Grip |
| 74617F | Plug, Assist Grip |
| 74620B | Grip Assy, Assist, Rear |
| 74630C | Grip Assy, Door Assist, RH |
| 74640C | Grip Assy, Door Assist, LH |
| 74670 | Grip Assy, Instrument Assist |
| 74710 | Extinguisher Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
