Toyota Land Cruiser 90

1996-04 → 2008-12 · chassis KZJ9#,LJ9#,RZJ9#,VZJ9# · catalogue 781340 · General

Discontinued model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

13 part groups · 12 illustrations

Illustrations

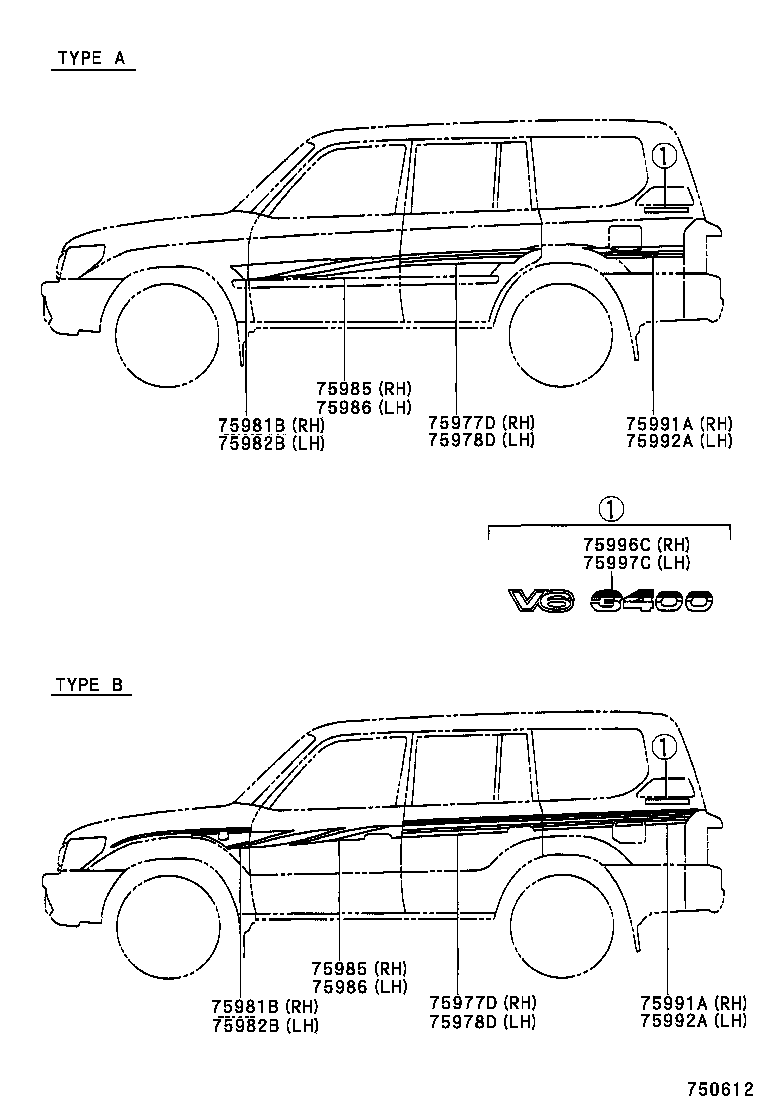

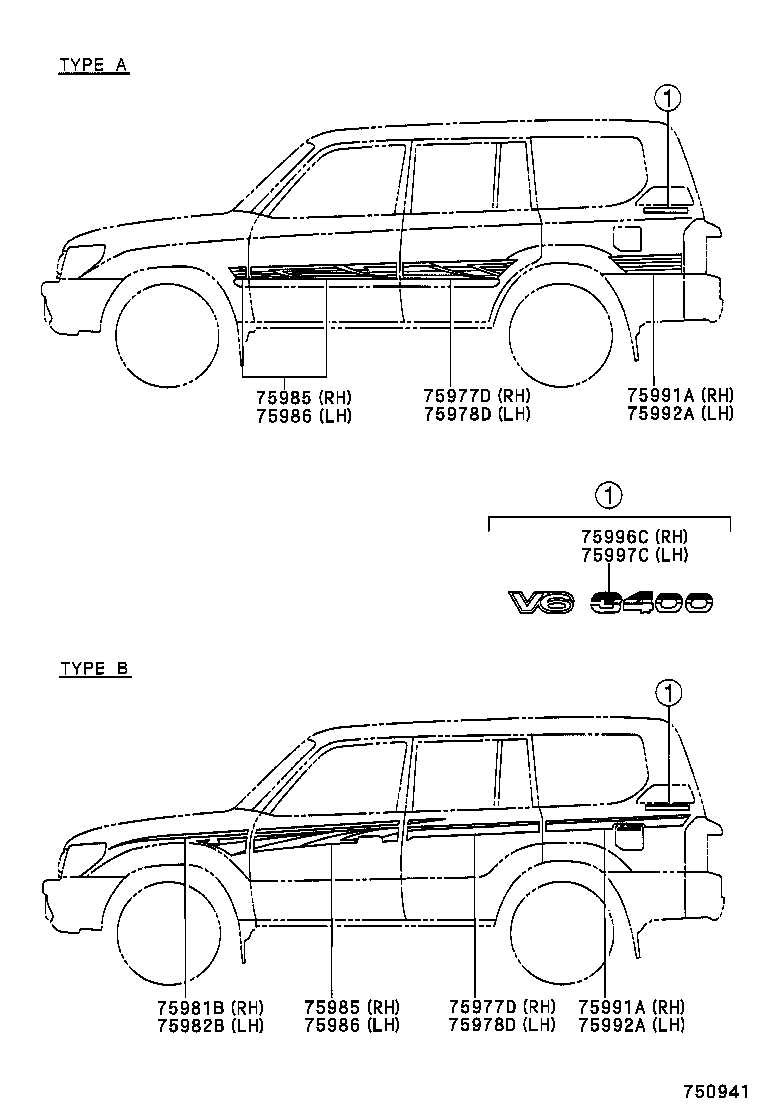

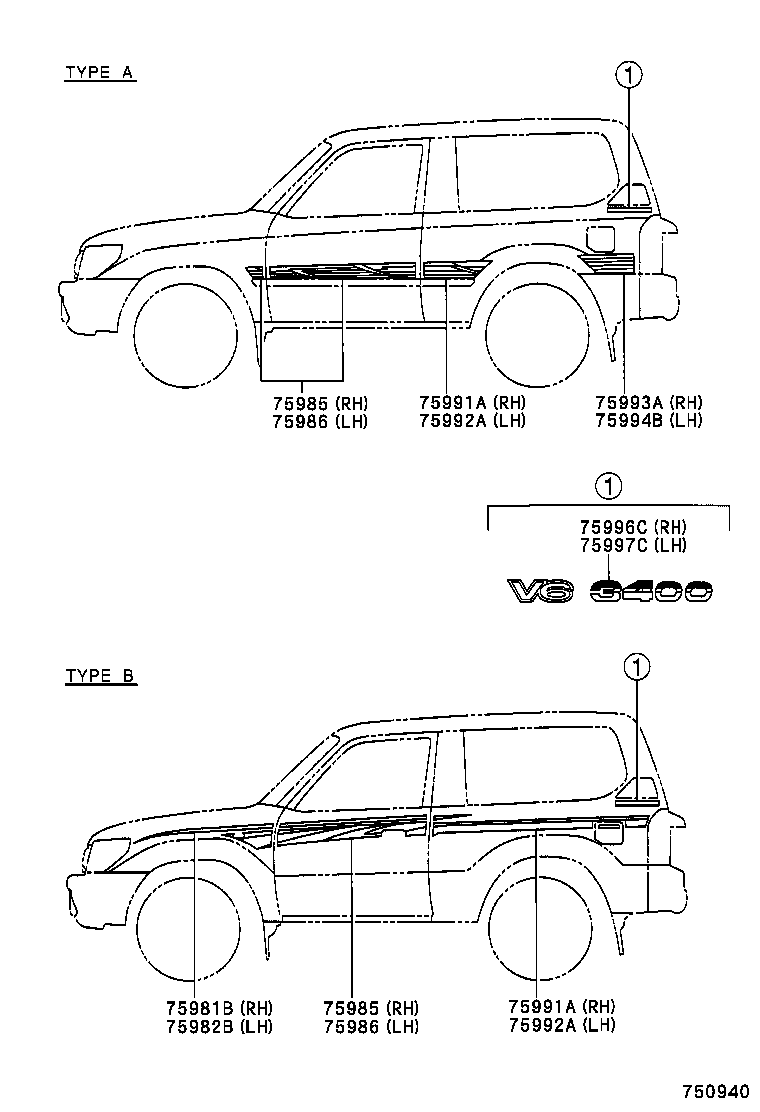

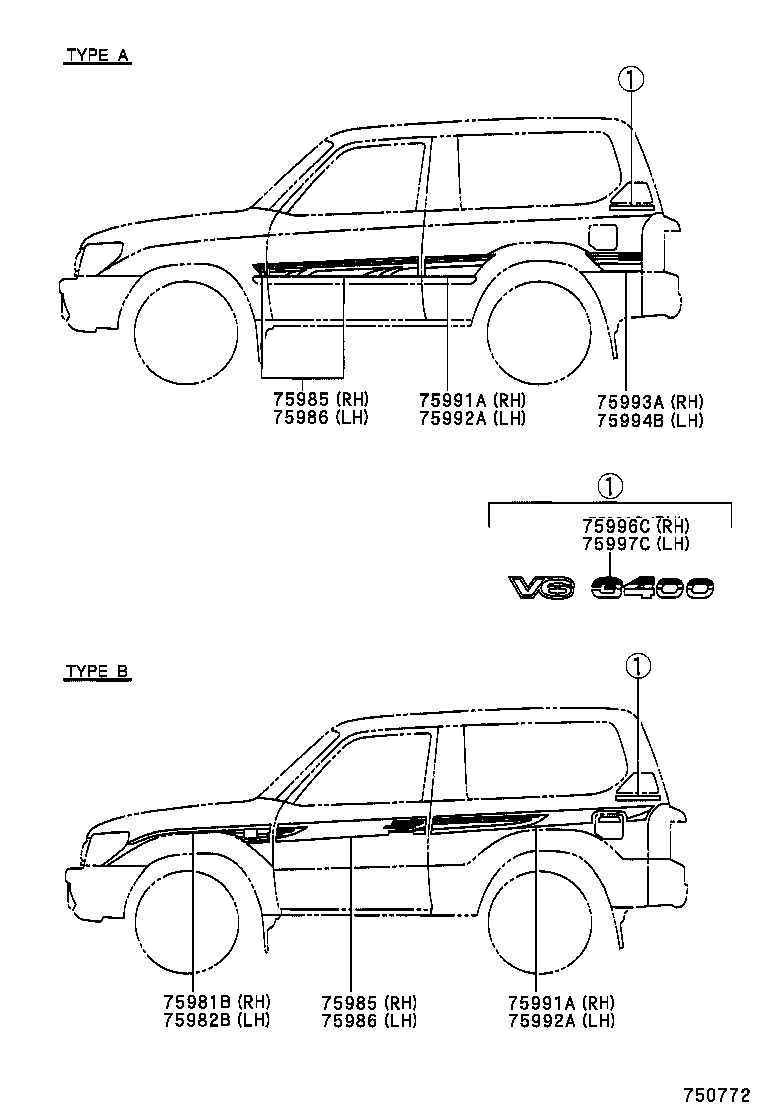

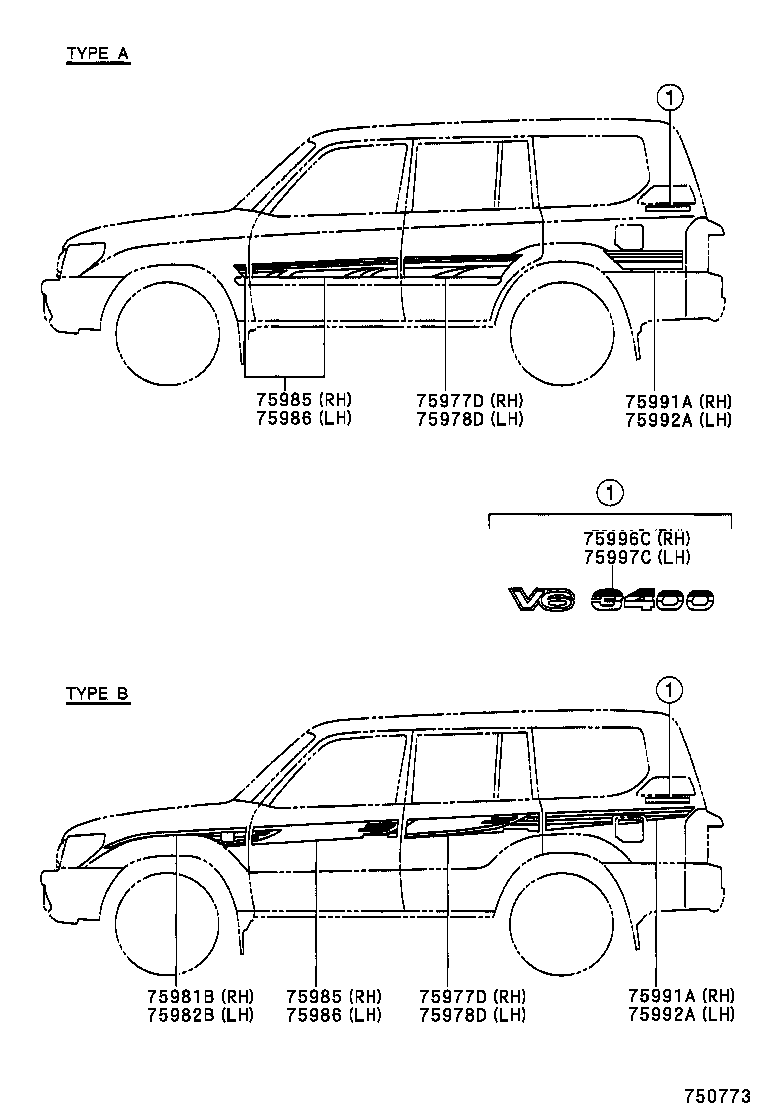

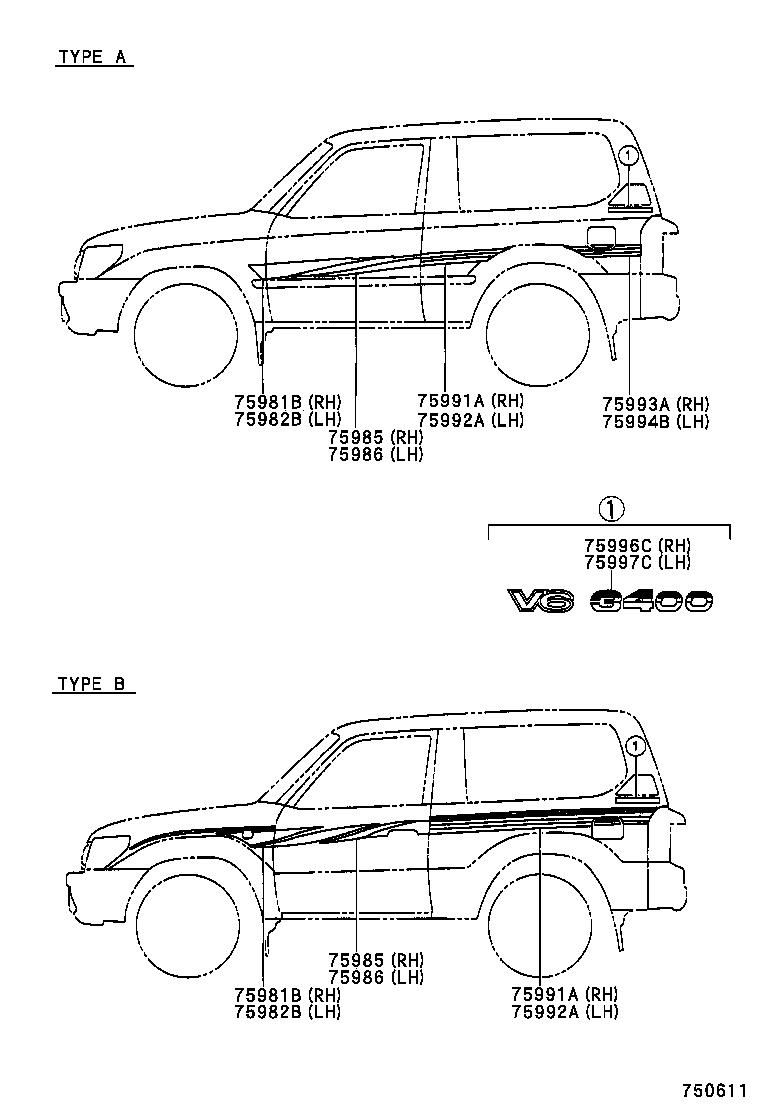

Figure 750003B 750003B 1996-04 → 1998-01 Figure 750004A 750004A 1996-04 → 1998-01 Figure 750421 750421 1998-01 → 1999-06 Figure 750421 750421 1999-06 → 1999-10 Figure 750420 750420 1998-01 → 1999-06 Figure 750420 750420 1999-06 → 1999-10 Figure 750611 750611 1999-06 → 2000-08 Figure 750612 750612 1999-06 → 2000-08 Figure 750772 750772 2000-08 → 2001-08 Figure 750773 750773 2000-08 → 2001-08 Figure 750940 750940 2001-08 → — Figure 750941 750941 2001-08 → —

Part groups

PNCDescription
75977D Stripe, Rear Door, RH
75978D Stripe, Rear Door, LH
75979 Stripe, Fuel Filler Opening Lid
75981B Stripe, Fender, RH
75982B Stripe, Fender, LH
75985 Stripe, Front Door, RH
75986 Stripe, Front Door, LH
75991A Stripe, Quarter, RH
75992A Stripe, Quarter, LH
75993A Stripe, Quarter, Rear RH
75994B Strip, Quarter, Rear LH
75996C Stripe, Rear Body, RH
75997C Stripe, Rear Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
