Toyota Land Cruiser 90

1996-04 → 2008-12 · chassis KZJ9#,LJ9#,RZJ9#,VZJ9# · catalogue 781340 · General

Discontinued model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

21 part groups · 13 illustrations

Illustrations

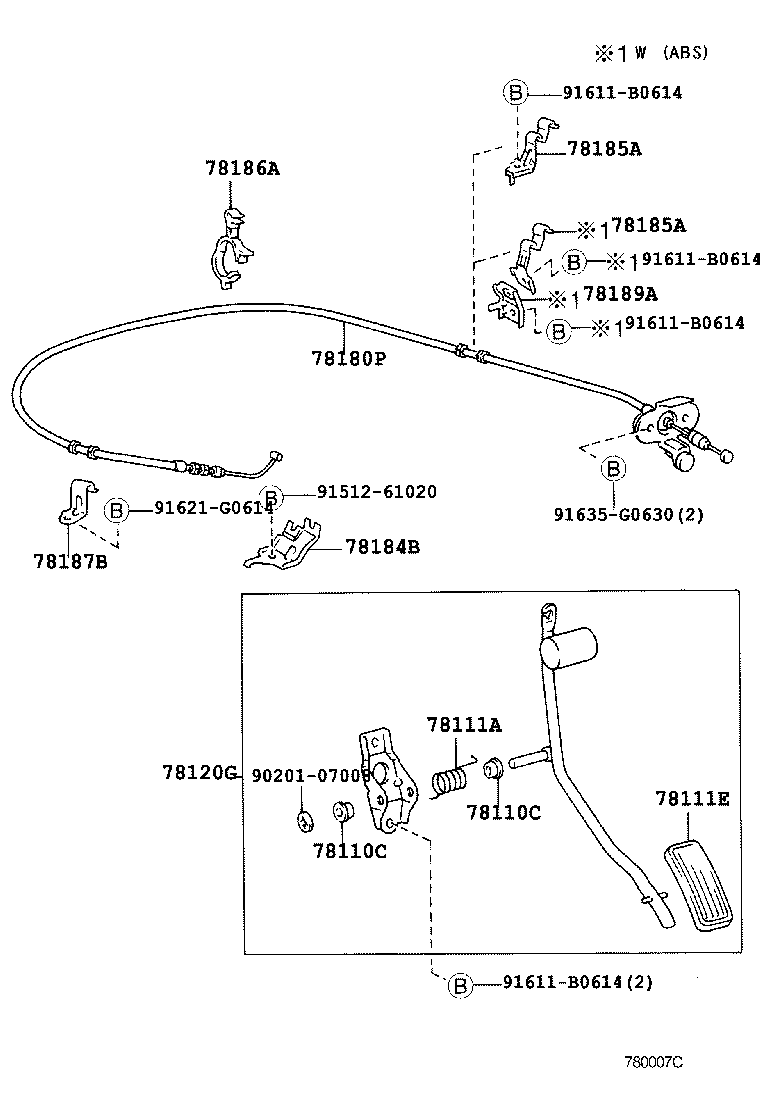

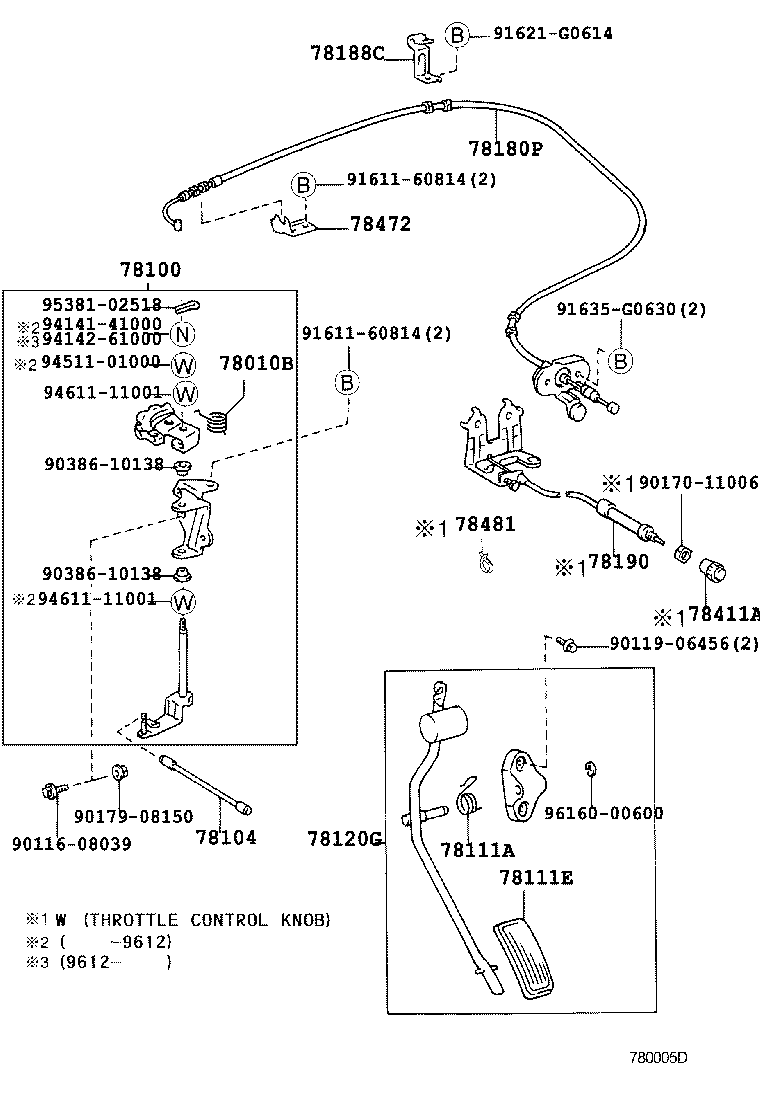

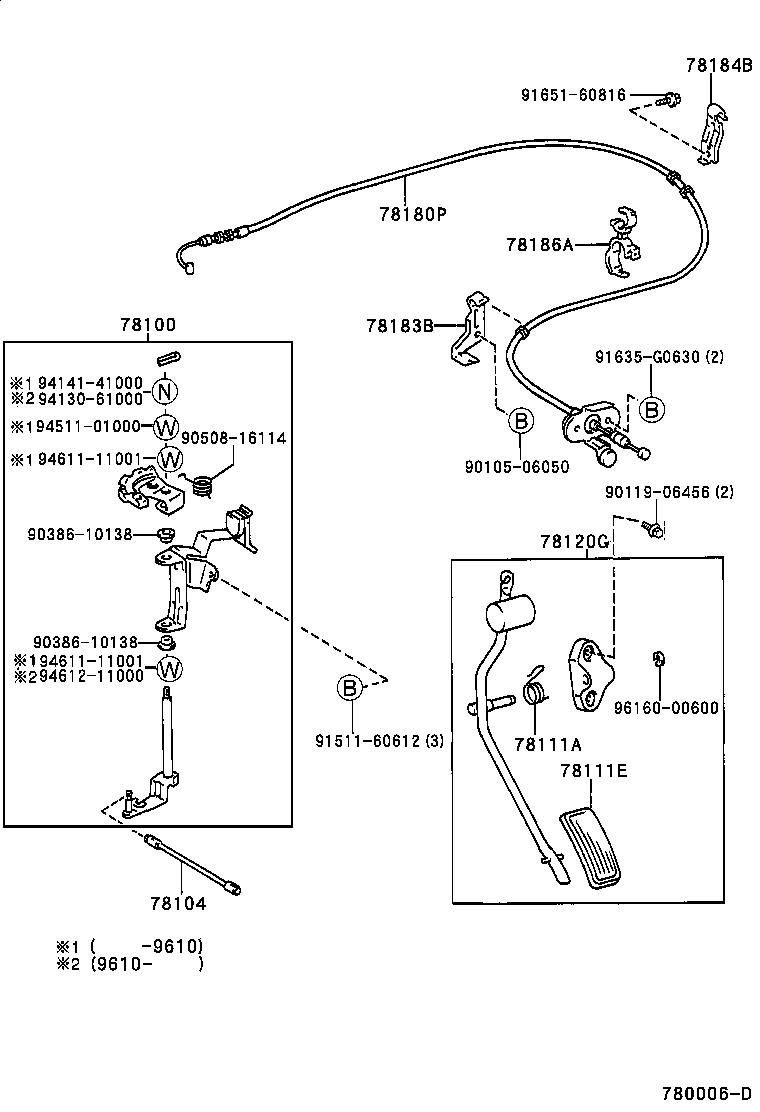

Figure 780004B 780004B 1996-04 → — Figure 780005D 780005D 1996-04 → — Figure 780006D 780006D 1996-04 → 1999-06 Figure 780006D 780006D 1999-06 → 2000-08 Figure 780541A 780541A 1999-06 → — Figure 780444A 780444A 1999-10 → 2000-08 Figure 780007C 780007C 1996-04 → — Figure 780067A 780067A 1996-08 → — Figure 780008B 780008B 1996-04 → — Figure 780009D 780009D 1996-04 → — Figure 780010A 780010A 1996-04 → — Figure 780011C 780011C 1996-04 → — Figure 780509B 780509B 2000-08 → —

Part groups

PNCDescription
78010B Spring, Torsion (FOR ACCELERATOR LINK)
78024 Bracket Sub-assy, Accelerator Control Cable
78100 Link Assy, Accelerator
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78110C Bush (FOR ACCELERATOR PEDAL ROD)
78111A Spring (FOR ACCELERATOR PEDAL)
78111E Pad, Accelerator Pedal
78120G Rod Assy, Accelerator Pedal
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78186A Clamp, Accelerator Control Cable, NO.3
78187B Bracket, Accelerator Pull Back Spring
78188C Clamp, Accelerator Control Cable, NO.5
78188D Damper, Accelerator Pull Back Spring
78189A Support, Accelerator Control Cable, NO.2
78190 Cable Assy, Accel Control W/Throttle
78411A Knob, Throttle Control Cable
78472 Support, Throttle Control Cable
78481 Clamp, Throttle Wire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
