Toyota Land Cruiser 90

1996-04 → 2008-12 · chassis KZJ9#,LJ9#,RZJ9#,VZJ9# · catalogue 781340 · General

Discontinued model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

49 part groups · 23 illustrations

Illustrations

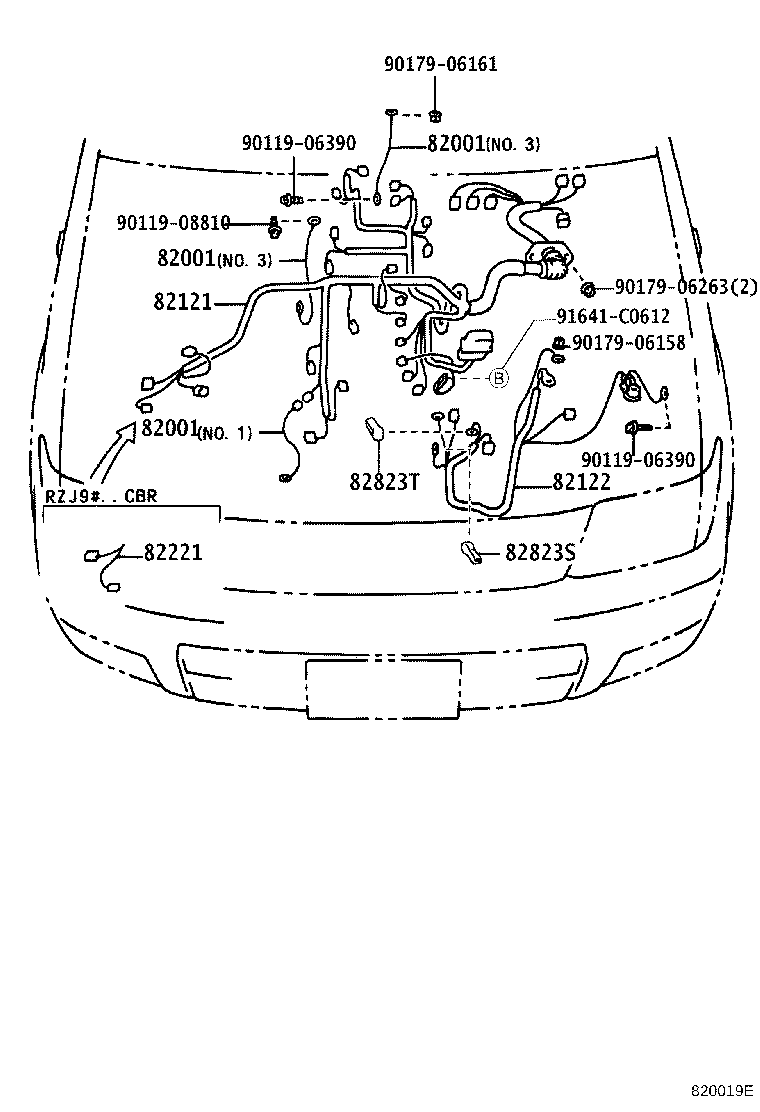

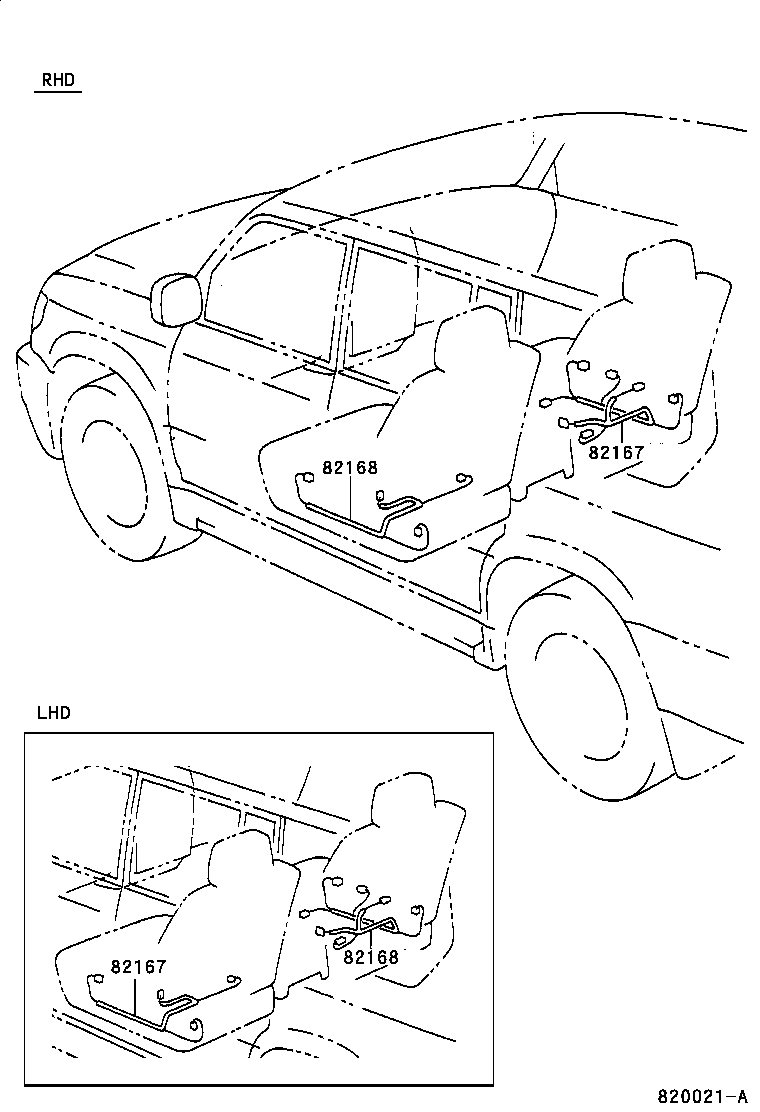

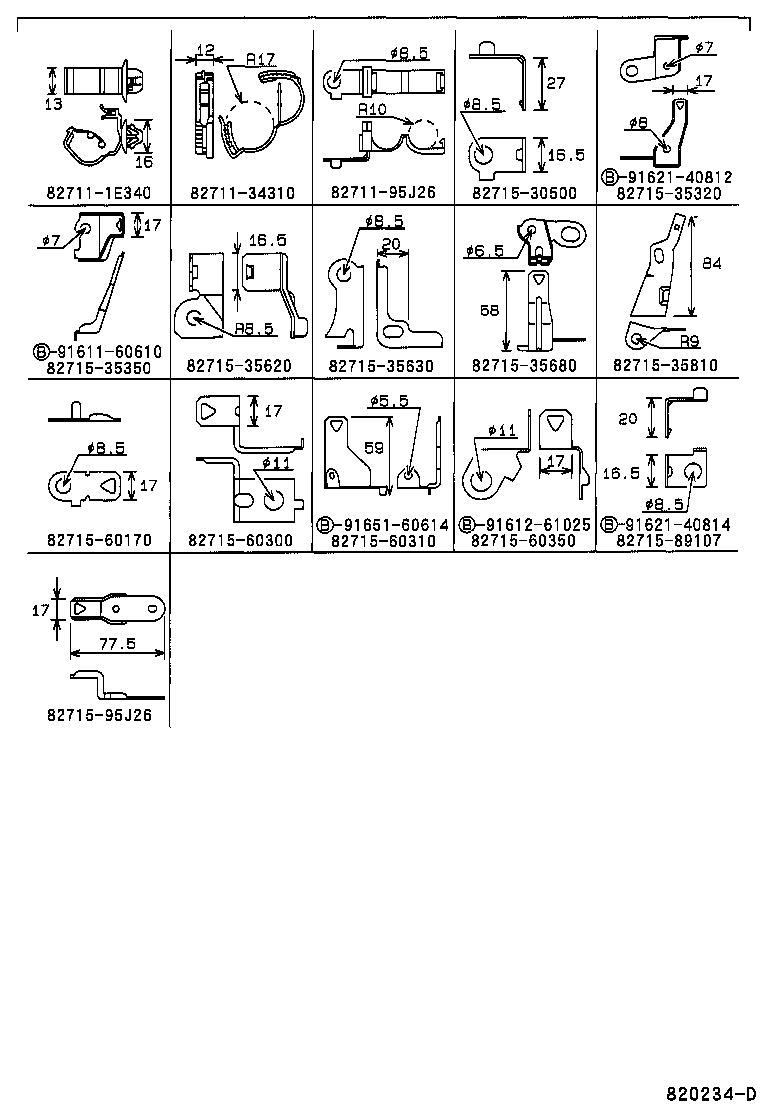

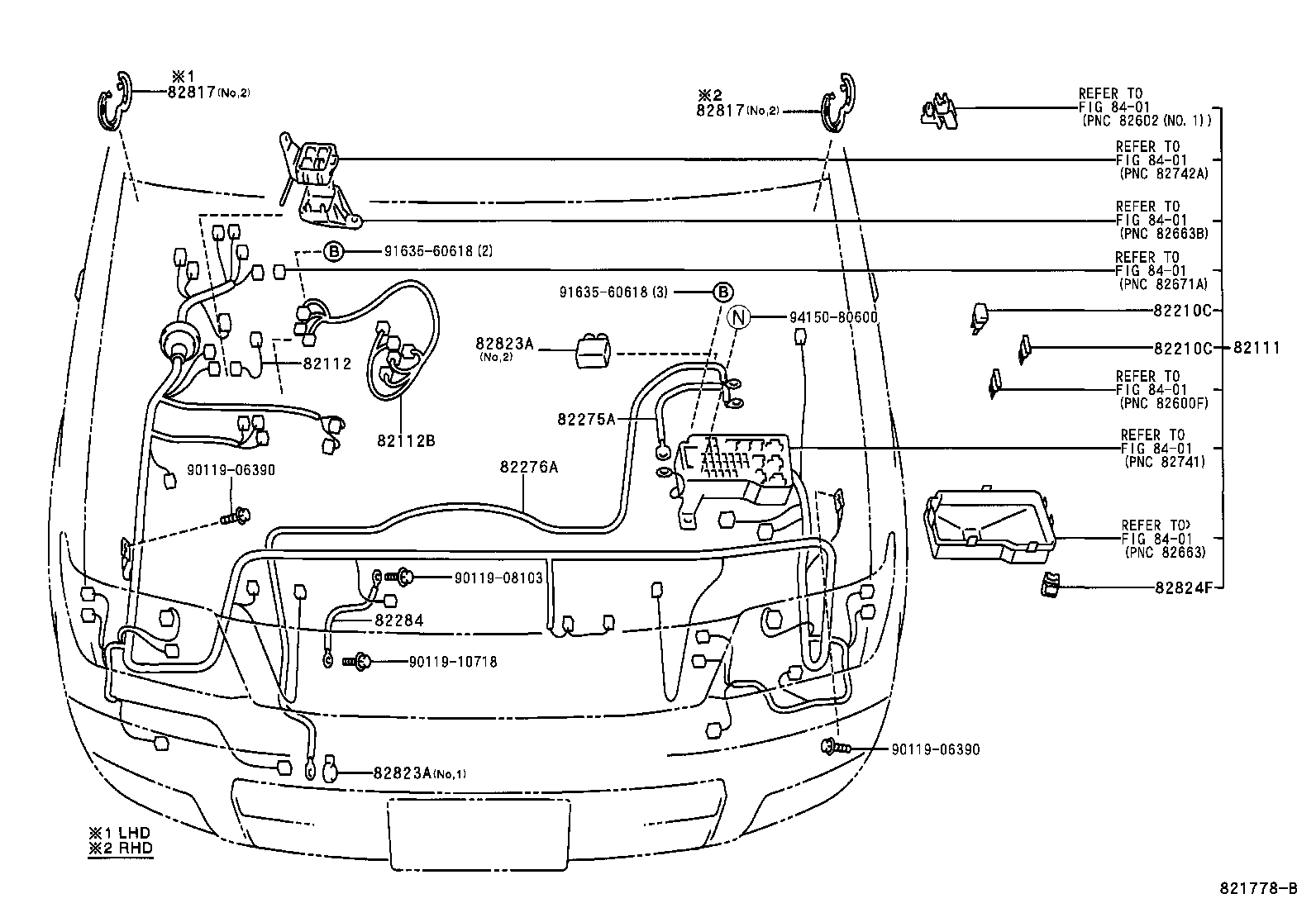

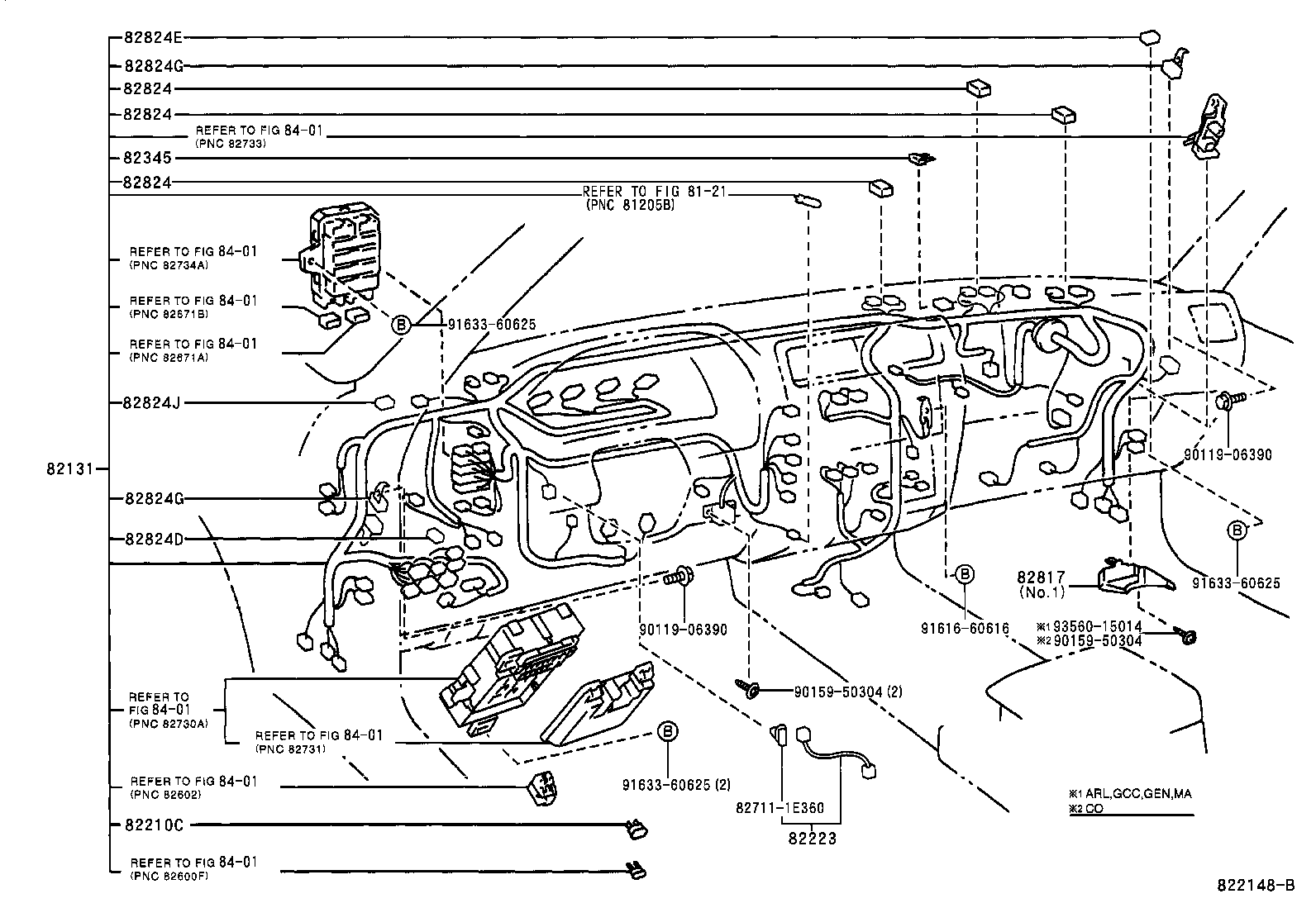

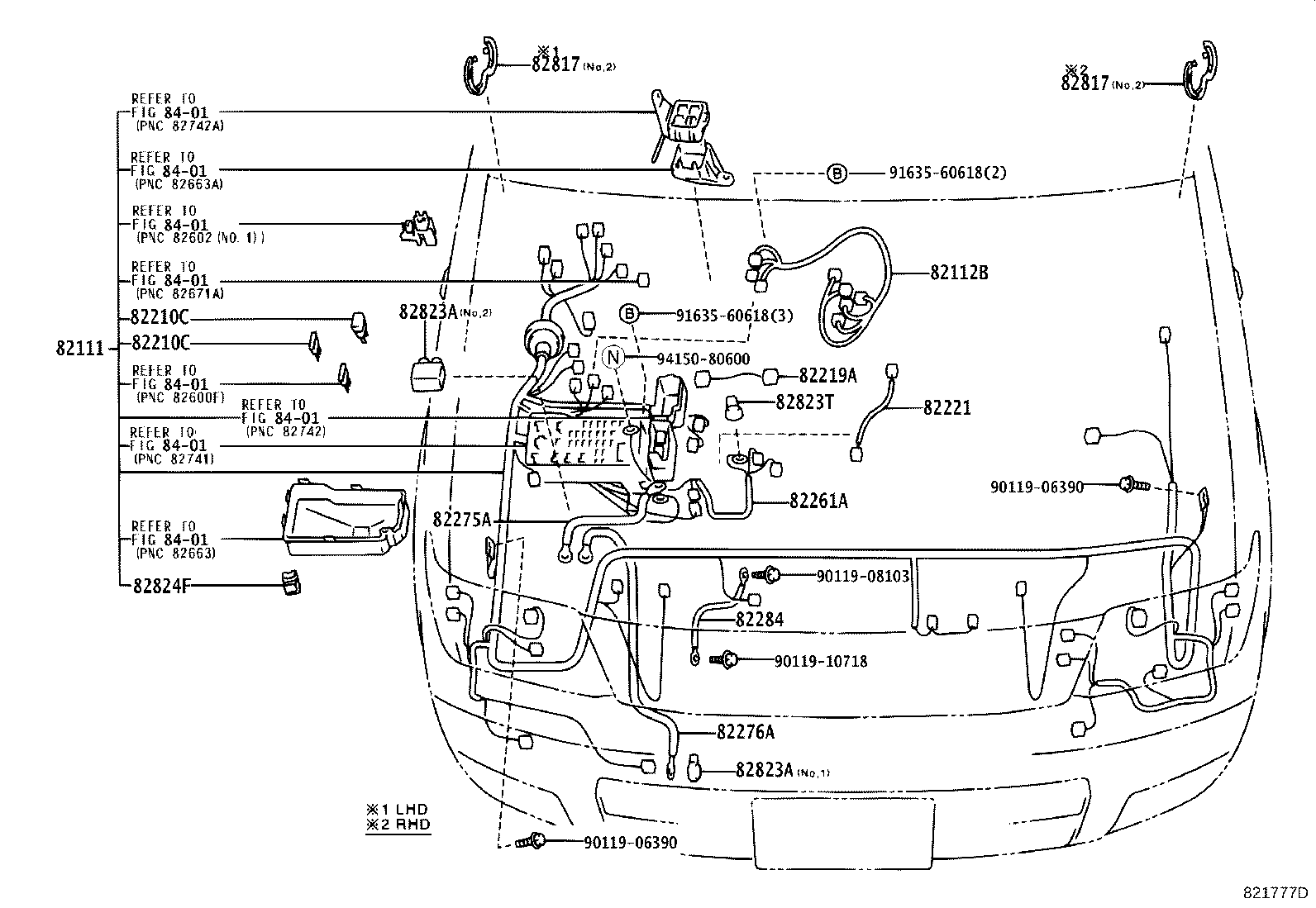

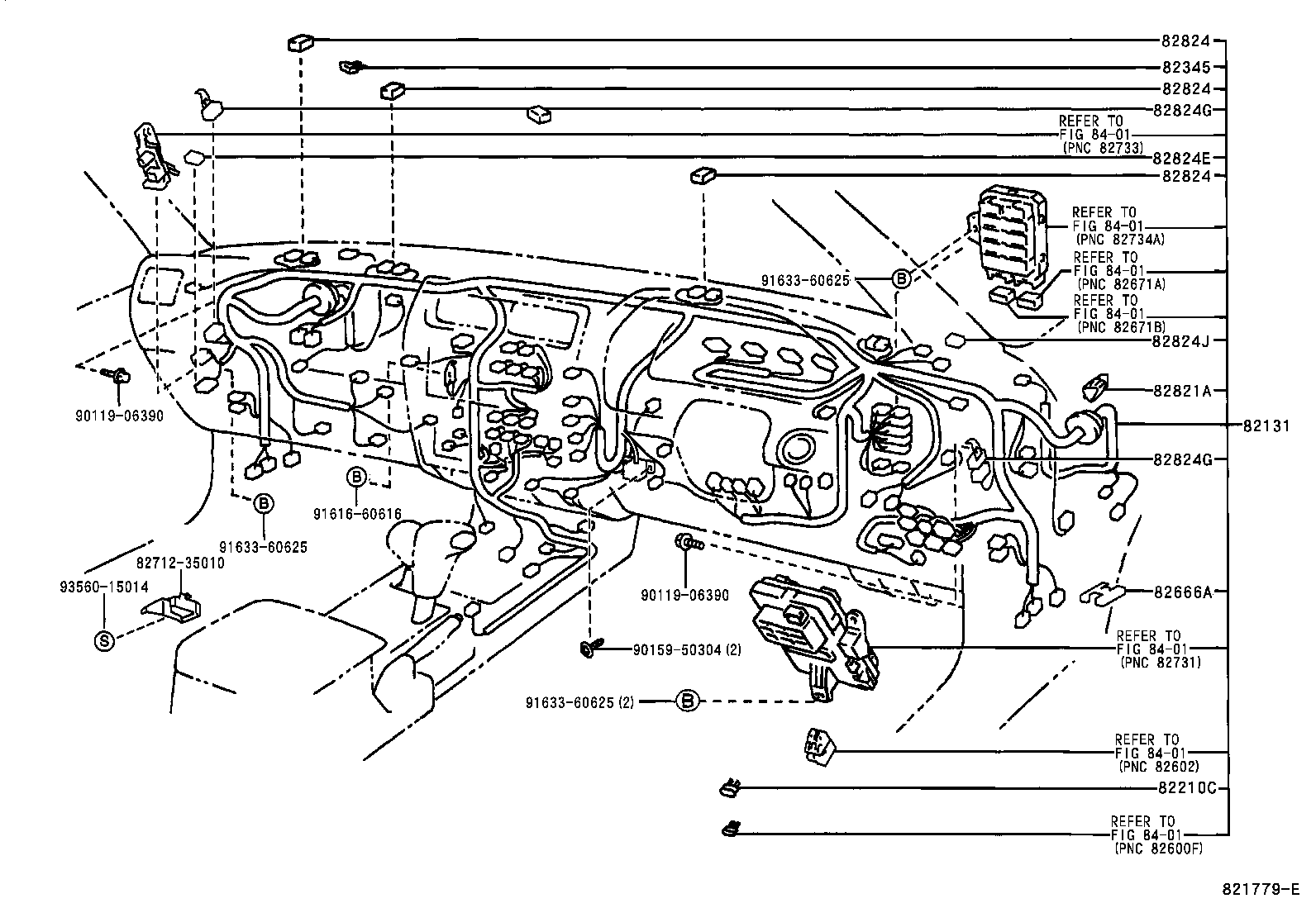

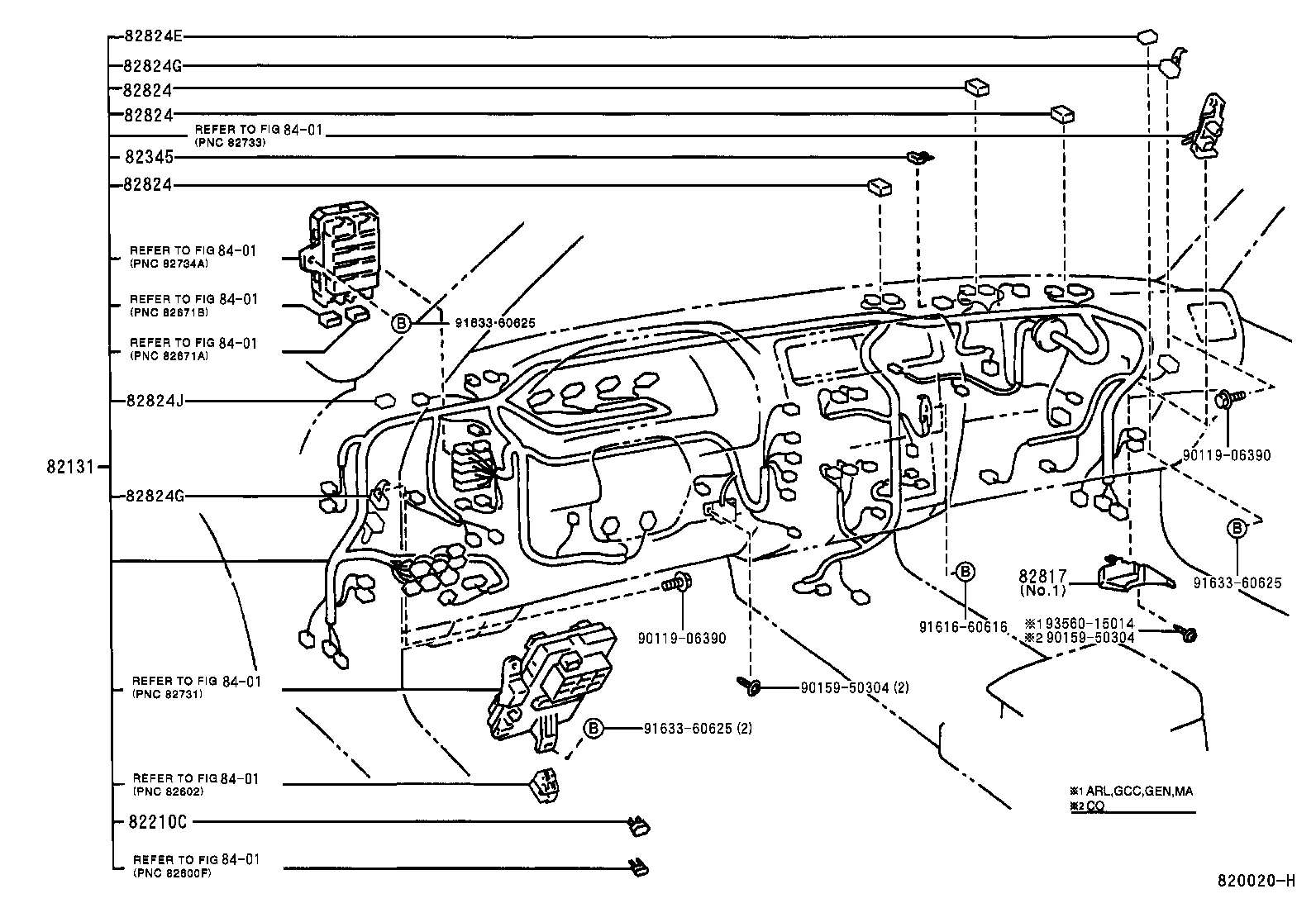

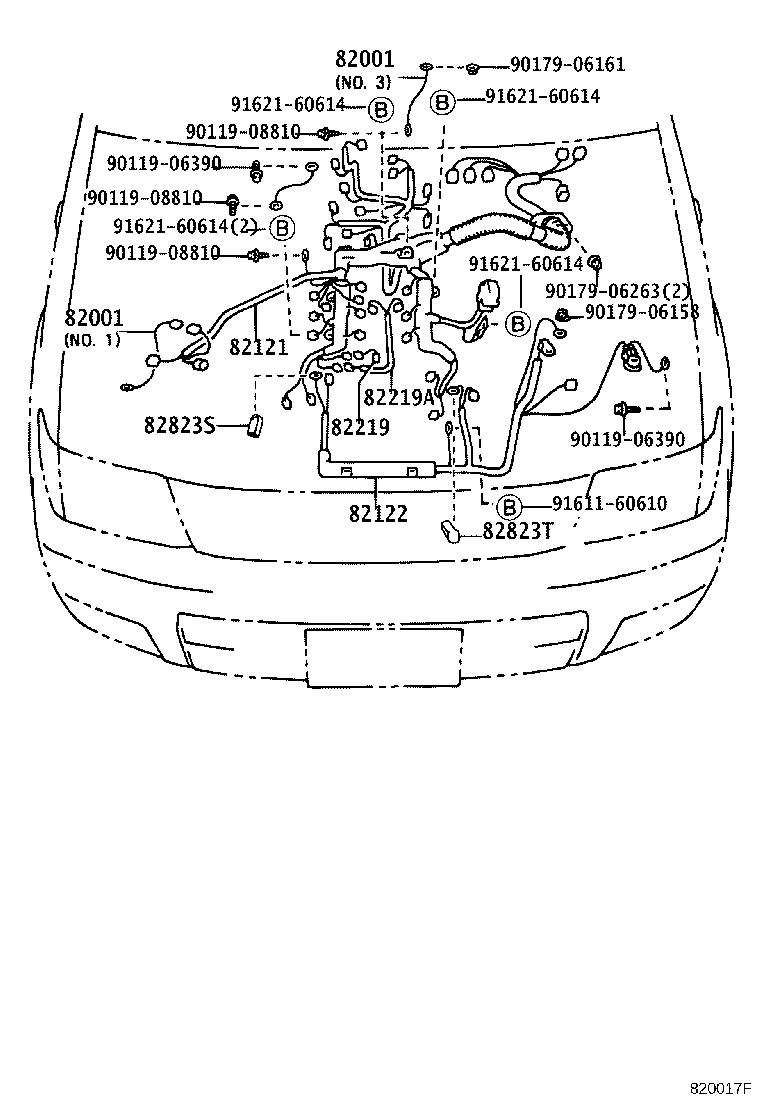

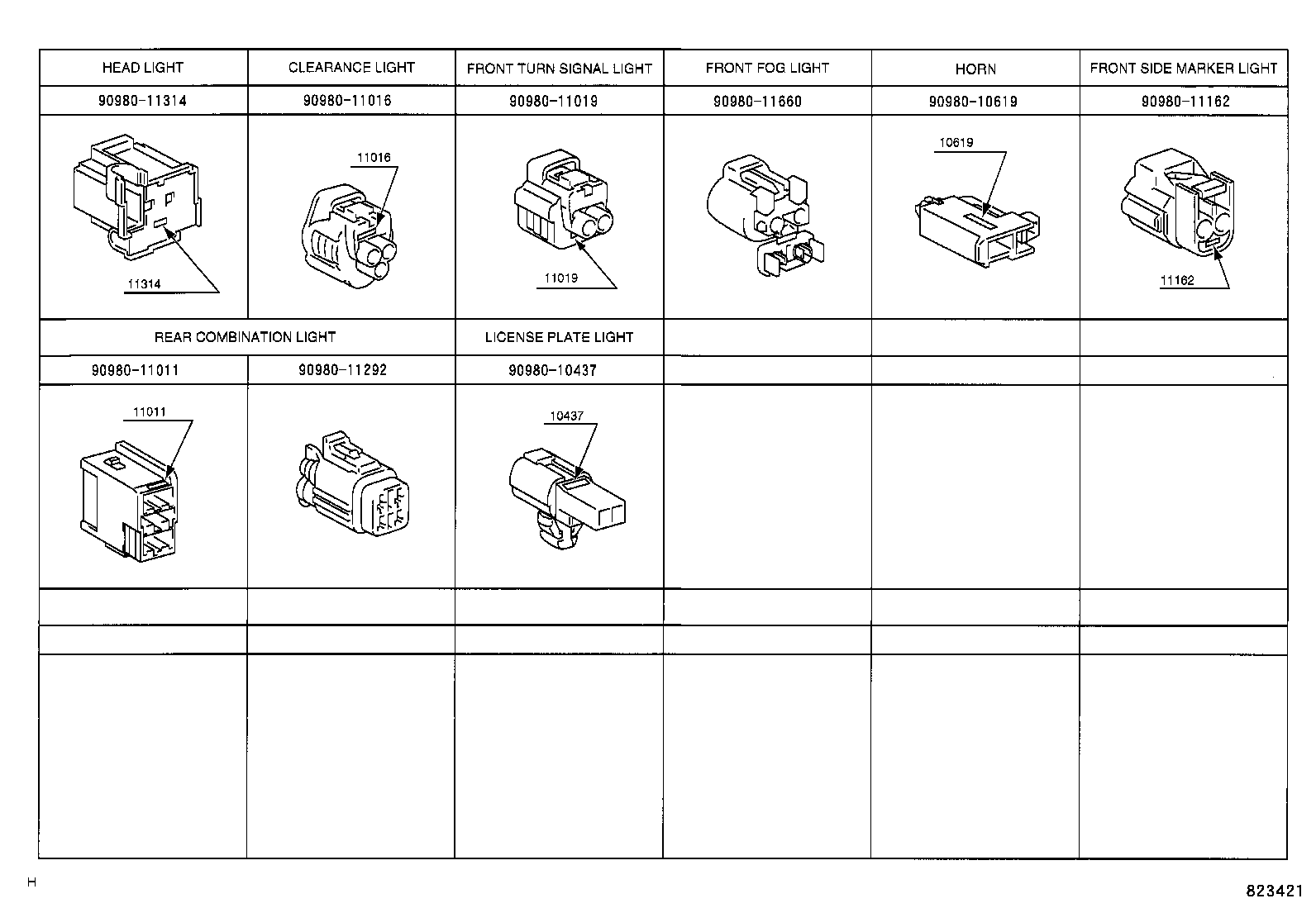

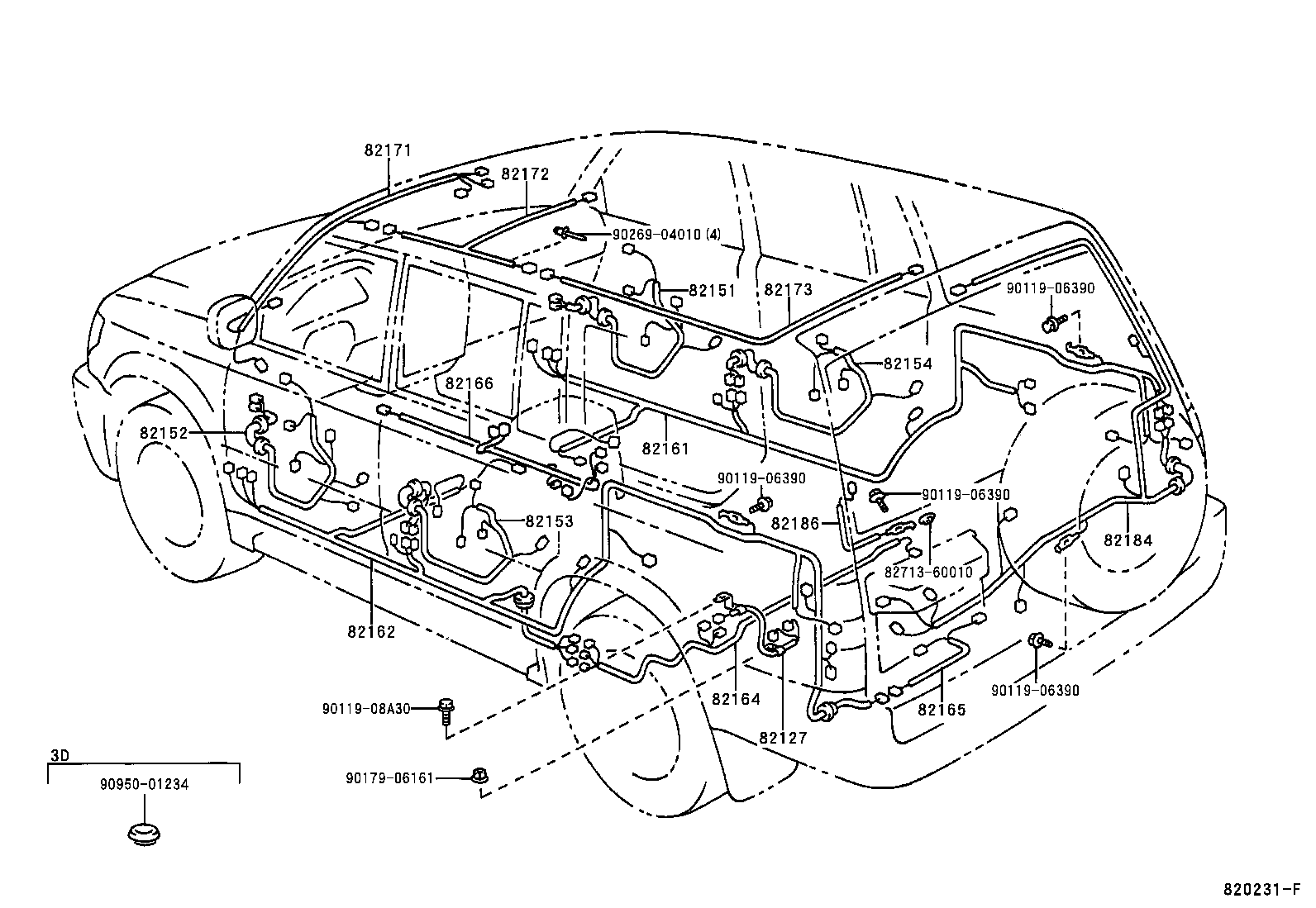

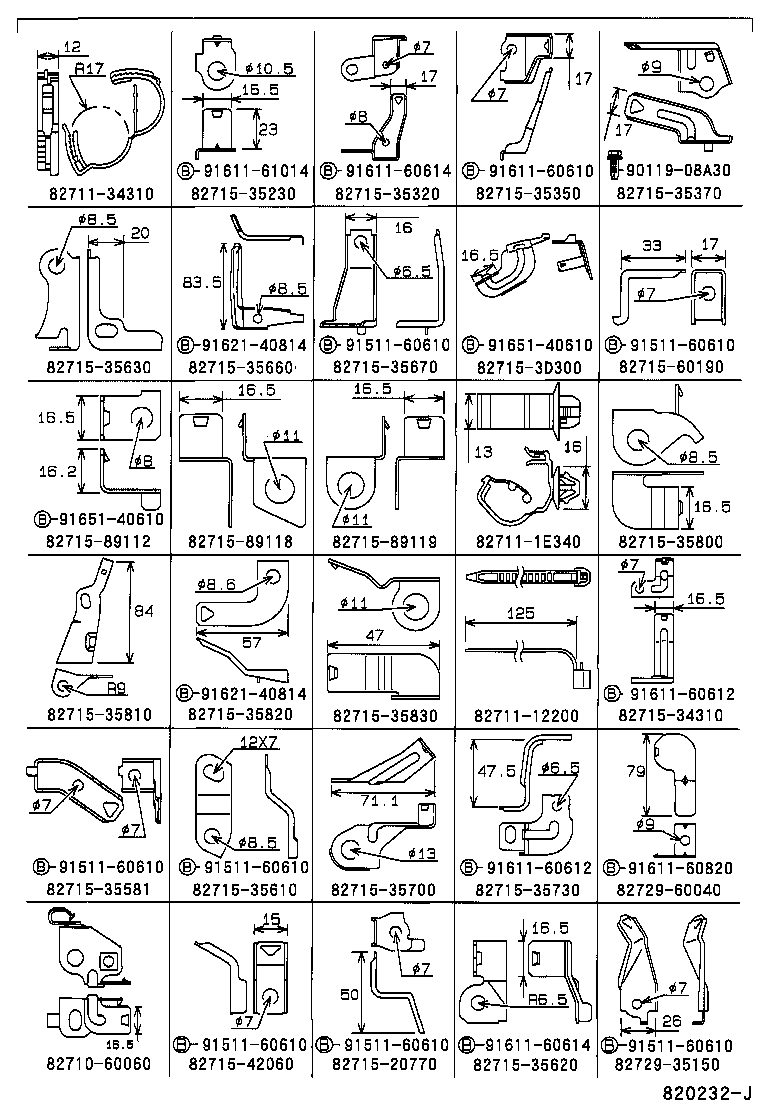

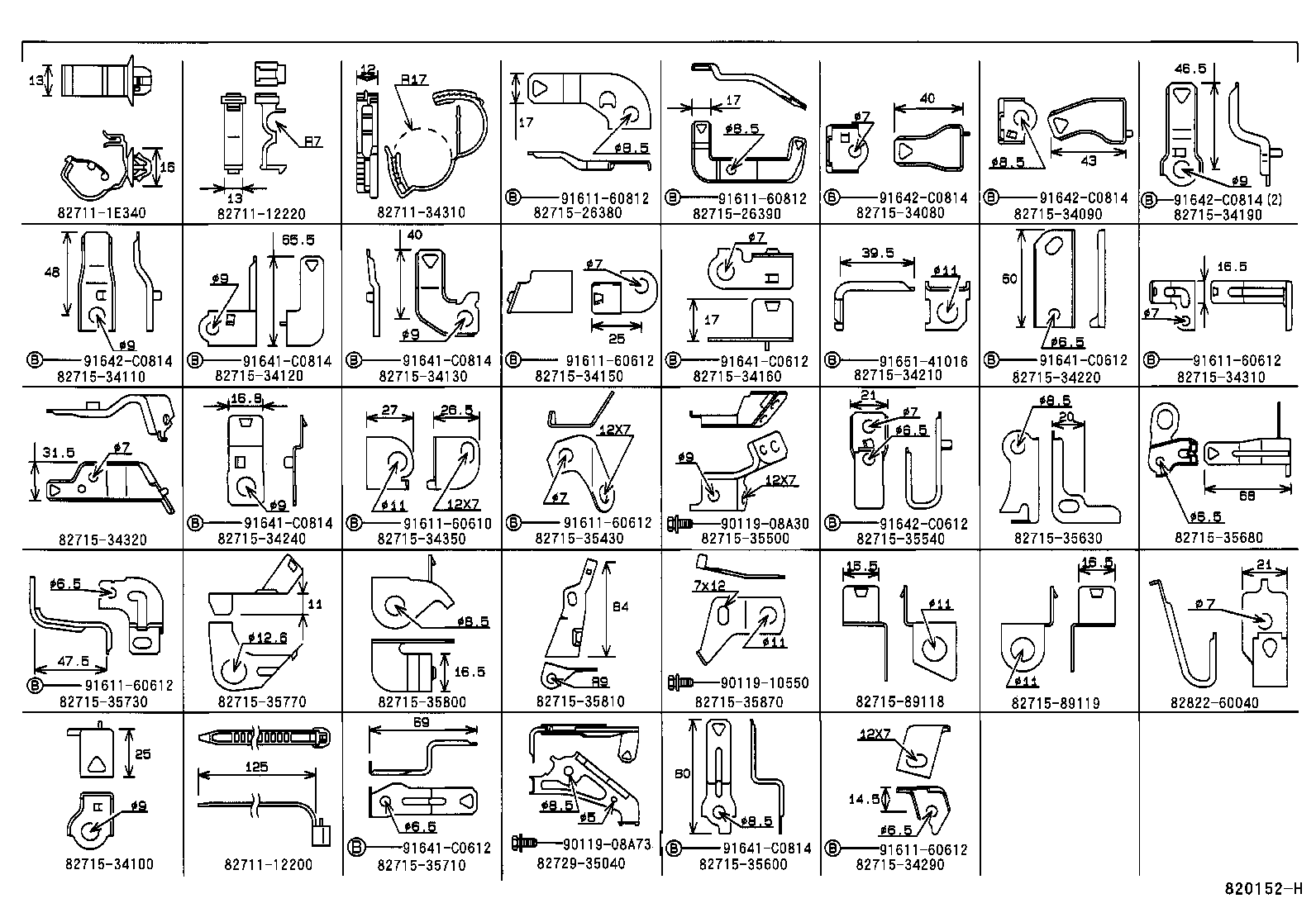

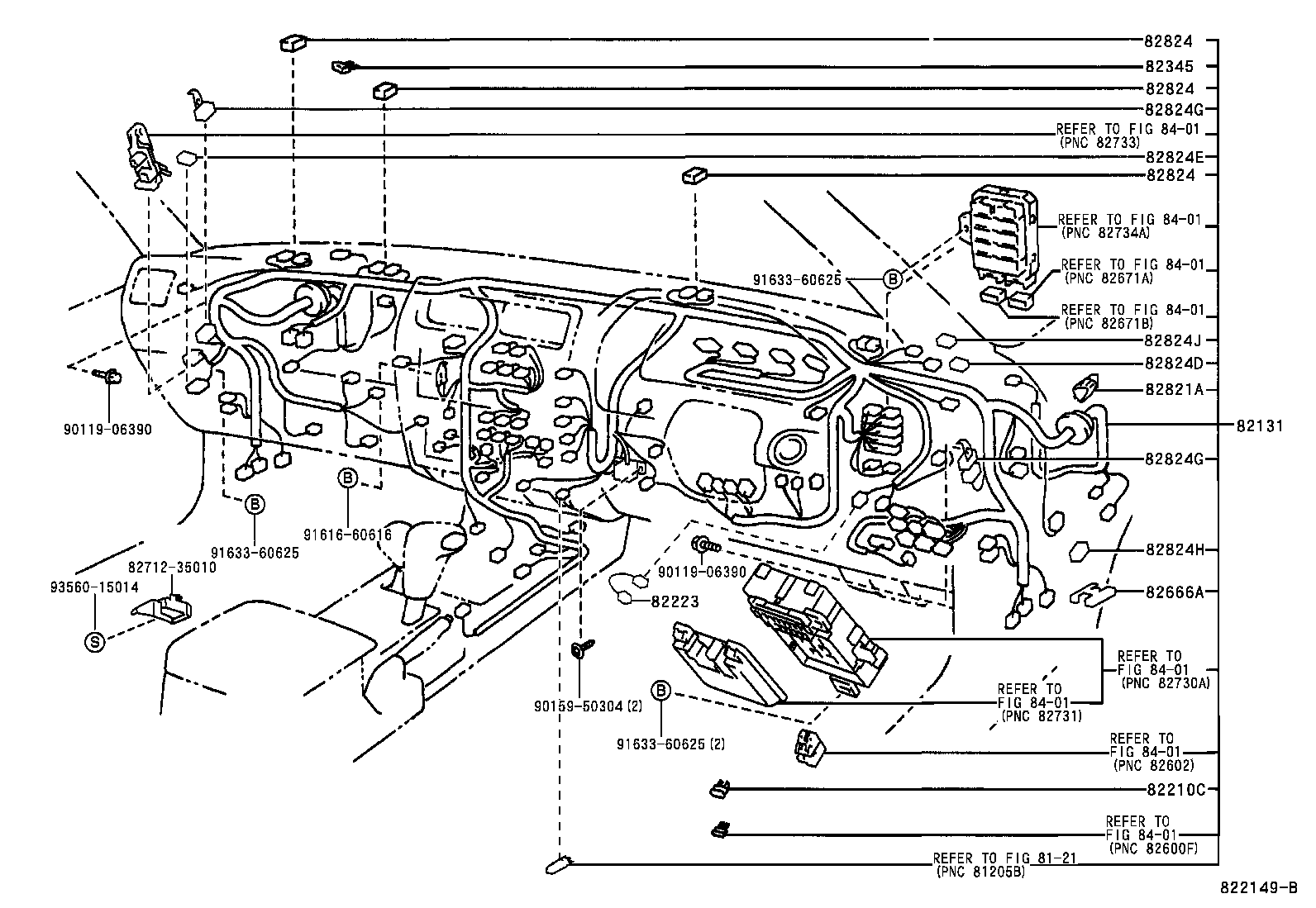

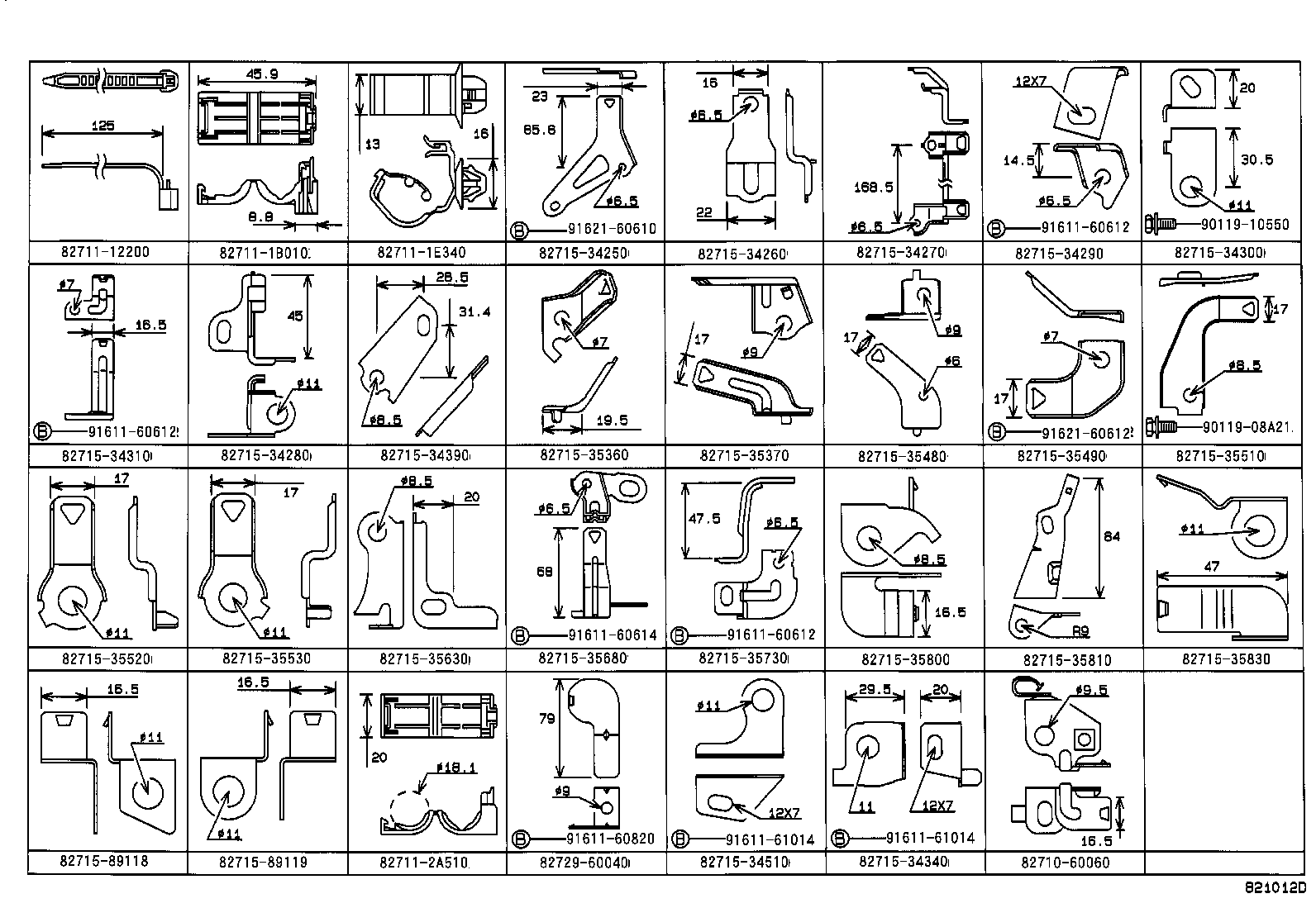

Figure 820230J 820230J 1996-04 → 1999-06 Figure 820230J 820230J 1999-06 → — Figure 821777D 821777D 1999-06 → — Figure 821778B 821778B 1999-06 → — Figure 820016D 820016D 1996-04 → — Figure 820017F 820017F 1996-04 → — Figure 820018C 820018C 1996-04 → — Figure 820019E 820019E 1996-04 → — Figure 820020H 820020H 1996-04 → 1999-06 Figure 822148B 822148B 1999-06 → — Figure 821779E 821779E 1996-04 → 1999-06 Figure 822149B 822149B 1999-06 → — Figure 820021A 820021A 1996-04 → — Figure 820231F 820231F 1996-04 → — Figure 821723B 821723B 1996-04 → — Figure 820234D 820234D 1996-04 → — Figure 820152H 820152H 1996-04 → — Figure 821012D 821012D 1996-04 → — Figure 820232J 820232J 1996-04 → — Figure 820235D 820235D 1996-04 → — Figure 820236A 820236A 1996-04 → — Figure 820030 820030 1996-04 → — Figure 823421 823421 1996-04 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82112B Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82127 Wire, Differential
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82165 Wire, Frame, NO.2
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82210C Fusible Link
82219 Wire, Thermo Sensor
82219A Wire, Sensor
82221 Wire, Oil Pressure Switch
82223 Wire, Switch
82261A Wire, Alternator
82275A Cable, Battery TO Magnet Switch
82276A Cable, Magnet Switch TO Winch
82284 Wire, Earth
82345 Diode
82666A Holder, Connector NO.2
82817 Protector, Wiring Harness, NO.1
82821A Cover, Connector
82823A Cap, Terminal, NO.2
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
