Toyota Land Cruiser 90
1996-04 → 2008-12 · chassis KZJ9#,LJ9#,RZJ9#,VZJ9# · catalogue 781340 · General
Discontinued model
Data version 2009-04
Overdrive & Electronic Controlled Transmission

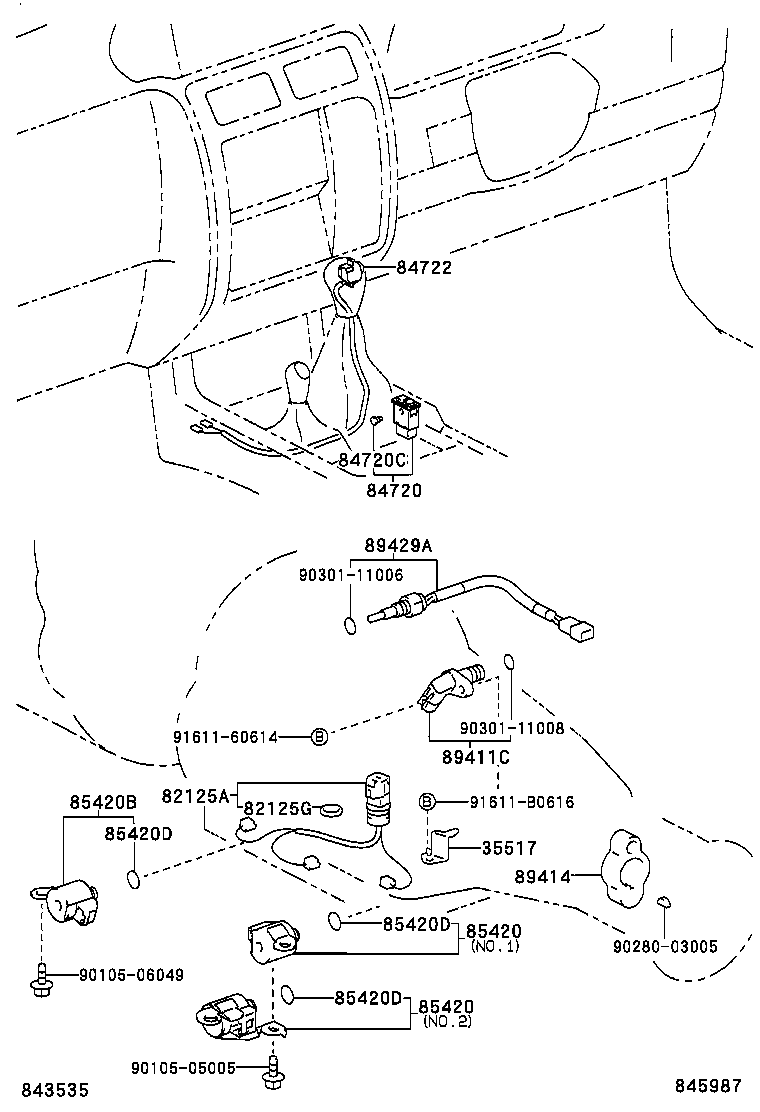

12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 35517 | Plate, Transmission Wire Lock |
| 82125A | Wire, Transmission |
| 82125G | Ring, O(FOR TRANSMISSION WIRE) |
| 84720 | Switch Assy, Pattern Select |
| 84720C | Bulb(FOR PATTERN SELECT SWITCH) |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420B | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 89411C | Sensor, Speed |
| 89414 | Rotor, Sensor |
| 89429A | Sensor, Temperature |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
