Toyota Land Cruiser 90
1996-04 → 2008-12 · chassis KZJ9#,LJ9#,RZJ9#,VZJ9# · catalogue 781340 · General
Discontinued model
Data version 2009-04

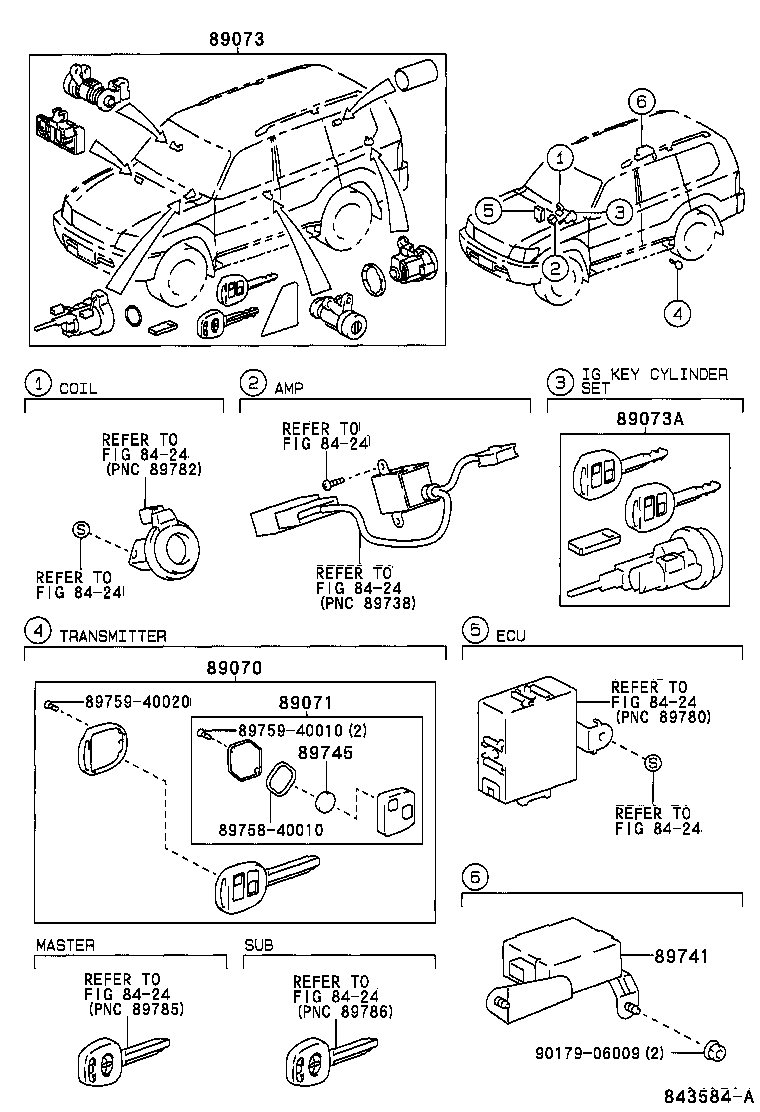

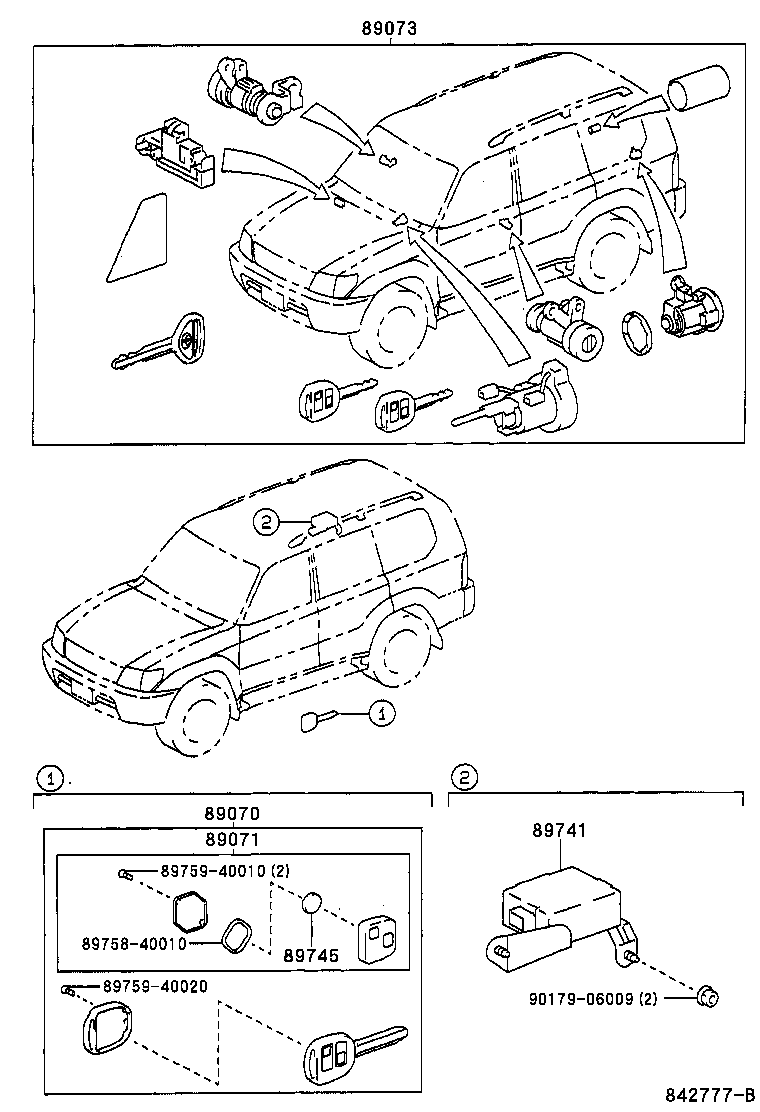

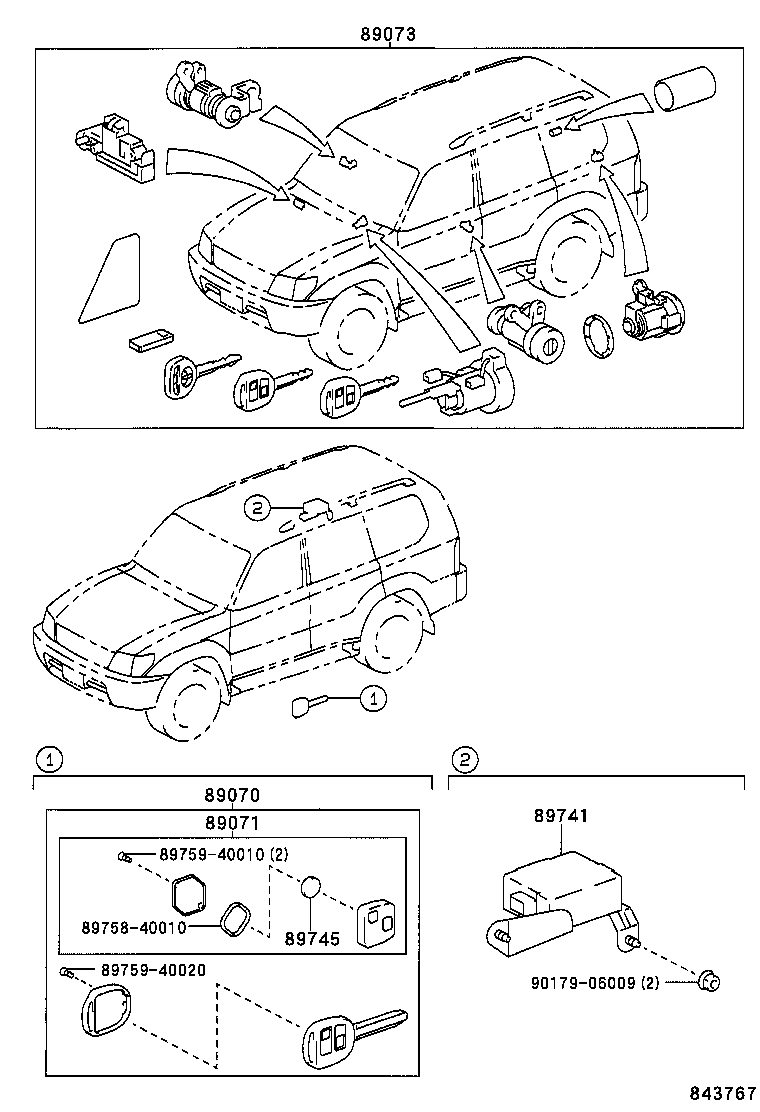

Wireless Door Lock
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 89070 | Transmitter Assy, Door Control |
| 89071 | Module Set, Transmitter Sub-assy, Door Control |
| 89073 | Cylinder Set, Lock W/Transmitter Housing(LESS MODULE) |
| 89073A | Ign Cylinder Set Lock W/Transmitter Housing (CUT KEY) |
| 89706 | Battery Set, Transmitter |
| 89708 | Cylinder Set, Wireless Door Lock |
| 89741 | Receiver, Door Control |
| 89742 | Transmitter, Door Control |
| 89745 | Battery, Transmitter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
