Heating & Air Conditioning - Heater Unit & Blower

27 part groups · 9 illustrations

Illustrations

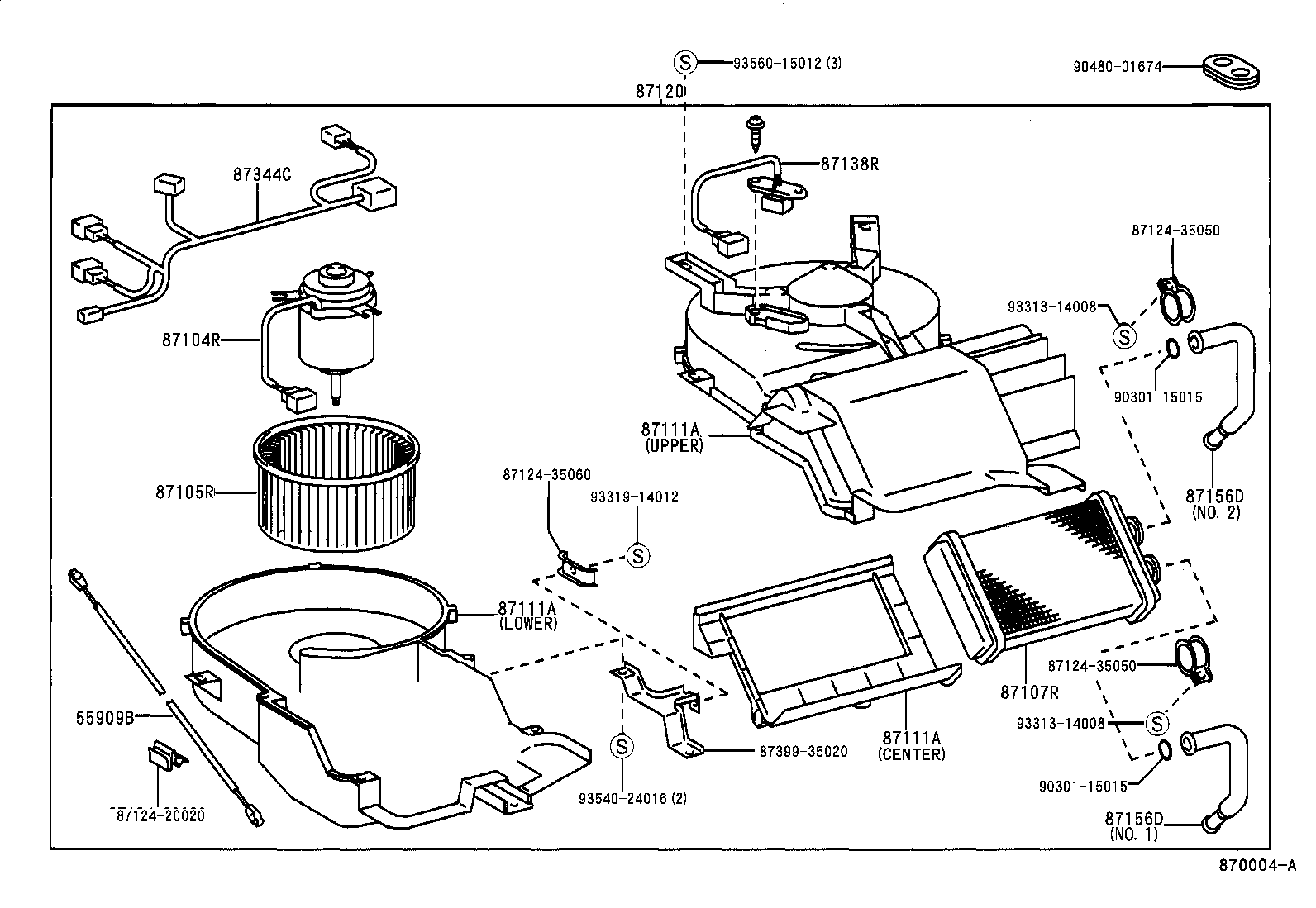

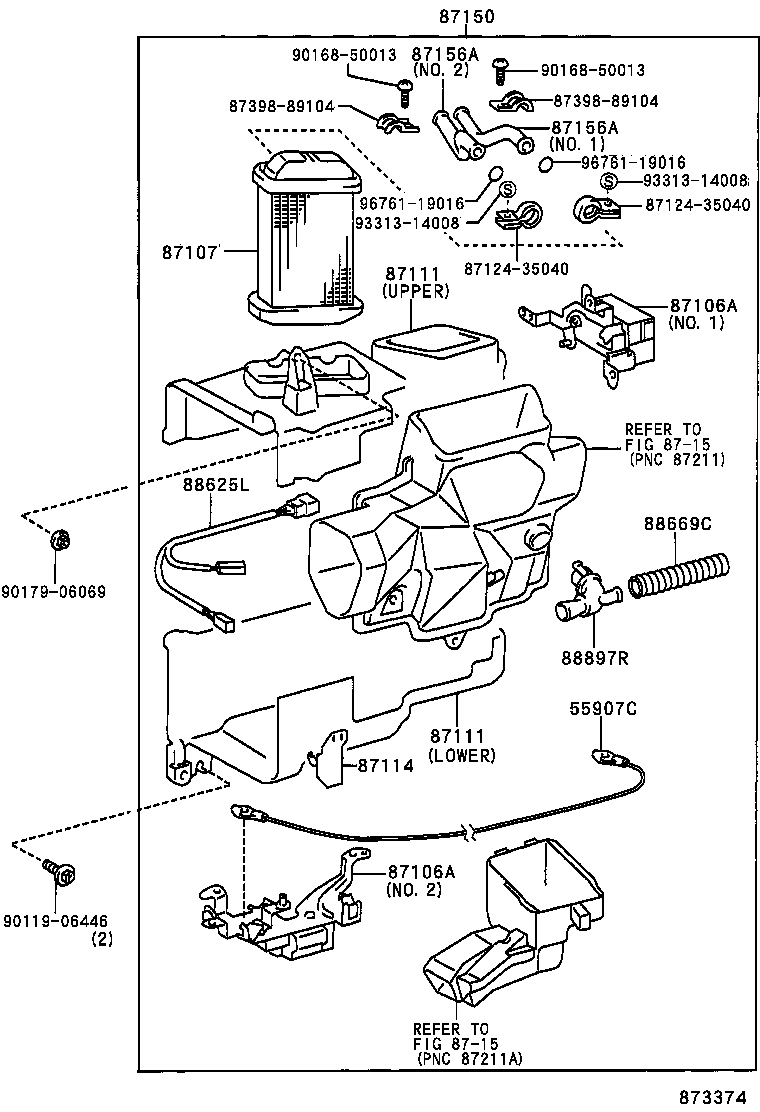

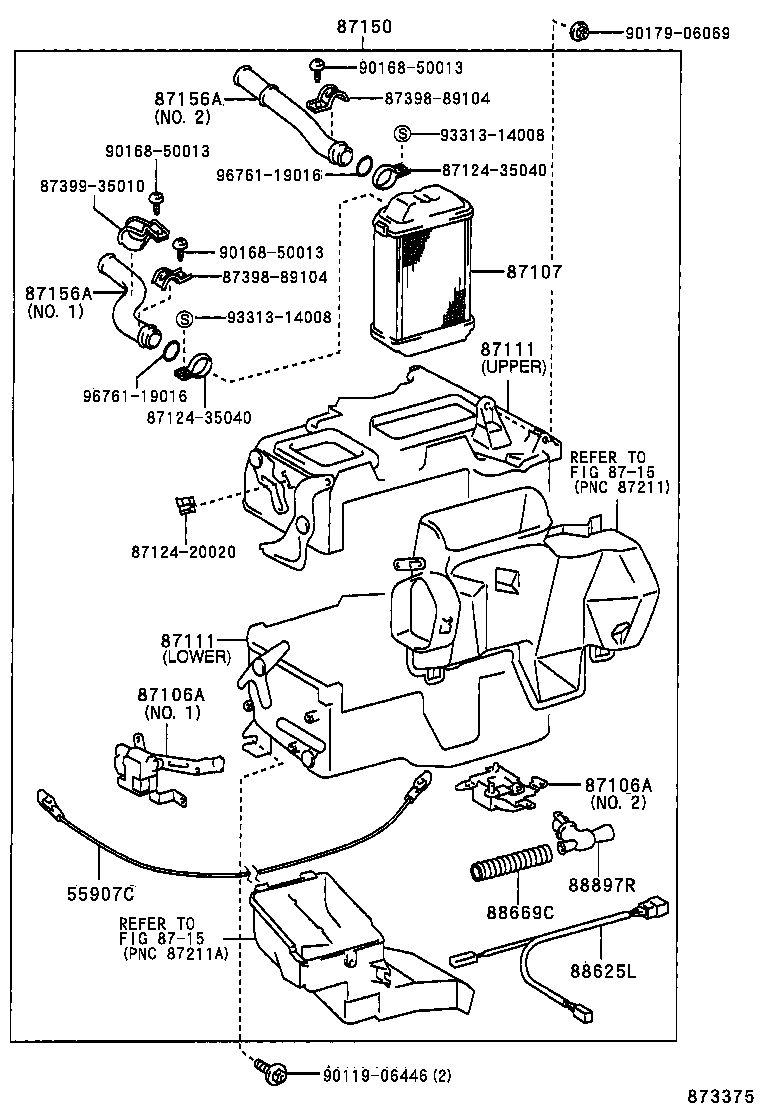

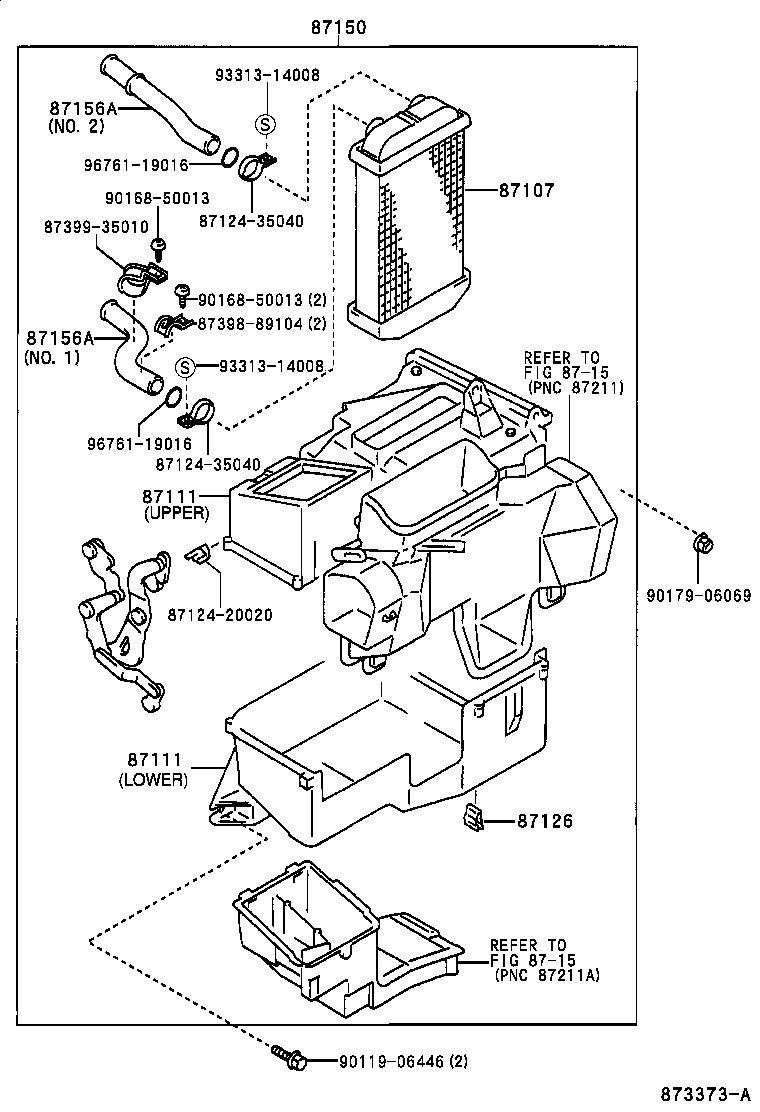

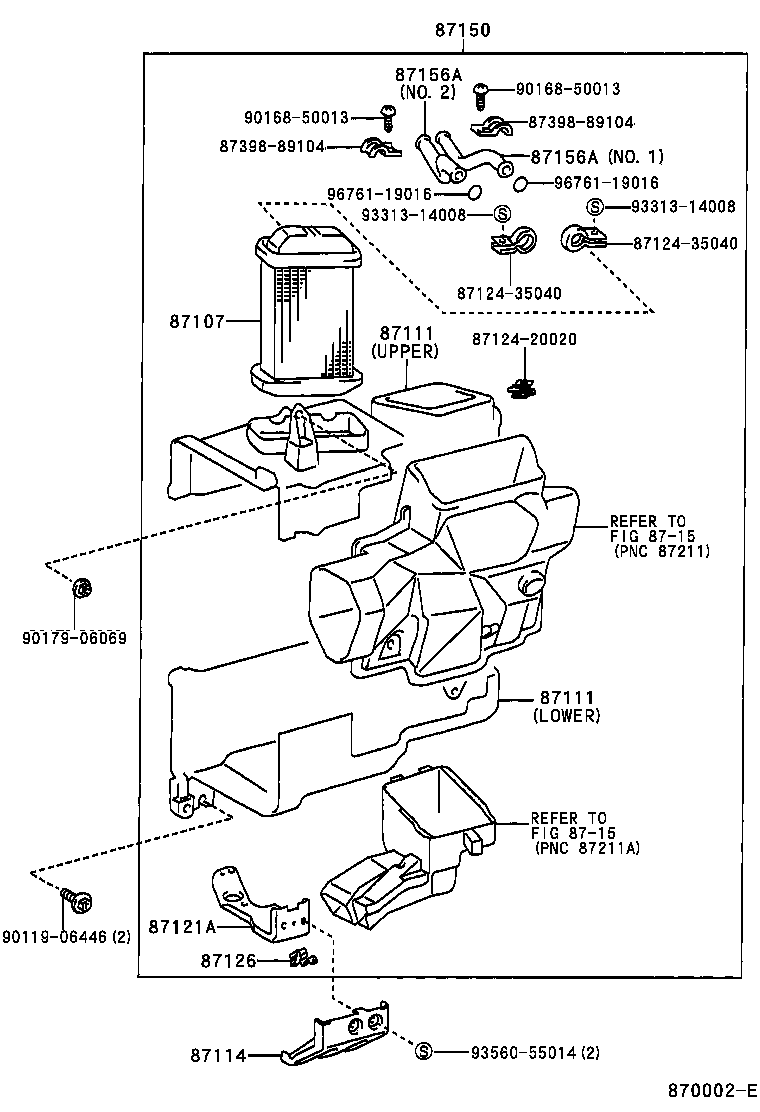

Figure 870005 870005 1996-04 → — Figure 870001A 870001A 1999-06 → — Figure 873372 873372 1999-06 → — Figure 870002E 870002E 1996-04 → — Figure 873373A 873373A 1996-04 → — Figure 873374 873374 1999-06 → — Figure 873375 873375 1999-06 → — Figure 870006 870006 1996-04 → 1999-06 Figure 870004A 870004A 1996-04 → —

Part groups

PNCDescription
55907C Cable Sub-assy, Water Valve Control
55909B Cable Sub-assy, Airmix Damper Control
87103 Motor Sub-assy, Heater Blower, W/Fan
87104R Motor Sub-assy, Rear Heater Blower
87105R Fan Sub-assy, Rear Heater Blower
87106A Servo Sub-assy, Damper
87106C Servo Sub-assy, Damper(FOR BLOWER)
87107 Unit Sub-assy, Heater Radiator
87107R Unit Sub-assy, Rear Heater
87111 Case, Heater
87111A Case, Heater
87114 Cover, Heater
87120 Heater Assy, Rear
87121A Bracket, Heater
87126 Clamp, Heater Control
87130 Blower Assy, Heater, Front
87130C Relay, Heater Blower Motor
87138R Resistor, Rear Heater Blower
87150 Radiator Assy, Heater
87156A Connector, Heater Water Hose
87156D Connector, Heater Water Hose, NO.2
87187A Wire, Blower Motor Lead
87344C Wire, Heater
88625L Thermistor, Cooler
88669C Hose, Air
88897R Aspirator
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
