Toyota Land Cruiser Prado

2002-09 → 2010-03 · chassis GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12# · catalogue 781350 · General

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

10 part groups · 6 illustrations

Illustrations

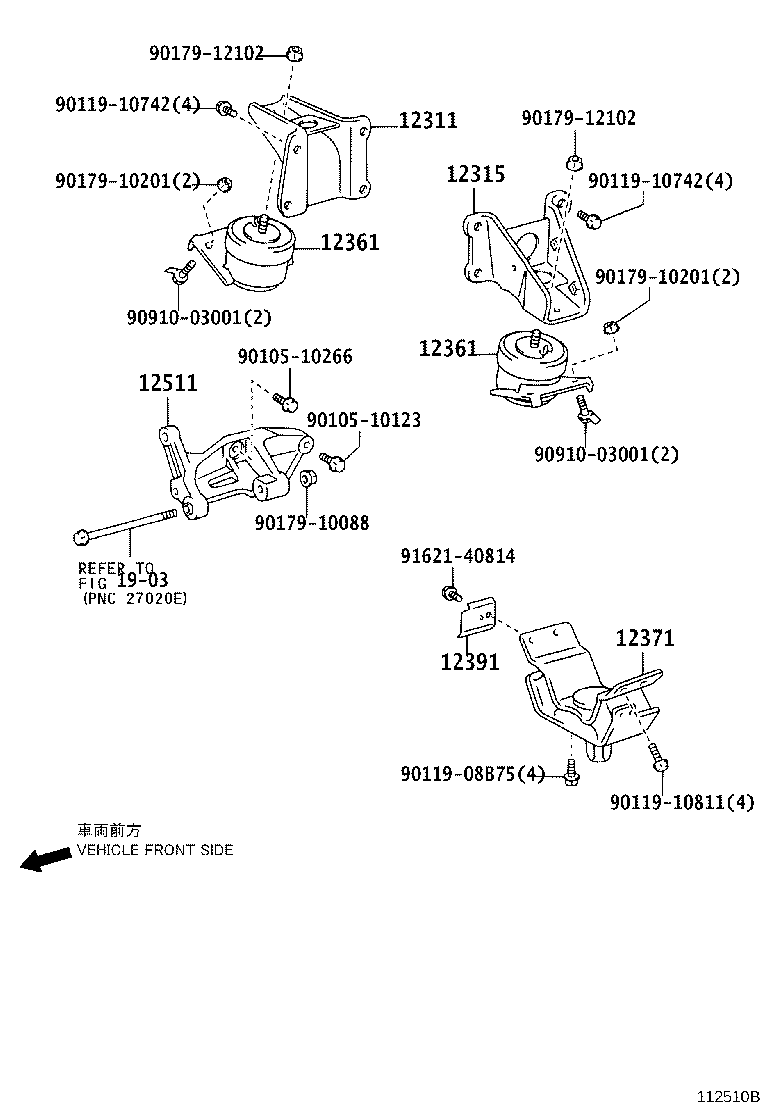

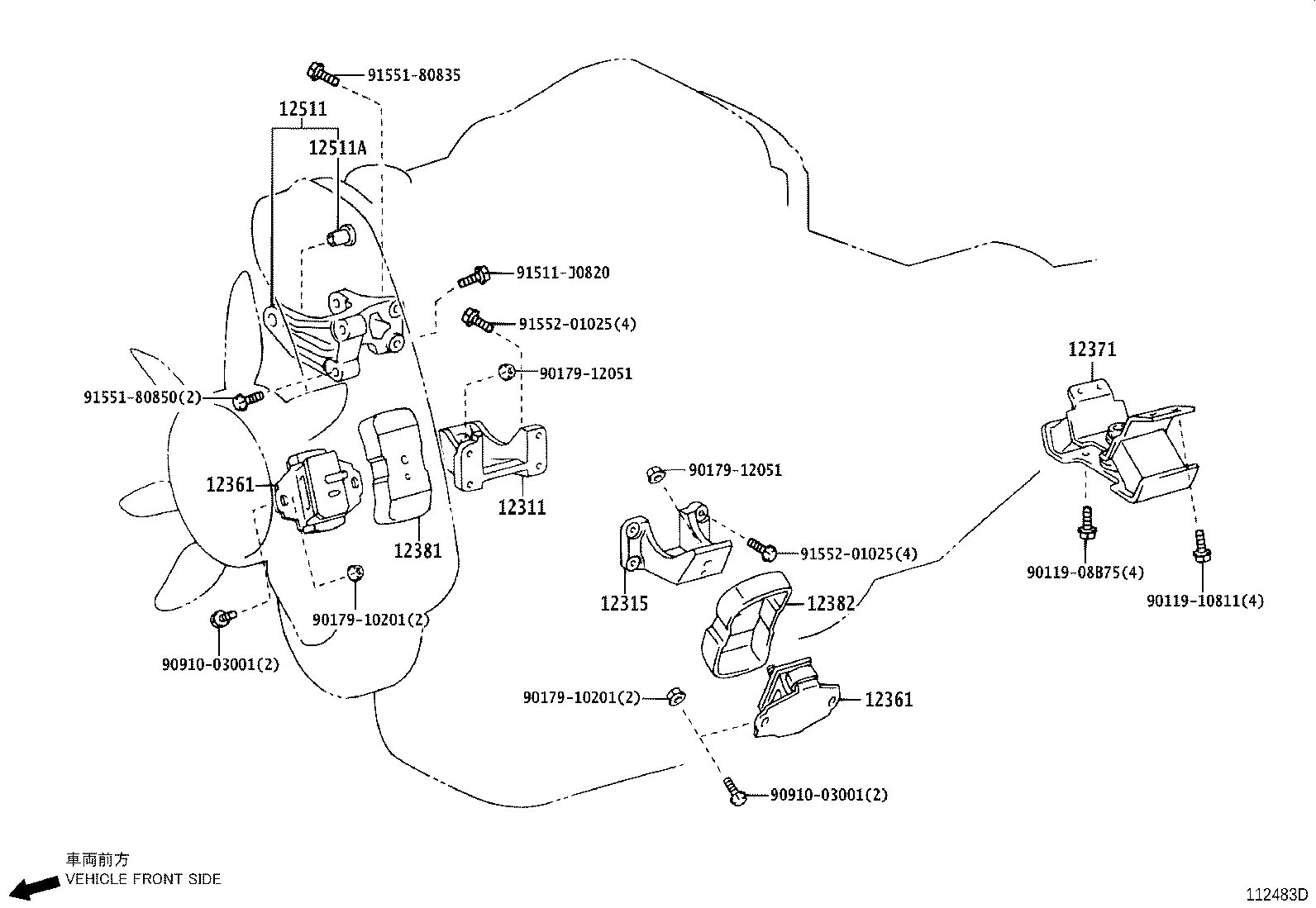

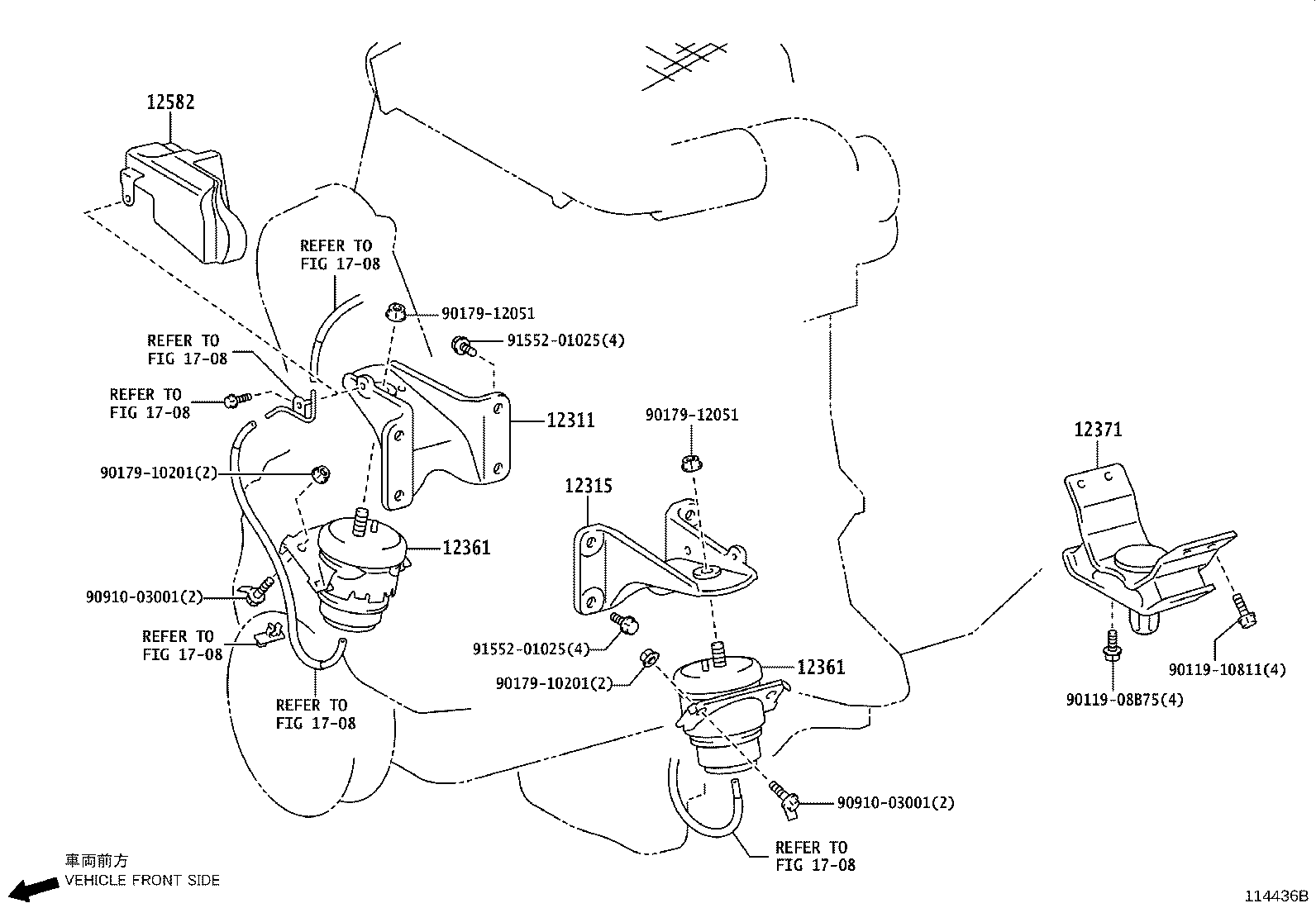

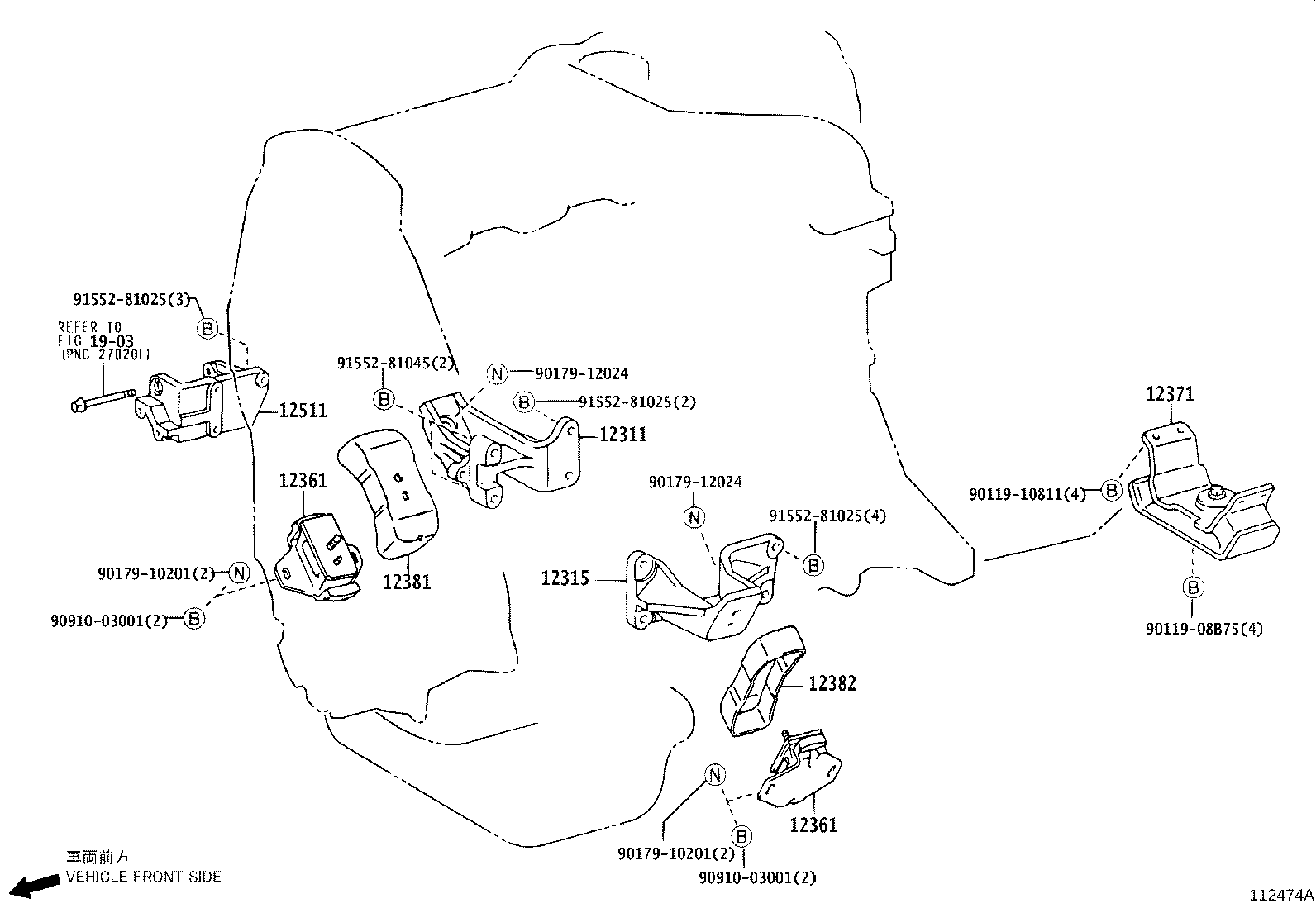

Figure 112730G 112730G 2003-01 → — Figure 112483D 112483D 2002-09 → — Figure 114436B 114436B 2006-08 → — Figure 112474A 112474A 2002-09 → — Figure 112510B 112510B 2002-09 → — Figure 115893A 115893A 2004-08 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
12391 Insulator, Engine Mounting Front, Heat, RH
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
12582 Insulator, Cylinder Block, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
