Toyota Land Cruiser Prado

2002-09 → 2010-03 · chassis GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12# · catalogue 781350 · General

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

17 part groups · 7 illustrations

Illustrations

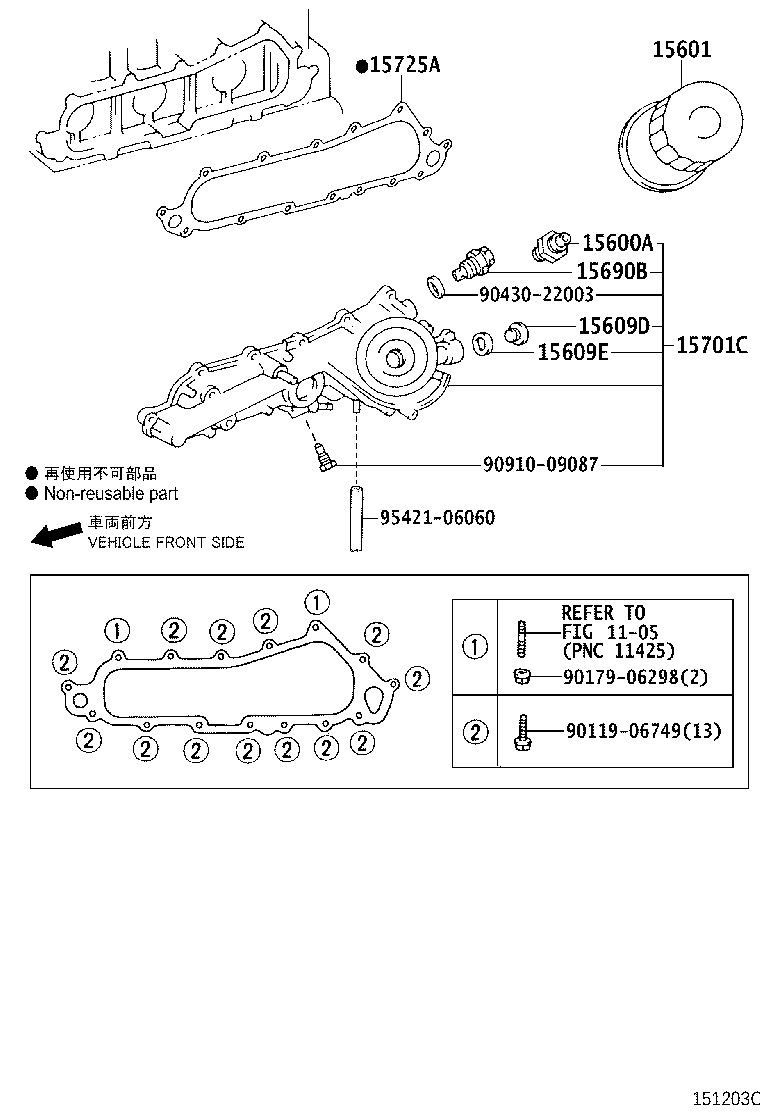

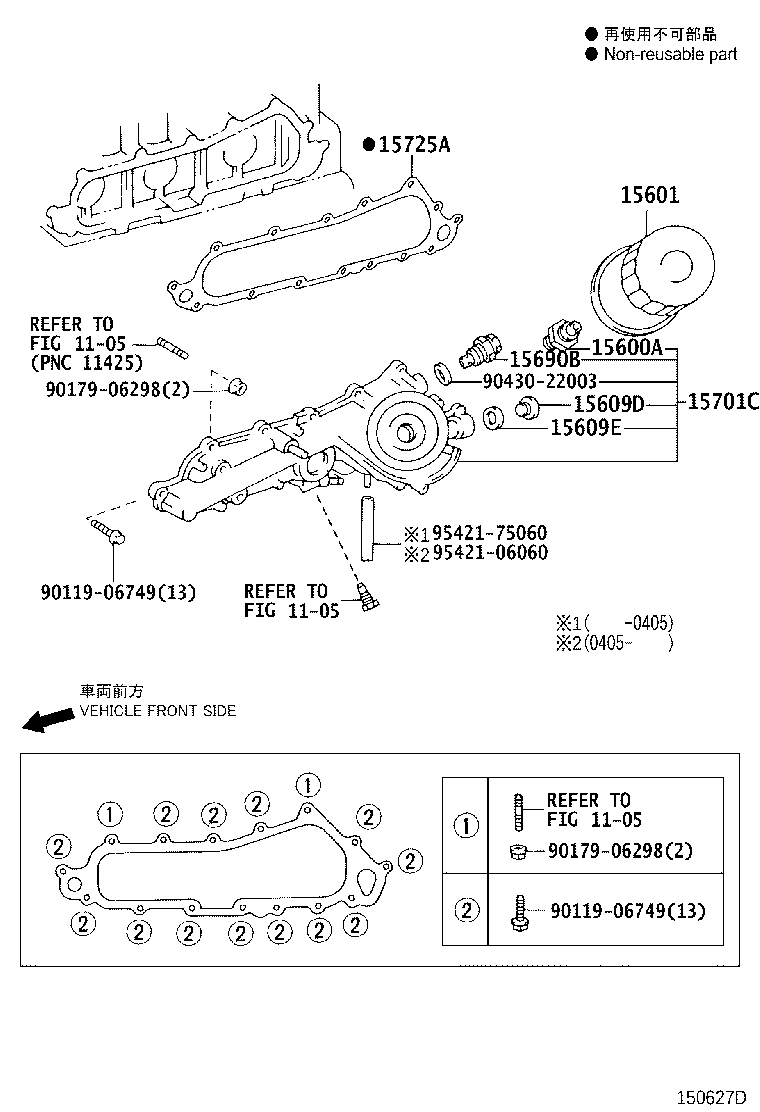

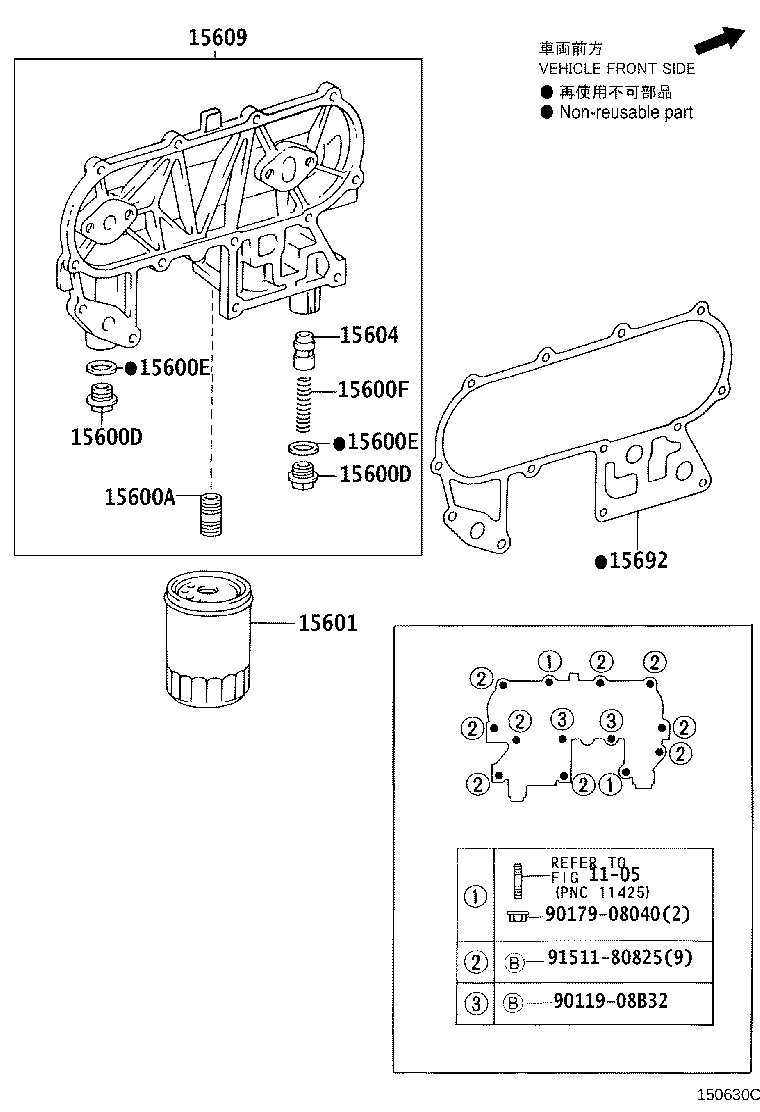

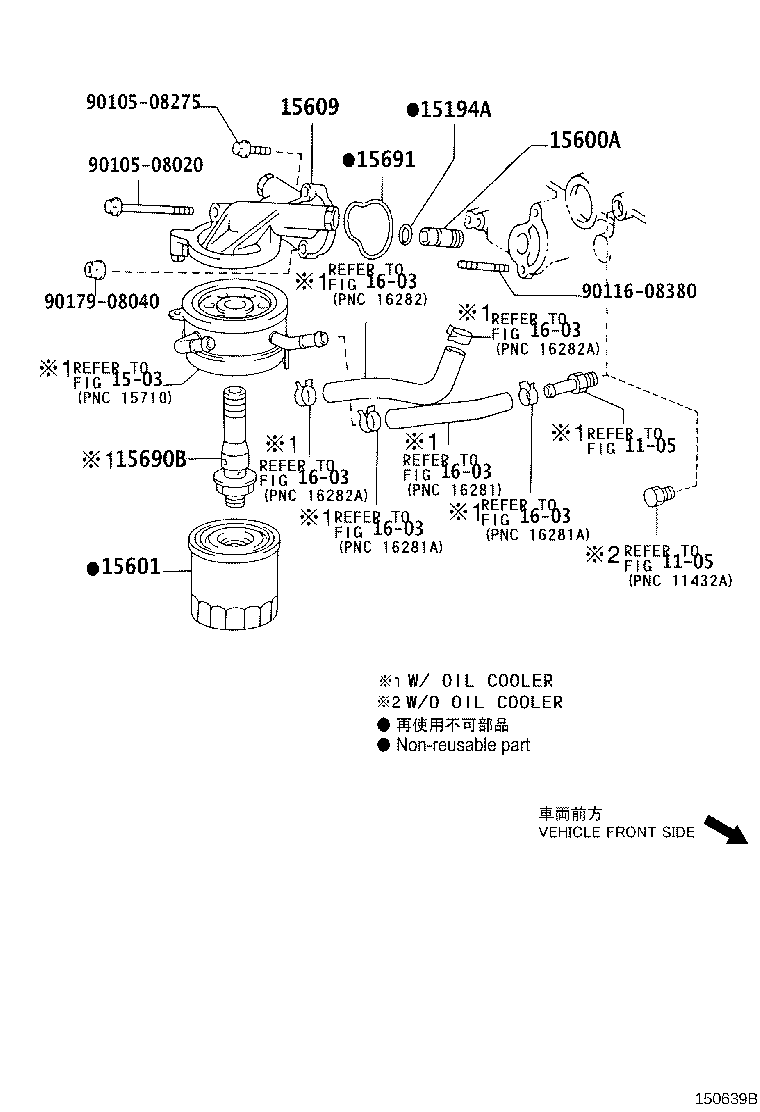

Figure 151656B 151656B 2003-01 → — Figure 150693G 150693G 2003-01 → — Figure 150627D 150627D 2002-09 → — Figure 151203C 151203C 2006-08 → — Figure 150630C 150630C 2002-09 → — Figure 150639B 150639B 2002-09 → — Figure 150930E 150930E 2004-08 → —

Part groups

PNCDescription
15194A Ring, O
15600A Union(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600E Washer(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15604 Valve Sub-assy, Oil Safety
15609 Bracket Sub-assy, Oil Filter
15609B Union(FOR OIL FILTER BRACKET)
15609D Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
15609E Gasket, W/Head Straight Screw Plug
15609H Ring, O(FOR OIL FILTER BRACKET)
15690B Valve Assy, Oil Cooler Relief
15691 Gasket, Oil Filter
15692 Gasket, Oil Filter Bracket
15701C Cover Sub-assy, Oil Cooler
15725A Gasket, Oil Cooler Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
