Toyota Land Cruiser Prado

2002-09 → 2010-03 · chassis GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12# · catalogue 781350 · General

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

17 part groups · 6 illustrations

Illustrations

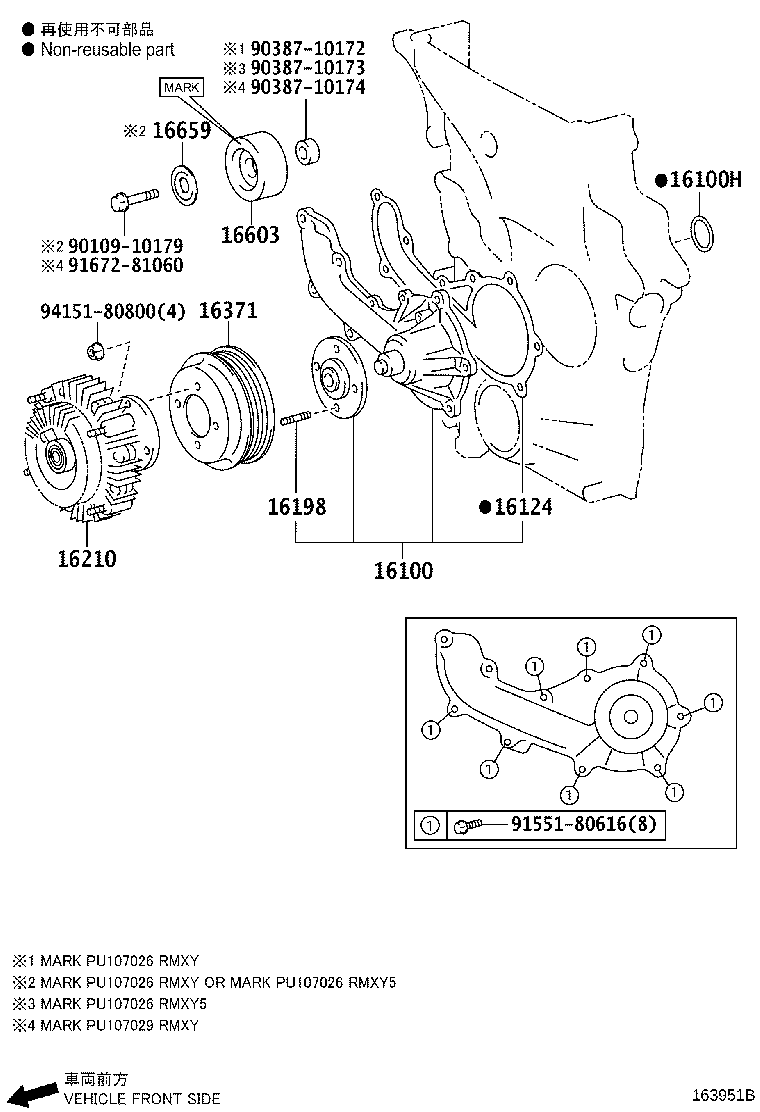

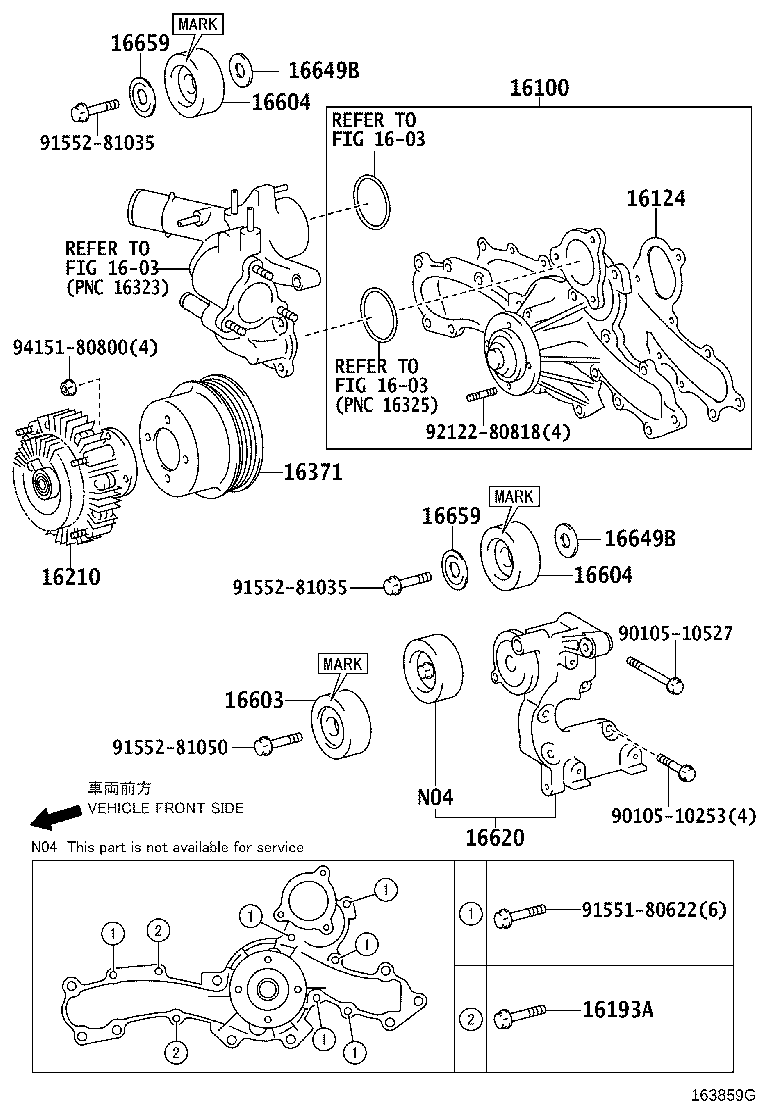

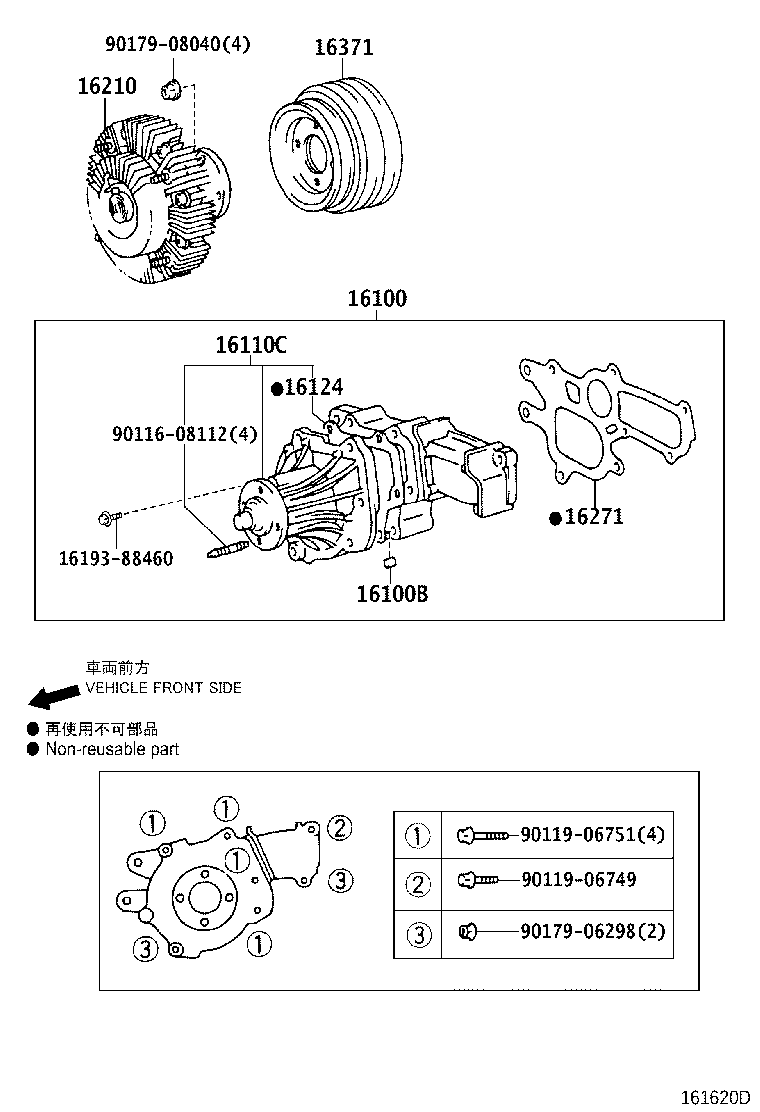

Figure 163886G 163886G 2003-01 → 2009-03 Figure 163859G 163859G 2009-03 → — Figure 161620D 161620D 2002-09 → — Figure 161626E 161626E 2002-09 → — Figure 161614E 161614E 2002-09 → 2004-08 Figure 163951B 163951B 2004-08 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100B Pin, Ring(FOR WATER PUMP SET)
16100H Ring, O(FOR WATER PUMP)
16110C Pump Assy, Water, W/O Cover
16124 Gasket, Water Pump Cover
16171 Seat, Water Pump Pulley
16193A Bolt(FOR WATER PUMP COVER)
16198 Bolt, Stud(FOR WATER PUMP PULLEY SEAT)
16210 Coupling Assy, Fluid
16241 Bolt, Stud(FOR WATER PUMP COUPLING)
16271 Gasket, Water Pump
16371 Pulley, Fan
16603 Pulley Sub-assy, Idler, NO.1
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16649B Plate, Idler Pulley Cover
16659 Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
