Toyota Land Cruiser Prado
2002-09 → 2010-03 · chassis GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12# · catalogue 781350 · General
Supported model
Data version 2010-10
Alternator
11 part groups · 6 illustrations
Part groups

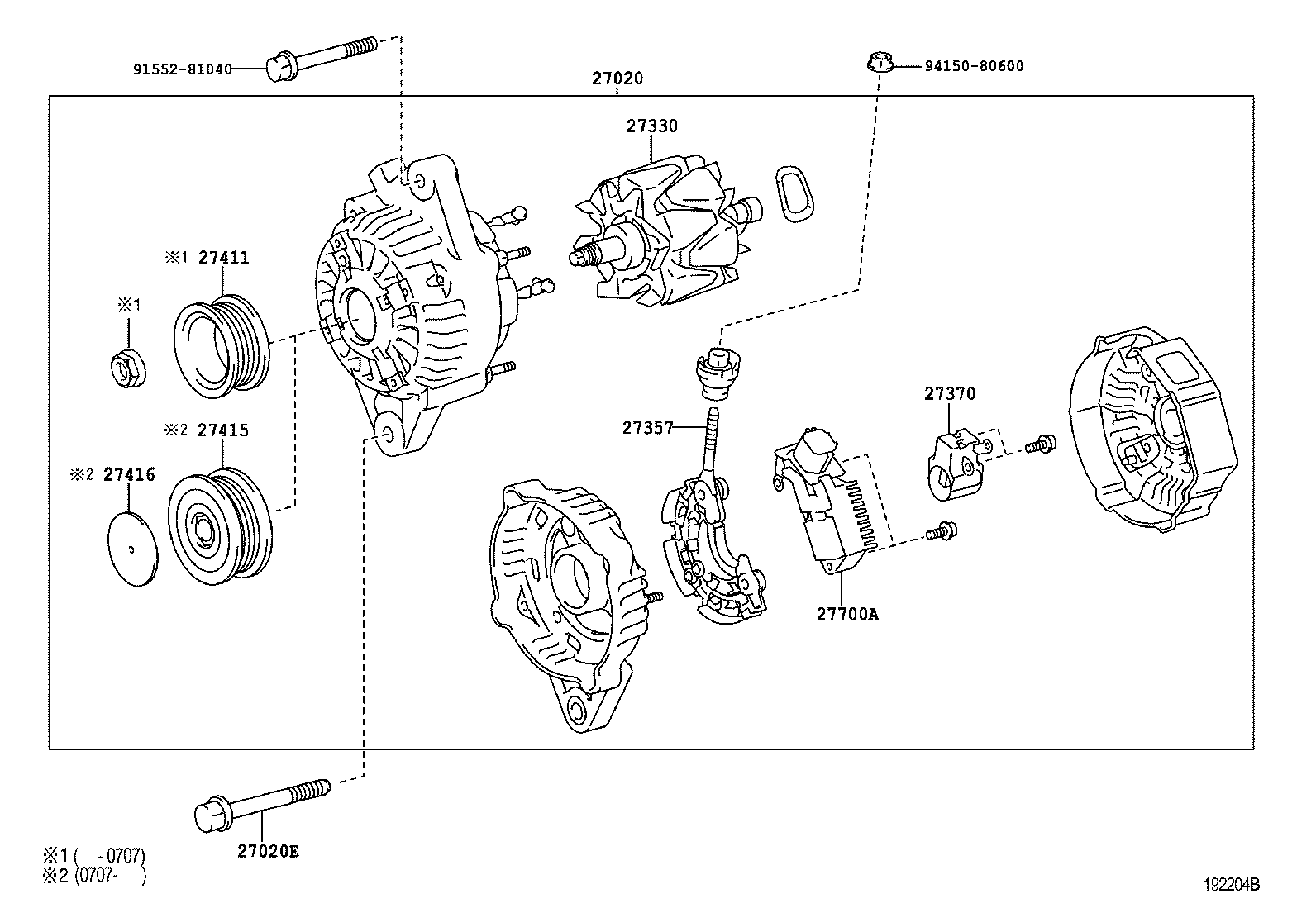

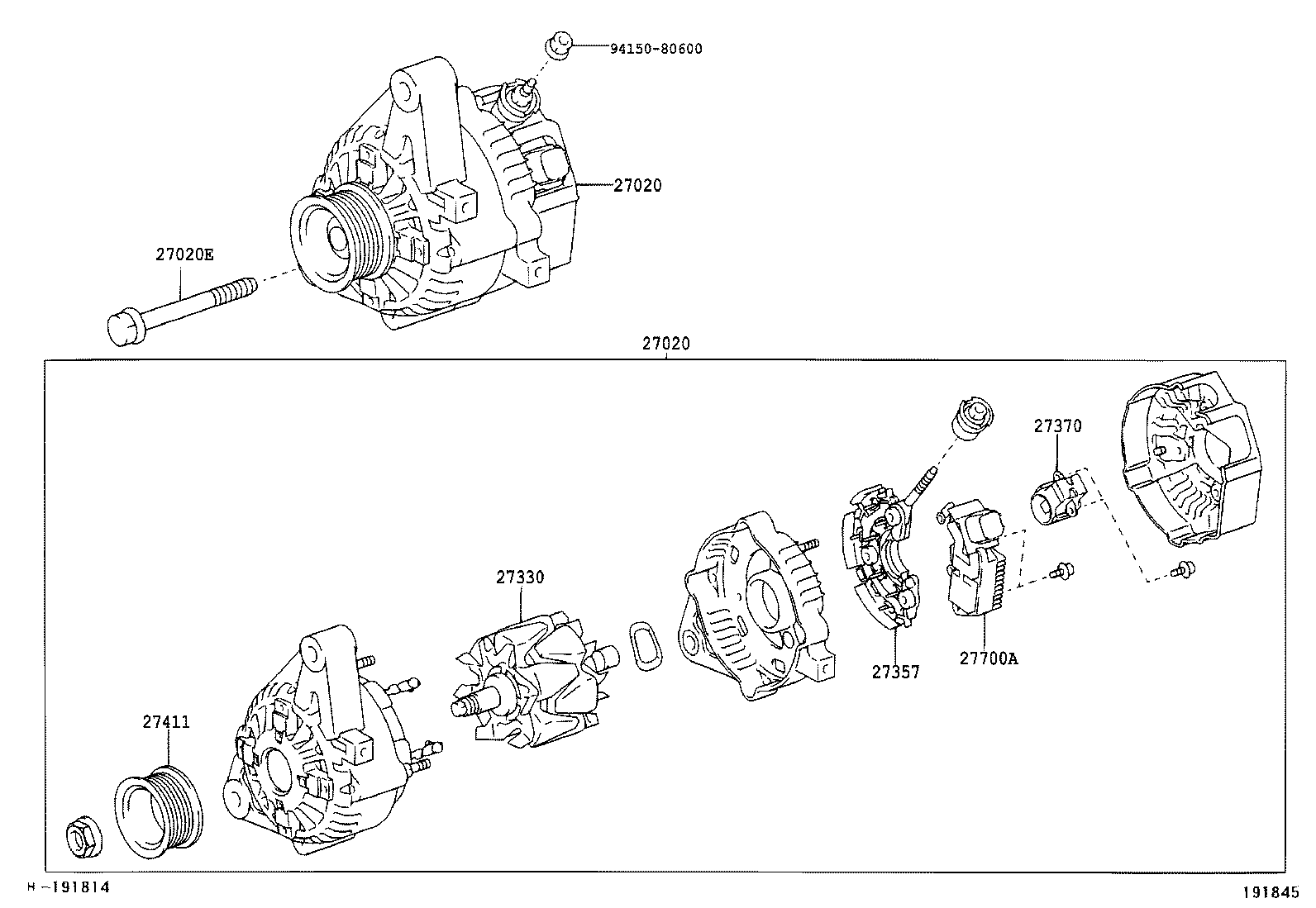

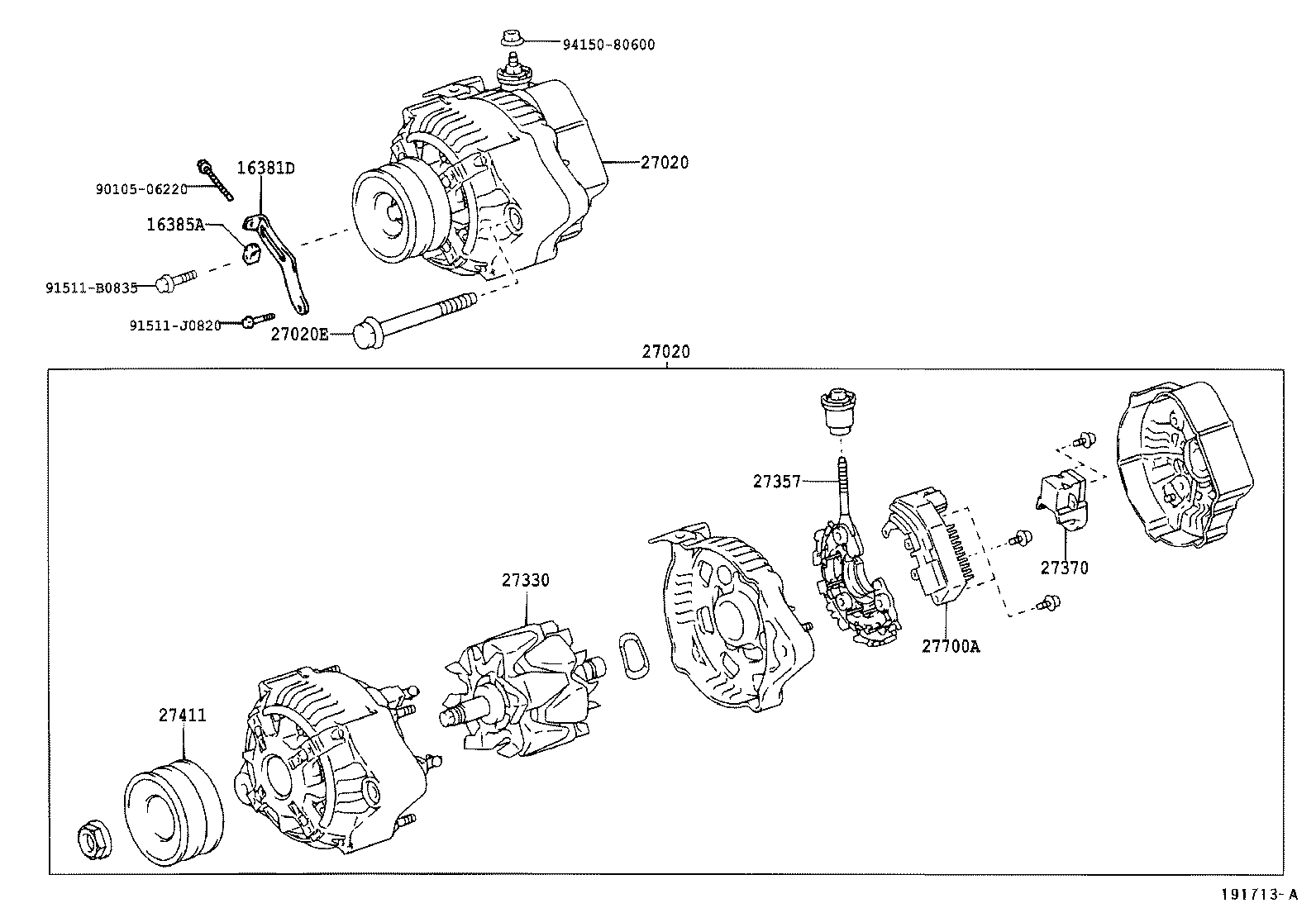

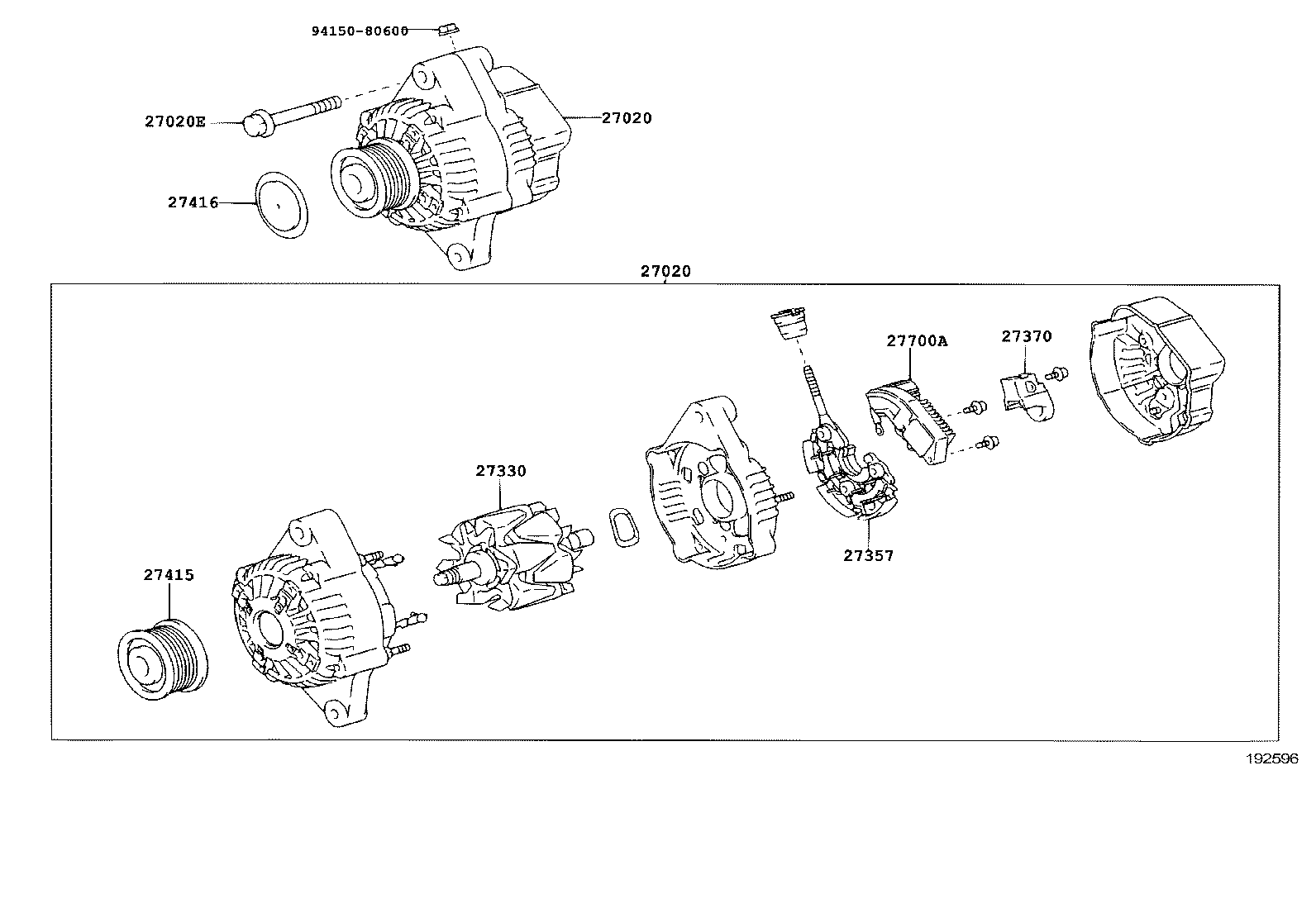

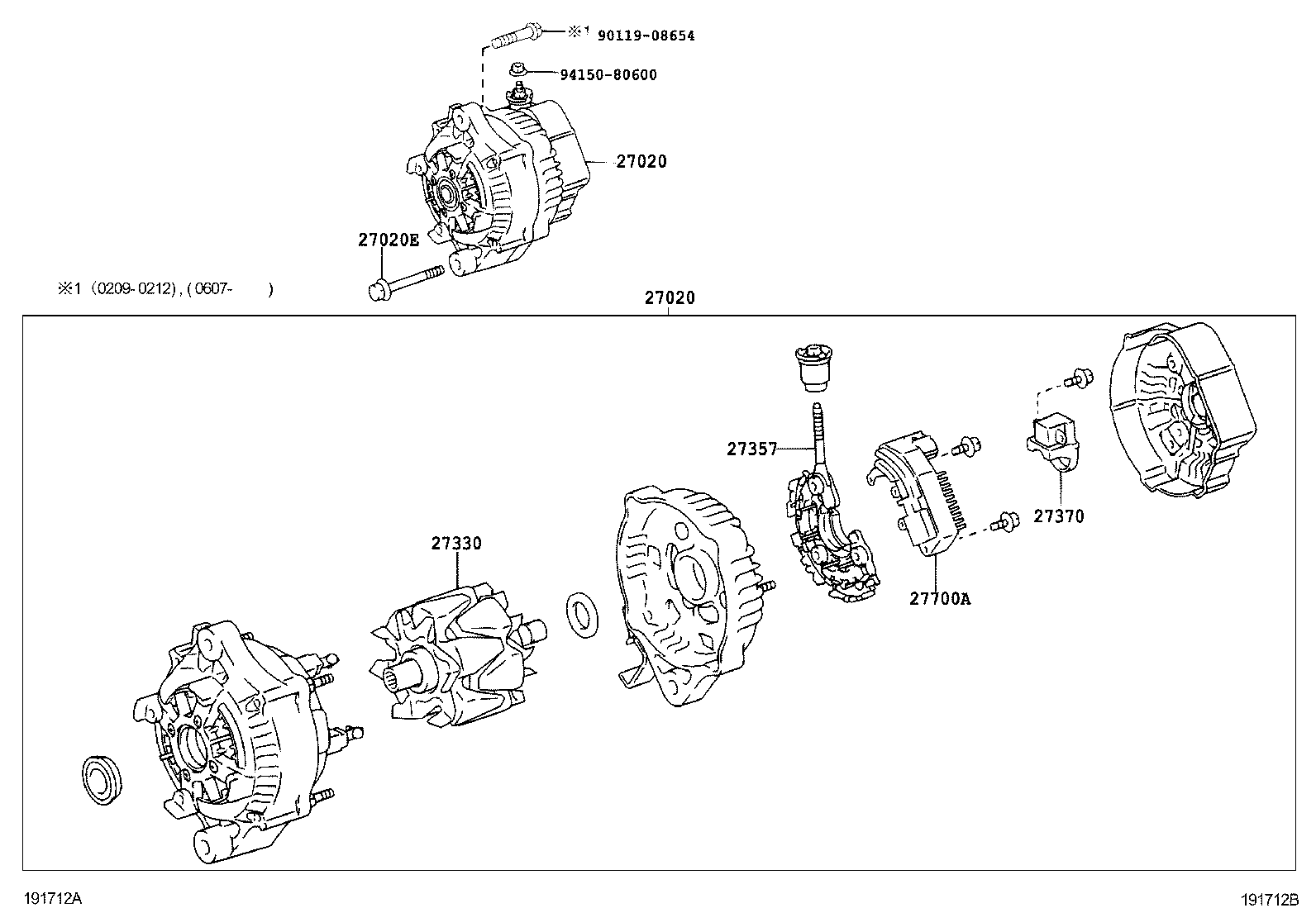

| PNC | Description |
|---|---|
| 16381D | Bar, Fan Belt Adjusting |
| 16385A | Slider, Fan Belt Adjusting |
| 27020 | Alternator Assy |
| 27020E | Bolt(FOR ALTERNATOR) |
| 27330 | Rotor Assy, Alternator |
| 27357 | Holder, Alternator, W/Rectifier |
| 27370 | Holder Assy, Alternator Brush |
| 27411 | Pulley, Alternator |
| 27415 | Pulley, Alternator W/Clutch |
| 27416 | Cap, Alternator Pulley |
| 27700A | Regulator Assy, Generator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
