Toyota Land Cruiser Prado

2002-09 → 2010-03 · chassis GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12# · catalogue 781350 · General

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

14 part groups · 7 illustrations

Illustrations

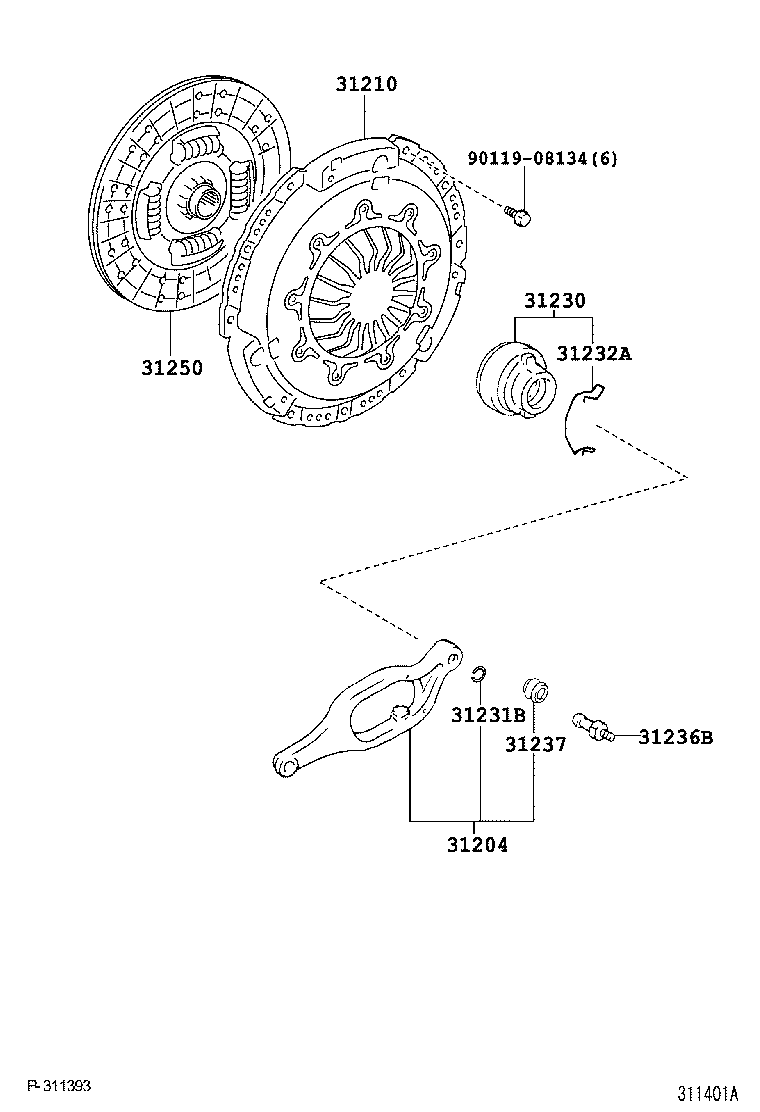

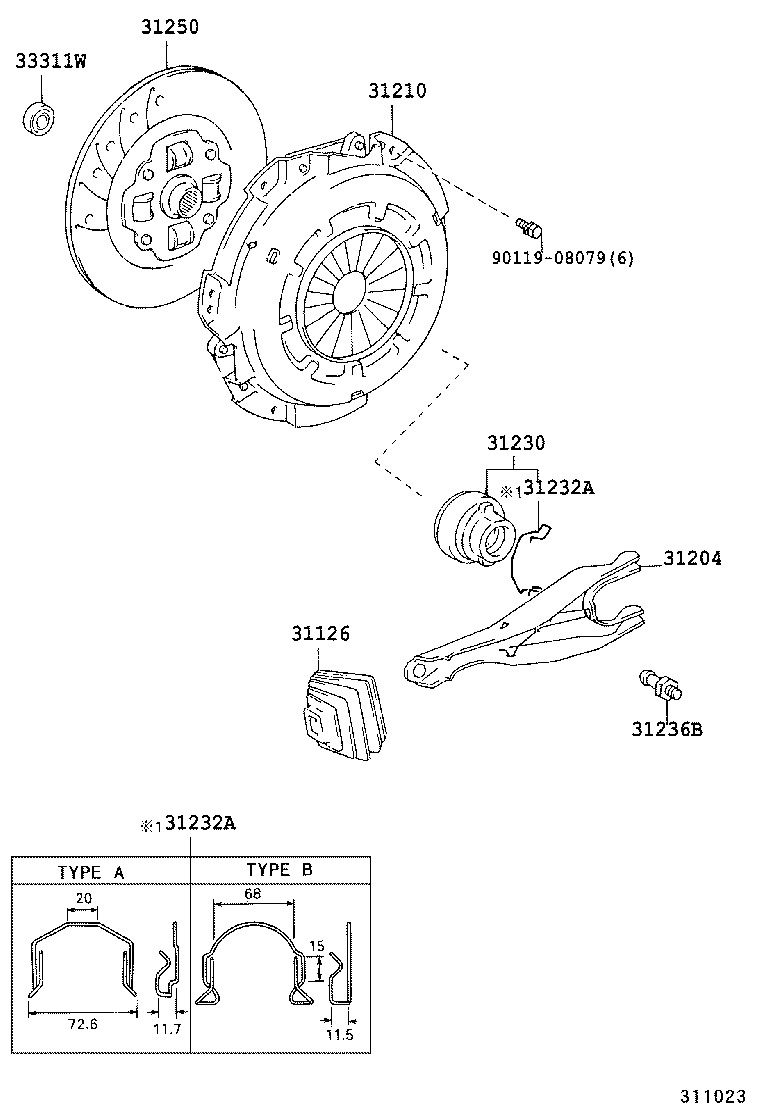

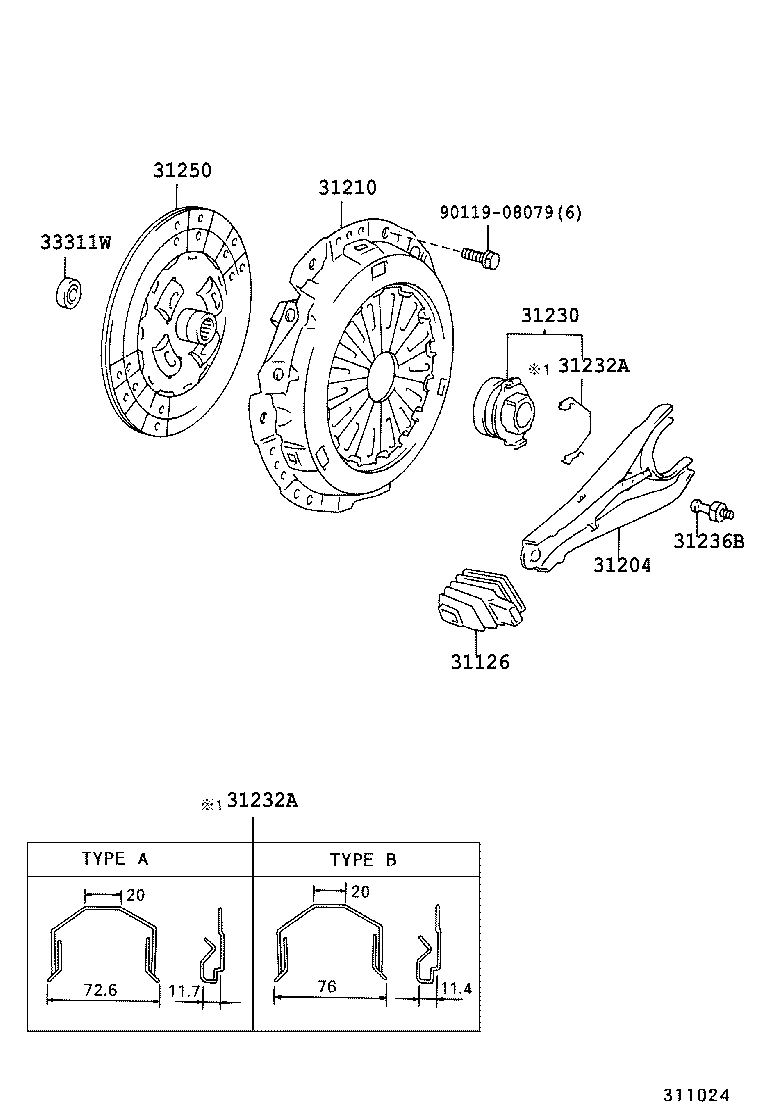

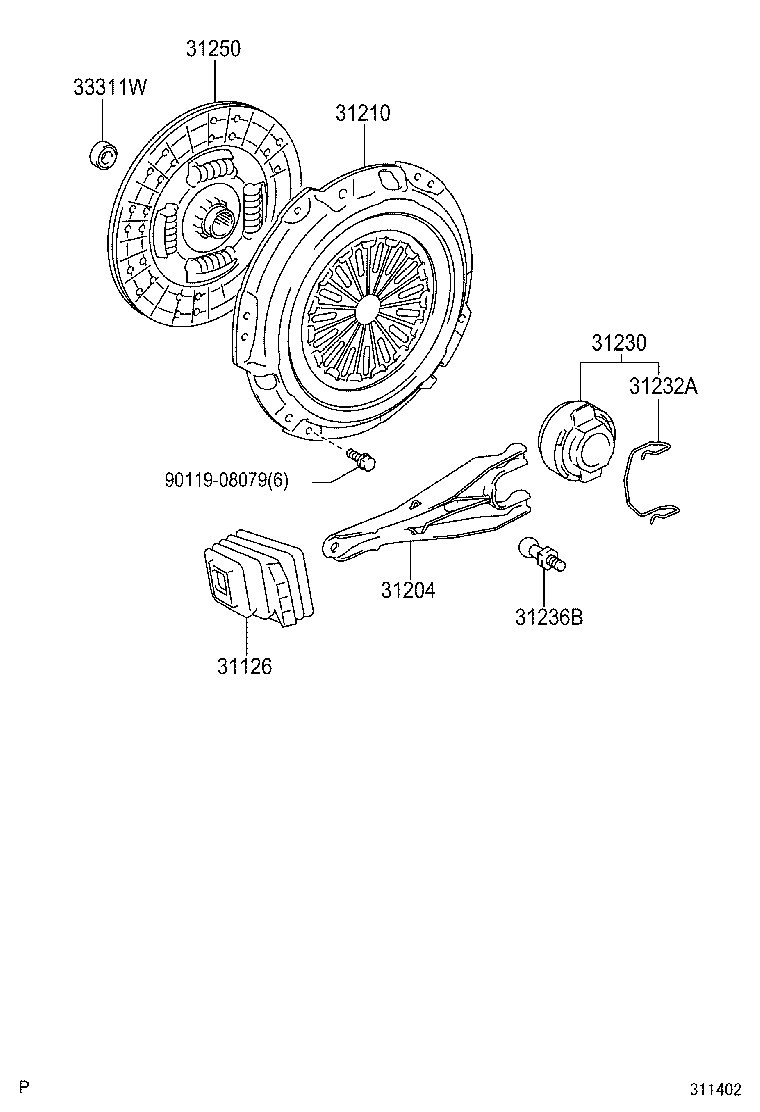

Figure 311022B 311022B 2002-09 → — Figure 311023 311023 2002-09 → — Figure 311024 311024 2002-09 → — Figure 311122 311122 2003-01 → 2004-08 Figure 311401A 311401A 2004-08 → — Figure 311402 311402 2004-08 → — Figure 311403A 311403A 2006-08 → —

Part groups

PNCDescription
31126 Boot, Clutch Release Fork
31204 Fork Sub-assy, Clutch Release
31204A Pin(FOR CLUTCH RELEASE FORK)
31204B Washer, Wave(FOR CLUTCH RELEASE FORK)
31204C Ring, E(FOR CLUTCH RELEASE FORK)
31210 Cover Assy, Clutch
31230 Bearing Assy, Clutch Release
31231B Ring, Snap(FOR CLUTCH RELEASE HUB)
31232A Clip, Release Bearing Hub
31234A Spring, Release Fork Support
31236B Support, Release Fork
31237 Boot, Clutch Release Fork Support
31250 Disc Assy, Clutch
33311W Bearing (FOR INPUT SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
