Toyota Land Cruiser Prado

2002-09 → 2010-03 · chassis GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12# · catalogue 781350 · General

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 3 illustrations

Illustrations

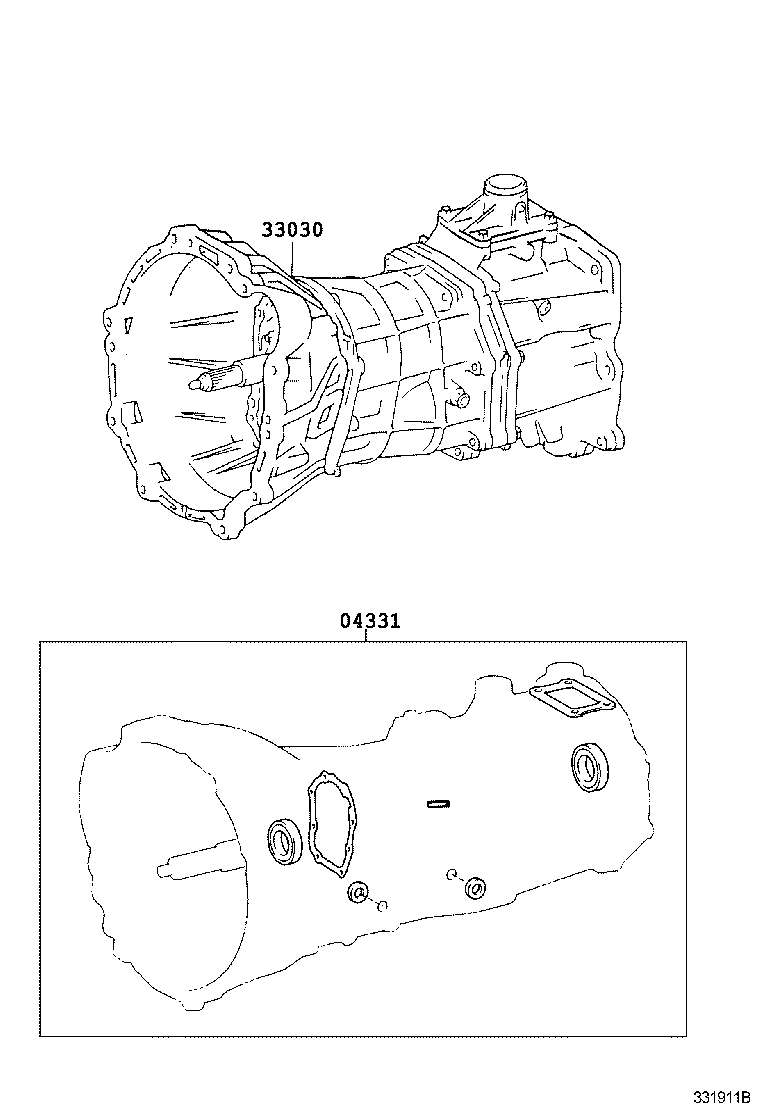

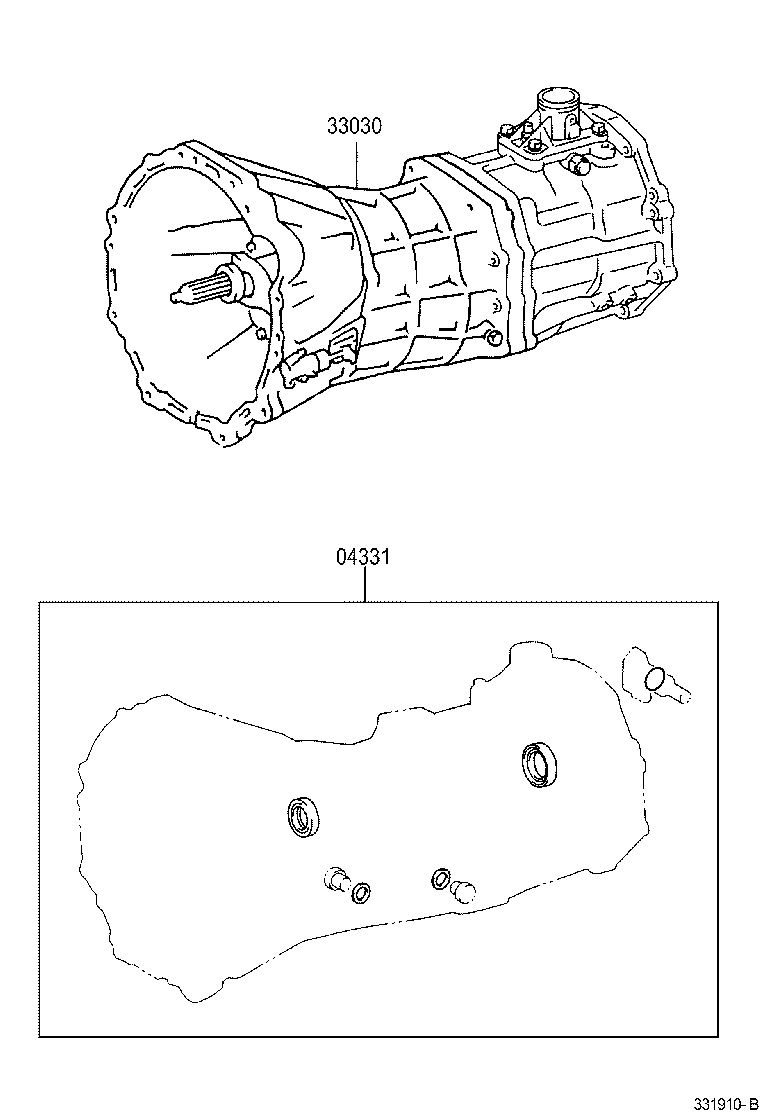

Figure 331912B 331912B 2002-09 → 2004-08 Figure 331910B 331910B 2002-09 → — Figure 331911B 331911B 2002-09 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33030 Transmission Unit Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
