Toyota Land Cruiser Prado

2002-09 → 2010-03 · chassis GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12# · catalogue 781350 · General

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

12 part groups · 5 illustrations

Illustrations

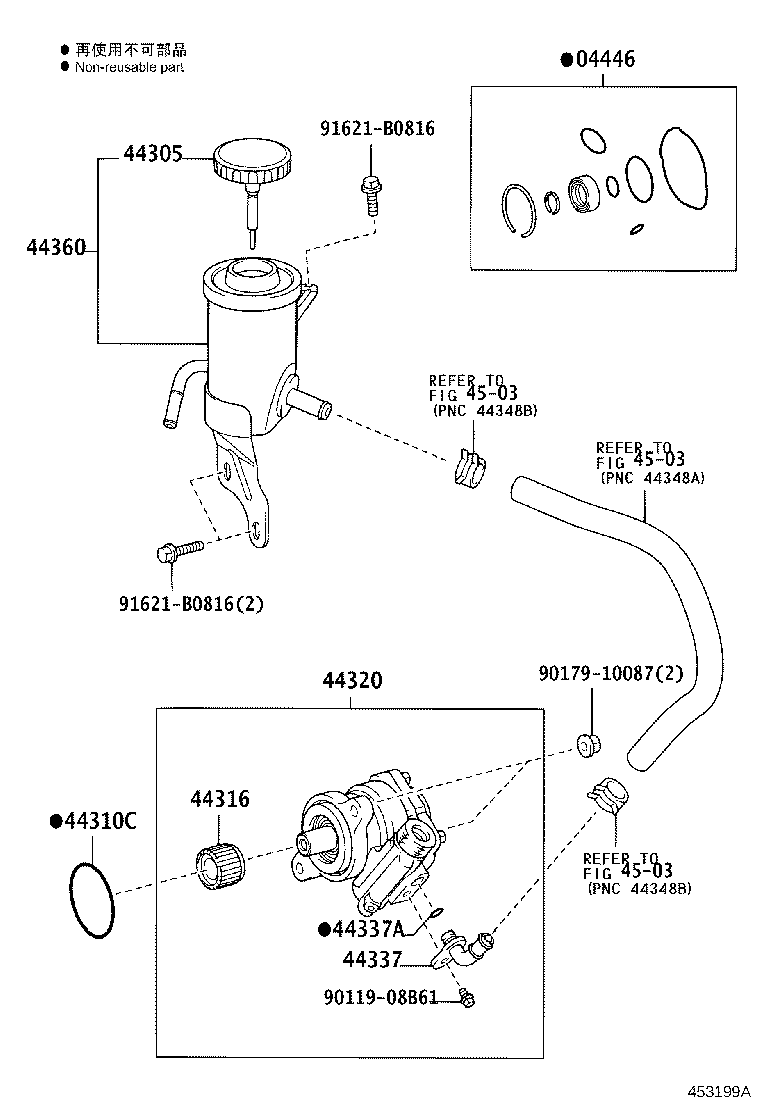

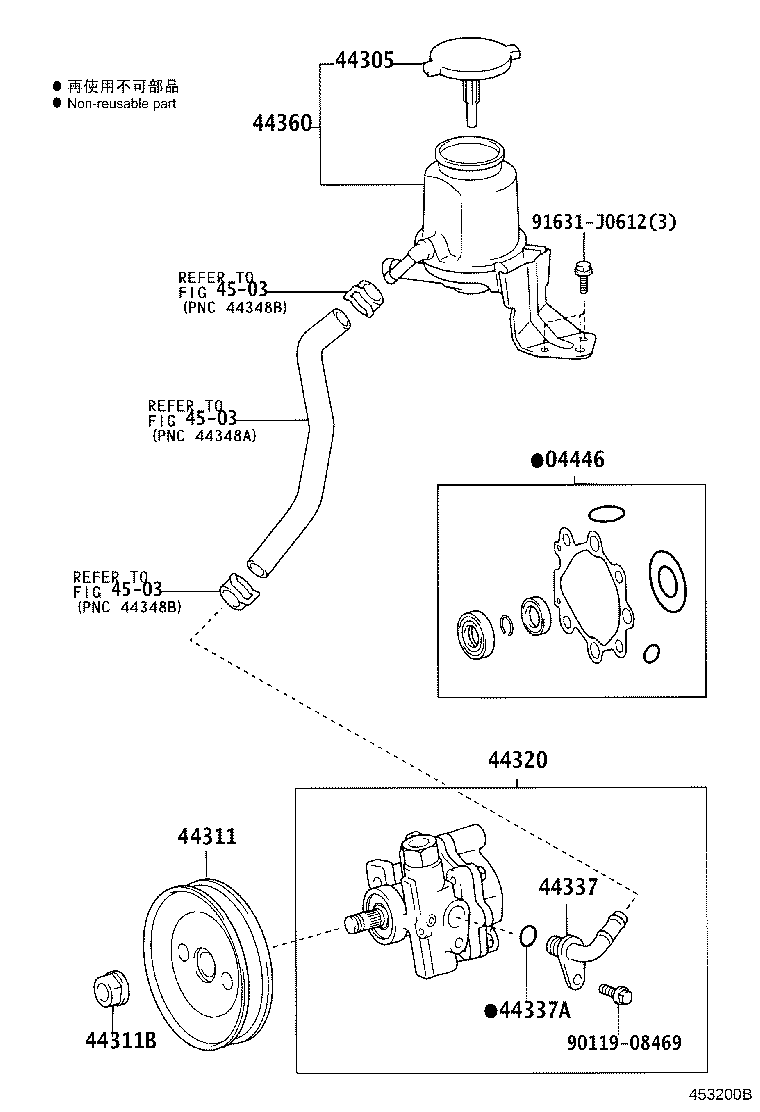

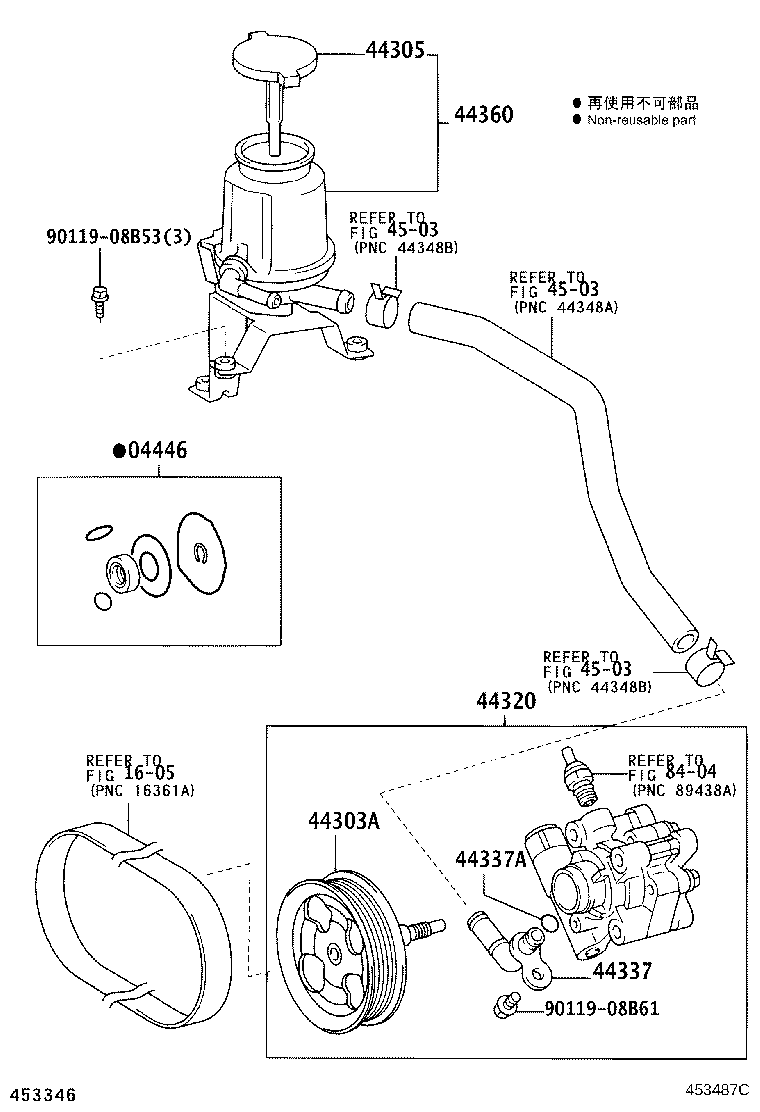

Figure 453201C 453201C 2002-09 → 2004-08 Figure 453199A 453199A 2002-09 → — Figure 453200B 453200B 2002-09 → — Figure 453487C 453487C 2003-01 → — Figure 454036A 454036A 2004-08 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44306 Reservoir Sub-assy, Vane Pump Oil
44310C Ring, O(FOR VANE PUMP)
44311 Pulley, Vane Pump
44311B Nut(FOR VANE PUMP PULLEY)
44316 Gear, Vane Pump
44320 Pump Assy, Vane
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44360 Reservoir Assy, Vane Pump Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
