Toyota Land Cruiser Prado

2002-09 → 2010-03 · chassis GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12# · catalogue 781350 · General

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

10 part groups · 10 illustrations

Illustrations

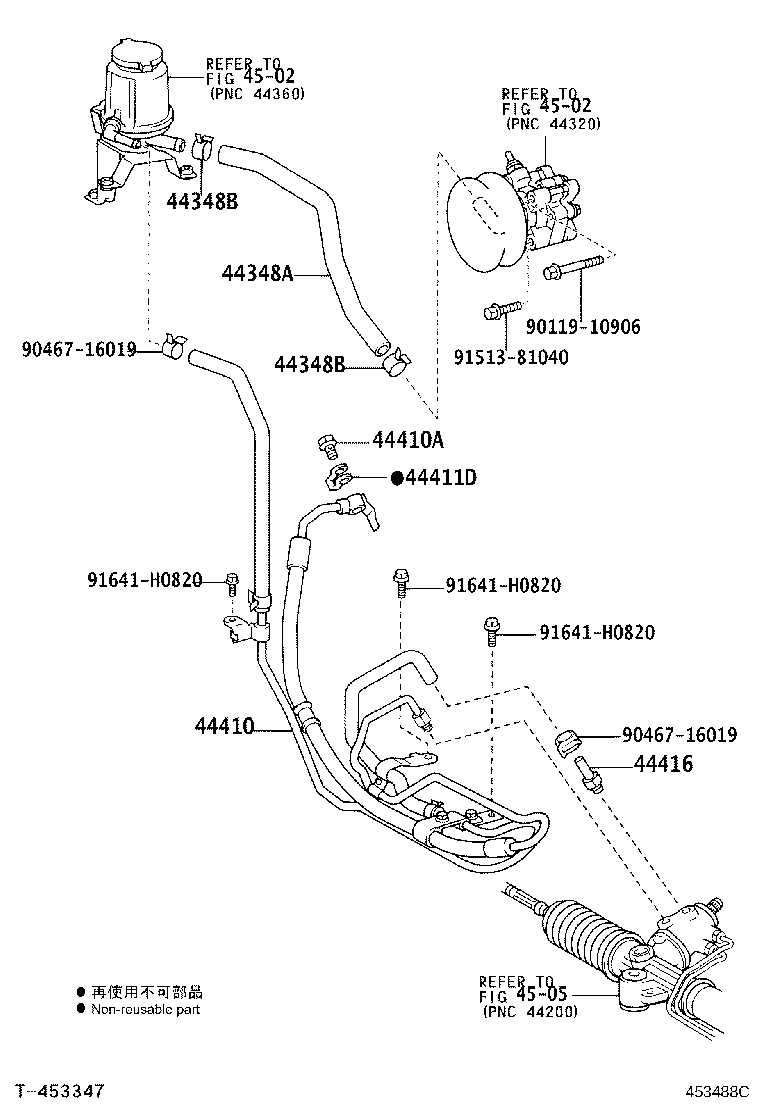

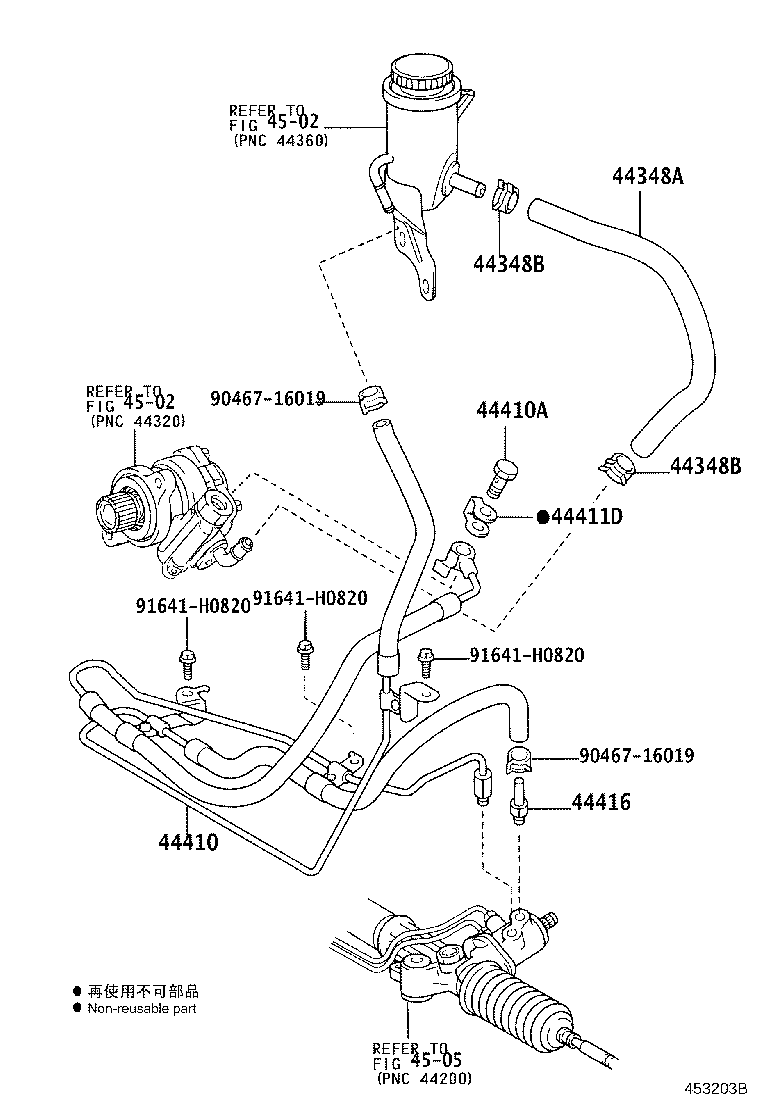

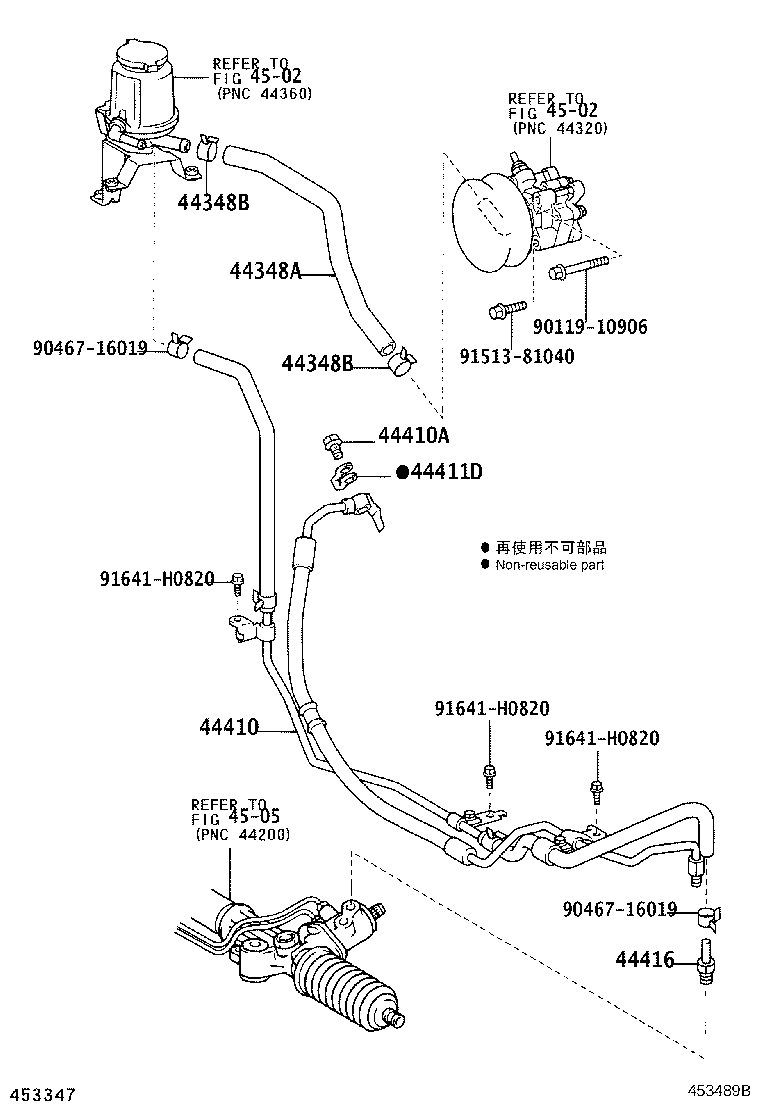

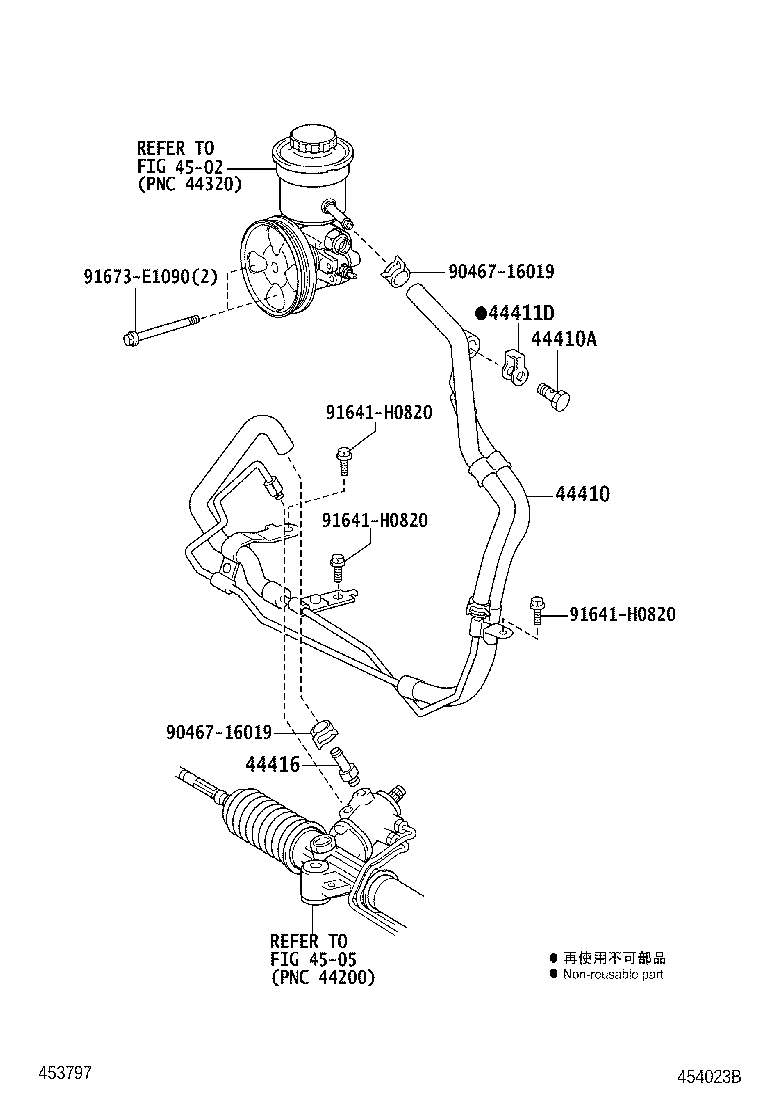

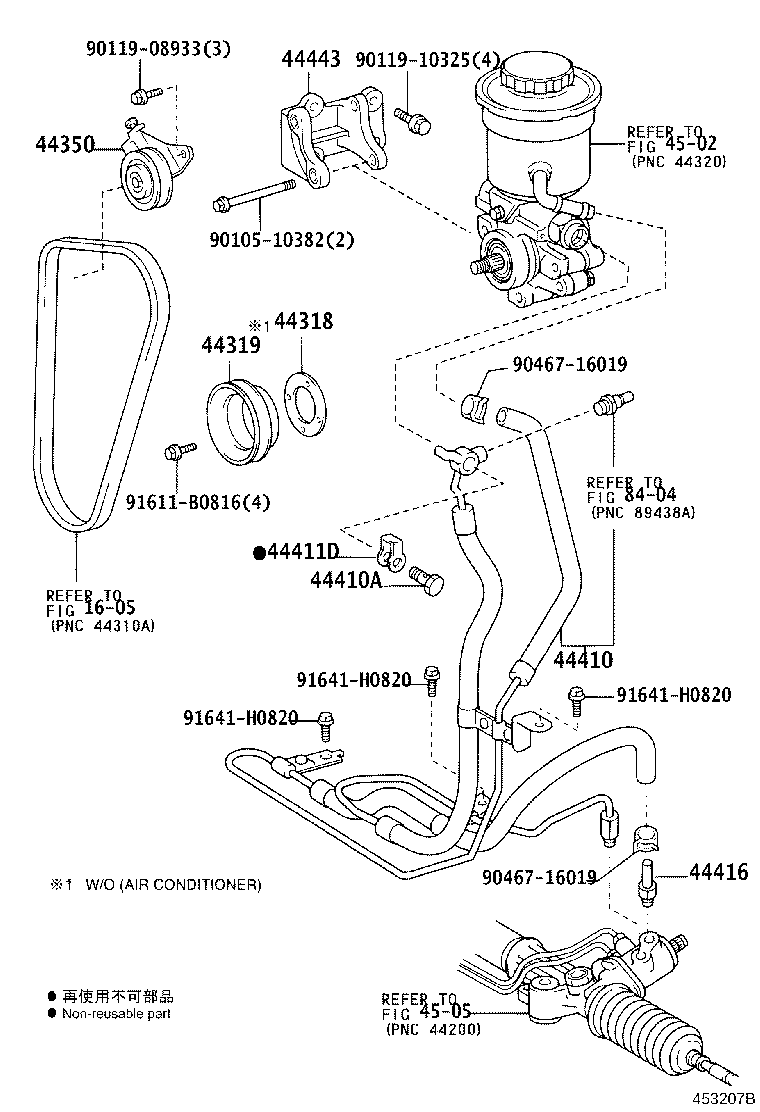

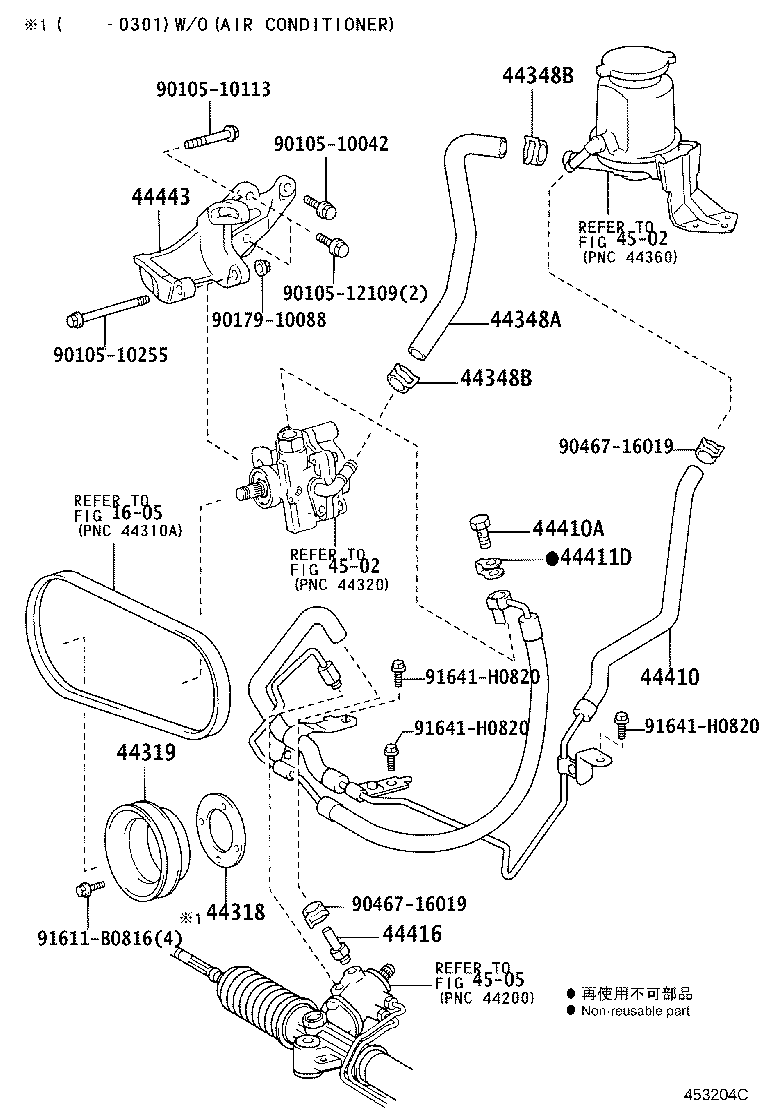

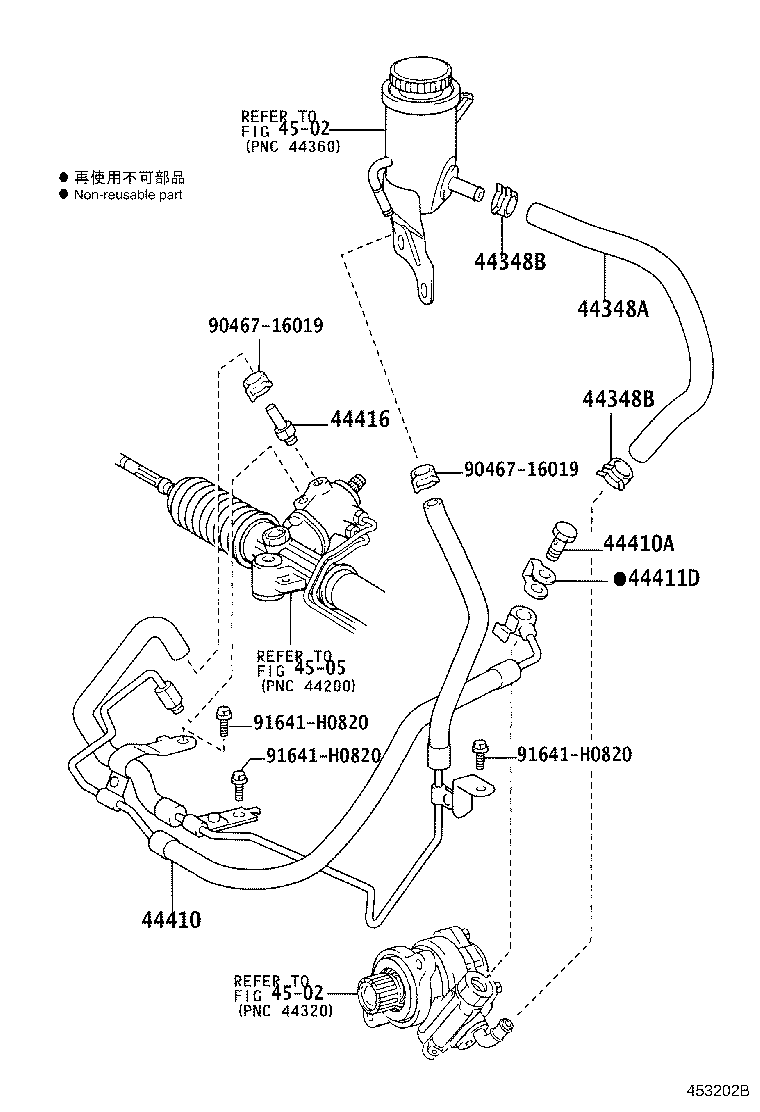

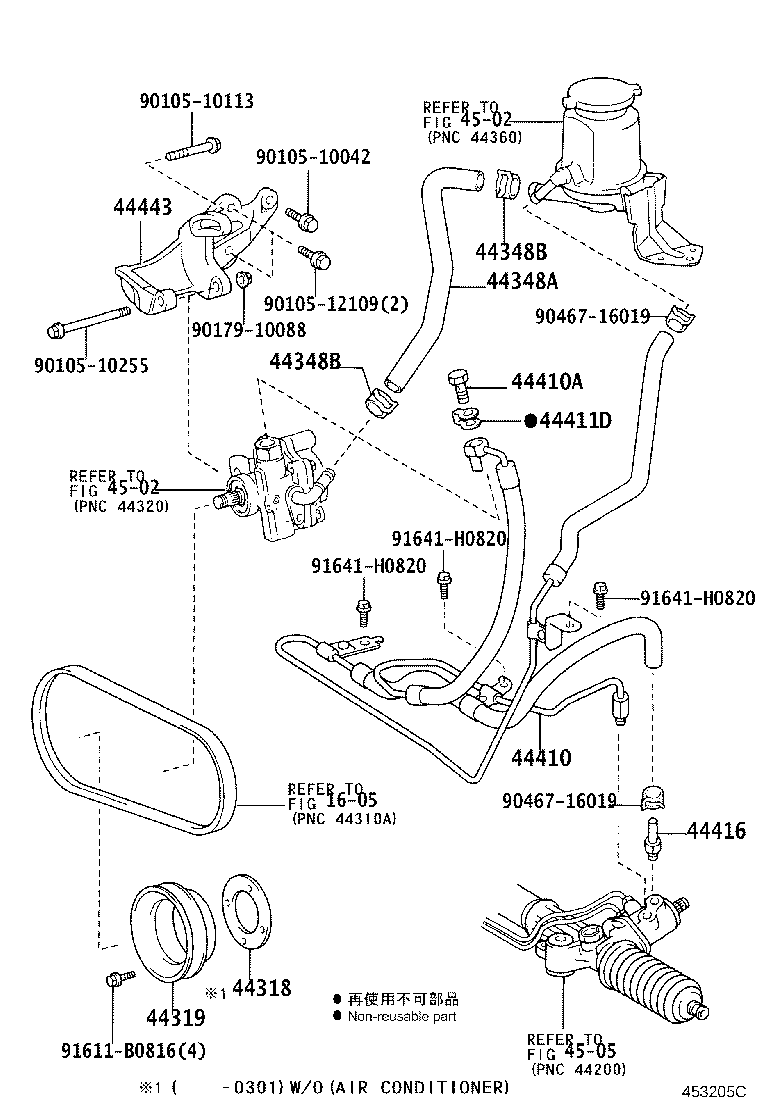

Figure 453206B 453206B 2002-09 → 2004-08 Figure 453207B 453207B 2002-09 → 2004-08 Figure 453202B 453202B 2002-09 → — Figure 453203B 453203B 2002-09 → — Figure 453204C 453204C 2002-09 → — Figure 453205C 453205C 2002-09 → — Figure 453488C 453488C 2003-01 → — Figure 453489B 453489B 2003-01 → — Figure 454023B 454023B 2004-08 → — Figure 454024A 454024A 2004-08 → —

Part groups

PNCDescription
44318 Spacer, Vane Pump Drive Pulley
44319 Pulley, Vane Pump Drive
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44350 Pulley Assy, Power Steering Idle
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44443 Bracket, Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
