Toyota Land Cruiser Prado

2002-09 → 2010-03 · chassis GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12# · catalogue 781350 · General

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

15 part groups · 15 illustrations

Illustrations

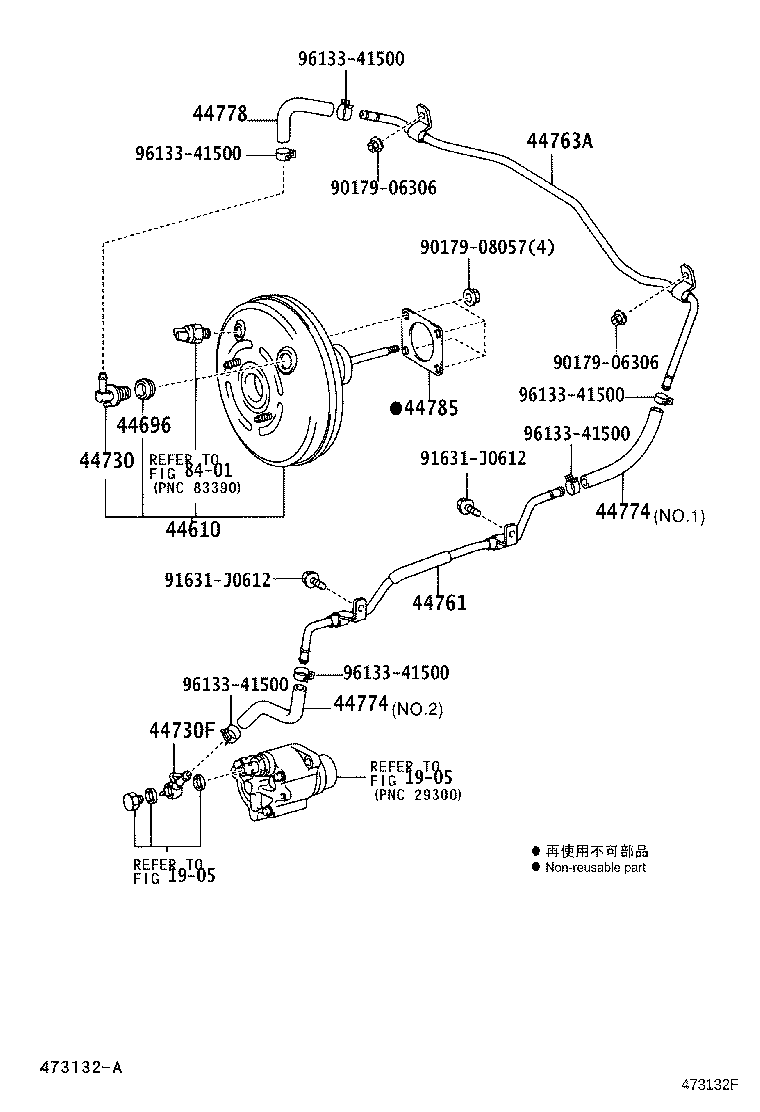

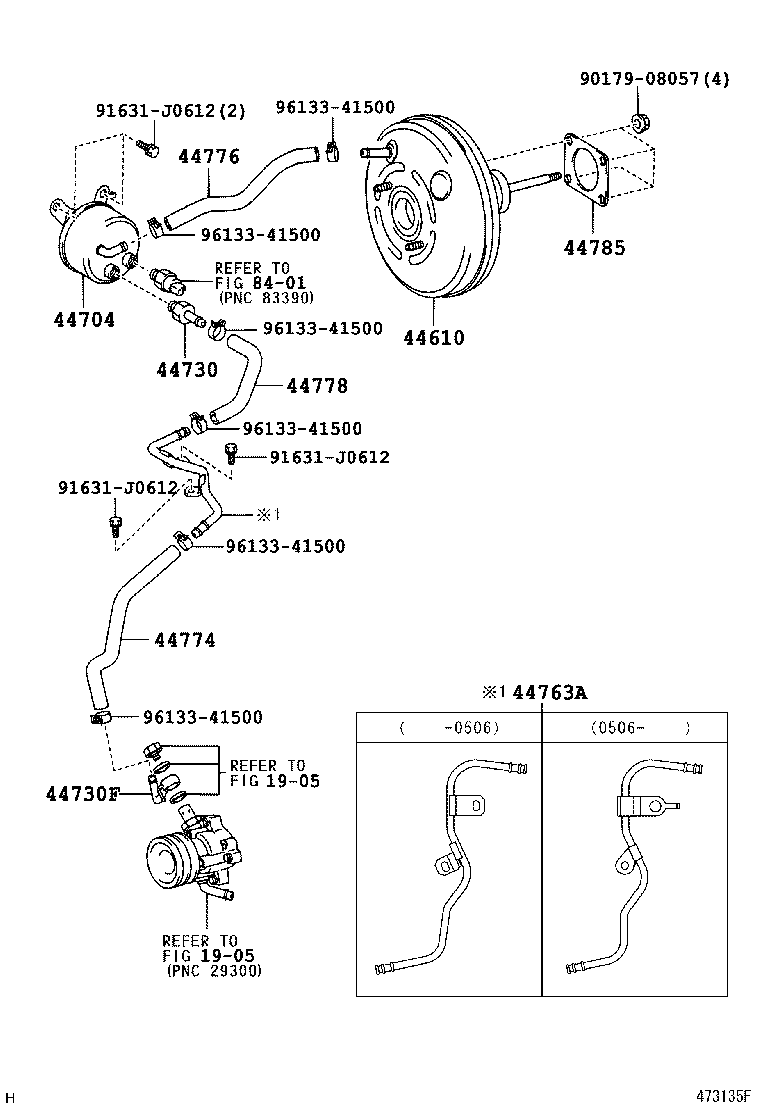

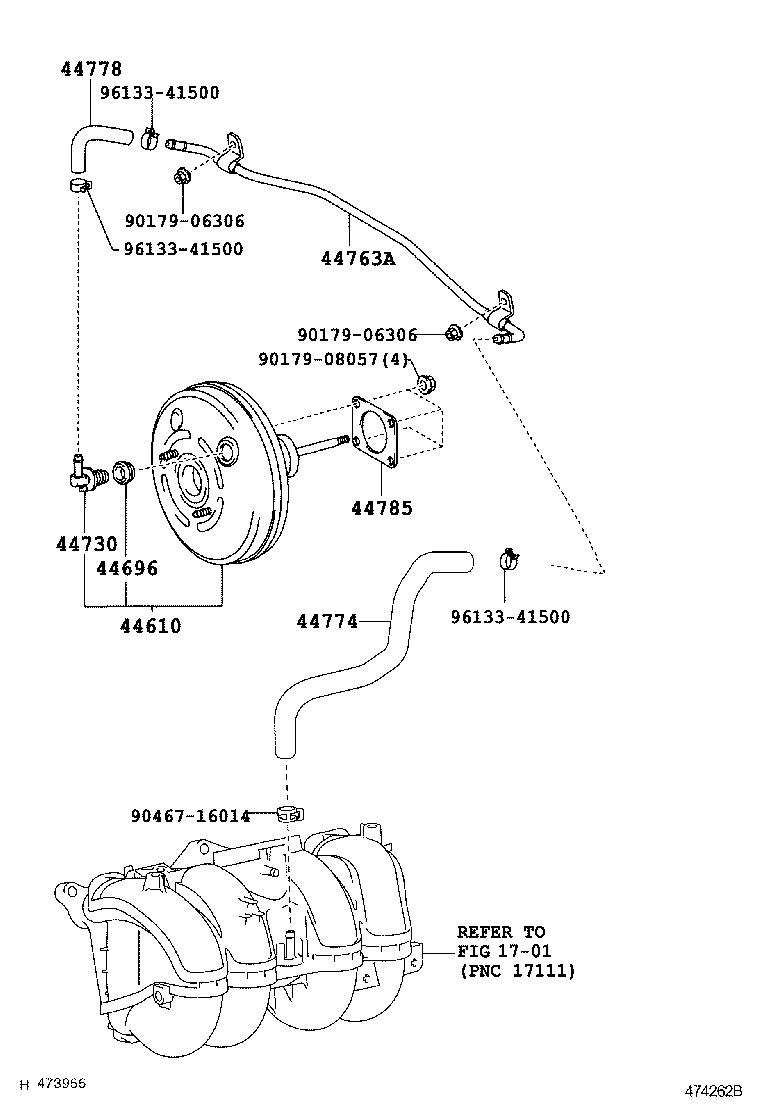

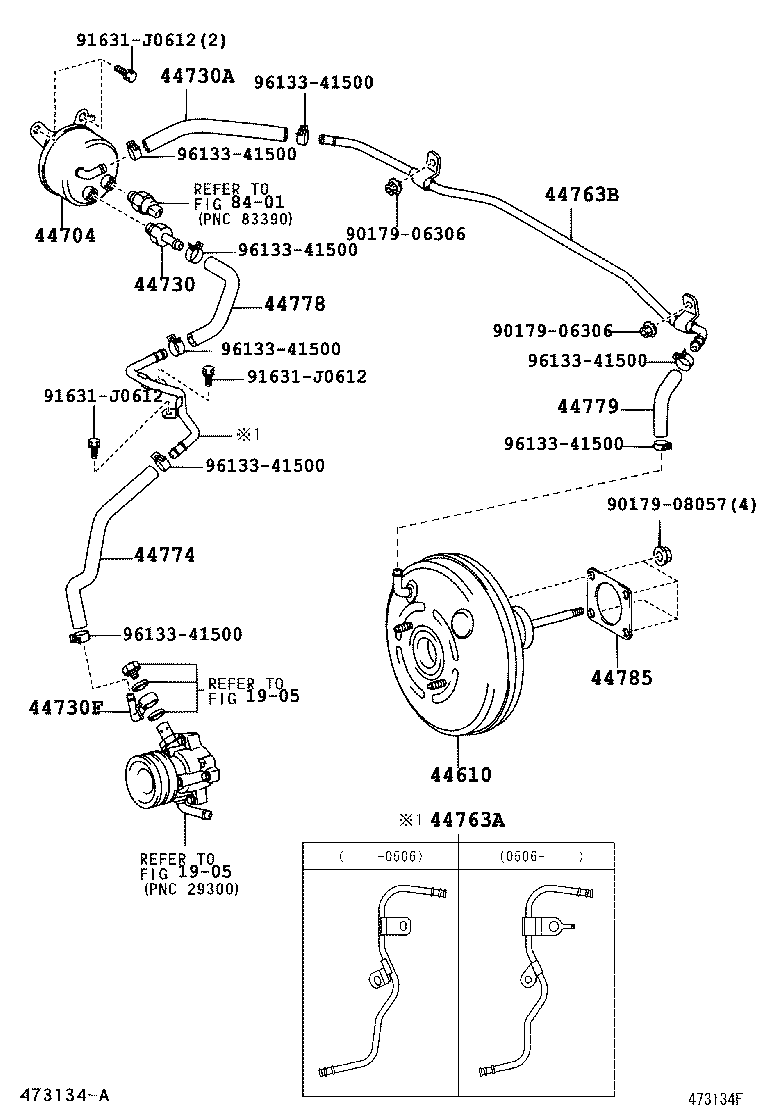

Figure 473131F 473131F 2002-09 → — Figure 473132F 473132F 2002-09 → — Figure 473660D 473660D 2003-01 → — Figure 473661D 473661D 2003-01 → — Figure 473133B 473133B 2002-09 → 2003-11 Figure 473133B 473133B 2003-01 → 2004-08 Figure 473133B 473133B 2003-11 → 2004-08 Figure 473133B 473133B 2004-08 → — Figure 473133B 473133B 2006-06 → — Figure 473134F 473134F 2002-09 → — Figure 473135F 473135F 2002-09 → — Figure 473136D 473136D 2002-09 → — Figure 473137D 473137D 2002-09 → — Figure 474262B 474262B 2004-08 → — Figure 474263B 474263B 2004-08 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730A Hose, Vacuum, NO.1
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44763A Tube, Hose TO Hose, NO.1
44763B Tube, Tube Connector TO Tube Connector
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44778 Hose, Connector TO Check Valve
44779 Hose, Union TO Connector
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
