Toyota Land Cruiser Prado
2002-09 → 2010-03 · chassis GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12# · catalogue 781350 · General
Supported model
Data version 2010-10

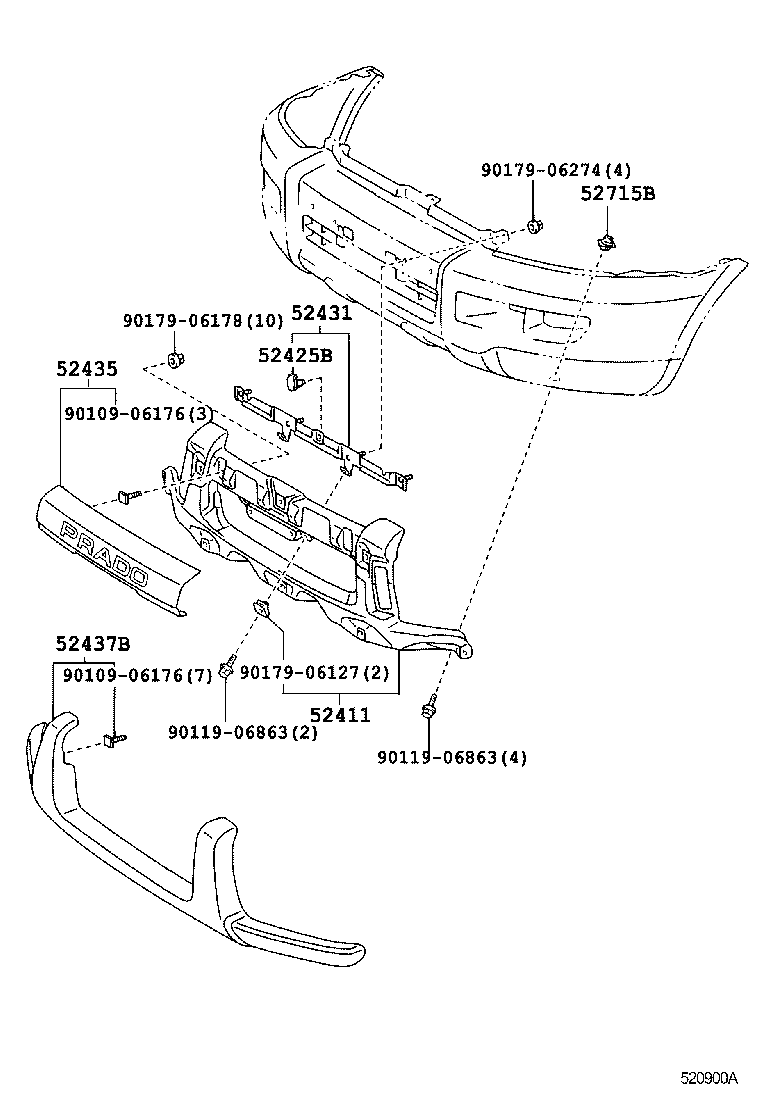

Front Bumper & Bumper Stay
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52025B | Extension Sub-assy, Front Bumper, NO.2 RH |
| 52026B | Extension Sub-assy, Front Bumper, NO.2 LH |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52122C | Plate, Front Bumper Reinforcement, Center |
| 52123B | Plate, Front Bumper Reinforcement, RH |
| 52124B | Plate, Front Bumper Reinforcement, LH |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52161C | Piece, Front Bumper |
| 52411 | Guard, Front Bumper |
| 52425B | Insert, Front Bumper Pad, Center |
| 52431 | Retainer, Front Bumper Guard |
| 52435 | Garnish, Front Bumper Guard |
| 52437B | Cover, Front Bumper Guard Base |
| 52521A | Clip(FOR FRONT BUMPER RETAINER) |
| 52611 | Absorber, Front Bumper Energy |
| 52715B | Insert, Front Bumper Moulding |
| 53273D | Bracket, Front Bumper Arm Mounting, RH |
| 53274D | Bracket, Front Bumper Arm Mounting, LH |
| 53879H | Retainer, Front Fender Liner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
