Toyota Land Cruiser Prado

2002-09 → 2010-03 · chassis GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12# · catalogue 781350 · General

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

34 part groups · 5 illustrations

Illustrations

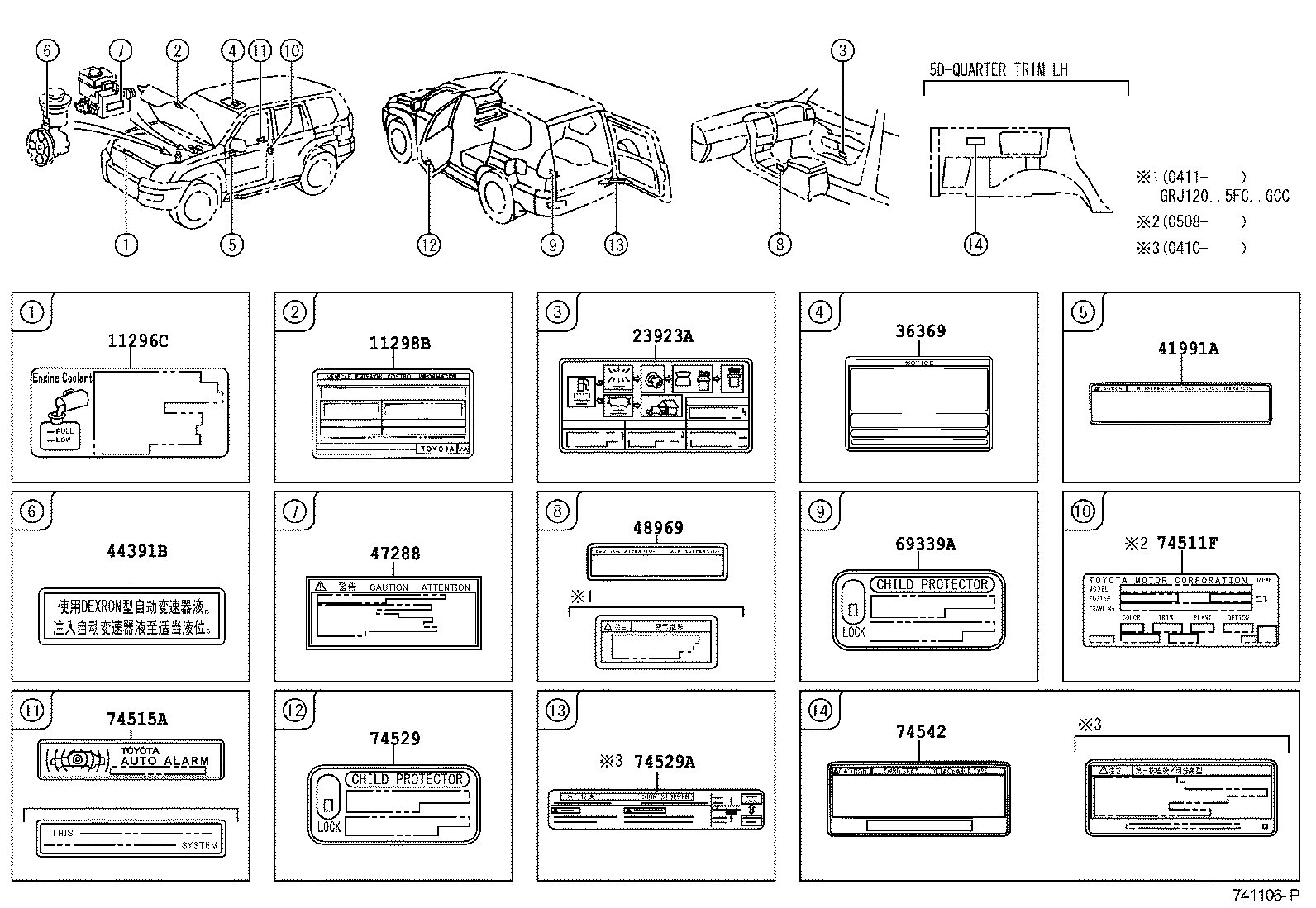

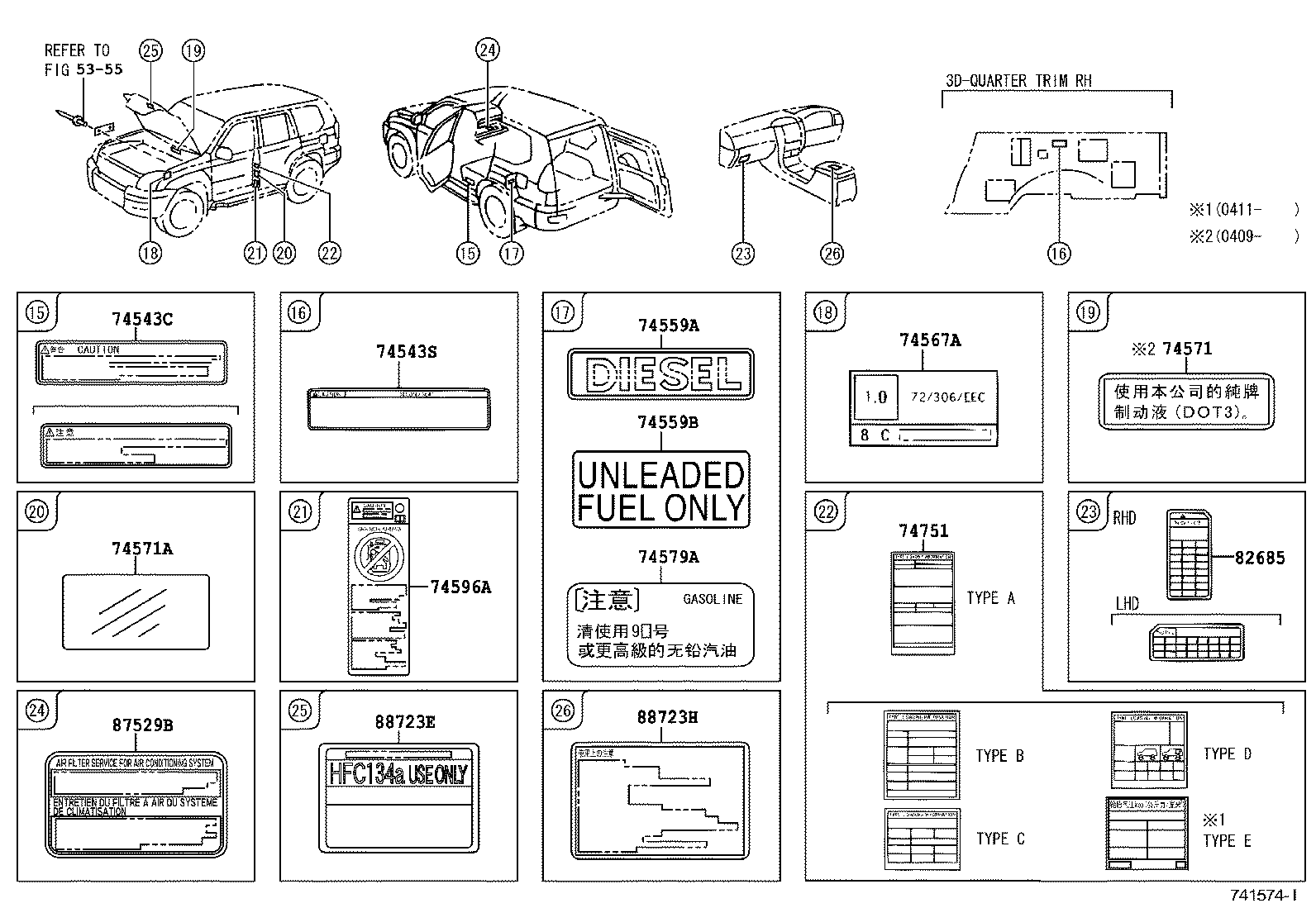

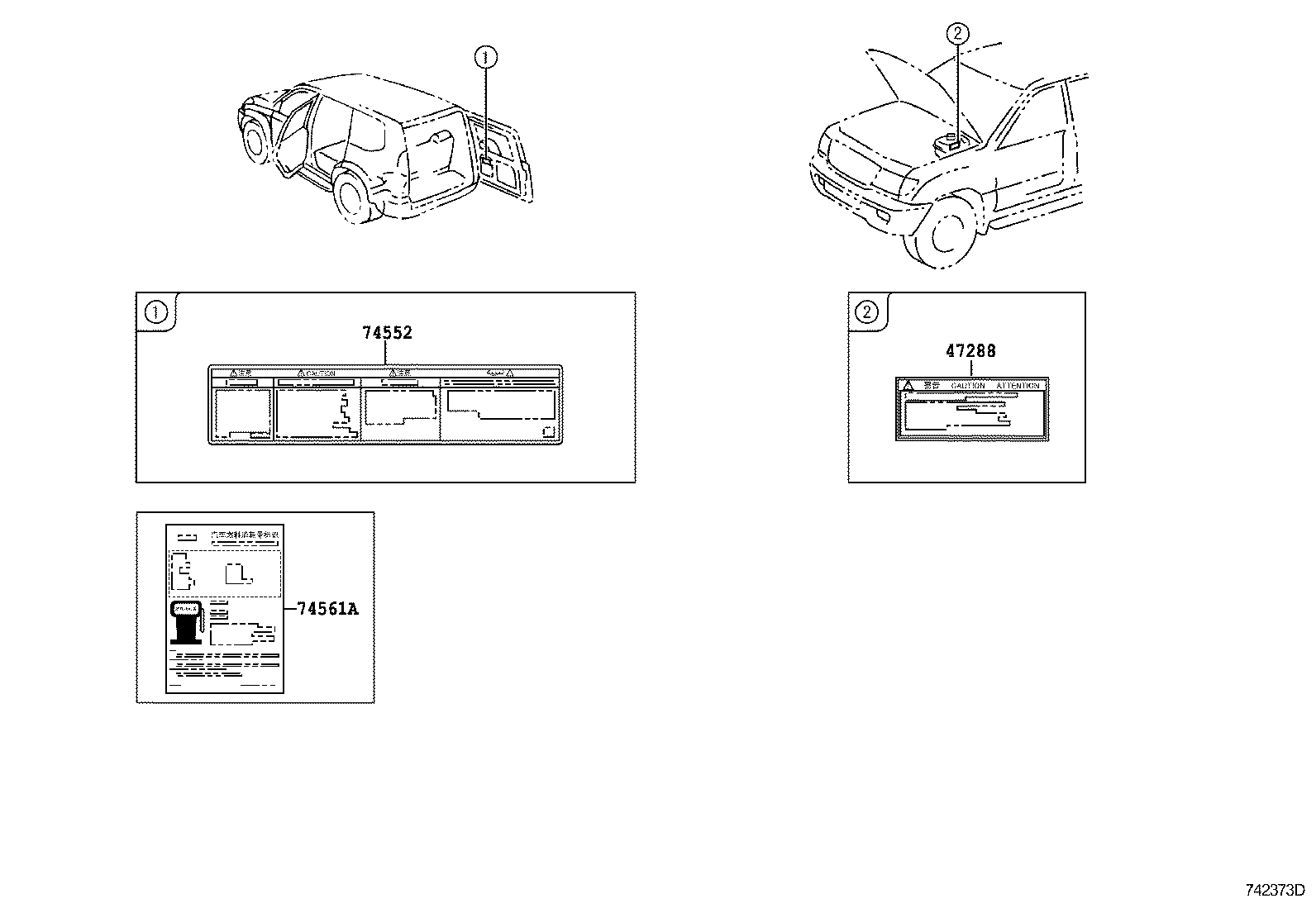

Figure 746110A 746110A 2002-09 → — Figure 741106P 741106P 2002-09 → — Figure 741574I 741574I 2002-09 → — Figure 742373D 742373D 2007-07 → — Figure 742373D 742373D 2007-08 → —

Part groups

PNCDescription
11285F Label, Coolant System Caution
11289B Label, Spark Plug Notice
11296C Label, Engine Service Information
11297C Label, Engine Service Information, NO.2
11298B Label, Emission Control Information
16448A Plate, Radiator Caution
23923A Label, Fuel Sedimenter Notice
36369 Label, Transfer Information
41991A Plate, Caution
44391B Label, Power Steering Oil Information
47288 Label, Brake Fluid Notice
48969 Label, Jack UP Caution
69339A Plate, Child Protector Lock Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515A Plate, Theft Warning
74529 Plate, Child Proof OR Child Protector Lock Caution
74529A Plate, Back Door Caution
74542 Plate, Rear Window Mark
74543C Label, Rear Seat Information
74543S Label, Automatic Belt Caution, NO.3
74552 Plate, Safety Caution
74559A Plate, Fuel Caution
74559B Label, Fuel Information
74561A Label, Fuel Consumption Information
74567A Plate, E.C.E Approved Number
74571 Plate, Brake Fluid Caution
74571A Film, Label Cover
74579A Label, Unleaded Fuel Information
74596A Label, Side Airbag Caution
74751 Label, Tire Pressure Information
82685 Plate, Caution
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
88723H Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
