Toyota Land Cruiser Prado

2002-09 → 2010-03 · chassis GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12# · catalogue 781350 · General

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

10 part groups · 10 illustrations

Illustrations

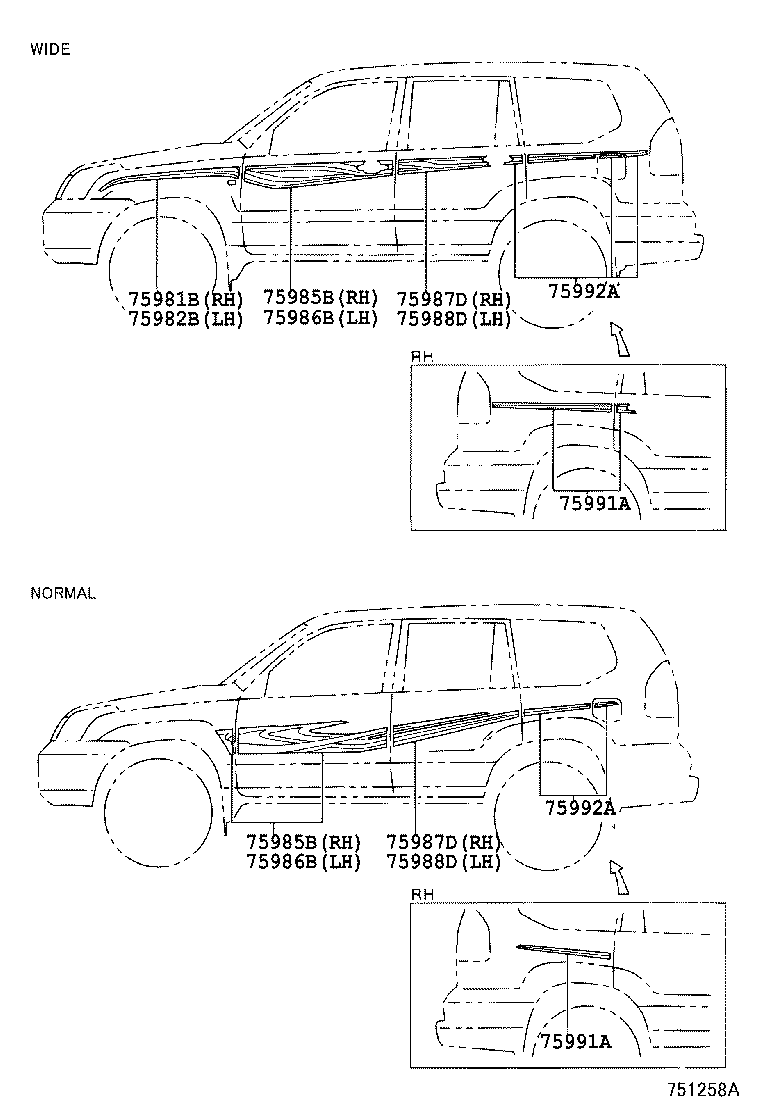

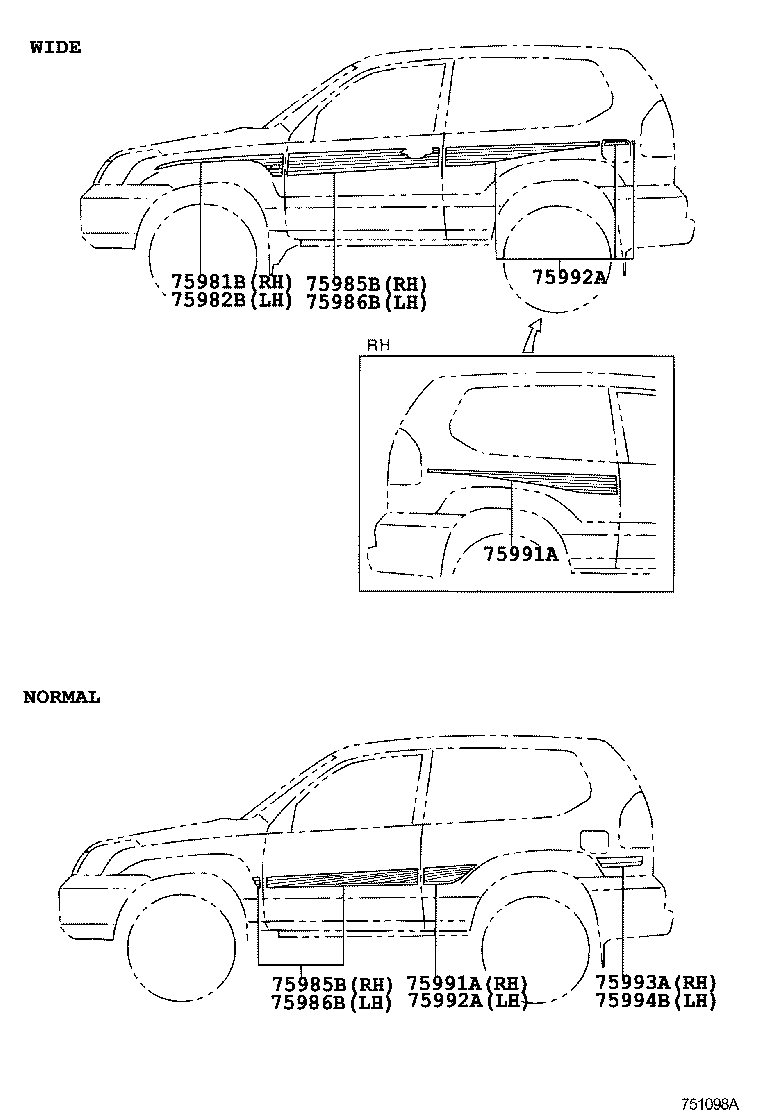

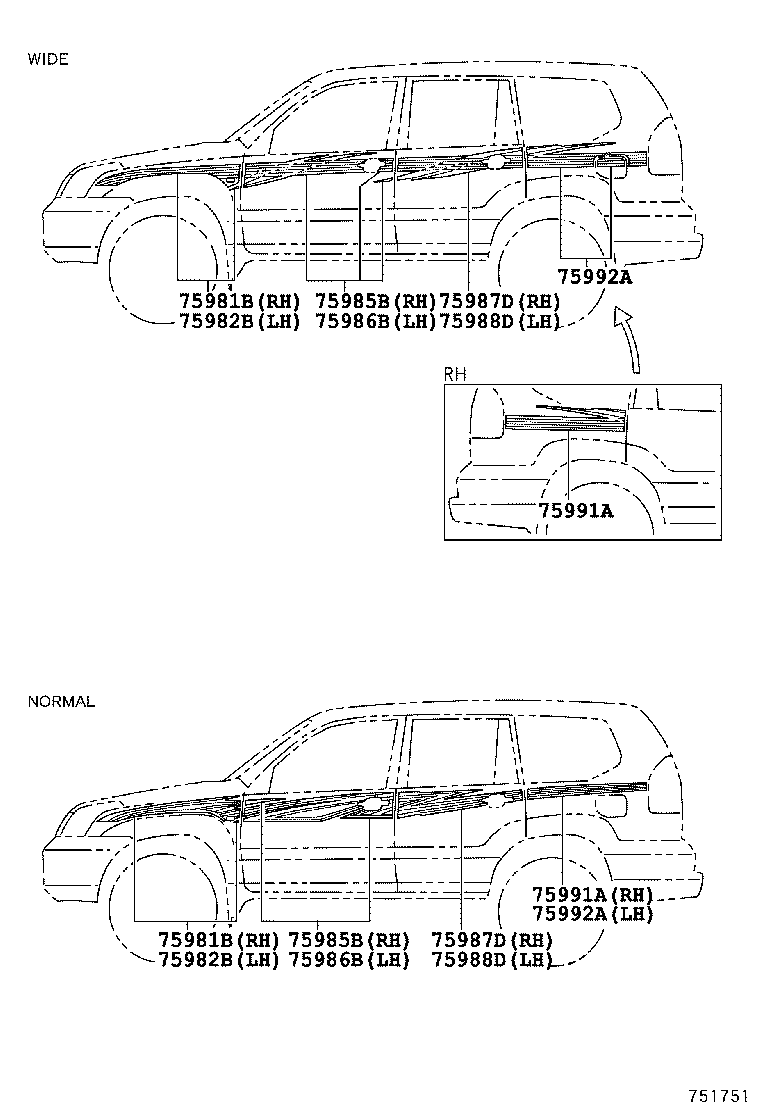

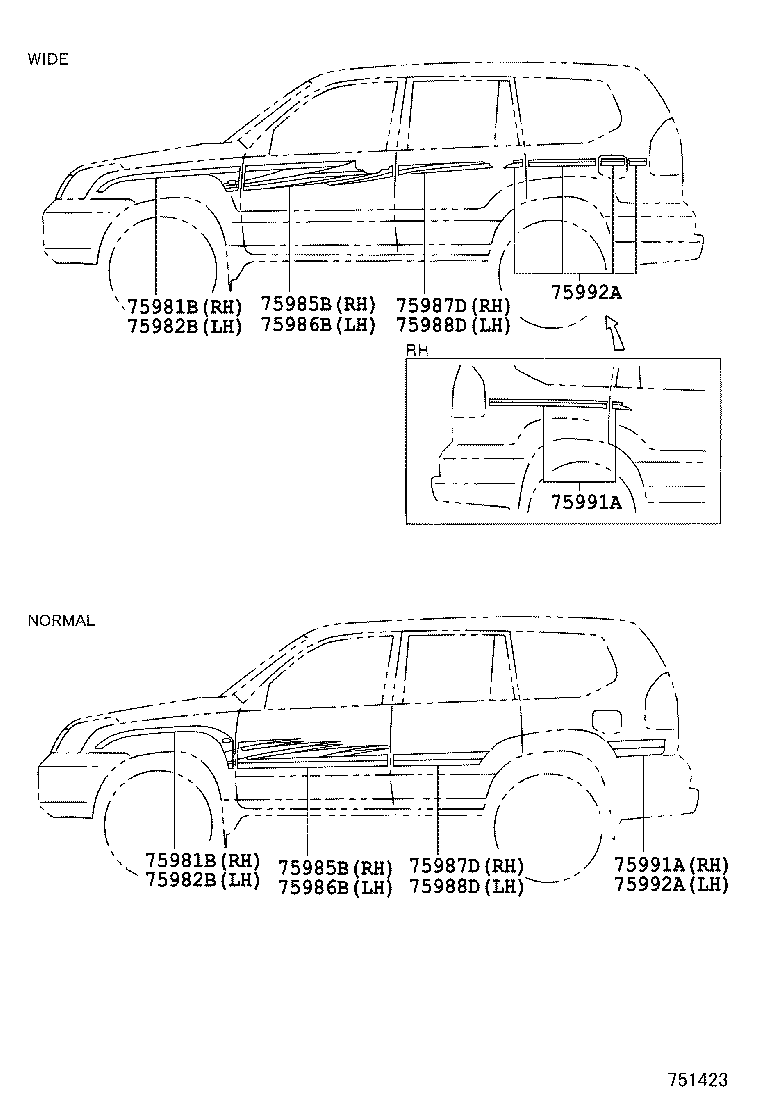

Figure 751097A 751097A 2002-09 → 2003-11 Figure 751098A 751098A 2002-09 → 2003-11 Figure 751258A 751258A 2003-11 → 2004-07 Figure 751259B 751259B 2003-11 → 2004-07 Figure 751423 751423 2004-08 → 2006-08 Figure 751423 751423 2005-05 → 2006-08 Figure 751424 751424 2004-08 → 2006-08 Figure 751751 751751 2006-06 → — Figure 751751 751751 2006-08 → — Figure 751752 751752 2006-08 → —

Part groups

PNCDescription
75981B Stripe, Fender, RH
75982B Stripe, Fender, LH
75985B Stripe, Front Door, NO.3 RH
75986B Stripe, Front Door, NO.3 LH
75987D Stripe, Rear Door, Outside, RH
75988D Stripe, Rear Door Outside, LH
75991A Stripe, Quarter, RH
75992A Stripe, Quarter, LH
75993A Stripe, Quarter, Rear RH
75994B Strip, Quarter, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
