Toyota Land Cruiser Prado
2002-09 → 2010-03 · chassis GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12# · catalogue 781350 · General
Supported model
Data version 2010-10

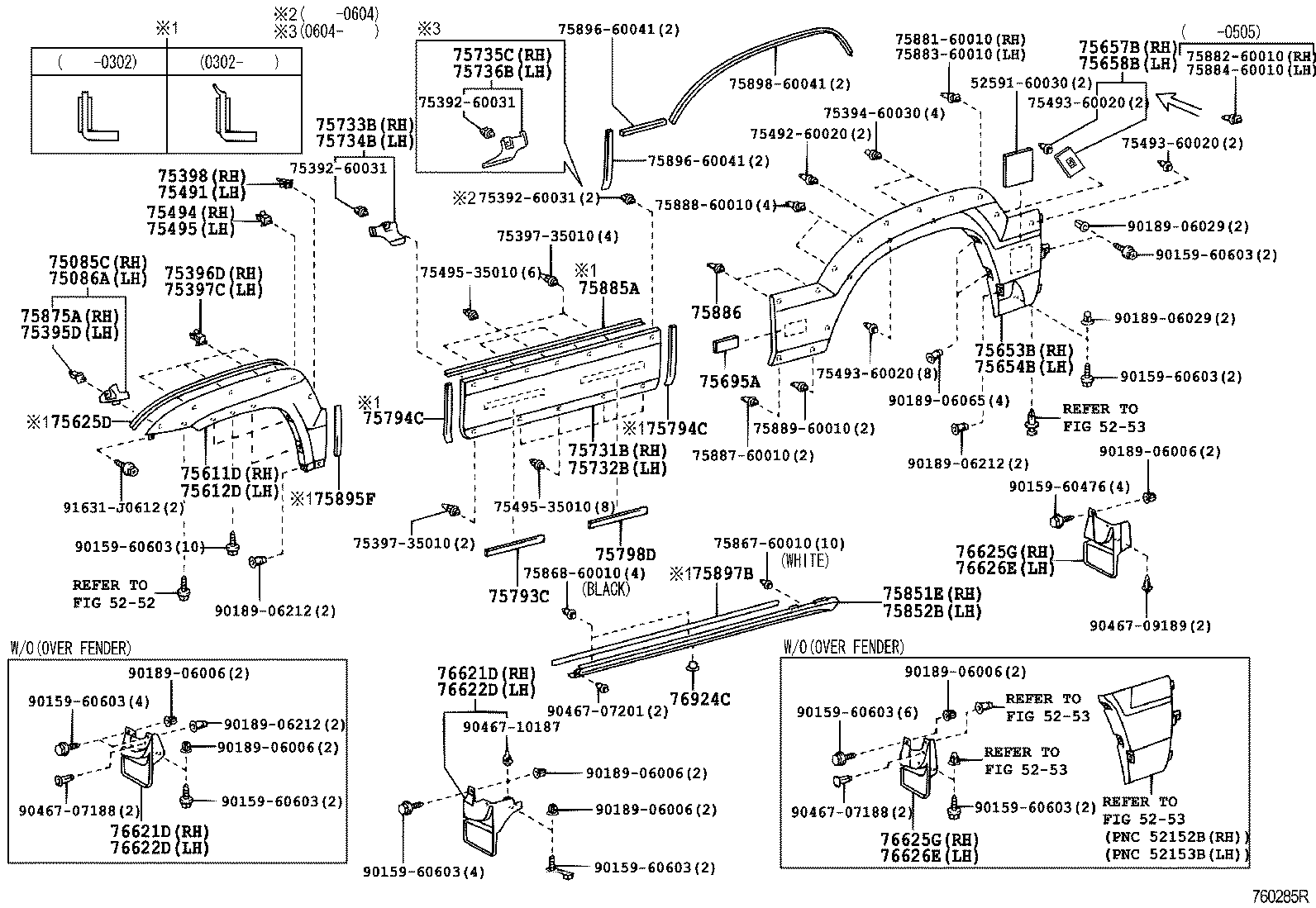

Spoiler & Side Mudguard
51 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 75085C | Moulding Sub-assy, Front Fender Wheel Opening, RH |
| 75086A | Moulding Sub-assy, Front Fender Wheel Opening, LH |
| 75395D | Clip, Outside Moulding, NO.1 |
| 75396D | Clip, Outside Moulding, NO.2 |
| 75397C | Clip, Outside Moulding, NO.3 |
| 75398 | Clip, Outside Moulding, NO.5 |
| 75491 | Clip, Outside Moulding, NO.6 |
| 75494 | Clip, Outside Moulding, NO.3 |
| 75495 | Clip, Outside Moulding, NO.4 |
| 75611D | Moulding, Front Fender, Outside Front RH |
| 75612D | Moulding, Front Fender, Outside Front LH |
| 75625D | Pad, Front Fender Outside Moulding, Upprer |
| 75653B | Moulding, Quarter Outside, RH NO.3 |
| 75654B | Moulding, Quarter, Outside NO.4 |
| 75657B | Moulding, Quarter Panel, Lower Rear RH |
| 75658B | Moulding, Quarter Panel, Lower Rear LH |
| 75695A | Pad, Quarter Outside Moulding |
| 75731B | Moulding, Front Door, Outside RH |
| 75732B | Moulding, Front Door, Outside LH |
| 75733B | Moulding, Front Door, Outside Upper Rear RH |
| 75734B | Moulding, Front Door, Outside Upper Rear LH |
| 75735C | Moulding, Front Door Outside, Lower RH |
| 75736B | Moulding, Front Door, Outside Lower LH |
| 75741F | Moulding, Rear Door, Outside RH |
| 75742E | Moulding, Rear Door, Outside LH |
| 75743B | Moulding, Rear Door Outside, Upper Rear RH |
| 75744A | Moulding, Rear Door Outside, Upper Rear LH |
| 75793C | Pad, Front Door Outside Moulding, Upper |
| 75794C | Pad, Front Door Outside Moulding, Rear |
| 75794D | Pad, Rear Door Outside Moulding, RR |
| 75798D | Pad, Front Door Outside Moulding, Rear |
| 75798E | Pad, Rear Door Outside Moulding, RR |
| 75851E | Moulding, Body Rocker Panel, RH |
| 75852B | Moulding, Body Rocker Panel, LH |
| 75869D | Retainer, Quarter Opening, LH |
| 75873B | Moulding, Quarter Wheel Opening, RH |
| 75874A | Moulding, Quarter Wheel Opening, LH |
| 75875A | Clip, Front Fender Wheel Opening Moulding |
| 75879C | Retainer, Quarter Opening, RH |
| 75885A | Tape, Moulding, NO.6 |
| 75886 | Joint, Quarter Panel Moulding, NO.1 RH |
| 75895F | Tape, Moulding, NO.1 |
| 75896D | Tape, Moulding, NO.2 |
| 75897B | Tape, Moulding, NO.3 |
| 75898C | Tape, Moulding, NO.4 |
| 75899A | Tape, Moulding, NO.5 |
| 76621D | Mudguard, Front Fender, RH |
| 76622D | Mudguard, Front Fender, LH |
| 76625G | Mudguard, Quarter Panel, Rear RH |
| 76626E | Mudguard, Quarter Panel, Rear LH |
| 76924C | Retainer, Side Mudguard, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
