Toyota Land Cruiser Prado
2002-09 → 2010-03 · chassis GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12# · catalogue 781350 · General
Supported model
Data version 2010-10
Fuel Tank & Tube
121 part groups · 19 illustrations

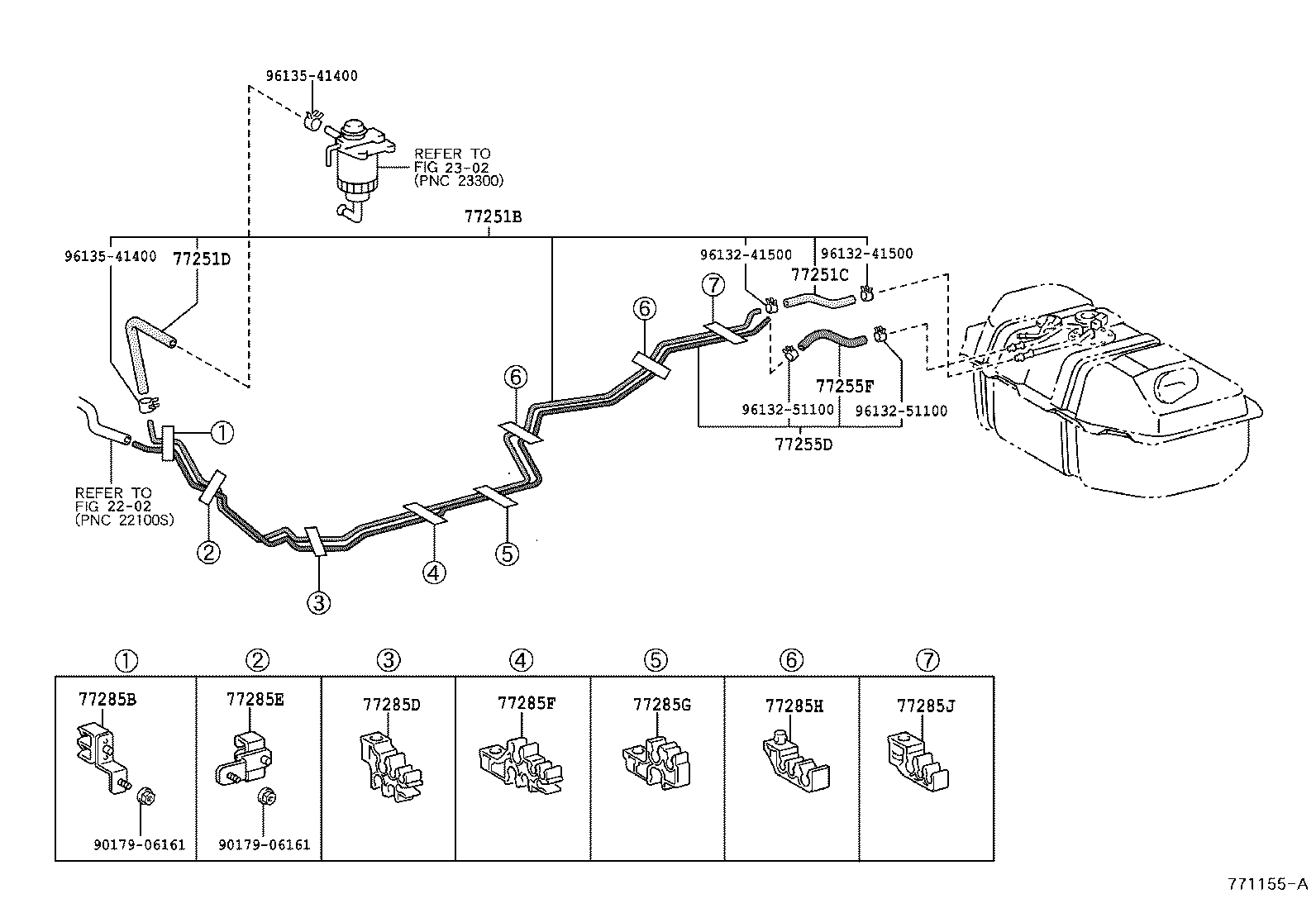

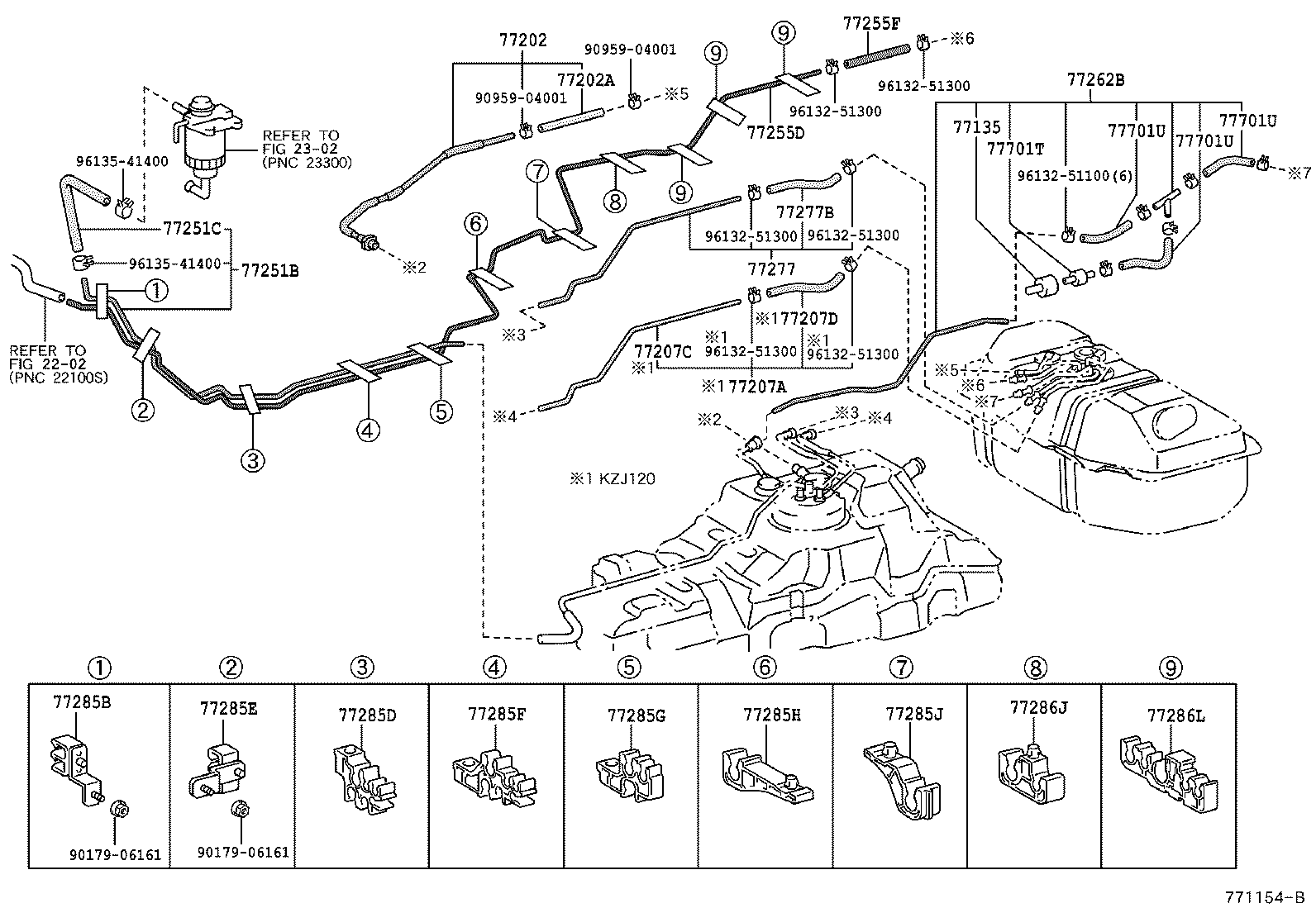

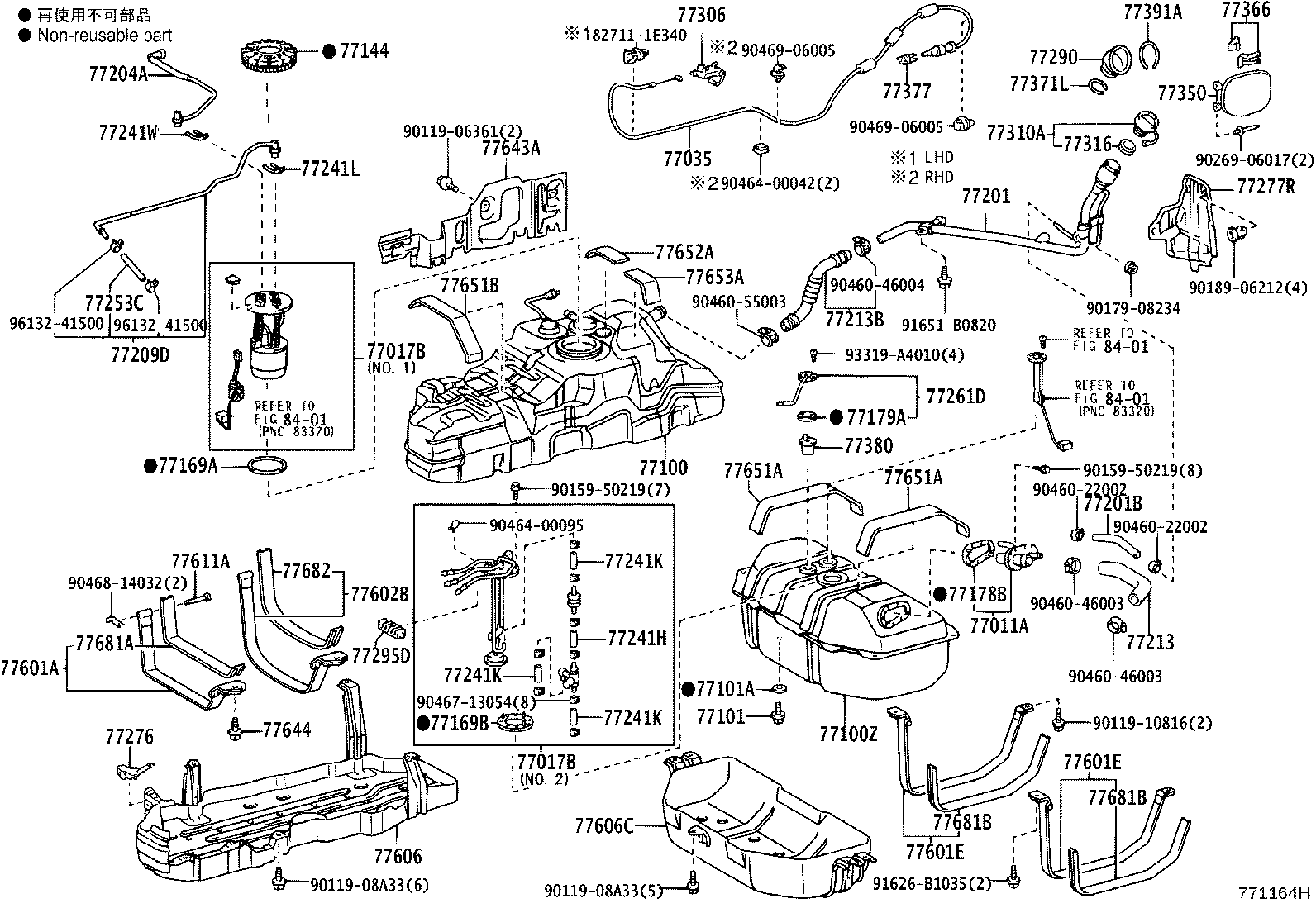

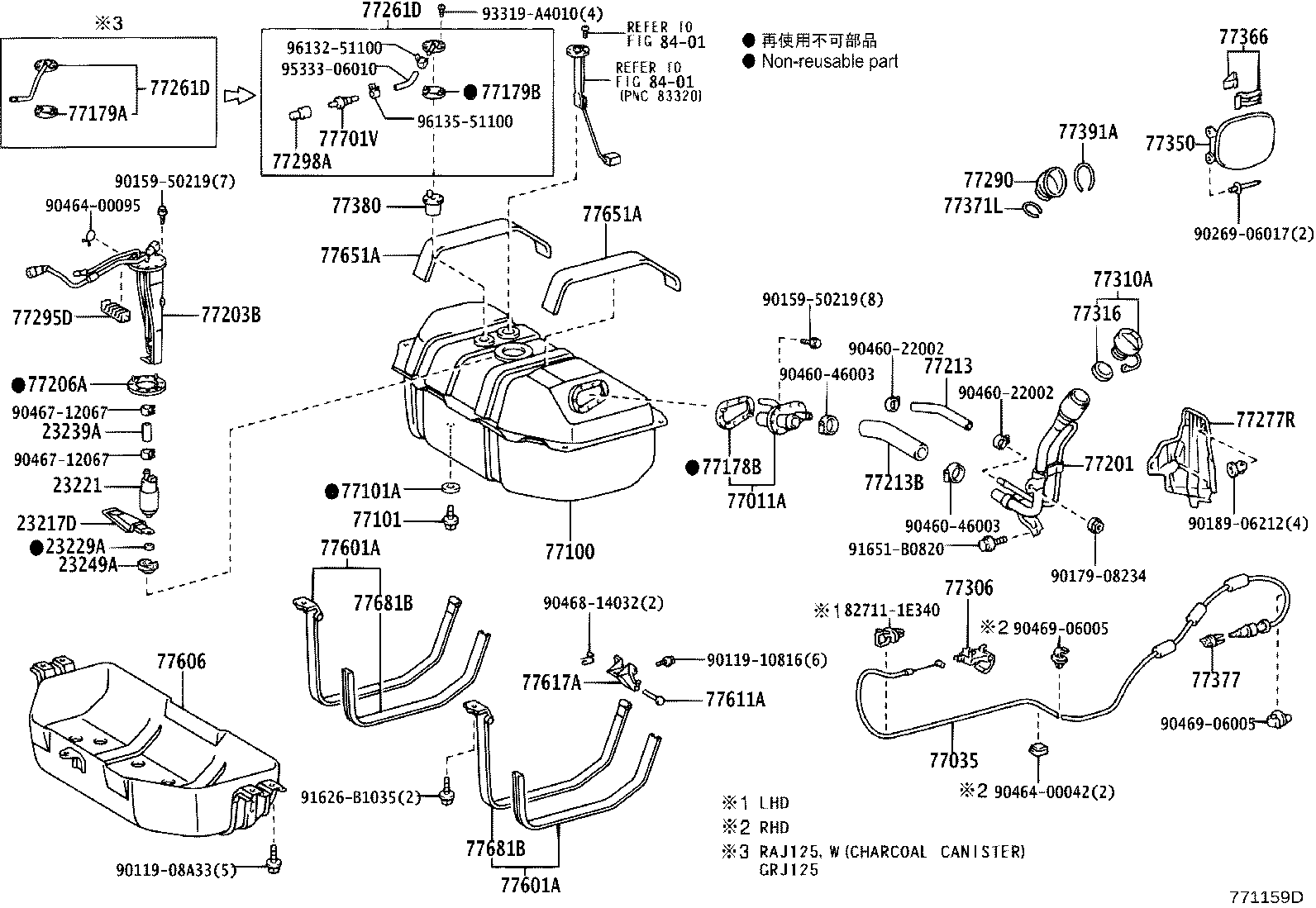

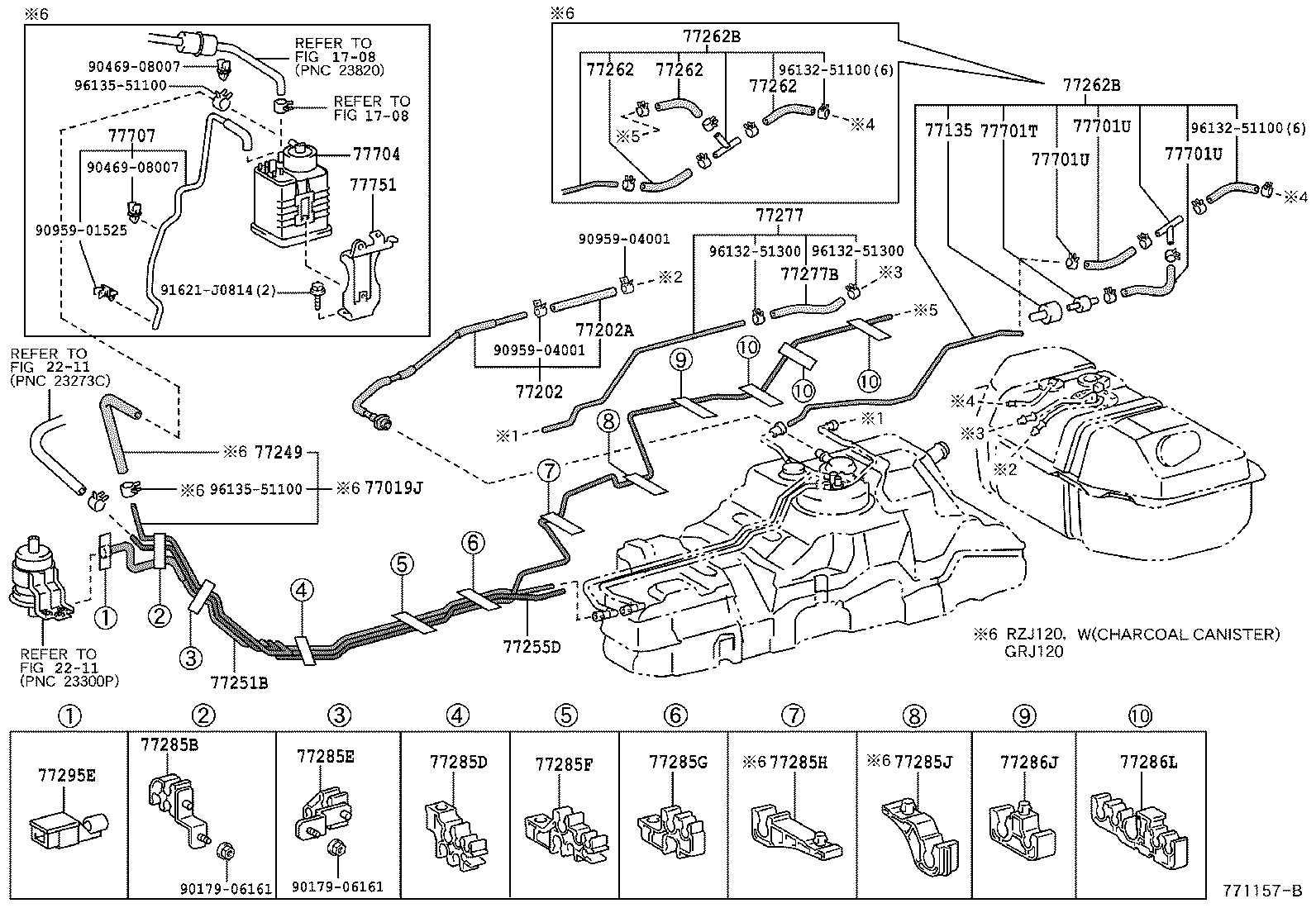

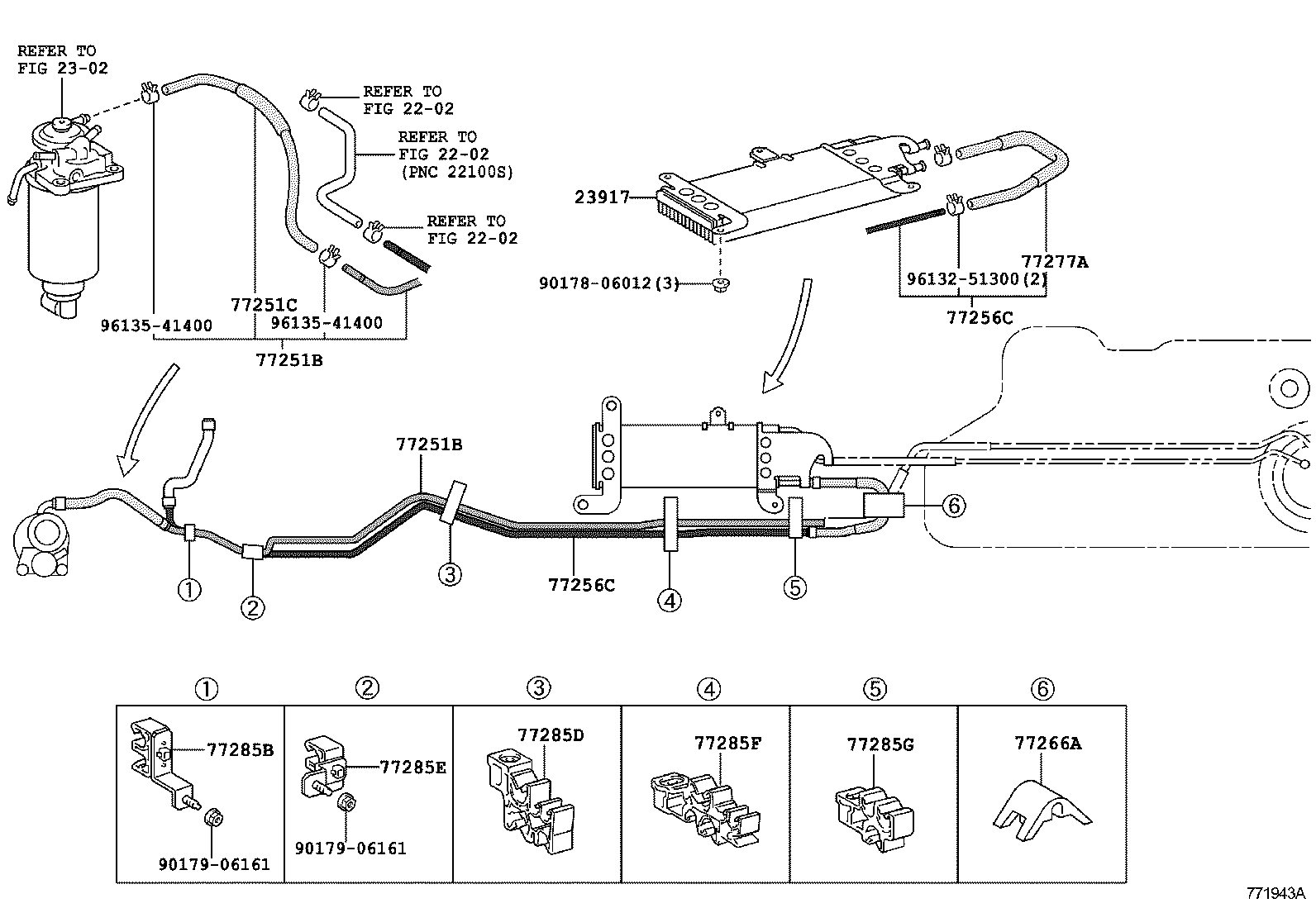

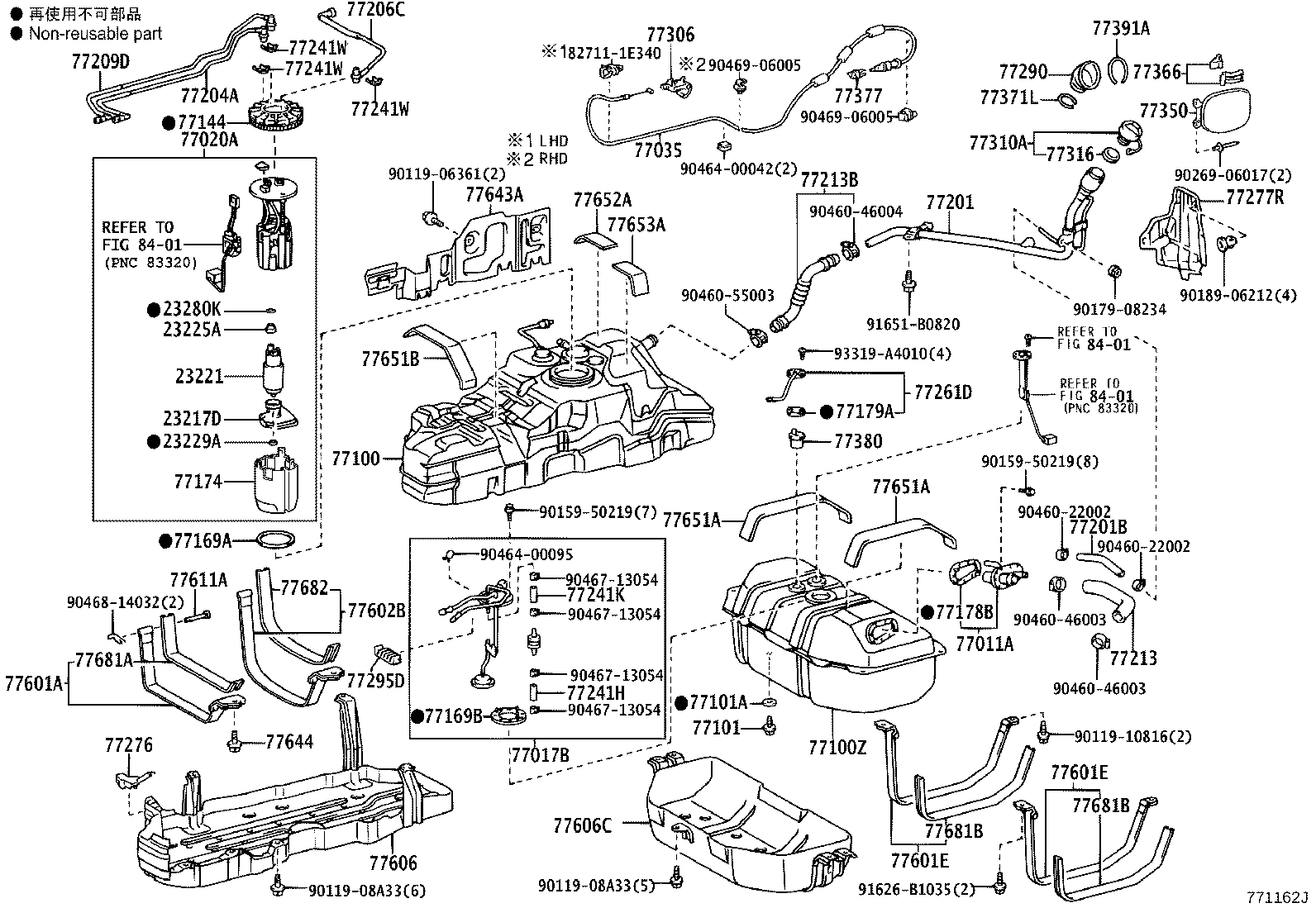

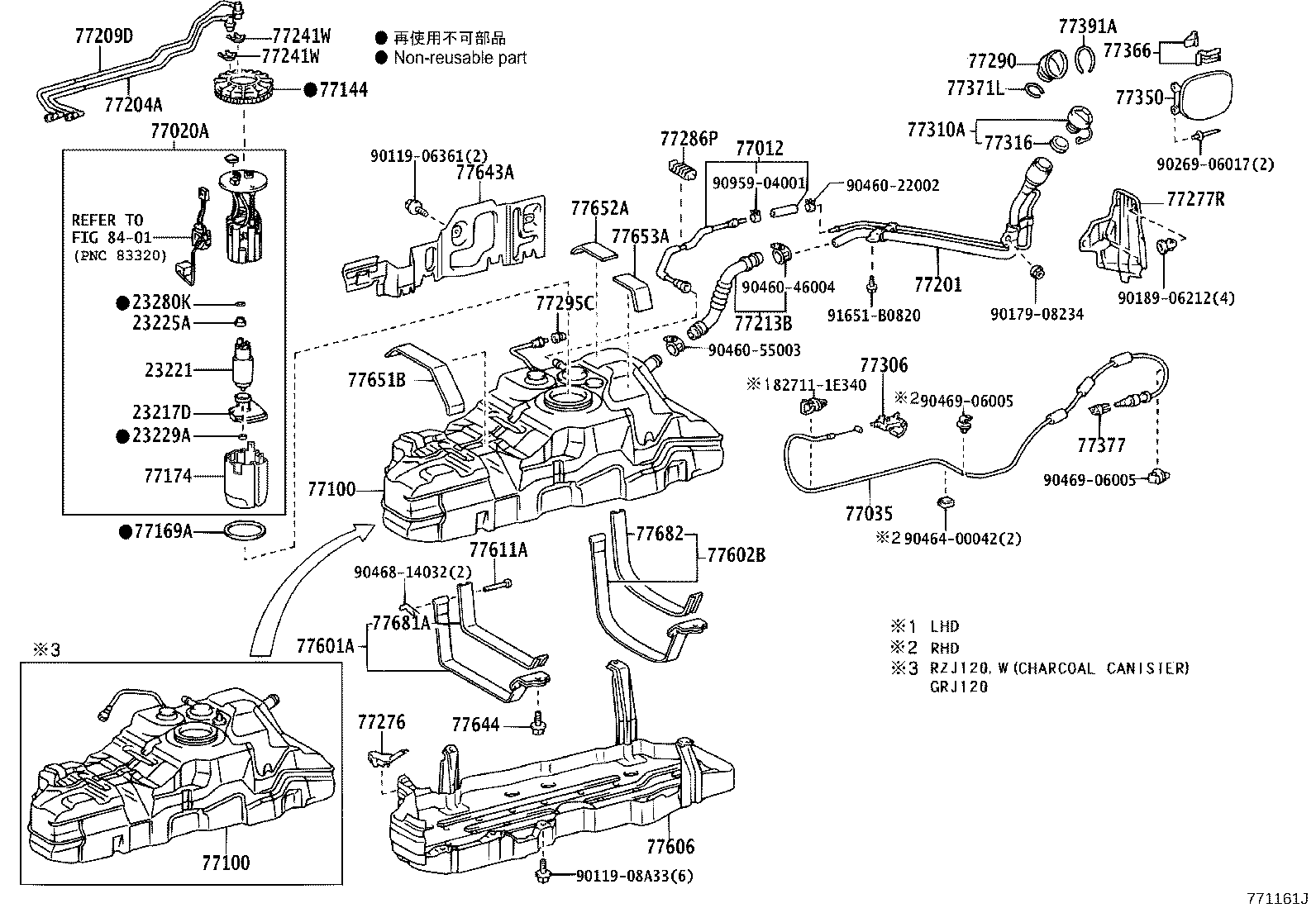

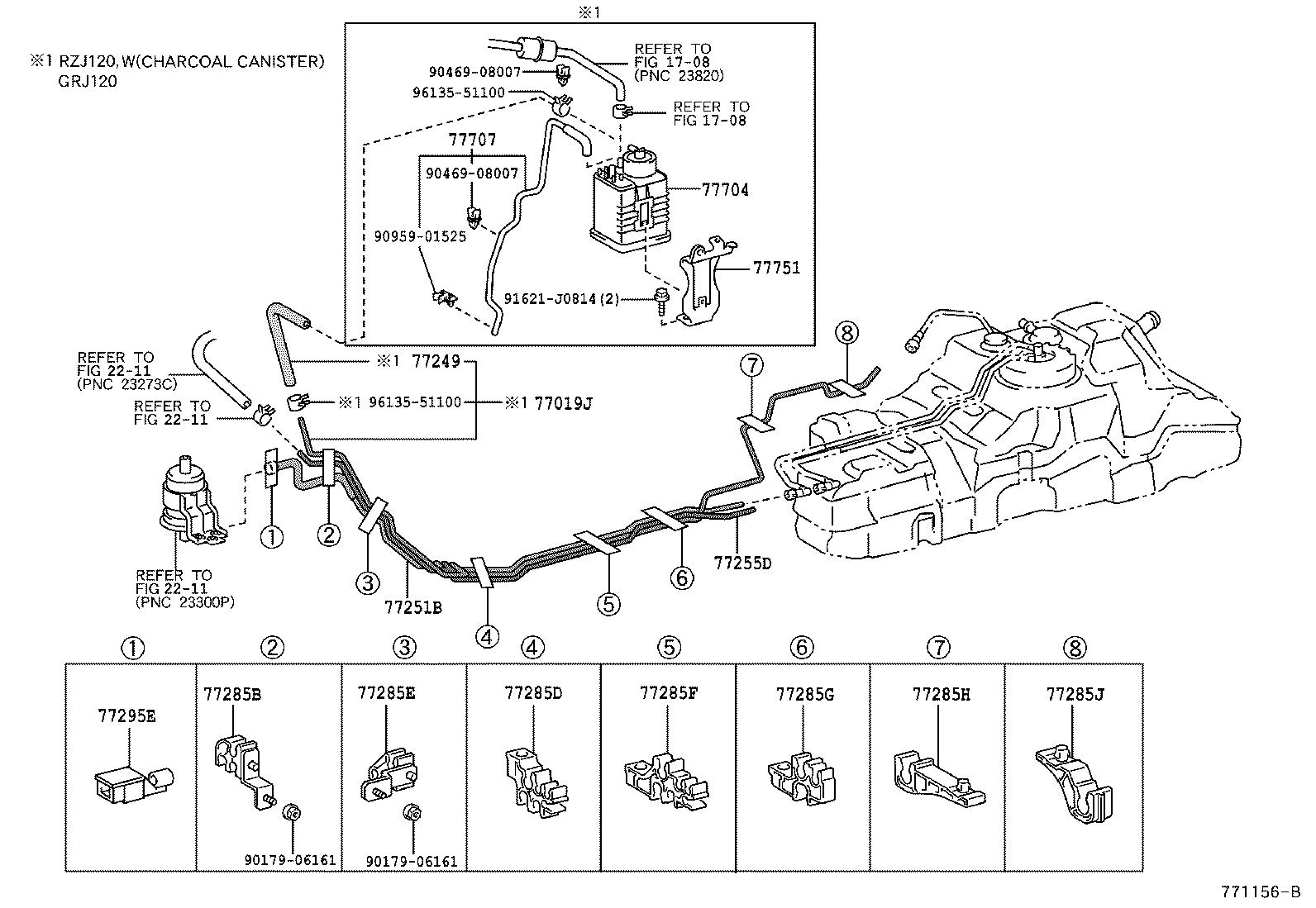

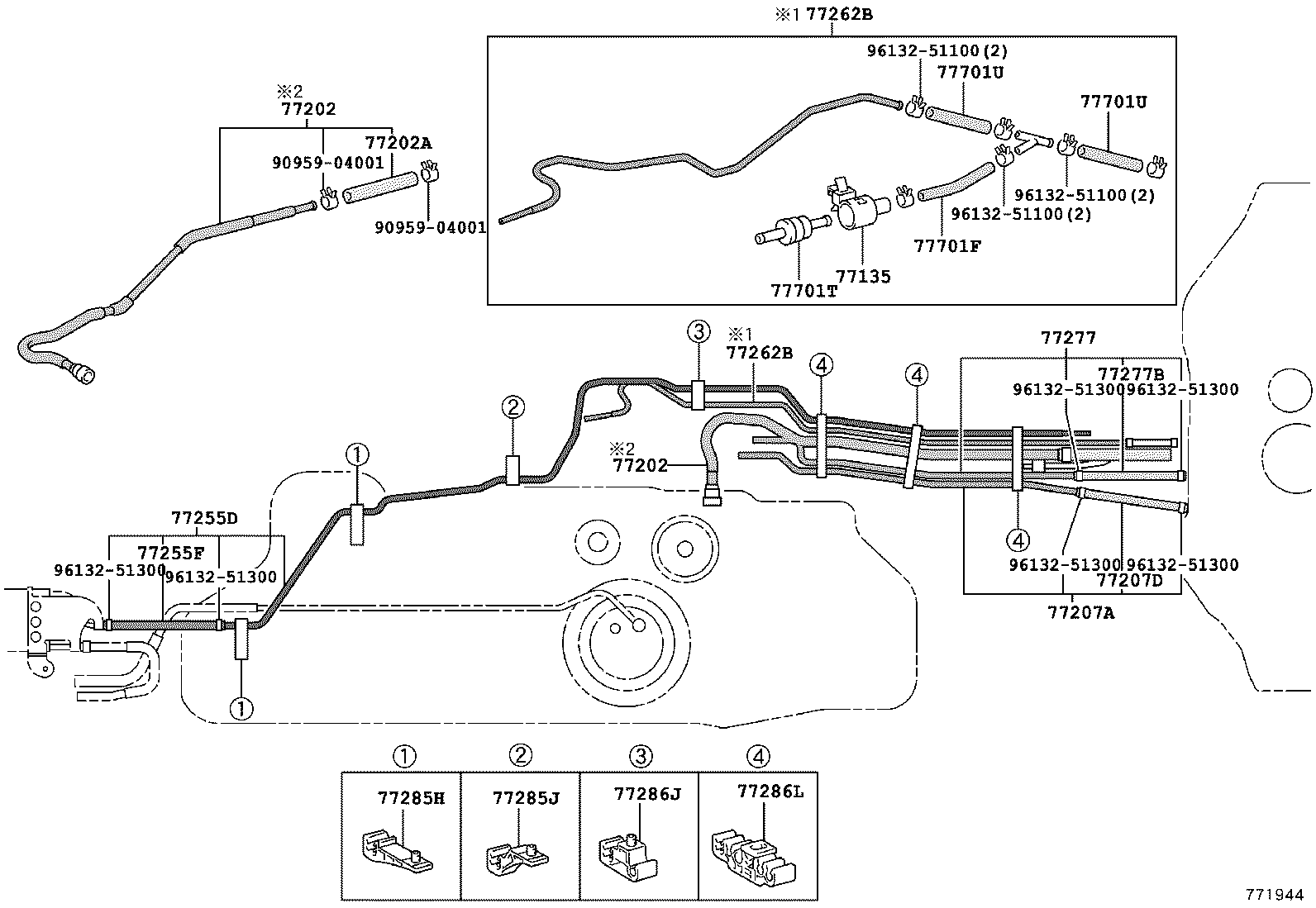

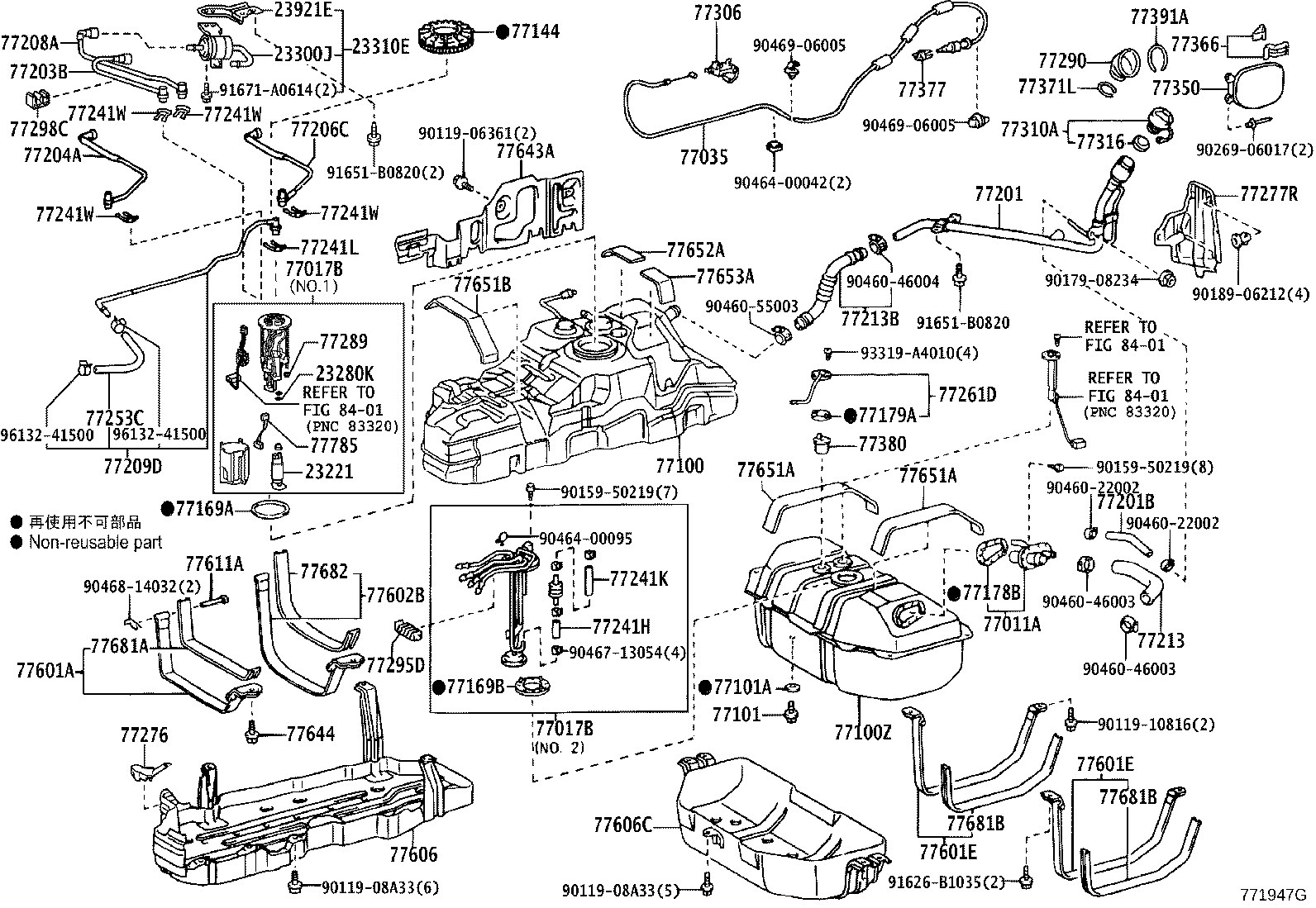

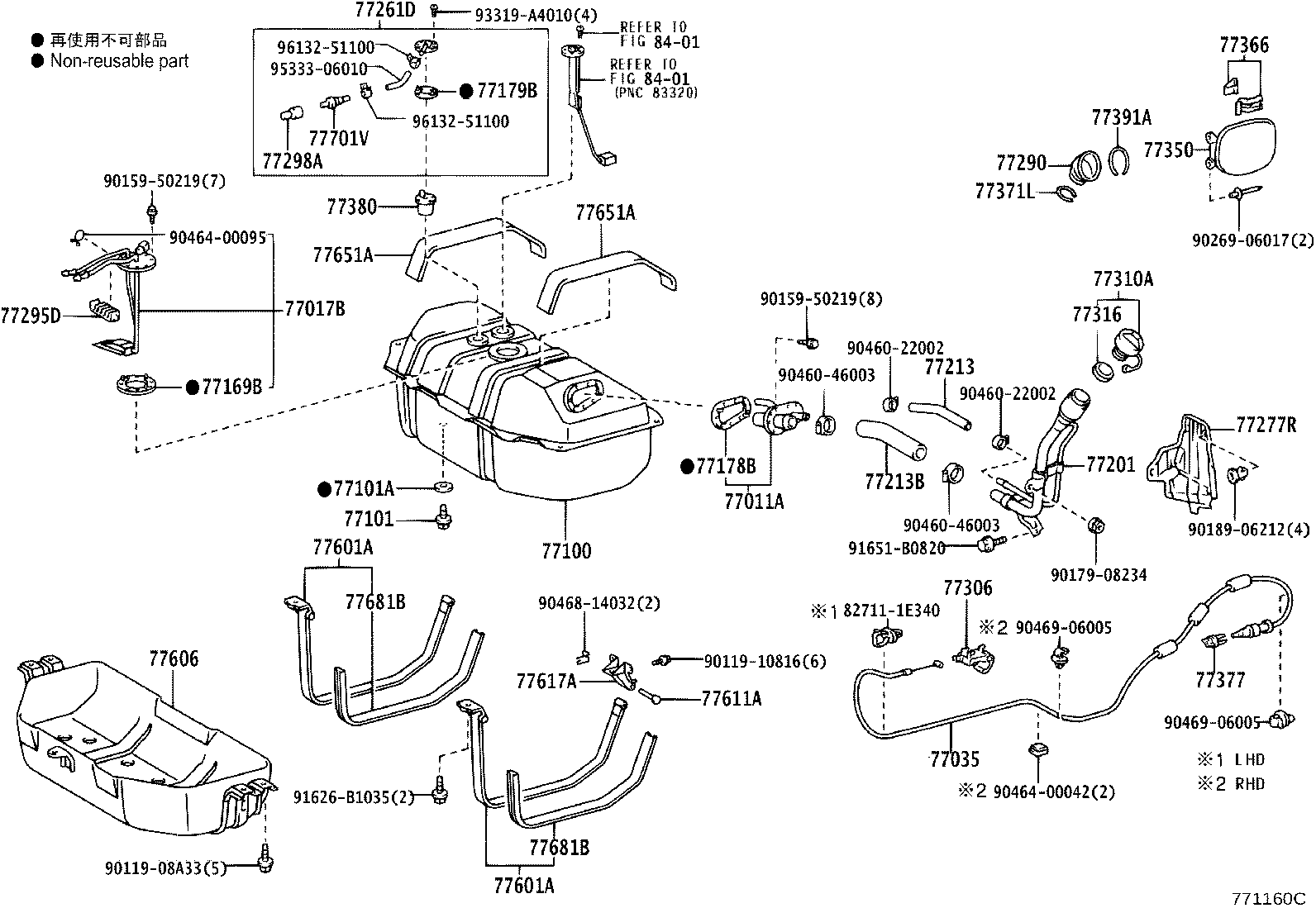

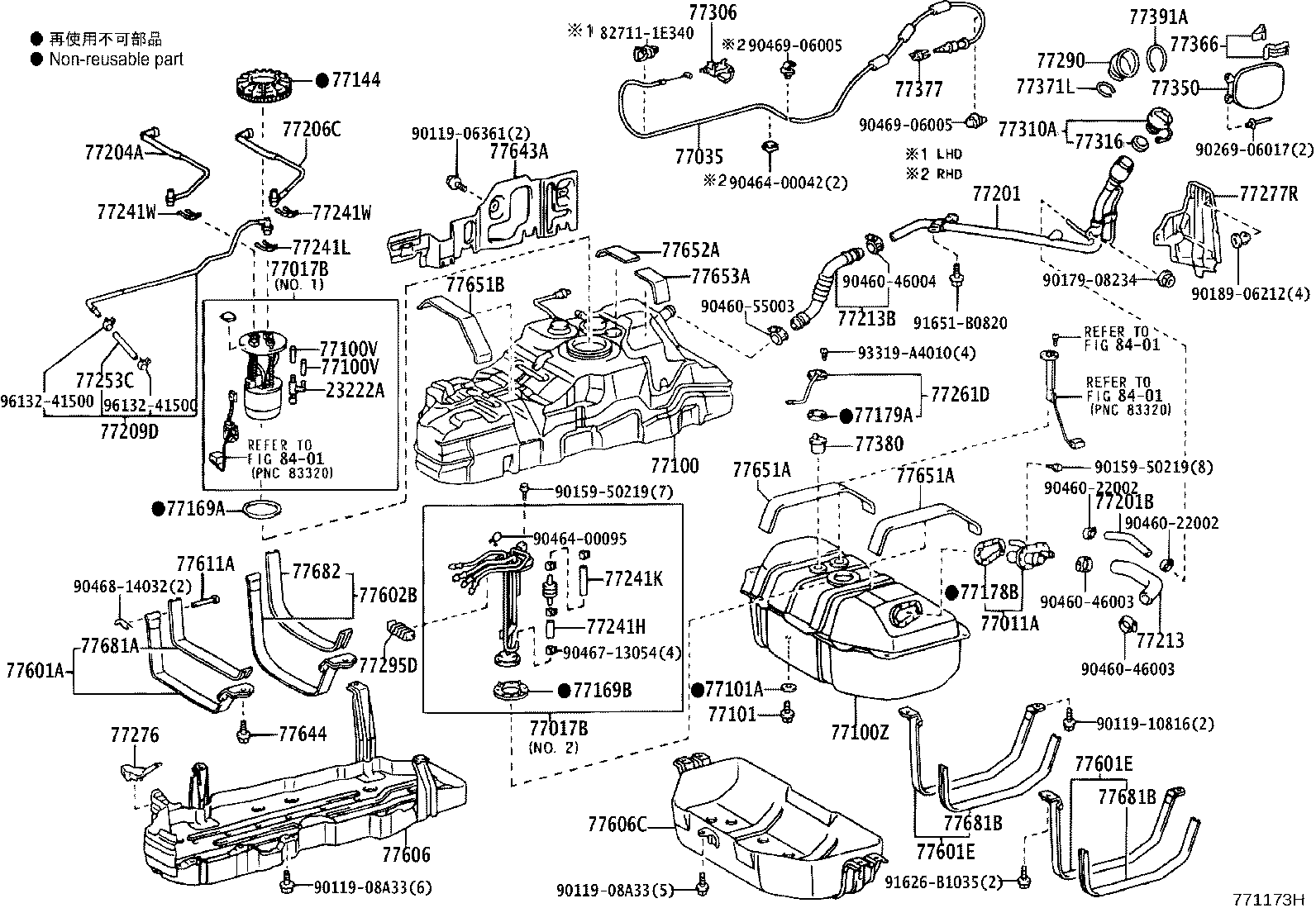

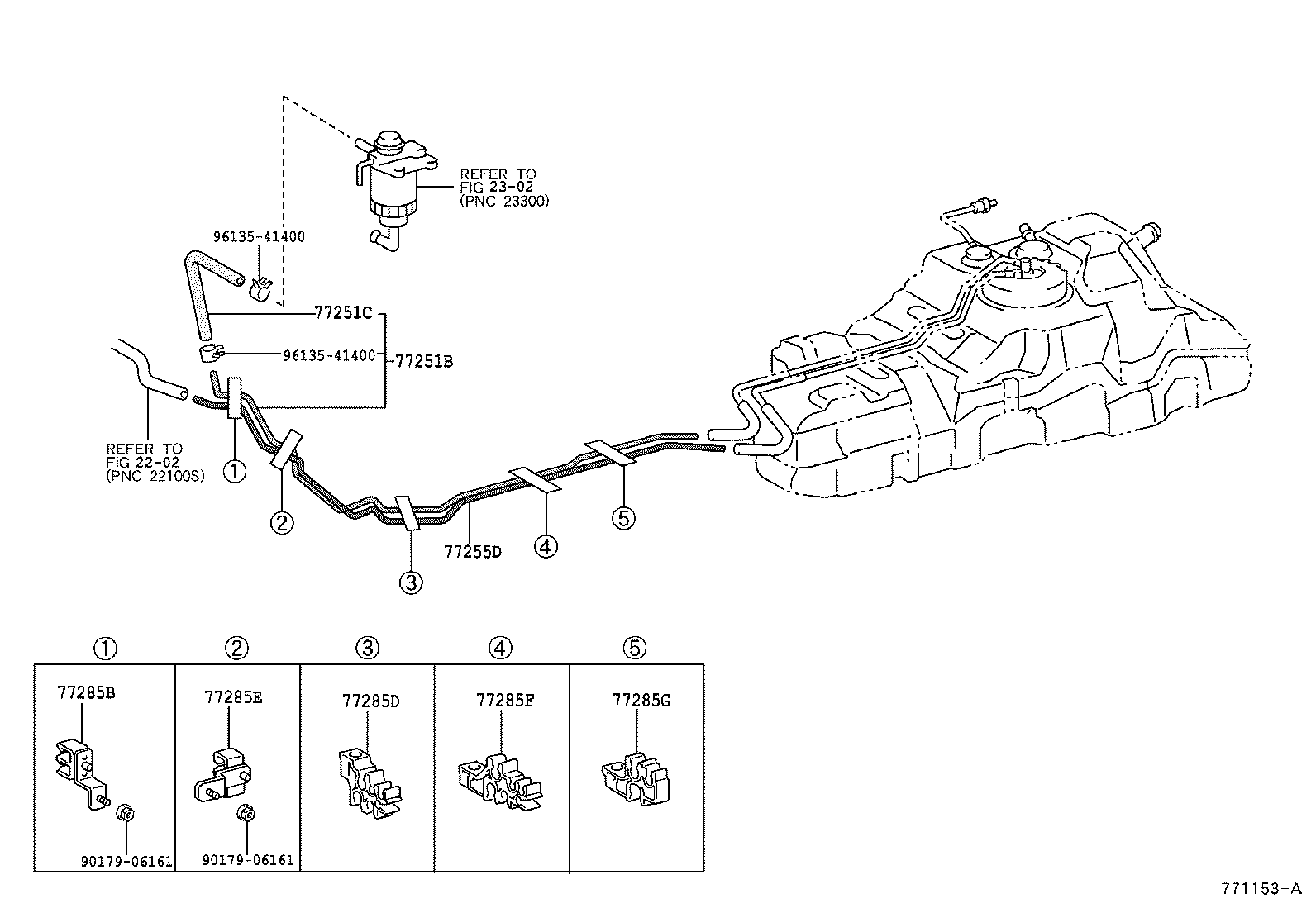

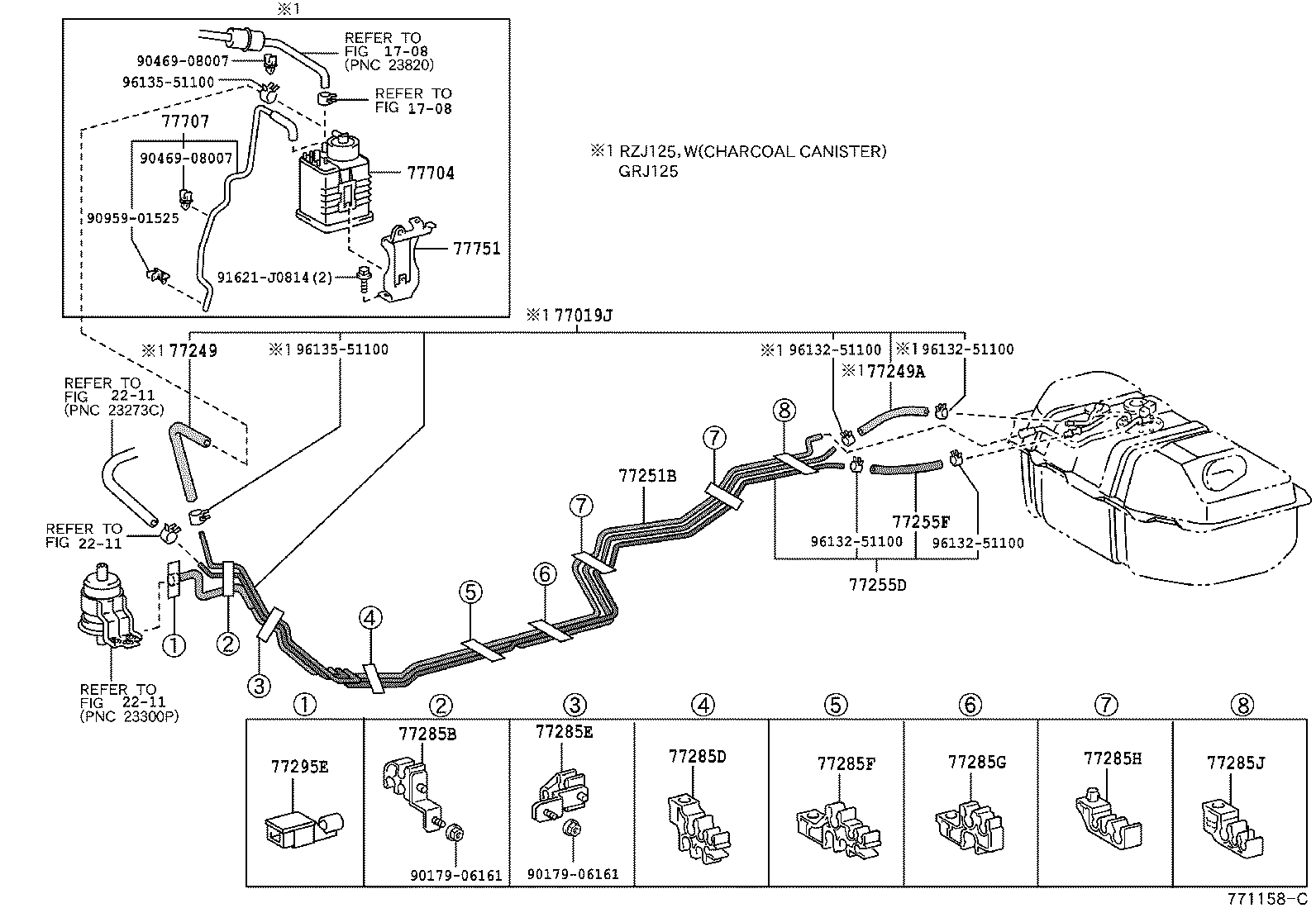

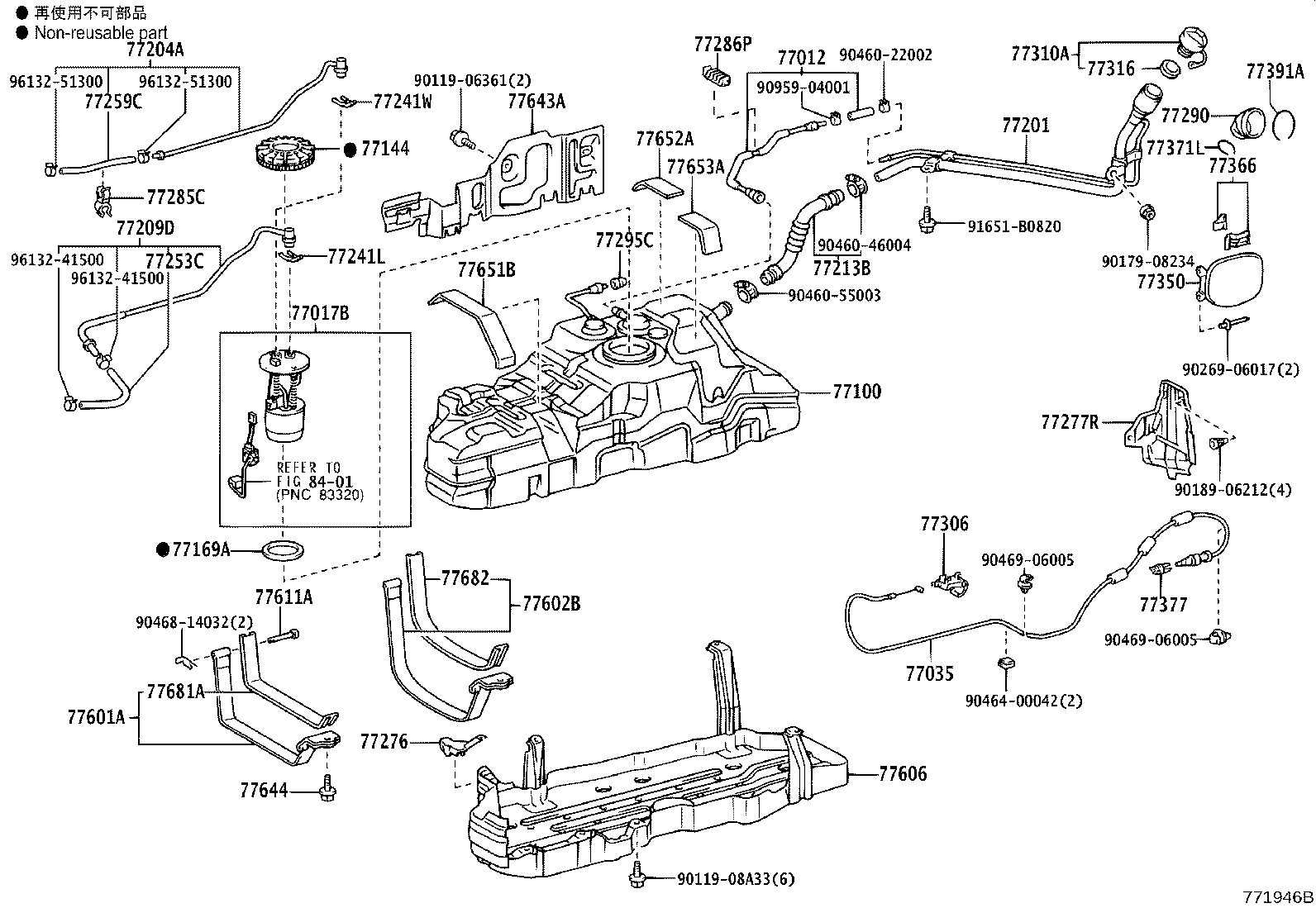

Illustrations
Part groups
| PNC | Description |
|---|---|
| 23217D | Filter, Fuel Pump |
| 23221 | Pump, Fuel |
| 23222A | Tube, Fuel Return Jet |
| 23225A | Spacer, Fuel Pump |
| 23229A | Clip(FOR FUEL PUMP FILTER) |
| 23239A | Hose |
| 23249A | Rubber, Cushion(FOR FUEL PUMP) |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23300J | Filter Assy, Fuel |
| 23310E | Filter Assy, Fuel Pump |
| 23917 | Cooler, Fuel |
| 23921E | Support, Fuel Filter |
| 77011A | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77012 | Tube Sub-assy, Fuel Tank Breather |
| 77017B | Tube Sub-assy, Fuel Tank Vent |
| 77019J | Tube Sub-assy, Fuel Tank TO Canister |
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77100 | Tank Assy, Fuel |
| 77100V | Hose, Fuel |
| 77100Z | Tank Sub-assy, Fuel Sub |
| 77101 | Plug(FOR FUEL SUB-TANK) |
| 77101A | Gasket(FOR FUEL SUB-TANK) |
| 77135 | Bracket, Check Valve |
| 77144 | Retainer, Fuel Pump Gauge |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77169B | Gasket, Fuel Suction Tube Set, NO.1 |
| 77174 | Support, Fuel Suction, NO.1 |
| 77178B | Gasket, Fuel Tank Filler Pipe, Lower (FOR SUB-TANK) |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77179B | Gasket, Fuel Tank Evaporation Vent Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77201B | Hose, Fuel, NO.2(FOR FUEL TANK INLET PIPE) |
| 77202 | Tube Sub-assy, Breather |
| 77202A | Hose, Fuel, NO.1 (FOR BREATHER TUBE) |
| 77203B | Tube Sub-assy, Fuel Suction |
| 77204A | Tube, Fuel Tank Return |
| 77206A | Gasket (FOR FUEL TANK SUCTION TUBE) |
| 77206C | Tube Sub-assy, Fuel Main, NO.2 |
| 77207A | Tube Sub-assy, Fuel Return |
| 77207C | Tube, Fuel Return, NO.1 |
| 77207D | Hose, Fuel Return |
| 77208A | Tube Sub-assy, Fuel Main, NO.4 |
| 77209D | Tube Sub-assy, Fuel Tank Main |
| 77213 | Hose, Fuel Tank Sub Inlet |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77241H | Hose, Fuel, NO.7 |
| 77241K | Hose, Fuel, NO.9 |
| 77241L | Tube, Fuel Tank Suction |
| 77241W | Clip, Tube Joint |
| 77249 | Hose, Fuel Emission |
| 77249A | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77251C | Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) |
| 77251D | Hose, Fuel, NO.2(FOR FUEL MAIN TUBE) |
| 77253C | Hose, Fuel, NO.2(FOR FUEL MAIN NO.3 TUBE) |
| 77255D | Tube, Fuel Return |
| 77255F | Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE) |
| 77256C | Tube, Fuel Return, NO.2 |
| 77257E | Hose, Fuel, NO.2(FOR FUEL RETURN NO.3 TUBE) |
| 77259C | Hose, Fuel |
| 77261D | Tube, Fuel Tank TO Canister |
| 77262 | Tube, Fuel Emission, NO.2 |
| 77262B | Tube, Fuel Tank TO Canister, NO.2 |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77276 | Protector, Fuel Hose |
| 77277 | Tube, Fuel Return, NO.1 |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277B | Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1) |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77285B | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77285C | Clamp, Fuel Tube, NO.1 (FOR FRONT FUEL MAIN) |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285E | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77285G | Clamp, Fuel Tube, NO.1 |
| 77285H | Clamp, Fuel Tube, NO.1 |
| 77285J | Clamp, Fuel Tube, NO.1 |
| 77286J | Clamp, Fuel Tube, NO.4 |
| 77286L | Clamp, Fuel Tube, NO.5 |
| 77286P | Clamp, Fuel Tube, NO.8 |
| 77289 | Holder, Fuel Tank Pipe Setting |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77295C | Grommet, Fuel Tube |
| 77295D | Grommet, Fuel Tube |
| 77295E | Grommet, Fuel Tube |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77298C | Clamp, Fuel Tube, NO.4 |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77371L | Ring, Fuel Tank Filler Pipe Shield |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77380 | Valve Assy, Fuel Cut Off |
| 77391A | Ring, Fuel Inlet Box |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77601E | Band Sub-assy, Fuel Tank |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77606C | Protector, Fuel Tank, NO.2 |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77617A | Union, Auxiliary Fuel Band |
| 77643A | Protector, Fuel Tank, NO.3 |
| 77644 | Bolt, Fuel Tank |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77651B | Cushion, Fuel Tank |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77653A | Cushion, Fuel Tank, NO.3 |
| 77681A | Seat, Fuel Tank Band |
| 77681B | Seat, Fuel Tank Band |
| 77682 | Seat, Fuel Tank Band, LH |
| 77701F | Tube, Fuel, NO.1(FOR BREATHER VALVE) |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77701U | Hose, Fuel (FOR CHECK VALVE) |
| 77701V | Valve, Check (FOR SUB-FUEL TANK) |
| 77704 | Canister Sub-assy, Charcoal |
| 77707 | Tube Sub-assy, Charcoal Canister Outlet |
| 77751 | Bracket, Charcoal Canister Base |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
