Toyota Land Cruiser Prado
2002-09 → 2010-03 · chassis GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12# · catalogue 781350 · General
Supported model
Data version 2010-10
Interior Lamp
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81205 | Lamp Sub-assy, Ash Receptacle |
| 81205B | Bulb, Ash Receptacle Lamp |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81230D | Lamp Assy, Front Door Courtesy, RH |
| 81230E | Lamp Assy, Front Door Courtesy, LH |
| 81231 | Lens, Courtesy Lamp |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81241 | Lens, Room Lamp, NO.1 |
| 81241A | Lens, Room Lamp, NO.2 |
| 81250 | Lamp Assy, Room, NO.2 |
| 81250B | Bulb, Room Lamp, NO.2 |
| 81260 | Lamp Assy, Glove Box |

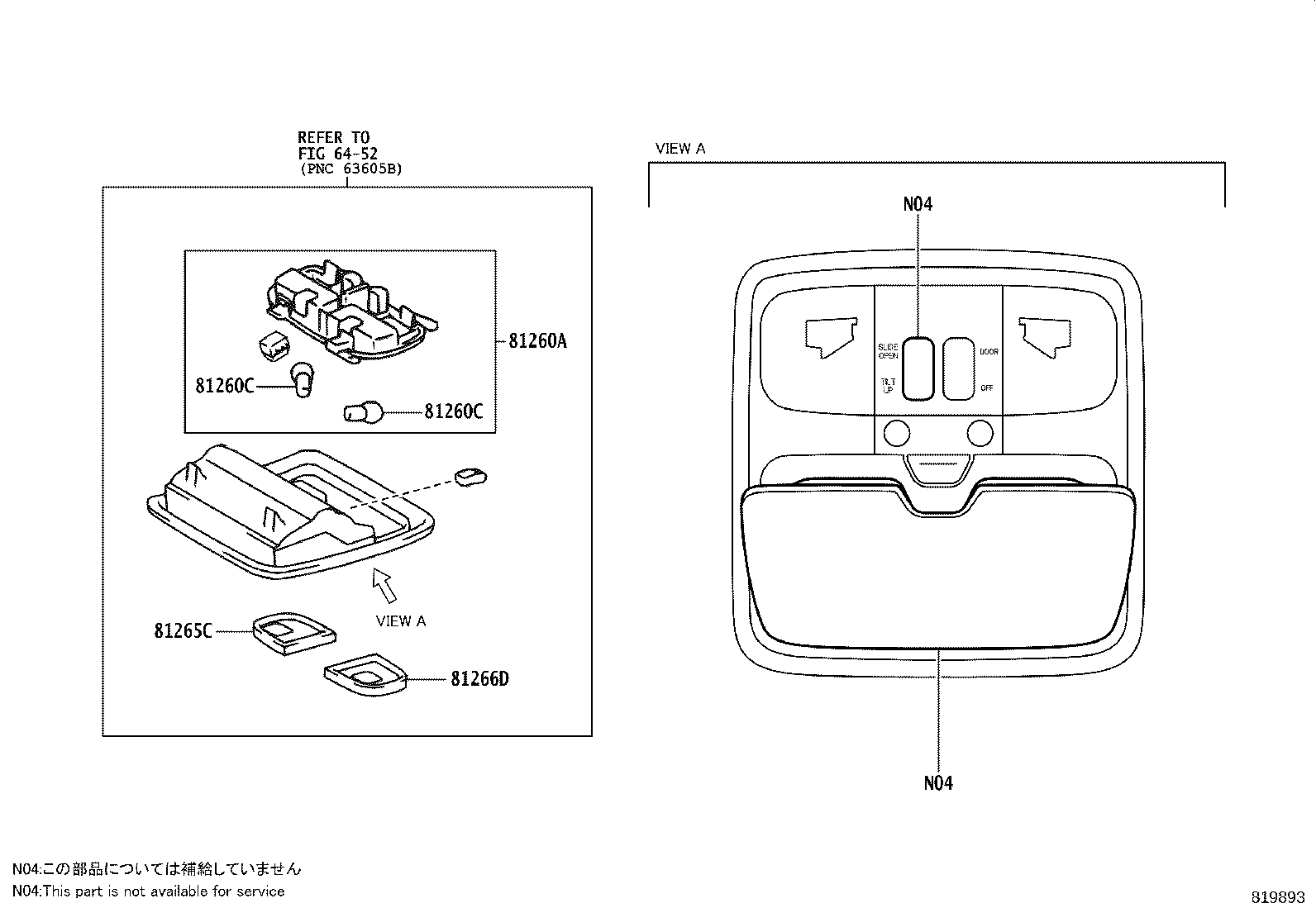

| 81260A | Lamp Assy, Map |
| 81260B | Bulb(FOR GLOVE BOX) |
| 81260C | Bulb(FOR MAP LAMP) |
| 81261B | Lens,Glove Box Lamp |
| 81265C | Lens, Map Lamp, NO.1 |
| 81266D | Lens, Map Lamp, NO.2 |
| 81291 | Lens, Room Lamp, NO.3(FOR REAR) |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81399B | Cover, Lens |
| 81870D | Lamp Assy, Key Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
